Operating Instructions Thermostat TS/TSE
HOM107718027Ien-6 Page 3 / 7
INTERTEC-Hess GmbH · Raffineriestr. 8 · 93333 Neustadt/Donau · Germany · [phone] · [email protected]
1 General
These operating instructions describe the safe and
proper way to work with the device. The safety
information and instructions given as well as the local
accident prevention regulations and general safety
regulations valid in the area of application must be
complied with. These instructions are a constituent part
of the instrument and need to be kept in the immediate
vicinity of the device accessible to personnel at all times.
Before starting any work, the operating instructions
should be read in full.
2 Use

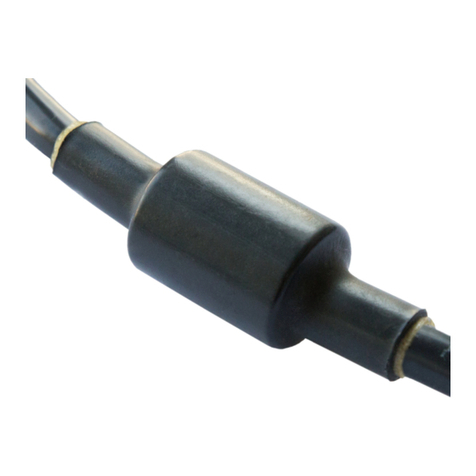

The temperature switches TS and TSE are
manufactured according to the guideline 2014/34/EU
and are intended, among other things, for controlling the
temperature of enclosures or cabinets.
The type TS is installed in the connection line of the
radiator at the factory (standard version).
The type TSE is supplied with its own connection line
and must be attached to the radiator with spacing rollers.
Both versions are approved in Ex zone 1 and zone 2 for
device categories G/ D, in temperature class T6.
EC Equipment Type Examination Number: PTB 03
ATEX 2027 X
See http://www.intertec.info
3 Explanation of symbols for warnings
and signal words
The safety information warns the user about risks and
provide information on how risks can be avoided.
Safety information can be found at the start of the
chapter before the instructions which may lead to a
hazardous situation. Additional safety information can be
found at the beginning of this manual.
Safety instructions which must be adhered to are
highlighted as follows:
DANGER
DANGER
This sign is warning about an extremely hazardous
situation which, if not heeded, will lead to death or
serious irreversible injury.
WARNING
WARNING
This sign is warning about a hazardous situation which,
if not heeded, may lead to death or serious irreversible
injury.
CAUTION
NOTICE
This sign is warning about a hazardous situation which,
if not heeded, may lead to slight, reversible injury.
NOTICE
NOTE
It is essential to pay attention to this safety advice as you
may otherwise incur material damage.
INFO
Important notes and useful additional information.
4 Technical Data
Rated voltage max. 292 V AC
Permitted operating voltage max. 265 V AC
Special voltages with corresponding power adjustment
and component selection are possible
Rated current (in
compliance with VDE 0298)
max. 10 A
Ambient temperature - 60 to + 80 °C
Max. permitted operating
temperature at rated
operation
- 60 to + 80 °C
Installation position optional
Connecting cable Silicon tube conductor,
resistant to notching and
oil,
TSE:
2 x 1.5 mm², Ø 7.7 mm
TS:
3 x 1.5 mm², Ø 9.5 mm
TS+FA:
5 x 1 mm², Ø 9.5 mm

www.intertec.info
Operating Instructions Thermostat TS/TSE
Page 4 / 7 HOM107718027Ien-6
INTERTEC-Hess GmbH · Raffineriestr. 8 · 93333 Neustadt/Donau · Germany · [phone] · [email protected]
Dimensions H x W x D 22 x 30 x 22 mm
Mean Time Before Failure 50.000 h
Storage temperature - 60 to + 80 °C
INFO
You will find the precise technical data for your
instrument on the label.
Switch on/ switch off temperatur
Switch point
Illustration1: Example: Label thermostat TS10
5 Installation
NOTICE
Risk of Damage
When removing from the packaging and during
transport, the connection line must not be stressed or
bent.
The connection cable must be permanently installed up
to the inlet into the on-site junction box, taking the
permissible bending radius = 5 x outer diameter into
consideration.
To ensure operational safety, the heater must operate
under temperature conditions which will NOT exceed the
trigger temperature of the limiter.
The operating temperatures must be adhered to.
INFO
The temperature switch must be installed in a housing
that meets the requirements in accordance with EN
60079-0:2009 section1.
For example:
The TSE must be connected to the radiator using the
fastening screws supplied in order to utilise its
equipotential bonding and the thermal feedback.
It must be switched electrically in series with the radiator
in an Ex e junction box.
6 Connection
INFO
The device may only be connected up and secured by a
trained person, taking into account the "rated voltage"
and "rated current" specified on the nameplate.
A 10-A fuse according to IEC 60127-2-1 or a motor
protection switch with short-circuit and thermal
instantaneous release must be upstream of each
temperature switch as short-circuit protection (setting to
10 A). The fuse or motor protection switch can be
housed in the corresponding power supply unit or must
be housed separately upstream. The fuse rated current
must be the same as or greater than the maximum value
of the specified rated voltage (normally UN+10%) of the
magnet. The breaking capacity of the fuse link must be
the same as or greater than the maximum short-circuit
current expected at the place of installation (normally
1500 A).
NOTICE
Danger of overheating
The ambient temperature range of the temperature
switch must not exceed -60°C and +80°C in operation.
NOTICE
Risk of Damage
The temperature switch and its connection line (cable
extension) must be set up in such a way that they are
protected sufficiently against mechanical damage.
The connection line of the temperature switch must be
connected in a housing that complies with the
requirements of an approved type of protection in
accordance with EN 60079-0:2009 section 1 if
connected in a potentially explosive atmosphere.
The equipotential bonding or earthing must be ensured
by installing the temperature switch on the entire system.
The temperature switch must be installed in an
additional housing that meets the requirements in
accordance with EN 60079-0:2009.
In a TT or TN system, a residual current device (RCD)
must be used where the measured triggering residual
current does not exceed 100 mA. Residual current

www.intertec.info
Operating Instructions Thermostat TS/TSE
HOM107718027Ien-6 Page 5 / 7
INTERTEC-Hess GmbH · Raffineriestr. 8 · 93333 Neustadt/Donau · Germany · [phone] · [email protected]
devices with a measured triggering residual current of 30
mA are preferable. In an IT system, an insulation
monitoring device needs to be used which switches off
the supply as soon as the insulation resistance is no
greater than 50 Ω per Volt of the rated voltage (refer also
to DIN EN 60079-14; section 7.4).
1
2
J
L
N
PE
J
Terminal box
TS
Heating
Option: FA
br=brown bl=blue ye/gn=yellow/green bk=black gr=grey
br bl
ye/gn
bk
gr
Illustration2: CP ..THERM with TS
7 Commissioning
When installing with TS:
The temperature switch is connected directly to the
radiator.
When installing with TSE:
The temperature switch is screwed onto the radiator.
If the radiator and temperature switch is installed and
secured in accordance with the guidelines specified in
section Installation [}Page4] and Connection [}Page4],
then the radiator may be switched on.
NOTICE
Deviation of the switching point due to
incorrect installation
The ambient air must be able to circulate freely around
the thermostat. An installation at or near to the housing
wall results in a deviation of the switching point.
8 Maintenance
The design of the device does not require any
maintenance.
Functional and safety test intervals can be freely
selected by the operator in accordance with the
applicable regulations.
Repairs may only be carried out by the manufacturer in
the factory.
All components have to be kept clean and free of dust
and harmful substances that could lead to excessive
temperature rise.
In the dust Ex area, the applicable requirements of EN
60079-17 and EN 60079-19 must be complied with.
9 Troubleshooting
In case of a fault, first check the function of the
downstream operating equipment.
The fault is caused by the temperature switch:
Fault Cause Effect/Measure
Device runs
continuously
Temperature
switch (power
circuit) is closed
permanently
Check
installation,
continuity test of
the power circuit.
Note the
switching point of
the temperature
switch!
Device does not
run
Temperature
switch (power
circuit) is
interrupted
permanently
Check
installation,
continuity test of
the power circuit.
Note the
switching point of
the temperature
switch!
The temperature switch, with the INTERTEC heating if
necessary, must be returned to the manufacturer for
checking.

www.intertec.info
Operating Instructions Thermostat TS/TSE
Page 6 / 7 HOM107718027Ien-6
INTERTEC-Hess GmbH · Raffineriestr. 8 · 93333 Neustadt/Donau · Germany · [phone] · [email protected]
10 Safety information
CAUTION
Risk of injury at the rib ends
The sharp edges on the heating ribs may cause injury if
handled incorrectly.
CAUTION
Risk of burns from a hot surface
Attainable highest temperatures:
- Max. 160°C with T3 heating systems
- Max. 100°C with T4 heating systems
- Max. 70°C with T5 heating systems
- Max. 50°C with T6 heating systems
Do not touch device during operation! Before working on
the device, allow it to cool down first.
11 Deinstallation
Disassembly may only be carried out by a trained
person.
DANGER
Risk of fatal injury from electric current!
If contact is made with live components, there is the risk
of fatal injury.
For this reason, switch off the voltage supply, secure
against being switched on again and check that no more
voltage is present.
Disconnect connection line from the clamps and from the
connection socket, disconnect device from bracket and
remove it.
12 Disposal
Disassemble the components of the product, taking the
applicable local labour protection and environmental
regulations into consideration and make sure that the
components are recycled:
• Scrap metal
• Send plastic elements to recycling
• Sort other components according to their material
properties and dispose of them.
NOTICE
Environmental damage may be caused if
disposed of incorrectly!
Electrical scrap and electronics components are subject
to hazardous waste treatment and must only be
disposed of by certified specialists!
The local community authorities or specialist waste
disposal companies can provide information on
environmentally friendly disposal.
13 EU declaration of conformity
The manufacturer, INTERTEC-Hess GmbH,
Raffineriestrasse 8, 93333 Neustadt/Donau, Germany,
hereby declares in sole responsibility that the product
Product / Type designation:
TS/TSE
complies with the provisions of the following directives
2014/34/EU (ATEX), 2014/30/EU (EMC), 2011/65/EU
(RoHS), 2012/19/EU (WEEE) complies with the following
standards, harmonized standards, where appropriate
and/or standardized documents:
EN 60079-0:2018
EN 60079-18:2015
EN 60079-31:2016
EN IEC 61000-6-4:2007+A1:2011
Harmonized Standard (RoHS):
DIN EN IEC 63000:2019
Designation:
0102
II 2 G Ex mb IIC T6
II 2 D Ex tb IIIC T80°C
PTB 03 ATEX 2027 X
Neustadt, August 18th, 2021
Dipl.-Ing. Martin Hess, Managing Director

www.intertec.info
Operating Instructions Thermostat TS/TSE
HOM107718027Ien-6 Page 7 / 7
INTERTEC-Hess GmbH · Raffineriestr. 8 · 93333 Neustadt/Donau · Germany · [phone] · [email protected]
14 Further information and service
If the information contained in this instruction manual
should not be sufficient in any way, then INTERTEC
would be glad to be at your disposal to provide further
information and service.
Please contact your INTERTEC contact person or
directly contact
INTERTEC-Hess GmbH
Raffineriestr. 8
93333 Neustadt/Donau
Germany
Phone: [phone]
e-mail: [email protected]
Website: www.intertec.info
Warranty
The legally defined warranties and warranty periods of
24 months are applicable to our scope of supply and
services.
You will find more detailed information in the
manufacturer warranty from INTERTEC for heating
systems and accessories.
These instructions do not claim to take all
designs, options or changes into
consideration, even in association with
installation, operation or maintenance.
INTERTEC does not accept responsibility
for providing information about changes
made retrospectively.
