InterTest XBC-KZ33 User manual

XBC-KZ33
Block Camera
Part No.
EM13920
EM13921

2iShot® Xblock® XBC-KZ33 Block Camera www.intertest.com
2
Revision History
Date Version Contents
2017.09.01 V1.0.0 Release Document
Revision History
2018.02.09 V1.0.0 Release Document

3www.intertest.com Operating Manual
3
TABLE OF CONTENTS
----------------------------------------------------
3
FEATURES
----------------------------------------------------
4
PRECAUTION
----------------------------------------------------
5
SPECIFICATIONS
----------------------------------------------------
6
OSD & MENU
----------------------------------------------------
9
DIMENSION
----------------------------------------------------
16
INTERFACE
----------------------------------------------------
17
FUNCTIONS
----------------------------------------------------
22
COMMAND LIST
----------------------------------------------------
28
TABLE OF CONTENTS
Table of Contents

4iShot® Xblock® XBC-KZ33 Block Camera www.intertest.com
Features
4
This Product is a high performance CCTV camera
with built-in 33x optical zoom and 12x digital
zoom technologies. This product can be applied to
various fields such as security camera for
surveillance (CCTV camera), data viewer, Video
presenter(VP) and speed dome camera
• This camera uses a 1/2.8” 2.13M Exmor R CMOS
Image Sensor that supports FULL HD (high
definition) to produce high-quality images.
• Using progressive scan, images with a wide
dynamic range can be obtained with the newly
developed image signal processor (Wide
Dynamic Range function, WDR).
• The camera is equipped with a bright zoom lens
with 33× optical zoom and F1.6 aperture (optical
zoom + digital zoom =396×)
• Low-noise images can be obtained even in low-
light environments using the Noise Reduction
function(3DNR/2DNR)
• Video signals can be output as digital only.
Depending on register settings, you can select
from a variety of digital output methods:
1080p/60,1080p/50,1080p/30, 1080p/25,
720p/60,720p/50,720p/30, 720p/25, 1080i/60,
1080i/50
• An infrared (IR) Cut-Filter can be disengaged
from the image path for increased sensitivity in
low light environments. The ICR will
automatically engage depending on the ambient
light, allowing the camera to be effective in
day/night environment.
• A Privacy Zone Masking function (max. 16
blocks) is available.
• A Motion Detection function is available.
• A title composed of up to 21 lines can be set
for displaying on the screen. 30 characters can
be used on one line (VISCA).
• Support 256 internal zoom/focus presets.
• Digital Image Stabilizer function reduces image
blurring caused by vibration.
• Output format
HD-SDI/EX-SDI(V1.0)/LVDS/CVBS/AHD/TVI
• LVDS output mode can be set.
Single / Dual output
F
EATURES
XBC-KZ33

5www.intertest.com Operating Manual
Precaution
5
Operation is subject to the following
conditions;
•This device may not cause harmful interference.
•This device must accept any interference
received, including interference that may cause
undesired operation.
•A regulated DC 12V 500mA power supply is
recommended for use with this camera for the
best image and the most stable operation.
An unregulated power supply can cause
damage to the camera. When unregulated
power supply is applied, product warranty will
be out of subject.
•If it is used for CVBS application. It is
recommended that the camera is used with a
monitor that has a CCTV quality 75 Ohm video
impedance level. If your monitor is switched to
high impedance then please adjust accordingly.
•Do not attempt to disassemble the camera to
gain access to the internal components. Refer
servicing to tour dealer.
•Never face the camera towards the sun or any
bright or reflective light, which may cause
smear on the image and possible damage to the
CMOS.
•Do not remove the serial sticker for the warranty
service.
•Do not drop the thing or give a strong impact to
the product.
•Avoid the place where is so dusty, humid or
soot-covered. It may cause electric shock or fire.
•Do not expose to an intense light source such as
direct sunlight or spotlight. It may damage the
CMOS.
•If the camera operates more than 24 hours, It is
recommended that you execute the lens initial
action or reset the camera.
•Since the color representation differs depending
on the DVR, you have to select the type of DVR
to use in the menu.
•When outputting video with CVBS, DVR
selection must be set to CVBS. When outputting
images using AHD / TVI DVR, you must select
the appropriate DVR.
P
RECUTION
Information may be changed without notice
This document provides technical information for the user. KT&C reserves the right to modify the information in this
document as necessary. The customer should make sure that they have the most recent manual version.
5
Operation is subject to the following
conditions;
•This device may not cause harmful interference.
•This device must accept any interference
received, including interference that may cause
undesired operation.
•A regulated DC 12V 500mA power supply is
recommended for use with this camera for the
best image and the most stable operation.
An unregulated power supply can cause
damage to the camera. When unregulated
power supply is applied, product warranty will
be out of subject.
•If it is used for CVBS application. It is
recommended that the camera is used with a
monitor that has a CCTV quality 75 Ohm video
impedance level. If your monitor is switched to
high impedance then please adjust accordingly.
•Do not attempt to disassemble the camera to
gain access to the internal components. Refer
servicing to tour dealer.
•Never face the camera towards the sun or any
bright or reflective light, which may cause
smear on the image and possible damage to the
CMOS.
•Do not remove the serial sticker for the warranty
service.
•Do not drop the thing or give a strong impact to
the product.
•Avoid the place where is so dusty, humid or
soot-covered. It may cause electric shock or fire.
•Do not expose to an intense light source such as
direct sunlight or spotlight. It may damage the
CMOS.
•If the camera operates more than 24 hours, It is
recommended that you execute the lens initial
action or reset the camera.
•Since the color representation differs depending
on the DVR, you have to select the type of DVR
to use in the menu.
•When outputting video with CVBS, DVR
selection must be set to CVBS. When outputting
images using AHD / TVI DVR, you must select
the appropriate DVR.
P
RECUTION
Information may be changed without notice
This document provides technical information for the user. KT&C reserves the right to modify the information in this
document as necessary. The customer should make sure that they have the most recent manual version.

6iShot® Xblock® XBC-KZ33 Block Camera www.intertest.com
Specications
6
Format
ATC-HZ7833M-LA
ATC-HZ7833M-LT
Video System
Image Sensor
Effective Pixels
1/2.8‛Exmor R CMOS (STARVIS)
2.13 million pixels (1945(H) x 1097(V))
Output Format
LVDS/SDI/CVBS : 1080p60/50/30/25, 720p60/50/30/25, 1080i60/50
AHD : 1080p30/25 TVI: 1080p30/25, 720p30/25
Sync System
CVBS scale
LVDS mode
Internal
16:9 / 4:3 (CVBS 720H)
Single / Dual
Video Output
HD-SDI / EX-SDI(V1.0) / CVBS / LVDS
HD-AHD
HD-TVI
Min. illumination
Day
Night (IR-cut filter on)
S/N ratio(AGC off , DSS off)
0.5 Lux @ F1.6
0.1 Lux @ F1.6
More than 52 dB
Optical Lens
Zoom Magnification
Practical f-value
Practical Horizontal-Angle
Practical Vertical Angle
Practical Diagonal Angle
F-value
X33
4.6 to 152.0 mm
60.08°(W) ~ 2.08°(T)
35.32°(W) ~ 1.18°(T)
66.10°(W) ~ 2.46°(T)
F1.6(W ) ~ F4.8(T)
Zoom
Maximum Zoom Ratio
Optical Zoom Ratio
Digital Zoom Ratio
Digital Pan/Tilt
Speed (Focus Tracking On)
(Focus Tracking Off)
x1 ~ x396
x1 ~ x33
x1 ~ x12
-
5.0 ~ 50 sec
4.0 sec
Focus
Control Mode
IR correction
Focal Range
Auto / Manual / Interval / One Shot(=Zoom Trigger, One Push)/PRESET
Standard/IR Light
Infinity~1.5m(T)/0.1m(W)
Day & Night
D&N mode
Night Color
Auto / Day (Color) / Night (BW) / External-H / External-L
Off/On
White Balance
Auto / ATW / Indoor / Outdoor / Push / Manual
Exposure
AE mode
Brightness
AGC Limit
Manual Shutter
Manual AGC
Manual Iris
Sens-Up
ETC
Auto / Shutter Priority / Iris Priority/ Manual/Bright
0~14
-3dB ~ 58dB
X32~x2,1/25(30)/1/50(60) ~ 1/30000
-3dB ~ 58dB
F1.6 ~ F19, Close
Off ~ 32fields
Spot AE, Slow AE response
SPECIFICATION
EM13921 EM13920

7www.intertest.com Operating Manual
7
Format ATC-HZ7833M-LA ATC-HZ7833M-LT
OSD
English / Japanese / Russian / Spanish / German /France/ Portuguese / Chinese
DSP functions
Digital Slow Shutter
Image Freeze
Image Reverse (E-FLIP)
Privacy Masking
Title Display
Motion Detect
D-WDR
WDR (NOTE1)
BLC
HLC
AGC
Sharpness
3DNR
2DNR
Defog
Gamma
Lens Shading
Defect Detection
Digital Image Stabilizer
Picture Effect
Max. 32 fields
Off / On
Off / Horizontal(mirror) / Vertical / H+V(180° flip)
Spherical Privacy
- 16-zone
- Interlock / Non-Interlock Mask
- 14 mask color selectable, semi-transparency
- Pan(0°~360°), Tilt(+90°~-90°)
16 characters (display position selectable)
4-Zone
- Alarm output : OSD / Serial Communication
Off / Low/Middle/High
WDR (Low/Middle/High)
Off / On, Area selectable
Off / 0 ~ 20, Color selectable
Max. 58dB
Adjustable(0~10)
Off/On(1~5)
Auto/Manual(Weight High/Low)
Off / Low / Middle / High
0.45/0.50/0.55/0.60/0.65/0.70/0.75
Off / Low / Middle / High
Support
On / Off
Negative/Positive, Blanck&White(Monochrome Image)
Position Preset (zoom/focus)
Non-volatile 256 position(zoom/focus) presets.
Memory Preset
16-presets & custom preset
HD-SDI UCC
ATC-HZ78xxxxUmodel only
HD- UTC
AHD UTC
TVI UTC (PelcoC/HikvisionC)
Communication (UART)
Camera ID
Remote Control
Control Protocol
Communication Speed
0~255
RS-232 TTL +3.3V (+5.0V Compatible) / RS485
VISCA /Pelco-D/Pelco-P/HITACHI : automatically detection
2400/4800/9600(default)/19200/38400/57600/115200bps selectable
Power
Supply Voltage
Supplied Current(motor on)
Consumption (motor on)
DC 12V (+7.0V ~ +15V)
260mA(430mA)
3.2W(5.2W)
Physical
Dimension (WxHxD) [mm]
Weight
50.0x58.8x95.8
260g
Temperature& Humidity
Operating condition
Storage condition
Temperature (-10°C~50 °C / 14°F~122°F), Humidity (20% ~ 80%)
Temperature (-20°C~60 °C / -4°F~140°F), Humidity (20% ~ 95%)
(NOTE1)When CVBS is connected, WDR automatically turns off and Digital WDR operates.
EM13921 EM13920

8iShot® Xblock® XBC-KZ33 Block Camera www.intertest.com
8

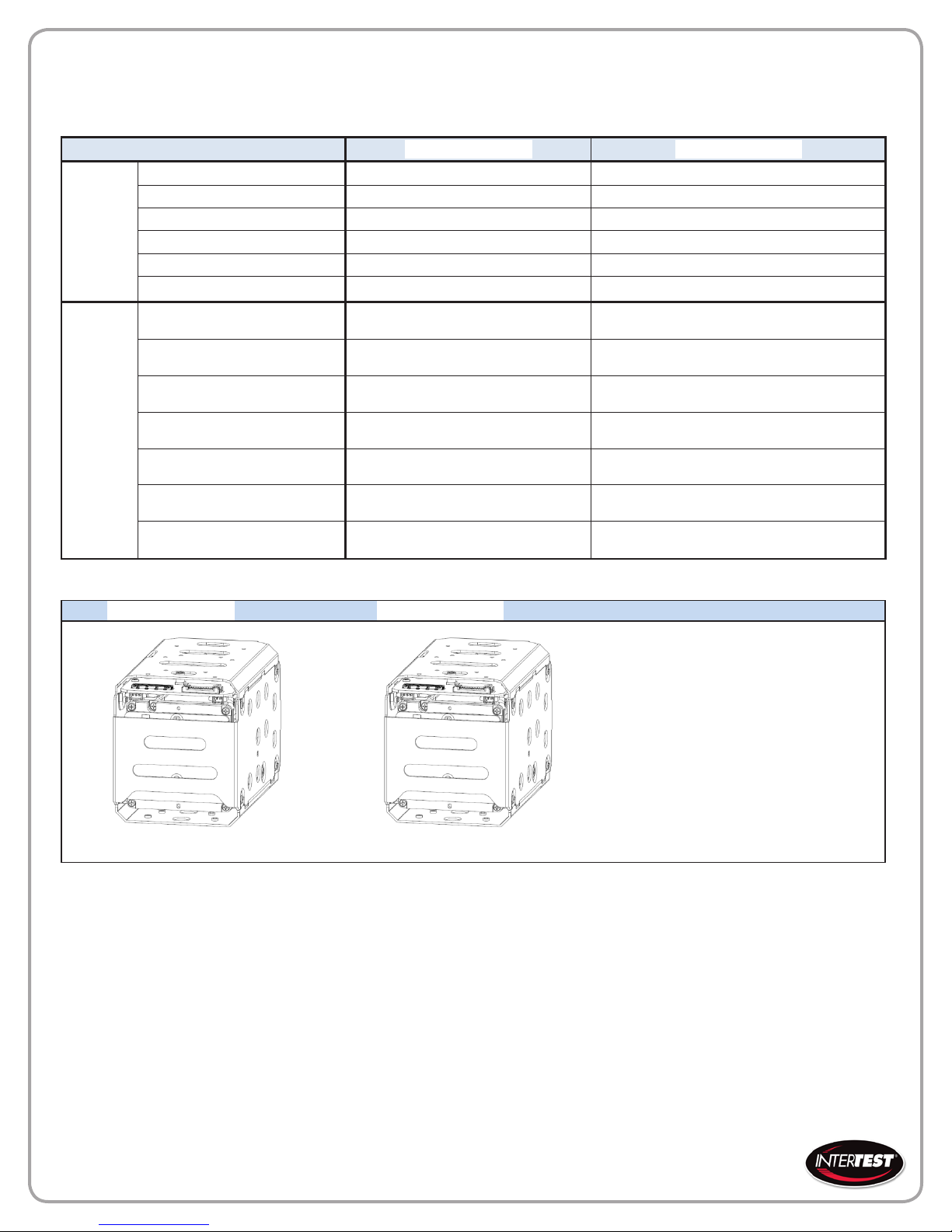

INTERFACE SUMMARY
Interface & Video
ATC-HZ7833M-LA
ATC-HZ7833M-LT
Video
Output
EX-SDI (V1.0) O O
HD-SDI O O
HD-TVI O
HD-AHD O
CVBS O O
LVDS ◎◎
Interface
30pin Micro Coaxial
(USL00-30L-C, 0.4mm)
◎◎
24pin FFC
(SFV24R-1STE1HLF, 0.55mm)
9pin FFC
(52207-0985, 1.0mm)
O O
3pin External D&N
(SM03B-SRSS-TB, 1.0mm)
O O
3pin AHD/TVI
(53261-0371, 1.25mm)
O O
2pin RS-485
(53261-0271, 1.25mm) O O
MMCX O O
◎: Main Video Output / Main Control Connector
ATC-HZ7833M-LA (1/2.8‛)
ATC-HZ7833M-LT (1/2.8‛)
EM13921 EM13920
EM13921 EM13920

9www.intertest.com Operating Manual
9

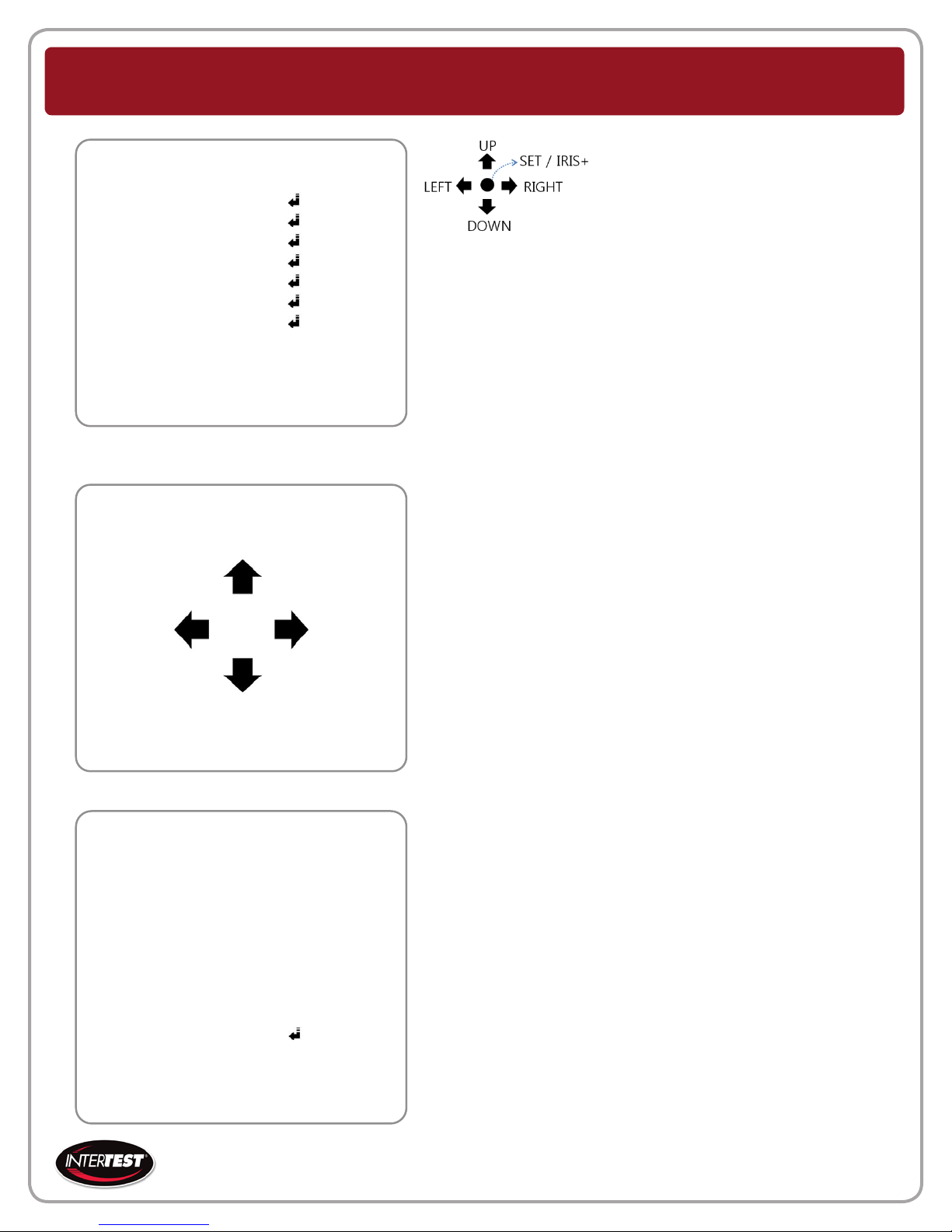

UP/DOWN : move cursor
LEFT/RIGHT : change data, enter to submenu
SET (or IRIS OPEN) : used for SET key
▶FACTORY DEF : factory default setting
It changes the entire menu in the initial state except ‚SYSTEM‛ menu
items.
Adjust SIZE or POSITION.
- CAM TITLE POSITION MENU
- CAM ID POSITION MENU
- ZOOM MAG POSITION MENU
- PRIVACY MASK PAN/TILT POSITION MENU
- PRIVACY MASK SIZE MENU
- FOCUS PRESET POSITION SETTING MENU
Setting Zoom/Focus function
▶AF MODE : AUTO/ONE SHOT/INTERVAL/MAMUAL/PRESET
▶DIGITAL ZOOM : OFF/ON
▶ZOOM START/STOP
▶ZOOM SPEED : 0~7
▶FOCUS LIMIT : 10CM~INF, focus near limit.
▶AF INTERVAL :1min~10min
Auto Focus interval when AF INTERVAL mode
▶HOME POSITION : OFF/ON
Go to X1 position when power on.
▶PRESET POSITION : Select target position for PRESET AF
▶PRESET : Select PRESET auto focusing range, 4~255
(*)See. “FUNCTIONS”
FOCUS
AF MODE AUTO
D-ZOOM ON
ZOOM START x1
ZOOM STOP x120
ZOOM SPEED 6
FOCUS LIMIT 1M
AF INTERVAL 1min
HOME POSITION OFF
PRESET POSITION [ ]
PRESET MARGIN 10
INITIAL OK
RETURN
SIZE & POSITION
RETURN : [SET] KEY
MAIN MENU
FOCUS [ ]
EXPOSURE [ ]
WHITE BALANCE [ ]
WDR/BLC [ ]
DAY&NIGHT [ ]
IMAGE [ ]
SPECIAL [ ]
FACTORY DEF OK
EXIT
OSD & MENU
OSD & Menu

10 iShot® Xblock® XBC-KZ33 Block Camera www.intertest.com
10
Setting Auto Exposure function.
▶AE MODE : AUTO/IRIS.P/SHUT.P//MANUAL
MODE
AUTO
IRIS.P
SHUT.P
MANUAL
FLICKERLESS
O
X
X
X
IRIS
X
O
X
O
SHUTTER
X
X
O
O
AGC
X
X
X
O
AGC MAX
O
O
O
X
SENS UP
O
O
O
O
WDR
O
X
X
X
▶IRIS : F1.2~CLOSE, Select Manual Iris Value
▶SHUTTER : X32~X2,1/30,~,1/30000, Manual Shutter Speed
▶AGC : -3dB~58dB, Manual Gain Value
▶AGC MAX : -3dB ~ 58dB, AGC maximum rate
▶SENS UP : OFF,X2,X4,X8,X16,X32, Slow Shutter value
▶BRIGHTNESS : 1~14, Image Brightness
Setting Auto White Balance Function.
▶WB MODE :
AUTO/INDOOR/OUTDOOR/ATW/ONE PUSH/MANUAL
AUTO : Automatically adjusts color
INDOOR / OUTDOOR : Set color temperature to be inoor/outdoor light
ATW : Auto Trace White balance
ONE-PUSH : fix the color if pressed PUSH button
MANUAL : Adjust color manually.
▶PUSH AUTO : if WB mode is ONE PUSH
▶COLOR GAIN : 0~20, adjust chroma gain
▶RED/BLUE GAIN : 0~255, adjust manual Red/Blue gain
Setting WDR/BLC/HLC function
▶WDR/BLC MODE : OFF/BLC/HLC/WDR
BLC : Backlight Compensation mode
HLC : Highlight Compensation mode
WDR : Wide Dynamic Range mode
▶LEVEL : adjust HLC/WDR Level
HLC : 0~20
WDR : LOW/MIDDLE/HIGH
▶BLC X- POSITION : adjust BLC X-window position
▶BLC Y- POSITION : adjust BLC Y-window position
▶BLC X-SIZE : adjust BLC X-window size
▶BLC Y-SIZE : adjust BLC Y-window size
▶HLC COLOR : BLACK/WHITE/YELLOW/CYAN/GREEN/MAGENTA/
RED/BLUE
◆ (Caution !!!)
WDR is available if AE MODE is AUTO.
WDR/BLC
MODE BLC
LEVEL 5
BLC X-POSITION 7
BLC Y-POSITION 6
BLC X-SIZE 4
BLC Y-SIZE 5
COLOR BLACK
INITIAL OK
RETURN
WHITE BALANCE
WB MODE AUTO
PUSH AUTO [ ]
COLOR GAIN 5
RED GAIN 10
BLUE GAIN 10
INITIAL OK
RETURN
EXPOSURE
AE MODE AUTO
FLICKERLESS OFF
IRIS F4.8
SHUTTER 1/30
AGC 32dB
AGC MAX 32dB
SENS UP X32
BRIGHTNESS 8
INITIAL OK
RETURN

11www.intertest.com Operating Manual
11
Setting Day&Night Function
▶MODE : AUTO/DAY/NIGHT/EXT-H/EXT-L
▶DWELL TIME : 0~20sec
▶DAY->NIGHT : 1~28
▶NIGHT->DAY : 0~27
▶NIGHT COLOR : BW/COLOR
Select color at night condition.
▶IR SMART : 0~20
Setting Image Function
▶SHARPNESS : 0~15
▶GAMMA : 0.45/0.50/0.55/0.60/0.65/0.70/0.75
▶MIRROR : OFF/H-MIR/V-MIR/HV-MIR
▶FREEZE : OFF/ON
▶D-WDR : OFF/LOW/MIDDLE/HIGH
▶Defog : Setting Defog
▶DNR : Setting Digital Noise Reduction
▶DIS : Setting Digital Image Stabilization
▶EFFECT : Setting Digital Effects
Setting Defog
▶MODE ON/OFF : OFF/ON
▶MODE : AUTO/MANUAL
▶LEVEL : LOW/MIDDLE/HIGH
DEFOG
MODE ON/OFF ON
MODE AUTO
LEVEL MIDDLE
RETURN
SHARPNESS 8
GAMMA 0.50
MIRROR OFF
FREEZE OFF
D-WDR OFF
DEFOG [ ]
DNR [ ]
DIS [ ]
EFFECT [ ]
INITIAL OK
RETURN
DAY&NIGHT
MODE AUTO
DWELL TIME 5sec
DAY->NIGHT 28
NIGHT->DAY 4
IR SMART 0
INITIAL OK
RETURN

12 iShot® Xblock® XBC-KZ33 Block Camera www.intertest.com
12
Setting Digital Noise Reduction
▶3DNR : OFF/1~5, 3DNR weight
▶2DNR MODE : AUTO/MANUAL
▶2DNR WEIGHT-H : 2DNR MANUAL High frequency weight
▶2DNR WEIGHT-L : 2DNR MANUAL Low frequency weight
Setting Digital image stabilization
▶MODE : OFF/ON
▶RANGE : 10%/20%/30%
▶FILTER : LOW/MIDDLE/HIGH
▶AUTO C : OFF/HALF/FULL
Setting Digital Effect function
▶PIC.EFFECT : OFF/NEGATIVE/BW
▶HR MODE : OFF/ON
High Resolution mode
(1) Low frequency area
(2) Excluded area when 2DNR manual mode
(3) High frequency area
The difference between
previous frame (frequency)
2DNR Weight
High
Low
(1) (2) (3)
EFFECT
PIC.EFFECT OFF
HR MODE OFF
RETURN
DIS
MODE OFF
RANGE 30%
FILTER MIDDLE
AUTO C HALF
RETURN
DNR
3DNR 1
2DNR MODE AUTO
2DNR WEIGHT-H 250
2DNR WEIGHT-L 0
RETURN

13www.intertest.com Operating Manual
13
Setting Special Functions
▶CAM TITLE : edit camera title
▶DISPLAY : select display mode
▶PIRVACY : adjust privacy mask status
▶MOTION : adjust motion detect function
▶SYSTEM : system setting
▶INITIAL : (!!!) SYSTEM menu is NOT initialized.
Setting Camera Title
[ Title Edit ]
UP/DOWN : move cursor up&down
LEFT/RIGHT : move cursor left&right
SET (or IRIS OPEN) : select cursor character.
▶DISPLAY : OFF/ON, enable/disable title display
▶LOCATION : adjust TITLE display position
Setting On Screen Display
▶CAM ID DISP : OFF/ON, Camera ID display mode
▶CAM ID POS : Camera ID display position setting
▶ZOOM MAG DISP : OFF/ON
▶ZOOM MAG POS : Zoom ration display position setting
DISPLAY
CAM ID DISP ON
CAM ID POS
ZOOM MAG DISP ON
ZOOM MAG POS
INITIAL OK
RETURN
CAM TITLE
↓
TITLE: _ _ _ _ _ _ _ _ _ _ _ _
ABCDEFGHIJKLMNOP
QRSTUVWXYZ! – ( ) [ ]
0123456789? * : ‚ / .
SPA>> <<BAK
DISPLAY OFF
LOCATION
RETURN
SPECIAL
CAM TITLE [ ]
DISPLAY [ ]
PRIVACY [ ]
MOTION [ ]
SYSTEM [ ]
INITIAL OK
RETURN

14 iShot® Xblock® XBC-KZ33 Block Camera www.intertest.com
14
Setting Spherical Privacy mask
▶MODE : OFF/ON, Privacy mask enable/disable
▶ZONE NO : 1~24, Privacy mask zone number
▶ZONE DISPLAY : OFF/ON, current mask zone display on/off.
▶P/T INTERLOCK : interlocking Pan&Tilt.
▶POS.ZOOM : select zoom position.
[LEFT] zoom out, [RIGHT] zoom in
▶POS.PAN/TILT : select pan/tilt position.(if P/T INTERLOCK OFF)
▶ZONE SIZE : select mask zone width&height.
▶COLOR : select mask zone color, BLACK,GRAY1~6,WHITE,RED,
GREEN,BLUE,CYAN,YELLOW,MAGENTA
▶TRANSPARENCY : select transparent level. OFF/25%/50%/75%
▶ZONE RESET : reset the mask size, zoom, pan, tilt postion.
Setting Motion Detect
▶MODE : OFF/ON, Enable/disable the Motion Detection.
▶ZONE NO : 1~4, select the motion detection window.
▶ZONE DETECT : OFF/ON, select the detection mode of current zone.
▶X-POSITION : adjust motion detect zone X-position.
▶Y-POSITION : adjust motion detect zone Y-position.
▶X-SIZE : adjust motion detect zone X-size.
▶Y-SIZE : adjust motion detect zone Y-size.
▶SENSITIVITY : 0~10, select the motion detect sensitivity level.
▶ALARM MODE: OFF/OSD/TEXT/OSD+TEXT, select the display
method if motion is detected.
Setting System Function
▶LANGUAGE : English / Japanese / Russian / Spanish / German /France/
Portuguese/ Chinese
▶FRAMERATE : 1080_60p/1080_50p/1080_30p/1080_25p/
720_60p/720_50p/720_30p/720_25p/1080_60i/1080_50i
▶DVR : Select DVR model. (*) See. “ Supported DVRs"
▶APPLY : apply the <FRAMERATE>,<DVR> settings.
Two messages are output when APPLY is executed.
The first message is a message that is output before the status is
changed, and the second message is a message that is output after the
status is changed.
If the status is changed, the image may not be output. In this case, if
you wait 20 seconds without any keystroke, it will be restored to its
original state.
▶CVBS : 16:9 / 4:3, select CVBS scale
▶LVDS MODE : SINGLE/DUAL(=double)
▶IR LED : YES(use IR LED at night) /NO
▶DEFECT DET : defect detection
▶COLOR : Adjust R/B gain, R/B hue
▶COM : RS232 / RS485 communication Setting.
(!!!) All of the SYSTEM menu items are NOT initialized.
SYSTEM
LANGUAGE ENGLISH
FRAMERATE 1080_60p
DVR STANDARD
APPLY [ ]
CVBS 16:9
LVDS MODE SINGLE
IR LED NO
DEFECT DET [ ]
COLOR [ ]
COM [ ]
RETURN
MOTION
MODE ON
ZONE NO 1
ZONE DETECT ON
X-POSITION 1
Y-POSITION 1
X-SIZE 58
Y-SIZE 32
SENSITIVITY MIDDLE
ALARM MODE TEXT
INITIAL OK
RETURN
PRIVACY
MODE ON
ZONE NO 1
DISPLAY ON
P/T LOCK ON
POSITION ON
ZONE SIZE
COLOR BLACK
TRANSPARENCY 25%
ZONE RESET
INITIAL OK
RETURN

15www.intertest.com Operating Manual
15

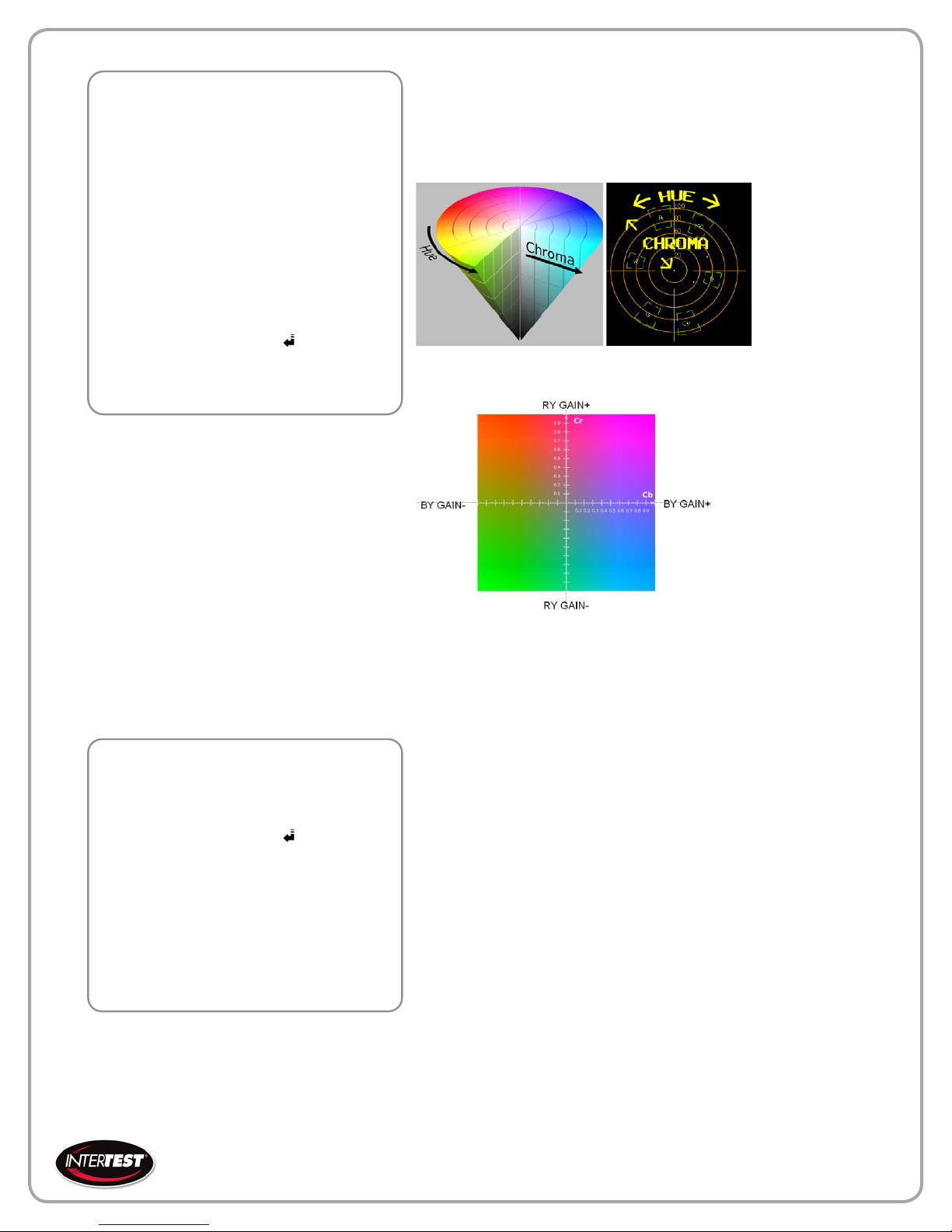

Adjust Color Gain
▶BY-GAIN ~ RY_HUE, R/G/B-GAIN : adjust color
GAIN : Chroma (saturation) value
HUE : Hue
(!!!) These values are NOT initialized.
<CbCr Plane>
(f.g) If you want to emphasize the GREEN color, adjust BY-GAIN- and RY-
GAIN-.
Setting Serial Interface
▶CAM ID : 0~255
▶BAUDRATE: 2400/4800/9600/19200/38400/57800/115200 bps
▶APPLY : apply the <CAM ID>,<BAUDRATE> condition.
COM
CAM ID 1
BAUDRATE 9600
APPLY
RETURN
COLOR
BY_GAIN- 80
BY_GAIN+ 58
RY_GAIN- 68
RY_GAIN+ 44
BY_HUE- 224
BY_HUE+ 232
RY_HUE- 0
RY_HUE+ 128
RED GAIN 60
GREEN GAIN 50
BLUE GAIN 60
RESET
RETURN

16 iShot® Xblock® XBC-KZ33 Block Camera www.intertest.com
Dimensions
16

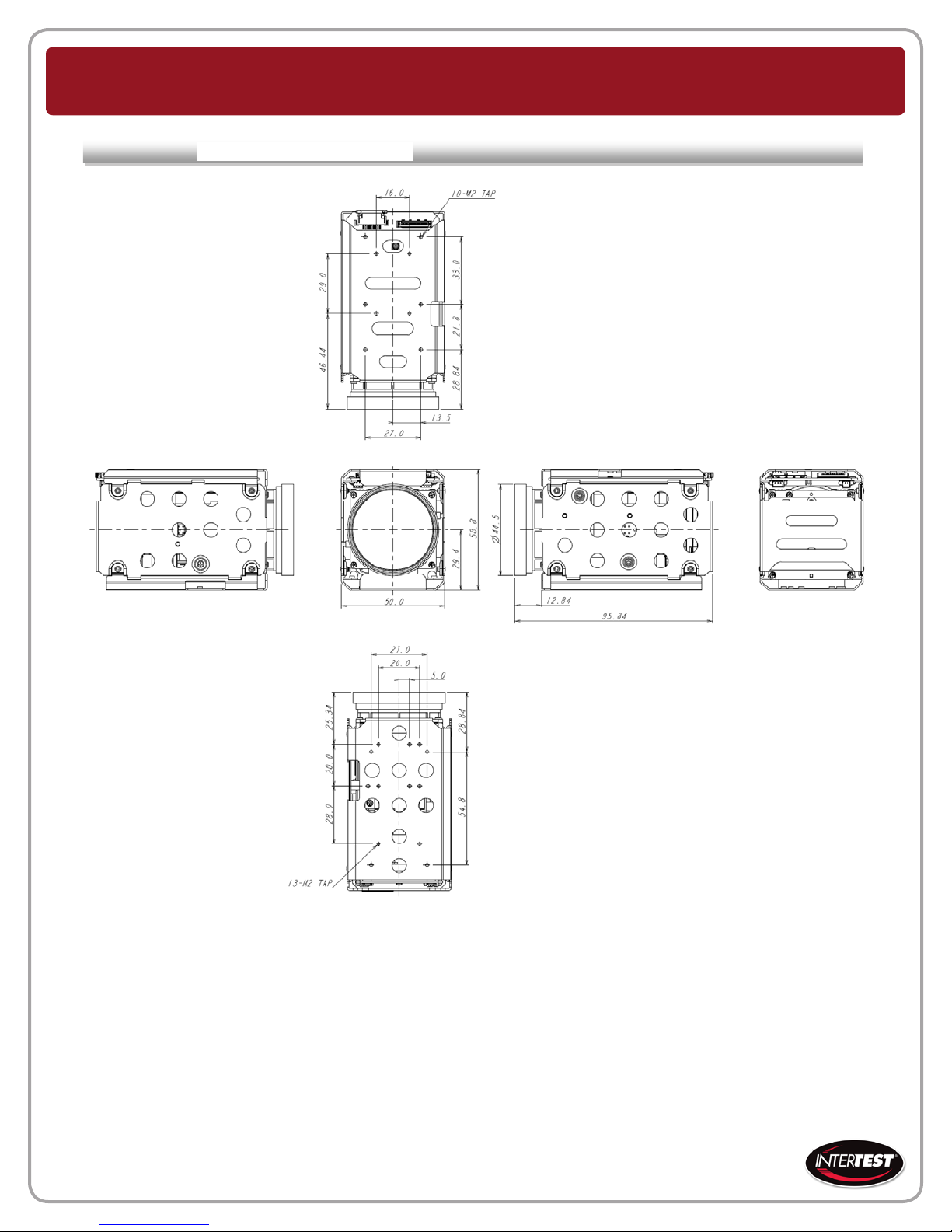

DIMENSION
Zoom module (ATC-HZ7833M-LA/LT)
EM13921 / EM13920

17www.intertest.com Operating Manual
Interface
17
J304 (Micro Co- Axial) / KEL Co. USL00-30L-C
NO
Name
Description
1
TX_OUT3+
2
TX_OUT3-
3
TX_CLKOUT+
4
TX_CLKOUT-
5
TX_OUT2+
6
TX_OUT2-
7
TX_OUT1+
8
TX_OUT1-
9
TX_OUT0+
10
TX_OUT0-
11
GND
12
TXD
5.0V (compatible 3.3V)
13
RXD
5.0V (compatible 3.3V)
14
+12V DC
15
+12V DC
16
+12V DC
17
+12V DC
18
+12V DC
19
GND
20
GND
21
TX_OUT7+
Single out mode : open
22
TX_OUT7-
Single out mode : open
23
TX_OUT6+
Single out mode : open
24
TX_OUT6-
Single out mode : open
25
CVBS
CVBS output
26
RESET_IN
Reset:Low(GND),Normal(1.8V)
27
TX_OUT5+
Single out mode : open
28
TX_OUT5-
Single out mode : open
29
TX_OUT4+
Single out mode : open
30
TX_OUT4-
Single out mode : open
CN302 (External D&N) / JST : SM03B-SRSS-TB
NO
Name
Description
1
Ext_D&N
External D&N Input
2
GND
3
+3.3V
+3.3V Out (For Sensor)
HD-SDI
J305 / Molex 52207-0985
NO
Name
Description
1
GND
(Optional RS485EN or AD KEY)
2
AHD_OUT
HD-AHD OUTPUT
3
GND
4
CVBS
CVBS OUTPUT
5
GND
6
DC_IN
DC12V input
7
GND
8
TXD
5.0V (compatible 3.3V)
9
RXD
5.0V (compatible 3.3V)
CN304
3 2 1
(AD key External Circuit)
MENU TELE WIDE NEAR FAR N.U.
CN304 (AHD) / 53261-0371
NO
Name
Description
1
AHD_OUT
HD-AHD output
2
GND
3
+12V_IN
DC 12V INPUT
CN301 (RS485) / 53261-0271
NO
Name
Description
1
TRX+
RS485 TRX+
2
TRX-
RS485 TRX-
CN301
2
1
J305
1
…
9
J304
1
…
30
CN302
1
2
3
PIN Assign (ATC-HZ7833M-LA 1/2.8”)
INTERFACE
EM13921

18 iShot® Xblock® XBC-KZ33 Block Camera www.intertest.com
18
J304 (Micro Co- Axial) / KEL Co. USL00-30L-C
NO
Name
Description
1
TX_OUT3+
2
TX_OUT3-
3
TX_CLKOUT+
4
TX_CLKOUT-
5
TX_OUT2+
6
TX_OUT2-
7
TX_OUT1+
8
TX_OUT1-
9
TX_OUT0+
10
TX_OUT0-
11
GND
12
TXD
5.0V (compatible 3.3V)
13
RXD
5.0V (compatible 3.3V)
14
+12V DC
15
+12V DC
16
+12V DC
17
+12V DC
18
+12V DC
19
GND
20
GND
21
TX_OUT7+
Single out mode : open
22
TX_OUT7-
Single out mode : open
23
TX_OUT6+
Single out mode : open
24
TX_OUT6-
Single out mode : open
25
CVBS
CVBS output
26
RESET_IN
Reset:Low(GND),Normal(1.8V)
27
TX_OUT5+
Single out mode : open
28
TX_OUT5-
Single out mode : open
29
TX_OUT4+
Single out mode : open
30
TX_OUT4-
Single out mode : open
CN302 (External D&N) / JST : SM03B-SRSS-TB
NO
Name
Description
1
Ext_D&N
External D&N Input
2
GND
3
+3.3V
+3.3V Out (For Sensor)
HD-SDI
J305 / Molex 52207-0985
NO
Name
Description
1
GND
(Optional RS485EN or AD KEY)
2
TVI_OUT
HD-TVI OUTPUT
3
GND
4
CVBS
CVBS OUTPUT
5
GND
6
DC_IN
DC12V input
7
GND
8
TXD
5.0V (compatible 3.3V)
9
RXD
5.0V (compatible 3.3V)
CN304
3
2
1
(AD key External Circuit)
MENU TELE WIDE NEAR FAR N.U.
CN304 (TVI) / 53261-0371
NO
Name
Description
1
TVI_OUT
HD-TVI output
2
GND
3
+12V_IN
DC 12V INPUT
CN301 (RS485) / 53261-0271
NO
Name
Description
1
TRX+
RS485 TRX+
2
TRX-
RS485 TRX-
CN301
2
1
J305
1
…
9
J304
1
…
30
CN302
1
2
3
PIN Assign (ATC-HZ7833M-LT 1/2.8”)
EM13920

19www.intertest.com Operating Manual
19
LVDS(single)
(5pairs / 10pin)
LVDS(double)
(5pairs / 10pin)
TXD
RXD
DC 12V
TX
THC63LVD827
(THINE Electronics Inc.)
Y (8bits X 2)
Cb/Cr
HD
VD
FLD
CLK
LVDS
To
TTL
Parallel
RX
THC63LVD104C (Single only)
THC63LVD1024 (Single/Double)
(THINE Electronics Inc.)
TTL
Parallel
To
LVDS
Y (8bits X 2)
Cb/Cr
HD
VD
FLD
CLK
CAMERA
HD Digital Video Sync Signal
74.125MHz
J303 (Micro Co- Axial)
KEL Co. USL00-30L-C
Recommended LVDS receiver IC
(1) Single Only : THC63LVD104C
(2) Single or Double : THC63LVD1024
Select LVDS output mode
(1) MENU
SPECIAL -> SYSTEM -> LVDS MODE : SINGLE/DUAL
(2) VISCA protocol
8x 01 04 24 74 0p 0q FF : pq=00 (single) / pq=01 (double)
(caution) If the frame rate is 25 fps / 30 fps, it works as SINGLE even if LVDS MODE is set to DUAL.
However, if the frame rate is 50 fps / 60 fps, LVDS MODE must be set to DUAL to operate as DUAL.
LVDS interface (LVDS model only)

20 iShot® Xblock® XBC-KZ33 Block Camera www.intertest.com
20
Single Mode : THC63LVD827 (THINE Electronics Inc.)
Output Format
Pixel Clock [MHz]
TCLK+ [MHz]
1080p60
148.5
148.5
1080p50
148.5
148.5
1080i60
74.25
74.25
1080i50
74.25
74.25
1080p30
74.25
74.25
1080p25
74.25
74.25
720p60
74.25
74.25
720p50
74.25
74.25
720p30
74.25
74.25
720p25
74.25
74.25
(THC63LVD827 IN)
Pixel Clock
Pixel Data
(THC63LVD827 OUT)
TCLK1 +/-
TA1 +/-
TB1 +/-
TC1 +/-
TD1 +/-
Y6 Y5 Y4Y6 Y5 Y4 Y3 Y2 Y1 Y0
000000***Y7
C6 C5 C4C6 C5 C4 C3 C2 C1 C0
00000000C6 C7
* : ignore this value
LVDS Pixel Data Format (LVDS model only)
