NOTE: A 3”-OD tenon structure is required for both single and double post mount fixtures.
A. To post mount a single fixture.
A1. Loosen the captive screw and take off the cap shown in Fig. A1.
A2. Pull supply wires from post through the hole originally covered by the cap.
A3. Pull all leads from fixture out of the same hole.
A4. Slip fit the fixture onto the tenon.
A5. Rotate the fixture to desired position.
A6. Tighten all four (4) 3/8-16 set screws (provided) to approximately 215 in/lbs.
Over tightening screws may cause fixture damage.
A7. Connect leads properly.
A8. Push wires back into the hole.
A9. Close the hole with cap and tighten the captive screw to seal the hole.
B. To post mount double fixtures with arm
B1. Loosen the captive screw and take off the cap shown in Fig. B1.
B2. Pull supply wires from post through the hole originally covered by the cap.
B3. Pull all leads from post and both arm wings out of
the hole.
B4. Slip fit the arm onto the tenon.
B5. Rotate the arm to desired position.
B6. Tighten all eight (8) 3/8-16 set screws
(provided) to approximately 215 in/lbs. Over
tightening screws may cause arm damage.
B7. Connect leads properly.
B8. Push wires back into the hole.
B9. Repeat steps A1 through A9 above to mount both
fixtures onto the arm, one on each wing.
B10.Close the hole with cap and tighten the captive
screw to seal the hole.
Customer First Center • 1121 Hwy 74 South • Peachtree City, GA 30269 IMI-574 AVU040082
Mesa
Sheet 1 of 3
3/10/04 IMI-574
INSTALLATION INSTRUCTIONS
IMPORTANT: Read carefully before installing fixture. Retain for future reference.
General: Upon receipt of fixture thoroughly inspect for any
freight damage, which should be brought to the attention of
the delivery carrier. Compare the catalog description listed
on the packing slip with the fixture label on the housing to
assure you have received the correct merchandise.
Safety: This fixture must be wired in accordance with
the national electrical code and applicable local codes
and ordinance. Proper grounding is required to insure
personal safety. Carefully observe grounding procedure
under installation section. All work should be done by a
qualified electrician.
TM
WARNING: Risk of Electric Shock. Disconnect power at fuse or circuit breaker before installing
or servicing.
CAP
FIG. A
CAP
FIG. B

These instructions do not claim to cover all details or variations in the equipment, procedure, or process described, nor to provide directions for meeting every possible
contingency during installation, operation or maintenance. When additional information is desired to satisfy a problem not covered sufficiently for user’s purpose, please
contact your nearest representative.
Customer First Center • 1121 Hwy 74 South • Peachtree City, GA 30269 IMI-574 AVU040082
Mesa
Sheet 2 of 3
3/10/04 IMI-574
INSTALLATION INSTRUCTIONS
IMPORTANT: Read carefully before installing fixture. Retain for future reference.
TM
WARNING: Risk of Electric Shock. Disconnect power at fuse or circuit breaker before installing
or servicing.

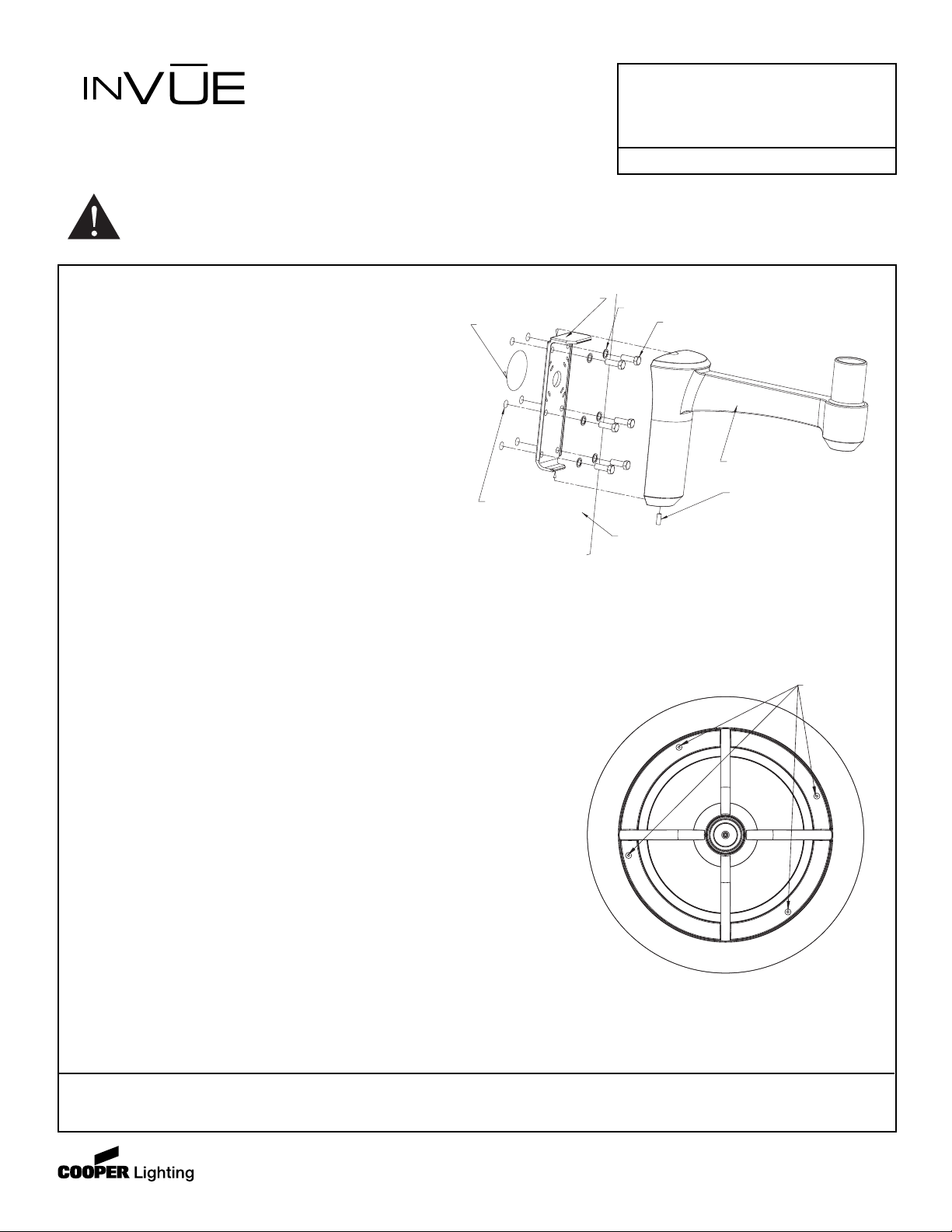

C. To wall mount a fixture with arm,
