IONIA SM-S112TL Instructions for use

Warning: Incorrect installation and/or operation could void your valuable warranty.
Please protect your investment! READ THIS MANUAL CAREFULLY
Alkaline Ionic Water System
Renement of Alkaline Ionized water
(Hexagonal & Hydrogen Water)
SM-S112TL
Owner’s Operation Manual

02

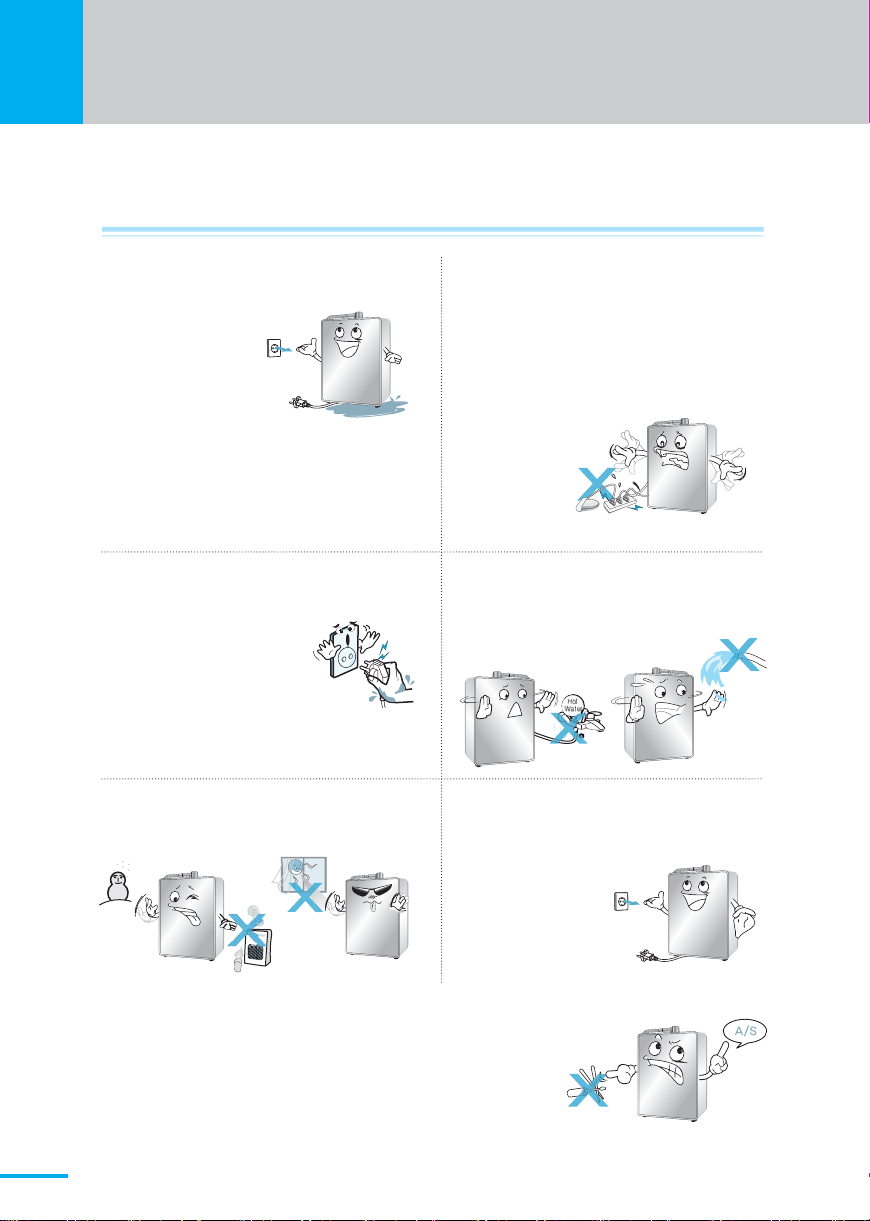

Safety Precautions
Hot
Water
If a break down occurs, do not make a repair by yourself. Contact the sales
distributors or service center.
If your ionizer becomes submerged
in water, unplug the power cord from
the wall BEFORE removing the
ionizer from the water.
Failure to do so may
cause electric shock!
NEVER attempt to repair or service the unit
yourself.
Contact your dealer.
Attempting to do so will void your valuable
warranty!
Do not use your ionizer at voltages other than
specified.
Do not plug in your ionizer where it will exceed
the rating of outlet or electric wiring.
Failure to do so can result in fire, injury and / or
damage to yourself, wiring or ionizer!
NEVER touch the power cord or plug with
wet hands
- this may result in electric shock!
Protect your ionizer from freezing temperatures.
Protect your ionizer from direct sunlight.
Ensure the power plug is firmly and
properly inserted into the outlet
- failure to do so may result in electric shock or fire!
Do not attempt to repair or service the unit yourself. Contact your dealer.
Attempting to do so will void your valuable warranty!
Make sure to use your ionizer only with potable water which is suitable for
human consumption.
DO NOT use your ionizer with well water, water with extreme hardness,
high sediment or TDS levels without first consulting your dealer.
Do not run hot water through your ionizer.
Do not clean by pouring water over or spraying
the ionizer.
Unplug your ionizer if you plan not to use it for an
extended period or turn off the main power switch
on the back of the unit.

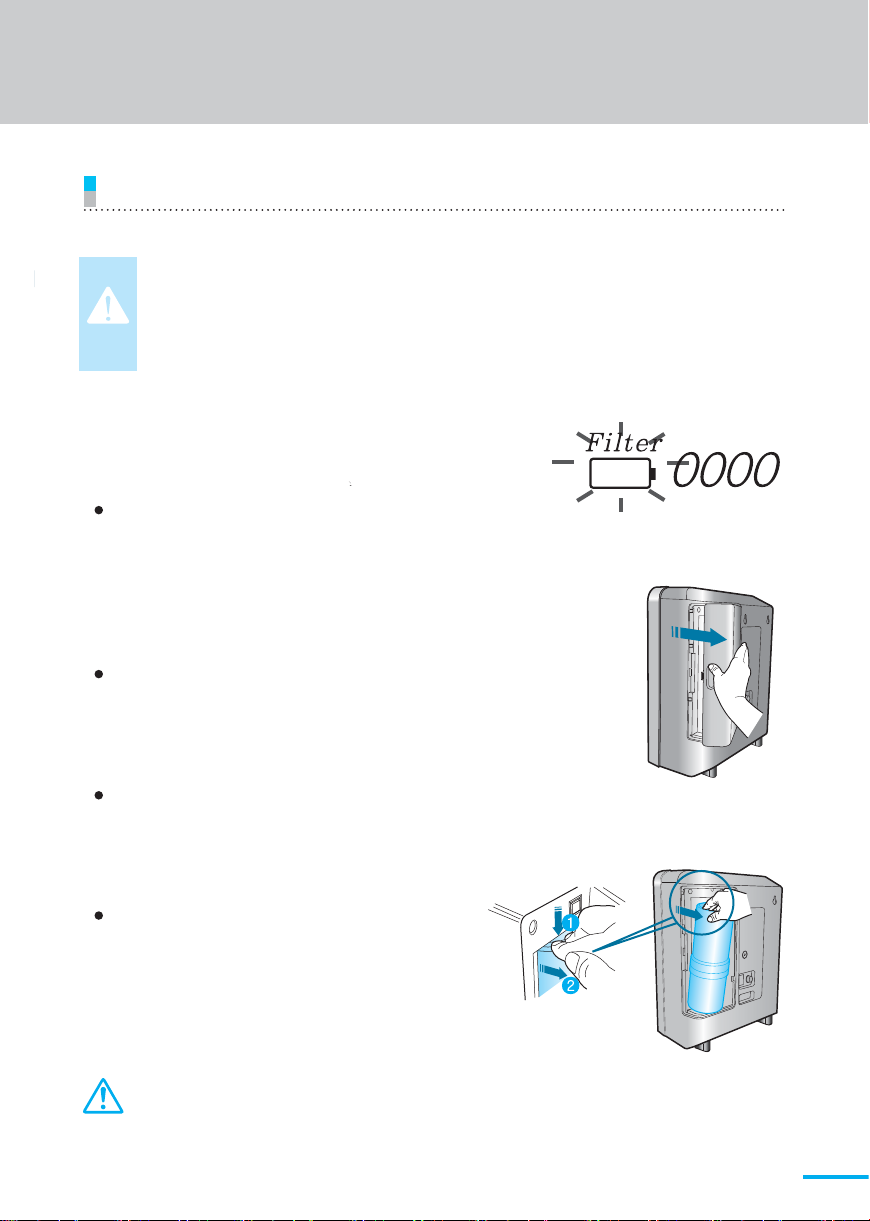

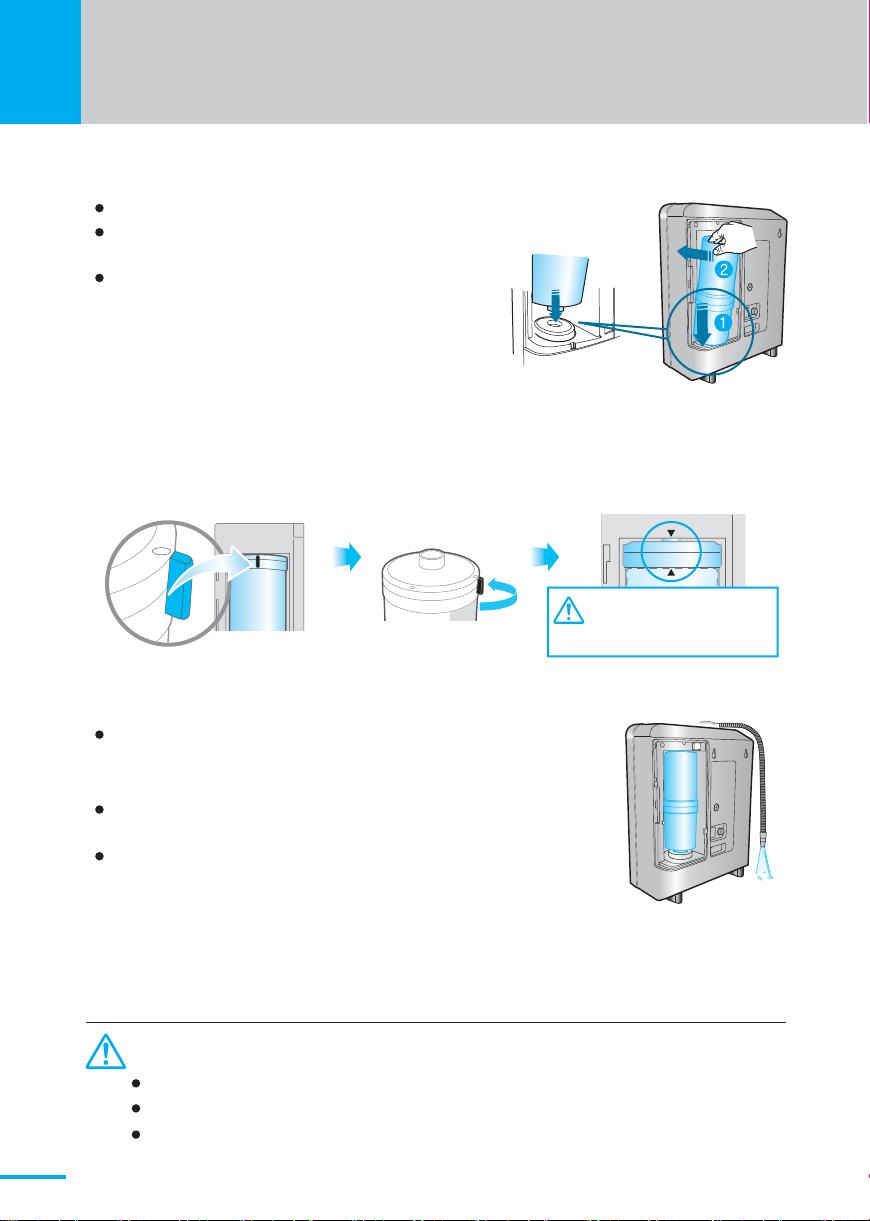

Filter replacement may be
necessary

03
Do not close, bend, pinch, press or otherwise
obstruct output ports or hoses.
If the appliance makes strange or unusual noises
or burning smells are detected, unplug the power
cord immediately and contact your dealer to
arrange service.

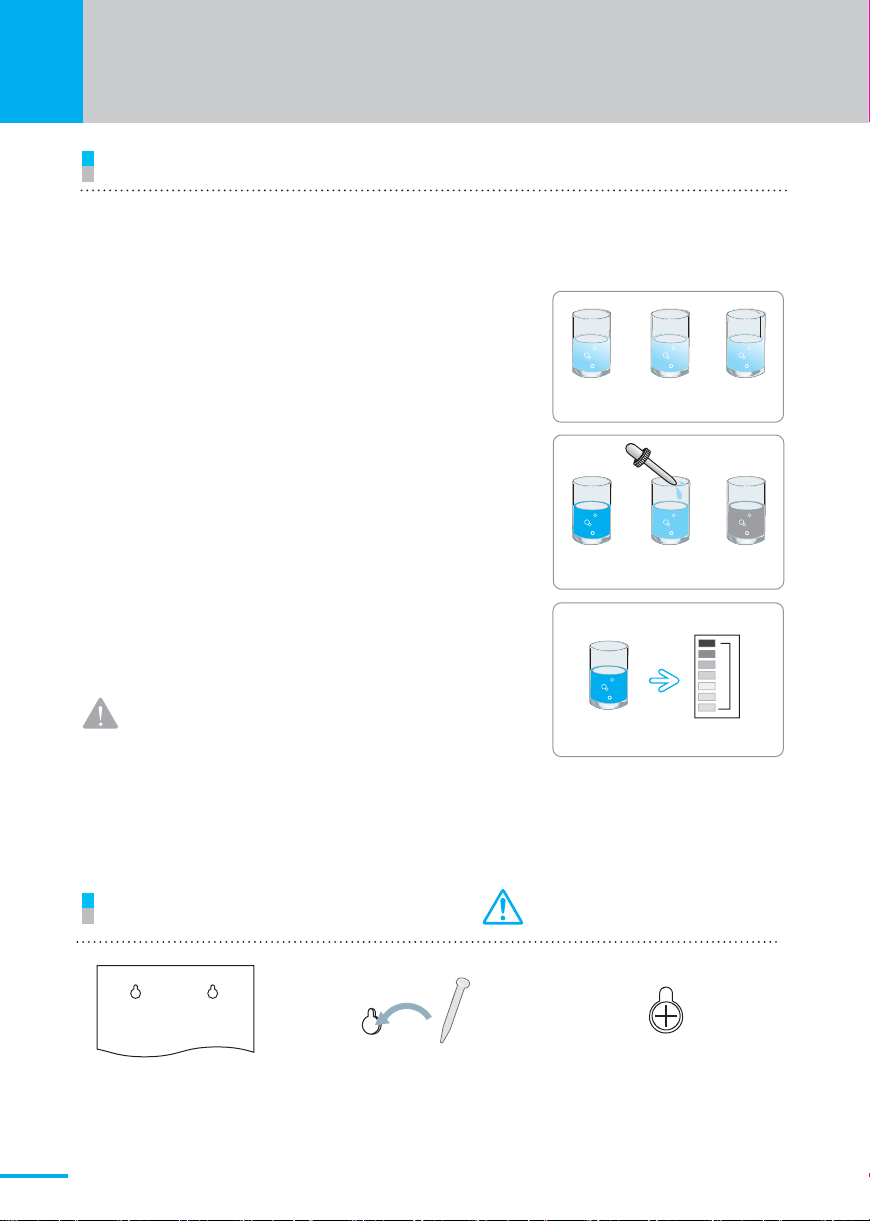

pH Reagent Liquid Precautions
Some helpful tips
Do not expose the pH measuring reagent to extreme heat, flames or fire.
It is combustible.
For storing your alkaline water, glass or ceramic is best. Always try and
keep your stored water cool and away from direct sunlight.
You can use plastic, but only use lexan (number7) or poly bottles
(Can type). It is always best fresh out of the machine and ideal
if consumed on a day-today basis.
Do not store alkaline water in stainless steel, bronze or
aluminum containers.
Save the box and Styrofoam your ionizer came packed in.
This will help if your ionizer needs to be transported at a later date.
Do not use an ionizer downstream of a sodium-based ion exchange
softening system or Reverse Osmosis system without first consulting
with your dealer.
Do not drink the pH reagent liquid, put it in the eyes or drop on the body.
- If the liquid is ingested, induce vomiting immediately and call a doctor.
- If the liquid gets in the eyes, flush immediately and thoroughly with
cool water; call a doctor.
- If spilled or dropped on your body, wash if off immediately.
Make sure to keep the pH reagent liquid tightly closed and out of the
reach of children.

04
Names and functions of Parts
Body
Function display panel
Flexible stainless
steel alkaline water
outlet.
Function button
FRONT
BACK
Accessories
pH test kit Spare adaptor Inlet White
Hose(2.7m) Outlet White
Hose(1.2m) Color chart Alkaline water
flex hose
Manual
Filter Cover
Power switch
Fuse holder
Acidic water
discharging hole
Water supplying hole
A/C power cord

05

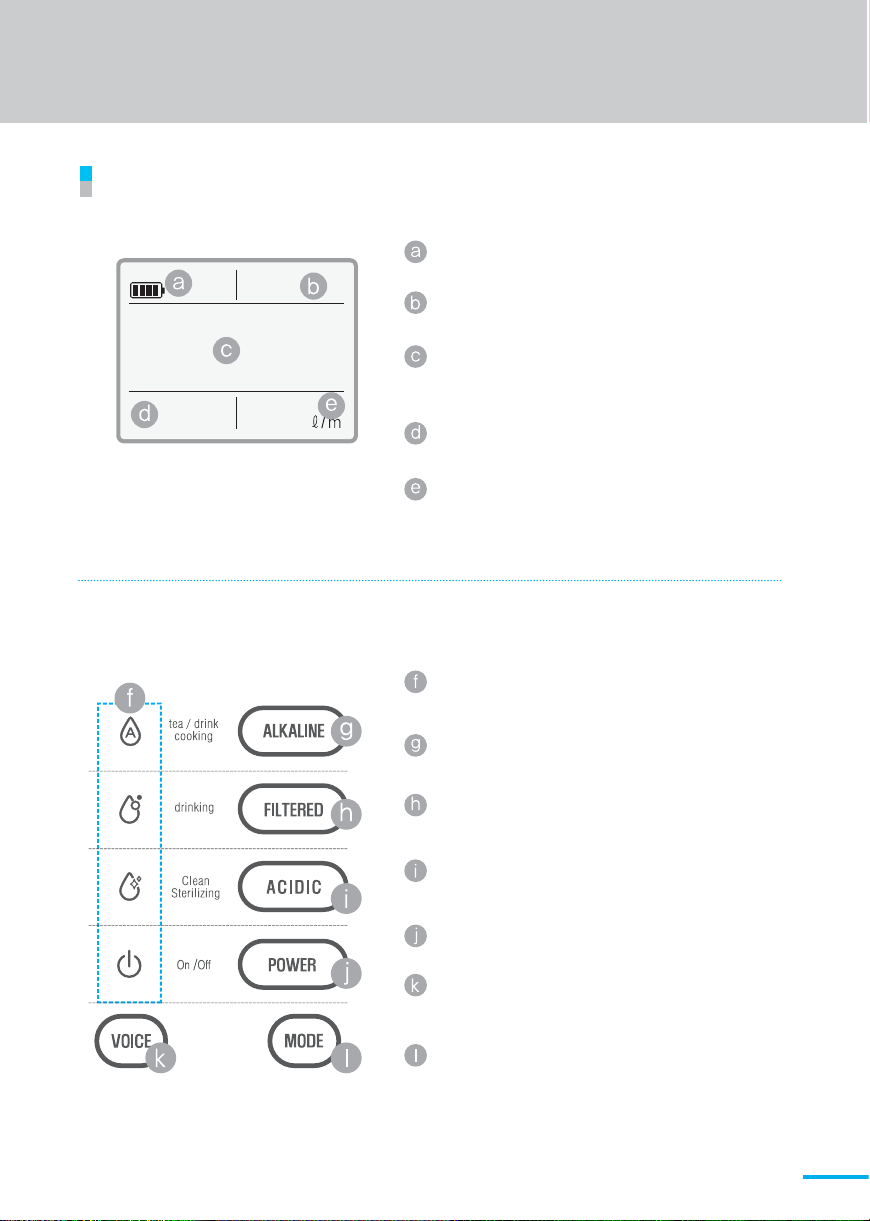

INDICATORS
Displaying filter lifespan
Indicating total amount of filter use
Alkaline selection button
Button which is used when function of alkaline
water is selected
Setting display
Method to use lamp which is on when each
function is selected
Water purification button
Button which is used when function of water
purification is selected
Acidic selection button
Button which is used when function of acidic
water is selected
Power button
Button which is used when on/off
Setting button
Button which sets each function
Voice button (muting voice sound)
Function that can make voice sound on/off which
is made when each function is selected
Displaying water discharging time
Indicating time during which water is discharged
Displaying number of grade in use
Indicating number of grade in alkaline/acid and
purification currently in use
Displaying pH
Indicating pH for each grade
Displaying volume of supplied water
Indicating total water flow per minute
Alkaline2
pH
Filter
Flow
Running Time
9 .0
3888
1.6
00:00:14

06
How to Install
Install the hose for acidic water lower than the main body.
(when the hose is longer in length or locate above the body, it can affect the
generation of ion and the taste of water can be changed)
Install water pump when the water pressure is low and shortage of water
supply happens.
When using the underground water with high hardness,
- use the water softener.
- push the acid water button for one minute once a day for water circulation
Installation Precautions
Installation Precautions
Caution

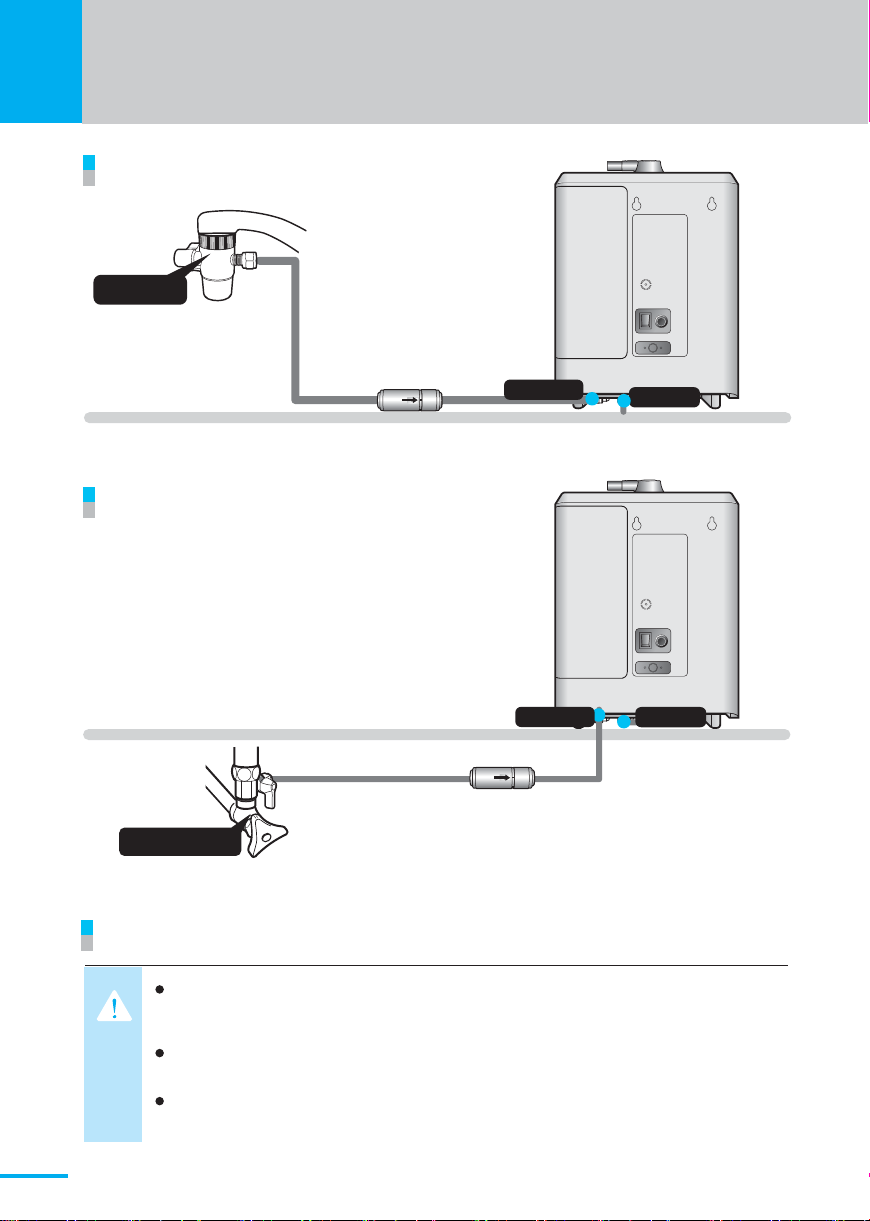

INSTALLATION PROCEDURE (TYPE1)
Warning!
Keep order of Dust pre-Filter
and Constant ow valve
when machine is installed
Dust Pre Filter
Source water
Inlet
Adaptor
Outlet
INSTALLATION PROCEDURE (TYPE2)
Source water
Dust Pre Filter
Inlet
Cold water valve
Outlet

07
INSTALLATION PROCEDURE (TYPE1)
adaptor
Install after closing water supply.
outlet
inlet
1 Please assemble the faucet top
(water top) and the adaptor as
shown above.
3 Push in and fasten the 4Ø (PE)
`hose in "Figure 2" into the water
inlet at the bottom of the machine.
4 Connect hose to the outlet of acid
water and connect it to the acid
water tank or drain to sink bowl.
2 Connect 4Ø (PE) hose to the
adaptor in "Figure 2"
[Figure 2]
[Figure 4]
[Figure 1]
[Figure 3]
[Figure 5] [Figure 6]
5 After finishing the connection of
"Figure 4" open the water supply
valve and adjust the water
pressure.
6 Check the leaks on the connections
part after installation completed.
adaptor
PE Hose
inlet

08

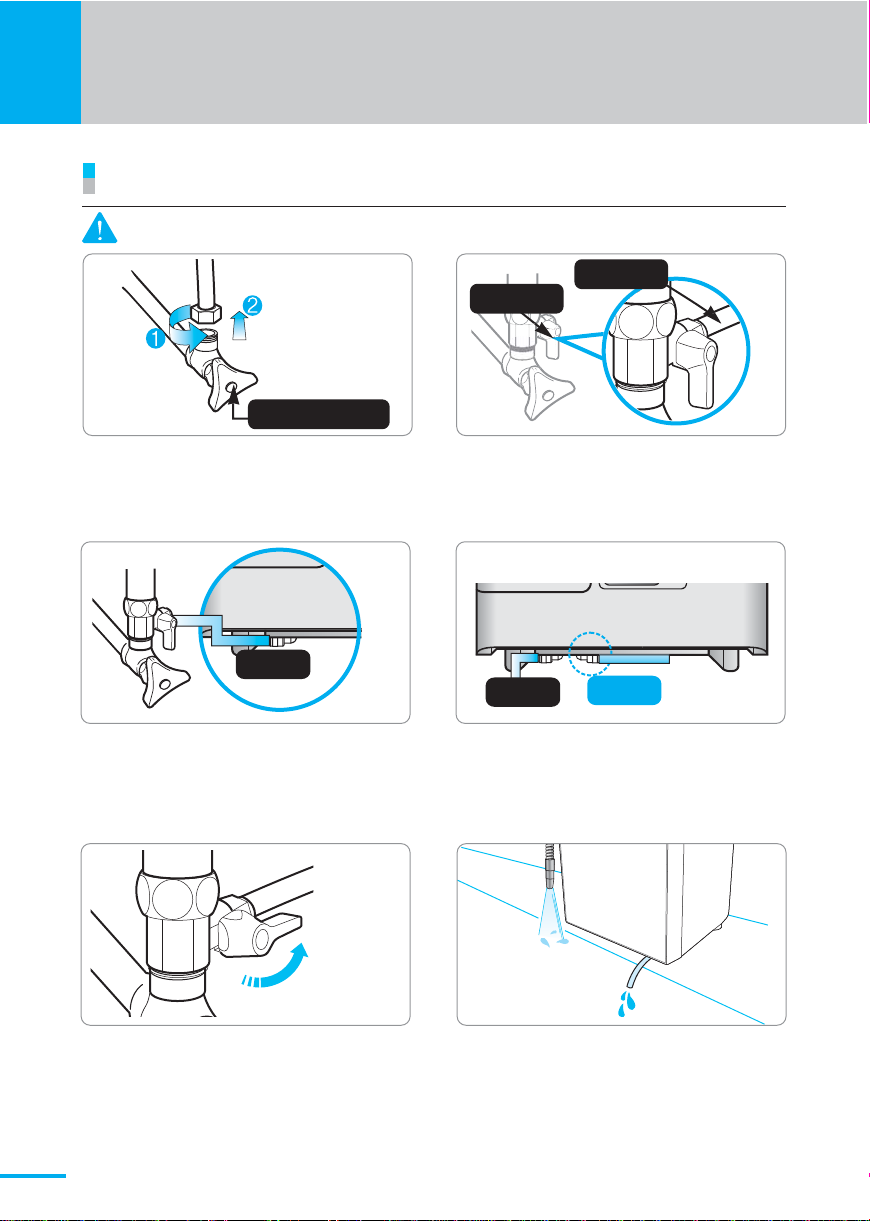

INSTALLATION PROCEDURE (TYPE2)
Install after closing water supply.
2 Connect 4Ø (PE) hose to the
Diverter in "Figure 2"
3 Push in and fasten the 4Ø (PE)
`hose in "Figure 2" into the water
inlet at the bottom of the machine.
4 Connect hose to the outlet of acid
water and connect it to the acid
water tank or drain to sink bowl.
5 After finishing the connection of
"Figure 4" open the water supply
valve and adjust the water
pressure.
6 Check the leaks on the connections
part after installation completed.
1 Loosen the nut of the cold water
valve.
[Figure 4]
[Figure 1]
[Figure 3]
[Figure 5] [Figure 6]
Cold water valve
[Figure 2]
PE Hose
inlet
outlet
inlet
diverter
How to Install

09
How to Use
OFF
ON

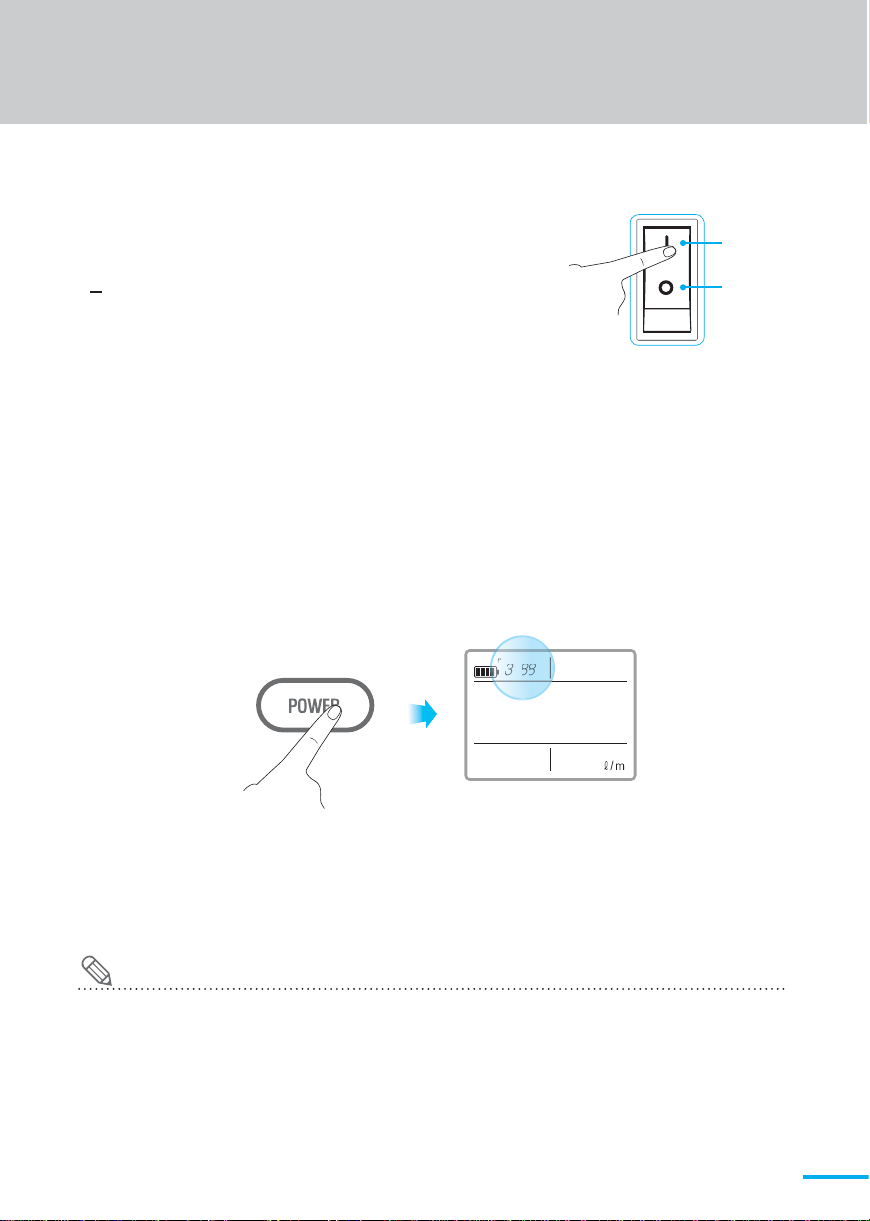

1. POWER UP YOUR IONIZER.
The water may initially come out discolored (light to charcoal gray) due to carbon
particulates in the new filter. This is not harmful and is typical of all carbon filters.
Allow the water to flow for 2-3 minutes in the "Filtered Only" mode and this will
flush all the carbon dust.
NOTE
Turn on power switch on back side
after plugging power code into socket.
2. START WATER FLOW THROUGH YOUR IONIZER
Signal sounds, initial screen appears and disappear
again which makes it stand-by status.
- Press the "POWER" button which opens the internal valve in your ionizer.
- The Digital Filter Life Indicator will begin and you will hear your ionizer's "voice"
announcing the selected mode of operation.
Alkaline2
pH
Filter
Flow
Running Time
9 .0
3888
1.6
00:00:14
er
r
3
38
38
8
88
88
k
te

TO SELECT ALKALINE WATER
2. When pressing alkaline water selection
button, graphic lamp is on which
indicates character of alkaline water,
number of grade, and announcement
can be heard which informs
alkaline water grade.
1. Repeat steps 1-3 above, or with water already running through the machine then:
HOW TO STOP
Press the power button, water supply is
stopped and it is converted to
stand-by status automatically.
If alkaline water function is set previously, alkaline water used in previous step is discharged
NOTE
12 3412 34
Alkaline2
pH
Filter
Flow
Running Time
9 .0
3888
1.6
00:00:14
e
e
e
2
2
2
2
e
Whenever you press alkaline
water selection button
repeatedly, it changes
number of grade.
How to Use
Stand-by mode status

1. Repeat steps 1-3 above, or with water already running through the machine then:
HOW TO STOP
Press the power button, water supply is
stopped and it is converted to
stand-by status automatically.
NOTE : Acidic water is used except for drinking.

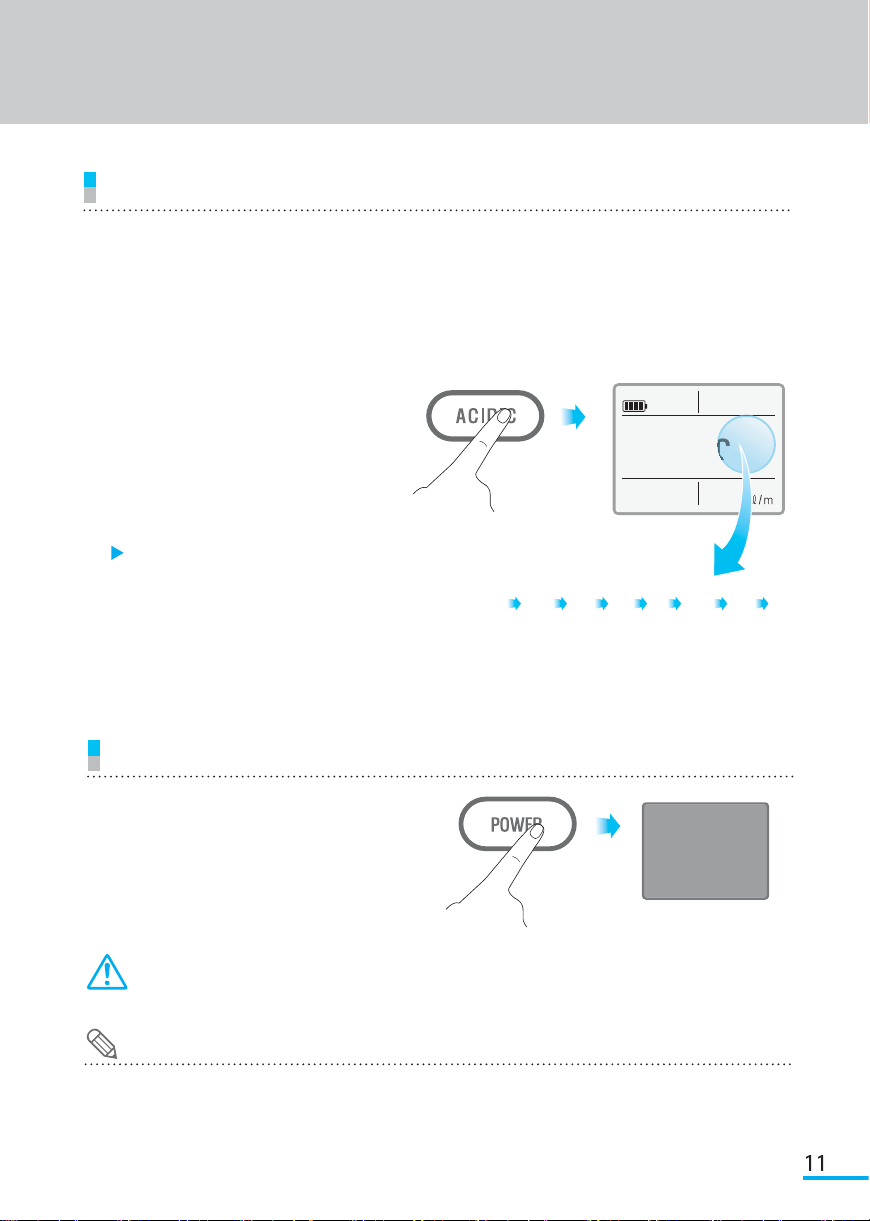

TO SELECT ACIDIC WATER
DO NOT DRINK.
If acidic water function is set previously, alkaline water used in previous step is discharged
NOTE
Whenever you press acidic
repeatedly, it changes
number of grade.
2. When pressing acidic water selection
button, graphic lamp is on which
indicates character of acidic water,
number of grade, and announcement
can be heard which informs
acidic water grade.
12 3412 34
Acidic2
pH
Filter
Flow
Running Time
5 .8
3888
1.6
00:00:14
c
c
2
2
2
2
c
Acidic water is not drinking water. Be careful not to drink acidic water, confusing it with
alkaline water.
Stand-by mode status

12
What is alkaline electrolyzed-reduced water?
1. Repeat steps 1-3 above, or with water already running through the machine then:
How to Use
HOW TO STOP
Press the power button, water supply is
stopped and it is converted to
stand-by status automatically.

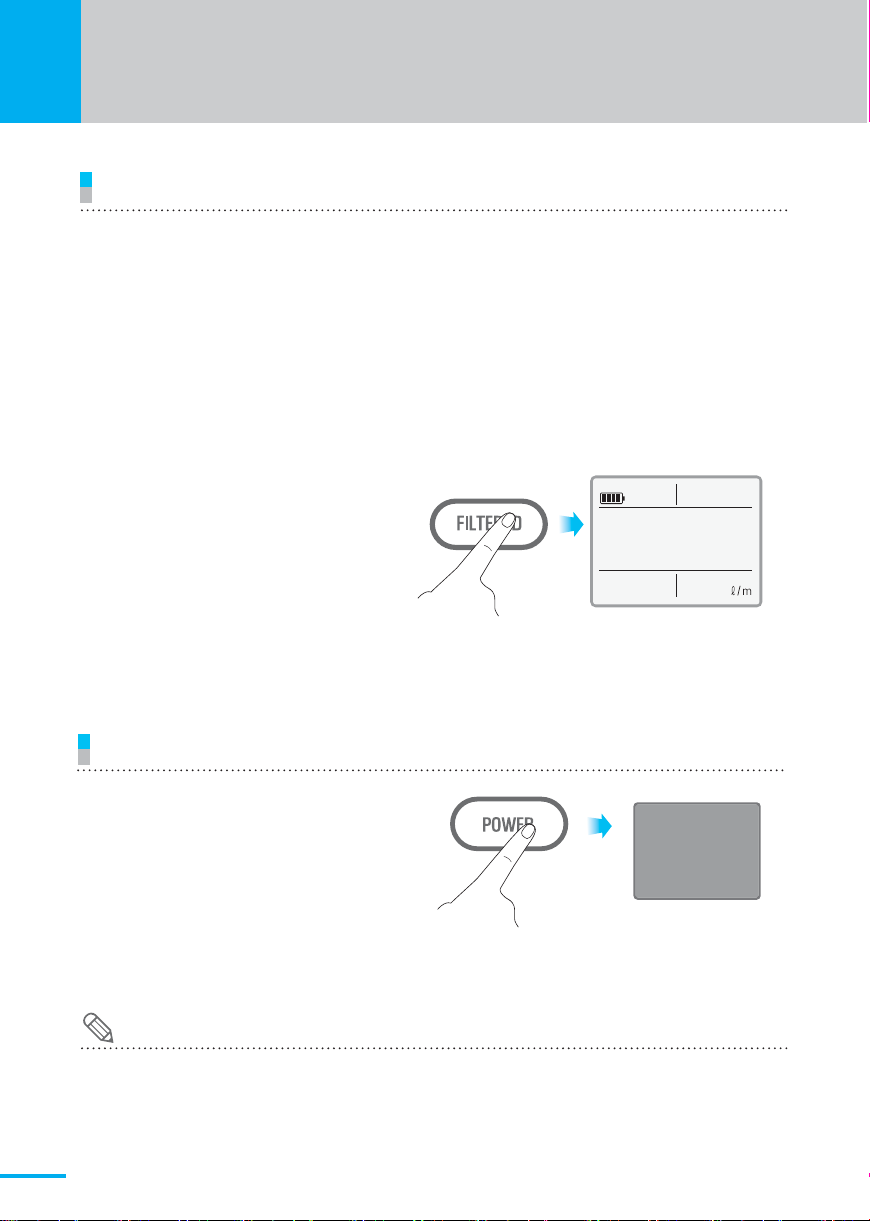

2. When pressing filtered water selection button, graphic lamp is on which
indicates character of filtered water, number of grade, and announcement
can be heard which informs filtered water grade.
TO SELECT "FILTERED" WATER
If filtered water function is set previously, filtered used in previous step is discharged
NOTE
Filtered
pH
Filter
Flow
Running Time
7 .0
3888
1.6
00:00:14
Stand-by mode status

13
VOLUME ADJUSTING FUNCTION FOR VOICE INFORMATION
1. Press VOICE button for 3 to 5 seconds under stand-by mode.
Adjust volume by alkaline and acidic button. Volume consists of 0 to 10 steps.
2. If saving volume by pressing VOICE button, it is converted to stand-by screen.
10
SAVE : VOICE
EX I T : FILTER
UP : ALKALINE
DN : ACIDIC
※If there is no additional operation after completing
volume adjustment, it is saved and converted to
stand-by status automatically after 10 seconds.
STAND-BY SCREEN ADJUSTING FUNCTION
After entering setting mode screen by pressing setting button among stand-by mode,
set ON/OFF function for stand-by screen by pressing alkaline button.
Time Setting
Time ON/OFF
ON
NEXT : MODE
SAVE : VOICE
EX I T : FILTER
UP : ALKALINE
DN : ACIDIC
Stand-by mode status
Stand-by mode status

14
TIME AND DATE ADJUSTING FUNCTION
1. After entering time setting mode screen by pressing setting button among
stand-by mode, select year, month, date, hour and minute by setting button
and adjust them by alkaline button and acidic button respectively.
2. When saving it by pressing VOICE button, it is converted to stand-by screen
automatically.
Time Setting
Year
2013
NEXT : VOICE
SAVE : VOICE
EX I T : FILTER
UP : ALKALINE
DN : ACIDIC
※If there is no additional operation after completing
volume adjustment, it is saved and converted
to stand-by status automatically after 10 seconds.
How to Use
Stand-by mode status
Stand-by mode status

15
1. When lifespan of filter comes to an end, graphic figure
of filter indicates 0000 and filter change icon flickers,
which is informing that it’s time to change filter.
2. Open the lter housing cover.
slide the cover to the left and remove it.
3. Remove the expired lter.
HOW TO REPLACE THE FILTER
IMPORTANT! Stop water flow prior to filter replacement.
How to Replace the Filter
Check for leakage by running water through your ionizer before replacing the
housing cover.
Stop supplying water by turning power switch on
back side of product to OFF position.
Taking hold of the filter securely with your right hand, press
the filter firmly down against the spring loaded mechanism
to disengage the top of the filter and then pull it toward you
and up to remove it.
The upper part of the filter is separated from
housing by pressing firmly down.
Once you have engaged the spring loaded
mechanism, you can then easily remove the
filter from the main body by pulling it toward you.
If you do not use genuine filter and use similar product instead, electrolysis function is not
activated, only purified water is discharged and problem may occur at the time of electrolysis
because dust and grain generated from activated carbon is flowed into electrolytic cell.
Use genuine filter definitely. If there arise some problems, free service is not available.
(Period for free service: 1year)

filter sticker
16
How to Replace the Filter
5. After having projected part of genuine filter face toward front, equip it in line
with bottom groove and push it inside.
Equip filter by turning projected part of filter until it can not be turned any more in
one direction.
5. Flush out the carbon dust.
6. Replace the filter housing cover.
4. Insert the new filter into the compartment.
Remove the plastic caps covering both ends of the new filter.
Seat the large opening on the bottom of the filter cartridge
onto the base in the center of the filter cushion.
Push the filter down and into the housing
compartment ensuring the opening at the top
of the filter is seated properly into the fitting at
the top of the housing.
When replacing the filter,the
direction of the arrow should
be same with filter’s arrow.
The water will initially come out discolored (light to charcoal
gray) due to carbon particulates in the new filter.
This is normal and is typical of all filters.
Allow the water to flow for 2-3 minutes in the "Filtered" mode
until the water runs clear
Please replace lter when any one of the owing occur:
When severely polluted water has been run through the ionizer and filter
Excessive odor in output water and/or severely decreased flow rate
After prolonged period of inactivity of over 30 days

17

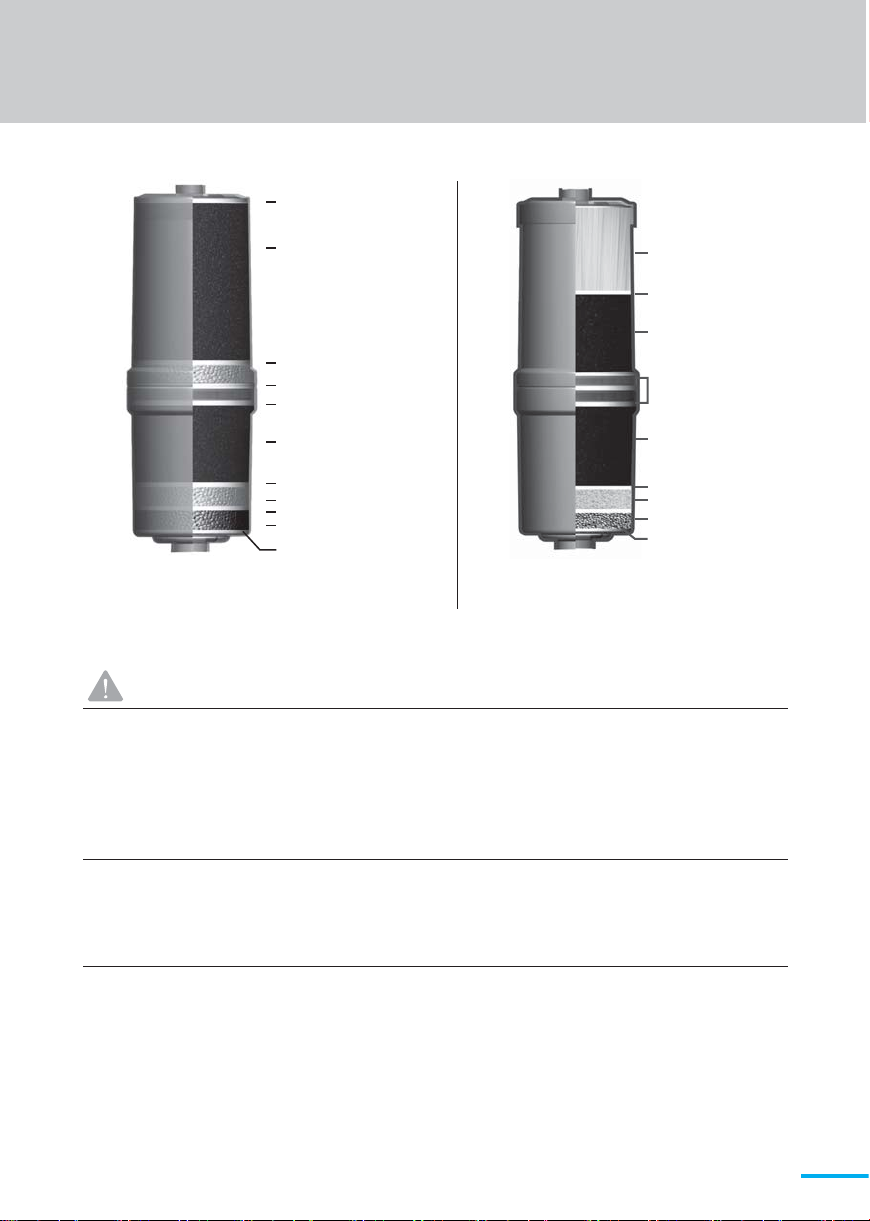

Filter Composition(options)
CAUTION
Change filter when follow phenomena occur even filter life indicator.
- When water flows little because filter is blocked due to heavily contaminated water
- When water smells because seriously contaminated water is flowed in
- When lots of foreign substance in water (turbid water, invisible substance) is
eliminated in a short time
- When reusing it after you do not use it for a long time
Effective period of use of filter may differ greatly depending on season and usage
environment (quality and pressure of water and amount of use)
It is better to use UF(Combined hollow fiber membrane) filter initially, with power off,
after making water of 20ℓ(1㎏f/㎠) flow for approx. 5 minutes at minimum without fail,
in order to eliminate hydrophilic substance.
(If water pressure is below 1㎏f/㎠, a time longer than 5 minutes is needed)
Recommended period for changing filter
Reference
High Performance Carbon Filter
Silver Activated Carbon
Fiber Filter
Fiber Filter
Fiber Filter
Fiber Filter
Fiber Filter
Calcium
Calcium
Tourmaline
Mesh Gauze
Activated Carbon
High Performance UF Filter
Fiber Filter
Fiber Filter
Fiber Filter
Fiber Filter
UF
Activated Carbon
Calcium
Tourmaline
Activated Carbon

18
How to Measure pH
1. Fill three test containers provided about 1/4 full
with alkaline, acidic and filtered water each.
2. Drop 2 or 3 drops of the pH reagent into the container
and shake it.
If the reagent and water are not mixed well, the
correct result may not be and shake it.
HOW TO MEASURE pH
Important Note: Water quality and mineral content vary greatly in different Iocalities
and will directly impact performance of your ionizer with respect to pH.
3. The pH value is determined by matching the color
the pH color chart provided.
DO NOT consume water containing reagent.
Keep the pH reagent Iiquid, color chart, and OPEN FLAMES!
For contact with eyes, flush Iiberally with fresh water, seek medical help.
If ingested, induce vomiting, seek medical help.
FILTERED
WATER
ALKALINE
WATER
ACIDIC
WATER
FILTERED
WATER
ALKALINE
WATER
ACIDIC
WATER
CAUTION
1.Soak the installation
drawing to water and
paste it in parallel with
the wall.
2.Drive the nail in position.
(leave the nail head about 1cm).
3.Hang on the device body
to the nail.
WALL HANGER INSTALLATION
Install after closing water supply.

19
Some Uses for Alkaline and Acidic Water
After the adjustment period you can drink the water at this next level.
This level is also great for cooking rice and other grains
- fluffier and great tasting!
You can get alkaline/acidic electrolyzed-reduced water by electrolyzing the water
after filtering impurities.
Alkaline reduced water is the optimal water for health because it is rich in minerals
including calcium. Acidic water is good for skin.
Some people like this for drinking though it can start to taste strong
It is superb for making tea or coffee as it enhances the taste and
reduces bitterness!
Generally most people find this very strong tasting and with powerful
detoxifying effects.
Great for boiling vegetables! Alkaline water will eliminate the bitter taste
and brings out more of their natural color.
Some uses for the different levels of Alkaline Water
For initial consumption period
(4-7 days). Let your body adjust slowly to the increase in pH.
Many people find that this lower level is actually perfect for them.
What would I use the Filtered Water for?
The pH of Filtered water is neither raised nor lowered and would be the
same as your tap water.
This water is simply cleaned of impurities by the advanced filtration system.
You can use it both as drinking water and taking medications with.
1
2
3
4
The Acidic water has both antiseptic and antibacterial properties.
It also has an astringent effect and can be used for cosmetic purposes.
Some uses for the different levels of Acidic Water
Use it while brushing your teeth,
gargle with it and use it as a
natural mouth wash!
It is an excellent astringent;
use it for washing your face
or as a natural after shave.
In the kitchen use it to help
clean kitchen utensils.
This setting has sterilizing
properties-use it to sterilize
cutting boards,
dish towels etc.
12
34

20
Trouble Shooting Guide
The Function Display
Panel does not come on. A power plug is not properly inserted, or it is inserted into a
faulty outlet.
The fuse is blown.
The fuse is not inserted properly.
ResolutionCause(s) Abnormal condition
Properly insert power plug into
a correctly functioning power
outlet
Replace the fuse. A spare fuse is
located in the rear-panel fuse
holder. (3A / 250V fuse)
pH test shows alkaline water
color as neutral (7) while
acidic water color gets
yellow (6). This is normal
if initial pH is 6.5
Faulty or evaporated reagent:
alkaline / acidity are always
produced in inverse proportion.
Therefore, showing an acidic
color means inversely that alkaline
water has to be generated from
the unit.
Lack of alkaline color can result
from a chemical reaction where
carbonic acid in water evaporates
some test reagent elements.
Test pH value on level
3 or 4 water;
replace reagent.
Power supply is suddenly
cut off while operating the
unit.
Elevated level of salt in the
water or high TDS; extended
operation at high pH;
sudden change in electrical
current. In these cases your
machine will shut down
automatically to protect the
electrodes and circuitry.
Wait - the unit will become
operational again after about
one hour. Your Machine has a
safety mechanism built-in to
protect the electrodes and
circuitry. This mechanism will
shut the Machine down
automatically. This mechanism
protects the unit from overuse
or excessive electric current.
Low output of alkaline water
from the unit. Filter is clogged. Premature clogging may be caused by
sudden drop in water quality and
an influx of sediment or other
contaminants, which stress
the filter.
Low pressure in your household
plumbing.
The input hose is bent, kinked or
otherwise restricted.
Replace your filter.
Clean Pre-filter
Ensure water supply valves are
fully open. The water pressure
in house may be too low.
Straighten the bent hose.
