IPEMA SUPERIOR RSW3516G Instruction sheet

s
5 U p ERIO R®SwinQ Frame with Shade and Struts -Single 6-5/8" Posts
8'
Swmg Elevation -2-Bay • Model RSW3516G
RECREATIONAL PRODUCTS
Playgrounds 1050 Columbia Dr• Carrollton, GA 30117 • 800-327-8774 • [email protected]
INSTALLATION GUIDELINE
USER GROUP: 2-5 Years, 5-12 Years
RECOMMENDED
CREW: 2-4 People
TOOLS REQUIRED:
• TT-30, TT-45, Torx, 5/16" Allen, 3/8" Hex, 9/16" Hex,
7
/8" Hex, 1-1/4" Hex, 7 /32" Allen, 3/16" Allen
• Level, Square
•
Auger/ Post Hole Digger/ Shovel
• Drill Bits:
5/32", 21/64"
• High Speed 3/8" Electric Drill with Clutch
NOTE: Use of any other driver may result in damage to
product, tool, and/or hardware!
INSTALLATION TIME: 3 Hours
WEIGHT: 1,850 lbs.
CONCRETE REQUIRED: (237) 80Ib. bags -142.2 ft
3
NOTE: Concrete must have a minimum rating of 2,500 psi
and must be mixed per manufacturer's recommendations.
PRE-INSTALLATION CHECK:
Customer is responsible for verifying materials received by
comparing received items
with packing list. If any parts are
missing
or damaged, including documentation, contact
your local sales representative immediately.
Supplier is not responsible for items discovered missing
after 72 hours from time of delivery.
Before beginning installation, all installers must read and
understand the Installation Introduction manual
as
supplied. If you did not receive a copy, or if you have any
questions regarding any information
in the Installation
Instructions
or this Installation Guideline, contact your local
sales representative.
** IMPORTANT NOTE**
Swing Chains and
Swing Seats
Ordered
Separately
Shade Fabric can be removed to avoid snow overloading.
IfShade Fabric is removed (for any reason), all Glide Drives
MUST
BE REMOVED from Glide Inserts and stored with
Shade Fabric. See Page 17 for Glide Drive Removal details.
MODEL NUMBER: RSW3516G
DATE: 07/15/20
Page 1 of 17
l~
NTERNATIONAL
PLAY EQUIPMENT
MANUFACTURERS
MEMBER ASSOCIATION

s
5 U p ERIO R®SwinQ Frame with Shade and Struts -Single 6-5/8" Posts
8' Swmg Elevation -2-Bay • Model RSW3516G
RECREATIONAL PRODUCTS
Playgrounds 1050 Columbia Dr• Carrollton, GA 30117 • 800-327-8774 • [email protected]
ITEM
Part No. QTY DESCRIPTION
1 FRSW35 16G 1 Fabric Assembly -16x36 Swing Shade, With Glide
2 PSA-5034XX 2 Column -EMB 6 5/8" OD x 203 1/4", Flanged With One Socket
3 PSA-5025XX 1 Column -EMB 6 5/8" OD x 203 1/4", Flanged With Two Sockets
4 FAB-311155)()( 2 Ridge Pole - 3 1/2" OD
11 GA x 126 5/8" Swaged (Coated)
5 AFB-34708XX 2
End Cr o wn - Fl an ed 65 /8" OD x30 1/2" 3 -So ck et Dual Column Umb rel la
6 AFB-34709XX Mid Crown -Flanged 6 5/8" OD x 30 1/2" 4-Socket Swing Shade
7 AFB-34710XX 4 Rafter -Swaged 3 1/2" x 108 3/4" With Slotted Bracket
8 AFB-34711XX 2 Rafter -Swaged 3 1/2" x 84 3/4"
With Slotted Bracket
9 AFB-34712XX 4 Strut - 1 7/8" x 42 3/8" Rigid
10 AFB-34713XX 2 Strut - 1 7/8" x 33 1/8" Rigid
11
MTA-20083XX 6 Glide Insert - 3 1/2" OD w/ Shortened Hook
12 AFB-34715XX 2 Wldmt- C
ustom 5" x131 3/8" S wi n To Ba r w/ NUTS and NO Han ers
13 CA-5-110F
14
HWM0325 4 Cable Clam 1/4" For
15 HWS0021
15.5 HWS0081
16 HWB0021 13 Bolt 1/2"-13 x 1-3/4" HH SS
17 HWS0342 20 1/2"-13 X 2" BHCS Stainless Steel
18 HWS0016 10
Screw 1/2"- x 3/4" Allen Set
19
HWWR0022 60 Washer 1/2" ID Flat USS 316 SS
20
HWN0025
32 Nut1 / 2"-13-N lock-316SS
21 1487 8
SWING HANGER 5" O.D.
21-1 157005
21-2
21 -3 800256 2
Bolt - 3 /8" x2" CAR GD 5 NOTE : FOR USE IN SWING HANGER ONL Y
21-4 804353 2
Nut - 3/8 " Self Loc k in He x NOTE : FOR USE IN SWING HANGER ONLY
21-5 801200 1 Bo
lt - 1 /2" x 2 1 /2 " HH w/ 1" Thr e ad NOTE: FOR USE IN SWING HANGER ONLY
21-6 817342 1 Washer - 1/2" Lockwasher SS
21-7 804055 1 Nut - 1/2" Hex SS
21-8 157010 Swing Hanger Pendulum Assy
21-9 811226
Bolt - 3/8" x 1" Shoul d er Bolt NOTE : FOR USE IN SW ING HANGER ONLY
22 HWM0132 Driver bit T-45 TORX SECURITY w/BARREL HOOD 2
23 TouchUpMetal Touch Up Paint
-Aerosol Can 12 oz -Metal Color
MODEL NUMBER: RSW3516G
DATE: 07/15/20 Page 2
of17
INSTALLATION GUIDELINE
l~
NTERNATIONAL
PLA Y EQ UIPMENT
M AN UFA CTU RE RS
MEMBER ASSOCIATION

5 U p ERIO R®SwinQ Frame with Shade and Struts -Single 6-5/8" Posts
8' Swmg Elevation -2-Bay • Model RSW3516G
RECREATIONAL PRODUCTS
s
Playgrounds 1050 Columbia Dr• Carrollton, GA 30117 • 800-327-8774 • [email protected] INSTALLATION GUIDELINE
STEP 1
Prepare
footing holes. Footing hole layout is at right. Excavate holes, insert blocks (not included),
assemble rebar frames (not included), and insert frames
into footing holes. Insert one (1) #5 rebar
through holes in
bottom end of support columns. Insert one (1) support column into each footing hole.
Elevation
of column socket stubs must be 96" above surfacing. DO NOT ADD CONCRETE. Footing holes
will
be completed at STEP 14. Proceed to STEP 4.
Detail 1-1
SURFACING
~
TT
I t GRADE
48 " -
6" : 138"(11'6") .
~138"(11'6")
. ----.;
36" r 3" Typ.
30"
36"
3" Typ.
-t.!:=l!:::::=::::!!:48 "=Squ::::!!::::::are===:::!~I-,-~
Hole is Provided
at Bottom of
Each Column for
One (1) Additional
#5 Rebar Rod
(4) #5 x 42" Rods
Each Way
Top and Bottom
2,500 PSI Concrete Min. 6" Tall Block
Rebar Requirements
MODEL NUMBER: RSW3516G
DATE: 07/15/20
•••• I
....
·····
·····
6-5/8" Dia. X 203-1/4"
Flanged Support Column
with 1 Socket Stub
' -
·····
- -
Page 3 of17
··········
....
······
··········
6-5/8" Dia. x 203-1/4"
Flanged Support Column
with 2 Socket Stubs
- -
··········
....
6-5/8" Dia. x 203-1/4"
Flanged Support Column
with 1 Socket Stub 96"
Above
Surfacing
- -
---l
l~
NTER N AT IONAL
PLA Y EQUIPM ENT
MANU FA CTUR E RS
MEMBER ASSOCI ATI ON

s
5 U p ERIO R®SwinQ Frame with Shade and Struts -Single 6-5/8" Posts
8' Swmg Elevation -2-Bay • Model RSW3516G
RECREATIONAL PRODUCTS
Playgrounds 1050 Columbia Dr• Carrollton, GA 30117 • 800-327-8774 • [email protected] INSTALLATION GUIDELINE
STEP 2
Mount top bars between support columns. Place each end of
top bar over socket stub on support column. Ensure center of
top bars are 96" above surfacing. Ensure set screw nuts face
downward. Ensure
top bars seat flush onto socket stubs. At
each end
of top bar, secure with two (2) 1/2" x 3/4" set screws.
See Detail 2-1. Repeat for opposite end of top bar. Repeat for
all top bars.
Detail 2-1
Top Bar End~
Seats Flush onto
Socket Stub
Typ.
AII
1/2" x 3/4" Set Screw .. ·
Typ. 2 Per Top Bar End
~./
MODEL NUMBER: RSW3516G
DATE: 07/15/20
w Nuts
wnward
Page 4 of 17
r---138" (11'6")
;
~138"(11'6")
: . ~
. .
. .
. .
. .
. .
5" Dia. x 131-3/8"
Top Bar with Nuts
- -
5" Dia. X 131-3/8"
Top Bar with Nuts
- -
·····
T
96"
Above
Surfacing
_l
l~
NTER N AT IONAL
P LAY EQUIPMENT
MANUFACTURERS
MEMBER ASSOCI ATI ON

s
5 U p ERIO R®SwinQ Frame with Shade and Struts -Single 6-5/8" Posts
8' Swmg Elevation -2-Bay • Model RSW3516G
RECREATIONAL PRODUCTS
Playgrounds 1050 Columbia Dr• Carrollton, GA 30117 • 800-327-8774 • [email protected]
STEP 3
Mount four (4) swing hangers to each top bar. Swing hanger spacing is
shown below. Place top clamp half over top of bar. Place bottom clamp
half under
top bar. Secure with two (2) 3/8" x 2" carriage bolts and two (2)
3/8" lock hex nuts. Ensure gap on each side of clamps is equal. Tighten
hardware
to approximately 20 ft-lb(+/- 1 ft-lb). Secure pendulum to
bottom clamp with one (1) 1/2" x 2-1/2" (1" thread) hex head bolt, one (1)
1/2" lock washer, and one (1) 1/2" hex nut. See Detail 3-1. Mount four (4)
hangers per each top bar. Swing chains will be secured to pendulum with
one (1) 3/8" x 1" Allen shoulder bolt.
Detail 3-1
1/2" Hex Nut ~ :
Typ. 1 Per Pendulum ~f
1/2" Lock Washer ;
Typ. 1 Per Pendulum f
3/8" Hex Lock Nut
Typ. 2 Per Hanger
Tighten to 20 ft-lbs
Typ.2
Pendulum
Typ. 1 Per Hanger
MODEL NUMBER: RSW3516G
DATE: 07/15/20
~ 3/8" x 2" Carriage Bolt
U "- Typ. 2 Per Hanger
'
. ::~ ······ ··~ 112", 2-112" (1" th,ead)
Hex Head Bolt
Typ. 1 Per Pendulum
3/8" x 1" Allen
Shoulder Bolt
Typ. 1 Per Pendulum
Page 5 of17
33"
--
INSTALLATION GUIDELINE
24" 24"
- -
24"
- -
96"
Above
Surfacing
l~
NTERNATIONAL
PLA Y EQ UIPMENT
MANUFACTURERS
MEMBER ASSOCIATION

s
5 U p ERIO R®SwinQ Frame with Shade and Struts -Single 6-5/8" Posts
8' Swmg Elevation -2-Bay • Model RSW3516G
RECREATIONAL PRODUCTS
Playgrounds 1050 Columbia Dr• Carrollton, GA 30117 • 800-327-8774 • [email protected]
STEP 4
Assemble end and middle crowns with ridge poles. Insert ridge poles into crowns.
Ends of ridge poles should seat fully into crowns. Duct tape (not included) can be
used to temporarily hold crowns and poles together.
Flanged End Crown
Typ . 2
MODEL NUMBER: RSW3516G
DATE: 07/15/20
3-1/2" Dia. x 126-5/8"
Ridge Pole with Swaged Ends
Typ.2
Flanged Middle Crown
Page 6 of17
INSTALLATION GUIDELINE
l~
NTERNATIONAL
PLAY EQUIPMENT
MANUFACTURERS
MEMBER ASSOCIATION

s
5 U p ERIO R®SwinQ Frame with Shade and Struts -Single 6-5/8" Posts
8' Swmg Elevation -2-Bay • Model RSW3516G
RECREATIONAL PRODUCTS
Playgrounds 1050 Columbia Dr• Carrollton, GA 30117 • 800-327-8774 • [email protected]
STEP 5
Mount crowns and ridge poles to support columns. Match ridge assembly
mounting plates
with support column mounting plates. Ensure ridge poles
are level. At each flange
to flange connection, secure with six (6) 1/2" x 2"
Allen
button head bolts, twelve {12) 1/2" x 1-3/8" flat washers, and six (6)
1/2" Nylon lock nuts. See Detail 5-1. Repeat for all flange to flange connections.
At each socket stub on each crown, drill
two (2) 21/64" pilot holes through
pre-drilled holes in crown stub and into ridge pole. Secure ridge pole
to stub
with two (2) 1/4" x 1" self-tapping security Torx. See Detail 5-2. Repeat for
all crown socket stubs.
Detail 5-1
1/2" x 2" Allen
Button Head Bolt
Typ. 6 Per
Top Flange
1/2" X 1-3/8"
Flat Washer
Typ. 12 Per
Two Flanges
\ 1/2" Nylon
Lock Nut
Typ. 6 Per
Bottom Flange
MODEL NUMBER: RSW3516G
DATE: 07/15/20
Detail 5-2
Drill 21 / 64 " Pilot Hole
Secure with
3/8" x 1-1/4" Self-Tapping
Security Torx
Typ. 2 Per
Ridge Pole
End
Page 7 of 17
INSTALLATION GUIDELINE
Ridge Poles Level
l~
NTERNATIONAL
P LAY EQUIPMENT
MANUFACTURERS
MEMBER ASSOCI AT ION

s
5 U p ERIO R®SwinQ Frame with Shade and Struts -Single 6-5/8" Posts
8' Swmg Elevation -2-Bay • Model RSW3516G
RECREATIONAL PRODUCTS
Playgrounds 1050 Columbia Dr• Carrollton, GA 30117 • 800-327-8774 • [email protected]
INSTALLATION GUIDELINE

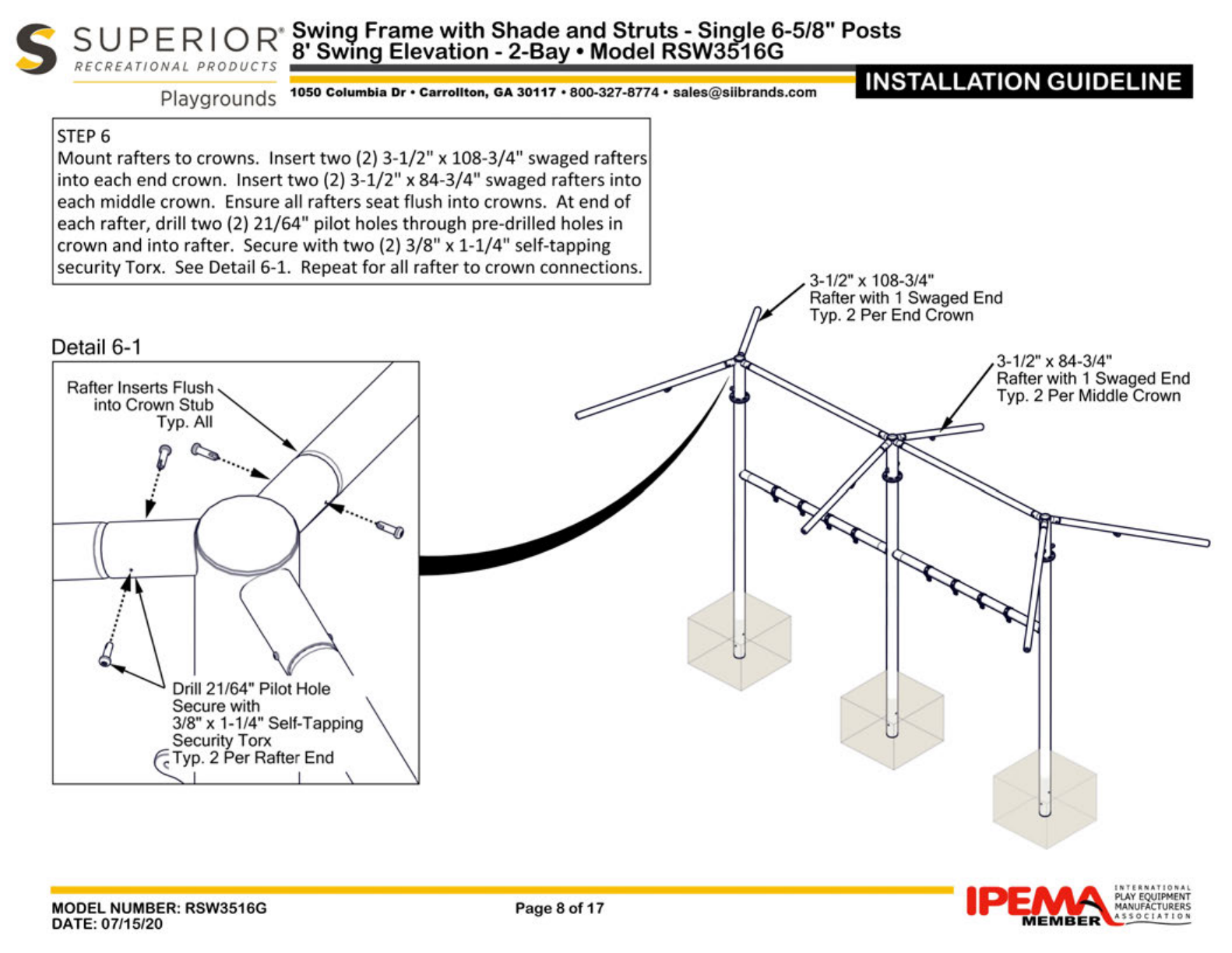

STEP 6
Mount rafters to crowns. Insert two (2) 3-1/2" x 108-3/4" swaged rafters
into each end crown. Insert two (2) 3-1/2" x 84-3/4" swaged rafters into
each middle crown. Ensure all rafters seat flush into crowns. At end of
each rafter, drill two (2) 21/64" pilot holes through pre-drilled holes in
crown and
into rafter. Secure with two (2) 3/8" x 1-1/4" self-tapping
security Torx.
See Detail 6-1. Repeat for all rafter to crown connections.
Detail 6-1
Rafter Inserts Flush~
into Crown Stub
Typ. All
f? ~ -..
f . .. .....
,
Drill 21/64" Pilot Hole
Secure with
3/8" x 1-1/4" Self-Tapping
Security Torx
<:: Typ. 2 Per Rafter End
MODEL NUMBER: RSW3516G
DATE: 07/15/20 Page 8
of17
3-1/2" X 108-3/4"
Rafter with 1 Swaged End
Typ. 2 Per End Crown
3-1/2" X 84-3/4"
Rafter with 1 Swaged End
Typ. 2 Per Middle Crown
l~
NTER N AT IONAL
PLA Y EQUIPMENT
MANUFACTURERS
MEMBER ASSOCI ATI ON

s
5 U p ERIO R®SwinQ Frame with Shade and Struts -Single 6-5/8" Posts
8' Swmg Elevation -2-Bay • Model RSW3516G
RECREATIONAL PRODUCTS
Playgrounds 1050 Columbia Dr• Carrollton, GA 30117 • 800-327-8774 • [email protected]
INSTALLATION GUIDELINE
STEP 7
Mount struts between rafter and crowns. Place two (2) 1-7 /8" x 42-3/8"
struts between each end crown and rafters.
Place two (2) 1-7 /8" x 33-1/8"
struts between each middle crown and rafters.
At each end of each strut,
secure
with one (1) 1/2" x 1-3/4" hex head bolt, two (2) 1/2" x 1-3/8" flat
washers, and one (1) 1/2" Nylon lock nut. See Detail 7-1 for common
connection. Repeat
for opposite end of strut. Repeat for all struts.
Detail 7-1
1/2" Nylon Lock Nut
Typ. 1 Per Strut End
I
1/2" x 1-3/8" Flat Washer
Typ. 2 Per Strut End
1/2" X 1-3/4"
Hex Head Bolt
Typ. 1 Per Strut End
MODEL NUMBER: RSW3516G
DATE: 07/15/20 Page 9
of17
1-7/8" x 42-3/8" Strut
Typ. 2 Per End Crown
1-7/8" x 33-1 /8" Strut
Typ. 2 Per Middle Crown
l~
NTERNATIONAL
PLA Y EQ UIPMENT
MANUFACTURERS
MEMBER ASSOCIATION

s
5 U p ERIO R®SwinQ Frame with Shade and Struts -Single 6-5/8" Posts
8' Swmg Elevation -2-Bay • Model RSW3516G
RECREATIONAL PRODUCTS
Playgrounds 1050 Columbia Dr• Carrollton, GA 30117 • 800-327-8774 • [email protected]
STEP 8
Feed cable through shade fabric. Unroll fabric on clean, smooth, flat surface
with hem side up. At first corner, feed cable through first edge hem until only
24"
of cable remains exposed at first corner. Feed cable through second hem.
Leave slack at connecting point. Continue feeding cable through each hem and
leave slack
at each connecting point until end of cable is at corner with start
of cable.
Connecting
Point
INSTALLATION GUIDELINE
Connectingy :;::..; ~;. ;- ~ - ;_: - :.; - ;.; - :;. :- ;..; - :_; - ;_; - ;_; - ;.; - ;.. - .. --•~ --~ oo' ._ -_- __ ___ _;; _;._:_ ;_; - :_ :- ~ - :_: - :_: - :.; - :_ :- ~ - ;.: - :_: -. :; ~~ Connecting
Point ,: - - Point
Hem#4
Hem#3
"
Hem#2
36' X 16'
Shade Fabric
Connecting
Point
Hem#5
Hem#1
0
Hem#6
\
Cable Start ~
24" Exposed \
Cable
End
MODEL NUMBER: RSW3516G
DATE: 07/15/20 Page
10 of 17 l~
NTER N AT IONAL
PLAY EQUIPMENT
MANUFACTURERS
MEMBER ASSOCI ATI ON

s
5 U p ERIO R®SwinQ Frame with Shade and Struts -Single 6-5/8" Posts
8' Swmg Elevation -2-Bay • Model RSW3516G
RECREATIONAL PRODUCTS
Playgrounds 1050 Columbia Dr• Carrollton, GA 30117 • 800-327-8774 • [email protected]
STEP 9
Mount glide inserts to rafters. At each rafter end, insert one (1)
glide insert. Glide hook should point straight up. Ensure glide insert
seats flush
into rafter end. Ensure glide hook is vertical. Drill two (2)
5/32" pilot holes through opposite sides of rafter end and into glide
insert. Secure
with two (2) 1/4" x 1" self-tapping security Torx. See
Detail 9-1. Repeat for all rafter ends.
Detail 9-1
Drill 5/32" Pilot Hole~
Secure with
1/4" x
1" Self-Tapping
Security Torx
Typ. 2 Per
Glide / Rafter Connection
Glide Hook
Straight Vertical
MODEL NUMBER: RSW3516G
DATE: 07/15/20
Glide Insert
Typ. 1 Per Rafter End
Page 11 of17
INSTALLATION GUIDELINE
/
3-1/2" Glide Insert
Typ. 1 Per Rafter
l~
NTER N AT IONAL
PLA Y EQ UIPMENT
MANUFACTURERS
MEMBER ASSOCI ATI ON

s
SU p ERIO R®SwinQ Frame with Shade and Struts -Single 6-5/8" Posts
8' Swmg Elevation -2-Bay • Model RSW3516G
RECREATIONAL PRODUCTS
Playgrounds 1050 Columbia Dr• Carrollton, GA 30117 • 800-327-8774 • [email protected]
INSTALLATION GUIDELINE

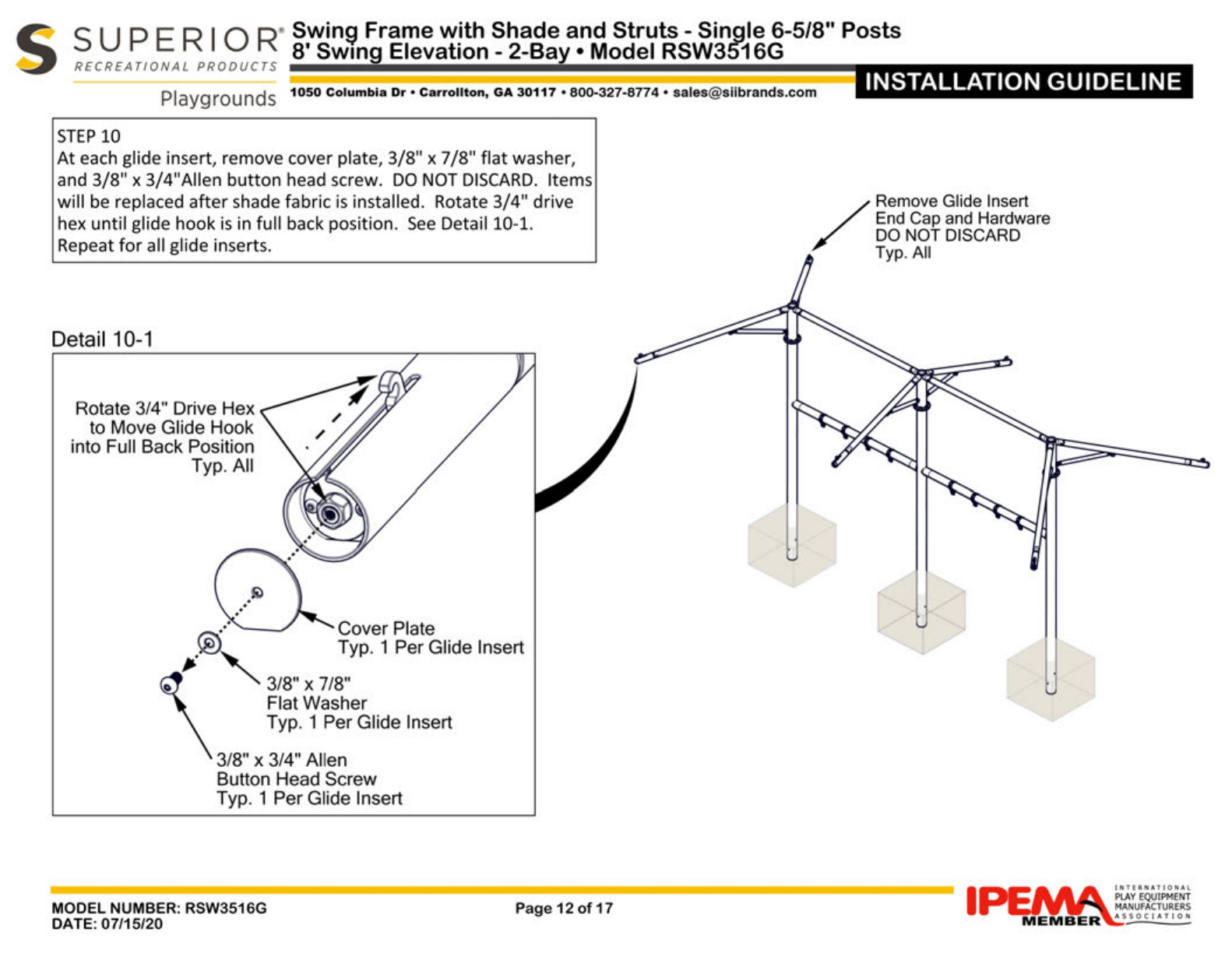

STEP 10
At each glide insert, remove cover plate, 3/8" x 7 /8" flat washer,
and
3/8" x 3/4"Allen button head screw. DO NOT DISCARD . Items
will be replaced
after shade fabric is installed. Rotate 3/4" drive
hex
until glide hook is in full back position. See Detail 10-1.
Repeat
for all glide inserts.
Detail 10-1
Rotate 3/4" Drive Hex
to Move Glide Hook
into Full Back Position
Typ. All
•••
------ -- Cover Plate
®, Typ. 1 Per Glide Insert
Ji
\
3/8"x7/8"
Flat Washer
Typ. 1 Per Glide Insert
3/8" x 3/4" Allen
Button Head Screw
Typ. 1 Per Glide Insert
MODEL NUMBER: RSW3516G
DATE: 07/15/20 Page
12 of 17
/
Remove Glide Insert
End Cap and Hardware
DO NOT DISCARD
Typ.AII
l~
NTER N AT IONAL
PLA Y EQUIPMENT
MANUFACTURERS
MEMBER ASSOCI ATI ON

s
5 U p ERIO R®SwinQ Frame with Shade and Struts -Single 6-5/8" Posts
8' Swmg Elevation -2-Bay • Model RSW3516G
RECREATIONAL PRODUCTS
Playgrounds 1050 Columbia Dr• Carrollton, GA 30117 • 800-327-8774 • [email protected]

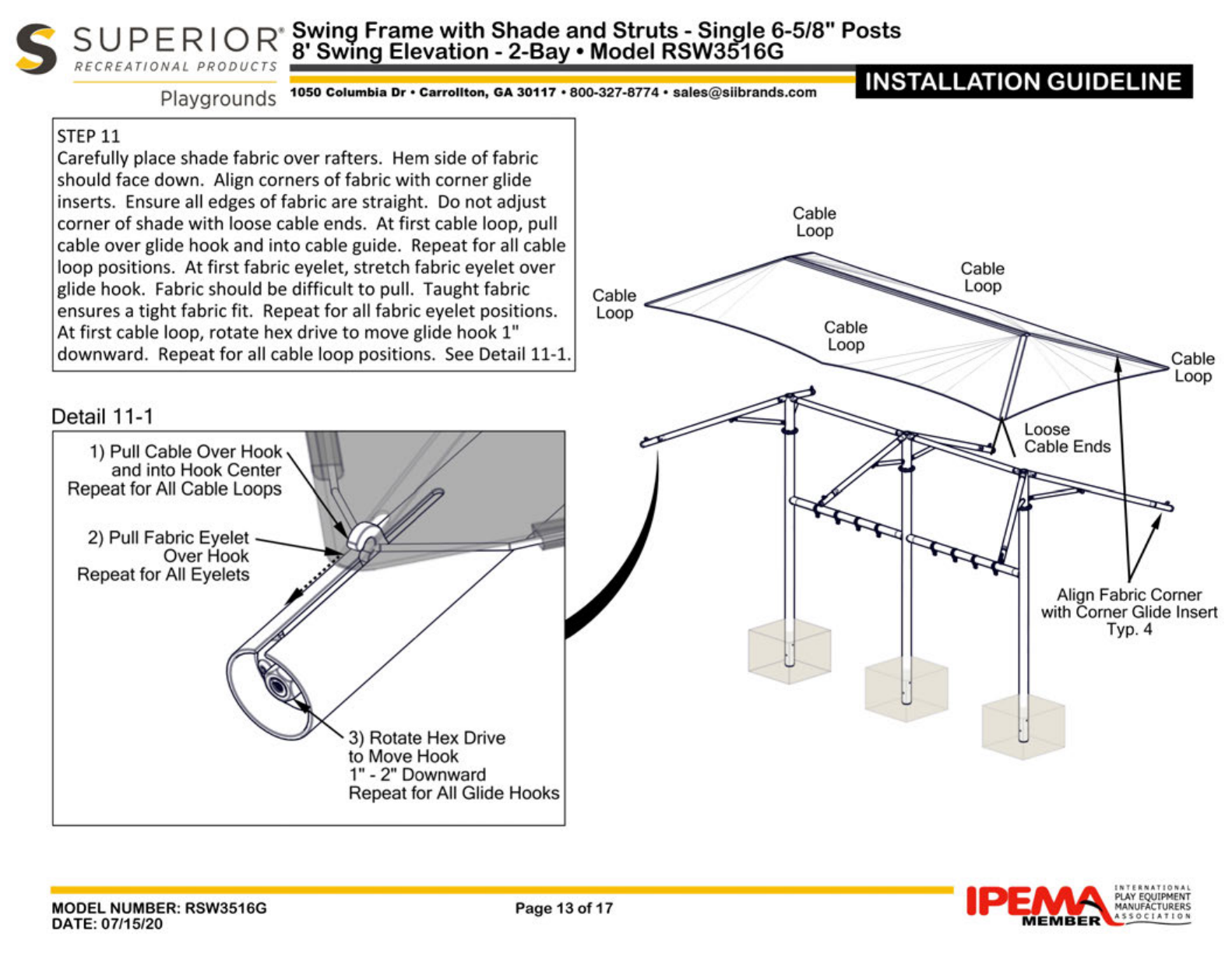

STEP 11
Carefully place shade fabric over rafters. Hem side
of fabric
should face down. Align corners
of fabric with corner glide
inserts. Ensure all edges
of fabric are straight. Do not adjust
corner
of shade with loose cable ends. At first cable loop, pull
cable over glide hook and
into cable guide. Repeat for all cable
loop positions.
At first fabric eyelet, stretch fabric eyelet over
glide hook. Fabric should
be difficult to pull. Taught fabric Cable
ensures a
tight fabric fit. Repeat for all fabric eyelet positions. Loop
At first cable loop, rotate hex drive to move glide hook 1"
downward. Repeat
for all cable loop positions. See Detail 11-1.
Detail 11-1
1) Pull Cable Over Hook
and into Hook Center
Repeat for All Cable Loops
2) Pull Fabric Eyelet
Over Hook
Repeat for All Eyelets
MODEL NUMBER: RSW3516G
DATE: 07/15/20
3) Rotate Hex Drive
to Move Hook
1" -2" Downward
Repeat for All Glide Hooks
Page 13 of 17
Cable
Loop
INSTALLATION GUIDELINE
Cable
Loop
Align Fabric Corner
with Corner Glide Insert
Typ.4
l~
NTERNATIONAL
PLAY EQUIPMENT
MANUFACTURERS
MEMBER ASSOCIATION

s
5 U p ERIO R®SwinQ Frame with Shade and Struts -Single 6-5/8" Posts
8' Swmg Elevation -2-Bay • Model RSW3516G
RECREATIONAL PRODUCTS
Playgrounds 1050 Columbia Dr• Carrollton, GA 30117 • 800-327-8774 • [email protected]

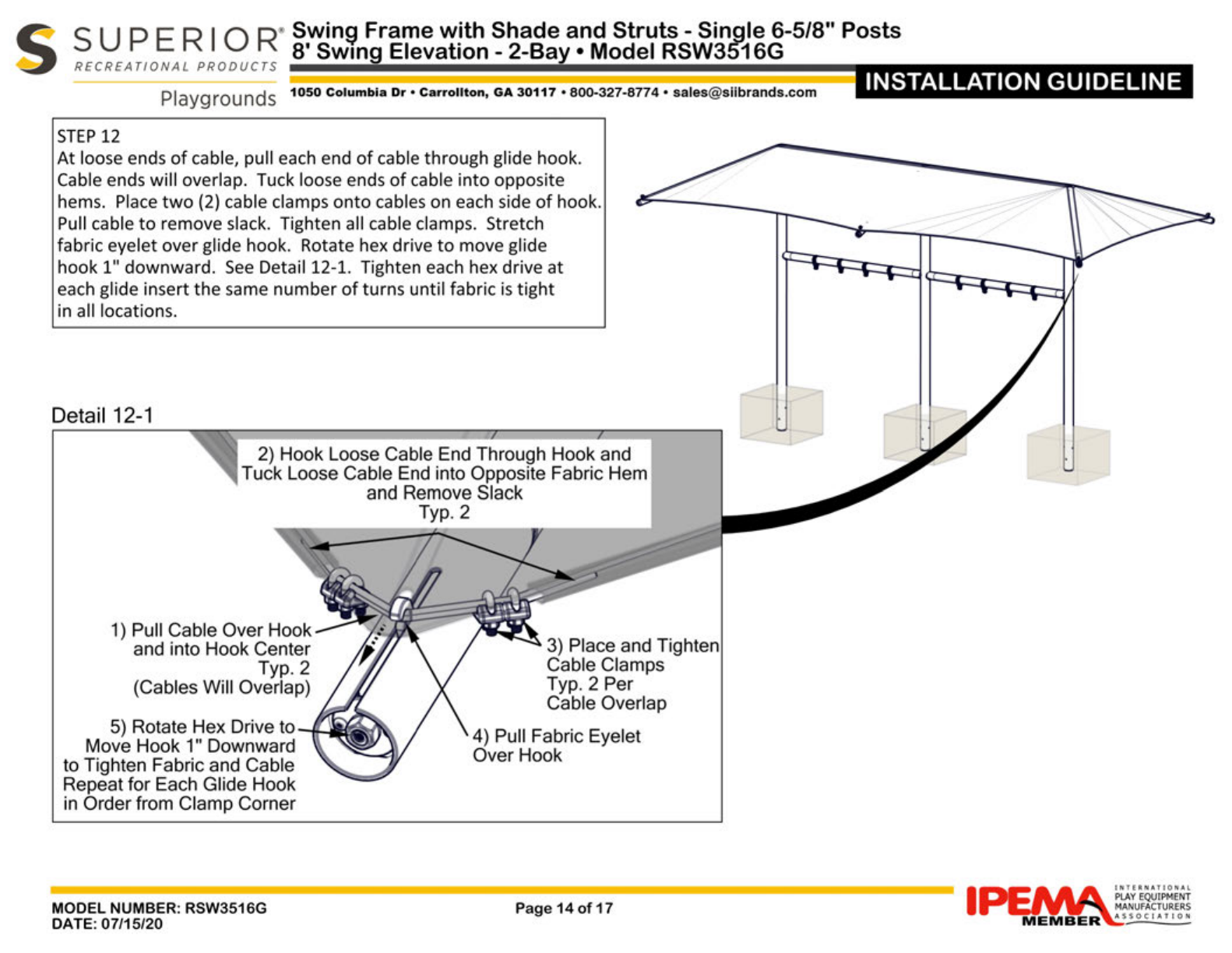

STEP 12
At loose ends of cable, pull each end of cable through glide hook.
Cable ends will overlap. Tuck loose ends
of cable into opposite
hems.
Place two (2) cable clamps onto cables on each side of hook.
Pull cable to remove slack. Tighten all cable clamps. Stretch
fabric eyelet over glide hook. Rotate hex drive
to move glide
hook 1" downward.
See Detail 12-1. Tighten each hex drive at
each glide insert the same number
of turns until fabric is tight
in all locations.
Detail 12-1
2) Hook Loose Cable End Through Hook and
Tuck Loose Cable End into Opposite Fabric Hem
and Remove Slack
1) Pull Cable
Over Hook
and into Hook Center
Typ.2
(Cables Will Overlap)
5) Rotate Hex Drive to-
...-i
Move Hook 1" Downward
to Tighten Fabric and Cable
Repeat for Each Glide Hook
in Order from Clamp Corner
MODEL NUMBER: RSW3516G
DATE: 07/15/20
Typ.2
3) Place and Tighten
Cable Clamps
Typ. 2 Per
Cable Overlap
4) Pull Fabric Eyelet
Over Hook
Page 14 of 17
INSTALLATION GUIDELINE
l~
NTER N AT IONAL
PLA Y EQUIPMENT
MANUFACTURERS
MEMBER ASSOCI ATI ON

s
5 U p ERIO R®SwinQ Frame with Shade and Struts -Single 6-5/8" Posts
8' Swmg Elevation -2-Bay • Model RSW3516G
RECREATIONAL PRODUCTS
Playgrounds 1050 Columbia Dr• Carrollton, GA 30117 • 800-327-8774 • [email protected]
STEP 13
At each glide insert, replace cover plate,
3/8" x 7 /8" flat washer, and 3/8" x 3/4"
Allen button head screw. Ensure flat side of cover plate is positioned down to
allow for drainage. See Detail 13-1.
Detail 13-1
Flat Edge of Cover Plate
Should be at
Bottom Position
Typ. All / _
_,, Cover Plate
_./ @) '-. Typ. 1 Per Glide Insert
\
"'-.
3/8" X 7 /8"
MODEL NUMBER: RSW3516G
DATE: 07/15/20
Flat Washer
Typ. 1 Per Glide Insert
3/8" x 3/4" Allen
Button Head Screw
Typ. 1 Per Glide Insert
Page 15 of 17
INSTALLATION GUIDELINE
l~
NTER N AT IONAL
PLA Y EQUIPMENT
MANUFACTURERS
MEMBER ASSOCI ATI ON

5 U p ERIO R®SwinQ Frame with Shade and Struts -Single 6-5/8" Posts
8' Swmg Elevation -2-Bay • Model RSW3516G
RECREATIONAL PRODUCTS
s Playgrounds
1050 Columbia Dr• Carrollton, GA 30117 • 800-327-8774 • [email protected]
INSTALLATION GUIDELINE
STEP 14
Complete setting
of footing holes. Ensure each support column is plumb.
Ensure blocks are beneath posts. Ensure rebar frames are in place.
See
Detail 14-1 for footing hole and rebar details. Fill footing holes with concrete
to within 6" from ground surface. Allow concrete to cure based upon
manufacturer's instructions. Backfill footing holes
with dirt, flush with grade.
Check all connections and ensure structure
is stable. Do not install swings or
chains until concrete is fully cured. Do not install swings or chains until play
area
is available for use. All concrete must be fully cured before use of
structure. Installation is complete. Place one (1) Age Appropriate Sticker on
structure in a clearly visible location.
Detail 14-1
SURFACING
~ 138" (11'6")
: ~
rr.-t12 " 6" . : 138"(11'6")
: ~
I t- GRADE
48 " -~
36" r
30"
36"
-~
3" Typ.
-t.!:= 48 " Square --l
Hole is Provided
at Bottom of
Each Column for
One (1) Additional
#5 Rebar Rod
(4) #5 x 42" Rods
Each Way
Top and Bottom
2,500 PSI Concrete Min. 6" Tall Block
Rebar Requirements
MODEL NUMBER: RSW3516G
DATE: 07/15/20
- - - -
Page 16 of 17
···············
·r
96"
Above
Surfacing
___ j
l~
NTERNATIONAL
PLA Y EQ UIPMENT
MANUFACTURERS
MEMBER ASSOCIATION

s
5 U p ERIO R®SwinQ Frame with Shade and Struts -Single 6-5/8" Posts
8' Swmg Elevation -2-Bay • Model RSW3516G
RECREATIONAL PRODUCTS
Playgrounds 1050 Columbia Dr• Carrollton, GA 30117 • 800-327-8774 • [email protected] INSTALLATION GUIDELINE
** Glide Drive Removal **
At each glide insert, remove cover plate, 3/8" x 7 /8" flat washer, and 3/8" x 3/4" Allen button head screw.
Rotate drive hex until glide hook
is in full back position. Repeat for all glide inserts. Remove shade fabric,
cable,
and cable clamps. At each glide insert, remove two (2) 5/16" x 5/8" Allen button head bolts. Slide
out glide drive with glide hook. Repeat for
all glide inserts. Store shade fabric and all items for reuse.
Rotate 3/4" Drive
Hex
to Move Glide Hook
into Full Back Position
Typ. All
•• • -- Cover Plate
®, Typ. 1 Per Glide Insert
Ji
\
3/8"x7/8"
Flat Washer
Typ. 1 Per Glide Insert
3/8" x 3/4" Allen
Button Head Screw
Typ. 1 Per Glide Insert
Remove Glide Drive
with Glide Hook
(Store with Fabric)
Typ. 1 Per Glide Insert
Ji,. ~ Allen Button Head Bolt
iY iY (Store with Fabric)
Typ. 2 Per Glide Insert
MODEL NUMBER: RSW3516G
DATE: 07/15/20 Page
17 of 17 l~
NTERNATIONAL
PLA Y EQ UIPMENT
MANUFACTURERS
MEMBER ASSOCIATION

Page Intentionally Left Blank
