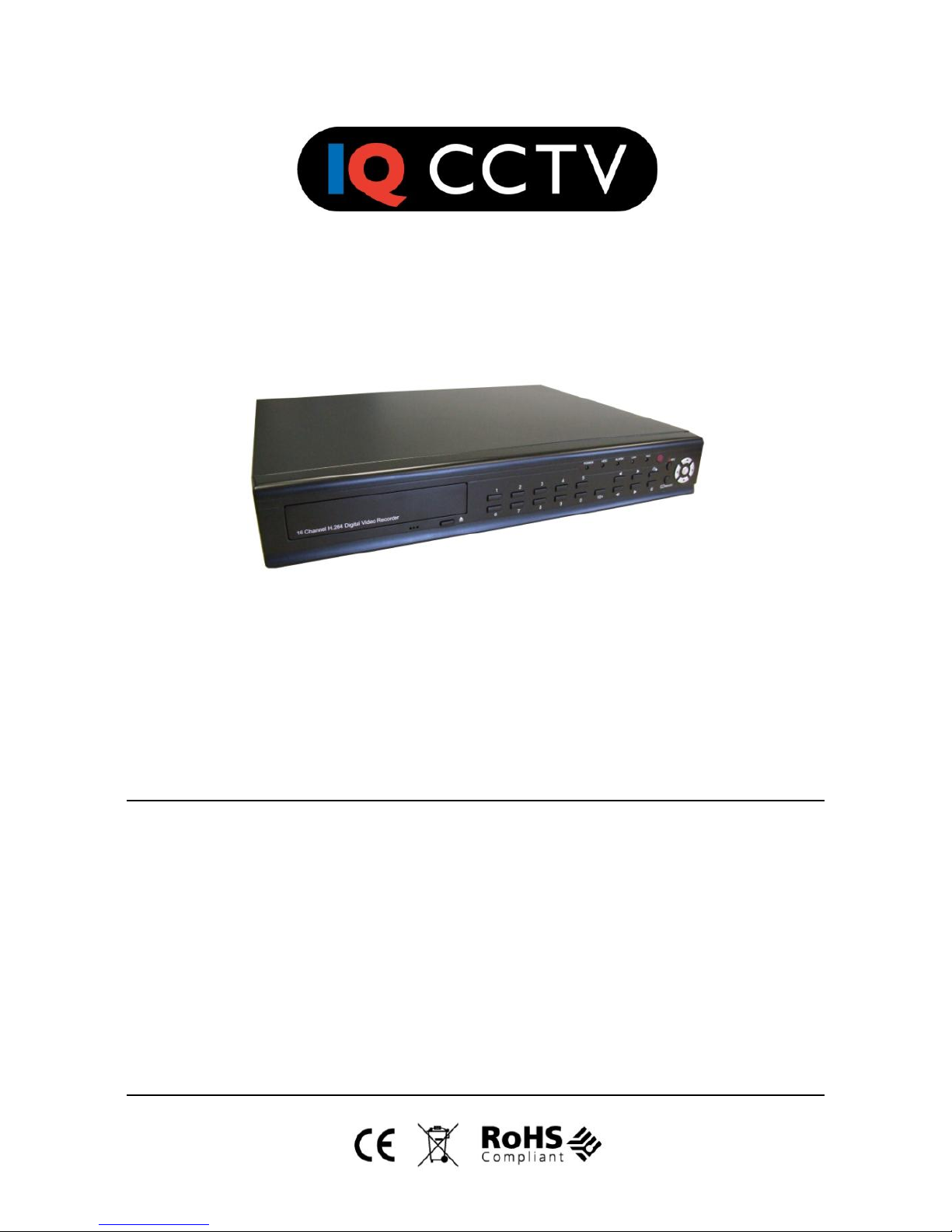

IQCCTV IQR16D User manual

IQR16D
16 Camera DVR with Real Time HD1 Recording
and Mobile/Internet Access
User Manual
TECHNICAL SUPPORT:
For Technical Support please contact your local distributor.
LIMITED WARRANTY:
This product is supplied with a 1 Year warranty. The Warranty excludes
products that have been misused, (including accidental damage) and damage
caused by normal wear and tear. In the unlikely event that you encounter a
problem with this product, it should be returned to the place of purchase.

IQCCTV IQR16D –16 Camera DVR
1
Notes:
The power supply of this DVR is provided through DC12V5A adapter, please
check the power outlet before installation and ensure it can meet the
requirements of the adapter.
Do not place the DVR at a place subject to rain and moisture.
Do not install the DVR at a place subject to violent vibration.
Do not install the DVR at a place subject to direct sunlight, and be far away from
high temperature environment.
The DVR should be installed in a space without much dust, and the environment
should be kept clean and tidy.
The DVR’s back panel should be placed 15cm or more away from other objects or
wall for cooling.
The DVR should work under temperature, humidity and voltage according to its
technical specifications.
The space where DVR is installed should not be stored with corrosive chemicals
that may produce volatile gases to avoid affecting the DVR’s life.
Proper grounding should be guaranteed during operation;
The DVR shall be installed to ensure proper connection with other devices.
Please buy HDD from official channel to meet DVR’s long time and large data
reading and writing requirements.
Statement:
This manual only introduces basic operation, and please refers to the E-manual in
the CD for detailed operation.
Products are subject to the real products and this manual is just for reference.
Products update without further notice. Nuances of partial functions are
permitted before and after updating.
Please contact the Customer Service Department for the latest program and
supplementary instruction files.
This manual is applicable to various models, and the specific operation of each
product is not listed here. Users can operate the DVR based on this manual for
the actual products.
We have tried our best to ensure the completeness and accuracy of this manual.
However, due to the unstable environment and other reasons, the real value of
some data may differ. If any problem or dispute arises, the company’s final
explanation will prevail.
If carrying out operation not according to the instruction of this manual, the user
shall bear the losses sustained.

IQCCTV IQR16D –16 Camera DVR
2
Contents
Chapter 1 Open-case inspection and quick installation....................................... 4
1.1 Open-case inspection................................................................................................4
1.1.1 Notes..............................................................................................................4
1.1.2 Package and accessories ................................................................................4
1.2 Product Apperance ...................................................................................................4
Chapter 2 Software interface basic operation..................................................... 5
2.1 Power on and login ...................................................................................................5
2.2 Main menu................................................................................................................6
2.2.1 Shortcut menu ...............................................................................................6
2.2.2 Main menu.....................................................................................................7
2.3 Recording setup ........................................................................................................8
2.3.1 Basic setup .....................................................................................................8
2.3.2 Advanced setup .............................................................................................9
2.3.3 Recording schedule........................................................................................9
2.4 Recording playback and backup..............................................................................10
2.4.1 Recording playback ......................................................................................10
2.4.2 Recording backup.........................................................................................11
2.5 Alarm setup.............................................................................................................12
2.5.1 Alarm port connection figure.......................................................................12

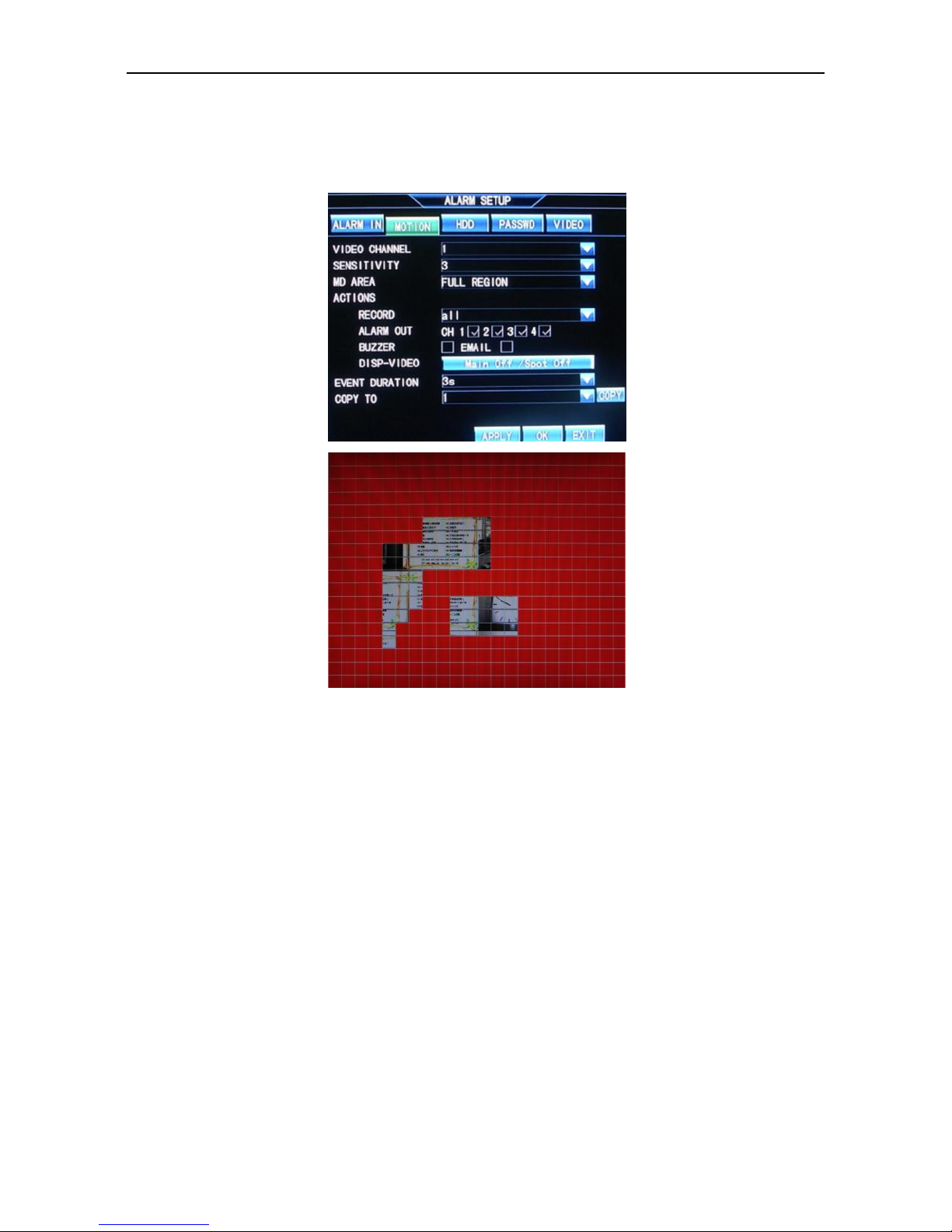

2.5.2 Motion Detection.........................................................................................13
2.6 PTZ setup .............................................................................................................14
2.6.1 Channel setup ..............................................................................................14
2.6.2 PTZ Control...................................................................................................15
2.7 Network setup ........................................................................................................16
2.7.1 Basic setup ...................................................................................................16
2.7.2 Advanced setup ...........................................................................................17
2.8 Mobile phone surveillance......................................................................................18
2.8.1 DVR end setup .............................................................................................18
2.8.2 Mobile Phone end operation .......................................................................18
2.9 IE end login .............................................................................................................19
2.9.1 IE Controls download and installation .........................................................19
2.9.2 IE end login...................................................................................................20

IQCCTV IQR16D –16 Camera DVR
3
2.9.3 Playback and download ...............................................................................21
2.10 Client end and playing software ...........................................................................22
2.10.1 Client..........................................................................................................22
2.10.2 Playing software.........................................................................................23
2.11 Central Management Software(CMS)...................................................................24

IQCCTV IQR16D –16 Camera DVR
4
Chapter 1 - Open-case inspection and quick installation
1.1 Open-case inspection
1.1.1 Notes
please firstly check if not damaged during transportation and check if the accessories are
complete.
1.1.2 Package and accessories
Following parts are included in the package:
IQR16D DVR
IR remote controller
x2 Batteries (for the remote controller)
Instruction Manual
Power Adapter
Central Management Software (CMS) CD
1.2 Product appearance and port
Front panel 1:
(1) Numeric keys (2) Power LED (3) HDD indicator (4) Alarm indicator (5) Network
connection indicator (6) Recording indicator (7) Video search/playback stop (8) Recording
(9) PTZ control and Direction (10)Video playback control (11)Display mode (12)Menu/Exit
Back panel 1:
(1) 16CH video in (2) Main video out (3) Auxiliary video out (4) 16CH Audio in (5) Intercom
in and audio out (6) Network port (7) USB port (8) Power in (9) RS485 (10) 4CH alarm out &
16CH alarm in (11) HDMI output port (12) VGA output (13) Power switch
9
6
4
8
2
1
3
5
7
10
11
12
12
1
2
4
6
8
7
11
13
3
5
9
10

IQCCTV IQR16D –16 Camera DVR
5
Chapter 2 - Software interface basic operation
2.1 Power on and login
When the DVR is powered on, the system enters the preview status. If there is
video input, the corresponding channel will display monitoring video on the main
interfacce. If there is no video input, the image displayed is blue by default.
Full screen and multi-screen switch can be realized through double-click and right
click on the main interface (using a mouse). Right click and enter the shortcut
menu, and select Main menu to enter corresponding Main menu interface.
When operating on relevant menus, the system will remind the user to login, as
shown below:
[User name]: admin by default.
[Password]: The initial administrator password is: 00000000

IQCCTV IQR16D –16 Camera DVR
6
2.2 Main menu
2.2.1 Shortcut menu
Right click the mouse, and shortcut menu pops up:
[Main menu]: System main menu interface
[Single screen]: Click to enter the corresponding channel and display single
screen
[Multi screen]: Screen display with options of 4, 9 and 16 screens
[Next screen]: Switch to the next screen channel
[Start / Stop Record]: It is effective after starting the recording setup
[Record Search]: Recording playback and backup are available when entering
[PTZ Control]: enter the PTZ control interface
[Intercom]: Intercom function
[Digital Zoom]: Under single-channel preview screen, when choosing an area,
users can enlarge the area
[PIP]: After clicking, main interface will appear and a small screen will display
on the lower right corner.
[System Inform]: including the version, network address, system ID, and
recording files information, etc.
[System Reset]: including user locking, system restart and system shutdown

IQCCTV IQR16D –16 Camera DVR
7
2.2.2 Main menu
Click mouse right button and select the main menu, main menu interface of DVR
system pops up as below:
[Record]: “Basic” including resolution, quality, frame rate, pre-Record setup;
“Advanced” including overwrite, overlay; “Recording schedule”: set the
recording types of every period every day.

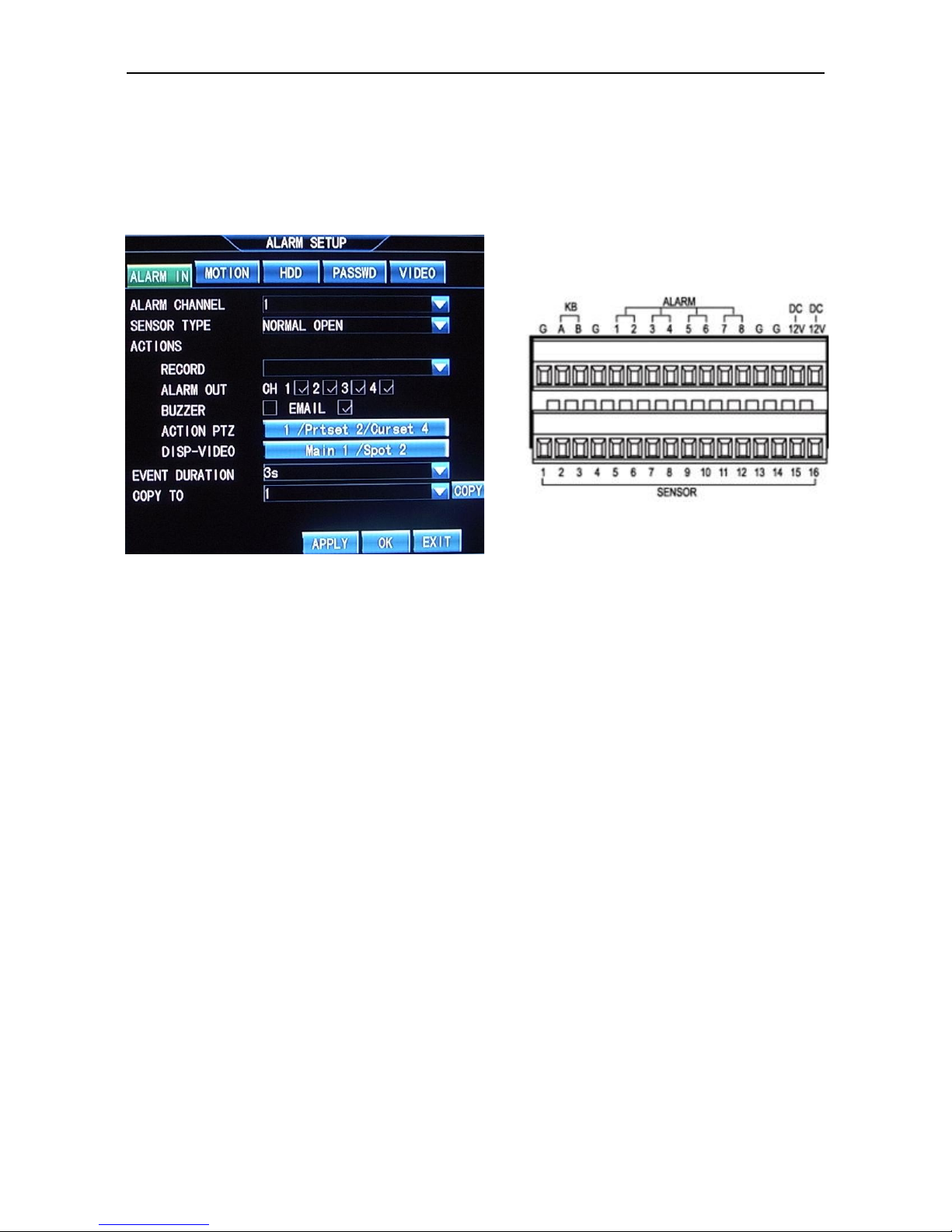

[Alarm]: including Alarm in, Motion Detection, HDD error, password error and
video loss setup.

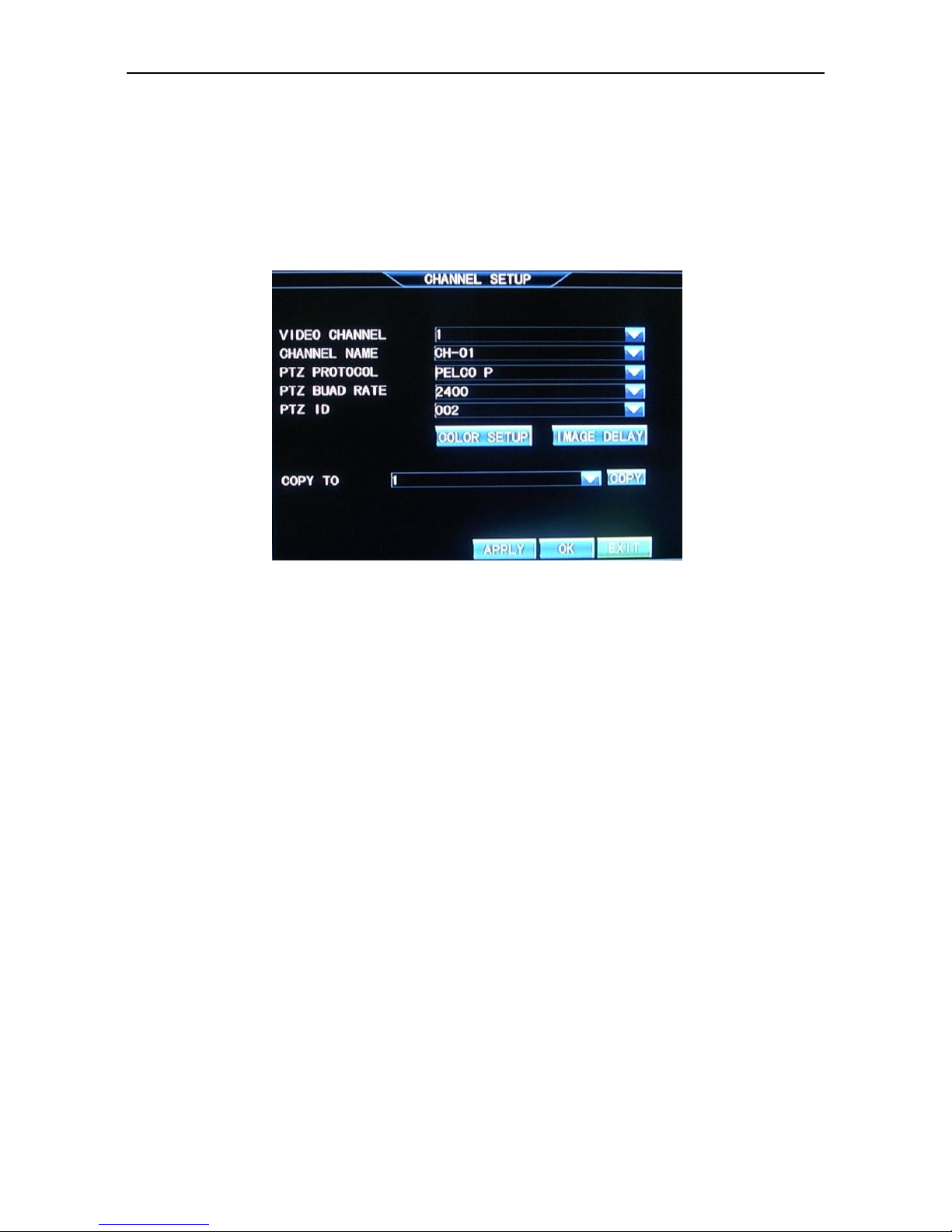

[Channel]: Select channel and set channel name, PTZ protocol, PTZ Baud Rate,
PTZ Address and Color setup.

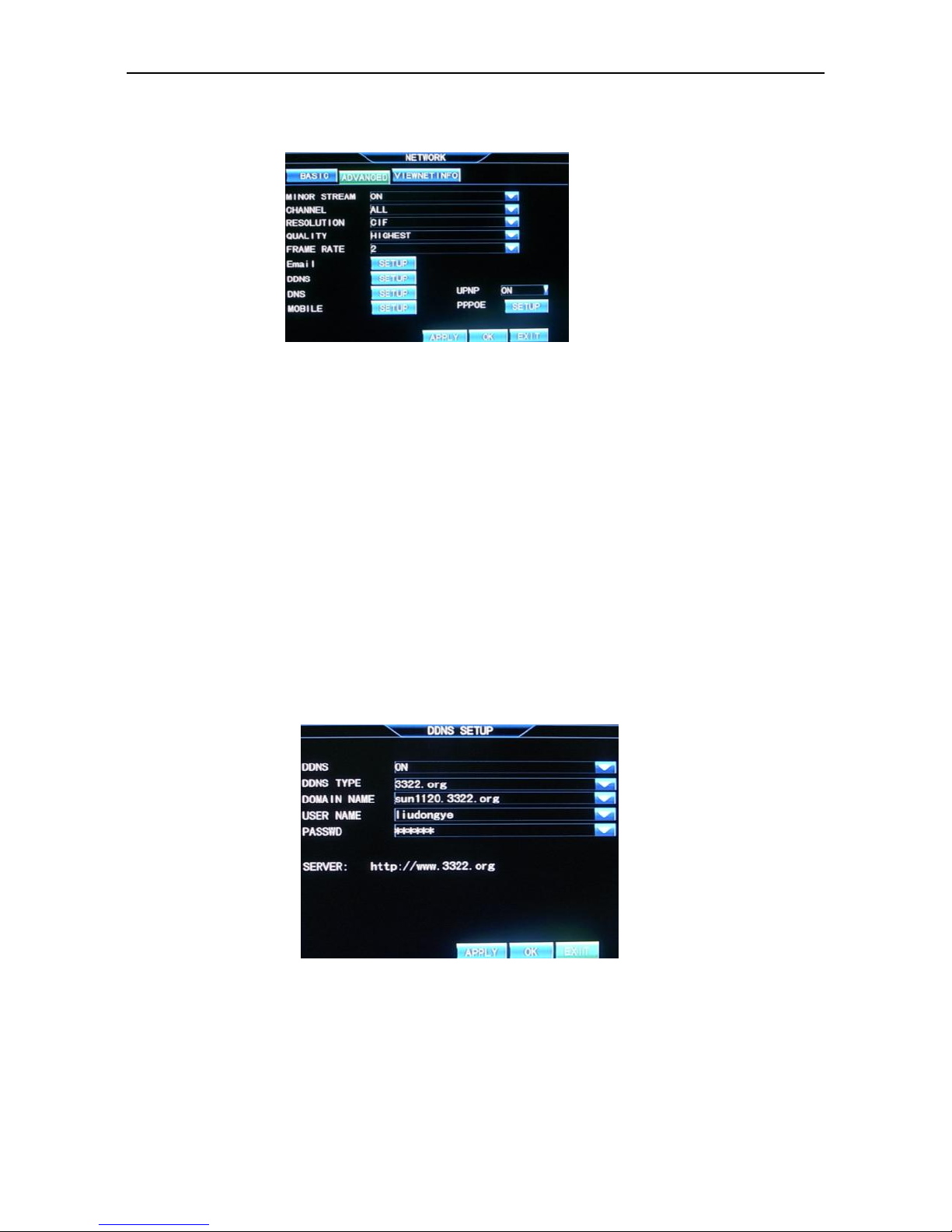

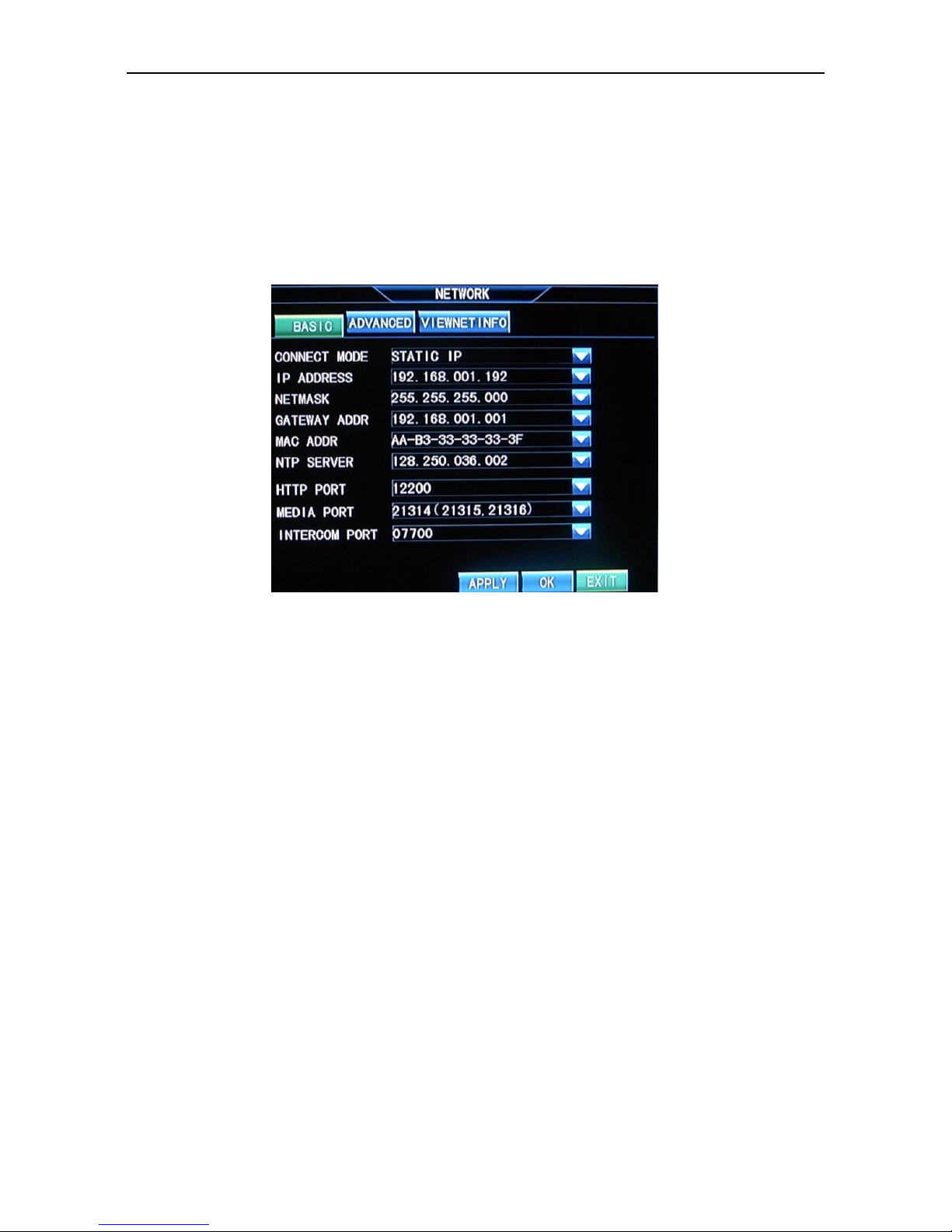

[Network]: Set IP, port number, DDNS and Mobile phone surveillance, etc.
[User]: Add, modify and delete users and set the user privileges.
[System]: including Basic setup, Advanced setup, HDD management, and
System Maintenance.
[Display]: Main display switching interval, ignoring video loss, and display
resolution setups.
[Log]: Information regarding login and starting system will be kept. Users can
view the system log information.
[Record Search]: Recording playback and backup are available when entering

IQCCTV IQR16D –16 Camera DVR
8
2.3 Recording setup
2.3.1 Basic
[Main menu]> [Record], enter the basic setup Interface:
[Video Channel]: the channel you want to setup
[Resolution]: CIF, Half-D1 and D1
[Quality]: Recording quality is divided into lowest, low, normal, high, and
highest quality.
[Frame Rate]: Refer to the frames per second of encoding. 6, 12 and 25 frames
respectively under PAL system, and 1, 15, 30 frames under NTSC system.
[Audio]: Refers to the audio channel of related video. Left-click on the mouse
and the drop-down box pops up, and there are 1-4 audio channels to choose
from.
[Pre-Record]: Refers to the encoding frames per second before trigger alarm
and after finishing alarm event when one channel is set to be timer & alarm
recording.
[Copy To]: The parameters/settings of this channel can be copied to other
channels through this function.

IQCCTV IQR16D –16 Camera DVR
9

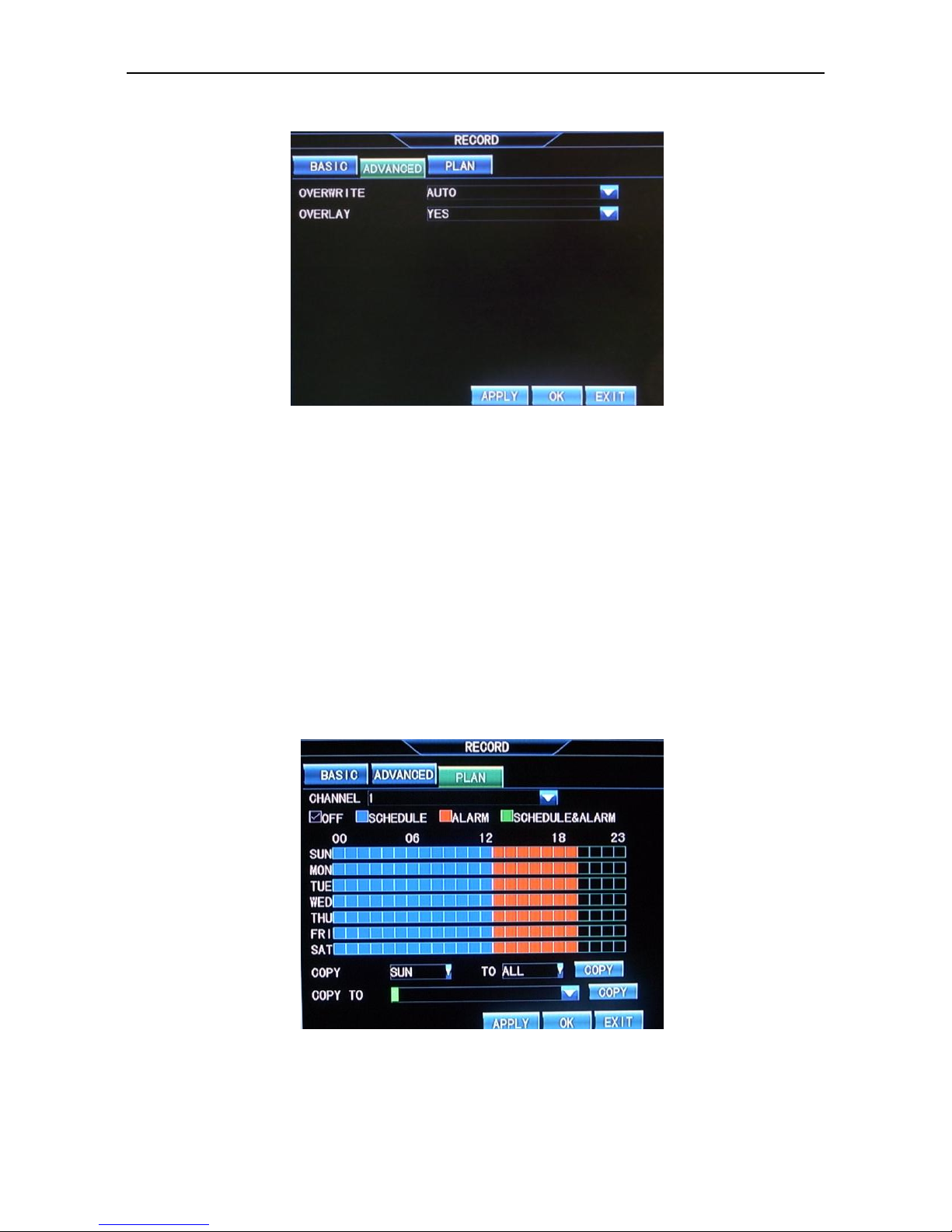

2.3.2 Advanced
[Overwrite]: Selecting Auto; when the capacity of HDD is full, the new recording file will
overwrite the earliest recording file. If selecting Off; it will not record if there is
insufficient space.
[Overlay]: select Yes，the playback screen will display time and date when playback the
recording file; select No, it will not display the time and date.
2.3.3 Plan
“Plan”interface including not recording, timer recording, alarm recording as well as timer
& alarm recording setup.
The Plan is divided into 7 days a week and 1 hour per period (represented by a box). Users
can set the recording type of every period every day. After the parameters are set and
saved these can then be copied to the other days or other channels.

IQCCTV IQR16D –16 Camera DVR
10
2.4 Recording playback and backup
2.4.1 Recording playback

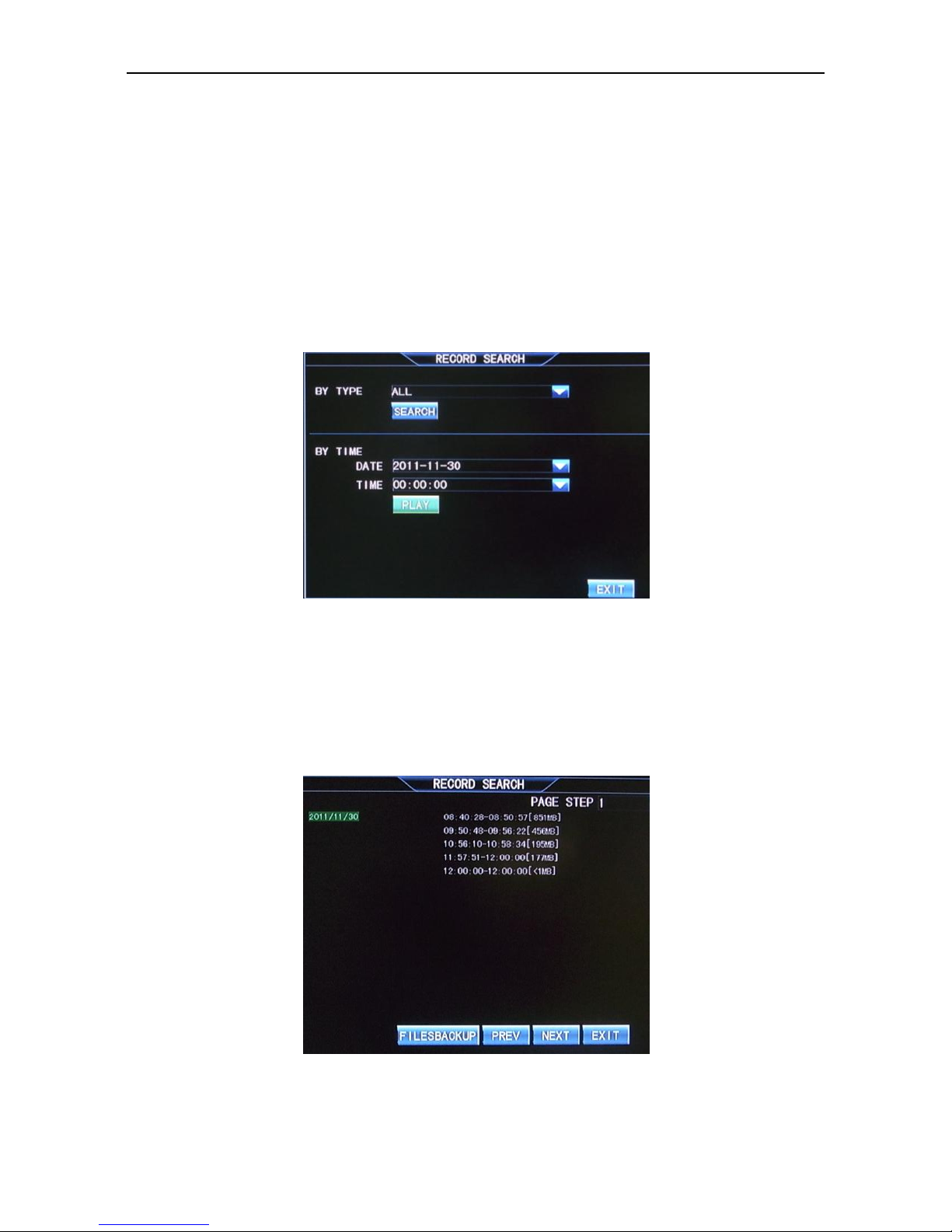

Select [Record Search] from shortcut menu or Main menu and enter the interface, with
two types of Search; by type or by time.
By Type: with 5 options; All, Manual, Timer, Alarm, Timer & Alarm. Select the type that
you want to search in the drop-down box, and choose from the recording list (as shown
in the image below). These can then be selected and played back.
By Time: enter the specific tim, and detailed file list will pop up (as the shown in the
image above). These can then be selected and played back.

IQCCTV IQR16D –16 Camera DVR
11
2.4.2 Recording backup
In the " file list" (image above) , select the recording file to backup.
If selecting single file backup, the interface (as shown below) will pop up. For multiple files
backup, select multiple files and click “multiple files backup”.
The progress of recording backup as shown in the following picture:
Note:
Do not exit or power off during backup, or it will affect the backup of recording file.

IQCCTV IQR16D –16 Camera DVR
12
2.5 Alarm setup
2.5.1 Alarm port connection figure
The alarm terminal input block, loacted at the back of the DVR (shown below):
Alarm In:
Alarm Channel: Choose the alarm channel
Sensor Type: Depending on your alarm you can select either ‘Normal Open’ or
‘Normal Close’.
Record: Setup which channel to record to if an alarm ia activated.
Alarm Out:Select the alarm output channel on the back panel.
Buzzer: Control the Buzzer settings if an alarm is activated .
Action PTZ: When an alarm is activated, the DVR can quickly move a PTZ camera
moving to preset position. You must set up the preset position within the PTZ setup
menu before this can work.
Disp-Video: Setup the video pop-up channel, which is displayed on the main screen if
an alarm is activated.
Event Duration: Setup the alarm duration time.

IQCCTV IQR16D –16 Camera DVR
13
2.5.2 Motion Detection
The setup method of motion detection is the same as the setup of ‘Alarm-In’.
Sensitivity refers to the motion detection sensitivity which can be set when the
recording mode is motion detection or motion detection & alarm recording.
Choose the sensitivity from the drop-down list, and confirm and save the
parameter.
Setting procedures:
Select channel, sensitivity and set the detection area. Sensitivity is set to ‘Off’
by default with options from 1-9 (9 being the most sensitive). Detection areas
are set a ‘Full Region’ by default.
Save the parameters and set recording schedule by time. (Please see the 2.3.3
recording schedule for reference).
Note:
Use the mouse to drag and draw/select detection areas
A red block indicates motion detection is activated for this area and a
transparent block indicates motion detection is not activated, as shown above.

IQCCTV IQR16D –16 Camera DVR
14
2.6 PTZ setup
2.6.1 Channel setup
Enter from the Main menu to Channel setup:
[Video channel]: Select the relevant channel.
[Channel Name]: Enter the channel name. English characters, digits and
special characters can be entered.
[PTZ protocol]: It’s used to achieve the communication with the PTZ. Mainly
supported baud rate: PTZ-NULL, LG LPT-A100L, PELCO-D, NK-97CHE,
SAMSUNG SCC-641, and PELCO-P, etc.
[PTZ Baud Rate]: Select an appropriate baud rate.
[PTZ ID]: PTZ address code range is 0-255.
[Color]: Through the brightness, contrast, saturation, chromaticity setup to
adjust channel display effect.
[IMAGE DELAY]: Adjust the position of the image on the display
[COPY TO]: The parameters of this channel can be copied to other channels
through this function.

IQCCTV IQR16D –16 Camera DVR
15
2.6.2 PTZ Control
Right-click to enter the preview screen and select "PTZ control" in the pop-up
shortcut menu, and enter the PTZ control interface (below):
Directional buttons are used to control the moving direction of dome.
PTZ button can control automatic rotation of common PTZ.
Lens zoom, focus, IRIS can be adjusted respectively by using increase "+"
reduce "-" buttons.
PTZ’s moving speed is adjustable and the value range is 0～9.
Setting up a Preset: Enter a preset value in the Preset Box (see fig 2) and move
the dome to the desired position. Press the to save . Consequently to call
the preset place the preset number in the call box (see fig 1) and press the
enter button .
Setting up a Scan/Path: Click the ‘REC PATH’on the interface (this will change
to display ‘END REC after it has been clicked). After you have finished click
‘END REC’to confirm.
Setting up a TRACK (CRUISE): Click the ’TRACK’(this will change to display
‘END REC’after it has been clicked). After you have finished, click ‘END REC’to
confirm.
Fig 2
Fig 1
Fig 4
Fig 3

IQCCTV IQR16D –16 Camera DVR
16
2.7 Network
2.7.1 Basic
Enter from the Main menu to Network setup. Network setup is divided into Basic
setup and Advanced setup. Basic setup interface mainly includes network access
mode, IP address, subnet mask, gateway address and other parameters, as shown
below:
[Connect mode]: with two types of static IP and dynamic IP. IP address,
gateway address and subnet mask should be entered manually for the static IP.
Dynamic IP is the IP allocated by DHCP server.
[NTP Server]: Set the time and server address to achieve the time
synchronization of DVR.
[HTTP Port]: WEB port , generally the default value is 80. If modifying the WEB
port into other ports, such as 88, users need to add the port number. When
using Intenet explorer (IE) to visit the DVR, enter http://192.168.1.19:88 in
the address bar.
[Media Port]: The port number adopted when there is private protocol
between DVR andPC. When ex-factory, the DVR has a default value. If this port
is occupied by other Services , modify it to an unused port.
[Intercom port]: Port to realize the intercom function between remote device
and the DVR.
Note: The range of above ports is between 1024 and 65535.

IQCCTV IQR16D –16 Camera DVR
17
2.7.2 Advanced
[Minor stream]: Set image quality and frame speed. When the network is not
good, the secondary stream can reduce the image quality and frame rate and
open by default.
[Email]:Support email alarm when an event is triggered, DVR system will
automatically intercept the pictures when an event is triggered and then send
it to the specified mailbox to prompt the users.
[DNS]: Set the IP of DNS server's
[Mobile]: Set the phone access port
[UPNP]: When the UPNP is on (Router must support UPNP), the DVR host will
map the port and IP automatically to the Router.
Note: If the Router doesn’t support UPNP, please manually map the relevant port
from the port forwarding or virtual server. If conflicting with other ports, please
modify the port on the DVR.
[DDNS]: DDNS is a Dynamic Domain Name Server. Set DDNS type, server
address, domain name, user name and password, as shown in the picture
above .
oDDNS Type: with options of 3322.org and dyndns
oDomain Name: the domain name applied by the user for the DVR
oUser Name: the user name registered on the DDNS
oPassword: the password corresponding to the user name

IQCCTV IQR16D –16 Camera DVR
18
2.8 Mobile phone surveillance
2.8.1 DVR End setup
First select the "Network" in the "Mobile" to enter mobile phone monitoring
interface and set the port. The port range is 1024-65535.
2.8.2 Mobile Phone end operation
Taking the iPhone for example, run the iPhone’s APP Store program, search for
kMEye.

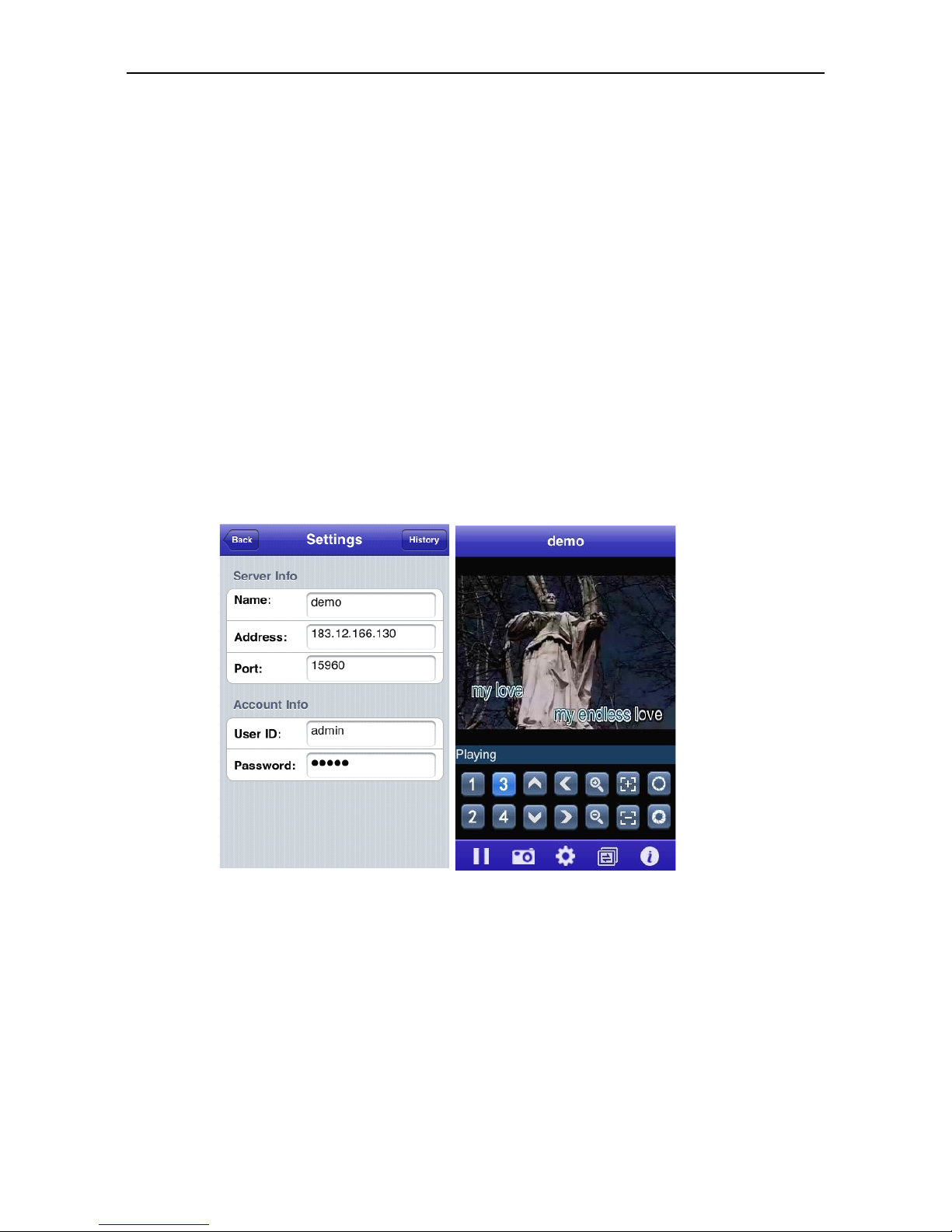

For the first-time use, modify the parameters. Click [Settings]to enter the
parameter setting interface (left picture below), and the port number is the
number set in Section 2.9.1. The user can set their own port number on the DVR
end. The port number is 6000 and the password is 00000000 by default when
ex-factory. Set the parameters well and connect the server, mobile phone
preview interface will display (right picture below) :
Note: Please refer to the Mobile Phone Surveillance Manual for detailed
installation method and application instruction.

IQCCTV IQR16D –16 Camera DVR
19
2.9 IE end login
2.9.1 IE Controls download and installation
Firstly, add the IP address of DVR to the system’s Trusted sites. Open the browser,
select “Internet Options” on the “Tool” list and then operate as below:
Note: The fifth step can add the DVR’s domain name or the IP address.
1. Security
2. Sites
4. Add
3. Cancel
5. Enable
6. OK
