ITP VoIP 2102 User manual


InstallationGuideforVoIP2102Adapter

Makesureyouhaveeverything
youneed:
•DSL/cablemodemorhigh
speedinternet.
•2Ethernetcables(1incl.)
•Ananalogtelephoneand
standardphonecable
•ITPAdapter

IfyouhavearouterinstalledgotoSetupB
SetupA–NoRouter
1.Unplugthepowerfrommodem
Disconnectthemodem’spowercablefromtheelectricaloutlet.

MakesurethereisNOUSBCable
Connectedtoyourmodem.

2.ConnectmodemtoITPAdapter
ConnecttheincludedethernetcabletotheEthernetportonyour
modem.PlugtheotherendintotheInternet/WAN/Blueportonthe
ITPAdapter.

3.Pluginthemodem
Plugyourmodem’spoweradapterintoanelectricaloutlet.

4.PlugintheITPAdapter
InsertthepoweradapterintothepowerportontheITPadapter.
PluginthesecondethernetcablefromEthernet/PC/Yellowonthe
ITPadapterportintotheethernetportonyourcomputer.



5.Turncomputeron
WaitfortheITPadapterpowerindicatortostopblinkingandgo
steadygreen.Nowturnyourcomputeron.

6.Checkinternetconnection
Makesureyourinternetaccessisworking.Ifit’sworking,thenyou
canskiptherestofthisstep.

IfyouuseaDSLmodem:
YoumayneedtoconfigurePPP‐over‐Ethernet(PPPoE)towork
withtheITPAdapter.Here’swhattodo:
•Openyourawebbrowseronyourcomputerandenter
http://192.168.6.1(theITPadaptersaddress)intheaddressfield
ofyourbrowserandhitEnter.
•SelecttheRoutertab,andthenselecttheWANSetuptab.
•SelectPPPoEfromtheConnectionTypedrop‐downmenu.
Entertheusername,passwordandservicename(ifrequired)
providedbyyourISP.Thisisthesameinfoyouenterevery
timeyoulogin.
•ClicktheSubmitAllChangesbuttontosaveyournewsettings.
7.Connecttelephone
Makesureyourtelephoneissettoitstonesetting(notpulse).
Connectoneendofthetelephonecabletoyourtelephone.Connect
theotherendofthetelephonecabletotheportlabeled“Phone1”
ontheITPadapter.


Congratulations!
Pickupyourtelephonereceiver,ifyouhearadialtone,youhave
finishedtheinstallationandcanbeginmakingcalls.



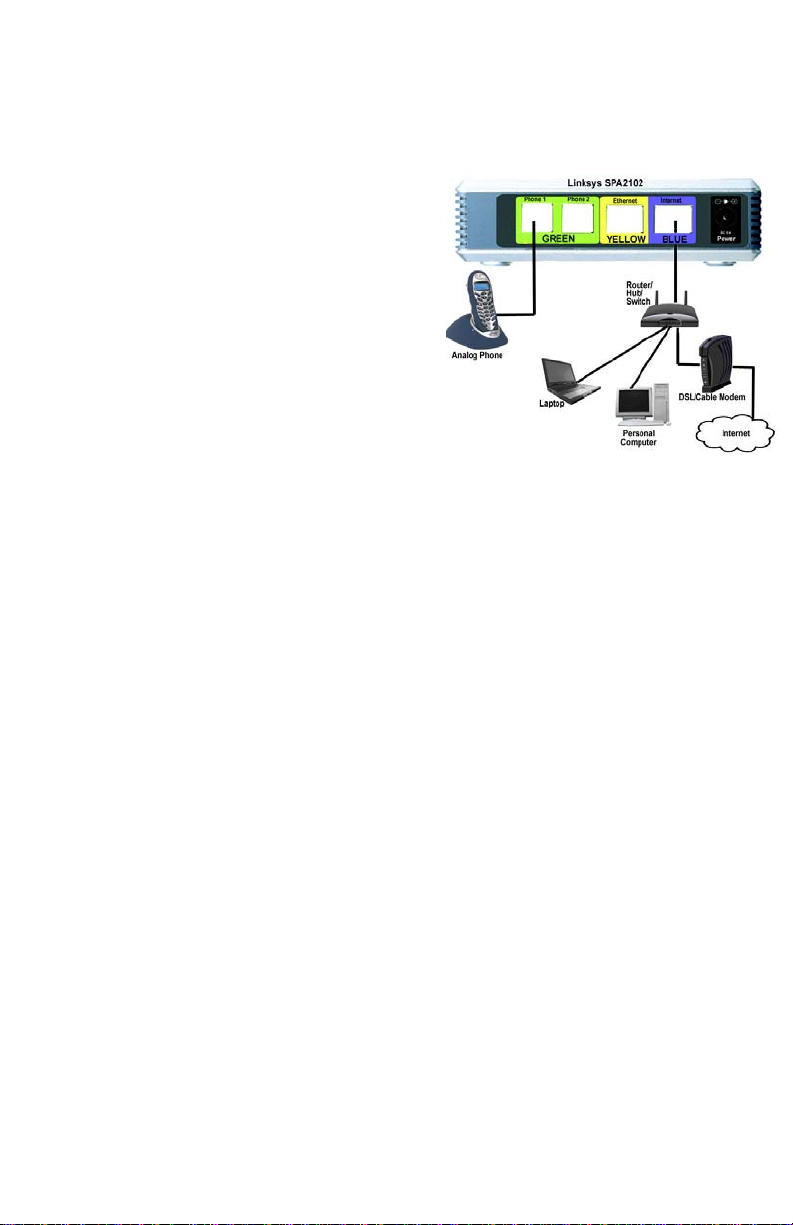

SetupB–WithaRouter

1. ConnectinganethernetcabletotheITPAdapter
UnplugyourITPAdapterpower
cable.Connectoneendofan
ethernetcabletotheportlabeled
Internet/WANontheITP
Adapter.

2.Connectethernetcabletoyour
existingrouter
Connecttheotherendofthe
ethernetcabletoanunused
ethernetportonyourrouter(ormodemwithbuilt‐inrouter).

3.Connectpoweradapter
ConnectthepoweradaptertotheITPAdapterandplugthe
otherendintoanelectricaloutlet.

4.Connecttelephone
Connectyourtelephonecordtotheportlabeled“Phone1”on
theITPAdapter.

5.Checkfordialtone
Checkforadialtone.Ifyouhearone,congratulations!You’re
nowreadytouseITP.Ifyoudon’thearadialtone,readthe
troubleshootingadvicebelow.







Troubleshooting
•Manyissuescanberesolvedbyresettingyourequipment.Todo
this:First,shutdownyourcomputer,ITPAdapter,existingrouter
(ifyouhaveone),andDSL/cableModem.Then,turnthedevices
backononeatatime.Turnthemoninthisorder:modem,
existingrouter,ITPAdapter,andcomputer.

•MakesureyourphoneispluggedintoʺPhone1ʺontheITP
Adapter.

•Areyouabletoaccesswebpages?Ifnot,theproblemmay
bewithyourinternetconnection.Checkwithyourservice
providertofindoutifthereareconnectionissuesinyour
areaorsomeotherproblemwithyourconnection.

•Besureyourtelephone,whichispluggedintotheITP
Adapter,isdisconnectedfromthewalltelephonejacks(the
onesyouusefortraditionalphonecompanyservice).ITP’s
servicewonʹtworkifthephoneisstillpluggedintoawall
jack.

•Redothestepsofthisinstallationguide.Makesuretofollow
thestepsexactly.Theorderinwhichyouconnectandturn
oneverythingisveryimportant.
If you have any questions or problems you can contact customer support
through the web-contact system or by calling at the toll free number
(U.S.) 1 [phone] or (Canada) 1 [phone]
