IMMERSEUD‐1404andUD‐1404SUserManual
2.1Wi‐Fi/BluetoothMulti‐RoomSoundBarwithWirelessSubwoofer

*Pleasereadtheinstructionscarefullybeforeusingthesystemandkeepthemanual
forfuturereference.


TableofContent

InsidetheBox
Precautions
ProductIntroduction
Overview
Soundbar
Subwoofer
RemoteControl
SetupIMMERSE
Placement
ConnecttoTV

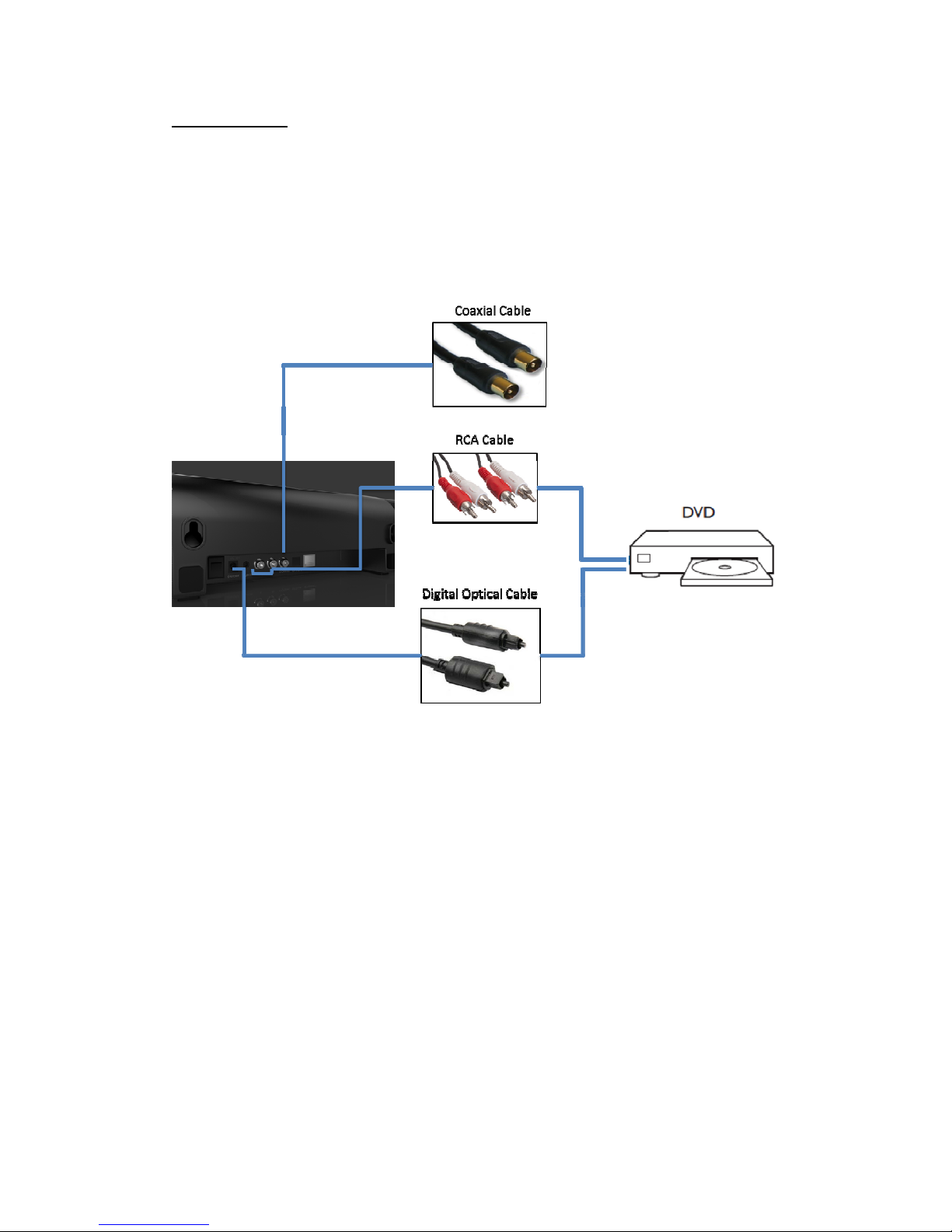

ConnecttoDVDplayer
Connecttootherdevices
‐Wi‐Fi
‐Bluetooth
‐Ethernet
‐Aux‐in/Analog/Optical/Coaxial
Multi‐Room
SoundEffectMode
FirmwareUpdate
Troubleshooting



InsidetheBox

Carefullyunpackthecartonandconfirmthatthefollowingpartsareincluded.

•IMMERSEWi‐Fi/Bluetoothsoundbar
•Subwoofer
•Remotecontrol
•ACadaptors
•Manual


Precautions
*Pleasereadthesesafetyinstructionscarefullytoensureyoursafety.
•Donotusethisproductwherecontactwithmoisture,liquids,humidityorrainis
possibletoavoidelectricshockandoperatingdamage.
•Avoidexposingthisproducttodirectsunlight,stovetopsoranyotherheatsources
topreventoperatingdamage.
•Donotcovertheventilationopenings–thismaycauseoverheating,damagetothe
product,andahazardouscondition.
•Donotdrop,disassemble,deform,modifyorinsertanyobjectsintothisproductas
operatingdamagewillresult.
•Donotattempttorepair,modifyordisassembletheproductyourself.Thisproduct
doesnotcontainanyuser‐serviceablecomponents.
•Donotcleantheproductwithalcohol,ammoniabasedcleaners,abrasivecleaners
orwetcloth.Onlycleanwithasoftdrycloth.
•Donotplacethisproductonitsside,onslantedsurfacesaswellasneartheedge
ofhighsurfaces,likeshelves.Takecaretopreventaccidentalfalling.Theproduct
mayvibratewhileplayingmusic,whichcauseittomoveandfalloffasurface.
•Donotbringyourproductintocontactwithanysharpobjectsasthismaycause
scratchesandoperatingdamage.
•ObserveallsignsanddisplaysthatrequireanelectricaldeviceorRFradioproduct
tobeswitchedoffindesignatedareas.
•Disposeoftheproductinaccordancewithlocallawsandregulations.

FCCStatement
ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassB
digitaldevice,pursuanttoPart15oftheFCCRules.Theselimitsaredesignedto
providereasonableprotectionagainstharmfulinterferenceinaresidential
installation.Thisequipmentgeneratesuseandcanradiateradiofrequencyenergy
and,ifnotinstalledandusedinaccordancewiththeinstructions,maycauseharmful
interferencetoradiocommunications.However,thereisnoguaranteethat
interferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescause
harmfulinterferencetoradioortelevisionreception,whichcanbedeterminedby
turningtheequipmentoffandon,theuserisencouragedtotrytocorrectthe
interferencebyoneofthefollowingmeasures:
•Reorientorrelocatethereceivingantenna.
•Increasetheseparationbetweentheequipmentandreceiver.
•Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthe
receiverisconnected.

•Consultthedealeroranexperiencedradio/TVtechnicianforhelp.

FCCNotice
ThisdevicecomplieswithPart15oftheFCCRules.
Operationissubjecttothefollowingtwoconditions:
1.Thisdevicemaynotcauseharmfulinterference,and
2.Thisdevicemustacceptanyinterferencereceived,includinginterference
thatmaycauseundesiredoperation.

FCCCaution
•Anychangesormodificationsnotexpresslyapprovedbythepartyresponsiblefor
compliancecouldvoidtheuser‘sauthoritytooperatethisequipment.
•Thisdeviceanditsantenna(s)mustnotbeco‐locatedoroperatinginconjunction
withanyotherantennaortransmitter.



FCCID:NKTUD‐1404,NKTUD‐1404S
TolocatetheFCCandICid‐entificationnumbers,pleaselookontheundersideofthe
IMMERSE.
ModelnumberUD‐1404,UD‐1404S

Thecrossed‐outwheeliebinsymbolmeansthattheproductmustbedisposedof
separatelyintheEuropeanUnion.Theseproductsmustnotbedisposedofwith
unsortedhouseholdwaste.



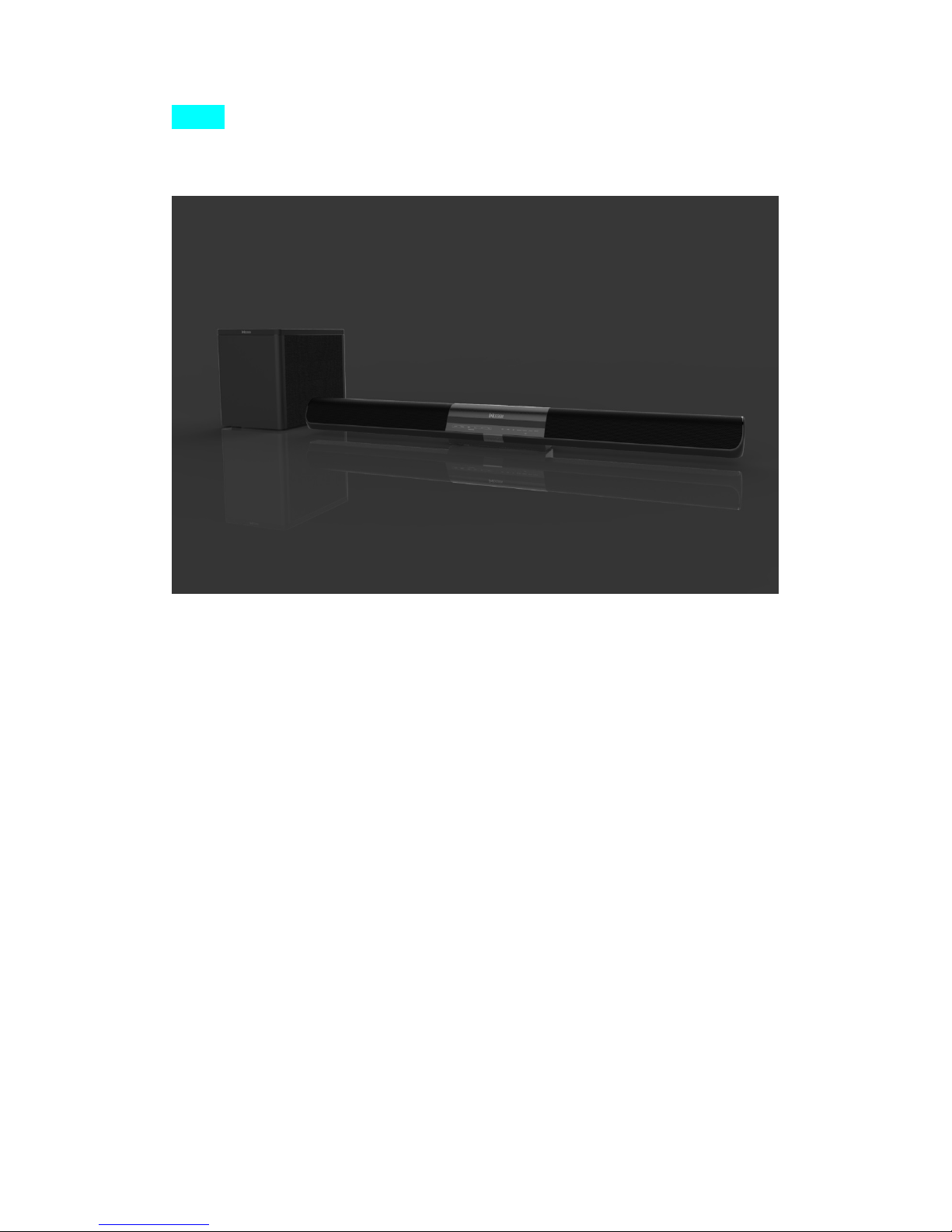

ProductIntroduction

TheiuiDESIGNUD‐1404“IMMERSE”multi‐room2.1soundbarisabreakthroughin
providinghighperformanceaudiotoyourTVandalsothewholehome.You’rein
control–youcanusesoundbarwithotheriuiDESIGNWi‐Fispeakers.Andthe
configurationoptionsarealmostlimitless.

Historically,ifyouwantedtolistentomusicfromyourTVordigitaldevice,youcould
connecttoyourspeakerwitha3.5mmaudiocable,orBluetooth.ButIMMERSE
providesyoubreakthroughflexibility.Whileitconnectsviaanaudiocableand
Bluetooth,italsocanconnectbyWi‐FiandwiredEthernet.

AndbyusingWi‐FiorwiredEthernet,youcancreateawholehomeaudiosystem,so
thatyouhavemusicdistributedthroughoutyourhome.

TogetthebestexperiencefromIMMERSE,it’sgoodtounderstandsomebasics.First
andforemost,youcansimplyconnecttheproductbyusingthe3.5mmaudiolinein
orBluetoothifyouwanttojustconnectaTVtothesoundbar.Buttoplayyourmusic
tothesoundbarandalsotootherWi‐Fispeakers,youneedtotakeafewadditional
steps.But,let’sfirstwalkthroughthebasics…

SinceIMMERSEisaveryhigh‐performancesoundbarwithamazingtechnology
capability,youhaveoptionstomeetyourlifestyle.First,youneedtodecidehowto
connectyourTVandotherdigitaldevicestotheproduct,andwhatthetrade‐offsare
foreachtypeofconnection.

3.5mmAudioLine‐in:
Ifyouusethe3.5mmstereoaudiolinein,youcansimplyconnectyouraudiosource
toIMMERSE,andyoucanenjoyhighperformanceaudio.Ofcourse,youwillbe
limitedtooneIMMERSEsoundbarandyouhavetoremainphysicallyconnected.

Bluetooth:
Bluetoothisasimplewirelessconnectiontoconnectyourdigitalsourcetoyour
IMMERSE.Bluetoothtechnologyonlyconnectsfromonesource(yourTVorother
digitalsource,likeaPCorSmartphone)toonespeaker,suchasIMMERSEsoundbar.
AndBluetoothhaslowersoundperformancethanawired3.5mmaudioconnection,
duetocompressionofthesignalduringwirelesstransmission.Itsrangeisalso
limited,typicallytooneroom.


Wi‐Fi:
UsingWi‐Fi,youcanconnectyourWi‐Fidigitalsource(suchasyourTV,PC,Mac,
tablet,smartphone,etc)totheIMMERSEsoundbarormoreWi‐Fispeakers.The
benefitofWi‐FioverBluetoothisimportant–Wi‐Fiallowsyoutostreamonesource
toIMMERSEsoundbarandotheriuiDESIGNWi‐Fispeakersalloveryourhouse
(becauseWi‐Fitypicallyhaslongerrange),andthebandwidthofWi‐Fiismuchhigher
thanBluetooth,sothequalityofthesoundperformanceisessentiallythesameasa
3.5mmwiredaudioconnection.

Ofcourse,Wi‐Fiperformanceinthehomeisinfluencedbymanyfactors–thequality
ofyourwirelessrouter,howmanypeopleareconnectedtotherouterand
downloadingatthesametime,thenumberofroutersthatareactive(whichisreally
importantinhigh‐densityhousingsuchasapartmentbuildings).

Ingeneral,werecommendamaximumofoneIMMERSEandtwoiuiDESIGNWi‐Fi
speakersconnectedtoyourrouter.Moreispossibleifyoutakecertaintechnical
stepstoimproveyourbandwidth–butthatdiscussionisbeyondthescopeofthis
manual.

AndWi‐FiperformanceisimpactedbythecapabilityofyourWi‐Fienabledigital
device–forexample,aniOSbasedproductsuchasaniPhonecanonlyreliably
connecttooneWi‐Fideviceatatime.ButifyouuseiTunesonyourPCorMac,you
canconnecttomultipleWi‐Fispeakers.YoucanalsouseAndroidsmartphones,
tabletsandPC’stoconnectusingastandardknownasDLNA,andconnectsto
multipleWi‐Fispeakers.

WiredEthernet:
WiredEthernet,wheretheIMMERSEisconnectedtoyourrouterorEthernetswitch
withanEthernetcablewillgiveyouthebestperformance.Youcantypically
connectmanymorethanthreeWi‐Fispeakers.Ultimately,thereisalimitationof
yourrouterorEthernetswitch,butformoststandardresidentialusersthisisnota
factor.AndwiredEthernetwillgiveyoutheaudioperformanceofa3.5mmwired
connection.

SothefirstdecisionyouwillhavetomakeishowyouwanttoconnecttoIMMERSE.
Onceyoumakethatdecision,thenyoucanfollowtheeasystepsinthismanualto
startenjoyingyourmusic.


IfyouareusinganiPhoneor/andAndroiddevice,wehaveanappthatmakesiteasy
toset‐upyourIMMERSE.YoucanusetheapptoconnecttheIMMERSEtoyourhome
network,youcannameit(LivingRoom,Bedroom,Den),andyoucanassign
IMMERSEandotheriuiDESIGNWi‐Fispeakerstogroups,sothatyoucanplayyour
musictoone,someorallWi‐Fispeakersandsoundbar.

TheIMMERSEapplicationalsoupdatesthesoftwareonyourIMMERSEsoundbar,
keepingitcurrentanduptodate.TheIMMERSEapplicationdoesnottaketheplace
ofyourmusicplayersoftware,suchasiTunes,WindowsMediaPlayerorstreaming
musicserviceapplicationssuchasPandora.Theapplicationletsyouconfigureyour
IMMERSEspeakers,andthenyouuseyourfavoriteapplicationstoselectandplay
music.


Overview

SoundBar

Front

Touchpanel
zPOWER–Switchthesoundbarandsubwooferonortostandby.
zSOURCE–Selectaninputsourceforthesoundbar.
zMFB–ActivateBluetoothpairingmodeinBluetoothmode.
zVOL+/VOL‐–Increaseordecreasevolume.
zSUB–Activatesoundbarandsubwooferpairingmode.
zLEDdisplaypanel–Showaudioinputselection
zNFCsensor–PairwithBluetoothenableddevisewithNFCfeature

Back

zPower‐Switchthesoundbarandsubwooferonortostandby.
zDCjack–Connectwithpowersource.
zAUXIN–Connecttoanaudiosourcewitha3.5mmaudioline‐incable.
zAnalogline‐in(L/R)–ConnecttoanaudiosourcewithaRCAcable.
zCoaxialline‐in–Connecttoanaudiosourcewithacoaxialcable.
zOpticalline‐in–Connecttoanaudiosourcewithadigitalopticalcable.
zRJ45Ethernetjack–ConnecttoaWi‐FinetworkrouterwithaRJ45Ethernet
cable.

z


Su
b
z
z
z

Wallmou
b
woofer
Power–
S
DCjack–
Pairingb
u
ntholes–
M
S
witchthes
Connectwi
u
tton–Acti
v
M
ountsou
n
ubwoofer
o
thpowers
o
v
atesound
b

n
dbaronw
a
o
noroff.
o
urce.
b
arandsu
b
a
llwithscr
e

b
wooferpai
e
ws(notincl
ringmode.
uded)

RemoteControl

Power–Switchthesoundbaronortostandby.
Wi‐Fimode‐SelectWi‐Fiasaninputsource
Bluetoothmode‐SelectBluetoothasaninputsource
SOURCE–Selectaninputsourceforthesoundbar.
VOL+/VOL‐‐Increaseordecreasesoundbarvolume
SubLV‐/SubLV+‐Increaseordecreasesubwoofervolume
Game/Movie/Music–Usepre‐installedsoundeffect


SetupIMMERSE

TheIMMERSEsoundbartransmitssoundsignalfromaudiosourcetothesubwoofer
by2.4GHzwirelesstechnologyforreliableconnection.

ConnectSoundbartoSubwoofer
Whenthesoundbarandsubwooferareconnectedtopowersourceandpoweredon,
theyconnectautomaticallyandtheLEDonsubwooferturnsgreen.

Iftheconnectionbetweenthesubwooferandthesoundbarislost…
1. Connectsoundbarandsubwoofertopowersource.
2. Switchonthepowerofsoundbarandsubwoofer
3. Pressthepairingbuttononthesubwoofer
4. Pressthe“SUB”buttononthesoundbartouchpanelorpressthe“SUB”button
ontheremotecontrol.
5. TheSUBLEDonsoundbarandtheLEDonsubwooferareflashingwhichindicate
thattheyareestablishingaconnection.
6. TheLEDonsoundbarstopsflashingandtheLEDonsubwooferturnstosolid
greenwhentheconnectionisestablished.


Placement

IMMERSEoffer2placementoptionsofsounbbartofitfordifferentplacements.For
bettersoundexperience,thesoundbarshouldbeplacedatorclosetoearlevel.

Option1:Tabletop
ComeswithrubberfootatthebottomofIMMERSE,placetheIMMERSEsoundbaron
flatsurfacehorizontallywiththeiuiDESIGNlogofacingout.

Option2:WallMounting
Comeswithscrewholesatthebackofthesoundbar,followthebelowstepsto
mountitonwall.

1.Preparescrews(notsupplied)thataresuitablefortheholesonthebackofthe
soundbar.
2.Fastenthescrewstothewall.Thescrewsshouldprotrude11to12mm.
3.Hangthesoundbarontothescrews.

Subwoofer
Thesubwoofershouldbeplacedflatsurface,preferablyonfloor.Forstable
connectionwiththesoundbar,placeitwithin3metersor9feetfromthesoundbar.



ConnecttoTV
AfteryoufinishsettinguptheIMMERSEsystem,itcanconnecttoaTVusinganalog
oropticalaudioinput.

ConnectthesoundbarandTVwithaRCAcable/adigitalopticalcableasshown
below.


IfyouconnectusingaRCAcable,select“ANALOG”astheaudiosource.
Ifyouconnectusingadigitalopticalcable,select“OPTICAL”astheaudiosource.



ConnecttoDVD
AfteryoufinishsettinguptheIMMERSEsystem,itcanconnecttoaDVDplayerusing
analog,opticalorcoaxialaudioinput.

ConnectthesoundbarandtheDVDplayerwithaRCAcable/adigitalopticalcable/
acoaxialcable.


IfyouconnectusingaRCAcable,select“ANALOG”astheaudiosource.
Ifyouconnectusingadigitalopticalcable,select“OPTICAL”astheaudiosource.
Ifyouconnectusingacoaxialcable,select“COAXIAL”astheaudiosource.



Connecttootherdevices
AfteryoufinishsettinguptheIMMERSEsystem,itcanconnecttootherdevices,such
assmartphones,tablets,PCs,videogameconsoles,etc.usingthefollowing
connectionoptions.

Wireless:
‐Wi‐Fi
‐Bluetooth

Wired
‐Ethernet
‐Aux‐in
‐Analog
‐Optical
‐Coaxial



Wi‐Fi‐Connecttootherdevices

AfteryoufinishsettinguptheIMMERSEsystem,itcanstreammusicwirelesslyfrom
adigitalmusicsourcethroughWi‐Ficonnection.

BeforeSetup
PleasemakesureyourdeviceisconnectedtothesameWi‐Finetworkwhere
IMMERSEwillbelocated.Otherwise,anerrormessagewillappearafterentering
passwordastheappcannotdetectIMMERSEinthecurrentWi‐Finetwork.

SetupforAndroid/iOSuser

1. DownloadthefreeiuiDESIGNWi‐FiAudioAppfromGooglePlayorAppStore.

2. Select“WIFI”astheaudiosource.

3. Launchtheapponyourdevice.Press“AddSpeaker”buttontostartthesetup
procedure.

4. OpentheWi‐Fisettingpageonyourdevice.TurnontheWi‐Fifeatureandselect
“IMMERSExxxx”*fromthelistofavailablewirelessnetworks*.

5. GobacktotheappandselectyourWi‐Finetworkinsidetheapp.




6. EnterpasswordforyourWi‐Finetworkyouchose#.TheLEDindicatorturnsto
solidgreen.


7. RenameIMMERSEandtap“Save”theconfirm.


*IftheIMMERSEcouldnotbefoundinthelist,followthesection“ResetWi‐Fi
Connection”toresetthespeakertofactorydefaultandtryagain.

#Incaseofincorrectpasswordorfailedconnection,followthesection“Reset
Wi‐FiConnection”toresetthespeakertofactorydefaultandstartthesetup
procedureagain.


SetupforPC/Macuser

1. Select“WIFI”astheaudiosource.

2. ConnectIMMERSEtoyourPC/MacusingWi‐Fi/RJ45Ethernetcable.

A.UseanEthernetcabletoconnectIMMERSEandyourdevice.Ittakes
approximately30secondstoestablishconnectionwithIMMERSE.TheLED
indicatorwillturntosolidamberoncetheconnectioniscompleted.


B.Searchandconnect“IMMERSExxxx”inWi‐Fisettingpage*.TheLED
indicatorwillturntosolidpurpleoncetheconnectioniscompleted.


3. Browsethebelowlinkonyourdevicetoenterthesetuppage:
http://192.168.6.1/

4. Select“ConnecttoHome”>“Wireless”inthesetuppage.





5. SelectyourWi‐Finetwork.

6. EnterpasswordforyourWi‐FinetworkyouchoseandClick“Join”.

7. Click“Done”andremovetheEthernetcableifyouuseitforsetup#.
 
*IftheIMMERSEcouldnotbefoundinthelist,followthesection“ResetWi‐Fi
Connection”toresetthespeakertofactorydefaultandtryagain.

#Incaseofincorrectpasswordorfailedconnection,followthesection“ResetWi‐Fi
Connection”toresetthespeakertofactorydefaultandstartthesetupprocedure
again.

StreamingMusicviaWi‐FiConnection

ForAndroidUser
YoushoulddownloadaDLNAcompatibleplayerforstreamingmusic.Select
IMMERSE(whichmayappearwiththenameyouassigned)asyouraudiooutput
deviceinthemusicplayer.Differentplayersmayhavedifferentsetups,pleaserefer
tothosecorrespondinguserguidesfordetail.

ForiOSuser
YoucanstreammusictoIMMERSEviaAirPlay:
1.Launchyourmusicplayer
2.TaponAirPlay
3.Choose“IMMERSE”
(Ifyourenamedit,itwillappearwiththenameyouassigned)


