J.TOUR JW600 User manual

FreeOne
JW600

Special anouncement
The document contains proprietary information of J.TOUR product and is not be disclosed or
used without the prior written permission of L.T.F communication Equipment and Technology Co.,
LTD and released authorization letter in offical website. The product appearance is supervised by
the company 30 Rui Tong.
L.T.F communication Equipment and Technology Co., LTD ownes the J.TOUR brand. Due to
update and improvment of J.TOUR products and technologies, information in this document is
subjected to change without notice. Login in J.TOUR’s official website: http://www.jtour.xin or call the
global operations center line: 400-900-8650 for more detailed instructions.

Due to the user habits and compatibility with associated application, this product attached GPS
global positioning system . GPS as a validate auxiliary for positioning results, provides the user with
a comparatively accurate measurement.by the way of one satellite calculation and the other
verification

Disclaimer
Due to the different circumstances and application methods, the user that wears the equipment must
pay special attention to the following instructions:
1、Since the product is the sophisticated wearable device, the factors such as the user wrong
operation, external interference and devise problem may lead to the unsafe consequences. The
user needs to master the the basic knowledge of wearing electronics and take the risk on your own.
2、This product is widely used in a variety of environments and activities. User needs to
consider the safety of the installation location and operation in movements, and take the safety
responsibility. Product manufacturers and operators does not undertake any responsibility for the
above operation..
3、The product is not suitable for precise Measurement.。
4、The product conforms to the FCC regulation in article 15 that describes the conditions of the
Class B digital device. That means there may be mild radio communication radiation when using.
User needs to adjust the position to avoid the interference by the other devices, that may lead to
signal receiving and operation inproperly. In addition, it is also important to notice whether the product
will affect the normal work of other communication devices. The above interference state is not within
the guarantee of this product.
5、The product does not refer to mapping standards in any country to set path. The results of map
scanning are based on accurate longitude and latitude by satellite positioning. Map is only as a
referrence and the distance can not be estimated according to the picture ratio.

Battery Warning
Without complying with the following
guidelines, the life of the lithium battery in the
equipment may be reduced and user may
take the risk of fire, chemical burn, electrolyte
leakage.
• Do not expose the equipment to a heat
source or at a high temperature location
• Do not bore or incinerate the equipment or
battery.
•Do not use in extreme enviorment
•Dispose your device battery according
to local applicable regulations and consulting
local waste disposal department.
Health Warning
•Before starting or change your exercise
program, please be sure to consult your
doctor. if you wear a heart preceptor or other
electronic devices inside your body, please
consult your doctor before the use of heart
rate monitor belt.
• The heart rate monitor belt and other
JTOUR accessories are used by consumers
rather than medical device and may be
interfered by external factors, so the heart
rate reading is only for reference. The
company will not take any responsibility for
the consequences of any error reading.

Security Precaution
ALLERGIC REACTIONS OR SKIN IRRITATIONS MAY OCCUR WHEN
PRODUCT IS IN CONTACT WITH SKIN, EVEN THOUGH OUR PRODUCTS COMPLY
WITH INDUSTRY STANDARDS. IN SUCH EVENT, STOP USE IMMEDIATELY AND
CONSULT A DOCTOR.
.
Limited Warranty
The products will be guaranteed for 2 years from the date of purchase. During this period, the
company will repair or replace the parts that have problems in normal use.

Button Function
LIGHT
UP
OK
BACK
DOWN
76%
LIGHT
short press to switch on/offthe back light;
Long press for 3 seconds to unlock
OK
Short press in home screen to enter the main menu; long press the
shortcut in user defined view to add or remove the view; short press in
the other view to enter or confirm
BACK
Long press to swith on/off the device; short press to return/exit; long
press for 10 seconds to thermally start the device
UP
Short press as up button; long press the shortcut to enter the sport view;
short press in stopwatch view to count;
DOWN
Short press as up button; long press the shortcut to enter the monitoring
view; short press in stopwatch view to count lap

Preparation
Start: Long press the BACK button for 3 seconds to swith on. If it doesn’t work, please connect the
matching charging device to check whether the wristwatch has no power. When charging, fasten the
charging plug properly according to the figure below, and tighten it at the position of the two fingers to
ensure that the charging head and watch are fastened. It takes about 2 hours from the air to the full
charge, and the specific situation is based on the power display in the watch.
Note: Dry the charging port before charging in order to avoidMetal contact smudge, short circuit or
other risks caused by flood.
The default language is chinese. If you need to change, please select menu - language setting to
adjust.

APP＆Match
1. "JTOUR" APP is available for both IOS and Android operating system; scan the QR code to
download and install.
2. Press OK button in main screen to enter the main menu; switch on bluetooth in “system” setting
and record the device name “JW901_XXXX” in “About watch” settting
3. Start the APP, register and then switch on bluetooth; click “ ” on the top right corner of my page
and match the name of the watch in the search list; A connection is displayed after successful
matching.
My home page shows the status “ ” of the connected device.
device name “JW910_XXXX”

Message Notification
When the wristwatch and APP are connected successfully, the wristwatch can receive SMS, WeChat,
phone and QQ message alert, and you can view information details in the reminder view. The
reminder view disappears in 10 seconds, and can then be viewed in the custom shortcut view “ Notice”.
Note: Settings reminder needs to be setted in my - wristwatch Setting - message Settings on the APP
side.
8

Start to Use
Standby view: time, date, battery, bluetooth, alarm clock, quiet time and training plan reminder, etc.
Select different view to represent different elements.
bluetooth alarm battery
do not disturb
Training plan
to remind
Stept count
date
The custom shortcut view: long press OK button to add or remove the view under the standby custom
view.
The shortcut views includes the heart rate, step counting, VO2 Max, notice, calorie, lactic acid
threshold, training program and the recovery time.

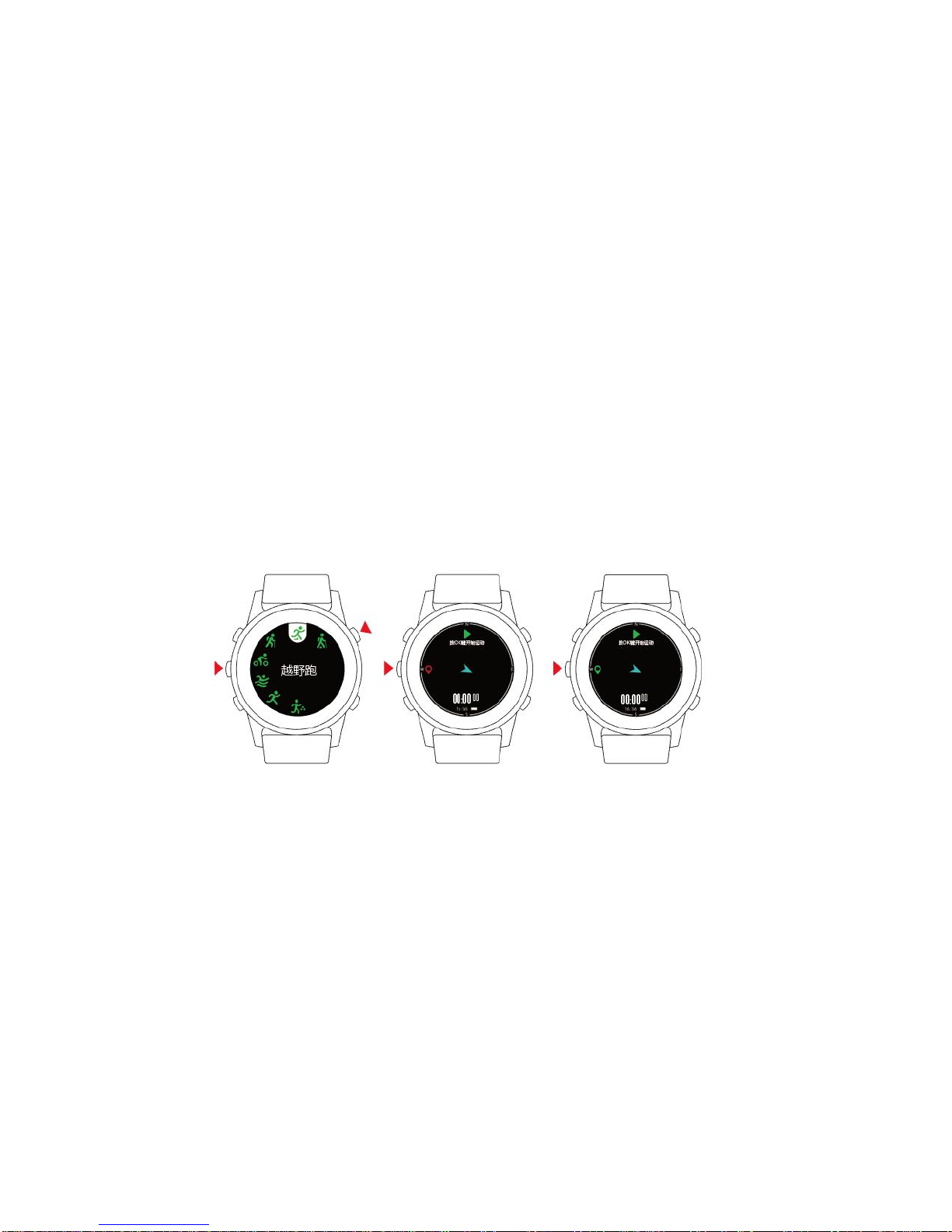

Long press UP button to open movement function: hiking, cross country race, mountaineering,cycling,
swimming, running, triathlon, walking ,marathon and indoor running.

Long press the DOWM button to open the tool function: Location, compass, Calendar, weather,
environmental monitoring, StopWatch Timer, finding my phone.
Short press the OK button to enter the setting view: subject, time, movement record, custom tool,
custom movement, accessory connection, system and about watch.
Positioning compass calendar environment stop-watch Looking for
weather mobile phone
Hiking cross-country Mountain- cycling swimming running triathlon
cross-country race eering
10

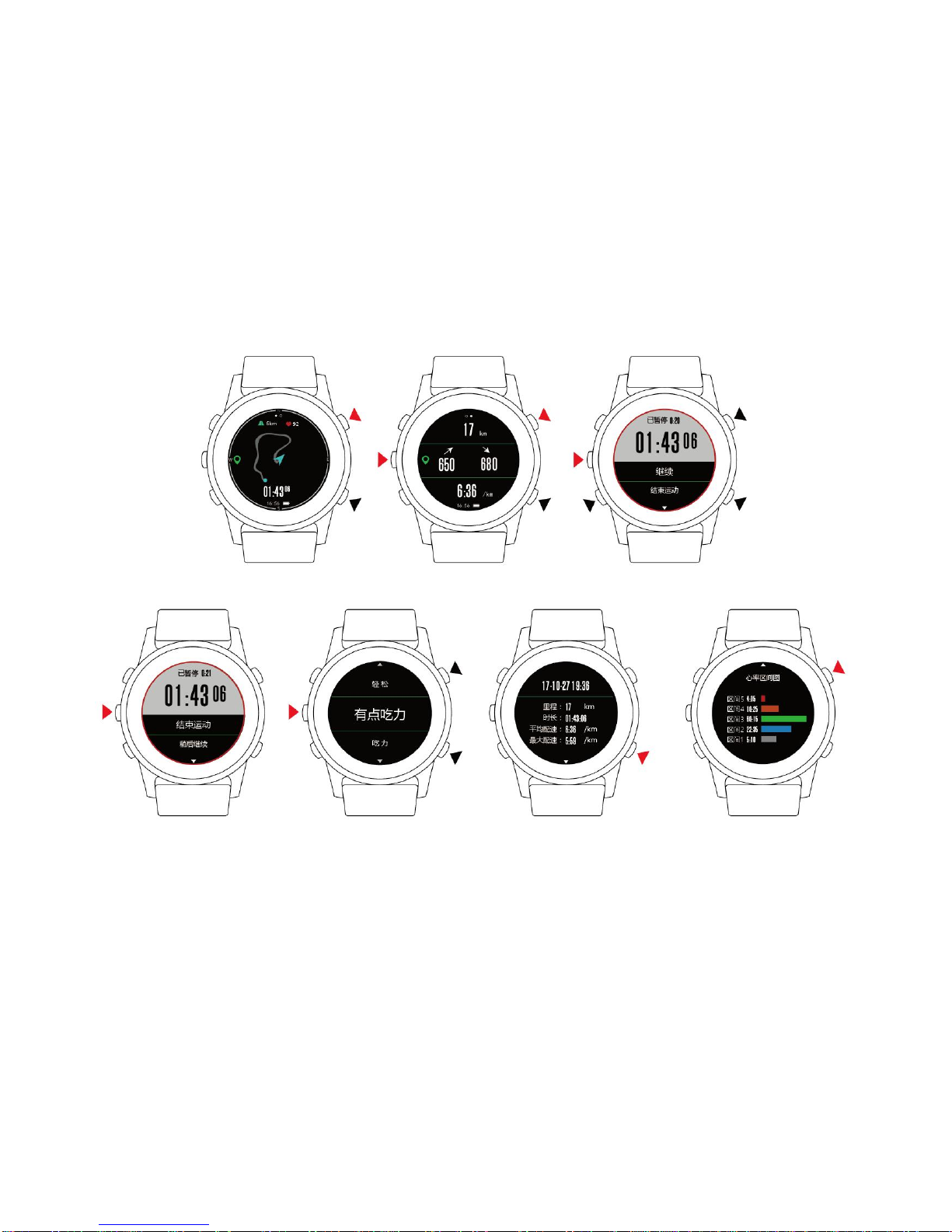

Example：Running Excercise
Long press the UP button to open the movement menu in the standby view of the wrist watch,
choose outdoor running, preess OK to enter the motion track view, please wait for the location
successfully and then press OK to start the movement.
the wristwatch will record the track, mileage, time length, real-time rate, real-time heart rate, height of
the cumulative rise and drop for running and so on. In the trace view, you can press the UP/DOWN
button to switch for the sub-page view.
Press OK to pause the motion, display the pause time, and pop up the menu to continue, end,
contiune later, trace the track or give up the movement. Choose the end movement to jump out of the
subjective sensory evaluation view, press UP/DOWN to select, press OK button to select and save
movement records. After that automaticlly Jump to a detailed movement data view. press UP/DOWN
to view all the detailed data and track

In the movement, press BACK key to pause the view amd return to view the movement data, press
BACK in the data view to return to the pause menu view again.

FCC Warning:
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications to this device not explicitly approved by
manufacturer could void your authority to operate this equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
The device has been evaluated to meet general RF exposure requirement. The device
can be used in portable exposure condition without restriction.
