Jackco Sound 2 ZT51000 User manual

2
ZT51000
User Manual
1
Charging Port
AUX Input
Bluetooth Indicator
Battery Indicator
Front Back
Bottom
Power Button & Answer/End Call
Bluetooth® Pairing
Magnetic Base
Microphone

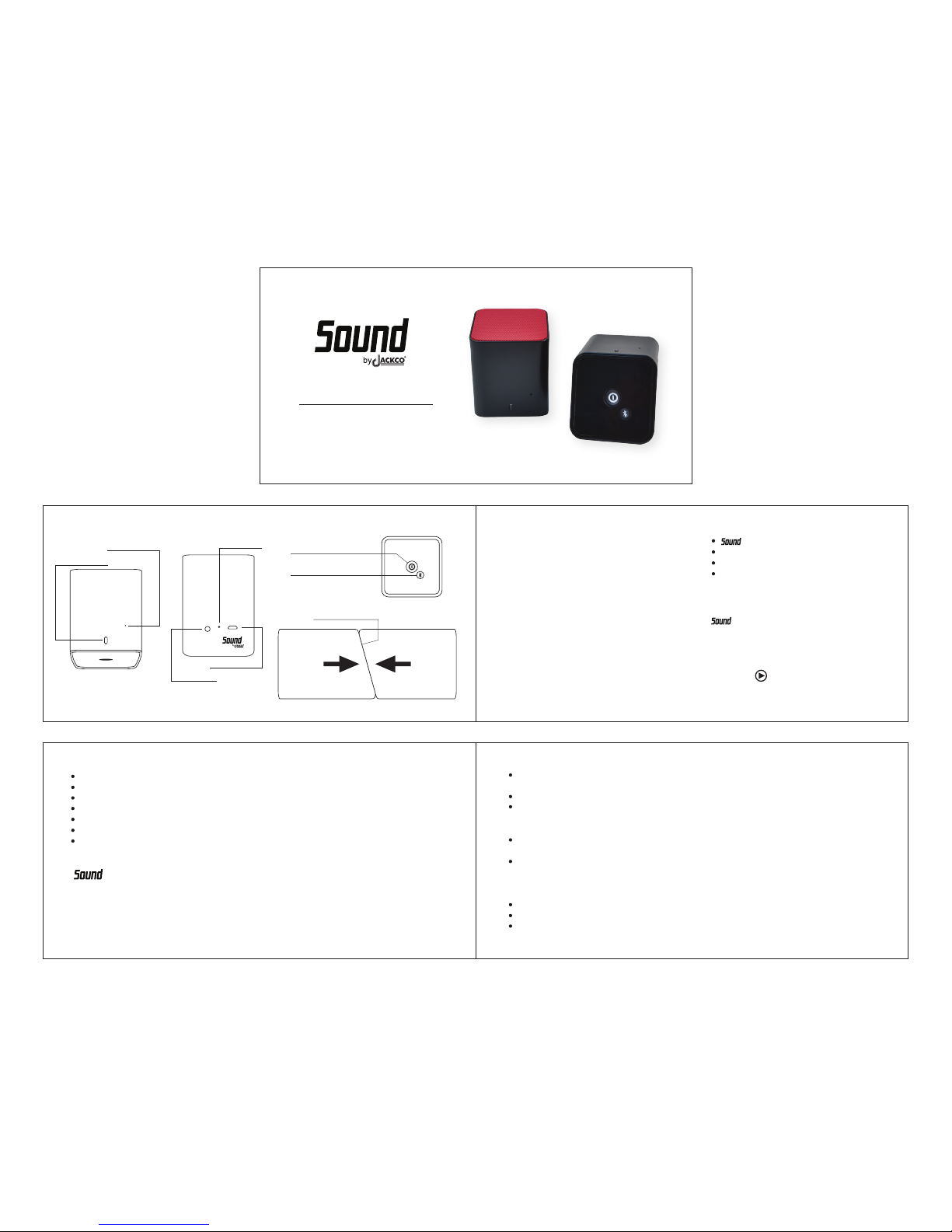

Product Layout
2
2
A. Introduction:
by Jackco is a pair of Bluetooth
speakers. Unique in a way that lets
you cut the cord and enjoy true stereo
music on the go. Connect to your
smartphones, tablets, iPods, or laptops
and just hit
Contents of the box
Bluetooth Speakers
USB Charging Cable
3.5mm audio input cable
Carrying Pouch
2
2
Table of Contents
Product Layout......................................................1
Introduction...........................................................2
Features...................................................................3
Safety Information...............................................4
Set-up.......................................................................5
-Turning Speakers on........................................5
-Pairing with Bluetooth Device.....................6
Taking Calls............................................................ 7
Connecting via 3.5mm AUX in input............8
Recharging Battery..............................................8
Factory Reset Pairing Procedure....................9
Troubleshooting................................................ 10
Technical Specifications..................................13
FCC Notice............................................................13
Environmental Protection..............................14
Lithium Battery Caring Tips............................14
Warranty................................................................15
3
B. Features
Two speakers wirelessly connected via Bluetooth
2.0 ch High Fidelity Stereo Sound
Each speaker can be used separately
Built in Microphone for phone calls and video conferencing
AUX input
Rechargeable lithium battery
Magnetic base allows you to attach the speakers to steel surfaces
supports the following standards
-Bluetooth 2.1+
-Advanced Audio Distribution prole (A2DP)
-Hands-free Audio (HFP) and Headset Proles (HSP) for hands free calling capability
-Audio Video Remote Control Prole (AVRCP) for wireless audio and video playback control
2
4
C. Safety Information
Do not expose the speakers to rain, moisture or any liquid. Exposure to liquid or moisture may cause
the speakers to fail and increase the risk of electrical shock or fire.
Do not expose the speakers to open ame, such as candles, camp re, etc.
Under no circumstances should the users make any change or modication to the product or its
accessories. Any changes made may compromise safety, aect the performance of the product and
void the warranty.
In case the battery begins to leak, do not allow your body parts to come in contact with the liquid, If
contact has been made, please wash with plenty of water and seek medical advice.
Do Not expose the product to excessive heat, such as inside a car under direct sunlight where
temperature may exceed 140˚F (60˚C) degrees. Battery under extreme heat may generate more
heat, rupture, or ignite. Storing the speakers under such condition may result in degradation in
performance and shorter battery life.
This product contains magnets, which can be harmful to persons wearing pacemaker.
Hearing damage can result from prolong exposure to loud music, please turn down the volume.
The speakers contains lithium batteries, please dispose the speakers properly, following local
regulations. Do not incinerate.

5
D. Set-up
Turning the Speakers On and O:
1. Power on: press and hold (Power Button) of both speakers at the same time for 4 seconds,
Bluetooth Indicator will start blinking and accompanied by power on ring tone.
2. Power o: press and hold
(Power Button) of one speaker for 4
seconds, Bluetooth indicator will stop
blinking and accompanied with power o
ring tone.
6
Pairing with Bluetooth Equipped Device:
1. Pairing the 2 speakers: Press and hold (Power Button) of both speakers until power is on,
it will enter pairing mode for 10~30 seconds, and accompanied by the Bluetooth indicator
fast blinking. Once it is paired, Bluetooth indicator will blink slowly and accompanied by a ring
tone (Pairing time will vary depending on external interference)
2. Press the (Bluetooth Pairing) once, it will enter into paring mode with cell phone or
Bluetooth device. When the speakers have paired with your device successfully, you be
prompted with a ring tone. On one speaker Bluetooth indicator becomes solid on (Master: Left
Channel), while the other speaker will blink on-o once every 3 seconds (Slave: Right Channel).
Note: You may see two devices on your Apple iPhone, iPad, or iPod. You can pick either one of the devices to pair.
-Press and hold (Bluetooth Pairing) can cancel pairing with cell phone.
-If your device prompts you for a passcode, please enter 0000.
2
7
Taking Calls with your connected to your phone:
When your phone receives an incoming call, a ring tone alert will come from your speaker.
To accept a call:
-Press the (Power Button) on the master speaker.
To end a call:
-Press the (Power Button) on the master speaker.
To reject a call or use call waiting feature, please revert to your phone controls.
2
2
8
F. Recharging Battery:
E. Connecting to via 3.5mm AUX input:
You can use speakers for music play with any device that has 3.5mm Audio out port.
Simply plug in the 3.5mm cable (included) into the speaker and into your device then play
music.
Connect the provided USB cable to the charging port on the
speakers and a USB charging block. Battery Indicator glows red
when battery is charging, and indicator changes to green when
battery is full.
The charging time is approximately 3 hours from an empty battery
2
2
AUX USB
9
G. Factory Reset Pairing Procedure:
1. 2. 3. 4.
Power On Pairing Speakers
4 sec. 30~60 sec.
A B
Complete PairingPair with Device
Press and hold for
4 seconds to power on
the speakers
A.) Press again on
both speakers. Bluetooth
Indicator will be fast
blinking accompanied by a
ringtone.
B.) Allow 30~60 seconds
for the speakers to pair
with each other. Once it is
paired Bluetooth indicator
will blink slowly and
accompanied by a ringtone.
Press the button on one
of the speakers to pair with
your bluetooth device.
Turn on Bluetooth and
search for“Sound²” and
click“Pair”. Play music to
conrm that the pairing
process is complete. If
not, repeat the process.
Bluetooth<
Bluetooth
DEVICES
NowDiscoverable
Sound² Not Paired
Note: Please turn o the Bluetooth
connectivity on your device.
10
H. Troubleshooting
No audio from the speakers
A beep is heard during music play
Music playing through the speaker is
intermittent
Check if the Bluetooth device and
speakers are powered on and paired. Increase
volume from your Bluetooth device.
Battery is low, turn o speakers and recharge
the battery.
Make sure the distance between the
Bluetooth device and the speaker is
within the 30 foot range, or check if there
are any device/equipment that generates
electromagnetic interference.
Problem Solution
2
2
2
Complete Pairing

11
Problem Solution
Music is intermittent, when the
is connected to Apple devices, i.e. Apple
iPad, iPhone, iPod.
Poor sound quality or sound is distorted.
Restart the pairing process again, and check
“forget this device” in the Bluetooth setting.
iOS is able to pair with 2 separate Bluetooth
devices at the same time. If there are 2
devices connected to one Apple Bluetooth
device at the same time, signal interference
will occur. To avoid this when pairing with
the speakers again, please turn o other
unused Bluetooth devices.
Lower the music volume, or if speakers are
playing through the AUX line, make sure the
line is fully plugged in.
2
12
Only one speaker has sound
Only one speaker has sound; both
speakers have solid on Bluetooth
indicator.
The speakers are not properly paired.
Please power o both speakers and refer
back to Section D, set-up to start the pairing
procedures again. The speaker
should pair each other first, then with the
Bluetooth device.
This shows that the 2 speakers paired with
2 dierent Bluetooth devices. Please turn
o other prior paired Bluetooth devices (i.e.
phone or tablet within the 30ft vicinity). Then
restart the pairing procedures again (refer to
quick start guide/section D in manual).
Problem Solution
2
2
Note: If your question has not been answered, please refer to our website for more information. www.jackco.com
13
I. Technical Specifications
J. FCC Notice
Dimensions (Detached) 2.45”L x 2.45”W x 3.3”H
Charge Current 300mA
5V DC
Charge Voltage
Battery Lithium polymer 800 mAh
-4°F - 113°F (-20°C - 45°C)Working Temperature
Working Humidity
Working Hours
Range 30 ft.
5% - 95%
About 6 hours
Bluetooth Version 2.1+EDR, A2DP, AVRCP, HSP, HFP
3W + 3WOutput Power
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may
not cause harmful interference and (2) this device must accept any interference received, including interference that may
cause undesired operation. FCC ID: 2ACZPZT51000
14
K. Environmental Protection
Do not dispose of the product with household waste.
Do not incinerate. Keep away from fire.
L. Lithium Battery Caring Tips
This product uses the micro USB charge port, and built-in lithium battery. We recommend that the
battery is fully charged and discharged during first three uses to ensure the battery is in it’s best
performance.
When charging is complete, unplug the USB cable on the speakers.
Please do not place the speaker in extreme environments.The speakers perform best when
operating at room temperature, 70° F (20° C).
2
2
iPad, iPhone, and iPod are trademarks of Apple Inc., registered in the U.S. and other countries.The Bluetooth word mark and
logos are owned by the Bluetooth SIG, Inc. Other trademarks and trade names are those of their respective owners.
Limited Six (6) Month Warranty
Jackco Transnational Inc. warrants “SOUND2 by JACKCO”branded products to the original purchaser against any manufacturing defect in
material or worksmanship for a period of six (6) months from the original date of purchase. If the defective product is determined to be
covered under this warranty, it shall be repaired or replaced at manufacturer’s discretion without charge. Provided that the product must
be returned with proof of purchase and freight prepaid when returned to the manufacturer.This warranty shall not apply to damage due
to accident, negligent use, lack of maintainance, abuse or applications other than the specic function the product is designed for.
No other warranties, expressed or implied, including those of merchantability or fitness for particular purpose shall be applicable to
Jackco except as specifically stated herein. In no event shall Jackco be liable to any party for any special, direct, indirect, consequential,
punitive damage of any nature caused by the sale or use of the equipment, tool, or product.
Note: This warranty gives the original purchaser specific legal rights which may vary from state to state.
Please visit our website at www.jackco.com/warranty.html to submit your RMA request.
