J&D MAnufacturing MAGNUM 58" User manual

IS295-20H J&D Manufacturing • 6200 Hwy 12 • Eau Claire, WI 54701 • 1-800-998-2398 • www.jdmfg.com Page 1/12
MAGNUM 58” EXHAUST FAN
J&D Mfg. warrants this products is free from defects in materials and workmanship under
normal use for the period of three years from date of purchase. Our warranty does not cover
ordinary wear and tear. J&D Mfg can repair or replace at our option, any product or part of
the product that is found to be defective. Our warranty applies to materials only and does not
include return freight, delivery, loss or damage to personal property, cost of removal or
installation, any incidental or consequential damages or labor. This warranty does not apply to
products which are misused, abused, altered, improperly installed or subject to negligence. All
warranties must be approved through our warranty department. The original purchaser must
present a copy of the invoice for the defective product.
Please read over ALL instructions carefully before you begin.
If you have any questions please call your local dealer, or contact J&D Manufacturing at 1-800-998-2398.
RECOMMENDED TOOLS FOR INSTALLATION AND ASSEMBLY
(NOT PROVIDED)
WARRANTY
INSTALLATION
- Safety Glasses
- Socket Wrench
- 1/2” Socket
- 1/4” Nut Driver
- 1/2” Wrench
- 3/8” Wrench
- Impact Driver
- Drill
- 1/8” Drill Bit
- 13/64” Drill Bit
- 10 ft-lb Torque Wrench
- 23 ft-lbs Torque Wrench
- Cutting Device
(for Rubber Gasket)
(4) Venturi
Sections
Rubber
Gasket
(4) Motor
Brackets
Motor
Prop
Metal
Damper
Door Rod Housing
Side Panels
(2) Damper
Doors (4) Housing
Corner Caps
(8) Cone
Sections
(2) Front
Guards
(2) Rear
Guards
PARTS LEGEND

IS295-20H J&D Manufacturing • 6200 Hwy 12 • Eau Claire, WI 54701 • 1-800-998-2398 • www.jdmfg.com Page 2/12
Venturi Assembly:
• Lay out the (4) venturi sections flat on the floor with the curve side of
the sections facing up.
• Assemble the motor mount brackets (flat side down) in-between each
venturi section.
1
Bag 1 (Tools)
- #3 Phillips Bit
- 1/16” Hex Wrench
Bag 2 (Housing)
Bag 2 (Part 1)
- (28) 5/16”-18 x 7/8” Bolts
Bag 2 (Part 2)
- (28) 5/16”-18 Serrated Flange Nuts
Bag 2 (Part 3)
- (24) #14-10 x 2” Screws (Use #3 Phillips Bit from Bag 1)
Bag 3 (Motor)
- (8) 3/8”-16 x 3/4“ Bolts
- (8) 3/8” Washers
Bag 9 (Misc. Hardware)
- (2) SS Eyebolts
- (4) SS Serrated Flange Nuts #10-24
- (1) 1/4” x 2” Machine Key
- (4) SS Damper Door Striker Plates
- (4) Damper Door Magnets
- (4) 1/2” OD 1/8” ID Nylon Spacers
- (5) 1¼” OD .38“ ID Nylon Spacer
- (2) SS Damper Door Springs
- (1) Front Guard Plate Hub w/Hardware
- (4) 11” Cable Ties
Bag 6 (Cone Guard)
- (8) 5/16”-18 x 1” Bolts
- (8) 5/16”-18 Serrated Flange Nuts
Bag 7 (Mounting Screws)
- (4) #12-11 x 3½” Screws (Use #3 Phillips Bit from Bag 1)
Bag 8 (Motor Guard)
- (10) #12-11 x 5/8” Screws (Use #3 Phillips Bit from Bag 1)
Bag 5 (Cone)
Bag 5 (Part 1)
- (50) #14-10 x 2” Screws (Use #3 Phillips Bit from Bag 1)
Bag 5 (Part 2)
- (50) 5/16”-18 x 7/8” Bolts
Bag 5 (Part 3)
- (50) 5/16”-18 Serrated Flange Nuts
Bag 4 (Damper Doors)
- (5) #4-40 x 1” Screw
- (5) #4-40 Lock Nuts
Site Requirements:
• Rough Opening - 65¼” W x 65¼”H
• Side-By-Side Recommended OC Dimension - Minimum 75”
65¼”
65¼”
ROUGH
OPENING
75”
ROUGH
OPENING

IS295-20H J&D Manufacturing • 6200 Hwy 12 • Eau Claire, WI 54701 • 1-800-998-2398 • www.jdmfg.com Page 3/12
• Using (28) 5/16”-18 x 7/8“ Bolts from Bag 2 (Part 1) and (28) 5/16”
-18 Serrated Flange Nuts from Bag 2 (Part 2), assemble the motor
mount brackets and venturi sections.
— Tighten only the bolts and nuts securing venturi sections.
— Holding the motor brackets up so the back side is flush to the
outside of the venturi sections, tighten the bolts and nuts
securing motor mounts and venturi sections.
2
Eye Bolt Installation:
• Stand the housing assembly up.
• Locate the dimple marks on the exterior of the venturi next to the motor
brackets.
• With a 13/64” drill bit drill out the (2) holes for the eyebolts.
3

• Assemble (2) SS Eyebolts and (2) SS Serrated Flange Nuts #10-24
from Bag 9 (Misc. Hardware)
— With the flange facing up thread (1) Serrated Flange Nut onto
each Eyebolt as far as it will go.
• Insert each eyebolt nut assembly up through the hole drilled in Step 3
and secure with a SS Serrated Flange Nut #10-24 from Bag 9 (Misc.
Hardware), flange facing down.
• Using 3/8” wrench tighten each eyebolt assemblies
NOTES:
- Turn the eyebolts so the opening of the loops are facing each other.
- Where the eyebolts are installed is now considered the TOP of
the fan.
4
Housing Side Panel Assembly:
• Starting on a corner and with the front and back venturi section channels
inserted into the grooves of the housing side panel.
• Slide the housing side panel across the top until it hits the center seam of
the assembled venturi sections.
• Lift up on the center of the housing side panel and continue to slide
housing side panel until it is centered.
• Repeat until all four sides have housing side panels installed
5
IS295-20H J&D Manufacturing • 6200 Hwy 12 • Eau Claire, WI 54701 • 1-800-998-2398 • www.jdmfg.com Page 4/12
Location of eyebolts=Top of Fan

Installing Housing Corner Caps:
• Place a housing corner cap onto the housing between (2) housing side
panels assembled in the previous step.
• Using the included #3 Phillips Bit from Bag 1 (Tools) and (6) #14-
10 x 2” Screws from Bag 2 (Part 3), screw the corner to the panels.
NOTE:
- The screws should draw the housing side panel up tight to the
housing corner cap, but the housing side panel may need to be
pushed/pulled as it is being screwed together.
• Repeat until all four housing corner caps have been installed
6
Motor Installation:
NOTE: 2 person lift is recommended for handling of 105lb motor
• Using the pallet the fan came on, place the motor in the center between
the pallet slats with the shaft facing up.
• Place housing over motor with the housings eyebolts aligning with motor
wiring ports as shown below.
• Use scrap wood 2x4’s or other items to lay between the pallet and
the fan housing to align motor brackets with motor and to support
the housing.
7
IS295-20H J&D Manufacturing • 6200 Hwy 12 • Eau Claire, WI 54701 • 1-800-998-2398 • www.jdmfg.com Page 5/12
Top
of
Fan

• Line up the holes of the motor mount brackets to the holes in the
motor housing.
• Assemble the (8) 3/8”-16 x 3/4“ Bolts and (8) 3/8” Washers from
Bag 3 (Motor)
• Starting each bolt and washer assembly by hand, begin attaching motor
to brackets - since motor has an aluminum housing care must be
taken to not cross-thread or strip-out the motor mounting
threads
• Once all motor mounting hardware has been hand started, torque the
bolts to 23 ft-lbs using hand tools only
8
Prop Installation:
• Insert the 1/4” x 2” Machine Key from Bag 9 (Misc. Hardware)
into the key notch on the motor shaft
• Slide prop onto the keyed motor shaft until flush with end of motor shaft.
• Secure prop by tightening the (2) set screws (located on underside of
prop) to 10 ft-lbs
• Rotate the blade to make sure there is no interference.
IS295-20H J&D Manufacturing • 6200 Hwy 12 • Eau Claire, WI 54701 • 1-800-998-2398 • www.jdmfg.com Page 6/12
9

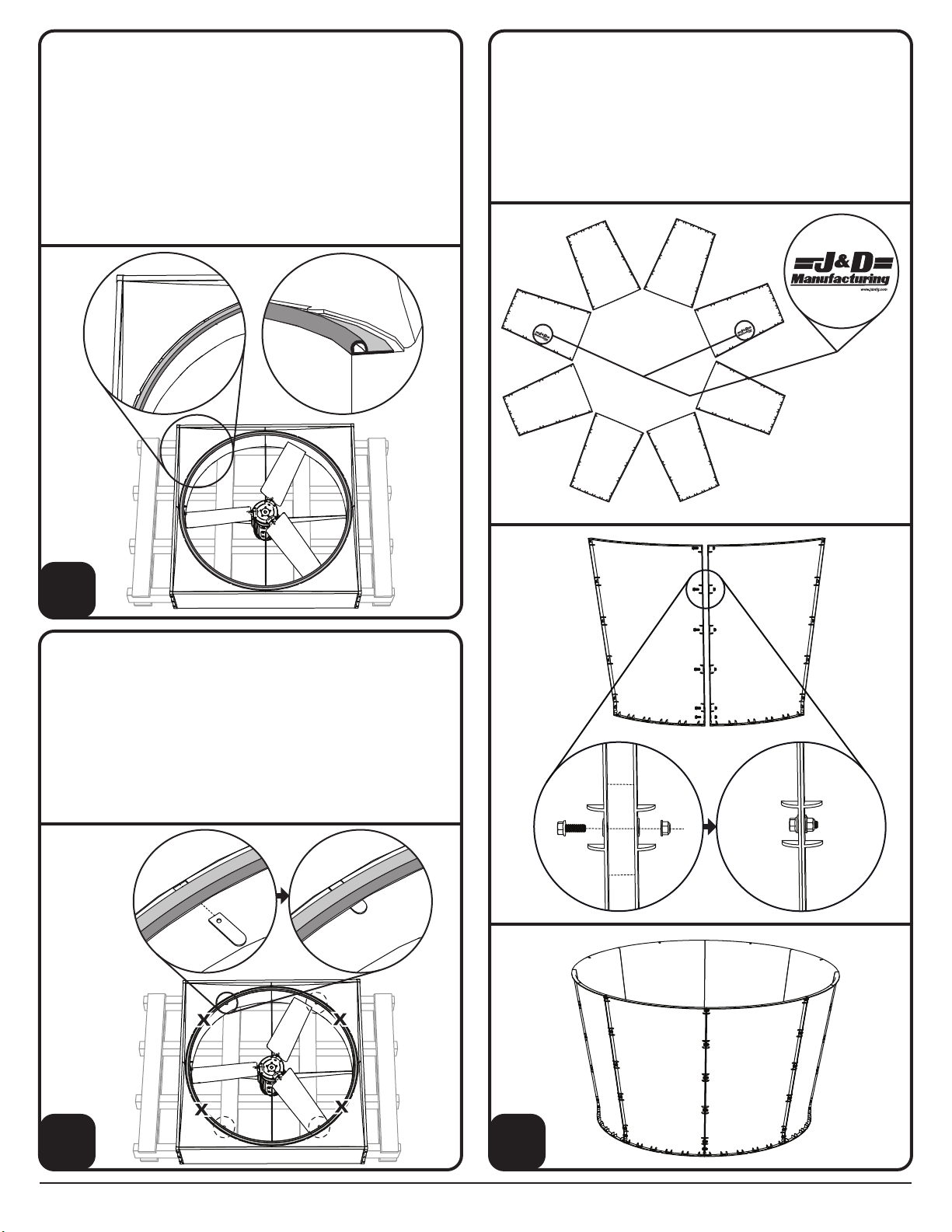

Damper Door Striker Plates Installation:
• On the edge of the housing venturi under the just placed rubber gasket
locate the 4 striker plate grooves nearest the center of the fan venturi,
(do not use the ones nearest the top or the bottom of the fan).
• Carefully lift off the rubber gasket over the striker plate groove and insert
(1) SS Damper Door Striker Plates from Bag 9 (Misc. Hardware)
at each location, angle the striker plate so the angle matches the fan
housing. To secure the striker plates, press the rubber gasket back down.
NOTE: No hardware is used to secure striker plates at this time.
11
Rubber Gasket Installation:
• Peel the backing off the rubber gasket 1’ at a time and with the raised
portion to the center and flush to the interior of the venturi stick it to
the housing.
• Continue to stick the gasket around the entire circumference of the
housing opening.
• When you are back to the starting point cut off any excess gasket.
Stick it down lining up the two ends of the gaskets.
• Go back and press down on the flat part of the gasket all the way
around the housing to make sure it is stuck down.
10
Cone Assembly:
• Lay out the (8) cone pieces, place the (2) sections with the J&D logo
across from each other as shown below.
• Using (6) 5/16”-18 x 7/8” Bolts from Bag 5 (Part 2) and (6) 5/16”-18
Serrated Flange Nuts from Bag 5 (Part 3), assemble two cone pieces.
Repeat until all (8) cone pieces are assembled.
• Using a 1/2” socket with impact driver and wrench tighten the cone
pieces together.
12
IS295-20H J&D Manufacturing • 6200 Hwy 12 • Eau Claire, WI 54701 • 1-800-998-2398 • www.jdmfg.com Page 7/12
Cut away view
Top
of
Fan

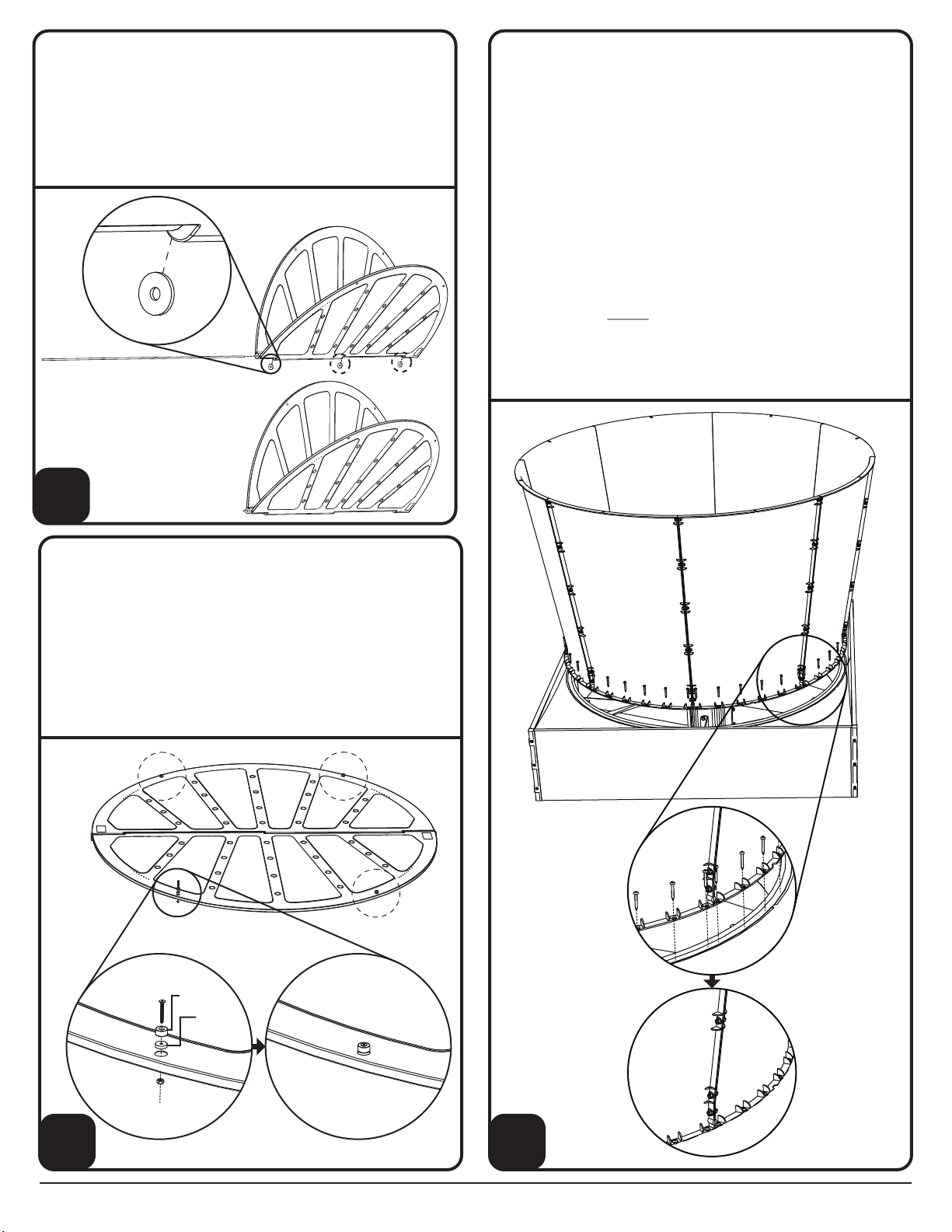

Attaching Magnets to Damper Door:
• With the dimple side facing up on the damper door, identify the (4) edge
dimples, using a 1/8” drill bit drill a hole in the center of each of these
dimples.
• Get (1) #4-40 x 1” Screw from Bag 4 (Damper Doors) and assem-
ble (1) Damper Door Magnet then (1) 1/2” OD 1/8” ID Nylon Spacer
from Bag 9 (Misc. Hardware) onto screw, insert through drilled hole
and secure with (1) #4-40 Lock Nuts from Bag 4 (Damper Doors),
using 1/16” Hex Wrench from Bag 1 (Tools). Repeat until all (4)
Damper Door Magnets are installed.
14
Assembling Damper Door:
• Place the flat sides of the (2) damper doors facing each other and slide
together so the round hinge parts line up.
• While sliding the metal damper door rod into hinge insert (3) 1¼” OD
.38“ ID Nylon Spacers from Bag 9 (Misc. Hardware) into the
hinge as shown below.
NOTE: Do not force, forcing can cause damage to door hinge.
13
Cone Installation:
• Using (2) people lift the cone assembly onto the housing assembly.
— With J&D logoed cone sections facing the sides (not the top and
bottom) line up the edge of one of the cone pieces to the center
line of the housing.
— Make sure the raised part of the rubber gasket is inside the
cone assembly and not underneath it or crushed anywhere.
• Using the included #3 Phillips Bit from Bag 1 (Tools) and (1) #14-
10 x 2” Screw from Bag 5 (Part 1) at each of the venturi section
connections, secure the cone assembly to the housing
• Recheck the rubber gasket for proper placement and make adjustments
as needed
NOTE: Select one of the cone section that is across from the eyebolts
installed in Step 4, do not secure that section to the
housing. (For further clarity preview the next couple of steps)
• Secure 7 of the 8 cone sections to the housing using the included #3
Phillips Bit from Bag 1 (Tools) and (6) #14-10 x 2” Screws
from Bag 5 (Part 1) per cone section.
15
IS295-20H J&D Manufacturing • 6200 Hwy 12 • Eau Claire, WI 54701 • 1-800-998-2398 • www.jdmfg.com Page 8/12
Magnet
Nylon
Spacer

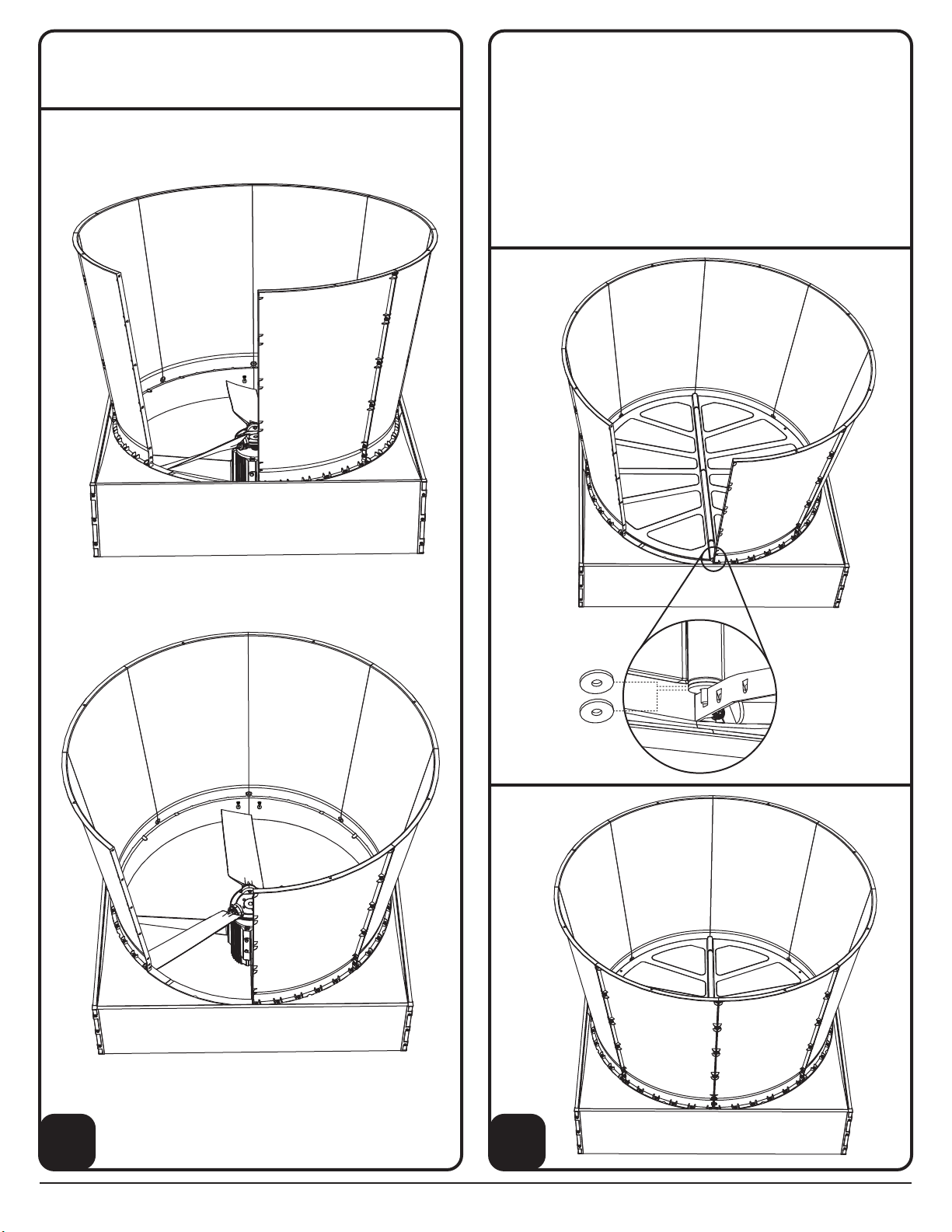

Preparation for Installing Damper Door:
• Remove the bolts from the cone section that was not screwed to the
housing so that panel can be removed and set aside.
16
Damper Door Installation:
• Using the opening created by removing the cone panel, insert the damper
door assembly.
• Insert the top of the metal damper door rod into the hole in the top of the
cone by the eyebolts.
• Before securing the bottom of the metal damper door rod, slide on (2)
1¼” OD .38“ ID Nylon Spacers from Bag 9 (Misc. Hardware)
then insert the bottom of the damper door rod into bottom cone panel
section adjacent to the one removed. See below.
• Once damper door is installed, reinstall cone panel and secure to housing.
17
IS295-20H J&D Manufacturing • 6200 Hwy 12 • Eau Claire, WI 54701 • 1-800-998-2398 • www.jdmfg.com Page 9/12
Top of Fan
Top of Fan
Top of Fan

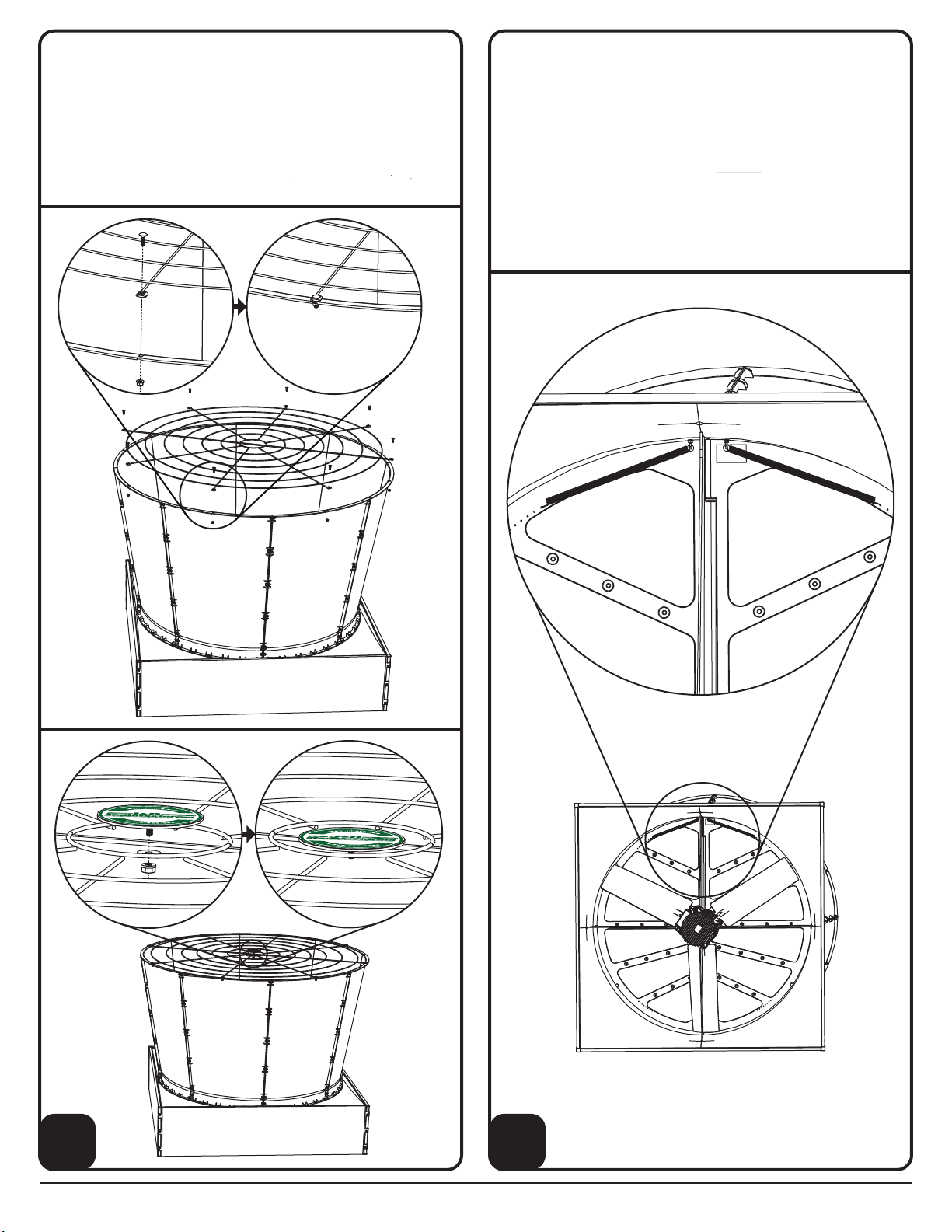

Front Guard Installation:
• Place front guards onto cone and align guard tabs to the mounting holes
in the cone flange.
• Secure guard to cone using (8) 5/16”-18 x 1” Bolts and (8) 5/16”-18
Serrated Flange Nuts from Bag 6 (Cone Guard)
• Disassemble the (1) Front Guard Plate Hub w/Hardware from
Bag 9 (Misc. Hardware), insert hub bolt post between the two front
guard pieces, center, and secure with washer and nut.
18
Damper Door Spring Installation:
• Hook the (2) SS Damper Door Springs from Bag 9 (Misc. Hard-
ware), onto the eyebolts.
• Swing the loose end of the damper door spring over to the dimpled area
on the damper door edge and mark which dimple is closest to the spring
end that give the least amount of tension. Using a 1/8” drill bit drill
through just the first layer of the door. DO NOT DRILL ALL THE WAY
THROUGH DOOR. Hook end of damper door spring through hole.
NOTE: Test damper door spring tension, if damper doors do not fully close
select the next dimple over and repeat the previous step of drilling
though the just the first layer of the door and re-hook the damper
door spring.
19
IS295-20H J&D Manufacturing • 6200 Hwy 12 • Eau Claire, WI 54701 • 1-800-998-2398 • www.jdmfg.com Page 10/12
Top of Fan
Top of Fan

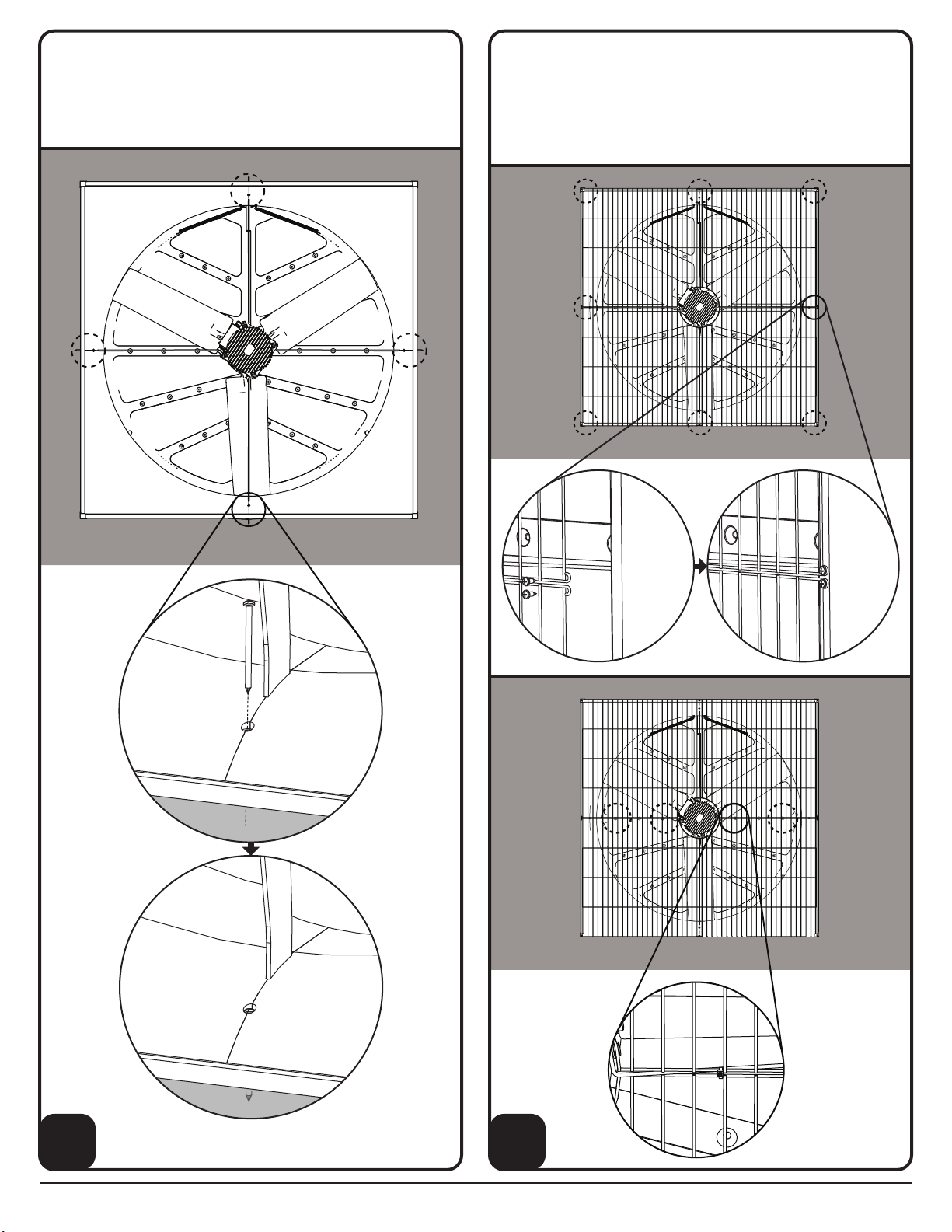

Magnum Installation:
• From the exterior of the building insert fan into opening.
• Using the included #3 Phillips Bit from Bag 1 (Tools) and (4) #12-
11 x 3½” Screws from Bag 7 (Mounting Screws) secure fan in
opening as shown below.
20
Rear Guards Installation:
• Using the included #3 Phillips Bit from Bag 1 (Tools) and (5) #12-
11 x 5/8” Screws from Bag 8 (Motor Guard) per guard, secure rear
guard sections to housing as shown below.
• Secure rear guard sections to each other using (4) 11” Cable Ties from
Bag 9 (Misc. Hardware).
21
IS295-20H J&D Manufacturing • 6200 Hwy 12 • Eau Claire, WI 54701 • 1-800-998-2398 • www.jdmfg.com Page 11/12
Top of Fan

Identify cords coming from motor
Control Wiring Instructions:
• For dry contact ON/OFF control, connect dry contact from STOP/
RUN to signal ground.
- Closed contact is motor ON, open contact is motor OFF.
- Connect STOP/RUN wire to signal ground wire if dry contact
ON/OFF control is not used.
• Use the two 4-20ma IN wires for analog current speed control.
- Leave 4-20ma wires disconnected if not used, (less than
5.6ma is OFF).
• 0-10V in to signal ground for analog voltage speed control,
(less than 1V is OFF).
- Connect 10V OUT wire to 10V IN wire for no speed control,
(full speed).
• Use four conductor 26AWG (or heavier), shielded, dual twisted
pair, signal wire with drain wire from J&D control to Permanent
Magnet fan.
• Use the two 4-20ma IN wires for analog current speed control.
- Leave 4-20ma wires disconnected if not used, (less than 5.6ma is OFF).
IS295-20H J&D Manufacturing • 6200 Hwy 12 • Eau Claire, WI 54701 • 1-800-998-2398 • www.jdmfg.com Page 12/12
Single Phase Wired for 190-240v
White
Motor to
Power Black
Green
L1
L2
Ground
Three Phase Wired for
190-240v / 380-460v
Red
White
Black
Green
Motor to
Control
0-10V IN
+10V OUT
Signal
Ground
STOP/RUN
Red
White
Black
Green
Motor to
Power
L1
L2
L3
Ground
DISCONNECT POWER
BEFORE INSTALLING OR SERVICING.
ALL ELECTRICAL WORK SHOULD BE COMPLETED BY
QUALIFIED PERSONNEL AND MEET NATIONAL (NEC),
REGIONAL AND LOCAL ELECTRIC CODES.
! !
White w/Green Stripe
Orange w/White Stripe
Motor to
Control
+10V OUT
0-10V IN
Green w/White Stripe STOP/RUN
White w/Orange Stripe Signal
Ground
White w/Blue Stripe + 4-20ma IN
4-20ma IN
Blue w/White Stripe –
Control
Power
Maintenance Instructions:
• Disconnect power before cleaning or maintaining your fan in order
to prevent serious injury or death.
• Service and repair of fan should only be completed by a qualified
technician.
• For maximum efficiency and fan life, keep the following free from
dirt and dust: blades, damper doors, motor and guard.
• The totally enclosed air over motor has sealed ball bearings and
does not require additional oil.
General Wiring Instructions:
• Wiring should only be performed by a trained electrician to prevent
injury or death.
• Install manual disconnect switch inside building adjacent to fan.
• Route wire to motor with drip loop and secure. Drip loop will drain
accumulated moisture away from the motor.
• Configure internal wires to match supply voltage and wire accord-
ing to motor nameplate. Test to verify correct rotation.
• Only permit power to unit when guards are properly installed to
prevent injury.
