MAGNUM 58” EXHAUST FAN
J&D Mfg. warrants this products is free from defects in materials and workmanship under
normal use for the period of three years from date of purchase. Our warranty does not cover
ordinary wear and tear. J&D Mfg can repair or replace at our option, any product or part of
the product that is found to be defective. Our warranty applies to materials only and does not
include return freight, delivery, loss or damage to personal property, cost of removal or
installation, any incidental or consequential damages or labor. This warranty does not apply to
products which are misused, abused, altered, improperly installed or subject to negligence. All
warranties must be approved through our warranty department. The original purchaser must
present a copy of the invoice for the defective product.
Please read over ALL instructions carefully before you begin.
If you have any questions please call your local dealer, or contact J&D Manufacturing at 1-800-998-2398.
RECOMMENDED TOOLS & SUPPLIES FOR INSTALLATION
AND ASSEMBLY (NOT PROVIDED)
WARRANTY
INSTALLATION
(4) Venturi
Sections
Rubber
Gasket
(4) Motor
Brackets
Motor
Prop
Damper Door
Mounting
Bracket Housing
Side Panels
(2) Damper
Doors (4) Housing
Corner Caps
(8) Cone
Sections
(2) Front
Guards
(2) Rear
Guards
PARTS LEGEND
Back Front
• Safety Glasses
• Socket Wrench
• 1/2” Socket
• 1/4” Nut Driver
• Impact Driver
• 1/2” Wrench
• 3/8” Wrench
• Drill
• 1/8” Drill Bit
• 13/64” Drill Bit
• 10 ft-lbs Torque Wrench
• 23 ft-lbs Torque Wrench
• Cutting Device
(for Rubber Gasket)
• Sealant (Minimal-Expanding
Foam / Polyurethane Caulk)

IS295-21C J&D Manufacturing • 6200 Hwy 12 • Eau Claire, WI 54701 • 1-800-998-2398 • www.jdmfg.com Page 2/13
Venturi Assembly:
• Lay out the (4) venturi sections flat on the floor with the curve side of
the sections facing up.
• Assemble the motor mount brackets (flat side down) in-between each
venturi section.
1
Bag 1 (Tools)
- #3 Phillips Bit
- 1/16” Hex Wrench
Bag 2 (Housing)
Bag 2 (Part 1)
- (28) 5/16”-18 x 7/8” Bolts
Bag 2 (Part 2)
- (28) 5/16”-18 Serrated Flange Nuts
Bag 2 (Part 3)
- (24) #14-10 x 2” Screws (Use #3 Phillips Bit from Bag 1)
Bag 3 (Motor)
- (8) 3/8”-16 x 3/4“ Bolts
- (8) 3/8” Washers
Bag 9 (Misc. Hardware)
- (2) SS Eyebolts
- (4) SS Serrated Flange Nuts #10-24
- (1) 1/4” x 2” Machine Key
- (4) SS Damper Door Striker Plates
- (4) Damper Door Magnets
- (4) 1/2” OD 1/8” ID Nylon Spacers
- (2) SS Damper Door Springs
- (1) Front Guard Plate Hub w/Hardware
- (4) 11” Cable Ties
Bag 6 (Cone Guard)
- (8) 5/16”-18 x 1” Bolts
- (8) 5/16”-18 Serrated Flange Nuts
Bag 7 (Mounting Screws)
- (4) #12-11 x 3½” Screws (Use #3 Phillips Bit from Bag 1)
Bag 8 (Motor Guard)
- (10) #12-11 x 5/8” Screws (Use #3 Phillips Bit from Bag 1)
Bag 5 (Cone)
Bag 5 (Part 1)
- (50) #14-10 x 2” Screws (Use #3 Phillips Bit from Bag 1)
Bag 5 (Part 2)
- (50) 5/16”-18 x 7/8” Bolts
Bag 5 (Part 3)
- (50) 5/16”-18 Serrated Flange Nuts
Bag 4 (Damper Doors)
- (5) #4-40 x 3/4” Screw
- (5) #4-40 Lock Nuts

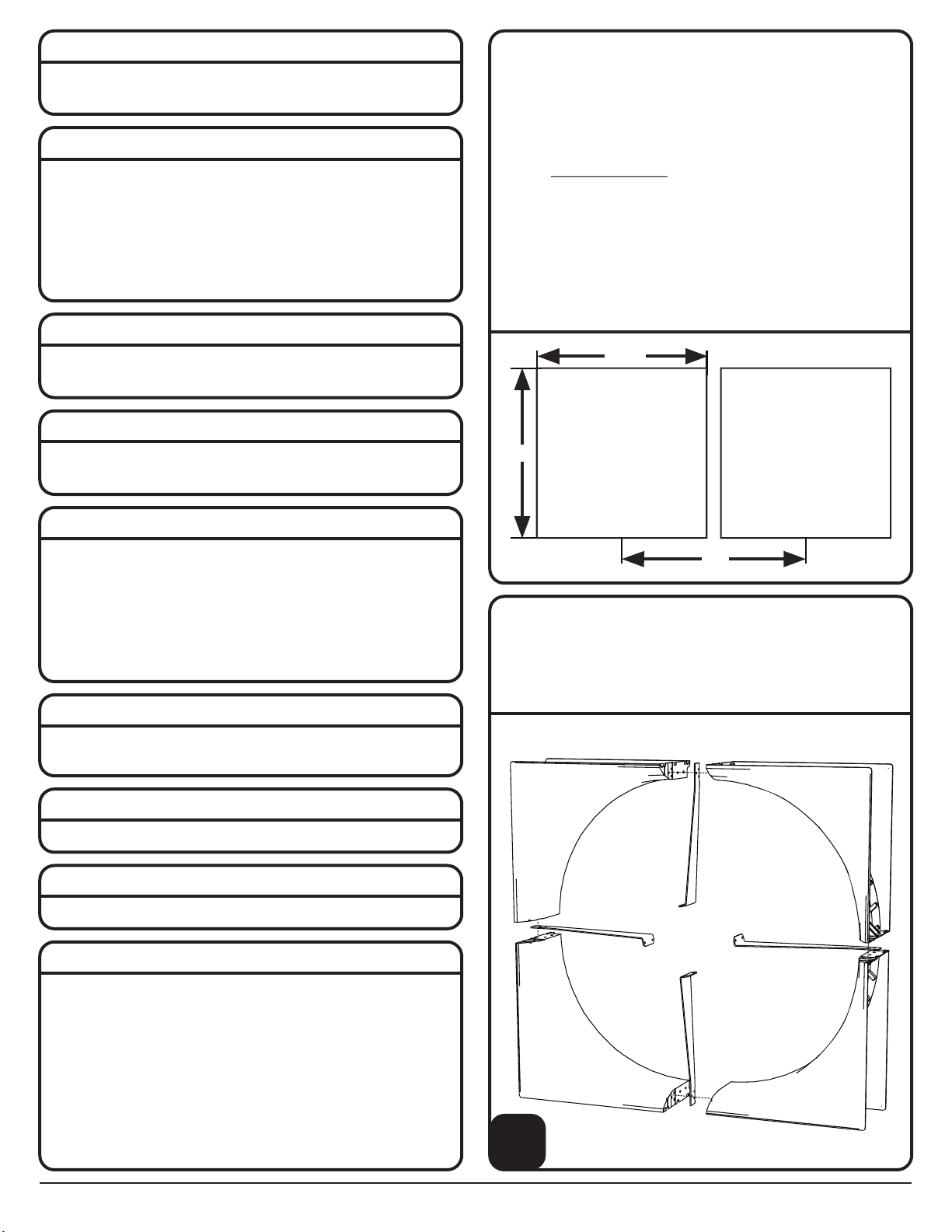

Site Requirements:
• Rough Opening - 65¼” W x 65¼”H
• Side-By-Side Recommended OC Dimension - Minimum 75”
• Precautions should be taken in locations that receive winter
precipitation accumulation to prevent damage to fans from
roof avalanches. Damage to fans from ice, snow, or any other falling
debris is not covered by warranty.
Common industry standard solutions are
> Extending roof eve beyond fan cone*
> Create a shelter a minimum of 6” above cone that
extends beyond the fan cone*
> Install snow guards according to manufacturers
recommendations
* The depth of J&D’s Magnum fan is 57”
65¼”
65¼”
ROUGH
OPENING
75”
ROUGH
OPENING

IS295-21C J&D Manufacturing • 6200 Hwy 12 • Eau Claire, WI 54701 • 1-800-998-2398 • www.jdmfg.com Page 3/13
• Using (28) 5/16”-18 x 7/8“ Bolts from Bag 2 (Part 1) and (28) 5/16”
-18 Serrated Flange Nuts from Bag 2 (Part 2), assemble the motor
mount brackets and venturi sections.
— Tighten only the bolts and nuts securing venturi sections.
— Holding the motor brackets up so the back side is flush to the
outside of the venturi sections, tighten the bolts and nuts
securing motor mounts and venturi sections.
2

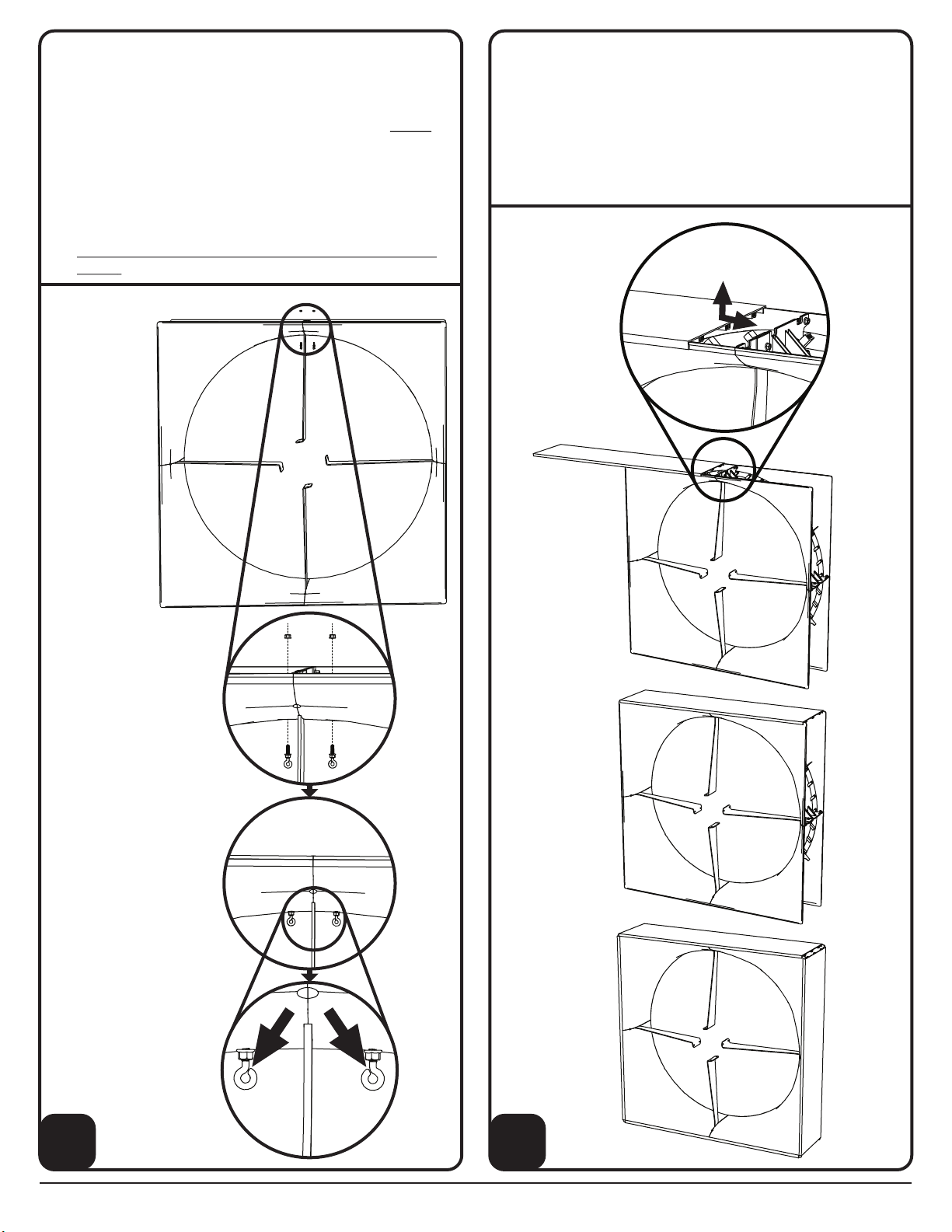

Eye Bolt Installation:
• Stand the housing assembly up.
• Locate the dimple marks on the exterior of the venturi next to the motor
brackets.
• With a 13/64” drill bit drill out the (2) holes for the eyebolts.
3

• Assemble (2) SS Eyebolts and (2) SS Serrated Flange Nuts #10-24
from Bag 9 (Misc. Hardware)
— With the flange facing up, thread (1) Serrated Flange Nut onto
each Eyebolt as far as it will go.
• Insert each eyebolt nut assembly up through the hole drilled in Step 3
and secure with a SS Serrated Flange Nut #10-24 from Bag 9 (Misc.
Hardware), flange facing down.
• Using 3/8” wrench tighten each eyebolt assembly
NOTES:
- Turn the eyebolts so the opening of the loops are facing each other.
- Where the eyebolts are installed is now considered the TOP of
the fan.
4
Housing Side Panel Assembly:
• Start on a corner. With the front and back venturi section channels
inserted into the grooves of the housing side panel, slide the housing
panel across the top until it hits the center seam of the assembled
venturi sections.
• Lift up on the center of the housing side panel and continue to slide
housing side panel until it is centered.
• Repeat until all four sides have housing side panels installed
5
IS295-21C J&D Manufacturing • 6200 Hwy 12 • Eau Claire, WI 54701 • 1-800-998-2398 • www.jdmfg.com Page 4/13
Location of eyebolts=Top of Fan
Top of Fan

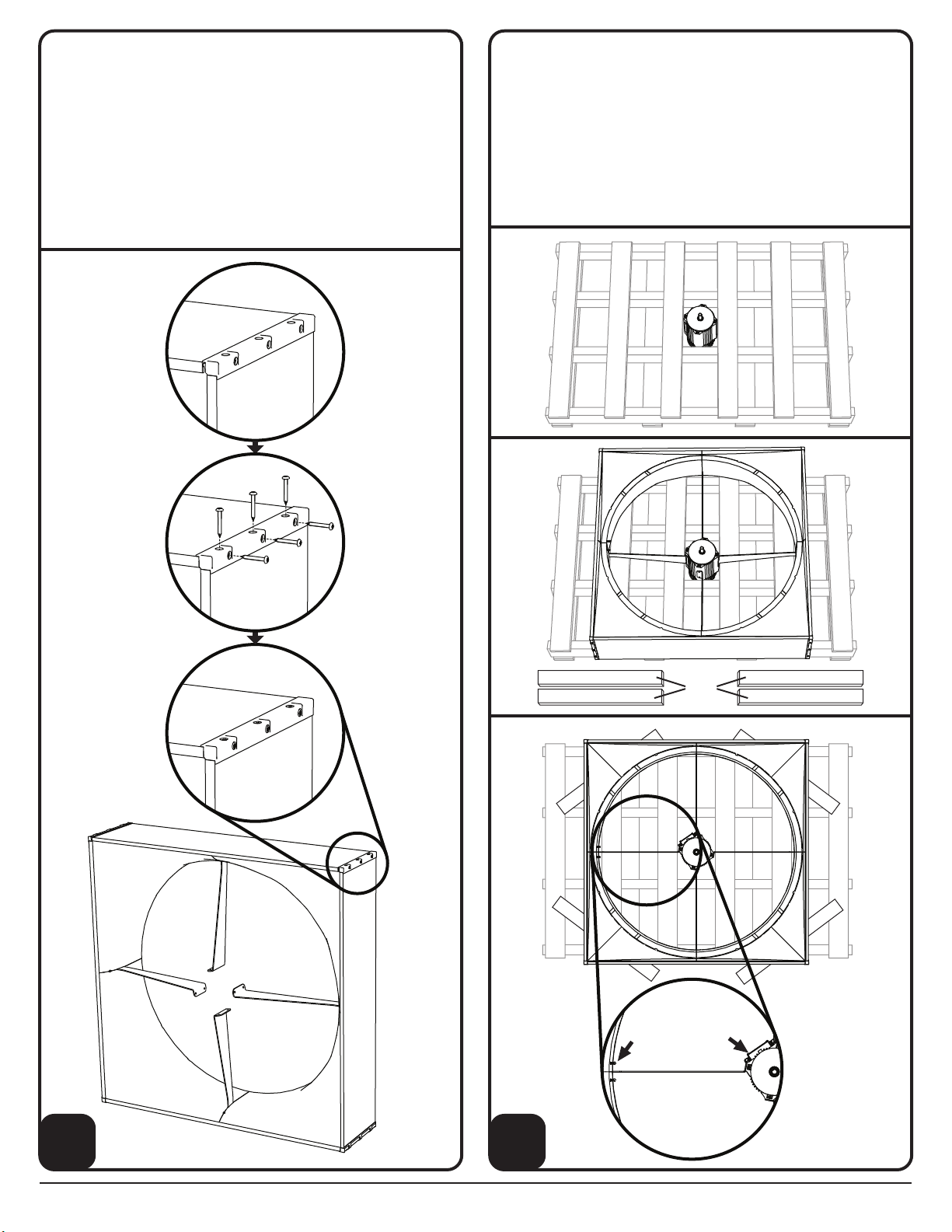

Installing Housing Corner Caps:
• Place a housing corner cap onto the housing between (2) housing side
panels assembled in the previous step.
• Using the included #3 Phillips Bit from Bag 1 (Tools) and (6) #14-
10 x 2” Screws from Bag 2 (Part 3), screw the corner to the panels.
NOTE:
- The screws should draw the housing side panel up tight to the
housing corner cap, but the housing side panel may need to be
pushed/pulled as it is being screwed together.
• Repeat until all four housing corner caps have been installed
6
IS295-21C J&D Manufacturing • 6200 Hwy 12 • Eau Claire, WI 54701 • 1-800-998-2398 • www.jdmfg.com Page 5/13
Top
of
Fan
Top
of
Fan

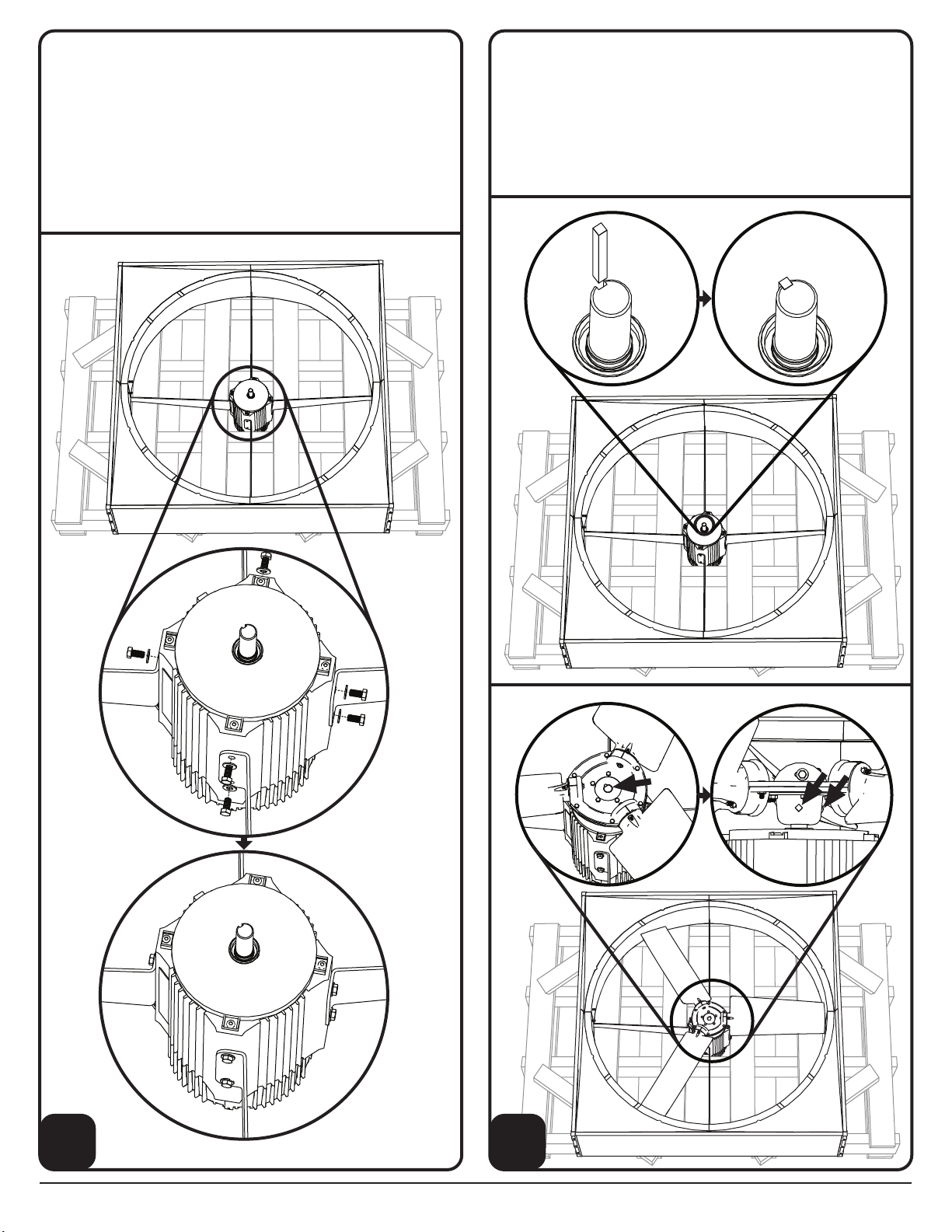

Motor Installation:
NOTE: 2 person lift is recommended for handling of 105lb motor
• Using the pallet the fan came on, place the motor in the center between
the pallet slats with the shaft facing up.
• Place housing, curved side down, over motor with the housings eyebolts
aligning with motor wiring ports as shown below.
• Use scrap wood 2x4’s or other items to lay between the pallet and
the fan housing to align motor brackets with motor and to support
the housing.
7
Scrap
2x4’s

• Line up the holes of the motor mount brackets to the holes in the
motor housing.
• Assemble the (8) 3/8”-16 x 3/4“ Bolts and (8) 3/8” Washers from
Bag 3 (Motor)
• Starting each bolt and washer assembly by hand, begin attaching motor
to brackets - since motor has an aluminum housing care must be
taken to not cross-thread or strip-out the motor mounting
threads
• Once all motor mounting hardware has been hand started, torque the
bolts to 23 ft-lbs using hand tools only
8
Prop Installation:
• Insert the 1/4” x 2” Machine Key from Bag 9 (Misc. Hardware)
into the key notch on the motor shaft
• Slide prop onto the keyed motor shaft until flush with end of motor shaft.
• Secure prop by tightening the (2) set screws (located on underside of
prop) to 10 ft-lbs
• Rotate the blade to make sure there is no interference.
IS295-21C J&D Manufacturing • 6200 Hwy 12 • Eau Claire, WI 54701 • 1-800-998-2398 • www.jdmfg.com Page 6/13
9
Top
of
Fan
Top
of
Fan
Top
of
Fan

Top
of
Fan
Rubber Gasket Installation:
• Starting on one side of the damper door mounting bracket peel the
backing off the rubber gasket 1’ at a time and with the raised portion to
the center and flush to the interior of the venturi stick it to the housing.
• Continue to stick the gasket around the circumference until you come to
the damper door mounting bracket, trim flush with end of bracket
• Repeat for other side of the housing opening.
• Go back and press down on the flat part of the gasket all the way
around the housing to make sure it is stuck down.
11
Damper Door Mounting Bracket Installation:
• Using the illustrations below identify the top and bottom of the damper
door mounting bracket
• Arrange bracket so that the top of the bracket is matched to the top of
the fan
• Using the center holes on the damper door mounting bracket align
the bracket with the seams of the assembled venturi as shown below
10
Damper Door Striker Plates Installation:
• On the edge of the housing venturi under the just placed rubber gasket
locate the 4 striker plate grooves nearest the center of the fan venturi,
(do not use the ones nearest the top or the bottom of the fan).
• Carefully lift off the rubber gasket over the striker plate groove and insert
(1) SS Damper Door Striker Plates from Bag 9 (Misc. Hardware)
at each location, angle the striker plate so the angle matches the fan
housing. To secure the striker plates, press the rubber gasket back down.
NOTE: No hardware is used to secure striker plates at this time.
12
Attaching Magnets to Damper Door:
• Identity the back and front of the damper doors. The magnet will be
attached to the back of the damper doors
• Get (1) #4-40 x 3/4” Screw from Bag 4 (Damper Doors) and assem-
ble (1) Damper Door Magnet then (1) 1/2” OD 1/8” ID Nylon Spacer
from Bag 9 (Misc. Hardware) onto screw, insert through drilled hole
and secure with (1) #4-40 Lock Nuts from Bag 4 (Damper Doors),
using 1/16” Hex Wrench from Bag 1 (Tools). Repeat until all (4)
Damper Door Magnets are installed.
13
IS295-21C J&D Manufacturing • 6200 Hwy 12 • Eau Claire, WI 54701 • 1-800-998-2398 • www.jdmfg.com Page 7/13
Cut away view
Top
of
Fan
Magnet
Nylon
Spacer
Back Front
Back Front
Back
Front
Top Bottom

Rod Rod

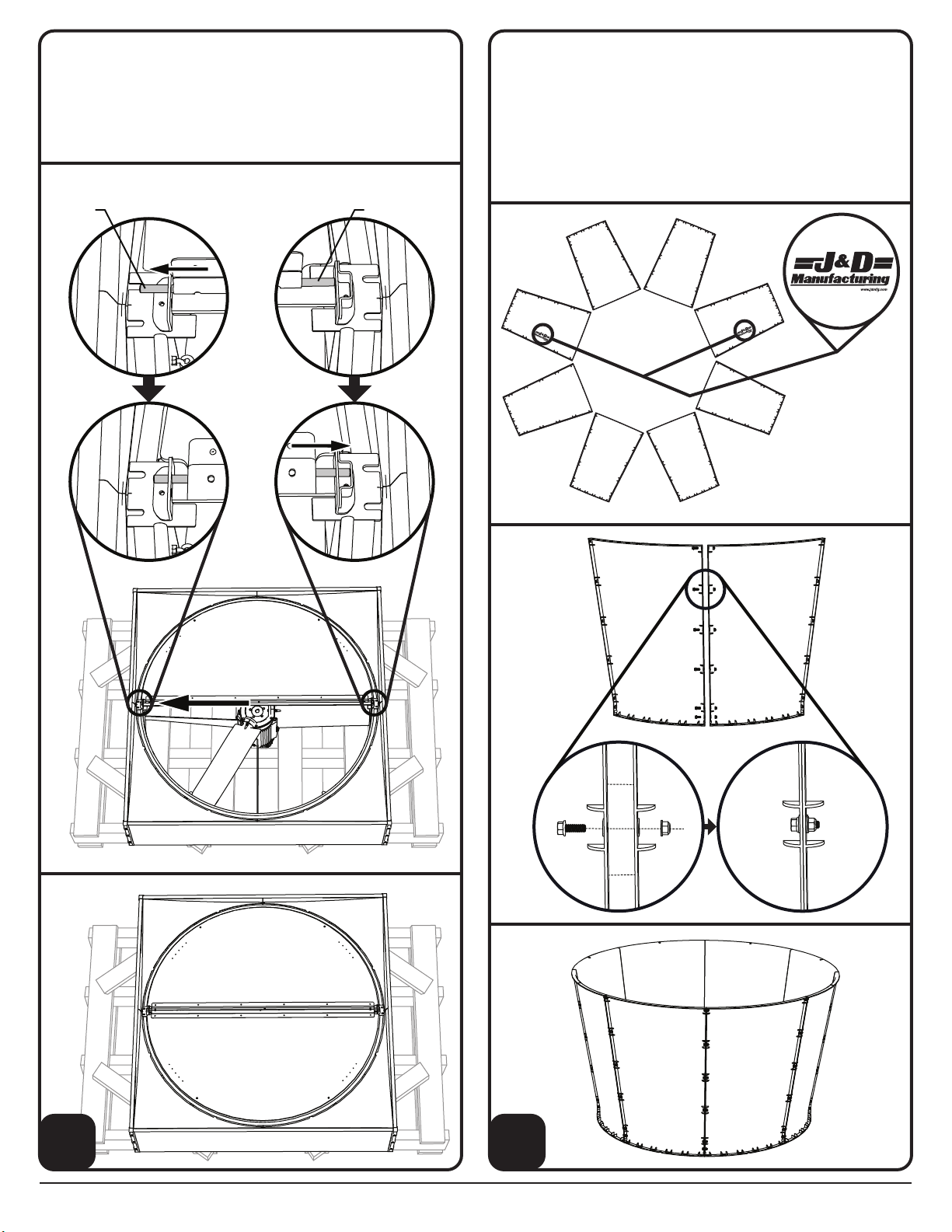

Cone Assembly:
• Lay out the (8) cone pieces, place the (2) sections with the J&D logo
across from each other as shown below.
• Using (6) 5/16”-18 x 7/8” Bolts from Bag 5 (Part 2) and (6) 5/16”-18
Serrated Flange Nuts from Bag 5 (Part 3), assemble two cone pieces.
Repeat until all (8) cone pieces are assembled.
• Using a 1/2” socket with impact driver and wrench, tighten the cone
pieces together.
15
Installing Damper Door:
• Insert damper door rod fully into the top part of the damper door
mounting bracket then slide damper door down so that the damper door
rod end rests against the stop on the damper door mounting bracket as
shown below.
• Repeat for second damper door
14
IS295-21C J&D Manufacturing • 6200 Hwy 12 • Eau Claire, WI 54701 • 1-800-998-2398 • www.jdmfg.com Page 8/13

Cone Installation:
• Using (2) people lift the cone assembly onto the housing assembly.
— With J&D logoed cone sections facing the sides (not the top and
bottom) line up the edge of one of the cone pieces to the center
line of the housing.
— Make sure the raised part of the rubber gasket is inside the
cone assembly and not underneath it or crushed anywhere.
NOTE: During the following process of securing the cone to the housing,
recheck the rubber gasket for proper placement and make adjust-
ments as needed
IS295-21C J&D Manufacturing • 6200 Hwy 12 • Eau Claire, WI 54701 • 1-800-998-2398 • www.jdmfg.com Page 9/13
• Align the top and bottom of the cone at the areas of the damper door
bracket (see Step 10) and secure using the included #3 Phillips Bit
from Bag 1 (Tools) and (4) #14-10 x 2” Screws from Bag 5
(Part 1) as shown below
• Align the cone at the areas of the 4 damper door striker plates placed
in (see Step 12) and secure using the included #3 Phillips Bit from
Bag 1 (Tools) and (4) #14-10 x 2” Screws from Bag 5 (Part 1)
as shown below
16 17

Front Guard Installation:
• Place front guards onto cone and align guard tabs to the mounting holes
in the cone flange.
• Secure guard to cone using (8) 5/16”-18 x 1” Bolts and (8) 5/16”-18
Serrated Flange Nuts from Bag 6 (Cone Guard)
• Disassemble the (1) Front Guard Plate Hub w/Hardware from
Bag 9 (Misc. Hardware), insert hub bolt post between the two front
guard pieces, center, and secure with washer and nut.
19
• Finish securing the cone to the housing using the included #3 Phillips
Bit from Bag 1 (Tools) and #14-10 x 2” Screws from Bag 5
(Part 1)
• Cone is fully secure once each section of cone is secured with a total of
(6) #14-10 x 2” Screws from Bag 5 (Part 1)
18
IS295-21C J&D Manufacturing • 6200 Hwy 12 • Eau Claire, WI 54701 • 1-800-998-2398 • www.jdmfg.com Page 10/13

Damper Door Spring Installation:
• Secure the coiled end of the (2) SS Damper Door Springs from Bag 9
(Misc. Hardware), onto the eyebolts by expanding and rotating as
shown below.
• Swing the loose end of the damper door spring over to the pre-drilled
holes on the damper door edge and hook the end of damper door spring
through hole which is closest to the spring end and gives the least
amount of tension.
NOTE: Test damper door spring tension, if damper doors do not fully close
select the next hole over and retest spring tension. Continue until
the correct spring tension is found.
20
Top of Fan
Magnum Installation:
• From the exterior of the building insert fan into opening.
• Using the included #3 Phillips Bit from Bag 1 (Tools) and (4) #12-
11 x 3½” Screws from Bag 7 (Mounting Screws) secure fan in
opening as shown below.
NOTE: For steel frame applications we recommend the equivalent size hex
head, self drilling, TEKS screw (not included).
21
Top of Fan
IS295-21C J&D Manufacturing • 6200 Hwy 12 • Eau Claire, WI 54701 • 1-800-998-2398 • www.jdmfg.com Page 11/13
• To further secure and prevent water, condensation, and ice from pene-
trating, use a sealant (Minimal-Expanding Foam / Polyurethane Caulk) to
fill the gaps between the housing and the rough opening
22

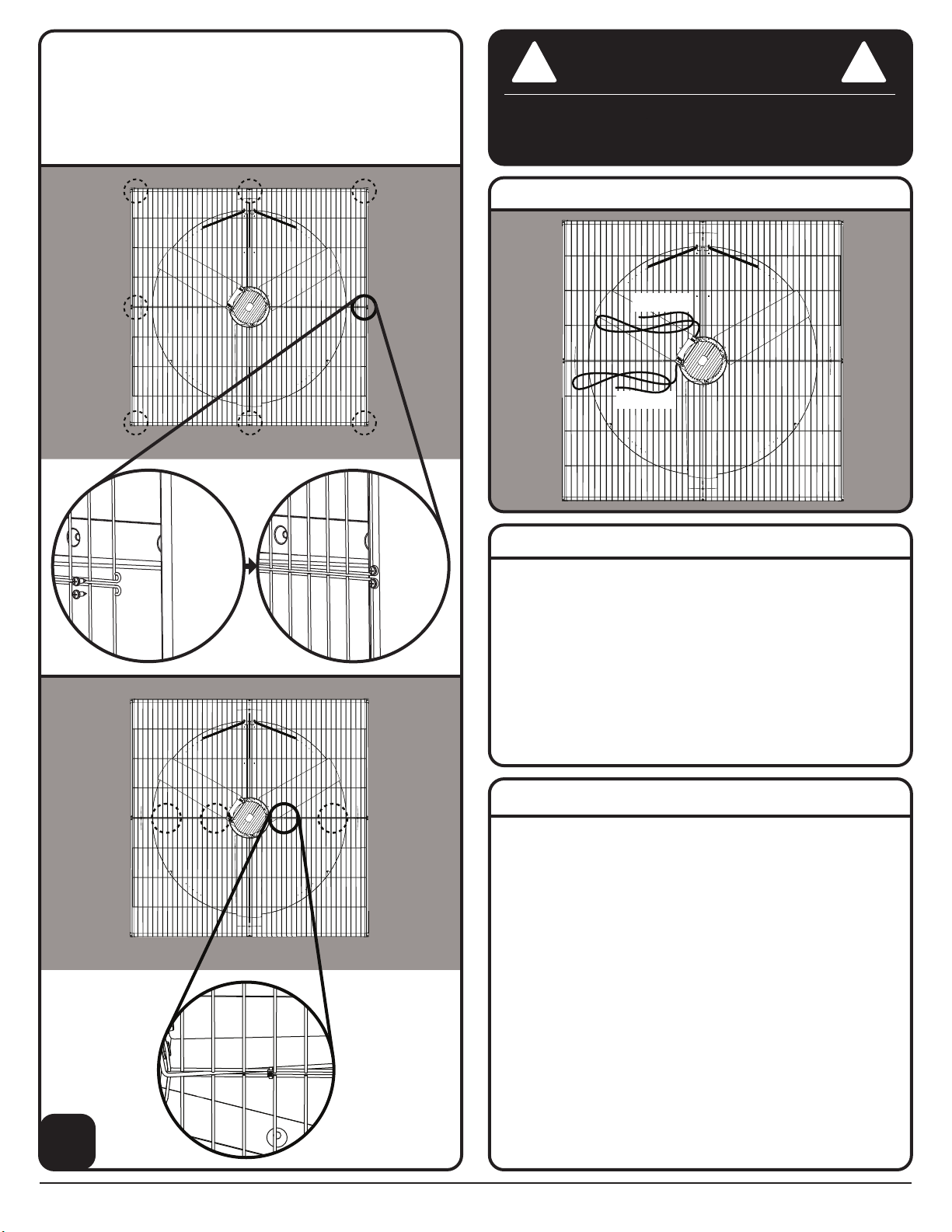

Rear Guards Installation:
• Using the included #3 Phillips Bit from Bag 1 (Tools) and (5) #12-
11 x 5/8” Screws from Bag 8 (Motor Guard) per guard, secure rear
guard sections to housing as shown below.
• Secure rear guard sections to each other using (4) 11” Cable Ties from
Bag 9 (Misc. Hardware).
23
Identify cords coming from motor
Control Wiring Instructions:
• For dry contact ON/OFF control, connect dry contact from STOP/
RUN to signal ground.
- Closed contact is motor ON, open contact is motor OFF.
- Connect STOP/RUN wire to signal ground wire if dry contact
ON/OFF control is not used.
• Use the two 4-20ma IN wires for analog current speed control.
- Leave 4-20ma wires disconnected if not used, (less than
5.6ma is OFF).
• 0-10V in to signal ground for analog voltage speed control,
(less than 1V is OFF).
- Connect 10V OUT wire to 10V IN wire for no speed control,
(full speed).
• Use four conductor 26AWG (or heavier), shielded, dual twisted
pair, signal wire with drain wire from J&D control to Permanent
Magnet fan.
DISCONNECT POWER
BEFORE INSTALLING OR SERVICING.
ALL ELECTRICAL WORK SHOULD BE COMPLETED BY
QUALIFIED PERSONNEL AND MEET NATIONAL (NEC),
REGIONAL AND LOCAL ELECTRIC CODES.
! !
Control
Power
General Wiring Instructions:
• Wiring should only be performed by a trained electrician to prevent
injury or death.
• Install manual disconnect switch inside building adjacent to fan.
• Route wire to motor with drip loop and secure. Drip loop will drain
accumulated moisture away from the motor.
• Configure internal wires to match supply voltage and wire accord-
ing to motor nameplate. Test to verify correct rotation.
• Only permit power to unit when guards are properly installed to
prevent injury.
IS295-21C J&D Manufacturing • 6200 Hwy 12 • Eau Claire, WI 54701 • 1-800-998-2398 • www.jdmfg.com Page 12/13

• Use the two 4-20ma IN wires for analog current speed control.
- Leave 4-20ma wires disconnected if not used, (less than 5.6ma is OFF).
IS295-21C J&D Manufacturing • 6200 Hwy 12 • Eau Claire, WI 54701 • 1-800-998-2398 • www.jdmfg.com Page 13/13
Single Phase Wired for 190-240v Common Wiring Options
White
Motor to
Power Black
Green
L1
L2
Ground
Three Phase Wired for
190-240v / 380-460v
Red
White
Black
Green
Motor to
Control
0-10V IN
+10V OUT
Signal Ground
STOP/RUN
Red
White
Black
Green
Motor to
Power
L1
L2
L3
Ground
White w/Green Stripe
Orange w/White Stripe
Motor to
Control
+10V OUT
0-10V IN
Green w/White Stripe STOP/RUN
White w/Orange Stripe Signal Ground
White w/Blue Stripe +4-20ma IN
4-20ma IN
Blue w/White Stripe –
Maintenance Instructions:
• Disconnect power before cleaning or maintaining your fan in order
to prevent serious injury or death.
• Service and repair of fan should only be completed by a qualified
technician.
• For maximum efficiency and fan life, keep the following free from
dirt and dust: blades, damper doors, motor and guard.
• The totally enclosed air over motor has sealed ball bearings and
does not require additional oil.
On/Off - No Speed Control (Fan Will Run at Full Speed)
0-10V Speed Control and On/Off Relay
0-10V IN +
Signal
–
STOP/RUN
Signal Ground
0-10V
Control
+
–
STOP/RUN Relay
Signal
+
–
Signal
+
–
Signal
0-10V IN
Signal Ground 0-10V
Control
4-20ma Speed Control Only
4-20ma Speed Control and On/Off Relay
STOP/RUN Relay
4-20ma +
Signal Ground 4-20ma
Control
with
Relay
4-20ma –
+10V OUT
0-10V IN
STOP/RUN
Signal Ground
Switched
Control
STOP/RUN
Signal Ground
4-20ma
Control
4-20ma +
4-20ma –
0-10V Speed Control Only
