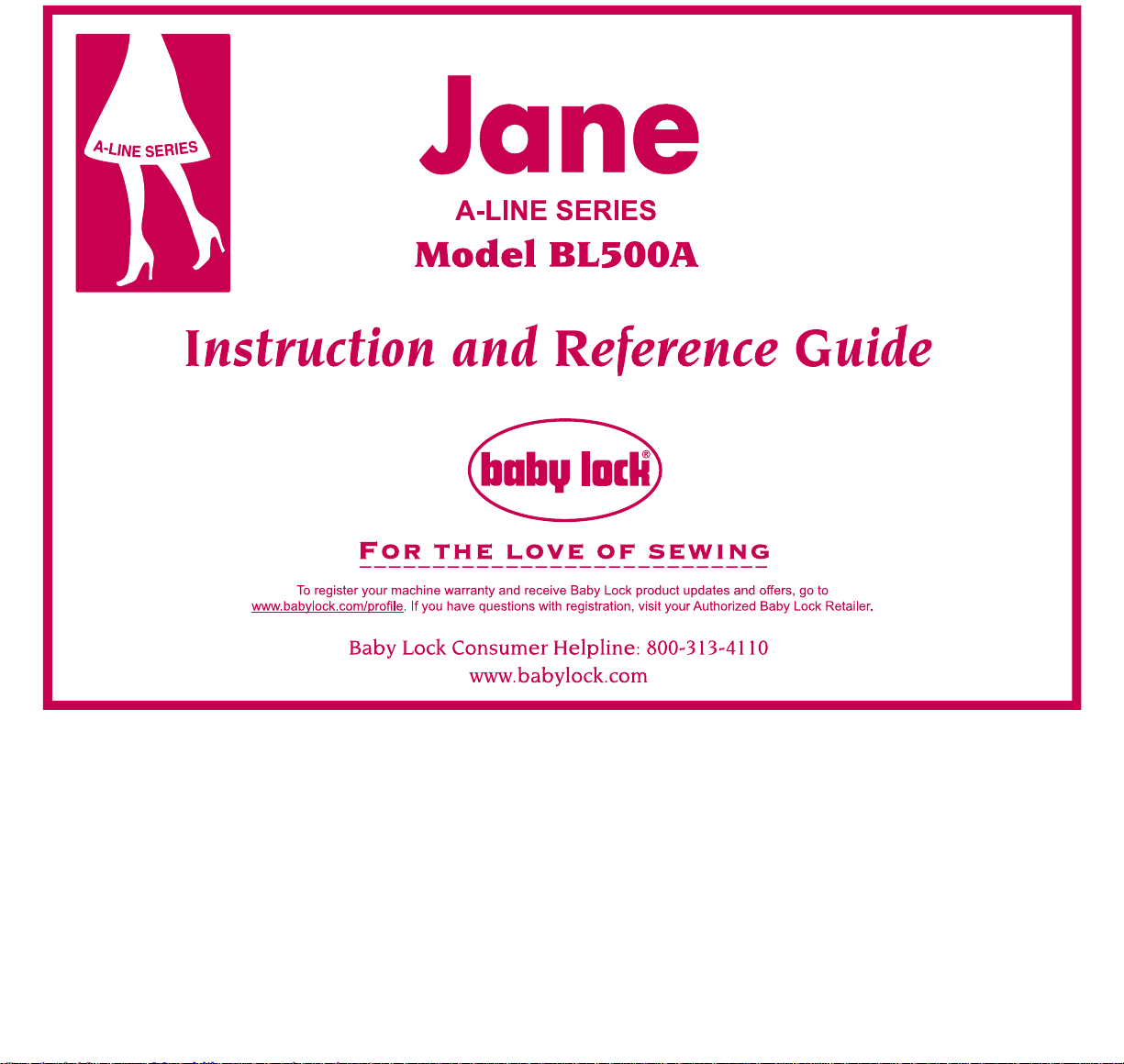

JANE Baby Lock A-LINE Series Technical manual

Downloaded from www.Manualslib.com manuals search engine

Downloaded from www.Manualslib.com manuals search engine

“SAVE THESE INSTRUCTIONS”
“This sewing machine is intended for household use.”
DANGER – To reduce the risk of electric shock:
●The sewing machine should never be left unattended while plugged in. Always unplug the sewing machine from the electrical outlet immediately after using and before
cleaning.
●Always unplug before changing the light bulb. Replace bulb with same type rated 120V 15 watts for 120V model or rated 240V 15 watts for 220-240V model.
WARNING – To reduce the risk of burns, fire, electric shock, or injury:
●Do not allow this sewing machine to be used as a toy. Close attention is necessary when the sewing machine is used by or near children.
●Use this sewing machine only for its intended use as described in this manual. Use only accessories recommended by the manufacturer as contained in this manual.
●Never operate this sewing machine if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. Return the
sewing machine to the nearest authorized dealer or service center for examination, repair, electrical or mechanical adjustment.
●Never operate the sewing machine with any air openings blocked. Keep ventilation openings of the sewing machine and foot control free from the accumulation of lint,
dust, and loose cloth.
●Never drop or insert any object into any opening.
●Do not use outdoors.
●Do not operate where aerosol (spray) products are being used or where oxygen is being administered.
●To disconnect, turn the main switch to the symbol “O” position which represents off, then remove plug from outlet.
●Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
●Keep fingers away from all moving parts. Special care is required around the sewing machine needle.
●Always use the proper needle plate. The wrong plate can cause the needle to break.
●Do not use bent needles.
●Do not pull or push fabric while stitching. It may deflect the needle causing it to break.
●Turn off power to the machine by flipping the ON/OFF switch to the symbol “O” before making any adjustments in the needle area, such as threading the needle,
changing the needle, threading the bobbin or changing the presser foot etc.
●Alwaysunplugthesewingmachinefromtheelectricaloutletwhenremovingcovers,lubricating,orwhenmakinganyotheruserservicingadjustmentsmentionedinthe
instruction manual.
●This sewing machine is not intended for use by young children or infirm persons without supervision.
●Young children should be supervised to ensure that they do not play with this sewing machine.
CAUTION For U.S.A. only– This appliance has a polarized plug (one blade wider than the other) to reduce the risk of electric shock, this plug
is intended to fit in a polarized outlet only one way.
If the plug does not fit fully in the outlet, reverse the plug.
If it still does not fit, contact a qualified electrician to install the proper outlet.
Do not modify the plug in any way.
“IMPORTANT SAFETY INSTRUCTIONS”
“Read all instructions before using.”
When using a sewing machine, basic safety precautions should always be taken,
including the following:
Downloaded from www.Manualslib.com manuals search engine

FOR USERS IN THE UK, EIRE, MALTA
AND CYPRUS ONLY
IMPORTANT
●In the event of replacing the plug fuse, use a fuse approved by ASTA to BS 1362, i.e. carrying the mark, rating as marked on plug.
●Always replace the fuse cover. Never use plugs with the fuse cover omitted.
●If the available electrical outlet is not suitable for the plug supplied with this equipment, you should contact your authorized retailer to obtain the correct lead.
FOR USERS IN AC INPUT 220-240V
COUNTRIES AND MEXICO
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they
do not play with the appliance.
Downloaded from www.Manualslib.com manuals search engine

CONGRATULATIONS ON CHOOSING
A BABY LOCK SEWING MACHINE
Your machine is one of the finest sewing machines available for home use.
To fully enjoy all the features incorporated into it, we suggest that you study this booklet.
PLEASE READ BEFORE USING YOUR SEWING MACHINE
For safe operation
●Be sure to watch the placement of your hands in relation to the needle while sewing. Do not touch moving parts such as the balance wheel, thread take-up or needle
while the machine is operating.
●Remember to turn off the power switch and unplug the cord when:
●Operation is completed
●Replacing or removing the needle or any other parts
●A power failure occurs during use
●Maintaining the machine
●Leaving the machine unattended
●Do not place anything on the foot controller.
●Plug the machine directly into the wall outlet. Do not use extension cords.
For a longer service life
●When storing your sewing machine, avoid direct sunlight and high humidity locations. Do not store the sewing machine beside a space heater, iron, or other hot
objects.
●Use only neutral soaps or detergents to clean the case. Benzene, thinner, and scouring powders can damage the case and machine, and should never be used.
●Do not drop or hit the machine.
●Always consult the operation manual when replacing any accessories, including: the presser feet, needle or other parts to assure correct installation.
For repair or adjustment
In the event that a malfunction occurs or adjustment is required, first follow the troubleshooting table in the back of the operation manual to inspect and adjust the machine
yourself. If the problem persists, please consult your nearest authorized Baby Lock service center.
For additional product information and update, or to find your nearest Baby Lock dealer, visit our website at www.babylock.com
Downloaded from www.Manualslib.com manuals search engine

CONTENTS
Accessories .......................................................................1
Machine Features..............................................................2
Before You Begin ..............................................................3
Power Cord and Foot Controller ...............................3
Power Switch ............................................................3
Thread Tension Dial..................................................3
Hand Wheel ..............................................................3
Stitch Length Regulator ............................................3
Reverse Stitch Lever.................................................3
Presser Foot Lift Lever..............................................4
Knee Lift....................................................................4
Presser Foot Pressure Adjustment Dial....................4
Fabric Extension Table .............................................4
Thread Cutter Button ................................................5
Needle Stop Position Button.....................................5
Light Switch...............................................................5
Feed Dog Adjustment Knob......................................5
Changing Needles and Light Bulb...................................6
Changing the Needle ................................................6
Changing the Feed Pin .............................................6
Changing Light Bulbs................................................6
Threading...........................................................................7
Bobbin Winding.........................................................7
Bobbin Insertion ........................................................9
Upper Threading .....................................................10
Using the Needle Threader.....................................10
Using the Spool Net ................................................11
Stitch Samples and Needle Chart..................................12
Stitch Samples ........................................................12
Thread Tension.......................................................12
Changing Presser Feet ...................................................13
Changing Presser Feet (Zipper Foot) .....................13
Presser Feet ...........................................................13
Basic Sewing ...................................................................14
Basic Sewing ..........................................................14
Pin Feeding (for hard-to-handle fabrics) .................14
Rolled Hem Foot .....................................................15
Zipper Foot..............................................................16
Invisible Zipper Foot................................................17
1/4” Foot..................................................................17
Quilting Foot............................................................18
Walking Foot ...........................................................18
Seam Guide ............................................................19
Caring for Your Machine ................................................20
Cleaning the Machine .............................................20
Lubrication Points ...................................................20
Trouble Shooting ............................................................21
Downloaded from www.Manualslib.com manuals search engine

Accessories
1234
5678
9 101112
17 18
21 22
19 20
23
13 14 15 16
1
No. Part Name Part Code
1 Cover XA0917-056
2 Medium Screwdriver XC9541-051
3 Small Screwdriver XC9542-051
4 Cleaning Brush X59476-051
5 Knee Lift XA0830-051
6 Needles and Case 1 Size 9
(ORGAN HLX5) 2 Size 11
1 Size 14 X80805-151
1 Size 16
1 Ballpoint Needle
7 Feed Pin 138483-051
8 Feed Pin Changer XC1407-051
9 General Purpose Foot XA1425-001
10 Bobbin (5) 100376-051
11 Spool Cap XA2111-050
12
Flex Reaction Foot (on machine) 136021-001
13 Rolled Hem Foot X57138-101
14 Zipper Foot 112797-001
15 Invisible Zipper Foot 148475-001
16 1/4”Foot XA7258-001
17 Quilting Foot XA7255-301
18 Walking Foot XA7253-001
19 Seam Guide XA7256-001
20 Foot Controller XC6658-151
21 Fabric Extension Table XC3117-051
22
Spool Cone Holder (on machine) XA0679-050
23 Spool Net XA5523-050
Note
(FOR U.S.A only)
Foot controller: Model P
This foot controller is used for sewing machine model
BL500A.
Downloaded from www.Manualslib.com manuals search engine

2
Machine Features
Presser Foot Pressure
Adjustment Dial (Page 4) Three Hole
Thread Guide (Page 10)
Light Switch
(Page 5)
Thread Trimmer
Sewing Area
Light (Page 6)
Feed Dogs
(Page 5 and 14)
Thread Guide Bar
(Page 7)
Stitch Length
Regulator (Page 3)
Needle Stop Position
Button (Page 5)
Reverse Stitch
Lever (Page 3)
Feed Dog Adjustment
Knob (Page 5)
Knee Lift
(Page 4)
Bobbin Winder
(Page 7)
Hand Wheel
(Page 3)
Power Switch
(Page 3)
Foot Controller Jack
(Page 3)
Power Socket
(Page 3)
Spool Cone Holder
(Page 7)
Spool Pin
(Page 7)
Presser Foot
Lift Lever (Page 4)
Thread Guide for
Bobbin Winding (Page 7)
Handle
Air Vents
Thread Cutter
Button (Page 5)
Thread Tension Dial
(Page 3 and 12)
Indicator Lamp
Needle Threader
(Page 10 and 11)
Quick Bobbin
Thread Device (Page 9)
Downloaded from www.Manualslib.com manuals search engine

Before You Begin (1)
Power Cord and Foot Controller
Note
Please use common household
current.
●Plug in cord.
●Plug foot controller into machine.
Power Switch
●Flip power switch to “I”position to
turn on.
●To switch power off, flip switch to
“O”position.
Hand Wheel
●Position needle using hand
wheel.
✽Always turn hand wheel towards
you.
Stitch Length Regulator
●Adjust desired stitch length using
stitch length regulator dial.
Reverse Stitch Lever
●Sewing in reverse is possible
when the reverse stitch lever is in
the lowered position.
✽Make sure to push the lever all
the way down when reverse sew-
ing is desired.
✽When the feed adjustment dial is
set between 5-7mm, the reverse
stitch length is always 5 mm.
Power Switch
I
O
Hand Wheel
1
2
3
4
5
6
7
Stitch Length Regulator
Reference Mark
Lower number
= shorter stitches
Higher number
= longer stitches
Stitch Length
Reverse Stitch
Lever
Thread Tension Dial
●When tighter thread tension is
desired, turn the tension dial to
the right. Upper and bobbin
threads will meet on right side of
the fabric.
●
When looser thread tension is de-
sired, turn tension dial to the left.
Upper and lower threads will then
meet on wrong side of fabric.
Upper Thread Tension
Loosen Tighten
Tension Block 3
Power Cord
Foot Controller
Downloaded from www.Manualslib.com manuals search engine
