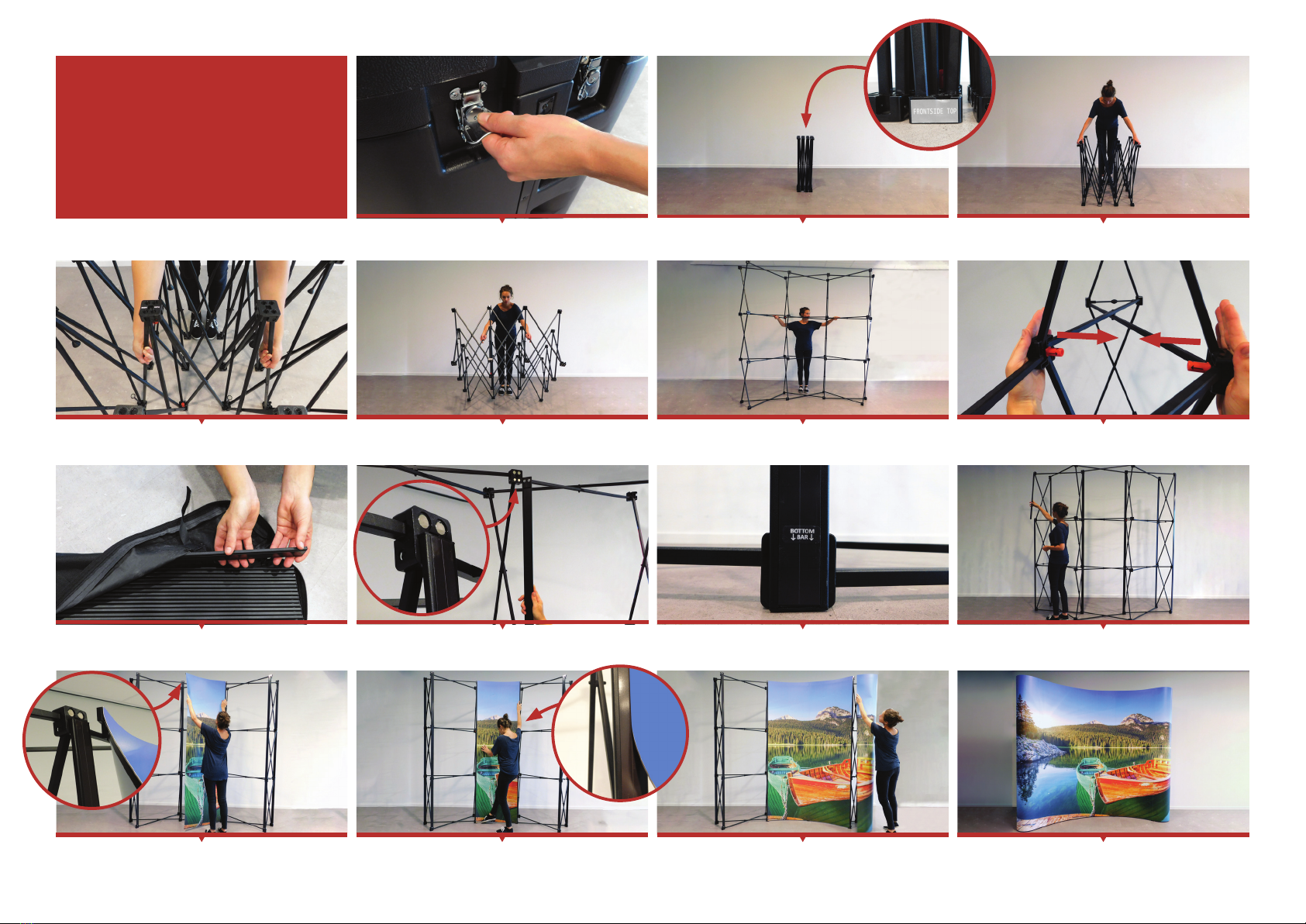

Jansen Pop-Up Wall Magnetic User manual

1. Open the case and take out the Pop-Up Frame. 2. Place the frame in front of you with the label
‘Frontside Top’ facing away from you.
3. Open the frame slightly by pulling
the hinges outwards.
4. Gently lift up the frame, while flipping it over. 5. Place your hands on the bars as shown
in the picture.
6. The Pop-Up Frame unfolds as you lift it up further. 7. Push the red marks towards each other,
until all magnetic clips are connected .
10. Place the bars with the label ‘Bottom Bar’ on the
bottom of the frame.
9. Attach the bars to the frame in vertical rows
Note: keep the two upper magnets free.
11. Place the bars on the frontside, and on
the left- and right side of the backside.
12. Attach the print to the frame, by ‘hanging’
them on top of the magnetic bars
13. Gently ‘kick’ the bottom to connect it to the frame,
the magnetic strips should cover the bars halfway
8. Open the bag and take out the magnetic bars.
14. Use the bars on both the front- and backside of
the frame for the panels that go around the sides.
15. Attach all panels to the frame,
the Pop-Up Magnetic is now ready for use.
Instruction Manual
Pop-Up Wall Magnetic

2. Gently place the prints on top of each other. All
magnetic strips should be in the same position.
Instruction Manual
Disassemble
1. Take one edge of the printed panel and
carefully disconnect it from the frame.
6. Place your hands on the flat side of the hinges
to prevent your fingers from getting stuck.
7. Open the magnetic clips with a firm pull
downwards, and fold in the frame.
8. Place the frame in the left (padded) section
of the case. Lock for safe and durable storage.
3. Roll-up the print panels as one, and place them
in the right section of the case for storage.
4. Disconnect all magnetic bars from the frame. 5. Stack the bars on top of each other. All magnets should
be in the same position to prevent loss of power.
Scan for instructional video

1. Wrap the print around the Hard Case,
and connect the Velcro on the backside.
2. Fold open the table top and put it in place. 3. The Counter is now ready to use.
Optional:
Convert Case
to Counter
