MAINTENANCE MANUAL
FOR
JRV-500B
VHF TRANSCEIVER
j
Approved
Checked
Designed
Drawing No.
DC15-JRV-500B

i
ii
i
Precautions to be taken in Operation
1. Do not proceed to the operation of equipment before thoroughly
reading the operation manual.
2. This equipment requires the licenses to operate a radio station and to
be engaged in radio operations.
You need obtain both radio station and radio operator licenses to
operate the equipment.
3. Except for maintenance inspection, do not unnecessarily open the
equipment in the interior nor touch any internal parts and adjustable
portions.
4. The equipment employs a 100V AC(220V AC) power source in the
interior. Touching an internal part, therefore, may cause you to suffer
from an electric shock.
100V position for 85VAC to 132VAC.
220V position for 170VAC to 264VAC
Do not open the equipment in the interior nor touch any internal parts
inadvertently.
5. The equipment is powered at 100V AC. (or 220V AC as switched) or
at 13.6V DC. To apply any voltage other than these, it is necessary to
provide a converter.
6. With the dc power applied, do not mistake positive and negative poles
upon connection. Check and ensure the drawing. [DC IN] (J101) has
No. 2 Terminal positive and No. 1 negative.
7. With the ac power applied, check to know whether the power available
is rated at 100 volts or 220 volts. To this voltage, set the selector switch
located on the back.
8. Avoid locating the equipment at a hot and highly humid place or
exposed to the direct sunlight.
9. Should the equipment unfortunately fail, or if you place an order or
make an inquiry for an optional accessory or accessories, please make
contact with our Tokyo Sales Division, Local branch, sales office or
agent.
Our Tokyo sales office;
International Sales Department
Japan Radio Co., Ltd.
Main Hall, Akasaka Twin Tower Bldg.,
17-22, Akasaka 2-chome, Minato-ku, Tokyo 107
Phone [phone]
Fax [phone]
Telex 242-2520 JRCTOK J

i
ii
ii
ii
i
CONTENTS
page
1. Outline ········································································· 1 – 1
2. Components ································································· 2 – 1
2.1 Standard components····················································· 2 – 1
2.2 Optional components······················································ 2 – 1
3. Specification ································································· 3 – 1
3.1 General······················································································3 – 1
3.2 Transmitter Section ···································································3 – 2
3.3 Receiver Section ·······································································3 – 2
4. Installation ··································································· 4 – 1
4.1 Installation Location ······················································ 4 – 1
4.2 Power Supply ······························································ 4 – 1
4.3 Cable connection ························································· 4 – 2
4.4 Applicable Connector ···················································· 4 – 6
4.5 Installation antenna system ············································ 4 – 8
4.5.1 Installation of JRV-500 with 1 antenna ·····································4 – 8
4.5.2 Installation of JRV-500 with 2 antennas ··································· 4 – 9
5. Initial Settings ············································································ 5 – 1
5.1 Switching and Setting power supply voltage····························5 – 1
5.2 Setting Internal data ··································································5 – 1
5.2.1 Setting mode···········································································5 – 1
5.2.2 Page 1 for internal data···························································5 – 2
5.2.3 Page 2 for internal data···························································5 – 2
5.2.4 Procedure for setting initial data on page1······························5 – 3
5.2.4.1 Setting for memory channel data
in memory channel mode ·················································5 – 3
5.2.4.2 Setting for the configuration data ········································5 – 4
5.2.4.3 Setting for memory channel mode
or direct channel mode·····················································5 – 5
5.2.4.4 Setting the private channel data··········································5 – 6
5.2.4.5 Setting for Rx antenna filter control data·····························5 – 8
5.2.4.6 Setting for remote or local mode as default data·················5 – 9
5.2.4.7 Setting for full-duplex or semi-duplex in duplex channel ·····5 – 10
5.2.4.8 Setting for full-remote or semi remote in remote mode ·······5 – 11
5.2.4.9 Testing the serial control line···············································5 – 12
5.2.4.10 Restoring the each data to default ······································5 – 12
5.2.5 Procedure for setting initial data on page 2·····························5 – 13
5.2.5.1 Setting for each channel using or not using
in direct channel mode ·····················································5 – 13
5.2.6 Other functions····································································5 – 14

i
ii
ii
ii
ii
ii
i
6 Remote control ·······································································6 – 1
6.1 Outline of remote control·························································6 – 1
6.2 Serial control method······························································6 – 1
6.2.1 Transmission specification······················································6 – 2
6.2.2 Transmission format (memory channel mode)························6 – 2
6.2.3 Transmission format (direct channel mode)····························6 – 5
7 Maintenance & Trouble shooting··············································7 – 1
7.1 Standard Voltage ······································································ 7 – 1
7.2 Standard signal level and Adjustment······································ 7 – 2
7.3 Trouble shooting ······································································· 7 – 4
8 Circuit description ···································································8 – 1
8.1 Transmitter Section ································································8 – 1
8.1.1 PLL Circuit (CMB-257)····························································8 – 1
8.1.2 Lock Sensor (CMB-257) ·························································8 – 1
8.1.3 Power Amplifier Circuit (CAH-559) ·········································8 – 1
8.1.4 Output Control Circuit (CAH-559) ···········································8 – 2
8.1.5 Output Protection Circuit (CAH-559) ······································8 – 2
8.1.6 Output Drop Detection Circuit (CAH-559)·······························8 – 2
8.2 Receiver Section (CMA-705) ··················································8 – 3
8.2.1 PLL Circuit (CMB-257)····························································8 – 3
8.2.2 IF Circuit ·················································································8 – 3
8.2.3 Limiter and Sensor Circuit ······················································8 – 3
8.2.4 Squelch Circuit (CMA-705) ·····················································8 – 3
8.3 Operation Panel (CMD-745) ···················································8 – 4
8.4 Control (CDE-885)··································································8 – 4
8.4.1 Audio Amplifier Circuit ····························································8 – 4
8.4.2 Control Circuit·········································································8 – 4
8.5 MODEM (CNM-162BA) ··························································8 – 6
9. Mechanical Drawing··································································9 – 1
JRV-500BP VHF Transceiver·········································9 – 2
JRV-500BD VHF Transceiver·········································9 – 5
10. Electrical Drawing ····································································10 – 1
JRV-500BP VHF Transceiver Block diagram ·················10 – 2
JRV-500BPM VHF Transceiver Block diagram ················· 10 – 3
JRV-500BPF VHF Transceiver Block diagram ·················10 – 4
JRV-500BPS VHF Transceiver Block diagram ·················10 – 5
JRV-500BPMF VHF Transceiver Block diagram ·················10 – 6
JRV-500BPMS VHF Transceiver Block diagram ·················10 – 7
JRV-500BPMSF VHF Transceiver Block diagram ·················10 – 8
JRV-500BD VHF Transceiver Block diagram ·················10 – 9
JRV-500BDM VHF Transceiver Block diagram ·················10 – 10
JRV-500BDS VHF Transceiver Block diagram ·················10 – 11
JRV-500BPS-2 VHF Transceiver Block diagram ·················10 – 12
JRV-500BP VHF Transceiver·········································10 – 13
JRV-500BPM VHF Transceiver·········································10 – 14
JRV-500BPF VHF Transceiver·········································10 – 15

i
ii
iv
vv
v
JRV-500BPS VHF Transceiver ··········································10 – 16
JRV-500BPMF VHF Transceiver ··········································10 – 17
JRV-500BPMS VHF Transceiver ··········································10 – 18
JRV-500BPMSF VHF Transceiver ··········································10 – 19
JRV-500BD VHF Transceiver ··········································10 – 20
JRV-500BDM VHF Transceiver ··········································10 – 21
JRV-500BDS VHF Transceiver ··········································10 – 22
JRV-500BPS-2 VHF Transceiver ··········································10 – 23
CDE-885 Control··························································10 – 24
CMA-705 RX Circuit·····················································10 – 27
CMB-257 TX Circuit ·····················································10 – 28
CAH-559 Power Amplifier ············································10 – 29
CMD-745 Operation panel············································10 – 30
CNM-162BA MODEM ·······················································10 – 31
11. Parts List ······································································11 – 1
JRV-500B VHF Transceiver···········································11 – 1
CDE-885 Control··························································11 – 3
CMA-705 RX Circuit ·····················································11 – 14
CMB-257 TX Circuit······················································11 – 20
CAH-559 Power Amplifier············································· 11 – 24
CMD-745 Operation panel············································ 11 – 28
CNM-162BA MODEM························································11 – 31

1
-
1
1. Outline
The JRV-500B VHF TRANSCEIVER (after called JRV-500B) is shore basis
communication equipment for maritime communication system in 150MHz RR
band, is designed to satisfy the ITU radio regulation (RR). It attends the simplex
and duplex communications under operating conditions with 24H-hours
operation.
The desktop type or rack-mount type can be selected according to the
operating conditions. The full synthesizer controlled by a high performance
microprocessor has eliminated a crystal oscillator, which hitherto have been
needed for each channel.
The maritime mobile service radio communication channels are saved in
EEPROM. The operator can call up any desired channel on the spot.
Features:
1) The JRV-500B can be operated 24-hours a day.
2) Either desk top-type or rack-mount type can be selected.
3) Direct channel mode and memory channel mode are provided.
4) Up to specified eight channels can be saved in EEPROM.
(memory channel mode)
5) The microprocessor allows easy operation.
6) The external control is prepared for RS-422 and parallel ports.
7) The DC power supply is automatically changed even if the AC power
supply fails. (AC power supply type)
8) 4wires remote control mode is optionally possible. (with Modem)

1
-
2
Designation of Model
The model is designated as follows:
Example:
JRV-500BPMSF-1
Type of power supply
(Refer to Note.)
-1 : 12VDC
-2 : 24VDC
-4 : 48VDC
Blank : 85 - 132V AC/170 - 264V AC
Built-in filter
F : With built-in filter
Blank : Without built-in filter
Duplex type / Simplex type
S : Simplex type
Blank : Duplex type
Built-in modem
M : With built-in 4wire modem
Blank : Without built-in 4wire modem
Type of mounting
P : Rack-mount type
D : Desk-top type
Note:
In the standard composition, the power supply circuit should be
negatively grounded. Either positive or negative grounding can be
selected for 24V DC or 48V DC operating type. In this case, however,
the AC power supply cannot be used.

2
-
1
2. Components
2.1 Standard Components
The standard components are as follows:
No.
Components Model Q'ty
Remarks
1. VHF TRANSCEIVER JRV-500B 1
2. Accessories JRV-500-ACC1 1 Fuse, hand microphone
and connecters are
included
3. Instruction manual
Operation manual
Maintenance manual
1
1
in English
in English
4. Factory inspection data
1 in English
2.2 Optional Components
The following components are optionally available:
No. Components Model Remarks
1. Microphone 6UMED00024
6UMED00025
Stand microphone
Headset
2. PC module
-1 MODEM CNM-162BA for 4wire remote control modem
BR-1511 Omni-directional antenna
BRC-1511 Directional antenna
CL3-1501WB Collinear antenna
3. Antenna
CL3C-1501WB Offset collinear antenna
4. Duplexer AW-158YB
5. Cable CFQ-4222-2 Duplexer control cable
6. Coaxial arrester NYZ-150
7. Rx Antenna filter NFH-164-2
|
NFH-164-8
2ch
|
8ch
8. VHF controller NCU-245
NCU-245A
Controls up to eight VHF
Transceiver

2
-
2
No. Components Model Remarks
9. Coaxial cable WF-H50-7
WF-H50-4
20D-2E
10. Spare parts JRV-500B-SP Spare parts for
maintenance
11. Spare PC module
-1 CONTROL
-2 OPERATION PANEL
-3 RX CIRCUIT
-4 TX CIRCUIT
-5 POWER AMPLIFIER
CDE-885
CMD-745
CMA-705
CMB-257
CAH-559
12. Measurement Equipment and
maintenance tool kit
Available upon order.

3
-
1
3. Specifications
3.1 General
1) Frequency range
Transmission : 156.025-156.875MHz(simplex)
160.625-162.025MHz (duplex)
Reception : 156.025-157.425MHz
2) Memory channels : Up to 8 channels
(Memory - channel mode)
3) Communication system : Simplex press-to-talk
Duplex press-to-talk
4) Class of emission : G3E (F3E, with 6dB octave pre-
emphasis)
5) Antenna impedance : Nominal 50Ωunbalanced
6) External control
a. Parallel interface
Items of control/supervise : Channel selection,
Control of power on-off, press
on-off, squelch on-off
Supervising items : Remote/Local indication
Alarm, squelch on indication
b. Serial interface RS-422 remote control model
stop:1, data:8, parity:odd, baud rate:200/1200
Items of control/ : Channel selection (channel supervising
Supervising selection, memory channel selection,
control of power on-off, press on-off
power reduce on-off)
Supervising items : Remote/Local indication
Alarm indication (TX PLL unlock, RX PLL
unlock, low output power, overheat)
7) Operating temperature range
: -10
o
C to +50
o
C
8) Device storing temperature
: -20
o
C to +60
o
C
9) 4wire remote control (option) : Voice 300Hz to 2700Hz
Control 3000Hz to 3400Hz
Nominal 600Ωbalanced, -13dBm±10dB
200bps :with voice
1200bps :without voice

3
-
2
10) Power Supply
: 85-132V AC/170-264V AC, 50/60Hz or
13.6V DC ±10%
The 100V or 200V AC power supply can
be selected with a change over switch.
24V DC ± 20% or 48V DC ± 20% can be
selected. In this case, however, only DC
power supply can be used.
11) Power consumption : Less than 180W
12) Dimensions, and weight
Desk-top type : 149(H) x 432(W) x 422(D)mm
Approx. 12kg
Rack-mount type : 149(H) x 480(W) x 422(D)mm
Approx. 10kg
NOTE: The dimensions exclude those of knobs and controls.
3.2 Transmitter Section
1) Transmitting output : 50W ±10%
2) Oscillation : PLL frequency synthesizer
3) Frequency tolerance : ±5x10
-6
or less
4) Necessary bandwidth : 16kHz or less
5) Frequency deviation : Within ±5kHz
6) Spurious characteristic : -75dB or less from carrier
7) Microphone input level : -50dBm ± 3dB
8) Microphone input
impedance : Nominal 600Ωunbalanced
9) AF frequency characteristic : For 60% modulation and 1kHz
modulation frequency
0.3kHz -10.5 +1dB, -3dB
3kHz +9.5 +1dB, -3dB
10) Distortion : 3% or less for 60%
modulation with modulation frequency of 1kHz
11) Signal-to-noise ratio : 45dB or more for 60%
modulation with modulation frequency of 1kHz
12) External AF input level : -10dBm ± 1dB for 60%
modulation with modulation frequency of 1kHz
Adjustable in the range 0dBm to -20dBm
13) External AF input impedance : Nominal 600Ωbalanced

3
-
3
3.3 Receiver Section
1) Method of reception : Double super heterodyne
2) Oscillation : PLL frequency synthesizer
3) Sensitivity : -3dBu e.m.f. or less
under the 12dB EIA SINAD
method (Refer to Note 2.)
0dBu or less under the 20dB
noise quieting method
(Refer to Note 2.)
4) Squelch sensitivity : -5.0dBu e.m.f. or less
(Refer to Note 2.)
5) Selectivity : 12kHz or more at 6dB drop point and
25kHz or less at 70dB drop point
6) Spurious response : 90dB or more
(Refer to Note 2.)
7) Intermodulation Characteristic : 75dB or more
(Refer to Note 2.)
8) Signal-to-noise ratio : 45dB or more at antenna
input of 100 μ V (Refer to Note 1 and
Note 2.)
9) Distortion factor : 5% or less at antenna input of 100 μ V
(standard modulation signal input)
and at the rated AF output
(Refer to Note 1 and Note 2.)
10) External AF output level : -10dBm ±1dB
(standard modulation signal input)
(Refer to Note 1 and Note 2.)
Adjustable in the range
0dBm to -20dBm
11) External AF output : Nominal 600Ωbalanced impedance
Note 1: Standard modulation means 60% modulation with the
modulation frequency of 1kHz.
Note 2: Without using a receiving antenna filter.

4
-
1
4. Installation
4.1 Installation location
When determining a location for the unit, please take the following criteria into
consideration:
・ Avoid a place that is exposed to direct sunlight or susceptible to
overheating.
・ Avoid humid or dusty place.
・ Do not place containers holding water or other liquids above or on top
of the unit.
・ Do not place any objects within 5cm of rear heat sink of the unit.
4.2 Power Supply
Put the power supply voltage selector switch on the rear of the unit to the AC
100V or AC 220V position depending on the voltage (AC 100V or AC 220V) of
the AC power supply you are going to use.
(Standard type)
AC power supply voltage Switch position
AC 85V to 132V 100V
AC 170V to 264V 220V

4
-
2
4.3 Cable Connection
Some connectors to connect external are available to the unit in the next table.
Select the connectors by a presence of the external devices.
Item Connector
No.
Part
name
Pin
No.
I/O Remarks
1 I Minus inputDC
power
J101 HS21R-2
2 I Plus input
1 I AC power input or
Plus input in 24V DC ,48V DC type
2 - Ground or
Minus input in 24V DC ,48V DC type
AC
power
J102 HS16R-3
3 I AC power input or
Ground in 24V DC ,48V DC type
1 - Ground
2 O Speaker output for headset
3 O Speaker output for handset
4 - Ground for microphone
5 I Carbon mic input
6 I Dynamic mic input
7 I Electric mic input
Mic
Handset
Headset
PTT
J103 FM214-8S
8 I PTT
Note)
I :Input
O :Output

4
-
3
Item Connector
No.
Part
name
Pin
No.
I/O Remarks
1 O Rx antenna select 1
2 O Rx antenna select 2
3 O Rx antenna select 3
4 O Rx antenna select 4
5 O Rx antenna select 5
6 O Rx antenna select 6
7 O Rx antenna select 7
8 O Rx antenna select 8
9 - Ground
10 O +13.6V
Rx ant
filter
select
J104 SC-1612
-STA
11,12 - No connection
1 O Transmit(PTT)
2 O Duplex
3 - Ground
4 O DC +13.6V
Duplexer J105 SC-1608
-STA
5,6,
7,8
- No connection
1 I Memory ch1 select
2 I Memory ch2 select
3 I Memory ch3 select
4 I Memory ch4 select
5 I Memory ch5 select
6 I Memory ch6 select
7 I Memory ch7 select
8 I Memory ch8 select
9 - Ground
10 - No connection
11 O Memory ch1 response
Remote
control
J106 S-1660
-STA
12 O Memory ch2 response

4
-
4
Item Connector
No.
Part
Name
Pin
No.
I/O Remarks
13 O Memory ch3 response
14 O Memory ch4 response
15 O Memory ch5 response
16 O Memory ch6 response
17 O Memory ch7 response
18 O Memory ch8 response
19 - Ground
20 - No connection
21 O Local response
22 O Receive response
23 O PTT response
24 O Alarm response
25 O Power on response
26 - Ground
27
28
- No connection
29 I PTT control (remote)
30 I Power on control (remote)
31 I Squelch control (remote)
32 - Ground
33
to
38
- No connection
39
40
I RS-422 input (+)
RS-422 input (-)
41
42
O RS-422 output (+)
RS-422 output (-)
43 - Ground
44 - No connection
Remote
control
J106 S-1660A
-STA
45
46
I AF input (remote)

4
-
5
Item Connector
No.
Part
Name
Pin
No.
I/O Remarks
47
48
O AF output
49 - Ground
50 - No connection
51
52
I Line input
200bps:voice & cont
1200bps:control
53
54
O Line output
200bps:voice & cont
1200bps:control
55
56
I Ext input
200bps:N.C.
1200bps:voice
57
58
O Ext output
200bps:N.C.
1200bps:voice
59 - Ground
Remote
control
J106 S-1660A
-STA
60 - No connection
Record J108 P-2240U
S
O Record output for
tape recorder
Phones J109 LGR4517 O AF output for
headphone
1 I PTT input (local)PTT TB1 MPTE
00027A 2 - Ground

4
-
6
4.4 Applicable Connector
Connectors that show in following table match to JRV-500 ,and are
recommended.
Connector
No.
Connector
name
Applicable
connector
Applicable
cable
Remarks
J101 HS21R-2 HS21P-2
VCTF2x
50/0.18
DC
power
J102 HS16R-3 HS16P-3 VCTF2
x
50/0.18
AC
power
J103 FM214-8S FM-14-8P for mic
P-1612BA,
P-1612-CBA (10)
J104 SC-1612
-STA
PW-1612BA,
PW-1612-CBA (10)
SWVP-0.5
-12C
Rx antenna
Filter select
P-1608BA,
P-1608-CBA
J105 SC-1608
-STA
PW-1608BA,
PW-1608-CBA
SWVP-0.5
-12C
Duplexer
control

4
-
7
Connector
No.
Connector
Name
Applicable
connector
Applicable
cable
Remarks
P-1660BA,
P-1660A
-CA (20)
J106 S-1660A
-STA
PW-1660BA,
P-1660A
-CA (20)
SWVP-0.5
-60C
Remote
control
J108 P-2240-P PJ-2240-P HC2L1 or
HC2L2
Record out
J109 LGR4517 PJ-055B MVVS-20/
0.18-6.5P-
(8)
Phones
N-P-5 5D-2V or
5D-2E
N-P-8 8D-2V or
8D-2E
N-P-10 10D-2V or
10D-2E
RX ANT N-R
N-P-20 20D-2V or
20D-2E
N-P-5 5D-2V or
5D-2E
N-P-8 8D-2V or
8D-2E
N-P-10 10D-2V or
10D-2E
TX ANT N-R
N-P-20 20D-2V or
20D-2E

4
-
8

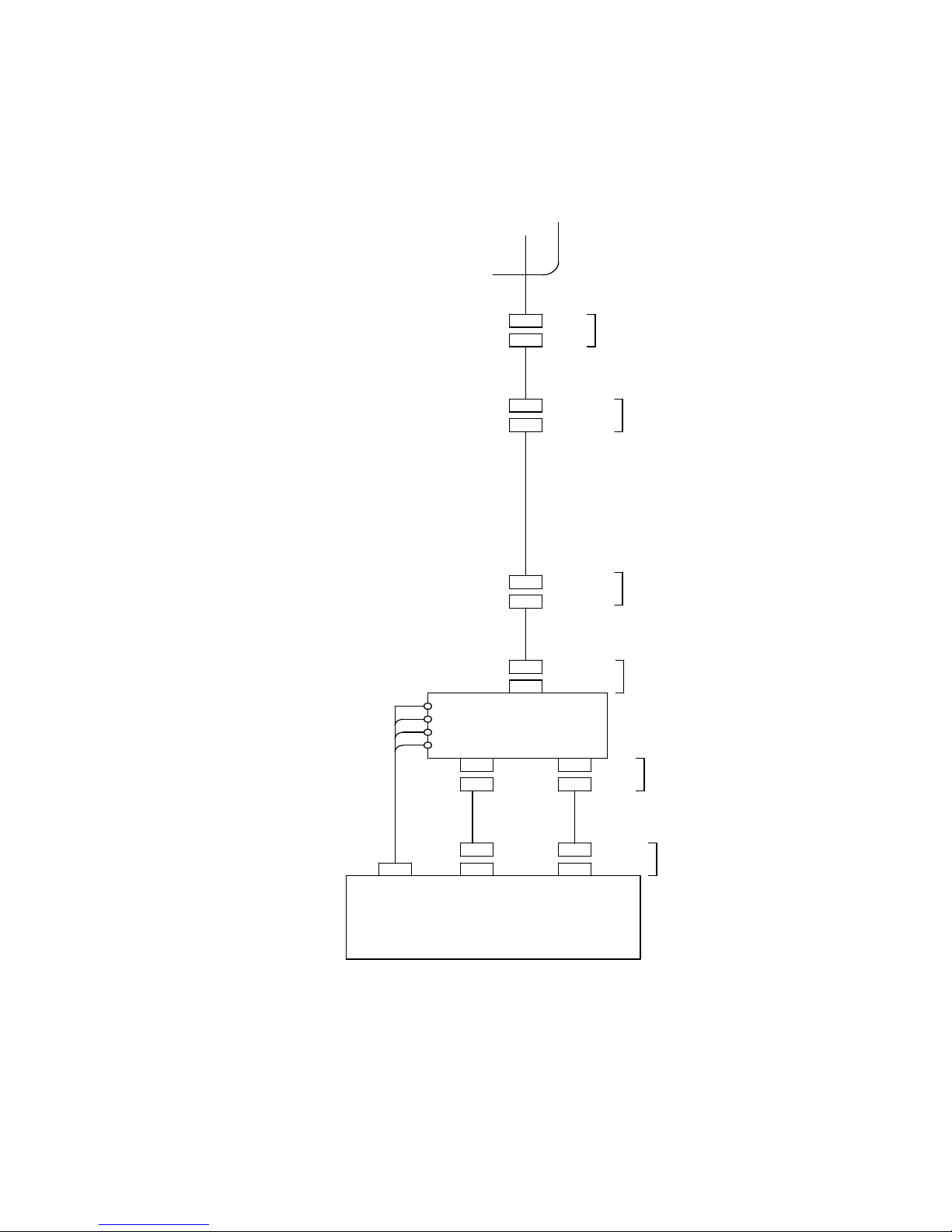

4.5 Installation antenna system
The following diagrams show general arrangement for installation of antenna
system.
4.5.1 Installation of JRV-500 with 1 antenna.
W F -H 4 D-N J
W F -H 5 0- 4
W F -H 4 D-N J
N-P -8
N-J
N-J
R x A N T
R x A N T
D U P LE X E R
Tx A N T
Tx A N T
A N T
AW -158Y B
DU P LEXER
E
D C
D U P
PTT
N-P -8
C O A XIA L C O NN E CT O R
C O A XIA L C O NN E CT O R
C O A XIA L C O NN E CTO R
C O A XIA L C O NN E CT O R
C O A XIA L C O NN E CTO R
C O A XIA L C O NN E CTO R
N-P -8
N-P -8
N-J
8D -2V
C O A XIA L C AB LE
C O A XIA L C AB LE
8D -2V
N-P -8
AN TE N NA
BR C -1511
N-P-8
N-J
8D-2V
C O A XIA L C AB LE
8D -2V
C O A XIA L C AB L E
N-
J
N-P-8
N-J
N-P -8
JRV-500B
VHF TR AN S C EIVER
Fig. 1. Installation JRV-500 with 1 antenna
