Jaroby Volcan B12 TRIDENT User manual

490, rue de l'Argon
Québec (Québec) G2N 2C9
Téléphone.: 418-849-8095 Fax : [phone]
www.jaroby.com
Revised May 26, 2011
Vesuve
Trident
Laguna
Taal
Designed especially for
fireplace hearth
Kilauea
VOLCAN B12
Fogo
ETHANOL FIREPLACES
Certified as per ULC/ORD C627.1-2008
UL Subject 1370
-
2010

2
TABLE OF CONTENTS
TABLE OF CONTENTS.................................................................................... 2
CHARACTERISTICS ........................................................................................ 2
FIREPLACE LOCATION .................................................................................. 3
WARNING......................................................................................................... 3
INSTALLATION ON WALL .............................................................................. 6
SECURING THE INSTALLATION .................................................................... 7
LOCATION OF APPLIANCE ............................................................................ 8
BEFORE FUELING AND IGNITING ............................................................... 12
BURNER INSTALLATION.............................................................................. 13
REFILL............................................................................................................ 14
STARTING UP ................................................................................................ 15
EXTINGUISH .................................................................................................. 16
MAINTENANCE.............................................................................................. 16

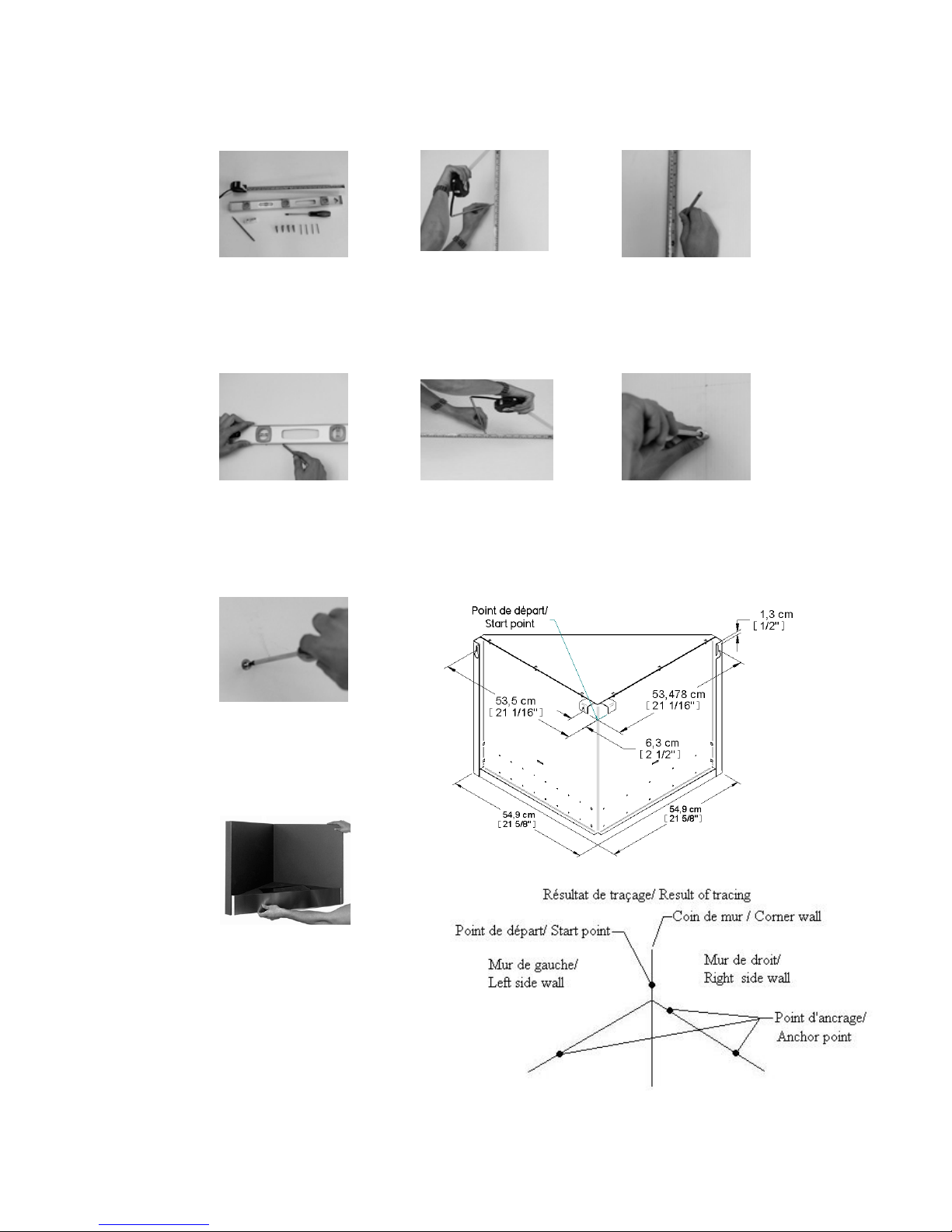

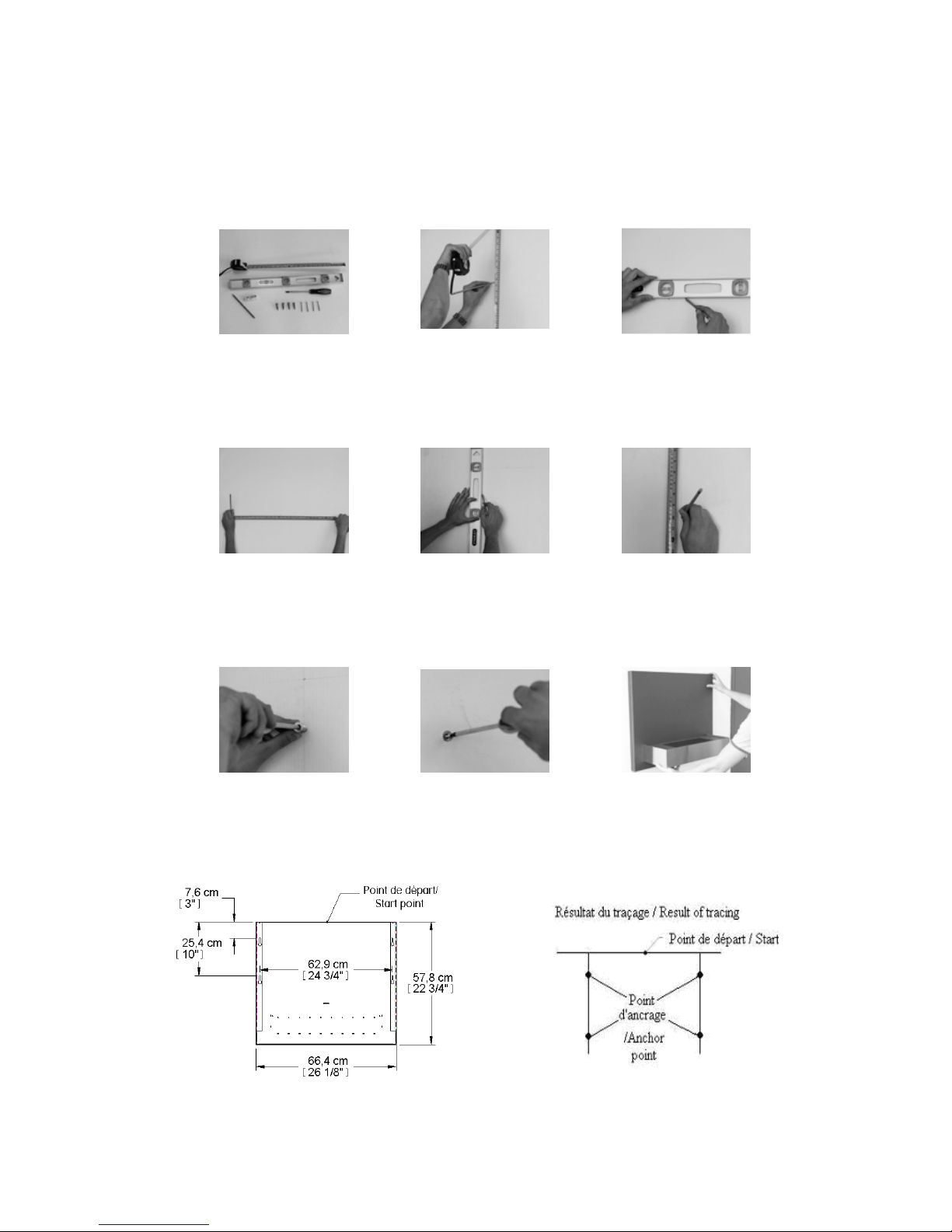

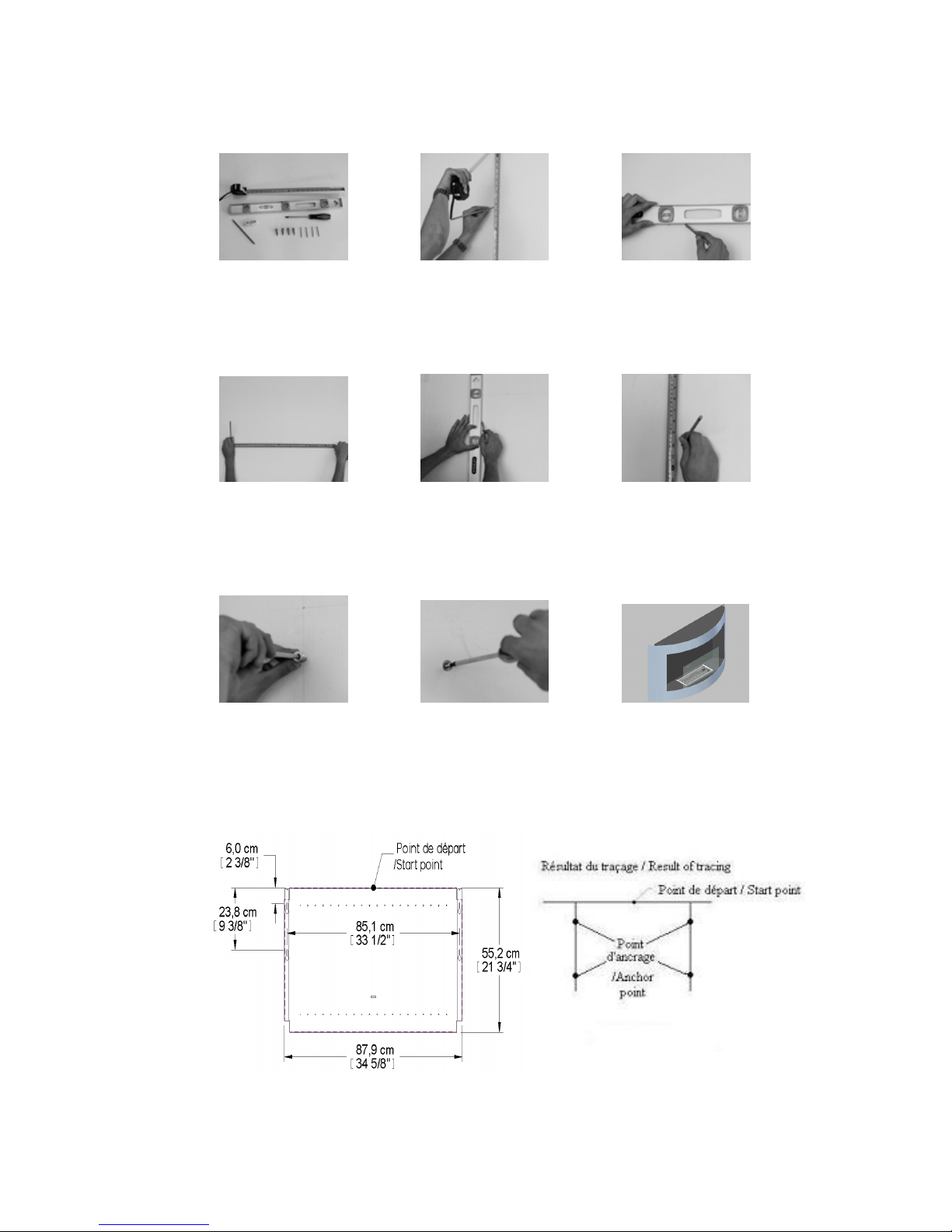

ETHANOL FIREPLACES INSTALLATION GUIDE........................................ 17
Volcan B12 – TRIDENT ........................................................................................................................17
Volcan B12 – VESUVE..........................................................................................................................18
Volcan B12 - LAGUNA .........................................................................................................................19
Volcan B12 - KILAUEA ........................................................................................................................20
Volcan B12- TAAL.................................................................................................................................22
Volcan B12- FOGO ................................................................................................................................23
PART TO ADD WITH KILAUEA FIREPLACE................................................ 21
WARRANTY ................................................................................................... 25
CHARACTERISTICS

3
CLEARANCES
Floor Trident and Laguna : 12'' (304.8mm)
Fogo, Vesuve and Kilauea : Combustible
Lateral wall (left or right) (See P.7 Fig. 2) 12'' (304.8 mm)
Opposite wall (See P.8 Fig. 4) 36'' (914.4 mm)
Rear wall
Air circulation (See P.9 Fig.6)
0'' (0 mm)
1'' (25.4 mm)
Appliance Front 24'' (609.6 mm)
Top of burner (See P.7-8 Fig. 2, 3, 4 ,5) 40'' (1016 mm)
*ALWAYS USE J.A. ROBY ETHANOL WITH YOUR APPLIANCE OR YOUR
WARRANTY WILL BE CANCELED.
FIREPLACE LOCATION
You have just acquired an unvented decorative fireplace. The location of your J.A. Roby
Inc. appliance is the key to an efficient, safe and easy use of your new appliance.
Your decorative fireplace must be installed in a well aerated and easy access place to
enable ignition, filling and extinction of the burner
The fireplace must be installed on a solid wall
For your safety, make sure to use the screws included in package to secure the fireplace onto
the wall which will provide stability to your fireplace.
It is mandatory to follow the clearances for the installation of the fireplace.
WARNING
Before installing, please take a few minutes to read this handbook carefully and also read the
warning notice on the ethanol fireplace (yellow and orange). Keep it in a secure and easily
reachable place for future references. If this appliance is not properly installed, it could cause
fire damages to the property, injuries or death.

4
WARNING
•Never use other liquid than ethanol. Failing this can cause material damages, injuries,
fire, explosions or even death.
•Minimum clearances must be observed.
•Risk of Indoor Air Pollution – Use unvented decorative appliance only in well
ventilated areas. People with breathing problems should consult a physician before
using an ethanol fireplace.
•Be sure to have a sufficient air supply in the room. If the appliance is used in a room
smaller than 200 ft
3
(5,7m
3
) for each 1000 Btu/h, the door of adjacent room should
be kept open or a window to the outside open 1 inch (25.4mm) to guard against
potential built-up of indoor air pollution.
•Do not leave the refueling liquid or an oxygen tank in same room.
•Do not remove the glass while operating.
•Do not move the burner while it’s burning.
•Do not drink the ethanol.
•Do not operate while intoxicated.
•We recommend you to keep a distance of 36 inches (92cm) to your curtains.
•You must be 18 years old to operate the fireplace.
•This fireplace cannot be installed in a bathroom or a bedroom.
•Always keep an extinguisher near the fireplace.
• Store your ethanol container in a safe place away from children, animals and direct or
indirect heat. Never store fuel in the living space.
• Do not pack required air spaces with insulation or other materials.
•This appliance has not been tested with an unvented gas log set. To reduce risk of fire
or injury, do not install an unvented gas log set into appliance.
•This appliance has not been test for use with doors. To reduce the risk of fire or
injury, do not install doors.

5
WARNING
•Risk of explosion
- Never use any fuel other than the fuels specifically identified for use in the
unvented decorative appliance. Never use gasoline.
- Never store or transport the fuel in other than a metal or plastic container
that is:
A) Acceptable for use with the specific fuel,
B) Non red in color,
C) Is in the original container for the (specific alcohol) Fuel.
Warning : Very hot while in function
Keep children far away from the appliance.
Never leave the appliance unattended.
Do not use other liquid than J.A. Roby ethanol to light the fire.
Do not use the fireplace to boil water or cook food.
Always keep combustible materials
(clothes, furniture, wood, carpet,
matches, plastics & flooring) at a minimal distance of 24 inches
(61cm) from the appliance.
 Keep away from flammable fumes and gasoline.
•When removing the film on the stainless part (when applicable) there might be a glue
residue which can easily be cleaned with a stainless cleaner.

6
INSTALLATION ON WALL
A detailed explanation is provided for each model to p.16 à 22
Drawings for illustrations purpose only
Figure 1
To install, follow step 1, 2, 3.
1- Insert the wall anchors in the locations designed for it.
2 - Secure screws in the anchors and keep 5/16 inch between the head of each
screw and the anchor.
3 - Hang the fireplace onto the screws.
* Screws and anchors included.

7

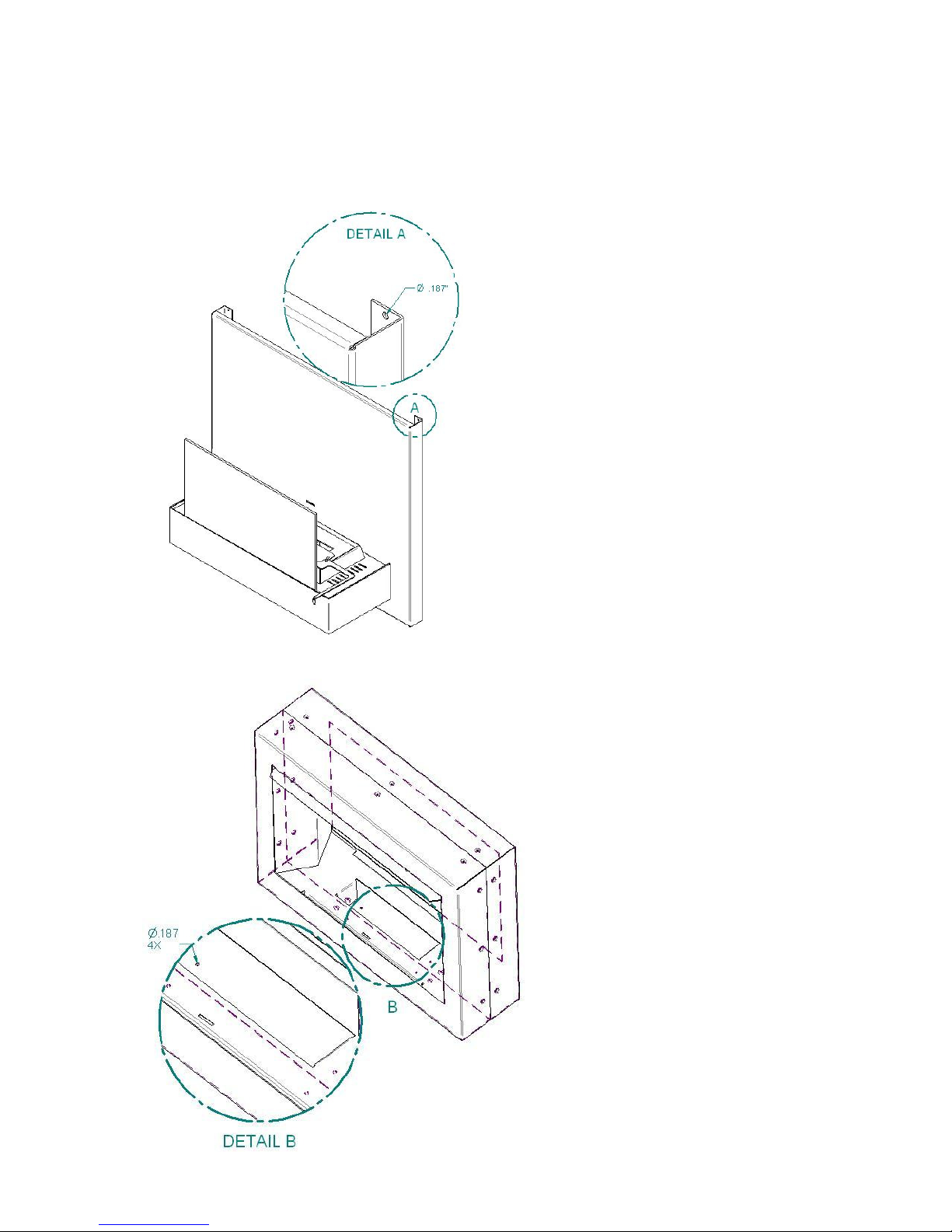

SECURING THE INSTALLATION
MODEL #1: Trident, Laguna, Vésuve et Fogo
MODEL #2: Kilauea
Secure the installation by fixing two
included screws in the places shown in the
picture according to your fireplace model.
Tighten the screw through the 0.187 inch
diameter hole to secure the installation
(Screw #10 x 1.5 inches long)
Tighten the 4 retaining
screw in the bottom of the
fireplace through the 0.187 inch
diameter hole to secure the
installation.
(Screw #10 x 1.5 inches long)

8
LOCATION OF APPLIANCE
Figure 2
Figure3
From the top
of the burner
From the top
of the burner
Illustrated model: Trident
Idem for Laguna and Fogo
fireplace.
Illustrated model: Kilauea

9
Figure 4
Figure 5
From the top
of the burner
From the top
of the burner
Illustrated model: Kilauea
Idem for Laguna, Fogo,
Trident and Vesuve
fireplace.
Illustrated model: Vesuve

10
Figure 6
The Trident, Laguna, Fogo and Vésuve fireplace are designed to leave a ventilation space
between the rear wall and the fireplace to let the air flow easily. Never block this ventilation
space.
Laguna
Vésuve
Trident
Fogo

11

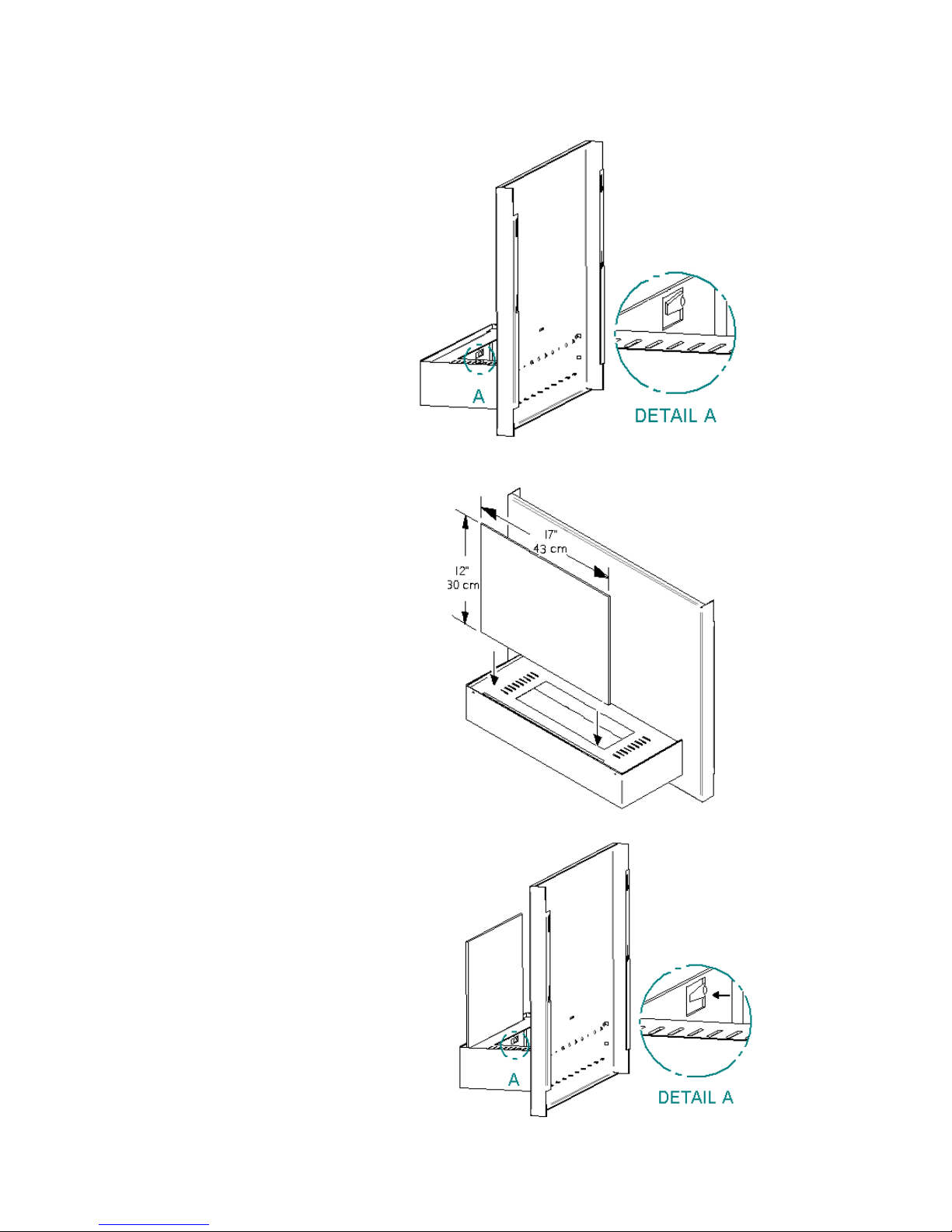

Installation of the window
1- Locate both lock
brackets inside the home. (See
detail A).
2- Insert the window in is
slot.
3- Apply pressure on the
locks with your fingers and press
them to the window.

12
BEFORE FUELING AND IGNITING
SAFETY MEASURES
Only use J.A. Roby fuel with this fireplace
•NEVER USE WATER TO EXTINGUISH FUEL BOX.
•Use thermal gloves to handle the device.
•Keep fire extinguishing device (A-B-C type) close to the fireplace.
•To respect regulations, the fireplace should always be securely attached.
ETHANOL INFORMATION
•Ethanol does not tolerate cold
•This liquid tends to expand with heat.
•Must always be protected from sun rays
•Combustible: Vapors are heavier than air.
•Igniting hot ethanol will cause flare-ups

13
1. Remove the window
by pulling up.
3. Install the closing device
by inserting the hook on the
cover in the hole of the handle.
(See detail A)
5. Put the window back on
his place like shown in page 9.
BURNER INSTALLATION
2. Insert the backflow protection tray in the
fireplace, and then insert the burner into the tray. Orient
the burner so that the groove of the burner is directed
towards the rear of the home. (For the Kilauea the
orientation of the burner is not required.)
4. Insert the hook of the
burner in the other hole of the
handle to finish installation of
the closing device (See detail B)

14
REFILL
•Always position the burner so that the flames move towards the back of the
fireplace, never to the glass.
•Pour the ethanol CAREFULLY
•NEVER pour fuel into a burning flame or hot burner.
•ALWAYS wait a minimum of 15 minutes to let the burner cool down before
refilling.
•DO NOT exceeds the maximum capacity of fuel (1100 ml).
ALWAYS CLOSE THE LID BEFORE FILLING
How to fill the burner
3
Pour the liquid ethanol in the funnel
makes sure you do not overflow.
1
Position the lid in open position using
the opening and closing stick.
2
Install the funnel into the filling pipe
then the pipe into the burner’s
orifice.

15
•1-Let the lid in the open
position like the picture
•2-Once you have measured
the liquid ethanol
(MAXIMUM CAPACITY
1100 ml), use the funnel to
pour the liquid in the
supply hole.
•Never fill over the bottom
of the square hole (see
detail C in the picture)
•3-Wash your hands and
every object used for the
transfer.
STARTING UP
Caution
Before lighting, make sure there is no excess fuel. If there is an excess or spilling of
fuel it must be sponge-up before lighting to avoid fire burns or damages.
•BEFORE THE STARTING UP, check the burner if it’s full otherwise makes
the 3 steps above. After read the following step.
•Store the fuel container and accessories away from the fireplace in a safe zone.
•Light-up the ethanol, after the first ignition you might have to do it again to
warm up the burner.
•Fuel will burn low at first, please allow a minimum of 15 minutes to reach
optimum burn and flame height.
•Because it contains alcohol, spilling could damage hardwood floors, carpets and
fireplace paint.
•Always keep a distance of 8 inches (20 cm) between your hands and the burner
NEVER TRY TO LIGHT UP THE APPLIANCE WHILE HOT
Ignition steps
1
Position the lid in open position
using the opening and closing stick.
2
Light-up the burner

16
EXTINGUISH
•Never use water to extinguish the fire.
•If possible, let the fuel burn out completely as this will prevent the alcohol left
in the burner to create a deflagration when re-igniting.
•To extinguish the fire before the fuel has burned out, simply pull on the handle
of the closing lid to fully cover the flame and wait 45 minutes or until the
burner is cool before emptying the remaining fuel.
•In the event that the flame has not completely burned out, please repeat above
instructions and wait 15 second before repeating process.
NOTE :
It is very important to inspect and clean the burner. A dirty burner or in bad condition
can be the cause of fire and important damages.
WARNING!
K EEP CHILDREN AWAY WHILE IN OPERATION
MAINTENANCE
•The burner must be cleaned on a regular basis; some contaminants may remain
in the burner after use, which can cause unpleasant odors. Use warm water and
dish soap liquid.
•We recommend a regular maintenance to prevent contamination.
•Do not use chemicals, harsh cleaning products or steel wool.
The manufacturer cannot be held responsible for any damages resulting out of miss-use
or cleaning products.

17
ETHANOL FIREPLACES INSTALLATION
GUIDE
Volcan B12 – TRIDENT
(Check the distance from center to center mounting holes before installation)
to install
FIGURE A
1
Tool required: measuring
tape, level, pencil, eraser,
Square #2 tip screwdriver,
6 screws of 1 1/2 inch and 4
anchors
2
Mark the starting point
(see figure A)
using the pencil and
measuring tape.
3
Draw a 28 inches long
Horizontal line with the
level from your starting
point
4
Mark a dot at 24 ¾ inches from
start point on each side of your
starting point on your horizontal
line
5
From each dot on your
horizontal line, draw a 12
inches long vertical line
6
On each vertical line, mark a
spot first at 3 inches and then
10 inches from horizontal
Line.(see figure A right side)
7
Insert the 4 anchors on
the 4 marked dots.
8
Secure the 4 screws
and leave 5/16 inches
between the screw head
and the anchors
9
Install the fireplace and
screw the 2 retaining screw
at there designated place
(see page 6)

18
Volcan B12 – VESUVE
(Check the distance from center to center mounting holes before installation)
1
Tool required: measuring
tape, level, pencil, eraser,
Square tip #2 screwdriver,
5 screws of 1½ inches and
3 anchors.
2
Mark the starting point
(See figure B)in the corner
using the pencil and
measuring tape.
3
Mark a dot at ½′′ inch below
your starting point.
4
From that dot, draw a 21 1/16
inches long horizontal line on
each wall and mark a dot.
5
Starting again from that marked
dot mark another one at 2 ½
inches from the corner on the wall
at your right.
6
Insert the anchors on each
of
the 3 marked dots.
7
Secure the 3 screws and
leave 5/16 inches between
the screw head and the
anchors.
8
Install the fireplaces and
screw the 2 retaining
screws at their designated
place (see page 6)
FI
GURE B

19
Volcan B12 - LAGUNA
(Check the distance from center to center mounting holes before installation)
FIGURE C
1
Tool required: measuring
tape, level, pencil, eraser,
Square tip #2 screwdriver,
6 screws of 1½ inches and
4 anchors.
2
Mark the starting point
(see figure C)
using the pencil and
measuring tape.
3
Draw a 36 inches horizontal
line using the level.
4
From the starting point
mark a dot at 16 ¾ inches
on each side of your
horizontal line.
5
Starting from each dot,
you draw a vertical line of
about 12 inches.
6
On each vertical line,
again from each dot, mark
one dot at 2 3/8′′ and
another one at 9 3/8′′
inches for a total of 4 dots.
7
Insert the anchors on
those 4 dots.
8
Secure the 4 screws and
leave 5/16 inches between
the screw head and the
anchors
9
Install the fireplace and
screw the 2 retaining
screws at there designated
places
(
see page 6
)
.

20
Volcan B12 - KILAUEA
IMPORTANT: Starting point is located
At the bottom of the fireplace
Figure D
1
Tools required: Reciprocating
saw, measuring tape, level,
pencil, eraser, Square tip #2
screwdriver, 4 screws of 1 ½
inches and 4
anchors
2
Mark the starting point
(see figure D)
using the pencil and
measuring tape.
3
Draw a 26 inches horizontal
line using the level.
4
From the starting point
mark a dot at 14.3 inches
on each side on your
horizontal line.
5
Starting from each dot,
you draw up a vertical
line of about 26 inches.
6
Starting again from each
dot on the horizontal line
mark a dot at 23 5/8
inches on each vertical
line.
7
Draw a horizontal line
using the level closing up
your square
8
Make a hole on the wall
following the lines you
have drawn.
9
Insert the fireplace.
10
Secure the fireplace with
the screws in the holes
located at the bottom of
fireplace.
11
Install the surround
decorative moulding
(Not included)
When in doubt, have it installed by a specialist
