Jay-tech All-World Cam User manual

Before operating this unit,
please read this manual thoroughly
and retain it for future reference.
User’s Manual

Table of Contents:
General Description of Function ...................................................................................... 1
Precautions...................................................................................................................... 1
System Requirements...................................................................................................... 4
Description of Outline and Button .................................................................................... 5
Start to Use ...................................................................................................................... 6
Install Battery ............................................................................................................ 6
Use SD Card............................................................................................................. 7
Choose Focus Mode ................................................................................................. 7
Adjust the Wrist Belt Length...................................................................................... 8
Power on and off....................................................................................................... 9
Function Mode Change Over .................................................................................... 9
Date and Time Settings........................................................................................... 10
Indicator Light.......................................................................................................... 10

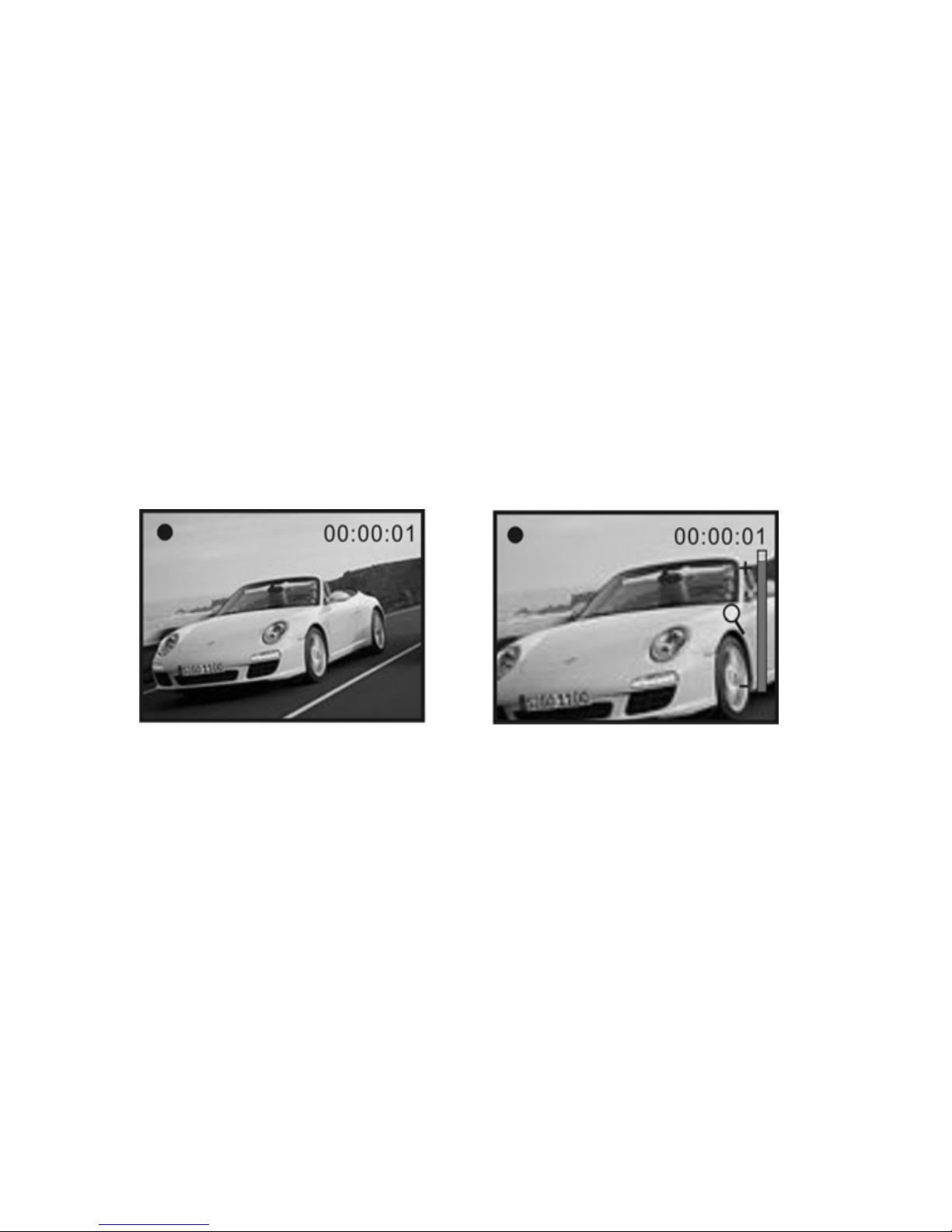

Video Mode..............................................................................................................11
Camera Mode ......................................................................................................... 15
Playback Mode........................................................................................................ 20
Setup Mode............................................................................................................. 29
Application to PC ........................................................................................................... 33
Connect to PC......................................................................................................... 33
Driver Install ............................................................................................................ 34
Operation instructions on Attached Software .......................................................... 39
Technical Parameter ...................................................................................................... 51
Standard Packing........................................................................................................... 52

General Description of Function
It is able to use the camera for a digital photo of maximum 5 mega pixels picture, and is
able to shoot AVI short film. The camera is able to auto adjust exposure and color
balance, and it has 4 x focusing function. The product can be used as a PC camera when
connecting with computer.
The contents covered in the manual were referred to the latest information when the
manual was compiled. The screen display and illustration, etc. adopted in the manual are
for elaboration of the digital camera in a way of much more detail and straight. They may
differ slightly from your practical digital camera because of the different batch of technical
development and production.
Precautions
Please read carefully the Precautions section before using the digital camera so as to
ensure the accurate and safe application, bringing you the best capability of digital
camera and lengthening the service life of the digital camera.
Never settle the camera under direct sunlight, nor to direct the lens toward the sun.
Otherwise, the image sensor may be damaged.
It is required to take care of the camera and prevent water or sand from dropping
into it when using the camera at a sandy beach or near water. The water, sand drop,
dust or salty component may damage the camera.
Please put the camera far from the dust and chemical subject, and it is required to
put it in a cool, dry and well ventilated location. Never deposit it in a location of high
temperature, humidity or dust to prevent failure.
1

It is required to operate camera regularly during long time storage. Please check
whether the camera operates normally or not before using the camera again.
If dirt or stain is accumulated on the camera or lens, it is required to use a piece of
soft, clean and dry cloth to wipe it out lightly. If the camera or lens is stained with
sand grain, it is available to blow it away lightly. Never use cloth to wipe. Otherwise,
it may scrape the camera or lens surface.
If it is required to clean the lens surface, blow away firstly the sand dust
accumulated on the surface, and then use dish cloth or paper towel suitable for the
optical equipment to wipe the lens lightly. If there is such requirement, please use
the lens cleaning compound. Never use organic solvent to clean the camera.
Never touch the lens surface with finger.
If it is the first time to use a memory card in the digital camera, please carry on
information backup for the card first. Then format the memory card once at the
digital camera.
The external SD card and MMC card are made with precise electronic components.
The following conditions may cause the information lost or damage:
1. Use the memory card incorrectly.
2. Memory card is subjected to bend, fall or impact.
3. Heat, humidity and direct sunlight.
4. Static or electromagnetic field around the memory card.
5. Take out the memory card or interfere the digital camera power supply when the
2

digital camera or computer is accessing the memory card (i.e. read, write and
format, etc.)
6. Touch the metal contact surface of the card with finger or metal subject.
7. The memory card outruns its service life (please purchase regularly a new
memory card.)
3

SystemRequirements
System Requirements
Operating System Microsoft®Windows®98 SE, ME, 2000, XP, Vista 32-bit
Central Processing unit Above Intel®Pentium 166MHz or CPU of equal performance
Memory Above 128 MB
Sound Card, Display Card The sound card and the display card shall support DirectX8 or higher
version.
CD Driver 4 times of speed or above
Hard Disk Surplus space above 500 MB
Other One standard USB 1.1 interface or USB 2.0
4

DescriptionofOutlineandButton
1 Lens
2 Macro switch
3 Shutter key
4 Busy light
5 Power key
6 OK key
7 Direction key:
Up
Down
Right/LEDswitch
Left/Self-timer
8 Mode key
9 Battery lid
10 Speaker
11 Wrist strap loop
12 Wrist strap hole
13 Zoom in key
14 Zoom out key
15 USB/TV out port
16 LED light
17 Self-timer light (Red LED)
18 Tripod nut
19 SD card slot
5

StarttoUse
1. Install Battery
1. Open the battery lid
2. Put 3 pieces of AAA (LR03) batteries in according to the polarity instruction.
3. Insert the front end of the battery lid into the battery stack; press the back end of the
battery lid and then push the battery lid inwards to allow the battery lid to closely
attach the body.
Take down battery lid Install the batteries Close the battery lid
6

2. Use SD Card
1. Push the SD card into the slot until it is completely inserted according to instructions.
2. Lightly press the card end inwards and the SD card will eject.
3. Choose Focus Mode
Press the macro switch on the top of the body and then you can switch between the
macro and normal focus.
1. Macro: it is suitable for shooting objects 15cm ~ 25cm away from the lens; when
using, push the macro switch to the end marked with .
2. Normal focus: it is suitable for shooting objects 1.4m away from the lens; when
using, push the macro switch to the end marked with .
7

4. Adjust the Wrist Belt Length
1. Pull the magic sticker on the wrist belt.
2. Pull the nylon strap stuck on the magic sticker.
3. Adjust the bending length of the wrist belt.
4. Fasten the nylon strap on the magic sticker.
5. Fold and nip tightly the magic sticker.
54
21 3
8
