Thank you for purchasing this Digital Projector Camcorder. Please
make sure to read this manual thoroughly before using it and keep
this manual in a safe place for future reference.
Disclaimer
This company will endeavor to make sure the contents of this
manual are correct and up to date. However, we do not guarantee
the accuracy of the contents of this manual. In case there is any
discrepancy between this manual and the Digital Projector
Camcorder, please use this camera as the basis. We reserve the
right to change any content or technical rule without prior notification.
In addition, the manufacturer reserves the right to change technical
specifications and package contents without prior notification.

Precautions
General Precautions
•Do not try to disassemble the product by yourself, which may
damage the product or cause electric shock.
•Keep the Digital Projector Camcorder away from the reach of
children or animals to prevent them from swallowing the
batteries or small accessories.
•Stop using the Digital Projector Camcorder if any kind of liquid
or foreign object enters the Digital Projector Camcorder. If it
happens, power off the Digital Projector Camcorder and
contact your dealer for help.
•Do not operate the Digital Projector Camcorder with wet hands;
it may cause electric shock.
•The Digital Projector Camcorder may be damaged in an
environment of high temperature. This camera is designed for
use in the temperature between 0°C and 40°C (32°F and
104°F).
•Do not use or store the product in dusty, dirty, sandy or the
area that is close to air conditioner or heater.
•It is normal that the temperature of the Digital Projector
Camcorder body rises if the Digital Projector Camcorder works
for a long period of time.
•Do not open the battery cover while an image is being recorded.
Doing so will not only make storage of the current image
impossible, it can also corrupt other image data already stored
in file.
2

3
•Before using this Digital Projector Camcorder for important
occasions (such as wedding or overseas trip), be sure to test
this Digital Projector Camcorder in order to ensure proper
operations of this product.
Power Supply
•Be sure to use the type of battery or battery charger attached to
this Digital Projector Camcorder. Using any other type of
battery or battery charger might damage the equipment and
render the guarantee void.
•Make sure the batteries are placed in the correct position.
Error in the orientation of batteries might damage this product
and result in fire.
•Please remove the batteries to avoid leaking of battery fluid if
the camera is not to be used for a long period of time.
•Please remove the crashed or damaged battery immediately to
avoid leaking of battery fluid or abnormal expansion.

1 Overall Introductionverall Introduction
Please read this chapter carefully to understand the features and
functions of this device. The description of this chapter also
includes the description of system requirement, package contents,
and hardware components.
Please read this chapter carefully to understand the features and
functions of this device. The description of this chapter also
includes the description of system requirement, package contents,
and hardware components.
1.1 System Requirements1.1 System Requirements
This Digital Projector Camcorder requires a unit of computer with the
following specifications:
This Digital Projector Camcorder requires a unit of computer with the
following specifications:
•Windows® 7 / Vista / XP / 2000 operating system or Mac OS
10.3 ~10.4
•Windows® 7 / Vista / XP / 2000 operating system or Mac OS
10.3 ~10.4
•A CPU of at least the equivalent of Intel® Pentium 4 2.8GHz•A CPU of at least the equivalent of Intel® Pentium 4 2.8GHz
•At least 512 MB of RAM•At least 512 MB of RAM
•Standard USB 1.1 connection port or higher•Standard USB 1.1 connection port or higher
•At least 64MB of display card•At least 64MB of display card
Note: USB 1.1 allows you to transmit files to the host, butNote: USB 1.1 allows you to transmit files to the host, but
using USB 2.0 connection port could increase the
transmission speed far faster.
4

1.2 Accessories
This package should contain the following items. In case there is any
missing or damaged item, please contact your dealer immediately.
①Digital Projector
Camcorder ② Pouch ③ User Manual
④ Software CD ⑤ HDMI Cable ⑥ Video Cable
⑦ USB Cable ⑧ Lithium Battery ⑨ Adaptor
5

1.3 External View
1 Recording Button 9 Hand Strap Slot
2 HDMI / USB / AV Out 10 Projector Lens
3 Power On/Off 11 SD Memory Card Slot
4 Microphone 12 Self Portrait Mirror
5 Projector Focus Adjustment 13 Video Camera Lens
6 Speaker 14 LED indicator
7 Tripod Mount 15 LED Torch
8 Battery Cover Lock
6

1.4 Initial Set Up
1.4.1 Insert SD Cards
Insert an SD card and make sure the “gold pin” is facing the right
way as illustrated.
Note: Do not remove or insert SD card when the power of the
Digital Projector Camcorder is on to avoid damaging files.
1.4.2 Load Battery
Please use only battery provided or recommended by the
manufacturer or dealer. This package is supplied with a Lithium
battery.
Note: Insert batteries correctly according to this description. Error
in inserting batteries could result in non-repairable damage to the
device.

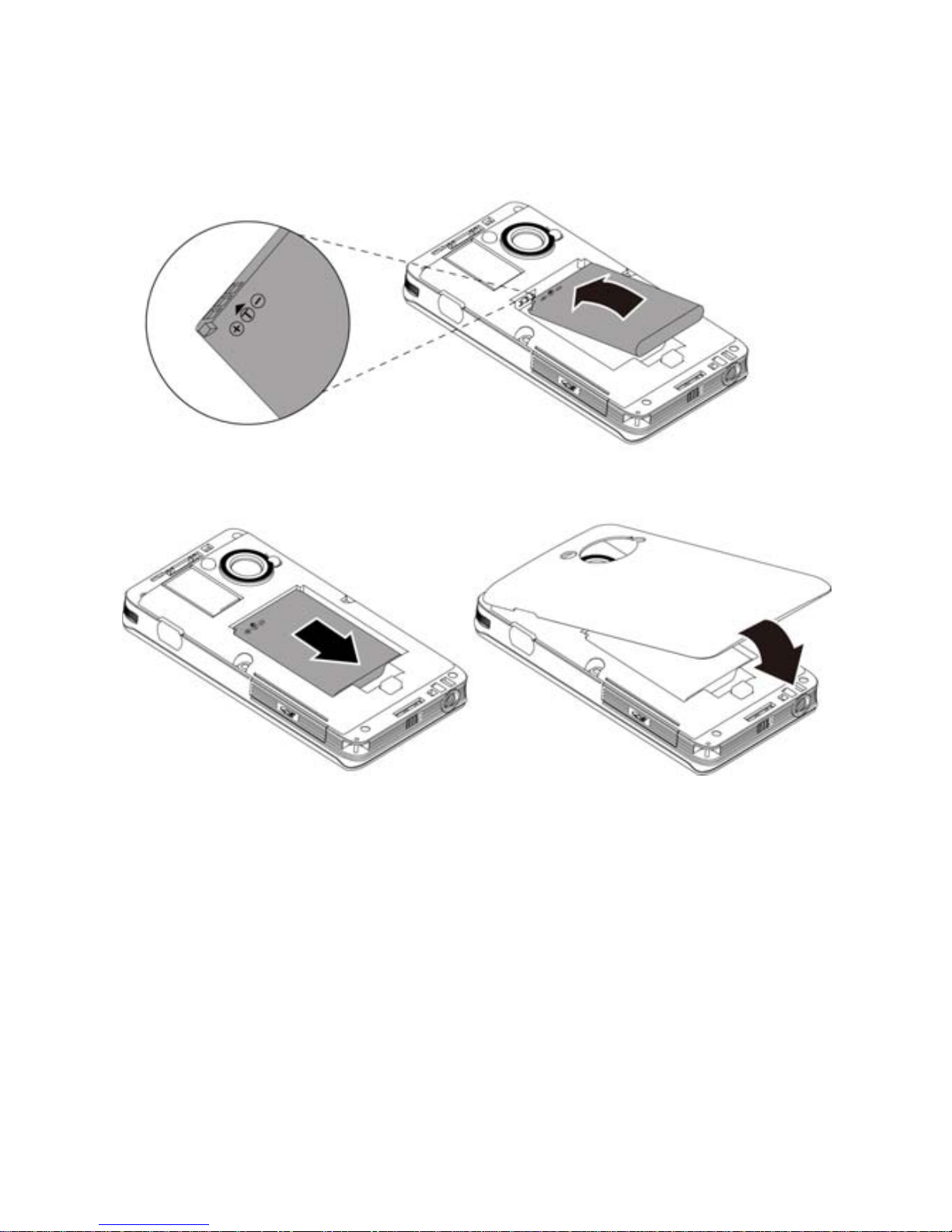

A. Slide the battery cover switch to open the cover and Insert
batteries according to the illustration.
7

B. Make sure the gold pin connection is on the correct side of
the battery compartment.
8

1.5 First Time Usage Setting
1.5.1 Date/Time
Press on the relevant icon (example: [2010]) to high light the
setting.
Press or to adjust the value.
Press (at the top right corner) to confirm.
1.5.2 Language
Use the & to go to various pages for the language
selection, Press on the language icon (Example: [ENG]) to select
and confirm.
Note 1: For other settings; please refer to the [SET UP MENU]
section in this manual for details.
Note 2: For the settings in Video and Photo mode please refer
to either [Video Mode] or [Photo Mode] section in this manual
for details.
9

2 Video Modeideo Mode
2.1 For Video Shoot2.1 For Video Shoot
2.2 For Video Playback
2.2.1 Video Playback
Press
to go into
Video Mode
Press /
to zoom in/ out
during Video
Shoot
Press
for Video Play
back
Press here to
start your video
shoot
Press here for
Set up Menu
1) Press
2) Press the for playback
10

11
3) Use the & to go to the various pages
4) Press the file to select the video clip you wish to review
5) Press the to replay your selected clip
6) Use the & to adjust volume
& to fast forward and rewind7) Use

2.2.2 Video Playback Menu
Press [Menu] for other menu option for video play back.
Press
to go to Video
Playback Menu
You will find the following 3 options
Play Option
Delete
File Protection
A. File Protection
Press the [File Protect icon] to go into the Protect menu
selections, you will have 4 options to select as follows:
- Protect One Video Clip
- Unprotect One Video Clip
- Protect All Video Clips
- Unprotect All Video Clips
12

Press on the relevant icon to select, press [O] to confirm or [X] to
cancel.
B. Play Options
Press [Play Options icon] to go into the Play Option menu
selections, you will have 4 options to select as follows:
-Play One Video Clip
-Play All Video Clips
-Repeat One Video Clip
-Repeat All Video Clips
Press on the relevant icon to select, press [O] to confirm or [X] to
cancel.
C. Delete
13

Press [Delete icon] to go into the Delete menu selections, you will
have 3 options to select as follows:
-Delete One Video Clip
-Delete All Video Clips
-Delete From Thumb Nail View
Press on the relevant icon to select, press [O] to confirm or [X] to
cancel.
2.3 Photo Shoot During Video Playback
To take a photo from your video clip, simply press the recording
button during your video playback as follows
1) Press here to
playback
2) Press here for
photo shoot
2.4 Fast or Slow Motion Forward / Rewind
2.4.1 For Fast Motion
Press to fast forward and to Rewind during play
back
Each time you press, you can change the play speed by 2x / 4x /
8x / 16x / 32x / 64x.
14

2.4.2 For Slow Motion
Press [Slow Motion Icon]. Then, Press to Slow forward
and to Rewind during play back Each time you press, you
can change the play speed by 2x / 4x / 8x / 16x / 32x / 64x.
2.5 Projector for Video
Slow Motion
Icon
Projector
Icon
Press on the [Projector icon] to turn on the projector, you will have
3 Options to choose from.
-High Brightness
-Low Brightness
-Off Projector
Use the [Projector Focus Adjustment] to set the projector focus
15

2.6 For Various Video Set Up
You can press on the 4 icons on the screen to change the various
settings for your video shoot:
Video Resolution
Press the [Video Resolution Icon]to adjust
the Video Resolution, you have 5 options as
follows:
16
[1080/30P] FHD 1080p @ 30fps
[720/60P] HD 720p @ 60fps
[720/30P] HD 720p @ 30fps
[480/60P] WVGA 480 @ 60fps
[
480/30P
]
WVGA 480
@
30f
p
s
LED Torch
Press [LED icon] to turn on/off the LED
Torch
Scene Mode
Press [Scene Mode icon] to change the
different Scene Mode, you have the following
ptions:o
Auto / Night / Sports / Landscape / Portrait
/ Sunset / Sand or Snow / Flower /
Firework / Water
Note: Scenery Options is only applicable for
Photo Shoot
Pre-Recording
Press [Pre-Recording icon] to turn on/off
the function. Press once to set up.
This will set the device to pre-record 3 sec.
before you start the actual video shoot

3 Photo Modehoto Mode
3.1 For Photo Shoot3.1 For Photo Shoot
Press to
go into Photo
Mode
Press /
to zoom in/out
before photo
shoot
Press here for
Set Up Menu
Press here to
shoot your
photos
Press
for Photo
Review
3.2 For Photo Review
3.2.1 Photo Review
1) Press
2) Press the camera icon here to review
photos
17

18
3) Use the & to go to the various pages
4) Press the file to select the photos you wish to review
5) Use the for the previous or for the
next photo
6) Use &to zoom in/out of your photo.
After you press to enlarge the photo, you can
use the , , and to
manipulate the image further.
