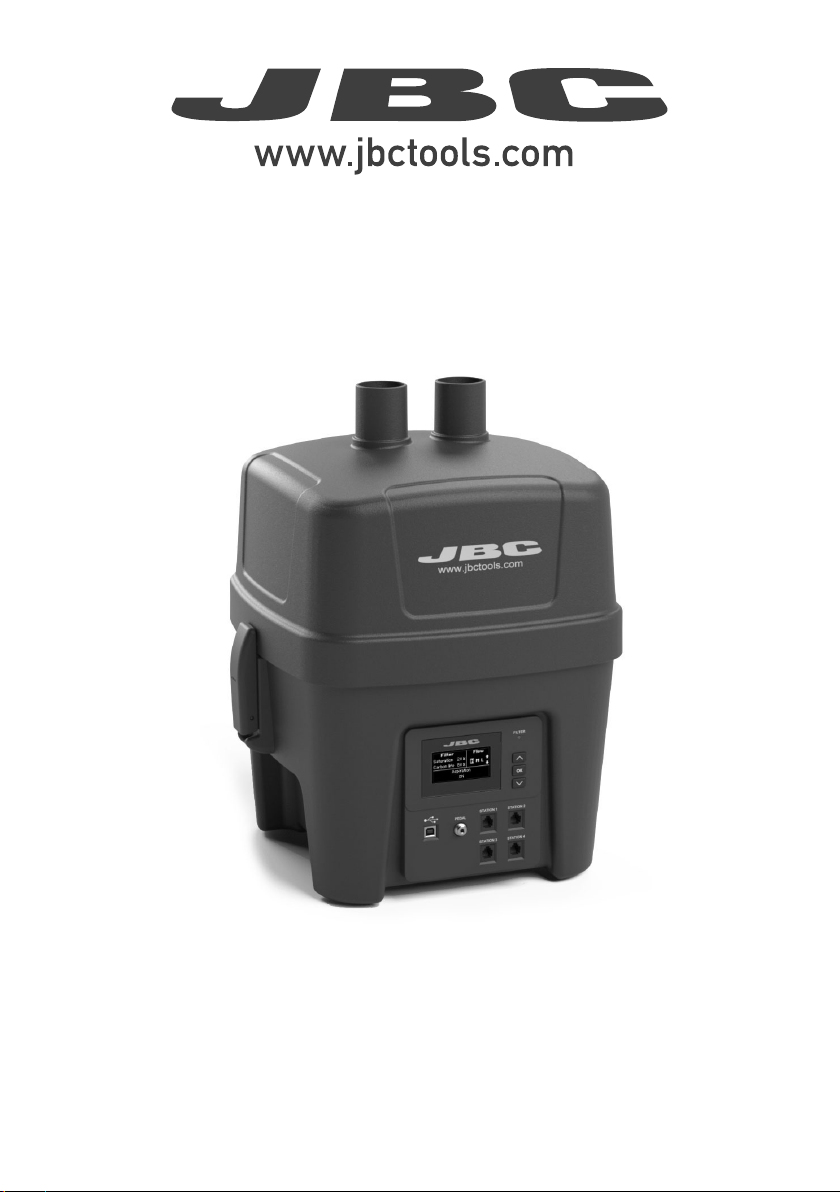

JBA FAE1 User manual

FAE1
Fume Extractor for 1 Workbench
INSTRUCTION MANUAL

The following items are included:
Filter for FAE1 .............................................. 1 unit
Ref. FAE1-100 (already assembled)
Fume Extractor for 1 Workbench .... 1 unit
Unseal the filter
before its first use
Manual ........................................................... 1 unit
Ref. 0027634
Power Cable ........................................... 1 unit
Ref. 0023715 (100V / 120V)
0023714 (230V)
Premium Station Cable (RJ12) ............ 2 units
Ref. 0019751
Compact Station Adapter
(RJ12 to USB A) ........................................ 1 unit
Ref. 0023504
Compact Station Cable (USB A/B) ...... 1 unit
Ref. 0021042
Packing List
This manual corresponds to the following references:
FAE1-1B (100V/120V))
FAE1-2B (230V)
2

Features and Connections
Aspiration Intakes
Quick Release
Lever for Filter
Replacement
Power Socket
Main Switch
Process Screen
USB-B
Compact Stations
Connection
Pedal Connection
RJ12
Premium Station
Connections
Filter Saturation Indicator
-Green: Filter OK
-Yellow: ≤ 20% carbon lifetime or about to saturate
-Red: End of carbon lifetime or filter saturated
www.jbctools.com
3

FlowFlow
HML
Saturation 20%
FilterFilter
Carbon life 90%
Aspiration
ON
FlowFlow
Saturation 20% 100%
FilterFilter
Carbon life 90%
Aspiration
ON
Fume Extractor
Ref. FAE1-1B (100V / 120V)
FAE1-2B (230V)
Accessory for
Stand Aspiration
Ref. FAE040
To be assembled on
your workbench with
the included clamp
(for up to 4 stands)
Ref. FAE030
To be assembled directly
on your workbench (hole
drilling required)
Stand
Aspiration Duct
Ref. FAE050
For modular stands
(from SD versions
onwards)
Ref. FAE060
For compact stations
(from B versions
onwards)
Flexible Arm Ø50
Ref. FAE070
Lenght: 1 m / 39.37 in
To be assembled on
your workbench with
the included clamp
Ref. FAE020
Lenght: 1 m /39.37 in
To be assembled directly
on your workbench
(hole drilling required)
Flexible Hoses Ø50
Ref. FAE010
Lenght: 1,5 m / 59.05 in
Connect the Fume Extractor
indifferently to the flexible
arm or to the accessory for
stand aspiration
Attention
Avoid awkward positions
in order to minimize
pressure losses
Assembly Options
Main Screen
Custom program screen
High, medium and low
aspiration programs Aspiration status
Flow rate
Preset program screen
1 Workbench Configuration (default)
Access by and to change the aspiration program.
4

20%
Saturation
Aspiration
ONON
Carbon life
80%
Fume Extractor
Ref. FAE1-1B (100V / 120V)
FAE1-2B (230V)
Flexible Arms Ø50
Ref. FAE070
Lenght: 1 m / 39.37 in
To be assembled on
your workbench with
the included clamp
Flexible Hoses Ø50
Ref. FAE010
Lenght: 1,5 m / 59.05 in
Connect the Fume Extractor
to the flexible arm
Attention
Avoid awkward positions
in order to minimize pressure
losses
Main Screen
Aspiration status
Note: For this configuration stand aspiration is not available and aspiration flow is set “High”. The
suction force per intake decreases compared with 1 workbench configuration (see page 14).
Ref. FAE020
Lenght: 1 m / 39.37 in
To be assembled directly
on your workbench
(hole drilling required)
2 Workbenches Configuration (optional)
This configuration is activated by setting Workbench option to “2” in the FAE1 main menu.
www.jbctools.com
5

17:14
Peripherals Port 1-T245
Pedal None
Module None
Fume extractor FAE_a
Back
Station Connections for Premium Range
JBC Soldering Stations feature a robot port to the fume extractor in order to automatically
activate the extraction when the tools are in use. Use the Premium Station Cable (included) for the
connection.
Premium Station
Cable
Connect up to 4 stations directly to a fume extractor through the soldering station robot port. Every
tool connected to a station can control the aspiration system.
Each Station detects the fume extractor as “FAE_a”. The tool that should activate the fume
extraction need to be configured through the peripheral menu option on the station menu.
Note: For a correct operation always update soldering stations with the latest available software
version. The minimum required version is 8886160 for DDE, HDE and NAE stations and 8886162 for
DME stations.
Station Fume Extractor
Peripherals Menu
6

Station Connections for Compact Range
Use the Compact Station Cable and the Adapter cable to connect JBC Soldering Stations. They
feature a USB-B port to the fume extractor in order to automatically activate the extraction when the
tools are in use.
Compact Station
Cable + Adapter
Equipment Software Update
JBC Updater
The fume extractor can be updated via the USB-B connection by means of JBC Updater software.
Download software from: www.jbctools.com/software.html.
Note: For the updating process the Premium Station Cable (RJ12) has to be disconnected. If a station
is connected to RJ12 connector the update process will not start.
Station Fume Extractor
CD-S
CD-B
CA
CS
CDE-S
CDE-B
CP
OK
TOOL
EARTHING FUSE
AUX
USE ONLYWITH A 250 V FUSE
OK
ºC
ºF
A
OK
0.5s/div
Ok to reset soldering Ref.
20
16
12
8
4
355
350
345
340
335
180
Sleep
W% ºC
Time
Energy
C245907 Ref.
2.3s
14W·s
---
---
ºC
19:29
Selected
Min 200 Max 400
350 º C
0.5s/div
Ok to reset soldering Ref.
20
16
12
8
4
355
350
345
340
335
180
Sleep
W% ºC
Time
Energy
C210009 Ref.
2.3s
14W·s
---
---
ºC
19:29
Selected
Min 200 Max 400
350 º C
0.5s/div
Ok to set up soldering Ref.
20
16
12
8
4
355
350
345
340
335
350
Sel. temp. 350ºC
W% ºC
Time
Energy
C245907 Ref.
2.3s
14W·s
---
---
ºC
19:29
0.5s/div
Ok to set up soldering Ref.
20
16
12
8
4
355
350
345
340
335
350
Sel. temp. 350ºC
W% ºC
Time
Energy
C210009 Ref.
2.3s
14W·s
---
---
ºC
19:29
0.5s/div
Ok to reset soldering Ref.
20
16
12
8
4
355
350
345
340
335
350
Sel. temp. 350ºC
W% ºC
Time
Energy
C245907 Ref.
2.3s
14W·s
2.4s
13W·s
ºC
95%
0.5s/div
Ok to reset soldering Ref.
20
16
12
8
4
355
350
345
340
335
350
Sel. temp. 350ºC
W% ºC
Time
Energy
C210009 Ref.
2.2s
18W·s
2.4s
17W·s
ºC
94%
0.5s/div
Ok to reset soldering Ref.
20
16
12
8
4
355
350
345
340
335
350
Sel. temp. 350ºC
W% ºC
Time
Energy
C245907 Ref.
2.3s
14W·s
---
---
ºC
19:29
0.5s/div
Ok to reset soldering Ref.
20
16
12
8
4
355
350
345
340
335
350
Sel. temp. 350ºC
W% ºC
Time
Energy
C245907 Ref.
2.3s
14W·s
1.3s
8W·s
ºC
38%
19:29
19:29
19:29
0.5s/div
Ok to reset soldering Ref.
20
16
12
8
4
355
350
345
340
335
350
Sel. temp. 350ºC
W% ºC
Time
Energy
C210009 Ref.
2.3s
14W·s
---
---
ºC
19:29
0.5s/div
Ok to reset soldering Ref.
20
16
12
8
4
355
350
345
340
335
350
Sel. temp. 350ºC
W% ºC
Time
Energy
C210009 Ref.
2.3s
14W·s
1.3s
8W·s
ºC
38%
19:29
1s/div
150 Time
C210-008 Ref. .
4.5s ---
ºC
SOLDERING JOINT INFO 1/3
Sel. temp.
Cartridge
Time
Max temp
Min temp
Energy
Result
Last Ref. Diff.
350ºC 350ºC
C245907
2.4s
350ºC
335ºC
13W·s
2.3s
C245907
-2%
350ºC +0%
340ºC -1%
14W·s +29%
95%
1s/div
150 Time
C210-008 Ref. .
4.5s ---
ºC
SOLDERING JOINT INFO 1/3
Sel. temp.
Cartridge
Time
Max temp
Min temp
Energy
Result
Last Ref. Diff.
350ºC 350ºC
C210009
2.4s
350ºC
335ºC
13W·s
2.3s
C210009
-2%
350ºC +0%
340ºC -1%
14W·s +29%
95%
Hibernation
Tool in the stand
Actual Temp: 140ºC
25% 75%
Power C245907
50%
19:29
325 º C
Sel. temp.
325ºC
25% 75%
Power C245907
50%
Sleep
Tool in the stand
Actual Temp: 290ºC
Delay to hibernation: 9:43
25% 75%
Power C245907
50%
19:2919:29
Hibernation
Tool in the stand
Actual Temp: 140ºC
25% 75%
Power C210009
50%
19:29
325 º C
Sel. temp.
325ºC
25% 75%
Power C210009
50%
Sleep
Tool in the stand
Actual Temp: 290ºC
Delay to hibernation: 9:43
25% 75%
Power C210009
50%
19:2919:29
Language
Mode
Station Settings
Tool Settings
Counters
Reset
Exit
Basic
Soldering-Assistant
Back
Mode
Back
Language
Mode
Station Settings
Tool Settings
Counters
Reset
Exit
Basic
Soldering-Assistant
Back
Mode
Back
Language
Mode
Station Settings
Tool Settings
Counters
Reset
Exit
Language
Mode
Station Settings
Tool Settings
Counters
Reset
Exit
C210009
Cartridge
Back
Language
Mode
Station Settings
Tool Settings
Counters
Reset
Exit
C245907
Cartridge
OK
Back
OK
CD-S
CD-B
CA
CS
CDE-S
CDE-B
CP
OK
TOOL
EARTHING FUSE
AUX
USE ONLY WITH A 250 V FUSE
OK
ºC
ºFA
OK
0.5s/div
Ok to reset soldering Ref.
20
16
12
8
4
355
350
345
340
335
180
Sleep
W% ºC
Time
Energy
C245907 Ref.
2.3s
14W·s
---
---
ºC
19:29
Selected
Min 200 Max 400
350 º C
0.5s/div
Ok to reset soldering Ref.
20
16
12
8
4
355
350
345
340
335
180
Sleep
W% ºC
Time
Energy
C210009 Ref.
2.3s
14W·s
---
---
ºC
19:29
Selected
Min 200 Max 400
350 º C
0.5s/div
Ok to set up soldering Ref.
20
16
12
8
4
355
350
345
340
335
350
Sel. temp. 350ºC
W% ºC
Time
Energy
C245907 Ref.
2.3s
14W·s
---
---
ºC
19:29
0.5s/div
Ok to set up soldering Ref.
20
16
12
8
4
355
350
345
340
335
350
Sel. temp. 350ºC
W% ºC
Time
Energy
C210009 Ref.
2.3s
14W·s
---
---
ºC
19:29
0.5s/div
Ok to reset soldering Ref.
20
16
12
8
4
355
350
345
340
335
350
Sel. temp. 350ºC
W% ºC
Time
Energy
C245907 Ref.
2.3s
14W·s
2.4s
13W·s
ºC
95%
0.5s/div
Ok to reset soldering Ref.
20
16
12
8
4
355
350
345
340
335
350
Sel. temp. 350ºC
W% ºC
Time
Energy
C210009 Ref.
2.2s
18W·s
2.4s
17W·s
ºC
94%
0.5s/div
Ok to reset soldering Ref.
20
16
12
8
4
355
350
345
340
335
350
Sel. temp. 350ºC
W% ºC
Time
Energy
C245907 Ref.
2.3s
14W·s
---
---
ºC
19:29
0.5s/div
Ok to reset soldering Ref.
20
16
12
8
4
355
350
345
340
335
350
Sel. temp. 350ºC
W% ºC
Time
Energy
C245907 Ref.
2.3s
14W·s
1.3s
8W·s
ºC
38%
19:29
19:29
19:29
0.5s/div
Ok to reset soldering Ref.
20
16
12
8
4
355
350
345
340
335
350
Sel. temp. 350ºC
W% ºC
Time
Energy
C210009 Ref.
2.3s
14W·s
---
---
ºC
19:29
0.5s/div
Ok to reset soldering Ref.
20
16
12
8
4
355
350
345
340
335
350
Sel. temp. 350ºC
W% ºC
Time
Energy
C210009 Ref.
2.3s
14W·s
1.3s
8W·s
ºC
38%
19:29
1s/div
150 Time
C210-008 Ref..
4.5s ---
ºC
SOLDERING JOINT INFO 1/3
Sel. temp.
Cartridge
Time
Max temp
Min temp
Energy
Result
Last Ref. Diff.
350ºC 350ºC
C245907
2.4s
350ºC
335ºC
13W·s
2.3s
C245907
-2%
350ºC +0%
340ºC -1%
14W·s +29%
95%
1s/div
150 Time
C210-008 Ref..
4.5s ---
ºC
SOLDERING JOINT INFO 1/3
Sel. temp.
Cartridge
Time
Max temp
Min temp
Energy
Result
Last Ref. Diff.
350ºC 350ºC
C210009
2.4s
350ºC
335ºC
13W·s
2.3s
C210009
-2%
350ºC +0%
340ºC -1%
14W·s +29%
95%
Hibernation
Tool in the stand
Actual Temp: 140ºC
25% 75%
Power C245907
50%
19:29
325 º C
Sel. temp.
325ºC
25% 75%
Power C245907
50%
Sleep
Tool in the stand
Actual Temp: 290ºC
Delay to hibernation: 9:43
25% 75%
Power C245907
50%
19:2919:29
Hibernation
Tool in the stand
Actual Temp: 140ºC
25% 75%
Power C210009
50%
19:29
325 º C
Sel. temp.
325ºC
25% 75%
Power C210009
50%
Sleep
Tool in the stand
Actual Temp: 290ºC
Delay to hibernation: 9:43
25% 75%
Power C210009
50%
19:2919:29
Language
Mode
Station Settings
Tool Settings
Counters
Reset
Exit
Basic
Soldering-Assistant
Back
Mode
Back
Language
Mode
Station Settings
Tool Settings
Counters
Reset
Exit
Basic
Soldering-Assistant
Back
Mode
Back
Language
Mode
Station Settings
Tool Settings
Counters
Reset
Exit
Language
Mode
Station Settings
Tool Settings
Counters
Reset
Exit
C210009
Cartridge
Back
Language
Mode
Station Settings
Tool Settings
Counters
Reset
Exit
C245907
Cartridge
OK
Back
OK
JBC
Updater
Cable USB AB
www.jbctools.com
7

PortPort
1 Delay to stop
BackBack
4 Filter set
5 Counters
6 Program version
Main menuMain menu
Exit
1 Reset
2 Unit
3 Port
UnitUnit
1 Continuous mode OFF
2 Beep ON
3 PIN OFF
4 Change PIN
PortPort
1 Program Ctm - 100%
2 Delay to stop
3 Pedal
BackBack
5 Workbench 1
BackBack
Delay to stopDelay to stop
1 Work area 5 sec
BackBack
PedalPedal
1 Activation One-touch
2 Mode Pressed
BackBack
Custom programCustom program
Select work area flow
80 %
PortPort
1 Program Ctm - 100%
2 Delay to stop
3 Pedal
CustomCustom
BackBack
PedalPedal
1 Activation One-touch
2 Mode Pressed
BackBack
2 Stand 30 sec
2 Pedal
Delay to stopDelay to stop
1 Work area 5 sec
BackBack
Menu Interface
Main Menu Parameters
Original PIN: 0105
1 workbench configuration 2 workbenches configuration
OK
see next page
8

Filter setFilter set
1 Carbon life 90%
2 Saturation 20%
3 Reset carbon
BackBack
CountersCounters
1 Total
2 Partial
BackBack
Total CountersTotal Counters
1 Plugged hrs 100
2 Idle hrs 10
3 Work area hrs 70
4 Stand hrs 20
5 Work area cys 10
BackBack
Partial CountersPartial Counters
1 Plugged hrs 100
2 Idle hrs 10
3 Work area hrs 70
4 Stand hrs 20
5 Work area cys 10
6 Reset
BackBack
Not available for
2 workbenches
configuration
4 Filter set
5 Counters
6 Program version
Main menuMain menu
Exit
1 Reset
2 Unit
3 Port
Menu Interface
www.jbctools.com
9

STOPSTOP ##44
Cover opened or badly
closed. Double check the
cover.
FlowFlow
HML
Saturation 20%
FilterFilter
Carbon life 90%
Aspiration
ON
If the display shows STOP#4, power off the fume extractor, remove the cover, place it back and
secure it by using the quick release levers.
Fume Extractor Activation
Once the fume extractor is turned on, the display shows a similar screen as the following one and
the filter saturation indicator is green if the carbon filter lifetime is higher than 20%.
Troubleshooting
Station troubleshooting available on the product page at www.jbctools.com
Parameters
Important: Power off soldering stations connected to the fume extractor before
modifying any parameter.
Unit
Parameteter
Continuous mode
Beep
PIN
Change PIN
Workbench
Description
Eanable/disable continuous aspiration. Fume extractor aspirations
remains active independently from tool or pedal status.
Enable/disable the sound of the keypad.
Enable/disable PIN request when modifying parameters.
Change the default security PIN code.
Default PIN 0105
Select working mode for 1 or 2 workbenches (see page 4 and 5).
- Green: Filter OK
- Yellow: ≤ 20% carbon lifetime
or about to saturate
- Red: End of carbon lifetime
or filter saturated
10

Port
Parameter Description
Program
It sets the fume extractor aspiration flow. You can select between preset
and custom aspiration programs.
H (High), M (Medium) or L (Low) are the three available preset options.
Use UP and DOWN keys to switch between them while being on the main
screen.
Up to ten aspiration levels between H (High) and L (Low) can be selected
for custom program (range 10-100%). If a custom aspiration program is
selected, the selected aspiration level can be changed on the main screen.
By default M (Medium) aspiration program is selected.
Delay to stop /
Stand
It sets the time that a fume extractor keeps aspirating fumes at the stand
once the tool is returned to it (range 0-999 seconds)
By default stand time is 60 seconds.
Delay to stop /
Work area
It sets the time that a fume extractor keeps aspirating fumes at the work
area once the tool is returned to the stand (range 0-300 seconds).
Pedal / Activation
It sets the pedal activation mode.
One-touch: Press the pedal once to activate aspiration. Press again to
stop aspiration.
Pressed: (Mode function must be pressed) aspiration is active as long as
the pedal is kept pressed.
By default activation is pressed.
Pedal / Mode
When the activation parameter is set to pressed, the mode parameter can
be configured to released mode. In this mode aspiration is always active
until the pedal is pressed.
By default mode is pressed.
www.jbctools.com
11

Extraction Control
Fume extractor aspiration may be controlled by:
Pedal Connection
By means of the pedal connection, fume extractor aspiration may be activated/deactivated by P-005
or P-405 pedal. (See pedal activation modes on previous page)
Filter Set
Parameter Description
Carbon life
It shows remaining activated carbon lifetime expressed in %. It is also dis-
played on the main screen. When 0% is reached the system will show pop-
up message STOP#1 to replace the filter.
Saturation
It shows saturation status of HEPA + carbon filter set, expressed in %. It is
also displayed on the main screen. When 100% is reached the system will
show pop-up message STOP#2 to replace the filter.
Reset carbon
Perform this action after replacing the HEPA + carbon filter set. The carbon
lifetime counter will not start until the filter is detected for the first time. After
executing that function carbon filter life will be 100%.
12

Fume Extractor Configurations
Some parameters, features and the performance vary depending on fume extractor configuration,
see the following table:
230V 50/60Hz Mode: 1 Workbench Mode: 2 Workbenches
Flexible Arm Aspiration Intake 1 2
Stand Aspiration Intake 1Not available
Flow per Flexible Arm Intake 80 m3 / h (47.08 cfm) 60 m3 / h (35.31 cfm)
Preset Aspiration Programs 3 1
Custom Aspiration Programs 10 Not available
Power consumption 110 W 115 W
120V 50/60Hz Mode: 1 Workbench Mode: 2 Workbenches
Flexible Arm Aspiration Intake 1 2
Stand Aspiration Intake 1 Not available
Flow per Flexible Arm Intake 80 m3 / h (47.08 cfm) 60 m3 / h (35.31 cfm)
Preset Aspiration Programs 3 1
Custom Aspiration Programs 10 Not available
Power Consumption 115 W 135 W
100V 50/60Hz Mode: 1 Workbench Mode: 2 Workbenches
Flexible Arm Aspiration Intake 1 2
Stand Aspiration Intake 1 Not available
Flow per Flexible Arm Intake 75 m3 / h (44.14 cfm) 55 m3 / h (32.37 cfm)
Preset Aspiration Programs 3 1
Custom Aspiration Programs 10 Not available
Power Cwonsumption 100 W 105 W
www.jbctools.com
13

Maintenance and Filter Replacement
- The unit notifies through both the display and
the LED when filters need maintenance.
- To replace the filters remove the cover by
opening the quick release levers of the casing.
- If the saturation indicator remains in red after
changing the pre-filter, it means that HEPA
filter is already saturated and must be replaced
too (see filter replacement instruction on page
16).
- When the HEPA filter has been replaced, the
carbon filter counter must be reseted (Main
Menu > Filter Set > Reset Carbon).
- The duration of the compact filter is maximum
1 year after its packaging is opened.
- If the filter is changed while the fume extractor
is on, the unit starts the filter detection process,
activating aspiration for a few seconds.
Cover
Casing
Quick Release
Lever
Pre-Filter
Compact Filter
(HEPA and
Carbon Filter)
Connect the filter tube to
the quick coupling placed
on the metal sheet
The filter has a given position.
Make sure the filter ribs mate with
the corresponding slots.
14

-
+
Quick Release Lever Adjustment
- Turn clockwise to loosen and counterclockwise to tighten, in order to adjust the filter airtightness.
Read the safety guidelines to do the equipment maintenance safely.
Pre-Filter for FAE1
Ref. FA E1-110
Compact Filter
(includes: HEPA
and Carbon Filter)
Filter for FAE1
Ref. FA E1-10 0
Accessories
www.jbctools.com
15

Safety
- The equipment is only designed to filtrate the fumes generated by soldering.
- Do not use the units for the filtration of combustible, explosive or corrosive gasses. Incorrect use may
cause fire.
- The power cord must be plugged into approved bases. Be sure that it is properly grounded before use.
When unplugging it, hold the plug, not the wire.
- Do not leave the appliance unattended when it is on.
- Do not cover the ventilation grills. Heat can cause inflamable products to ignite.
- This appliance can be used by children over the age of eight and persons with reduced capabilities or
lack of experience provided that they have been given adequate supervision or instruction concerning
use of the appliance and understand the hazards involved.
- Maintenance must not be carried out by children unless supervised.
- Keep your workplace clean and tidy. Wear appropriate protective mask, glasses and gloves when
handling dirt filter or pre-filter.
- Do not use the equipment without the filters.
- Saturated filters can not be cleaned and reused.
- Avoid blowing the filter or the dirty parts of the equipment, if necessary it is advisable to vacuum.
- Avoid losing particles in the filter during handling it.
- Treat the saturated filters as waste depending on the filtered contaminant and the applicable standards
in each country. This is the European Waste Catalog classification:
15 02: Absorbents, filter materials, wiping cloths and protective clothing.
15 02 02: Absorbents, filter materials (including oil filters not otherwise specified), wiping cloths,
protective clothing contaminated by dangerous substances.
15 02 03: Absorbents, filter materials, wiping cloths and protective clothing other than those mentioned
in 15 02 02.
- In case of not complying with the filter change recommendations, the maximum particle and gas
concentrations established in each country could be exceeded.
Follow safety guidelines to prevent electric shock, injury, fire or explosion.
16

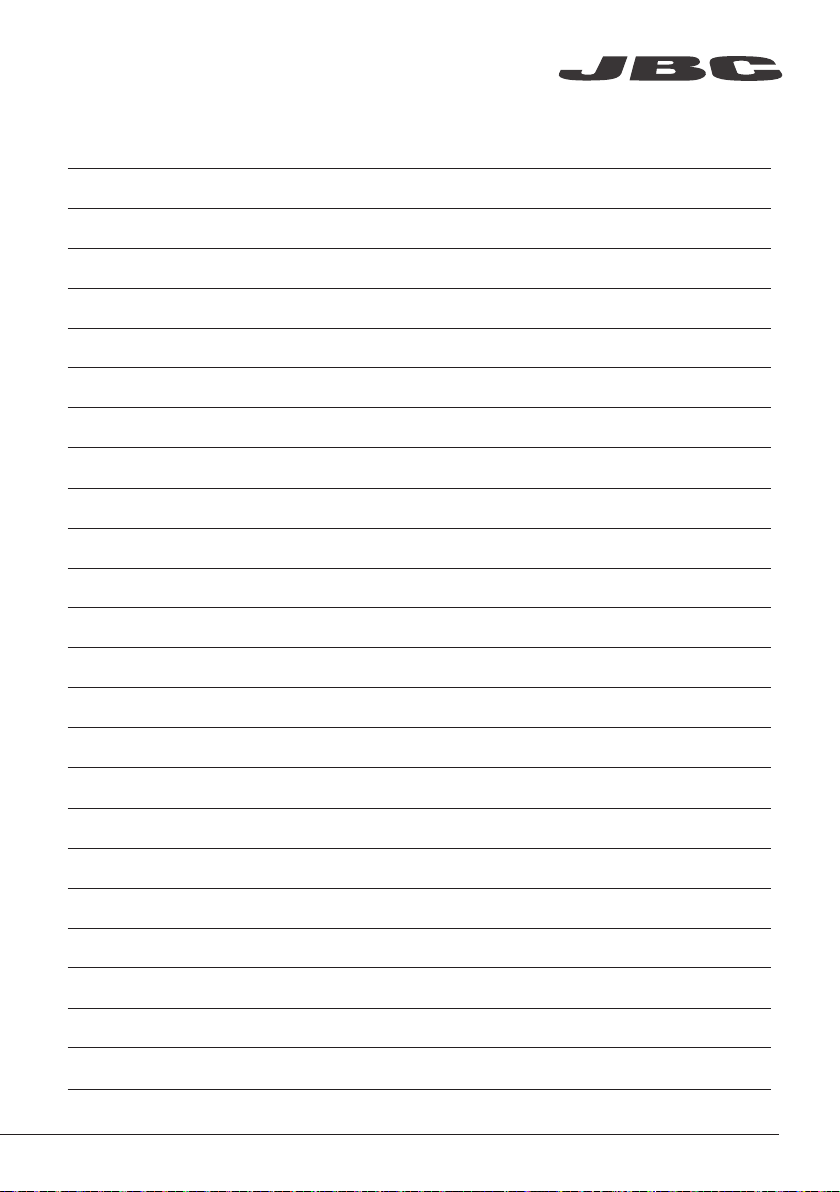

Notes
www.jbctools.com
17

Notes
18

Specifications
FAE1
Fume Extractor for 1 Workbench
Ref.: FAE1-1B 100V 50/60Hz. Input power: 105W. Fuse 2A
120V 50/60Hz. Input power: 135W. Fuse 2A
Ref.: FAE1-2B 230V 50/60Hz. Input power: 115W. Fuse 1.25A
- Blower Type: Brushless
- Blower max. Flow Rate: 180 m³/h (106 CFM)
- Blower max. Vacuum: 3.2 kPa (0.46 psi)
- Work Areas (Workbenches): 1 or 2
- Noise: 55 dB @ 1m
- Pre-Filter: Medium dust filter M5 (EN 779)
- Compact Filter: HEPA filter H13 (EN 1822)
Carbon filter
- Connections: USB-B
Pedal connector
Station connectors (4x)
- Total Net Weight: 10.50 kg / 23.15 lb
- Total Package Dimensions / Weight: Dimensions: 425 x 425 x 545 mm / 12.76 kg
(L x W x H) 16.73 x 16.73 x 21.46 in / 28.13 lb
Complies with CE standards.
ESD protected.
www.jbctools.com
19

This product should not be thrown in the garbage.
In accordance with the European directive 2012/19/EU, electronic equipment at the end of its life must
be collected and returned to an authorized recycling facility.
Warranty
JBC’s 2 year warranty covers this equipment against
all manufacturing defects, including the replacement
of defective parts and labour.
Warranty does not cover product wear or misuse.
In order for the warranty to be valid, equipment must
be returned, postage paid, to the dealer where it was
purchased.
Get 1 extra year JBC warranty by registering here:
https://www.jbctools.com/productregistration/
within 30 days of purchase.
40 mm
50 mm
60 mm
80 mm
100 mm
130 mm 130 mm
para manuales - color gris
200 mm
300 mm
0 0 2 76 3 4 -12 2 1
