INTRODUCTION
CONTENTS
page page
GENERAL INFORMATION
BODY CODE PLATE ...................... 2
FASTENER IDENTIFICATION ................ 4
FASTENER USAGE ....................... 4
INTERNATIONAL VEHICLE CONTROL AND
DISPLAY SYMBOLS .................... 3
METRIC SYSTEM ........................ 7
THREADED HOLE REPAIR ................. 7
TORQUE REFERENCES .................... 9
VEHICLE IDENTIFICATION NUMBER ......... 1
VEHICLE SAFETY CERTIFICATION LABEL ..... 2
GENERAL INFORMATION
VEHICLE IDENTIFICATION NUMBER
The Vehicle Identification Number (VIN) plate is
located on the lower windshield fence near the left
A-pillar. The VIN contains 17 characters that provide
data concerning the vehicle. Refer to the VIN decod-
ing chart to determine the identification of a vehicle.
The Vehicle Identification Number is also
imprinted on the:
•Body Code Plate.
•Vehicle Safety Certification Label.
•Frame rail.
To protect the consumer from theft and possible
fraud the manufacturer is required to include a
Check Digit at the ninth position of the Vehicle Iden-
tification Number. The check digit is used by the
manufacturer and government agencies to verify the
authenticity of the vehicle and official documenta-
tion. The formula to use the check digit is not
released to the general public.
VEHICLE IDENTIFICATION NUMBER DECODING CHART
POSITION INTERPRETATION CODE = DESCRIPTION
1 Country of Origin 1 = United States
2 Make J = Jeep
3 Vehicle Type 4 = MPV
4 Gross Vehicle Weight Rating E = 3001-4000 lbs.
F = 4001-5000 lbs.
5 Vehicle Line Y = Wrangler 4X4
6 Series 1 = Sport
2=SE
4 = Sahara
7 Body Style 9 = Open Body
8 Engine P = 2.5L Unleaded-Gasoline
S = 4.0L Unleaded-Gasoline
9 Check Digit
10 Model Year X = 1999
11 Assembly Plant P = Toledo #2
12 thru 17 Vehicle Build Sequence
TJ INTRODUCTION 1

VEHICLE SAFETY CERTIFICATION LABEL
A vehicle safety certification label (Fig. 1) is
attached to every Chrysler Corporation vehicle. The
label certifies that the vehicle conforms to all appli-
cable Federal Motor Vehicle Safety Standards. The
label also lists:
•Month and year of vehicle manufacture.
•Gross Vehicle Weight Rating (GVWR). The gross
front and rear axle weight ratings (GAWR’s) are
based on a minimum rim size and maximum cold tire
inflation pressure.
•Vehicle Identification Number (VIN).
•Type of vehicle.
•Bar code.
•Month, Day and Hour (MDH) of final assembly.
•Paint and Trim codes.
•Country of origin.
The label is located above the door hinge on the
driver-side A-pillar.
BODY CODE PLATE
LOCATION AND DECODING
A metal body code plate is attached to the floor pan
under the drivers seat (Fig. 2). Disengage the snaps
attaching the carpet to the floor pan to read the
information. There are seven lines of information on
the body code plate. Lines 4, 5, 6, and 7 are not used
to define service information. Information reads from
left to right, starting with line 3 in the center of the
plate to line 1 at the bottom of the plate (Fig. 3).
The last code imprinted on a vehicle code plate will
be followed by the imprinted word END. When two
vehicle code plates are required, the last available
spaces on the first plate will be imprinted with the
letters CTD (for continued).
When a second vehicle code plate is necessary, the
first four spaces on each row will not be used because
of the plate overlap.

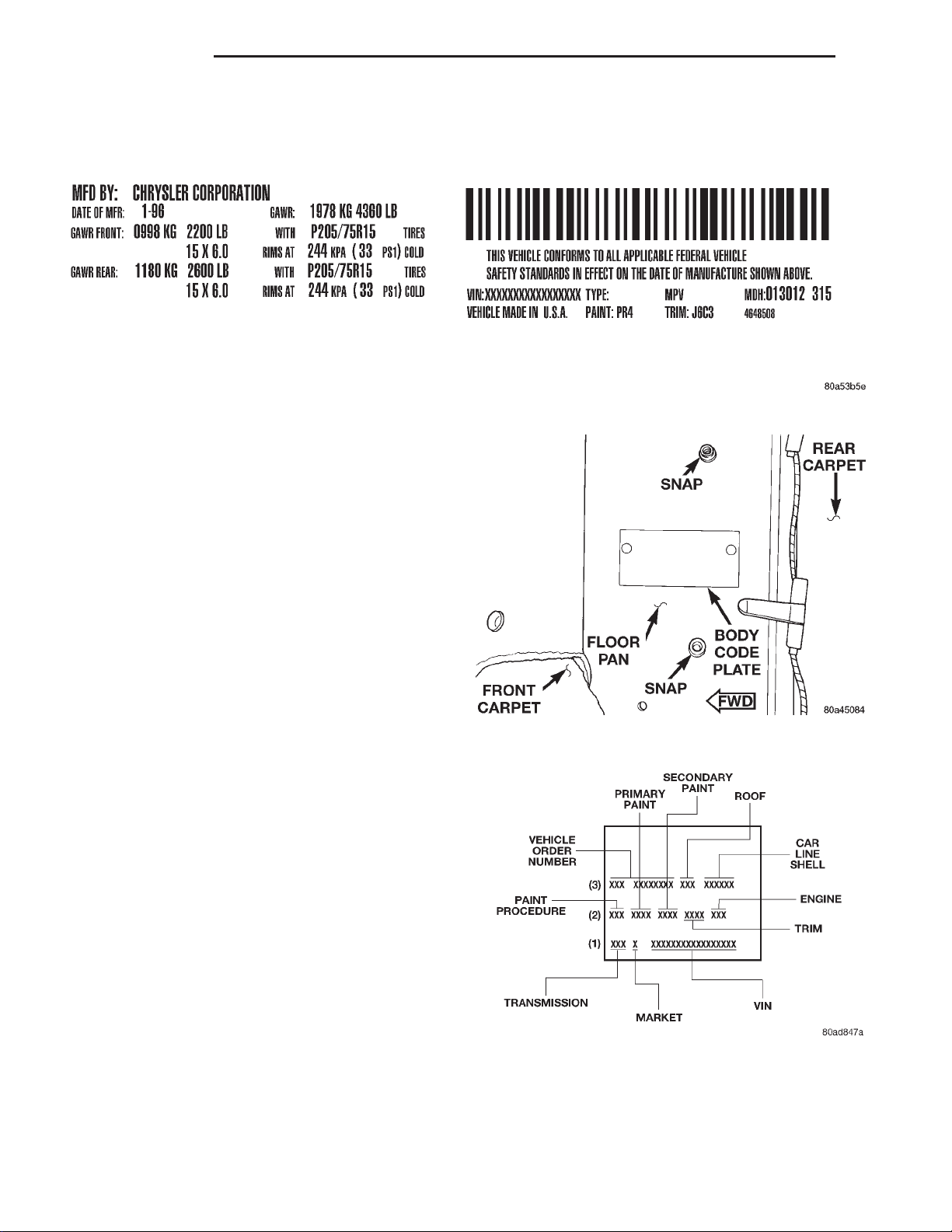

Fig. 1 Vehicle Safety Certification Label—Typical
Fig. 2 Body Code Plate Location
Fig. 3 Body Code Plate Decoding
2 INTRODUCTION TJ
GENERAL INFORMATION (Continued)

BODY CODE PLATE—LINE 3
DIGITS 1 THROUGH 12
Vehicle Order Number
DIGITS 13, 14, AND 15
Roof
•VJN = Soft Top White
•VJT = Soft Top Spice
•VJX = Soft Top Black
•VKN = Hard Top White
•VKT = Hard Top Spice
•VKX = Hard Top Black
DIGITS 16, 17, AND 18
Car Line Shell
•TJJ = Wrangler (LHD)
•TJU = Wrangler (RHD)
DIGIT 19
Price Class
•L = Wrangler (All)
DIGITS 20 AND 21
Body Type
•77 = Wheel Base (93.4 in.)
BODY CODE PLATE—LINE 2
DIGITS 1,2, AND 3
Paint Procedure
DIGIT 4
Open Space
DIGITS 5 THROUGH 8
Primary Paint
Refer to Group 23, Body for color codes.
DIGIT 9
Open Space
DIGITS 10 THROUGH 13
Secondary Paint
DIGIT 14
Open Space
DIGITS 15 THROUGH 18
Interior Trim Code
DIGIT 19
Open Space
DIGITS 20, 21, AND 22
Engine Code
•EPE = 2.5 L 4 cyl. MPI Gasoline
•ERH = 4.0L 6 cyl. MPI Gasoline
BODY CODE PLATE LINE 1
DIGITS 1, 2, AND 3
Transmission Codes
•DDQ = AX5 5–speed Manual
•DDO = AX15 5–speed Manual
•DGD = 30RH 3–speed Automatic
•DGG = 32RH 3–speed Automatic
DIGIT 4
Open Space
DIGIT 5
Market Code
•B = International
•C = Canada
•M = Mexico
•U = United States
DIGIT 6
Open Space
DIGITS 7 THROUGH 23
Vehicle Identification Number (VIN)
Refer to Vehicle Identification Number (VIN) para-
graph for proper breakdown of VIN code.
INTERNATIONAL VEHICLE CONTROL AND
DISPLAY SYMBOLS
INTERNATIONAL VEHICLE CONTROL AND DISPLAY
SYMBOLS
The graphic symbols illustrated in the following
International Control and Display Symbols chart are
used to identify various instrument controls. The
symbols correspond to the controls and displays that
are located on the instrument panel.
TJ INTRODUCTION 3
GENERAL INFORMATION (Continued)

FASTENER IDENTIFICATION
FASTENER IDENTIFICATION
THREAD IDENTIFICATION
SAE and metric bolt/nut threads are not the same.
The difference is described in the Thread Notation
chart (Fig. 5).

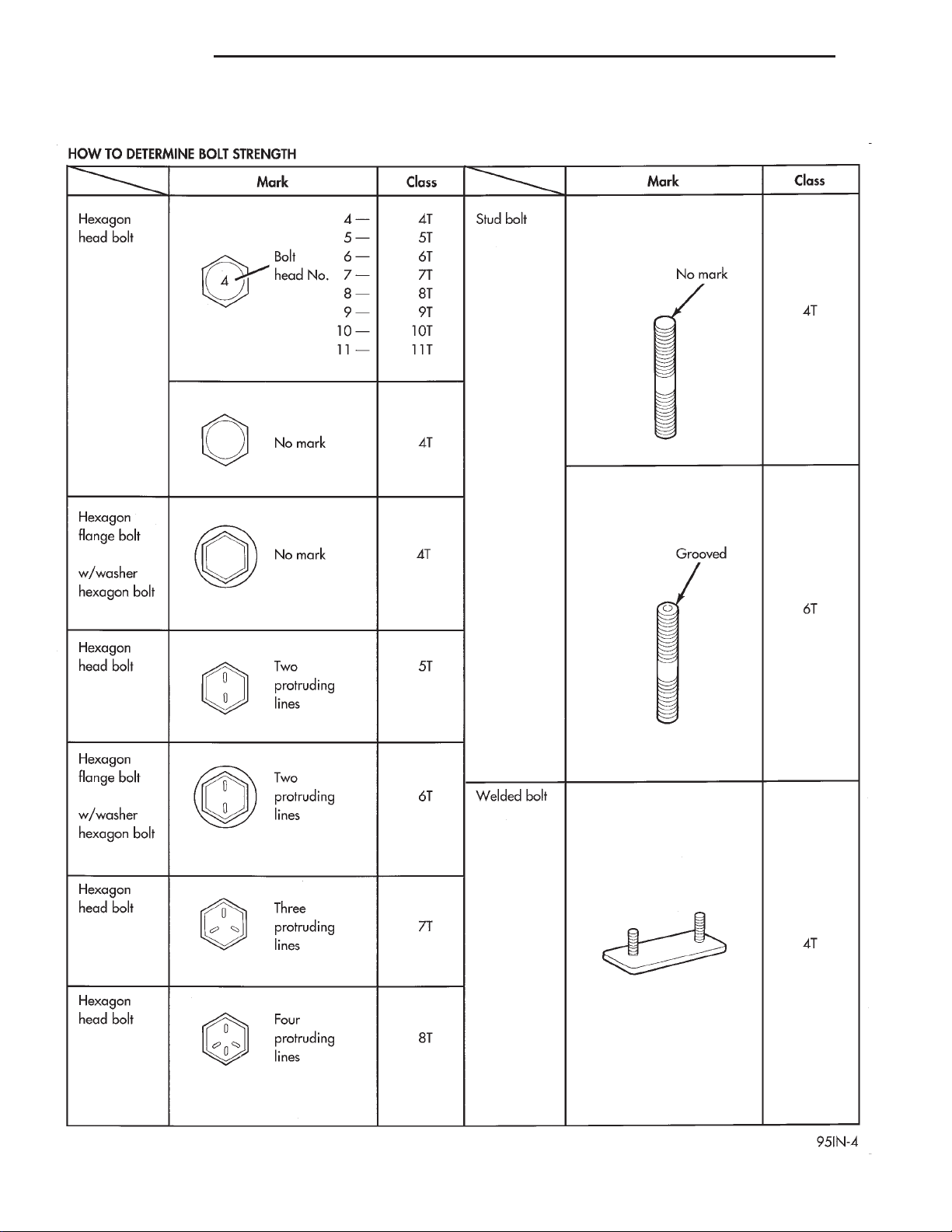

GRADE/CLASS IDENTIFICATION
The SAE bolt strength grades range from grade 2
to grade 8. The higher the grade number, the greater
the bolt strength. Identification is determined by the
line marks on the top of each bolt head. The actual
bolt strength grade corresponds to the number of line
marks plus 2. The most commonly used metric bolt
strength classes are 9.8 and 12.9. The metric
strength class identification number is imprinted on
the head of the bolt. The higher the class number,
the greater the bolt strength. Some metric nuts are
imprinted with a single-digit strength class on the
nut face. Refer to the Fastener Identification and
Fastener Strength Charts.
FASTENER USAGE
WARNING: USE OF AN INCORRECT FASTENER
MAY RESULT IN COMPONENT DAMAGE OR PER-
SONAL INJURY.
Figure art, specifications and torque references in
this Service Manual are identified in metric and SAE
format.
During any maintenance or repair procedures, it is
important to salvage all fasteners (nuts, bolts, etc.)
for reassembly. If the fastener is not salvageable, a
fastener of equivalent specification must be used.
INTERNATIONAL CONTROL AND DISPLAY SYMBOLS
Fig. 4
Fig. 5 Thread Notation Chart – SAE and Metric
4 INTRODUCTION TJ
GENERAL INFORMATION (Continued)

FASTENER IDENTIFICATION
TJ INTRODUCTION 5
GENERAL INFORMATION (Continued)

FASTENER STRENGTH
6 INTRODUCTION TJ
GENERAL INFORMATION (Continued)

THREADED HOLE REPAIR
Most stripped threaded holes can be repaired using
a Helicoilt. Follow the manufactures recommenda-
tions for application and repair procedures.

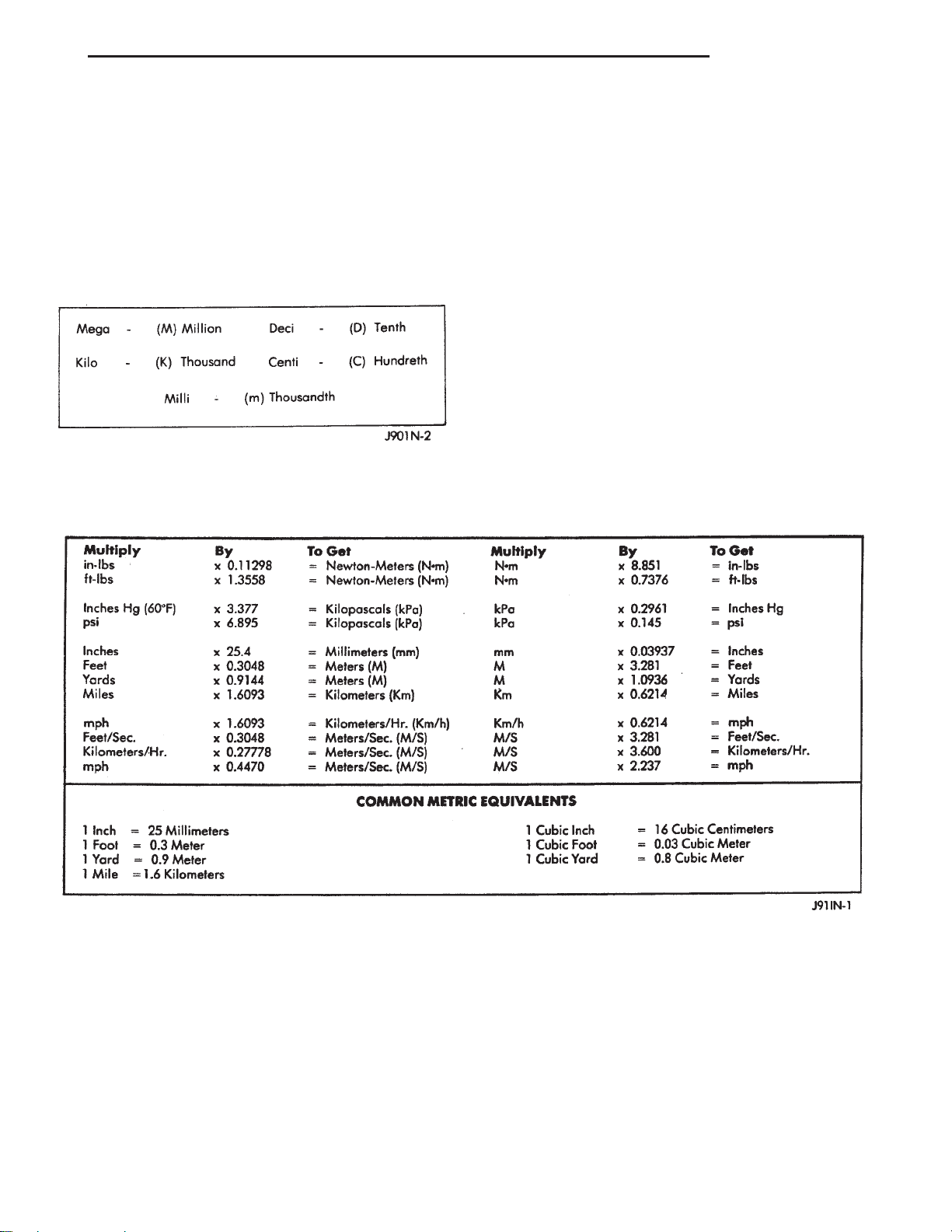

METRIC SYSTEM
The metric system is based on quantities of one,
ten, one hundred, one thousand and one million (Fig.
6).
The following chart will assist in converting metric
units to equivalent English and SAE units, or vice
versa.
Refer to the Conversion Chart to convert torque
values listed in metric Newton- meters (N·m). Also,
use the chart to convert between millimeters (mm)
and inches (in.)
Fig. 6 Metric Prefixes
CONVERSION FORMULAS AND EQUIVALENT VALUES
TJ INTRODUCTION 7
GENERAL INFORMATION (Continued)

METRIC CONVERSION
8 INTRODUCTION TJ
GENERAL INFORMATION (Continued)

TORQUE REFERENCES
Individual Torque Charts appear at the end of
many Groups. Refer to the Standard Torque Specifi-
cations Chart for torque references not listed in the
individual torque charts.
TORQUE SPECIFICATIONS
TJ INTRODUCTION 9
GENERAL INFORMATION (Continued)

INTRODUCTION
CONTENTS
page page
GENERAL INFORMATION
BODY CODE PLATE ...................... 2
INTERNATIONAL VEHICLE CONTROL AND
DISPLAY SYMBOLS .................... 4
VEHICLE IDENTIFICATION NUMBER ......... 1
VEHICLE SAFETY CERTIFICATION LABEL ..... 2
GENERAL INFORMATION
VEHICLE IDENTIFICATION NUMBER
The Vehicle Identification Number (VIN) plate is
located on the lower windshield fence near the left
A-pillar. The VIN contains 17 characters that provide
data concerning the vehicle. Refer to the VIN decod-
ing chart to determine the identification of a vehicle.
The Vehicle Identification Number is also
imprinted on the:
•Body Code Plate.
•Vehicle Safety Certification Label.
•Frame rail.
To protect the consumer from theft and possible
fraud the manufacturer is required to include a
Check Digit at the ninth position of the Vehicle Iden-
tification Number. The check digit is used by the
manufacturer and government agencies to verify the
authenticity of the vehicle and official documenta-
tion. The formula to use the check digit is not
released to the general public.
VEHICLE IDENTIFICATION NUMBER DECODING CHART
POSITION INTERPRETATION CODE = DESCRIPTION
1 Country of Origin 1 = United States
2 Make J = Jeep
3 Vehicle Type 4 = MPV
4 Gross Vehicle Weight Rating E = 3001-4000 lbs.
F = 4001-5000 lbs.
5 Vehicle Line Y = Wrangler 4X4
6 Series 1 = Sport
2=SE
4 = Sahara
7 Body Style 9 = Open Body
8 Engine P = 2.5L Gasoline
S = 4.0L Gasoline
9 Check Digit
10 Model Year X = 1999
11 Assembly Plant P = Toledo #2
12 thru 17 Vehicle Build Sequence
TJ INTRODUCTION 1

VEHICLE SAFETY CERTIFICATION LABEL
A vehicle safety certification label (Fig. 1) is
attached to every Chrysler Corporation vehicle. The
label certifies that the vehicle conforms to all appli-
cable Federal Motor Vehicle Safety Standards. The
label also lists:
•Month and year of vehicle manufacture.
•Gross Vehicle Weight Rating (GVWR). The gross
front and rear axle weight ratings (GAWR’s) are
based on a minimum rim size and maximum cold tire
inflation pressure.
•Vehicle Identification Number (VIN).
•Type of vehicle.
•Bar code.
•Month, Day and Hour (MDH) of final assembly.
•Paint and Trim codes.
•Country of origin.
The label is located above the door hinge on the
driver-side A-pillar.
BODY CODE PLATE
LOCATION AND DECODING
A metal body code plate is attached to the floor pan
under the drivers seat (Fig. 2). Disengage the snaps
attaching the carpet to the floor pan to read the
information. There are seven lines of information on
the body code plate. Lines 4, 5, 6, and 7 are not used
to define service information. Information reads from
left to right, starting with line 3 in the center of the
plate to line 1 at the bottom of the plate (Fig. 3).
The last code imprinted on a vehicle code plate will
be followed by the imprinted word END. When two
vehicle code plates are required, the last available
spaces on the first plate will be imprinted with the
letters CTD (for continued).
When a second vehicle code plate is necessary, the
first four spaces on each row will not be used because
of the plate overlap.
Fig. 1 Vehicle Safety Certification Label—Typical
Fig. 2 Body Code Plate Location
Fig. 3 Body Code Plate Decoding
2 INTRODUCTION TJ
GENERAL INFORMATION (Continued)

BODY CODE PLATE—LINE 3
DIGITS 1 THROUGH 12
Vehicle Order Number
DIGITS 13, 14, AND 15
Roof
•VJN = Soft Top White
•VJU = Soft Top Spice
•VJX = Soft Top Black
•VKN = Hard Top White
•VKU = Hard Top Spice
•VKX = Hard Top Black
DIGITS 16, 17, AND 18
Car Line Shell
•TJJ = Wrangler (LHD)
•TJU = Wrangler (RHD)
DIGIT 19
Price Class
•L = Wrangler (All)
DIGITS 20 AND 21
Body Type
•77 = Wheel Base (93.4 in.)
BODY CODE PLATE—LINE 2
DIGITS 1,2, AND 3
Paint Procedure
DIGIT 4
Open Space
DIGITS 5 THROUGH 8
Primary Paint
Refer to Group 23, Body for color codes.
DIGIT 9
Open Space
DIGITS 10 THROUGH 13
Secondary Paint
DIGIT 14
Open Space
DIGITS 15 THROUGH 18
Interior Trim Code
DIGIT 19
Open Space
DIGITS 20, 21, AND 22
Engine Code
•EPE = 2.5 L 4 cyl. MPI Gasoline
•ERH = 4.0L 6 cyl. MPI Gasoline
BODY CODE PLATE—LINE 1
DIGITS 1, 2, AND 3
Transmission Codes
•DDQ = AX5 5–speed Manual
•DDO = AX15 5–speed Manual
•DGD = 30RH 3–speed Automatic
•DGG = 32RH 3–speed Automatic
DIGIT 4
Open Space
DIGIT 5
Market Code
•B = International
DIGIT 6
Open Space
DIGITS 7 THROUGH 23
Vehicle Identification Number (VIN)
Refer to Vehicle Identification Number (VIN) para-
graph for proper breakdown of VIN code.
TJ INTRODUCTION 3
GENERAL INFORMATION (Continued)

INTERNATIONAL VEHICLE CONTROL AND
DISPLAY SYMBOLS
INTERNATIONAL VEHICLE CONTROL
AND DISPLAY SYMBOLS
The graphic symbols illustrated in the following
International Control and Display Symbols chart are
used to identify various instrument controls. The
symbols correspond to the controls and displays that
are located on the instrument panel.
INTERNATIONAL CONTROL AND DISPLAY SYMBOLS
Fig. 4
4 INTRODUCTION TJ
GENERAL INFORMATION (Continued)

June 7, 2002June 7, 2002

June 7, 2002June 7, 2002

June 7, 2002June 7, 2002

June 7, 2002June 7, 2002

June 7, 2002June 7, 2002
