JENN-AIR® DETAILED PLANNING DIMENSIONS 1 of 3
JRC120112 07/2012
DIShwAShERS
JDB8700AW, JDB8200AW, JDB8000AW – 233/4" x 337/8" x 267/8"
PRODUCT DIMENSIONS
FRONT VIEW
MODEL #
JDB8700AW
JDB8200AW
JDB8000AW
in cm
AWidth of door 231/259.7
BWidth of toe kick 231/259.6
C
Height to top of handle
Pro-Style®Stainless 291/873.9
Euro-Style (color-coordinating) 277/870.8
DHeight of door 30 76.3
EHeight of adjustable toe kick (min.-max.) 31/2-41/88.9-10.5
FWidth of recessed dishwasher 233/460.4
GDepth with tub flange 225/857.4
HDepth with door 245/862.6
I
Depth with handle
Pro-Style®Stainless 277/870.8
Euro-Style (color-coordinating) 267/868.3
JDepth with door fully open 493/4126.3
TOP VIEW
A
B
D
C
E
F
G
H
I
J
A*
B*
C*
D*
I
E*
H
G
F
JFloor
Wall
A
B
D
C
E
F
G
H
I
J
A*
B*
C*
D*
I
E*
H
G
F
JFloor
Wall
A
B
D
C
E
F
G
H
I
J
A*
B*
C*
D*
I
E*
H
G
F
JFloor
Wall
ADJUSTABLE TOE KICK

Product dimension, cutout and installation specifications are provided for planning purposes only. Before installing
any product, be sure to verify cutout dimensions and electrical/gas connections as actual product dimensions may vary.
JENN-AIR® DETAILED PLANNING DIMENSIONS 2 of 3
JRC120112 07/2012
SIDE VIEW
DIMENSIONS AS INSTALLED
A
B
D
C
E
F
G
H
I
J
A*
B*
C*
D*
I
E*
H
G
F
JFloor
Wall
MODEL #
JDB8700AW
JDB8200AW
JDB8000AW
in cm
A* Height to top of tub flange (min.) 337/886.0
B* Height to top of door (min.) 333/485.7
C*
Height to top of handle (min.)
Pro-Style®Stainless 313/480.6
Euro-Style (color-coordinating) 311/280.1
D* Height to bottom of door 35/89.4
E* Height of recessed
dishwasher (min.) 335/885.5
FDepth with door fully open (min.) 493/4126.3
G
Depth with handle (min.)
Pro-Style®Stainless 277/870.8
Euro-Style (color-coordinating) 267/868.3
HDepth with door (min.) 245/862.6
IDepth with tub flange (min.) 225/857.4
JDepth with toe kick (min.) 207/852.9
*With wheels removed. Add up to 5/8" (1.6 cm) to height with
wheels and leg levelers fully extended.
DIShwAShERS
JDB8700AW, JDB8200AW, JDB8000AW – 233/4" x 337/8" x 267/8"

Product dimension, cutout and installation specifications are provided for planning purposes only. Before installing
any product, be sure to verify cutout dimensions and electrical/gas connections as actual product dimensions may vary.
JENN-AIR® DETAILED PLANNING DIMENSIONS 3 of 3
JRC120112 07/2012

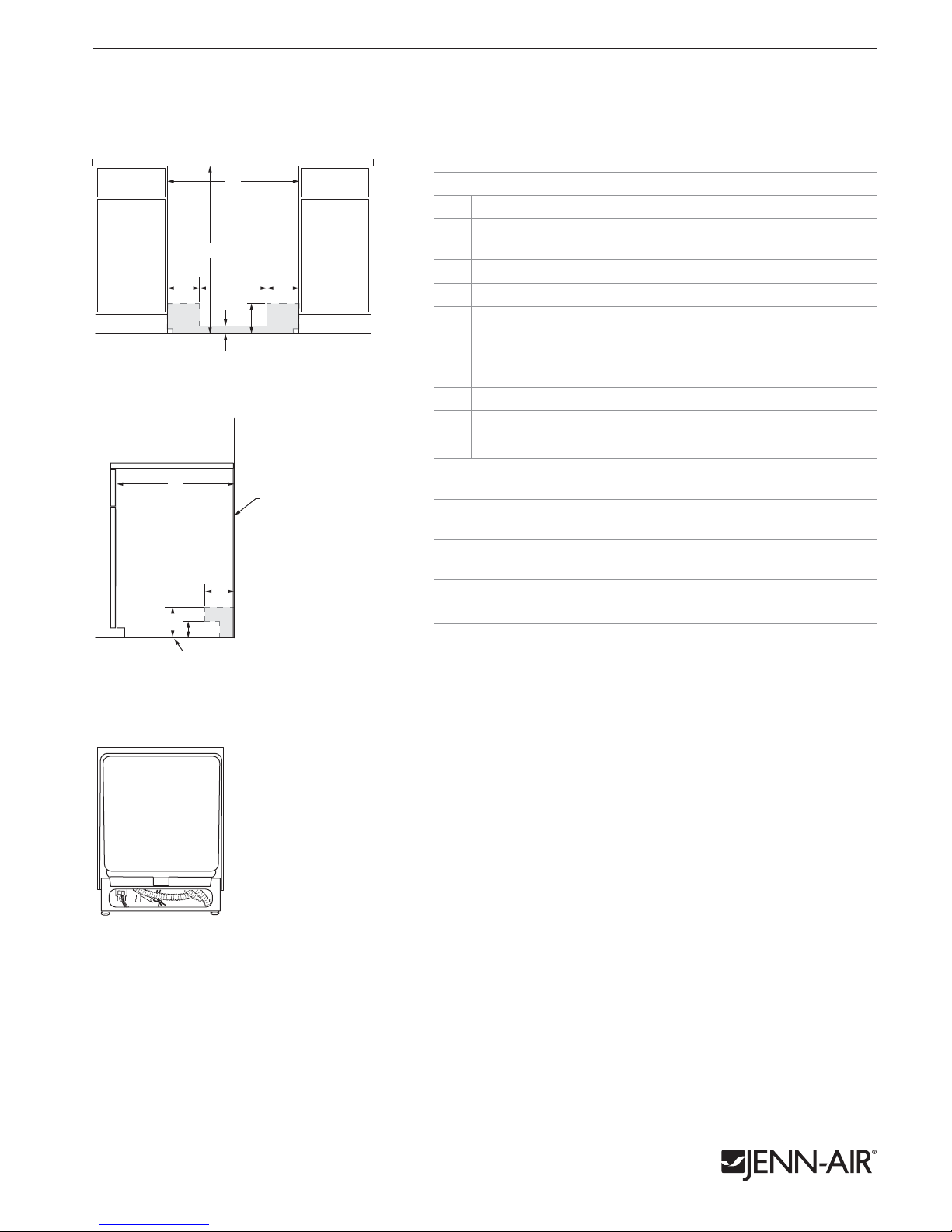

OPENING/CLEARANCE DIMENSIONS
BACK VIEW
DIShwAShERS
JDB8700AW, JDB8200AW, JDB8000AW – 233/4" x 337/8" x 267/8"
FRONT VIEW
F
Floor
Wall
D*
A
H
B C B
I
FG
E
F
Floor
Wall
D*
A
H
B C B
I
FG
E
SIDE VIEW
MODEL #
JDB8700AW
JDB8200AW
JDB8000AW
in cm
AWidth (min.) 24 61.0
BWidth of possible utility installation area
(back wall) 63⁄417.2
CWidth of clear area (back wall) 101⁄226.7
D* Height with wheels removed (min.) 337⁄886.0
EHeight of possible utility installation area
(back wall) 21⁄26.4
FHeight of possible utility installation area
(back/side wall) 61⁄415.9
GHeight of clear area (side wall) 3 7.6
HDepth (min.) 24 61.0
IDepth of utility location (side wall) 4 10.2
Electrical, water and drain connections
may be installed in shaded areas
Recommended drain connection location –
closest to sink 11⁄2dia. 3.8 dia.
Recommended electrical connection location –
right-hand side or back wall 11⁄2dia. 3.8 dia.
Recommended water connection location –
left-hand side or back wall 1⁄2dia. 1.3 dia.
*Measured from the lowest point on the underside of countertop.
ELECTRICAL REQUIREMENTS
120 volt, 60 Hz, AC only, 15- or 20-amp fused, grounded circuit is required.
A dedicated circuit is recommended. Use an outlet that cannot be turned off
by a switch. Do not use an extension cord.
WATER SUPPLY REQUIREMENTS
120°F (49°C) hot water supply with water pressure between 20 and
120 psi (138 and 862 kPa) is required. If you have questions about your
water pressure, call a licensed, qualified plumber.
DRAIN REQUIREMENTS
Connect drain hose to waste tee or disposer inlet above drain trap.
Maximum drain hose length 12' (3.7 m).
LOCATION REQUIREMENTS
Corner locations require a 2" (5.1 cm) minimum clearance between
the side of the dishwasher door and the wall or cabinet.
F
Floor
Wall
D*
AH
B C B I
FG
E
