Jenn-Air M167 Series User manual

JENN-AIR
_Wm °

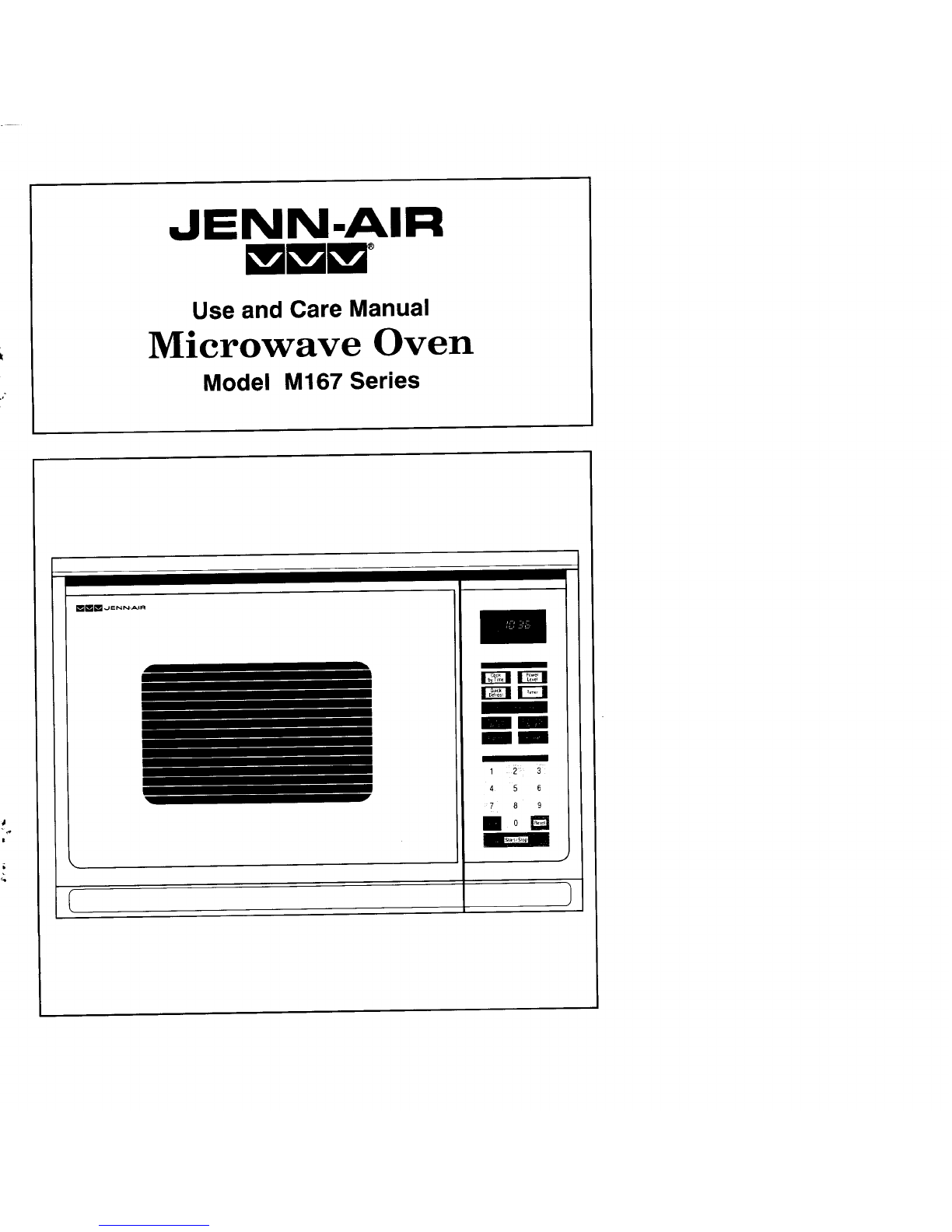

Use and Care Manual
Microwave Oven
Model M167 Series
LqPJ[_JLqFJ,JENN.AI R
_Q
mn
mn ii
I3'
456
7 8 )
'_ mo_
m
J

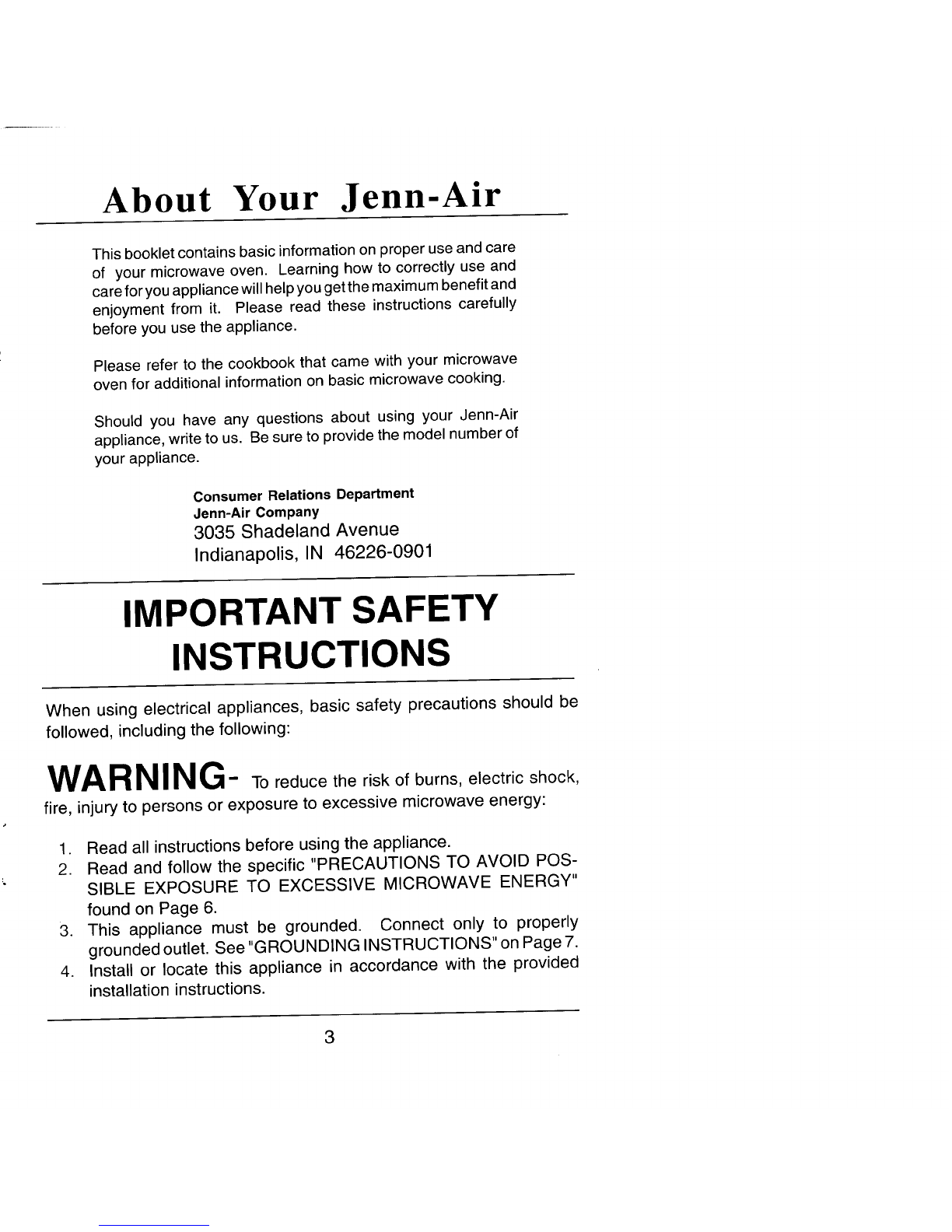

About Your Jenn-Air
This booklet contains basic information on proper use and care
of your microwave oven. Learning how to correctly useand
care for you appliance will help you get the maxim um benefit and
enjoyment from it. Please read these instructions carefully
before you use the appliance.
iPlease refer to the cookbook that came with your microwave
oven for additional information on basic microwave cooking.
Should you have any questions about using your Jenn-Air
appliance, write to us.Be sure to provide the model number of
your appliance.
Consumer Relations Department
Jenn-Air Company
3035 Shadeland Avenue
Indianapolis, IN 46226-0901
IMPORTANT SAFETY
INSTRUCTIONS
When using electrical appliances, basic safety precautions should be
followed, including the following:
WARNING-Toreduce the risk of burns, electric shock,
fire, injury to persons or exposure to excessive microwaveenergy:
1. Read all instructions beforeusing the appliance.
2. Read and follow thespecific"PRECAUTIONS TO AVOID POS-
SIBLE EXPOSURETO EXCESSIVEMICROWAVEENERGY"
found on Page6.
3. This appliance must be grounded. Connect only to properly
groundedoutlet.See "GROUNDINGINSTRUCTIONS"onPage7.
4.Install or locate this appliance in accordance with the provided
installation instructions.
3

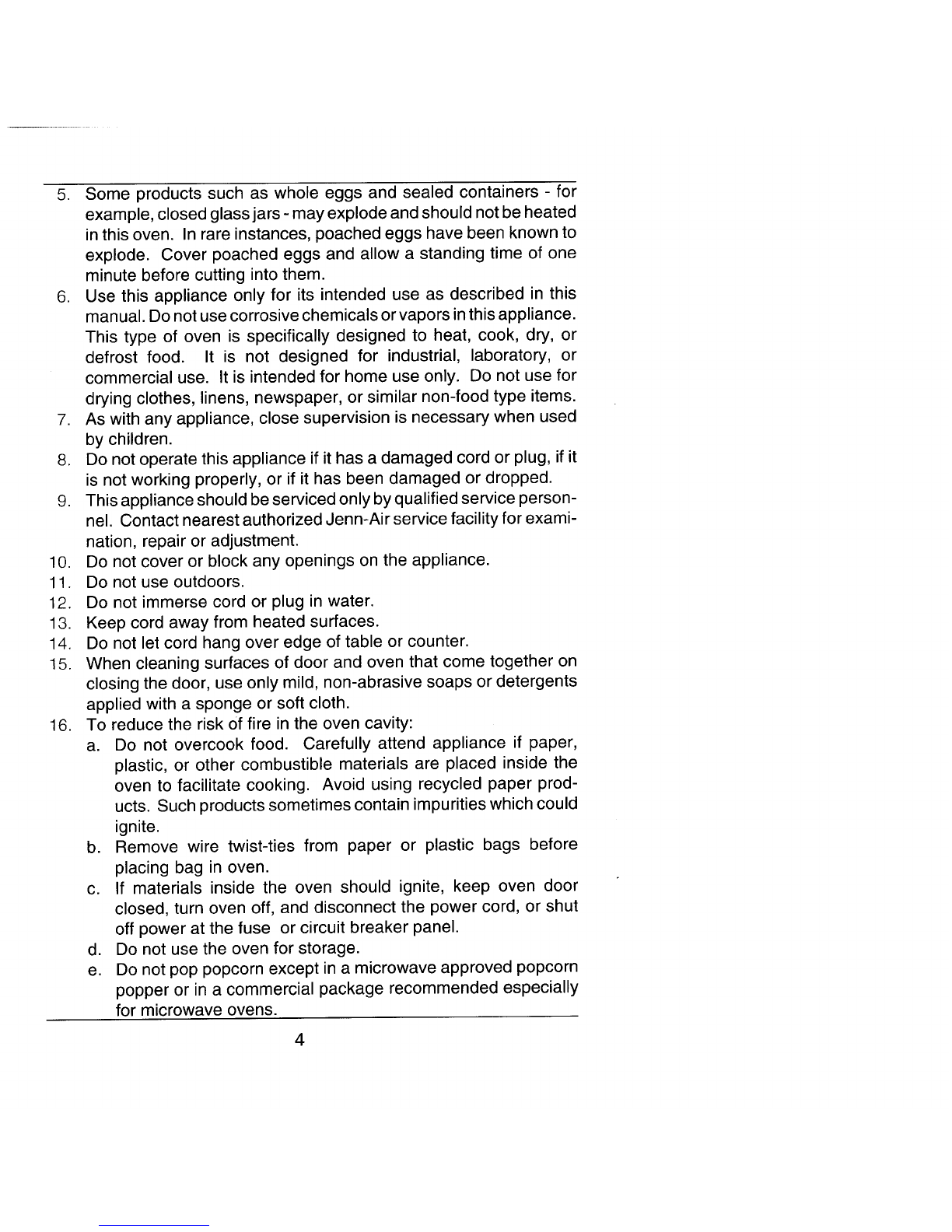

5.Some products such as whole eggs and sealed containers - for
example, closed glass jars - may explode and should not be heated
in this oven. In rare instances, poached eggs have been known to
explode. Cover poached eggs and allow a standing time of one
minute before cutting into them.
6. Use this appliance only for its intended use as described in this
manual. Do not use corrosive chemicals or vapors in this appliance.
This type of oven is specifically designed to heat, cook, dry, or
defrost food. It is not designed for industrial, laboratory, or
commercial use. It is intended for home use only. Do not use for
drying clothes, linens, newspaper, or similar non-food type items.
7. As with any appliance, close supervision is necessary when used
by children.
8.Do not operate this appliance if it has a damaged cord or plug, if it
is not working properly, or if it has been damaged or dropped.
9. This appliance should be serviced only by qualified service person-
nel. Contact nearest authorized Jenn-Air service facility for exami-
nation, repair or adjustment.
10. Do not cover or block any openings on the appliance.
11. Do not use outdoors.
12.Do not immerse cord or plug in water.
13. Keep cord away from heated surfaces.
14.Do not let cord hang over edge of table or counter.
15. When cleaning surfaces of door and oven that come together on
closing the door, use only mild, non-abrasive soaps or detergents
applied with a sponge or soft cloth.
16. To reduce the risk of fire in the oven cavity:
a. Do not overcook food.Carefully attend appliance if paper,
plastic, or other combustible materials are placed inside the
oven to facilitate cooking. Avoid using recycled paper prod-
ucts.Such products sometimes contain impurities which could
ignite.
b. Remove wire twist-ties from paper or plastic bags before
placing bag in oven.
c. If materials inside the oven should ignite, keep oven door
closed, turn oven off, and disconnect the power cord, or shut
off power at the fuse or circuit breaker panel.
d. Do not use the oven for storage.
e. Do not pop popcorn except in a microwave approved popcorn
popper or in a commercial package recommended especially
for microwave ovens.
4

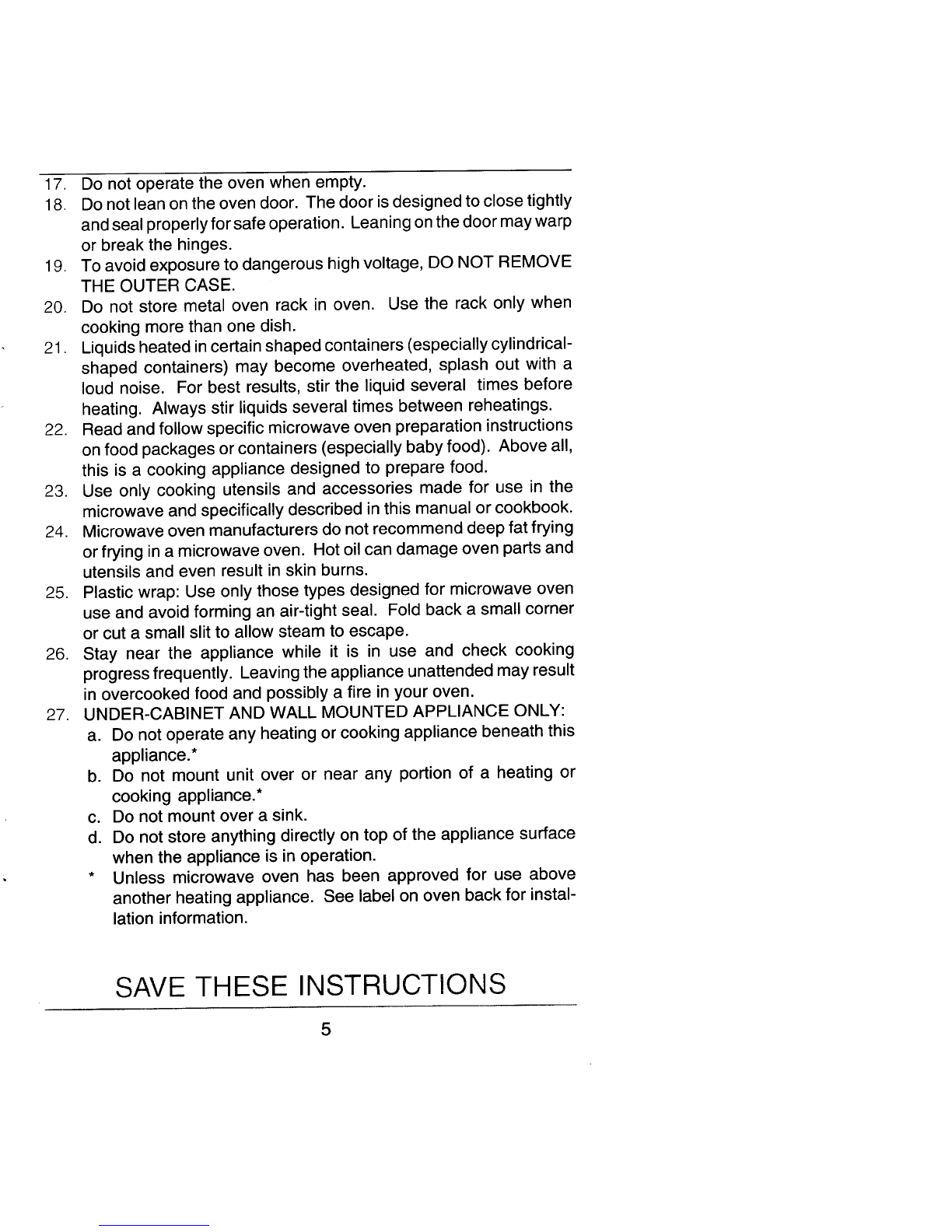

17.Do not operate the oven when empty.
18.Do not lean on the oven door. The door is designed to close tightly
and seal properly for safe operation. Leaning onthe door may warp
or break the hinges.
19.To avoid exposure to dangerous high voltage, DO NOT REMOVE
THE OUTER CASE.
20. Do not store metal oven rack in oven. Use the rack only when
cooking more than one dish.
21. Liquids heated in certain shaped containers (especially cylindrical-
shaped containers) may become overheated, splash out with a
loud noise.For best results,stir the liquid several times before
heating.Always stir liquids several times between reheatings.
22. Read and follow specific microwave oven preparation instructions
on food packages or containers (especially baby food).Above all,
this is a cooking appliance designed to prepare food.
23. Use only cooking utensils and accessories made for use in the
microwave and specifically described in this manual or cookbook.
24. Microwave oven manufacturers do not recommend deep fat frying
or frying in a microwave oven. Hot oil can damage oven parts and
utensils and even result in skin burns.
25. Plastic wrap: Use only those types designed for microwave oven
use and avoid forming an air-tight seal. Fold back a small corner
or cut a small slit to allow steam to escape.
26.Stay near the appliance while it is in use and check cooking
progress frequently. Leaving the appliance unattended may result
in overcooked food and possibly a fire in your oven.
27. UNDER-CABINET AND WALL MOUNTED APPLIANCE ONLY:
a. Donot operate any heating or cooking appliance beneath this
appliance.*
b. Do not mount unit over or near any portion of a heating or
cooking appliance.*
c. Do not mount over a sink.
d.Do not store anything directly on top of the appliance surface
when the appliance is in operation.
* Unless microwave oven has been approved for use above
another heating appliance. See label on oven back for instal-
lation information.
SAVE THESE INSTRUCTIONS
5

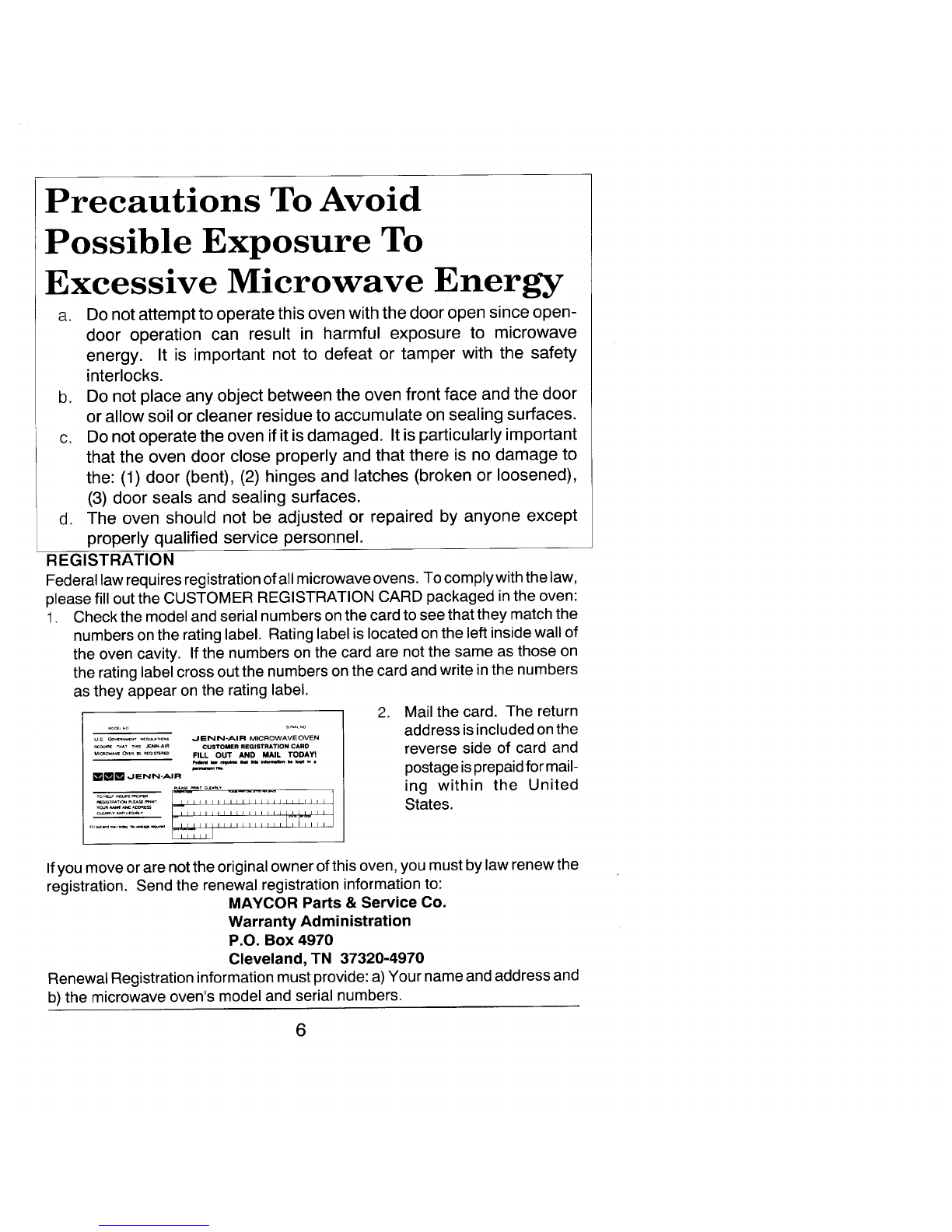

Precautions To Avoid
Possible Exposure To
Excessive Microwave Energy
a. Do not attempt to operate this oven with the door open since open-
door operation can result in harmful exposure to microwave
energy. It is important not to defeat or tamper with the safety
interlocks.
b.Do not place any object between the oven front face and the door
or allow soil or cleaner residue to accumulate on sealing surfaces.
c. Do not operate the oven if itis damaged. It is particularly important
that the oven door close properly and that there is no damage to
the: (1) door (bent), (2) hinges and latches (broken or loosened),
(3) door seals and sealing surfaces.
d. The oven should not be adjusted or repaired by anyone except
properly qualified service personnel.
REGISTRATION
Federallawrequiresregistrationofallmicrowaveovens. Tocomplywiththe law,
pleasefill out the CUSTOMER REGISTRATION CARD packaged in the oven:
1.Checkthe modeland serial numbersonthe cardto seethatthey matchthe
numbersonthe ratinglabel. Ratinglabelislocatedonthe leftinsidewall of
theoven cavity. If the numberson the card are notthe same as those on
the ratinglabel crossout the numberson thecard andwrite in thenumbers
as they appear onthe rating label. 2. Mail the card. The return
............... addressisincludedonthe
usGO_..ME_T._U_T,O.S ,JENN-AIR MICROWAVEOVEN
........................................... reverse side of card and
_,_,_ m_.e_.EQ,S_._D FILL OUT AND MAIL TODAY!
----................ postageisprepaidfor mail
mmmJ_N-A,-_._,..,_., ing within the United
_"Z',_-",;"_ _ States.
Ifyou moveor arenotthe originalownerofthis oven,you mustby lawrenewthe
registration.Send the renewal registration information to:
MAYCORParts&Service Co.
Warranty Administration
P.O. Box 4970
Cleveland,TN 37320-4970
RenewalRegistrationinformationmustprovide:a)Yournameandaddressand
b)themicrowaveoven'smodeland serialnumbers.
6

Grounding Instructions
This appliance must be grounded. In the eventof an electrical short circuit,
grounding reduces the risk of electric shock by providing an escape wire for the
electric current.This appliance is equipped with a cord having a grounding wire
with a grounding plug. The plug must be plugged into an outlet that is properly
installed and grounded.
WARNING- ofthe grounding plug can result in
a risk of electric shock.
Consult a qualified electrician or serviceman ifthe grounding instructions are not
completely understood, or if doubt exists as to whether the appliance is properly
grounded.
Use of an extension cord is not recommended, but if it is absolutely necessary
to use an extension cord, use only a 3-wire extension cord that has a 3-blade
grounding plug, and a3 slot receptacle that will accept the plug on the appliance.
The marked rating of the extensioncord shall beequal to or greater than the
electrical rating of the appliance.
Where an electrical wall receptacleis encountered which will accept only a two-
prong plug, it is the personal responsibility andobligationof the owner to
contact a qualified electrician and have the outlet replaced with a properly
grounded and polarized receptaclefora three-prong,grounding plug.
Such receptaclemust also meet localelectrical codes, ifapplicable, and/or the
National Electrical Code.
Iflocal codespermit, a temporary connection may bemadeto a properly
grounded and polarized, two-hole outlet using anadapter. Note, however, that
attaching the adapter grounding terminal to the outlet cover screw will not
ground the oven unless the outlet itself is grounded through the house wiring.
Proper grounding and polarization forthe use ofa temporary adapter arethe
personal responsibility and obligation oftheowner
•IMPORTANT
The above grounding instructions must be followed not only for your
personal protection against shock and firehazards, but alsoto insure
satisfactory operation of the electronic controls. In addition to proper
grounding, a polarity check of the outlet should be made to insure that
polarity is not reversed.Improper grounding or reversed polarity can
damage the electronic control or cause it to operate erratically.
7

Installation
Remove all packing materials bothoutside and insidethe oven before using the oven.
Theoven canbe set on anysturdy counter,shelf, table, room divideror rollingcart. The
ovenrequires free movement ofair for proper operation. DO NOT BLOCK AIR VENTS
located acrossthe top and underneath the oven. Also,do not remove the feet from the
bottom of the oven.
Mounting Above Wall Ovens
The M167 microwave oven is approved for mounting directly over Jenn-Air Wall
Ovens as follows:
Wl00 Series using Jenn-Air A526 or A530 trim kit;
W110 Series using Jenn-Air A424 trim kit;
W130 Series using Jenn-Air A526 or A530 trim kit; and
W150 Series using Jenn-Air A526 or A530 trim kit.
Interference Note
Microwave ovens generate radio frequency energy during operation, and if not
installed properly may cause interference to radio and television reception. You
can determine ifthis unit iscausing interference by turning it on and offwhile the
interference is occurring. If interference occurs it may be corrected by one or
more of the following measures:
•reorient the receiving antenna;
•relocate the oven with respect to the receiver; and/or
•plug the oven into a different outlet so that itand the receiver are on different
circuits.
If the interference persists, you may want to consult an experienced radio/
television technician for additional suggestions.
8

Oven Operation
Plastic Stirrer Cover. Light Cover. Easily
removedto replace
Protectsthestirrer blade
from soilor bending. Thelightby removing one
screw. Use onlya 25
Metal Rack. Accessory stirrercovershouldnot bewatt light. Lightwill
usedtogivethe microwave removed.turn on whileoven isin
oven cooking flexibility, operationorwhen door
Offers the user the option is
of cooking or reheating
more than one food at a Display Windows.
time.f
I
IIRemovableGlass Shelf.
!/7
-_ Touch Control Panel.
To view the (See more detailed dia-
foodswhile cooking.No gram of control panel on
microwaves can pass
/page 10.)
Door Lat/h. These will through themetalshield
slideintothe interlock.If inthiswindow.
door isnot completely SafetylnterlockSystem.
closedthe oven willnot Safety latches in themi-
operate,crowaveoven door. All
ovenshaveat least two
latcheswhich stop the
operationoftheovenwhen
thedoor is opened.
9

Touch Control Panel
DISPLAY WINDOW
PROMPT
Cook by Time Pad.. -- CookE --_--Power ------ Power Level Pad.
See p.12. =------byTime_- _- Level_'See pp. 14-15,
Quick Defrost Pad. _ Quick_-------_------- _------ Timer Pad.
• _ Defrost Z Z Timer __
See p. 15. See p.11.
.Frozen Convenience
Frozen C(lllV£fliP_l!CC Pad.*See pp. 18-19.
Cook by Weight Pad.* __ _Defrost by Weight Pad.*
See pp.23-24. _ _ 3ee pp. 16-17.
Popcorn Pad.- ,Reheat Pad.*
See p. 12. See pp.20-22.
::::::m:::::::: ::::::::::::::::: :::::::::::::::::
;iiiY; 2,ii;ii;iii;;;,3111111
Number Pads.
Pushtoentercooking iiiiii4!iiill!iiiiiSiiiiiiiiiiii6iiiiii
time, power levels, '..................................................Reset Pad.
codes or amounts. _ _ i_ _/Push to clear dis-
play of incorrect
iiiiii'6'iiiiii_,/entry,
Clock Pad. Push iiii!!_;iii!!
twice toset time of -- Start/Stop Pad.
day oronceto recall_=_=Start/St°p_'Push to startor stop
itinto theDisplay cooking.
Window._,
*These four Codes have been preset to defrost, cook, or heat foods thatare most
commonly prepared ina microwaveoven. Eachcode haspreprogrammed cooking
times and power levels. All you have to select isthe code and weight or amount.
10

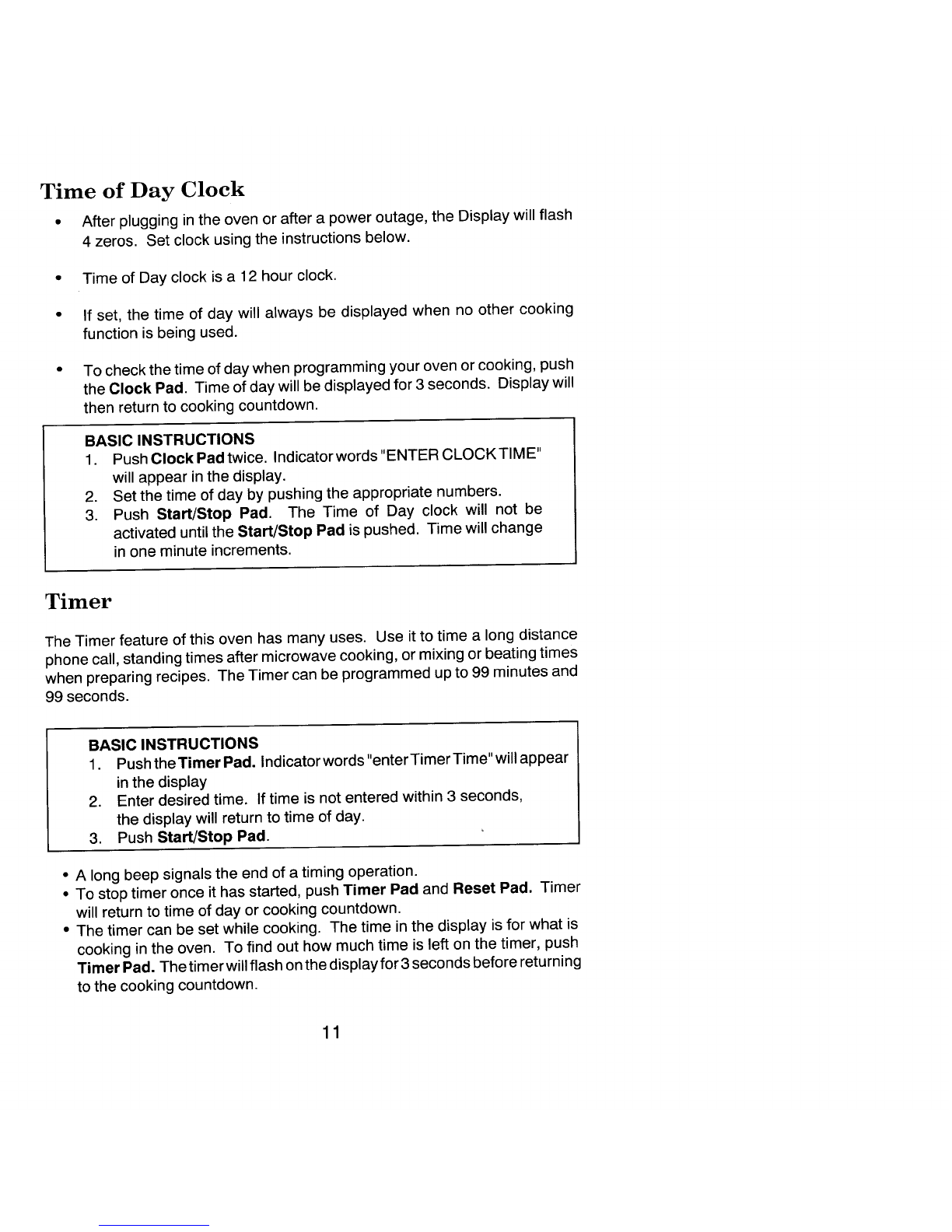

Time of Day Clock
• After plugging inthe oven or after a power outage, the Display willflash
4 zeros. Set clock using the instructions below.
• Time of Day clock is a 12hour clock.
• If set, the time of day will always bedisplayed when no othercooking
function is being used.
• Tocheckthetime ofdaywhen programming your ovenor cooking,push
theClock Pad.Time of day will be displayed for 3 seconds. Display will
then returnto cooking countdown.
BASICINSTRUCTIONS
1. PushClock Padtwice. Indicatorwords"ENTERCLOCKTIME"
willappearinthedisplay.
2. Setthetimeof claybypushingthe appropriatenumbers.
3. Push Start/Stop Pad. The Timeof Day clock will not be
activateduntiltheStart/Stop Pad ispushed.Timewillchange
inone minuteincrements.
Timer
The Timer feature of this oven has many uses.Use it to time a long distance
phone call, standing times after microwave cooking, or mixing or beatingtimes
when preparing recipes. The Timer can beprogrammed upto 99 minutesand
99 seconds.
BASICINSTRUCTIONS
1. PushtheTimerPad. Indicatorwords"enterTimerTime"willappear
inthedisplay
2. Enterdesiredtime. Iftimeisnotenteredwithin3 seconds,
thedisplaywillreturntotimeofday.
3. PushStart/Stop Pad.
• A longbeepsignalsthe end ofa timingoperation.
•To stoptimeronceithas started,pushTimer PadandReset Pad. Timer
willreturntotimeofdayorcookingcountdown.
•Thetimercanbeset whilecooking. Thetime inthe displayisforwhat is
cookingintheoven. Tofind outhowmuchtimeisleftonthetimer,push
Timer Pad. Thetimerwillflashonthedisplayfor3secondsbeforereturning
tothecookingcountdown.
11
