JENN-AIR® DETAILED PLANNING DIMENSIONS 1 of 4
JRC120003A 07/2012
30" cOMbINATION MIcROwAvE/wALL OvENS
JMW3430W, JMW2430W, JMW2330W – 293⁄4" x 431⁄8" x 263⁄4"
FRONT VIEW
TOp VIEW
MODEL #
JMW3430W
JMW2430W
JMW2330W
in cm
A
Overall width
Pro-Style®Stainless, Euro-Style Stainless
or Oiled Bronze 293⁄475.6
Floating Glass 295⁄875.3
BHeight of control panel 6 15.2
CSpace between control panel and door 3⁄80.9
D
Height to top of microwave oven handle
Pro-Style®Stainless 111⁄428.7
Euro-Style (color-coordinating) 11 28.0
EHeight of microwave oven door 125⁄831.9
FSpace between doors 1 2.4
G
Height to top of oven handle
Pro-Style®Stainless 201⁄451.4
Euro-Style (color-coordinating) 20 50.7
HHeight of oven door 215⁄854.9
IHeight of trim 11⁄24.0
JOverall height 431⁄8109.4
KWidth of recessed oven 281⁄471.8
LWidth of conduit channel 35⁄89.3
MDepth of recessed oven 237⁄860.5
NDepth with doors 243⁄462.8
O
Depth with handles
Pro-Style®Stainless 271⁄469.2
Euro-Style (color-coordinating) 263⁄468.0
pDepth with door fully open 453⁄8115.2
PRODUcT DIMENSIONS
Bottom of Cabinet
Back of Cabinet
F
A
B
G
H
I
D
E
C
A
BC
D
E
F
G
H
I
J
Conduit Channel
K
A
M
N
O
P
L L
Power Supply Location
Bottom of Cabinet
Back of Cabinet
F
A
B
G
H
I
D
E
C
A
BC
D
E
F
G
H
I
J
Conduit Channel
K
A
M
N
O
P
L L
Power Supply Location

Product dimension, cutout and installation specifications are provided for planning purposes only. Before installing
any product, be sure to verify cutout dimensions and electrical/gas connections as actual product dimensions may vary.
JENN-AIR® DETAILED PLANNING DIMENSIONS 2 of 4
JRC120003A 07/2012
SIDE VIEW
30" cOMbINATION MIcROwAvE/wALL OvENS
JMW3430W, JMW2430W, JMW2330W – 293⁄4" x 431⁄8" x 263⁄4"
MODEL #
JMW3430W
JMW2430W
JMW2330W
in cm
A
Height to top of upper handle
Pro-Style®Stainless 351⁄889.4
Euro-Style
(color-coordinating) 347⁄888.7
B
Height to top of lower handle
Pro-Style®Stainless 211⁄255.1
Euro-Style
(color-coordinating) 213⁄854.4
CHeight of trim extending
below cutout 1⁄40.6
DHeight of recessed oven 41 104.2
EHeight to top of control panel 43 109.1
FDepth with door fully open 453⁄8115.2
G
Depth with handles
Pro-Style®Stainless 271⁄469.2
Euro-Style
(color-coordinating) 263⁄468.0
HDepth with doors 243⁄462.8
IDepth of recessed oven 237⁄860.5
DIMENSIONS AS INSTALLED
Bottom of Cabinet
Back of Cabinet
F
A
B
G
H
I
D
E
C
A
BC
D
E
F
G
H
I
J
Conduit Channel
K
A
M
N
O
P
L L
Power Supply Location

Product dimension, cutout and installation specifications are provided for planning purposes only. Before installing
any product, be sure to verify cutout dimensions and electrical/gas connections as actual product dimensions may vary.
JENN-AIR® DETAILED PLANNING DIMENSIONS 3 of 4
JRC120003A 07/2012
Bottom of Cabinet
Back of Cabinet
F
A
B
G
H
I
D
E
C
A
BC
D
E
F
G
H
I
J
Conduit Channel
K
A
M
N
O
P
L L
Power Supply Location
30" cOMbINATION MIcROwAvE/wALL OvENS
JMW3430W, JMW2430W, JMW2330W – 293⁄4" x 431⁄8" x 263⁄4"
A
B
C*
A
B
C*
G
G
e
e
A
B
C
e
E
D
D
D
F
E
F
E
F
B
C*
ee
F
A
H
A
B
C*
A
B
C*
G
G
e
e
A
B
C
e
E
D
DD
F
E
F
E
F
B
C*
ee
F
A
H
FRONT VIEW SIDE VIEW
MODEL #
JMW3430W
JMW2430W
JMW2330W
in cm
AWidth of cabinet (min.) 30 76.2
BWidth of cutout 281⁄272.4
CHeight of cutout 411⁄4104.8
DTop of cutout to bottom
of upper cabinet door (min.) 2 5.1
EBottom of cutout to top
of lower cabinet door (min.) 11⁄23.8
FBottom of cutout to floor 45⁄8-
191⁄4
11.7-
48.9
GDepth of cutout (min.) 24 61.0
eRecommended junction box location
ELECTRICAL REQUIREMENTS
240 volt, 40-amp fused, grounded circuit is required. A dedicated
circuit is recommended.
The length of conduit provided is for serviceability. Do not cut the
conduit. The junction box should be located 3" (7.6 cm) maximum
below the support surface. Drill a 11⁄4" (3.4 cm) minimum diameter
hole in the left rear corner of the support surface for access to the
junction box.
BACK VIEW

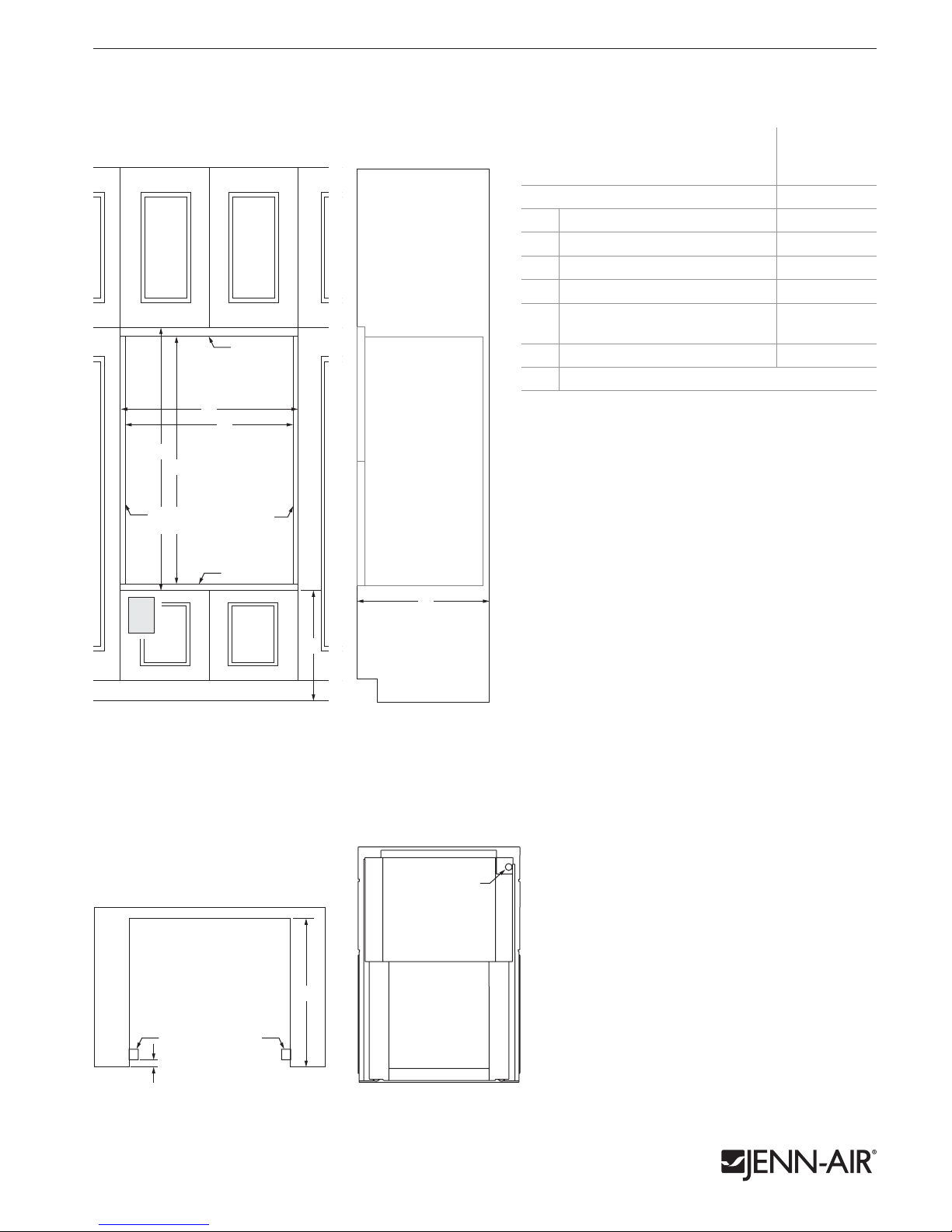

OPENING/cLEARANcE DIMENSIONS

Product dimension, cutout and installation specifications are provided for planning purposes only. Before installing
any product, be sure to verify cutout dimensions and electrical/gas connections as actual product dimensions may vary.
JENN-AIR® DETAILED PLANNING DIMENSIONS 4 of 4
JRC120003A 07/2012
30" cOMbINATION MIcROwAvE/wALL OvENS – FLUSh INSTALLATION
JMW3430W, JMW2430W, JMW2330W – 293⁄4" x 431⁄8" x 243⁄4" (depth without handles)
MODEL #
JMW3430W
JMW2430W
JMW2330W
in cm
AWidth of flush inset cutout (min.) 30 76.2
BWidth of opening (min.) 281⁄272.4
CHeight of flush inset cutout (min.) 4413⁄16 113.8
DHeight of opening (min.) 411⁄4104.8
EBottom of cutout to floor 45⁄8-
191⁄4
11.7-
48.9
FDepth of cutout (min.) 25 63.5
eRecommended junction box location
ELECTRICAL REQUIREMENTS
240 volt, 40-amp fused, grounded circuit is required. A dedicated
circuit is recommended.
The length of conduit provided is for serviceability. Do not cut the
conduit. The junction box should be located 3" (7.6 cm) maximum
below the support surface. Drill a 11⁄4" (3.4 cm) minimum diameter
hole in the left rear corner of the support surface for access to the
junction box.
FLUSH INSTALLATION REQUIREMENTS
A 25" (63.5 cm) minimum cutout depth is required.
These dimensions will result in a 3⁄8" (1.0 cm) reveal on the top,
a 1⁄8" (0.3 cm) reveal on the sides and a 13⁄8" (3.5 cm) reveal on the
bottom of the wall oven.
The front face of the cleats and platform will be visible and should
be treated as a finished surface.
OPENING/cLEARANcE DIMENSIONS
BACK VIEW
Bottom of Cabinet
Back of Cabinet
F
A
B
G
H
I
D
E
C
A
BC
D
E
F
G
H
I
J
Conduit Channel
K
A
M
N
O
P
L L
Power Supply Location
B
D
ee
A
3⁄4" (1.9 cm)
Side Cleat*
3⁄4" (1.9 cm)
Side Cleat*
2" (5.1 cm)
Top Cleat*
E
C
A
E
B
A
B
C
D
F
F
e
e
A
E
B
C
D
e
2" (5.1 cm)
Top Cleat*
3⁄4" (1.9 cm)
Side Cleat*
F
Side Cleat*
1" (2.5 cm)
Side Cleat*
21⁄16" (5.2 cm)
Top Cleat*
3⁄4" (1.9 cm)
Side Cleat*
3⁄4" (1.9 cm)
Side Cleat*
3⁄4" (1.9 cm)
Side Cleat*
3⁄4" (1.9 cm)
Side Cleat*
E
Power Supply Location
11⁄2" (3.8 cm)
Platform*
23⁄4" (7.0 cm)
Top Cleat*
11⁄2" (3.8 cm)
Platform*
11⁄2" (3.8 cm)
Platform*
11⁄2" (3.8 cm)
Platform*
D
C
3⁄4" (1.9 cm)
Side Cleat*
B
D
ee
A
3⁄4" (1.9 cm)
Side Cleat*
3⁄4" (1.9 cm)
Side Cleat*
2" (5.1 cm)
Top Cleat*
E
C
A
E
B
A
B
C
D
F
F
e
e
A
E
B
C
D
e
2" (5.1 cm)
Top Cleat*
3⁄4" (1.9 cm)
Side Cleat*
F
Side Cleat*
1" (2.5 cm)
Side Cleat*
21⁄16" (5.2 cm)
Top Cleat*
3⁄4" (1.9 cm)
Side Cleat*
3⁄4" (1.9 cm)
Side Cleat*
3⁄4" (1.9 cm)
Side Cleat*
3⁄4" (1.9 cm)
Side Cleat*
E
Power Supply Location
11⁄2" (3.8 cm)
Platform*
23⁄4" (7.0 cm)
Top Cleat*
11⁄2" (3.8 cm)
Platform*
11⁄2" (3.8 cm)
Platform*
11⁄2" (3.8 cm)
Platform*
D
C
3⁄4" (1.9 cm)
Side Cleat*
FRONT VIEW SIDE VIEW
B
D
ee
A
3⁄4" (1.9 cm)
Side Cleat*
3⁄4" (1.9 cm)
Side Cleat*
2" (5.1 cm)
Top Cleat*
E
C
A
E
B
A
B
C
D
F
F
e
e
A
E
B
C
D
e
2" (5.1 cm)
Top Cleat*
3⁄4" (1.9 cm)
Side Cleat*
F
Side Cleat*
1" (2.5 cm)
Side Cleat*
21⁄16" (5.2 cm)
Top Cleat*
3⁄4" (1.9 cm)
Side Cleat*
3⁄4" (1.9 cm)
Side Cleat*
3⁄4" (1.9 cm)
Side Cleat*
3⁄4" (1.9 cm)
Side Cleat*
E
Power Supply Location
11⁄2" (3.8 cm)
Platform*
23⁄4" (7.0 cm)
Top Cleat*
11⁄2" (3.8 cm)
Platform*
11⁄2" (3.8 cm)
Platform*
11⁄2" (3.8 cm)
Platform*
D
C
3⁄4" (1.9 cm)
Side Cleat*
TOp VIEW
*Cleats and platform must be recessed 1" (2.5 cm) from the front of the cabinet.
