JEROS 9110 Series Guide

SPARE PARTS DIAGRAM FOR
First Choice Group
Blakeney Way, Kingswood Lakeside
Cannock, Staffs, WS11 8LD
TEL: [phone] FAX: [phone]
Email: [email protected]
Web: www.firstchoice-cs.co.uk

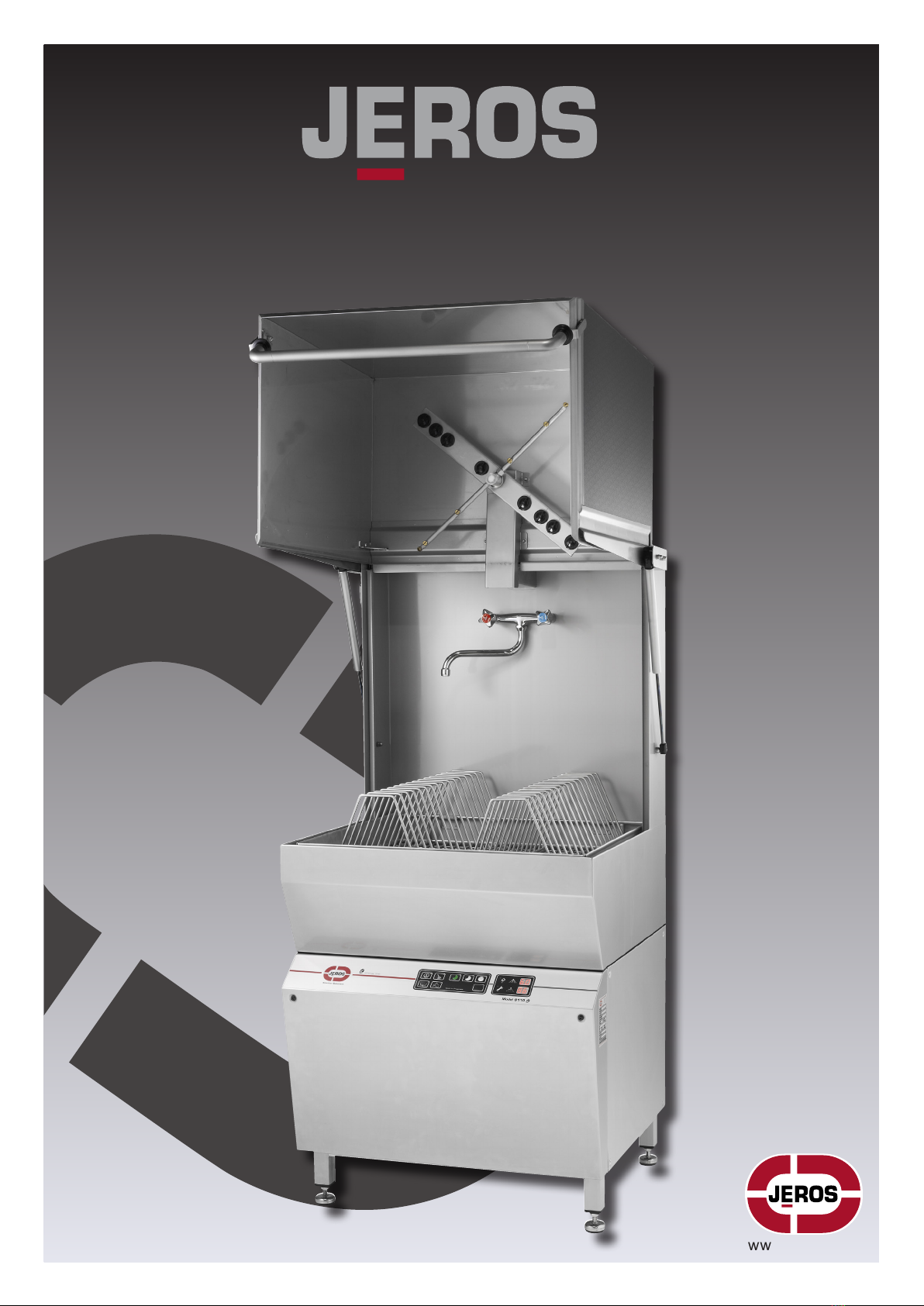

Dish/Glass Washer
9110/9115

www.jeros.com
9110/9115

Jeros Utility Washer 9110-15 Series
Rev. Oct. 2015
8900-0013
2

DECLARATION OF CONFORMITY
Nyborgvej 8 Tel: [phone]
DK-5750 Ringe Fax: [phone]
Denmark Email: [e-mail]
hereby declares that the machine:
- covered by this declaration is in accordance with:
Provisions of the Machinery Directive 2006/42/CE.
EMC Directive 2004/108/CE
Ringe 01.09.2015 CEO
Place Date: Evita Rosdahl Title
TYPE: _________________________
EQUIPMENT: _________________________
MACHINE NO.: _________________________
VOLTAGE: ______________V/ _______Hz

Jeros Utility Washer 9110-15 Series
Rev. Oct. 2015
8900-0013
4

TABLE OF CONTENTS
GENERAL INFORMATION.............................................................................................................8
Responsibility..............................................................................................................................8
Warranty......................................................................................................................................8
Safety..........................................................................................................................................8
Safe use!.....................................................................................................................................8
SAFETY PRECAUTIONS.............................................................................................................10
Legend......................................................................................................................................10
INSTALLATION INSTRUCTIONS.................................................................................................13
Receipt......................................................................................................................................13
Installation instructions..............................................................................................................13
Water connection ......................................................................................................................13
Drain connection .......................................................................................................................14
Electrical installation..................................................................................................................14
Phase connection......................................................................................................................15
USER INSTRUCTIONS................................................................................................................16
Instructions for use....................................................................................................................16
Machine function.......................................................................................................................17
OPERATING INSTRUCTIONS.....................................................................................................18
Every day before using the machine..........................................................................................18
Washing instructions .................................................................................................................18
During the day...........................................................................................................................19
Machines with a powered lid opening........................................................................................19
CONTROL PANEL........................................................................................................................20
CLEANING AND MAINTENANCE ................................................................................................21
Daily cleaning............................................................................................................................21
Switch off the machine pressing the button (1)..........................................................................21
Emptying the machine...............................................................................................................21
Emptying with the flush system .................................................................................................21
Preventative maintenance.........................................................................................................22
The following should be checked:..........................................................................................22
Checking the lid contact.........................................................................................................22
Descaling the machine...........................................................................................................22
ADJUSTMENTS ...........................................................................................................................23
Jeros Utility Washer 9110-15 Series
Rev. Oct. 2015
8900-0013
5

Setting soap dispensing ............................................................................................................23
Setting the rinse aid dosage......................................................................................................24
TROUBLESHOOTING..................................................................................................................25
Keys to error codes...................................................................................................................25
ENVIRONMENTAL PROTECTION...............................................................................................28
Disposal of the machine............................................................................................................28
Disposal of chemicals................................................................................................................28
MODEL OVERVIEW.....................................................................................................................29
TECHNICAL DATA.......................................................................................................................30
DIAGRAM.....................................................................................................................................31
Key diagram 9110/15 3x230V .............................................................................................31
Key diagram 9110/15 3x400V ..............................................................................................32
Flow diagram 9110/15...............................................................................................................34
SPARE PARTS / ERSATZTEILE..................................................................................................35
Rinse / Nachspül.......................................................................................................................35
Wash / Wäsche.........................................................................................................................37
Drain / Abfluß ............................................................................................................................39
Wash System / Waschsysteme.................................................................................................41
Water intake / Wasserzuführ .....................................................................................................43
Lid / Haube................................................................................................................................45
Frontplate / Frontplatte..............................................................................................................47
Accessories / Ausstattung.........................................................................................................49
DANISH ORIGINAL VERSION .....................................................................................................51
Jeros Utility Washer 9110-15 Series
Rev. Oct. 2015
8900-0013
6

Dear customer,
Congratulations on your choice of a JEROS quality product.
It is very important that you familiarise yourself with the functions of the product before using it.
We therefore recommend that you study the following user instructions very carefully. This will help
ensure many years of trouble-free use.
The product must be installed by authorised electricians and plumbers only. These user and
service instructions must be given to your electrician and plumber before installation. After
installation, keep the manual for your own use.
If malfunctions or defects occur, please contact your JEROS dealer, who will help you solve any
problems.
Please quote the machine data stated in the declaration of conformity when making inquiries.
If you need any further information, we are always happy to provide advice, so please do not
hesitate to contact us.
Yours sincerely
JEROS A/S
Jeros Utility Washer 9110-15 Series
Rev. Oct. 2015
8900-0013
7

GENERAL INFORMATION
These operating instructions include useful and important information for perfect operation and
maintenance of the utensil washer. It also includes important instructions to avoid accidents and
serious injury and damage before commissioning and during operation and to enable as safe and
faultless functioning as possible.
Read these operating instructions carefully before installing the utensil washer, familiarise yourself
with the function / operation of the product and carefully follow the instructions herein.
For questions or further information about specific items in connection with the utensil washer,
please do not hesitate to contact JEROS A/S.
Responsibility
All information contained in these operating instructions is based on the latest information. Such
information is given subject to modification.
We reserve the right to modify the construction or design of our products and are not obliged to
carry out similar adaptations of previously supplied deliveries.
Warranty
The product is subject to the warranty provisions under our terms of delivery.
The warranty of the machines made by us lapses if: -
-service and maintenance are not carried out exactly as specified;
-the machine is used inappropriately, incorrectly, negligently or contrary to its nature or purpose.
Wearing parts are not covered by this warranty.
Safety
Make sure to familiarise yourself with the symbols and safety precautions, see the LEGEND and
the Safety precautions section.
The machine is equipped with safety and protection devices. Never the less, work on the machine
should be made carefully. Warning symbols in the various sections call your attention to possible
hazards. These symbols are located next to the parts of the text where the risk is mentioned.
Safe use!
JEROS A/S has made a serious effort to inform you as well as possible about the potential hazards
in relation to the use of the machine. Please be aware of observing the rules of conduct /
precautions described. The buyer / user undertakes to ensure that operators, cleaners and
maintenance staff familiarise themselves with these precautions.
Jeros Utility Washer 9110-15 Series
Rev. Oct. 2015
8900-0013
8

Check the delivery immediately after receipt in order to ascertain: -
a) any damage or defects caused during transport. Have the carrier prepare a transport damage
report immediately;
b) the perfect nature of the delivery/deliveries and if (additional) parts and accessories ordered are
missing.
Under any circumstances, contact JEROS A/S in the event of any damage.
Jeros Utility Washer 9110-15 Series
Rev. Oct. 2015
8900-0013
9

SAFETY PRECAUTIONS
Legend
Various warning signs are attached to the machine. These signs are explained below.
Warning about hazard of electrical shock. The label
is attached to guards covering electrical
components or wires which involve a risk of
electrical shock in the event of contact.
Avoid washing the machine using a high pressure
cleaner on the areas where this label is located as it
may damage the machine.
These operating instructions contain the following symbols. The symbols refer to a tip or a
dangerous action or situation. The text next to the symbol illustrates which tip or hazard is involved.
Always make sure to read these references carefully.
Tips in the text are marked by a “smiley”.
This symbol warns against hazards of injuries or damages.
This symbol warns against the risk of electrical shock.
This symbol warns against risks of harmful substances or irritants.
Jeros Utility Washer 9110-15 Series
Rev. Oct. 2015
8900-0013
10

Inappropriate use of this machine may cause personal injury and damage the machine.
Consequently, all relevant persons must be familiar with the contents of these operating
instructions. The operating instructions must be kept readily available to the staff
operating the machine.
All cover and protective guards must be mounted during operation.
Never carry out cleaning or maintenance work on the machine until the fixed installation
main switch has been disconnected and protected against unintentional reactivation.
Service / maintenance requiring removal of cover plates using tools should only be carried
out by specially trained staff. The main switch in the fixed installation must be
disconnected first and protected against unintentional reactivation.
Always disconnect the machine’s main switch before access to the machine’s electrical
components. Service and maintenance of the machine’s electrical system must be carried
out by a trained or certified electrician.
Avoid contact with wash / rinse water immediately after washing due to scolding hazard
(45°- 85°C).
Avoid touching the back and tub of the machine during / immediately after the wash as the
surface will be hot (50°-60°C).
If a softening unit is connected to the machine, be careful that water taken from the mixer
tap is not used as drinking water.
When changing / topping up chemicals, take care to avoid splashes in your eyes or on
skin. Use protective goggles and gloves. Always follow the instructions provided by your
chemical supplier. Do not use solvents in the washer.
The machine operator must inform his superior about any modification or error in the
machine function as this may involve a risk of personal injury.
For questions regarding function, warranty or spare parts, please contact our service
department.
Do not open the machine lid during a washing program. This may involve scalding and
sprays of aggressive soap water which may cause eye injuries.
Jeros Utility Washer 9110-15 Series
Rev. Oct. 2015
8900-0013
11

Important! If the safety precautions are not observed, JEROS A/S cannot be held liable for any
personal injury.
Jeros Utility Washer 9110-15 Series
Rev. Oct. 2015
8900-0013
12

INSTALLATION INSTRUCTIONS
Receipt
Check the packaging for any damage caused during transport immediately on receipt. Any
complaints arising from such damage should be made to the freight company immediately.
Unpacking
The machine may be unpacked by one person but it requires the use of a pallet stacker or a forklift
truck.
Check that the pallet stacker / truck is approved to lift a weight which as a minimum corresponds to
the machine’s gross weight (for weights: See the “technical data” section). Make sure to unpack
the machine on a solid, level floor.
Remove the wooden fillets holding the cardboard box to the pallet.
Lift away the cardboard box.
Check the machine for any damage caused during transport immediately on receipt. Any
complaints arising from such damage should be made to the freight company immediately.
Remove the transport fittings mounted at the four machine legs.
Run the pallet stacker’s or truck’s forks under the machine from either the front or the back of the
machine. Make sure that the forks touch the front and rear parts of the machine chassis to prevent
the machine from tipping over when lifted.
Carefully lift the machine just free of the pallet.
Pull the pallet away from under the machine. Avoid putting your arms or other parts of your body
under the machine while removing the pallet.
Push / Run the machine to the installation location.
Lower the machine onto the floor so that it stands on its legs.
Packaging must be disposed according to local regulations. The four transport fittings can be
stored for later use if the machine is to be transported on a pallet at a later occasion.
Installation instructions
JEROS utensil washers must be placed on a solid foundation to ensure optimum operation and
can be levelled using the adjustable feet.
Note!
JEROS utensil washers must be connected to the water supply and the stop tap must be open
before the machine is turned on at the main switch.
Water connection
Water is connected on the rear of the machine. The machine must be connected to both hot and
cold water supplies. If the machine does not have a mixer tap, connect hot water only. The water
must be connected with the flexible reinforced connection tube provided, enabling you to move the
machine away from the wall for cleaning. If the machine is equipped with a flush hose, connect it to
the quick coupling on the hose holder.
Jeros Utility Washer 9110-15 Series
Rev. Oct. 2015
8900-0013
13

Important!
If the water in your area is hard (above 8°dH), we recommend using a softening unit. This will give
the machine a longer service life, lower electricity / soap consumption and prevent lime scale from
forming in the machine. Contact your dealer for further information.
Drain connection
The machine may only be installed in rooms where there is a drain in the floor.
Connect the flexible drain hose to the floor drain. Max. height 30cm above floor.
Electrical installation
Connection should be by means of a switch in the permanent installation. The switch must be
protectable against unintentional reactivation and may be made according to IEC 60947-3. The
switch must always be located for easy access.
At the factory, the electrical connection is labelled as follows: L1, L2 and L3 for the three phases, N
for 0. The earth wire is yellow / green and not labelled. In some countries, 0 is not used and
consequently omitted.
The electrical connection must be made by a trained or certified electrician and must always be in
accordance with the regulations in force in the country or state where the machine is installed.
The machine must be given extra protection in accordance with power current regulations.
The cable between the installation and the machine must be secured so that persons in
the area do not risk tripping over the cable and so that the cable will not be pulled out from
either the fixed installation or from the machine.
Jeros Utility Washer 9110-15 Series
Rev. Oct. 2015
8900-0013
14

Phase connection
Applicable to machines with software version 4.0:
The machine must not be used until the phase sequence has been checked.
If the motor turns in the wrong direction, two phases must be switched (e.g. L1 and L2) at the main
switch.
The arrows on the motor show the direction of rotation when the phases are connected correctly.
All motors have been mounted at the factory to have the same direction of rotation.
Applicable to machines with software version 4.2 or higher:
To ensure the pumps turn in the right direction, the control is equipped with a phase sequence
sensor. If the machine is connected with the opposite phase sequence than chosen as “the right
one” from the factory, the AL13 alarm appears in the display of the operating panel and the
machine cannot be started. If AL13 appears, two phases must be switched (e.g. L1 and L2) at the
main switch. The arrows on the motor show the correct direction of rotation. If a cable for a pump is
removed at one end or the other, e.g. in connection with repairs, it must be checked afterwards
that the cable has the remounted with the correct phase sequence by checking that the motor’s fan
rotates in the direction of the arrow.
Jeros Utility Washer 9110-15 Series
Rev. Oct. 2015
8900-0013
15

USER INSTRUCTIONS
These user instructions are designed for the most advanced JEROS utensil washer which is why
some equipment differences may exist between the version shown in the user instructions and
your machine. However, the user instructions will cover all operation aspects of your JEROS
utensil washer.
All numbers in brackets (e.g. (6)) in the user instructions refer to the same number on the control
panel.
A main paragraph followed by this symbol refers to points mentioned in the safety
precautions.
Instructions for use
JEROS utensil washers are designed for washing up pots, pans, tins, trays, bowls, spoons, cups,
glasses and whisks, etc., and should not be used for any other purpose.
In case of doubt, please contact your dealer and inquire about the possibilities of washing a
specific utensil.
Note!
If the instructions for use are not observed, JEROS A/S cannot warrant compliance with existing
legislation regarding significant health and safety requirements in connection with the design and
production of machines.
JEROS utensil washer is easy to use and can be operated from three sides. It can be used as an
extension table for used utensils.
Additional extension tables and, if necessary, also pre-rinse tables can be ordered as accessories.
Please contact your Jeros dealer for further information.
Jeros Utility Washer 9110-15 Series
Rev. Oct. 2015
8900-0013
16

Machine function
Once the machine is full, close the lid and the machine will start (if the machine has been switched
on and one of the three wash programs have been selected). Soapy water is pumped from the
wash tank out through wash nozzles in the wash system. The articles are now cleaned. The wash
cycle finishes with a rinse program. Fresh water containing rinse aid is pumped from the rinse tank
out through rinse nozzles in the rinse system. The articles are now rinsed. After a short drying time,
the articles are ready for use again.
Jeros Utility Washer 9110-15 Series
Rev. Oct. 2015
8900-0013
17

OPERATING INSTRUCTIONS
Every day before using the machine
1) The red lance must be inserted into the soap container and the grey lance into the rinse aid
bottle. If the rinse hose is empty, the dosage pump must be primed manually until the hose is full
again. Finally, check that the water tap is open and the main switch is on.
2) Close the lid and press switch (1). The rinse and wash tank will fill with water to the correct level
and the heating elements will be switched on automatically. The display shows the current wash
and rinse temperatures. When the LED in button (1) stops flashing, the wash tank is full and the
first wash of the day can begin.
The machine may be set not to start a wash until the set wash temperature has been reached in
the wash tank. If so, a few moments will pass until the machine starts the wash. This feature is a
“temperature block” which may be disabled and activated by your installer.
Washing instructions
1) With the lid open, put utensils in the coarse net / washing basket, ensuring that they are not
covering each other. Pots and bowls should be placed upside down.
2) Select the wash program with buttons (5), (6) or (7) to suit the utensils being washed.
In machines with pulse wash option (9110/15 with this option mounted) and in machines with an
optional high/low wash pressure, the desired wash mode must also be selected depending on the
nature and type of the tools using key (4A/4B). Start the wash cycle by closing the lid.
At the factory, wash program 1 (button (5)) has been set to wash at a lower temperature
and using less soap. If you want to use this economy feature, it is an advantage to
arrange the washing and start with the articles which are to be washed in cold water. The
machine will not add cold water to lower the temperature when changing from high to low
wash temperature.
While the wash program is running, several red LEDs flash on the machine’s operating panel. The
display (12) shows the remaining wash time in minutes.
The wash program ends with approx. 20 seconds’ subsequent rinse followed by a short
evaporation period. During the rinse sequence, the display (12) shows the remaining time in
seconds. When the wash program is complete, a green arrow is lit on the operating panel.
NEVER open the machine lid unless the machine has been switched off or the
green light shows that the machine is not running a wash. Opening the lid creates
a risk of scalding by hot water and aggressive chemicals.
The utensils basket can be mounted so that it tilts forward. This may be a benefit when
washing articles with a flat, closed bottom as less wash water will assemble on top of the
articles which will improve the rinse performance and reduce the water waste when the
articles are removed from the machine.
Jeros Utility Washer 9110-15 Series
Rev. Oct. 2015
8900-0013
18

During the day
1) Check the filter regularly and clean it if it is fully or partly clogged. The machine must always be
equipped with a coarse filter and may also be equipped with a fine filter.
A clogged filter may cause functional machine errors. A missing filter may cause clogging
of the drain pump or the drain.
2) Check that the container and bottle contain soap and rinse aid. The machine is fitted with a
warning lamp for missing soap but not missing rinse aid.
Missing soap or rinse aid will affect the perfect wash result.
Machines with a powered lid opening
For machines with a powered lid opening, a few modest changes have been made compared with
the text above. This applies to 8150, which always has a powered lid opening, 9120 and 9130 with
an optional powered lid opening and 8160 with a powered curtain opening.
Press the desired wash program to start the program. The lid/curtain will close automatically and
the wash starts. If the lid’s closing movement is prevented for any reason, the lid stops and starts
opening again after approx. 3 seconds.
When the wash program is complete, the lid/curtain opens automatically and the machine leaves
the wash program.
The lid/curtain can also be opened and closed by pressing the arrow buttons (S1 and S2) once on
the additional operating box on machines with powered lid opening. If this method is used to close
the lid/curtain, the wash program will not start automatically but must be started afterwards by
pressing one of the three program buttons (5), (6) or (7).
The machine can be set to NOT opening and closing the lid/curtain automatically. The lid can then
be opened and closed by pressing key button S1 or S2 during the entire movement. The lid/curtain
stops as soon as the arrow button is released.
After the last wash - at the end of the shift
Push button (2), close the lid and the machine will run an emptying program for about 6 minutes,
after which the machine will switch off. After the machine is switched off an extra emptying can be
carried out by pushing button (2). Then the drain pump will empty for 30 sec. This procedure can
be repeated as necessary.
Special information for machines with a curtain: Let the machine dry for approx. 15
minutes with the curtain open and then lower the curtain to allow it to dry. Use the S1 and
S2 arrow keys.
Jeros Utility Washer 9110-15 Series
Rev. Oct. 2015
8900-0013
