montpellier MW9140P User manual

Freestanding 9kg Washing Machine
MW9140P - White - Inverter Motor
Please read these instructions carefully before attempting to install or use this appliance.
We recommend that you keep these instructions in a safe place for future reference.
Installation and Operating Instructions
THE PERFECT BALANCE OF FUNCTION AND STYLE
LAUNDRY - DISHWASHING - COOKING - COOLING

Thank you for choosing this Montpellier Washing Machine.
Our Washershave been designed to provide you with the best combination of style, reliability and performance to
give you years of trouble-free use.
You may be familiar with a similar product, but please take time to read these instructions carefully before installing
or using your Washer to ensure you get the most from your purchase.
We recommend that you keep this manual in a safe place for future reference.
Your Washing Machine is covered by a comprehensive two year parts & labour
guarantee. In the unlikely event that you experience a problem with your
Washer, you can rest assured that you are fully protected against the cost of
repairs for the first 24 months . Please note that any claim must be
accompanied by the model reference number, serial number and proof of
purchase.
To activate your guarantee, you will need your product serial number. This can
be found on the rear of the machine.
There are two ways to register your Guarantee:
•
•
Online: Visit the Support page on our website and complete the online Product
Registration form. www.montpellier-appliances.com
By Post: Simply detach and fill in the form provided, attach a stamp and send it
in the post. Don’t forget to include your e-mail address so that we can send
confirmation through to you.
Welcome
Note: We are unable to take registrations over the phone.
ACROSS ALL OUR MODELS
YEAR
GUARANTEE
PA R T S & L A B O U R
www.montpellier-appliances.com

1
CONTENTS
Safety Instructions
Safety Instructions ..................................................
Installation
Product Description ................................................
Installation ...........................................................
Operations
Quick Start .............................................................
Before Each Wash ..........................................................
Detergent Dispenser ...............................................
Control Panel .........................................................
Option....................................................................
Other Functions .....................................................
Programmes ..........................................................
Washing Programmes Table .....................................
Maintenances
Cleaning And Care .................................................
Trouble Shooting ....................................................
Technical Specifications .........................................
Product Fiches ........................................................
2
7
8
11
12
13
14
15
16
18
19
20
23
24
25

2
Safety Instructions
For your safety,the information in this manual must be followed
to minimize the risk of fire or explosion, electric shock, or to
prevent property damage, personal injury or loss of life.
Explanation of the symbols:
manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
• If the supply cord is damaged, it must be replaced by the
The electric shock!
SAFETY INSTRUCTIONS
This combination of symbol and signal word indicates
a potentially dangerous situation which may result in
death or serious injuries unless it’s avoided.
Warning!
！
This combination of symbol and signal word indicates
a potentially dangerous situation which may result in
slight or minor injuries.
Note!
This combination of symbol and signal word indicates
a potentially dangerous situation which may result in
slight or minor injuries or damage to property and the
environment.
Caution!
Warning!
！

3
• The new hose-sets supplied with the appliance are to be
used and that old hose-sets should not be reused.
• Before any maintenance the device, unplug the
appliance from the mains.
• Always unplug the machine and turn off the water
supply after use. The max. inlet water pressure, in
pascals. The min. inlet water pressure, in pascals.
• To ensure your safety, power plug must be inserted into
an earthed three-pole socket. Check carefully and make
sure that your socket is properly and reliably earthed.
• Make sure that the water and electrical devices must
be connected by a qualified technician in accordance
with the manufacturer's instructions and local safety
regulations.
Risk to children!
from 8 years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way
and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance
shall not be made by children without supervision.
•
• Children of less than 3years should be supervised to
ensure that they do not play with appliance.
• Animals and children may climb into the machine. Check
the machine before every operation.
• Kids should be supervised that they do not play with
the appliance.
EN countries: the appliance can be used by children aged
SAFETY INSTRUCTIONS

4
• Remove all packages and transport bolts before using
the appliance. Otherwise, serious damage may result.
• Glass door may be very hot during the operation. Keep
kids and pets far away from the machine during the
operation very wet rooms as well as in the rooms with
explosive or caustic gas.
• Plug must be accessible after installation.
Risk of explosion!
•
•
Do not wash or dry articles that have been cleaned in, washed
in, soaked in, or dabbed with combustible or explosive
substances( such as wax, oil, paint, gasoline, degreasers,
dry-cleaning solvents, kerosene, etc.) This may result in
fire or explosion.
Before hand thoroughly rinse items of washing by hand.
• This washing machine is for indoor use only.
• It isn't intended to be built-in using.
• The openings must not be obstructed by a carpet.
• Washing machine shall not be installed in bath room or
very wet rooms as well as in the rooms with explosive
or caustic gases.
• The washing machine with single inlet valve only can be
connected to the cold water supply. The product with
double inlet valves should be correctly connected to the
hot water and cold water supply.
• Plug must be accessible after installation.
Installing the product!
SAFETY INSTRUCTIONS
Caution!

5
• Remove all packages and transport bolts before using
the appliance. Otherwise, serious damage may result.
Risk of damaging appliance!
• Your product is only for home use and is only designed
for the textiles suitable for machine washing.
• Do not climb up and sit on top cover of the machine.
• Do not lean against machine door.
• Cautions during Handling Machine:
1.Transport bolts shall be reinstalled to the machine by
a specialized person.
2.The accumulated water shall be drained out of the
machine.
3.Handle the machine carefully. Never hold each protruded
part on the machine while lifting. Machine door can
not be used as the handle during the conveyance.
4.This appliance is heavy. Transport with care.
• Please do not close the door with excessive forces. If it
is found difficult to close the door, please check if the
clothes are put in or distributed well.
• It is forbidden to wash carpets.
Operating the appliance!
• Before washing the clothes at first time, the product
shall be operated in one round of the whole procedures
without the clothes inside.
• Flammable and explosive or toxic solvents are forbidden.
Gasoline and alcohol etc.Shall not be used as detergents.
Please only select the detergents suitable for machine
washing, especially for drum.
SAFETY INSTRUCTIONS

6
• Make sure that all pockets are emptied. Sharp and rigid
items such as coin,brooch,nail,screw or stone etc. may
cause serious damages to this machine.
• Please check whether the water inside the drum has
been drained before opening its door.Please do not open
the door if there is any water visible.
• Be careful of burning when the product drains hot
washing water.
• Never refill the water by hand during washing.
• After the program is completed, Please wait for two
minutes to open the door.
This marking indicates that this product should not be
disposed with other household wastes throughout the
EU.To prevent possible harm to the environment or
human health from uncontrolled waste disposal,recycle
it responsibly to promote the sustainable reuse of
material resources.To return your used device, please use
the collection systems or contact the retailer where the
product was purchased. They return and can take this
product for environmental safe recycling.
Packaging/Old appliance
SAFETY INSTRUCTIONS

7
Accessories
Product Description
Transport
plughole
Supply hose hot
water (optional)
Supply hose
cold water
Drain hose
(optional
support
)
• The product line chart is for reference only, please refer to real product as
standard.
Note!
Drum
Power supply cord
Control panel
Detergent dispenser
Service filter
Door
Water supply hose
Top cover
Drain hose
Owner’s manual
INSTALLATION

8
INSTALLATION
Installation
Before installing the machine, the location characterized
follows shall be selected:
1.Rigid, dry, and level surface
2.Avoid direct sunlight
3.Sufficient ventilation
4.Room temperature is above 0℃
5.Keep far away from the heat resources such as coal or gas.
as
Unpacking the washing machine
1. Remove the cardboard box and styrofoam packing.
2. Lift the washing machine and remove the base packing.
3. Remove the tape securing the power supply cord and drain hose.
4. Remove the inlet hose from the drum.
Make sure the small triangle
foam is removed with the bottom one together. If not, lay the unit down with side
surface, then remove the small foam from the unit bottom manually.
Please take the following steps to remove the bolts:
1.Loosen 4 bolts with spanner and then remove them.
2.Stop the holes with transport hole plugs.
3.Keep the transport bolts properly for future use.
Remove transport bolts
•
•
Stability is important to prevent the product from
wandering!
Make sure that the product should not stand on
the power cord.
Warning!
！
•
•
Packaging material (e.g. Films, Styrofoam) can be
dangerous for children.
There is a risk of suffocation ! Keep all packaging
well away from children.
Warning!
！
•
• product
you
You must remove the transport bolts from the backside before using the product.
You’ll need the transport bolts again if you move the , so make sure
keep them in a safe place.
Warning!
！
w
w
W> 20mm
Installation area

9
9
INSTALLATION

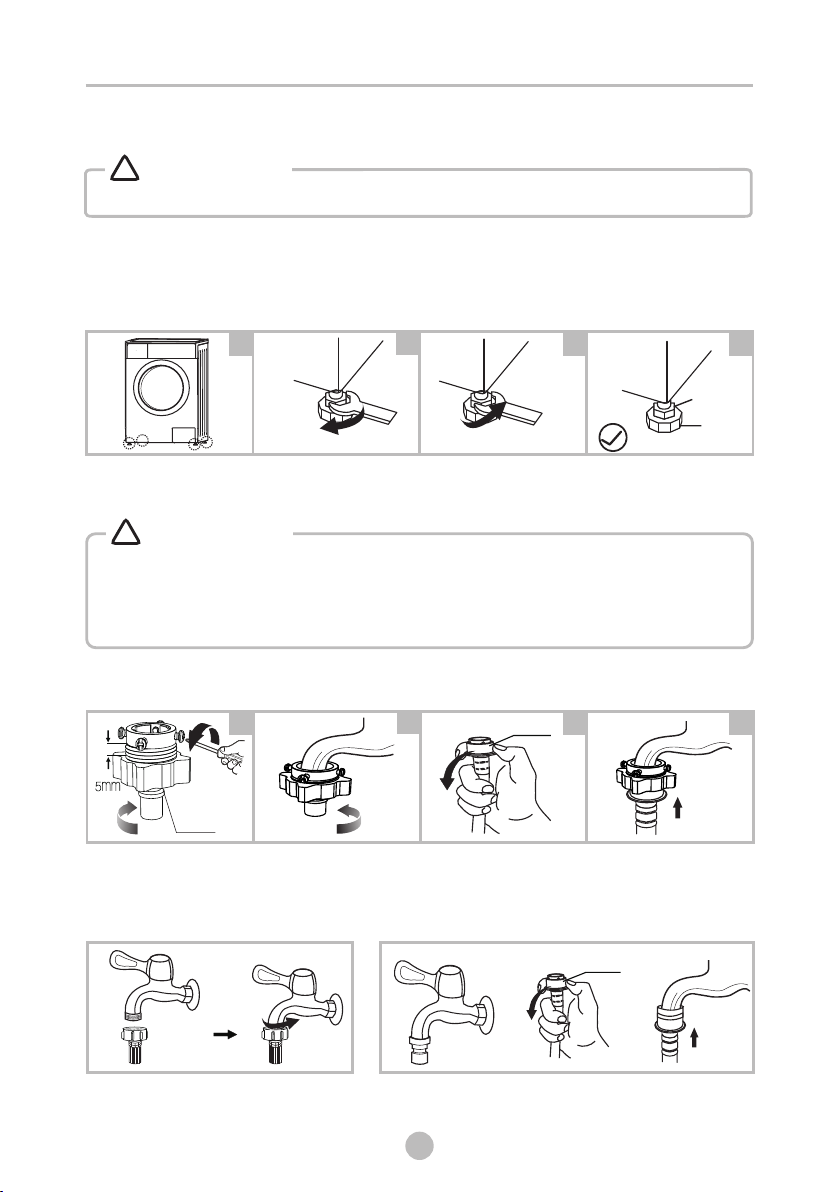

1.Check if the legs are closely attached to the cabinet. If not, please turn them to
their original positions tighten the nuts.
2.Loosen the lock nut turn the feet until it closely contacts with the floor.
3.Adjust the legs and lock them with a spanner, make sure the machine is steady.
Levelling the washing machine
• The lock nuts on all four feet must be screwed tightly against the housing.
Connect Water Supply Hose
Connect the inlet pipe as indicated, There are two ways to connect the inlet pipe.
1.Connection between ordinary tap and inlet hose.
• To prevent leakage or water damage, follow the instructions in this chapter
Do not kink, crush, modify or sever .
!
• water inlet hose
• For the model equips hot valve,connect it to hot water tap with hot water supply
hose. Energy consumption will decrease automatically for some program.
234 1
Raise Lower
Lock nut
foot
Warning!
！
Warning!
！
Loosen clamp nut and
four bolts
Tighten clamp nut Press slide bushing,
insert inlet hose into
connecting base
slide bushing
2341
Connection finished
clamp nut
Tap with threads and inlet hose Special tap for washing machine
2.Connection between screw tap and inlet hose.
slide bushing

10
10
INSTALLATION
water supply hose
water Inlet valve
Connect the other end of inlet pipe to the inlet valve at the backside of
product and fasten the pipe tightly clockwise.
Water Inlet Hose Connection
3/4”
10 mm
1
3
2
4
1. Your machine may have either a
single water inlet connection (cold)
or double water inlet connection (hot
and cold) depending on the machine
specifications. The white capped hose
should be connected to cold water inlet
and red capped hose to the hot water
inlet (if applicable).
• To prevent water leaks at the joints,
either 1 or 2 nuts (depending on your
machine’s specifications) are supplied
in the packaging with the hose. Fit these
nuts to the end(s) of the water inlet hose
that connect to the water supply.
2. Connectnewwaterinlethosestoa¾˝,
threaded tap.
• Connect the white capped end of the
water inlet hose to the white water inlet
valve on the rear side of the machine
and the red capped end of the hose to
the red water inlet valve (if applicable).
• Hand tighten the connections. If in any
doubt, consult a qualified plumber.
• Water flow with pressure of 0.1-1 Mpa
will allow your machine to operate at
optimum efficiency (pressure of 0.1
Mpa means that more than 8 litres of
water per minute will flow through a fully
opened tap).
3. Once you have made all of the
connections, carefully turn the water
supply on and check for leaks.
4. Ensure that the new water inlet hoses
are not bent, broken, crushed or
resized.
• If your machine has a hot water inlet
connection, the temperature of the hot
water supply should not be higher than
70°C.
NOTE: Your Washing Machine must
only be connected to your water supply
using the supplied new fill hose. Old hoses
must not be reused.
~ 95 cm ~ 140 cm
~ 145 cm ~ 95 cm
0 – max. 100 cm
˜95 cm ˜150 cm

10
11

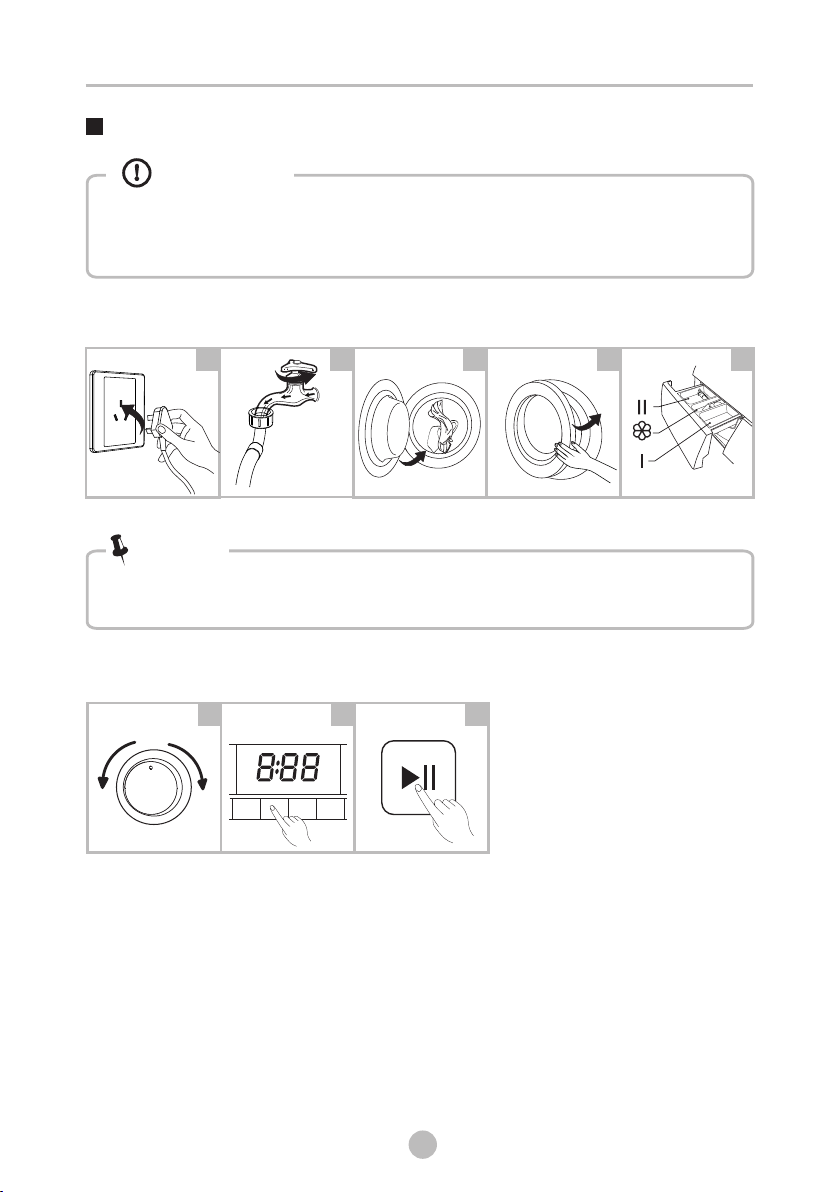

Before washing, please make sure it’s installed properly.
Before washing at first time, the washing machine shall be operated in one
of the whole procedures without clothes in as follows.
•
•
round
1. Before Washing
“End” on display.
Open tap
Load
Close door
Plug in
Add detergent
Quick Start
3. After Washing
• Detergent need to be added in "case I “after selecting pre-washing for machines
with this function.
1 2 3 4 5
2. Washing
Select Programme Select function
Start up
1 2 3
Note!
Caution!
OPERATIONS
Main
wash
Prewash
Softener

10
12
Knot the long strips,zip or
button
•When washing single items, it may easily cause great eccentricity and may
effect your machine due to unbalance. Therefore, it is suggested to add 1 or 2
more items to be washed together so that spin/draining can be done smoothly.
•Don’t wash items of clothing which have come into contact with kerosene,
gasoline, alcohol and other flammable materials.
• The working condition of the washer should be(0-40)℃.If used under 0℃,the
inlet valve and draining system may be damaged. If the machine is placed under
condition of 0℃or less, then it should be transferred to normal ambient
temperature to ensure the water supply hose and drain hose are not frozen
before use.
• Please check the labels and the explanation of using detergent before wash. Use
non-foaming or less-foaming detergent suitable for machine washing properly.
Take out the items out of
the pockets
Put small clothes into the
pillow slip
Check the label
Before Each Wash
Turn easy-pilling and
long-pile fabric inside out
Separate clothes with
different textures
Warning!
！
OPERATIONS

10
13
Programme
Cotton Eco
Cotton
Quick15'
Rapid45'
Daily Wash (60')
Rinse&Spin
Spin Only
Daily Wash
Duvet
Means must ○Means optional
Programme
Self Clean
Wool
Delicate
Mix
Jeans
Baby Care
Synthetic
Sport
Cotton(Smart)

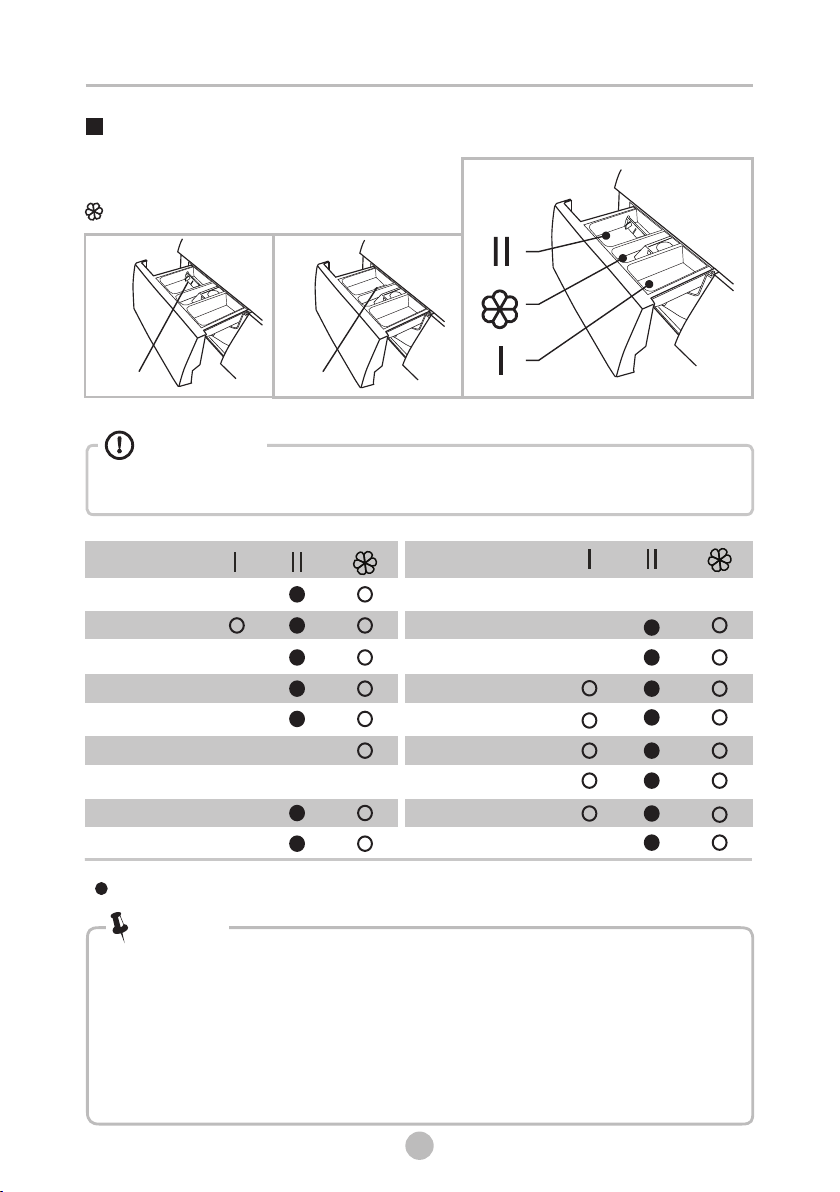

Detergent Dispenser
Pre wash detergent
Main wash detergent
Softener
II
I
Pull out the dispenser
Liquid detergent Powder detergent
•
•
If using liquid detergent, before you pour it into the detergent box,
it is suggested to use some water for dilution to prevent the inlets
of the detergent box from being blocked and overflowing whilst
filling with water.
Please choose suitable type of detergent for the various washing
temperature to get the best washing performance with less water
and energy consumption.
Note!
Caution!
• Detergent only need to be added in "case I “after selecting pre-washing
for machines with this function.
OPERATIONS
Dam-board Dam-board

Power
Product is on/off.
Start/Pause
Press the button to start or pause the
washing cycle.
Programmes
Available according to the laundry type.
Option
This allows you to select an additional
function and will light when selected.
Note!
•
1
1
3
1
2
4
Display
The display shows the settings, estimated time remaining, options, and status messages
for your washer. The display will remain on through the cycle.
5
Control Panel
5312
4
OPERATIONS
Model: MW9140P
Child Lock
B
Reload
D
Display
A
Wash Time Delay Time
Speed Error
End Temp.
A
Easy-Jet
C
Door Lock
E
14
1
1
B
C
DE
Ri nse
Ri nse
•The chart is for reference only, Please refer to your machine panel for info.

Delay

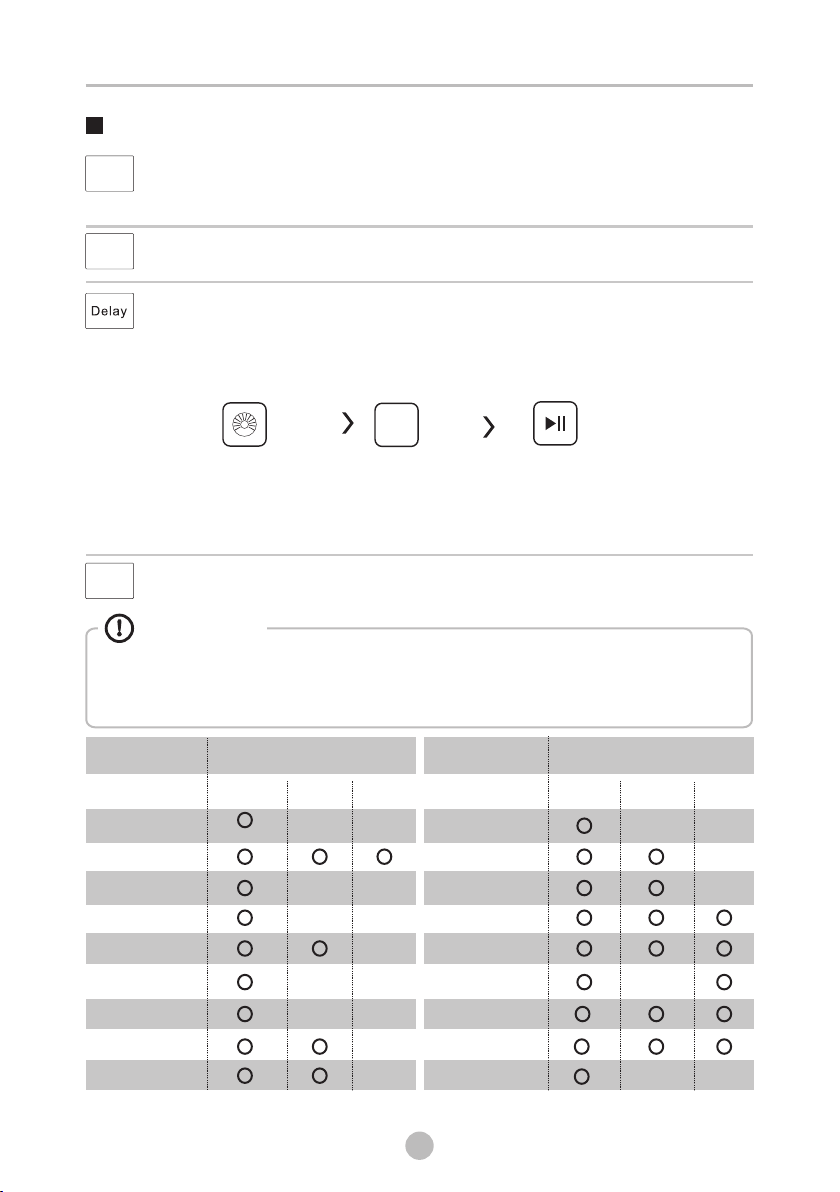

Set the Delay function:
1. Select a programme; 2.Press the Delay button to choose the time(the delaying time is 0-24 H.);
3.Press [Start/Pause] to commence the delay operation
Choose the Programme Start
Setting time
Delay
Cancel the Delay function:
Press the [Delay] button until the display be 0H.It should be pressed before starting the
programme. If the programme already started, should switch off programme to reset a new one.
Extra Rinse
The laundry will undergo an extra rinse once selected.
Option
Caution!
• If there is any break in the power supply while the machine is operating, a
special memory stores the selected programme and when the power is
restarted, the program will continue.
Programme Option Programme Option
Extra
rinse
○Means optional(Some models have intelligent weighing function, please refer to the actual product)
15
Cotton Eco
Cotton
Quick15'
Rapid45'
Daily Wash (60')
Rinse&Spin
Spin Only
Daily Wash
Duvet
Self Clean
Wool
Delicate
Mix
Jeans
Baby Care
Synthetic
Sport
Cotton(Smart)
Pre
wash Pre
wash
Extra
rinse
Delay
OPERATIONS
Delay
Pre Wash
The Prewash function can give an extra wash before the main wash cycle. This is suitable for
washing heavily soiled items. Please put detergent into compartment 1 for pre-wash.
Pre Wash
Extra Rinse
Soil Level
The washing time will increase or decrease after you select it.
Soil Level

OPERATIONS
Programme
Cotton Eco
Cotton
Quick15'
Rapid45'
Daily Wash
Rinse&Spin
Spin Only
Duvet
Default Speed(rpm) Programme
Self Clean
Wool
Delicate
Mix
Sport
Baby Care
Synthetic
Default Speed(rpm)
1000
1400
800
1000
800
1200/1400(CN)
800
1000
1000
1200
1400
800
400
600
1000
400
Model: MW9140P
800
16

My Cycle
To store the frequently used programme:
After choosing the programme and setting the options, press [speed] button
for 3 sec. before starting the wash. The default programme is Cotton Eco.
17
Mute the buzzer
To reactivate the buzzer function, press the button again for 3
seconds. The settings will be kept until the next reset.
•After Muting the buzzer function, the sounds will not be activated any more.
Caution!
OPERATIONS
Temp.
Press the [Temp.]button for
3sec., the buzzer will be muted.
Choose the Programme
•Press the two buttons for 3sec to remove the child lock.
•The “Child Lock” will lock all buttons except the power button.
Caution!
Child Lock
To avoid mis operation by children.
Start Press [ ] and [ ]
3 sec. till buzzer beep.
Speed Delay
Speed
Choose the Programme
Delay
•The child lock could remain active if power is lost to the machine.

Programmes
Quick 15'
Wool
Mix
Cotton Hard-wearing textiles, heat-resistant textiles made of
cotton or linen.
Washing few and not very dirty clothes quickly.
Mixed load consisting of textiles made of cotton and synthetics.
Special cycle for jeans.
Extra short programme, suitable for lightly soiled
clothes and/or small amounts of laundry.
For delicate, washable textiles, e.g. made of silk, satin,
synthetic fibres or blended fabrics.
Hand or machine-washable wool or richwool textiles.Especially
gentle wash programme to prevent shrinkage, longer programme
pauses (textiles rest in wash water).
Extra rinse with spin.
To increase the washing efficiency, washing time is increased.
Washing the activewear.
This program is specially designed for washing certain
duvets.
Specially set in this machine to clean the drum and tube. It
applies 90 °C high temperature sterilization to keep your
appliance clean and efficient. When this programme is
performed, the clothes or other washing cannot be added. When
the correct detergent containing a chlorine bleaching agent is put
in, the barrel cleaning effect will be better. The customer can use
this programme regularly according to the need.
Daily Wash(60') Suitable for washing few and not very dirty clothes efficiently.
Spin Only Extra spin with selectable spin speed.
Rinse&Spin
Baby Care For washing baby’s clothes, it can make the baby's wear cleaner
and make the rinse performance better to protect the baby skin.
Jeans
Synthetic
Wash synthetic articles, for example: shirts, coats etc.
While washing knitted textiles, detergent quantity shall be
reduced due to its loose string construction and a
tendency to form bubbles easily..
Rapid 45'
Delicate
18
OPERATIONS
Programmes are available according to the laundry type.
Programmes
Cotton Eco
Self Clean
Sport
Duvet
