Jet ProMac FX-383V User manual

FX-383V
GB - ENGLISH
Operating Instructions
Dear Customer,
Many thanks for the confidence you have shown in us with the purchase of your new machine. This manual has been prepared
for the owner and operators of a FX-383V milling drilling centre to promote safety during installation, operation and
maintenance procedures. Please read and understand the information contained in these operating instructions and the
accompanying documents. To obtain maximum life and efficiency from your machine, and to use the machine safely, read this
manual thoroughly and follow instructions carefully.
…Table of Contents
1. Declaration of conformity
2. Warranty
3. Safety
4. Machine specifications
5. Transport and start up
6. Machine operation
7. Setup and adjustments
8. Trouble shooting
9. Environmental protection
10. Available accessories
1. Declaration of conformity
On our own responsibility we hereby declare that this product
complies with the regulations* listed on page 2. Designed in
consideration with the standards**.
2. Warranty
The Seller guarantees that the supplied product is free from
material defects and manufacturing faults. This warranty does
not cover any defects which are caused, either directly or
indirectly, by incorrect use, carelessness, accidental damage,
repair, inadequate maintenance or cleaning and normal wear
and tear.
Guarantee and/or warranty claims must be made within
twelve months from the date of purchase (date of invoice).
Any further claims shall be excluded.
This warranty includes all guarantee obligations of the Seller
and replaces all previous declarations and agreements
concerning warranties.
The warranty period is valid for eight hours of daily use. If this
is exceeded, the warranty period shall be reduced in
proportion to the excess use, but to no less than three
months.
Returning rejected goods requires the prior express consent
of the Seller and is at the Buyer’s risk and expense.
and Conditions (GTC). The GTC can be viewed at
www.jettools.com or can be sent by post upon request.
The Seller reserves the right to make changes to the product
and accessories at any time.
3. Safety
3.1 Authorized use
This milling drilling centre is designed for milling and drilling
machinable metal and plastic materials only. Machining of
other materials is not permitted and may be carried out in
specific cases only after consulting with the manufacturer.
Never cut magnesium-
high danger to fire!
The workpiece must allow to safely be loaded and clamped
for machining.
The proper use also includes compliance with the operating
and maintenance instructions given in this manual.
The machine must be operated only by persons familiar with
its operation and maintenance and who are familiar with its
hazards.
The required minimum age must be observed.
The machine must only be used in a technically perfect
condition.
When working on the machine, all safety mechanisms and
covers must be mounted.
In addition to the safety requirements contained in these
operating instructions and your country’s applicable
regulations, you should observe the generally recognized
technical rules concerning the operation of metalworking
machines.
Any other use exceeds authorization.
In the event of unauthorized use of the machine, the
manufacturer renounces all liability and the responsibility is
transferred exclusively to the operator.
3.2 General safety notes
Metalworking machines can be dangerous if not used
properly. Therefore the appropriate general technical rules as
well as the following notes must be observed.

FX-383V
Read and understand the entire instruction manual before
attempting assembly or operation.
Keep this operating instruction close by the machine,
protected from dirt and humidity, and pass it over to the new
owner if you part with the tool.
No changes to the machine may be made.
Daily inspect the function and existence of the safety
appliances before you start the machine.
Do not attempt operation in this case, protect the machine by
unplugging the power cord.
Remove all loose clothing and confine long hair.
Before operating the machine, remove tie, rings, watches,
other jewellery, and roll up sleeves above the elbows.
Wear safety shoes; never wear leisure shoes or sandals.
Always wear the approved working outfit.
Do not wear gloves.
Wear goggles when working
Install the machine so that there is sufficient space for safe
operation and work piece handling.
Keep work area well lighted.
The machine is designed to operate in closed rooms and
must be bolted to the cabinet stand or a solid work bench.
Make sure the machine cannot tip.
Make sure that the power cord does not impede work and
cause people to trip.
Keep the floor around the machine clean and free of scrap
material, oil and grease.
Stay alert!
Give your work undivided attention. Use common sense. Do
not operate the machine when you are tired.
Keep an ergonomic body position.
Maintain a balanced stance at all times.
Do not operate the machine under the influence of drugs,
alcohol or any medication. Be aware that medication can
change your behaviour.
Never reach into the machine while it is operating or running
down.
Never leave a running machine unattended. Before you leave
the workplace switch off the machine.
Keep children and visitors a safe distance from the work
area.
Do not operate the electric tool near inflammable liquids or
gases.
Observe the fire fighting and fire alert options, for example
the fire extinguisher operation and place.
Do not use the machine in a dump environment and do not
expose it to rain.
Work only with well sharpened tools.
Always close the chuck guard and pulley cover before you
start the machine.
Remove the chuck key and wrenches before machine
operation.
Specifications regarding the maximum or minimum size of the
work piece must be observed.
Do not remove chips and work piece parts until the machine
is at a standstill.
Do not stand on the machine.
Connection and repair work on the electrical installation may
be carried out by a qualified electrician only.
Have a damaged or worn power cord replaced immediately.
Never place your fingers in a position where they could
contact any rotating tool, chuck or cutting chips.
Secure work piece against rotation. Use fixtures, clamps or a
vice to hold the work piece.
Never hold the work piece with your hands alone.
When using a vice, always fasten it to the table.
Never do any works “freehand” (hand-holding the work piece
rather than supporting it).
Never move the head while the machine is running.
If a work piece overhangs the table such that it will fall or tip if
not held, clamp it to the table or provide auxiliary support.
Check the save clamping of the work piece before starting
the machine.
Remove cutting chips with the aid of an appropriate chip hook
when the machine is at a standstill only.
Never stop the rotating chuck or tool with your hands.
Measurements and adjustments may be carried out when the
machine is at a standstill only.
Setup work may only be carried out after the machine is
protected against accidental starting by pressing the
emergency stop button.
Maintenance and repair work may only be carried out after
the machine is protected against accidental starting by pulling
the mains plug.
Do not use wire wheels or grinding wheels on this machine.
To avoid injury from parts thrown by the spring, follow
instructions exactly as given when adjusting the spring
tension of the quill (see chapter 7, Fig 11)
3.3 Remaining hazards
When using the machine according to regulations some
remaining hazards may still exist.
The rotating chuck, tool and cutting chips can cause injury.
Thrown and hot work pieces and cutting chips can lead to
injury.
Chips, dust and noise can be health hazards. Be sure to wear
personal protection gear such as safety goggles, dust mask
and ear protection.
The use of incorrect mains supply or a damaged power cord
can lead to injuries caused by electricity.

FX-383V
4. Machine specifications
4.1 Technical data
Drilling capacity 32 mm
Face milling capacity 75 mm
Motor 1,5kW
Mains supply 3~400V, PE, 50Hz
Spindle speed variable 150 –2500 RPM
Spindle travel 150 mm
Spindle taper MT 3
Spindle diameter 75 mm
Table size 730 x 210 mm
X-Axis travel 370 mm
Y-Axis travel 170 mm
T-Slots 3 16mm
Machine dimensions
( L x W x H ) 1100 x 910 x 2100 mm
Machine weight 280 kg
4.2 Noise emission
Acoustic pressure level (EN ISO 11202):
Idling at maximum speed 73,8 dB (A)
The specified values are emission levels and are not
necessarily to be seen as safe operating levels.
As workplace conditions vary, this information is intended to
allow the user to make a better estimation of the hazards and
risks involved only.
4.3 Content of delivery
1 Milling drilling Machine
1 Machine stand
1 Coolant system
1 Operating tools
1 Operating manual
4.4 Machine Description
Fig 1
A….Digital tachometer
B….Control panel
C….Machine head
D….Depth scale
E….Safety Guard
F….Work table
G….Hand wheel
H….Stand
I…..Pump with coolant tank
J….Machine base
K….Coolant nozzle
L….Quill feed levers
M….Head lock handle
N….Electric box
O….Pulley cover

FX-383V

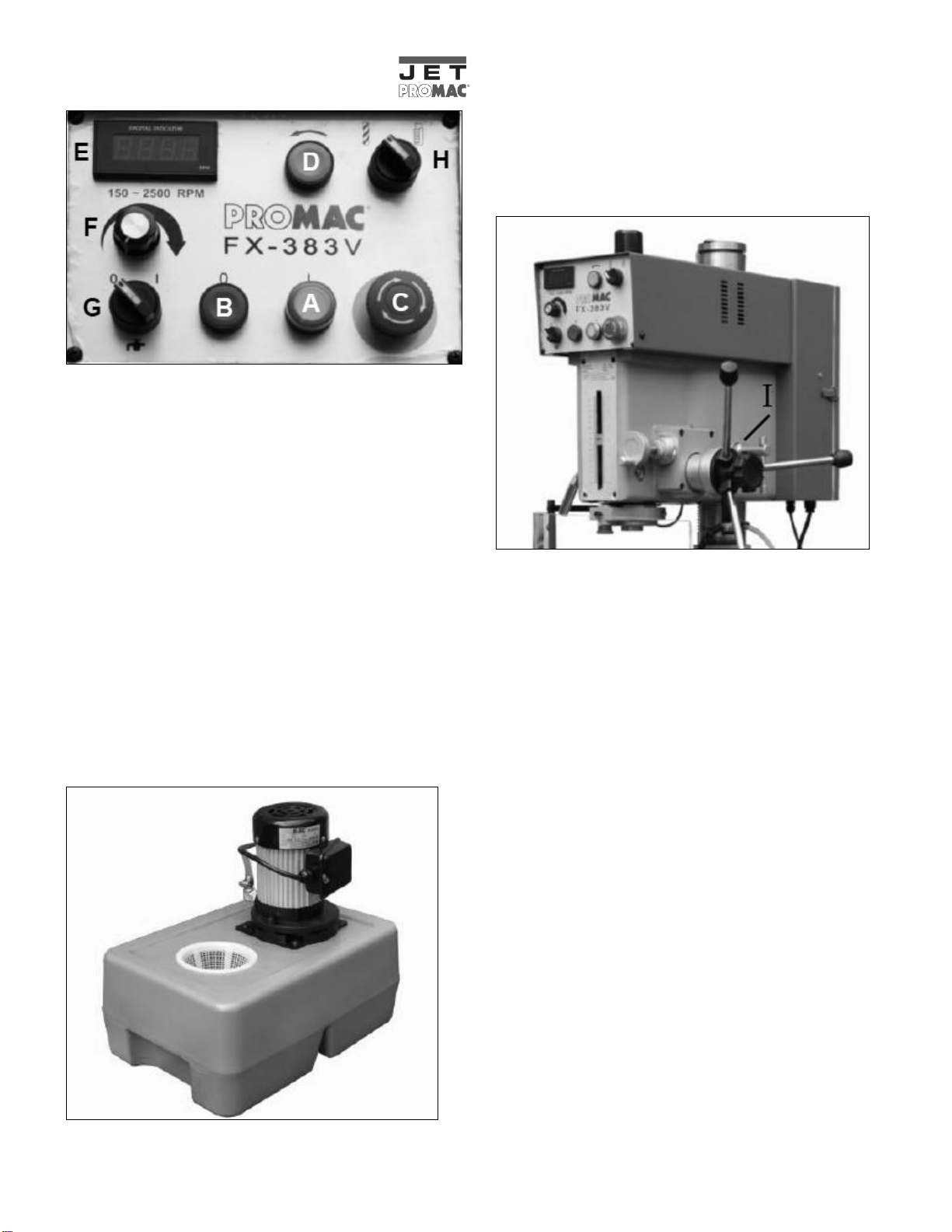

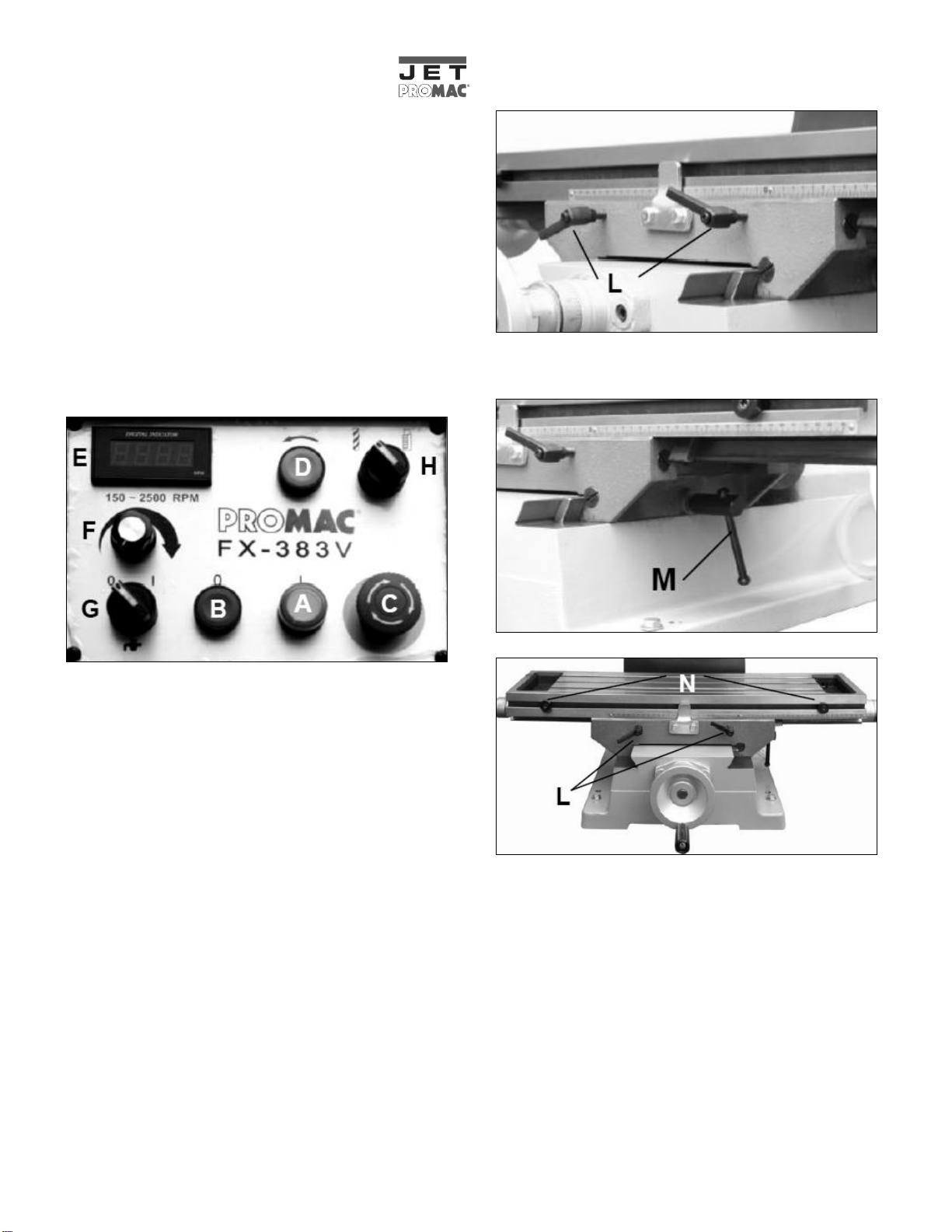

Fig 2
A. ON Switch –Starts the motor.
B. OFF Switch –Stops the motor. As the power still exists,
pressing ON will restarts the machine.
C. Emergency Stop Switch –Stops the machine
immediately. As the machine is without any power. Turn
the switch clockwise to unlock the switch before starting
the machine.
NOTE: To restart the machine, 5 to 7 seconds of waiting
is needed for the inverter to release the current.
D. Reverse Switch –Reverses the spindle rotation. Used for
executing a tapping operation.
E. Tachometer–Displays the rate of spindle rotation in RPM.
F. Spindle Speed Control knob –Changes the speed of
spindle rotation.
G. Pump Switch –Starts the coolant flow for cutting.
H. Drilling/Tapping Selector –Selects the mode of operation.
Fig 3
The coolant tank (Fig 3) holds coolant, which pumped to the
work piece for cooling and lubricating while cutting. Before
the operation of a new machine, add coolant to the coolant
tank. When iron filings clog the screen, cleaning will be
required. Before cleaning, take off the screen and drain out
the coolant.
Fig 4
The machine head (Fig 4) can be rotated 360° around the
column. It allows more flexibility in work piece sizes.
Turn off the machine.
Unlock the head handles (I–Fig. 2).
Use the riser handle to raise or lower the head. Firmly grip
the head and push left or right to rotate the head.
Lock the head handles (I).
Always keep the machine head locked after the height of
head is set as requirement.
Warning!
Failure to lock the head handles may result in damage of the
machine and personal injury.

FX-383V

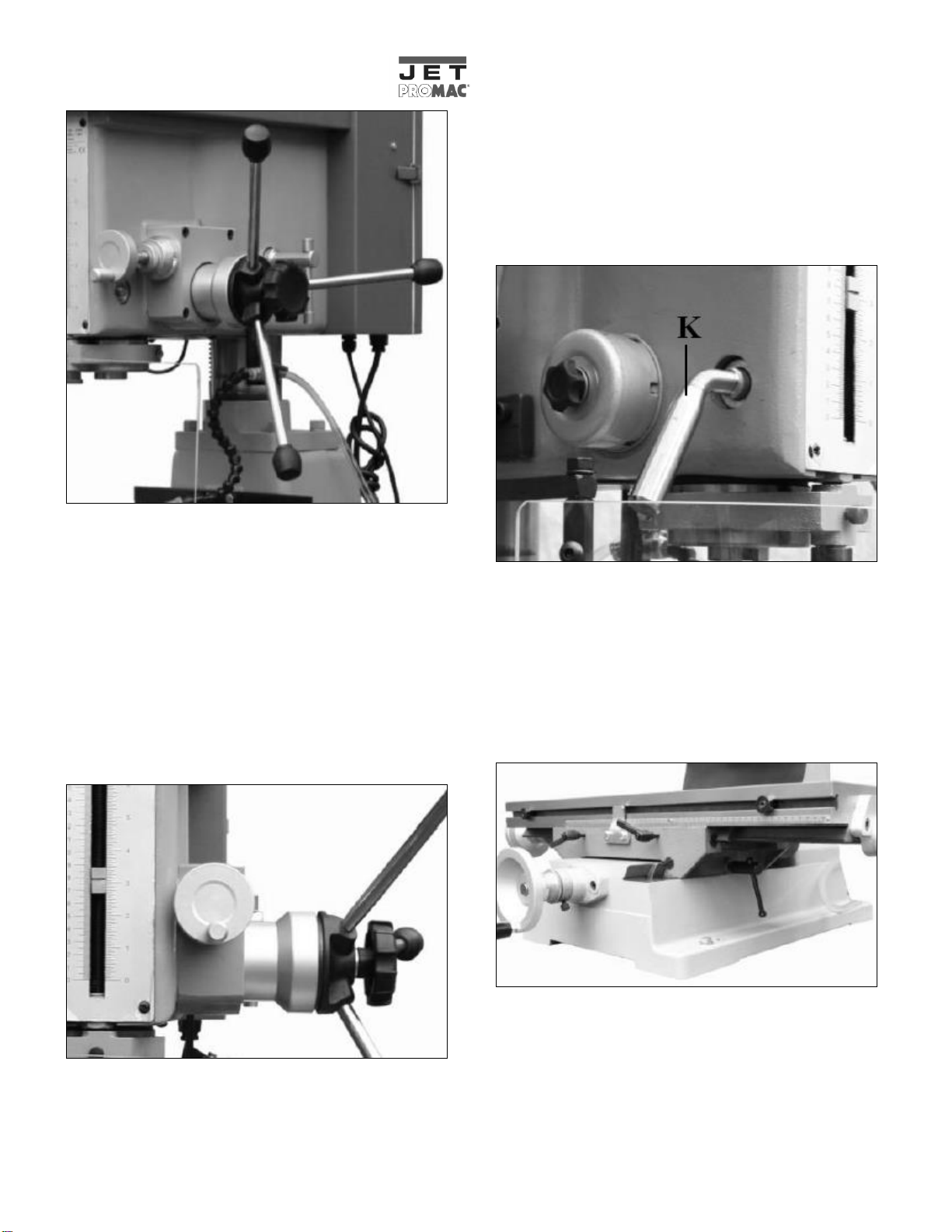

Fig 5
Lowering the spindle
Lowering the spindle lowers the drilling or cutting tool. There
are two methods for lowering the cutting tool.
a) One method is to use the down-feed lever arms.
The lever handles are for gross and quick movements.
b) The second method uses the micro-feed hand wheel which
handles fine and slow movements.
Using the lever arms
Grab the lever handle knob and pull down. Remember not to
release the levers unless the quill is locked or the spindle has
reached the top position. Use the lever handles to control the
ascent when raising the spindle.
Fig 6
The Micro-feed hand wheel (Fig 6) is used to make fine
adjustments while down feeding the spindle.
Simply grab the handle on the hand wheel and turn.
Turn the hand wheel clockwise for down and counter
clockwise for up. Use the micro-feed hand wheel to make
precise movement.
Depth measurements can be monitored precisely by
observing the micro-adjusting indicator behind the hand
wheel.
1 revolution = 2.5mm or 1inch.
Fig 7
Locking the quill
The machine head is equipped with a quill lock to lock the
depth of the spindle. It is useful for setting the tool depth for
milling and drilling.
Simply rotate the quill lock handle (K )until tight. Rotate
counter clockwise to release the quill.
Leave the quill lock released when not need for an operation.
Fig 8
The Machine base
The machine base consists of a cross table and base
assembly. The machine base is used to hold the work piece.
The table is able to move forward and backwards, left and
right for adjusting and milling the work piece.

FX-383V
5. Transport and start up
5.1 Transport and installation
The machine will be delivered in a closed crate.
For transport use a forklift or hand trolley. Make sure the
machine does not tip or fall off during transport.
The machine is designed to operate in closed rooms and
must be bolted to the cabinet stand or a solid work bench.
Make sure the machine cannot tip!
For packing reasons the machine is not completely
assembled.
5.2 Assembly
If you notice transport damage while unpacking, notify your
supplier immediately. Do not operate the machine!
Dispose of the packing in an environmentally friendly manner.
Clean all rust protected surfaces with petroleum, diesel oil or
a mild solvent.
Fig 9
Caution:
The machine is heavy (280 kg)!
Assure the sufficient load capacity and proper condition
of your lifting devices.
Never step underneath suspended loads.
Remove the fixing bolts of the machine.
Positioning the Machine
Check to see if the head is secured to the column with Head
locking handle (A).
WARNING:
Failure to lock the machine head may result in machine
damage or personal injury.
Position a belt (with a load capacity of approximate 280kgs)
at two points (J) to lift the machine.
The head of the machine can be rotated 360o, so choose a
location with enough space and solid foundation.
Assembling Loose Parts
Add the hand wheels(A) to the cross table. Secure in place by
tighten the set screw with an allen #3 wrench.
Add the quill feed levers (B) to the quill feed shaft head and
tighten down with a wrench.
Add Riser handle (C) to the shaft. Secure it in place by
tighten the set screw with an allen #5 wrench
Coolant nozzle (D, come with an optional coolant system)
Optional coolant system comes with the machine, the nozzle
would be installed ready on machine.
5.3 Mains connection
Mains connection and any extension cords used must comply
with applicable regulations.
The mains voltage must comply with the information on the
machine licence plate.
The mains connection must have a 10 A surge-proof fuse.
Only use power cords marked H07RN-F.

FX-383V
Connections and repairs to the electrical equipment may only
be carried out by qualified electricians.
If the machine cannot be operated after the wires have been
connected, please check the following items:
If the Emergency switch is released.
If the door of the electrical cabinet is properly closed and
switched ON (locked).
If the safety guard is in the proper position (closed).
5.4 Initial lubrication
The machine must be serviced at all lubrication points before
it is placed into service!
Failure to comply may cause serious damage.
5.5 Starting operation
Changing the spindle speed
The speed can be changed while machine is running. Then
the spindle speed can be adjusted to the proper cutting RPM
by using the spindle speed control knob (F). The spindle
speed ranges from 150 rpm to 2500 rpm.
Operation Cycle
Check if the 3 items mentioned in 5.3 were done properly.
Check that the head is secure.
Warning!
Failure to secure the head can result in damage of the
machine and personal injury.
Secure the work piece to the table by using a vise or table
blocks.
Use the table hand wheels to position the work piece. Y-axis
for forward and backwards, X-axis for left and right.
Lock the table using two lock levers (L) for Y-axis, the lock
handle (M) for X-axis. Turn clockwise to lock and counter-
clockwise to unlock.
Suggested uses are as follows.
- Lock both tables when drilling.
- Lock the table of the non-milling axis when milling.
Adjust the table stops (N).
.
Use the spindle down feed levers to bring the tip of the drill to
the surface of the work piece and hold.
Set the depth stop (D, Fig 1) to the required depth.
Lift the drill or tapping bit off the work piece a bit.
Select the proper transmission mode and spindle speed (H).
Press start button switch (A) to begin spindle rotation (F).
Turn ON coolant pump lever switch (G), if necessary.
Warning!
For safety concern, please press the emergency switch to
shut down the machine completely after use. Pressing the
stop button alone does not release the remaining power in
the machine.

FX-383V
6. Machine operation
Warning:
Setup work may only be carried out after the machine is
protected against accidental starting.
With pressed emergency stop button.
Never place your fingers in a position where they could
contact any rotating tool, chuck or cutting chips.
Remove cutting chips with the aid of an appropriate chip hook
when the machine is at a standstill only.
Never stop the rotating chuck or tool with your hands.
Always close the chuck guard before you start the machine.
Secure work piece to the table with clamps or a vice to
prevent rotating with the drill bit.
When using a vice, always fasten it to the table.
Check the save clamping of the work piece, chuck and tools
before starting the machine.
Never do any works “freehand” (hand-holding the work piece
rather than supporting it on the table).
Support long work pieces with helping roller stands.
Always adjust the depth stop to prevent drilling into the table
or into the workholding device.
Feed a drill bit into the material with only enough force to
allow the drill bit to work. Feeding too slowly may cause
burning of the work piece or tool. Feeding too quickly may
cause the motor to stop and/or the drill bit to break.
Do not use wire wheels or grinding wheels on this machine.
Never cut magnesium-
high danger to fire!
Measurements and adjustments may be carried out when the
machine is at a standstill only.
In case of danger push the emergency stop button.
6.1 In Milling Mode
Use the depth handle to lower the milling tool to the work
piece and lock into position by rotating its depth lock knob
(O). The depth stop is now fixed at zero.
Fig 10
Set the milling depth stop (P) by turning the knob (S) to the
desired depth.
Unlock the table, use the table lock levers (L) and lock handle
(M).
Use the table hand wheels to begin milling.
Lower the quill, use the micro-feed hand wheel (Q) and lock it
by using the quill lock handle (R). Any further depth
adjustment requires the unlocking of the quill before using the
micro-feed hand wheel (Q). To unlock, rotate the lock handle
counter-clockwise and push in.
6.2 In Drilling Mode
Use the depth handle to bring the tip of the drill bit to the
surface of the work piece and lock the quill with quill lock
handle (R).
Set the drilling depth stop (P) by turning knob (S) to required
depth.
Unlock the quill lock handle (R) by turning counter-clockwise
and pushing it in.

FX-383V
Begin drilling by using the quill feed levers.
6.3 In Tapping Mode
In general, use low speeds for tapping. Tapping at high RPM
will tap more quickly, but there is a danger of damage to the
work piece and tool.
Tapping requires an accurate setting for the depth stop to
allow the machine to switch tapping direction and the removal
of the tapping bit.
Use the depth handle to bring the tip of the tapping bit to the
surface of the work piece and lock the quill lock handle (R).
Set the depth stop (M-tig.6) by turning the knob (S) for
tapping the required depth.
Unlock the quill lock handle (R) by turning counter-clockwise
and pushing in.
Begin tapping by using the quill feed levers.
NOTE:
While tapping, pause the spindle down feed at the bottom of
the operation to allow the breaking and reversal of rotation of
the spindle
6.4 Setting the Depth stop
Set the depth to zero by lowering and holding the cutting tools
to the surface of the work piece.
Unlock the depth scale by turning the lock knob (T)
Set the depth stop by rotating the depth stop knob (S) to the
desired depth.
Lock the depth scale by turning the lock knob (T)
Removing the tools from spindle bore
They are two types of chuck arbors and their removal is
slightly different.
Non-Treaded Type
Disconnect machine from power supply.
Place a thin wood plant on the worktable to protect the
surface of the worktable.
Raise the worktable to about 250mm under the bit.
Lower the spindle about 100mm and lock by using the quill
lock (R, Fig 10) or the lock knob of the down feed levers.
Place the drift key (U) into the aperture (V) of the quill and tap
the end of the drift key (U) with a hammer to tap until the bit
or chuck arbor falls down.

FX-383V
Treaded Type
Disconnect the machine from the power supply.
Place a wooden board on the cross table to protect its
surface.
Take off the cap at the top of the spindle.
Raise the arbor bolt just above the top of the spindle shaft.
Use a hex wrench and rotate the arbor bolt.
Tap the top of the arbor bolt than taper has been loose,
holding chuck arbor and turn detach the arbor bolt.
7. Setup and adjustments
Warning:
Setup and adjustment work may only be carried out after
the machine is protected against accidental starting.
Push the emergency stop button and disconnect from the
power source!
Clean the machine regularly.
Defective safety devices must be replaced immediately.
Repair and maintenance work on the electrical system may
only be carried out by a qualified electrician.
Daily maintenance:
Daily apply oil:
DIN 51502 ISO VG68
(e.g. BP Maccurat 68, Castrol Magna BD 68, Mobil Vectra 2)
- Apply oil on entire length of saddle slideways
- Oil the lubrication fittings
- Spindle quill
apply oil on entire length.
Weekly maintenance:
Weekly apply oil:
DIN 51502 CG ISO VG68
(e.g. BP Maccurat 68, Castrol Magna BD 68, Mobil Vectra 2)
- Oil feed spindles on entired length
- Oil leed screws on entired length
- Oil rack on entired length
- Oil all bright surfaces to avoid corrosion
- Check all covers und the emergency-button
Decommissioning
If the machine is not going to be used for a long time, then
we advise the following:
- Disconnect the mains socket.
- Empty the coolant tank (if available)
- Clean the machine thoroughly and protect appropriately
(grease).
- If necessary, cover the machine with a tarpaulin.
Return spring
The return spring raises the spindle. This can be periodically
tightened when the spindle fails to return properly.
Fig 11
Loosen the grip knob (W)
Turn the spring case (W1) to tighten the spring.
Tighten the grip knob (W) to lock in place.

FX-383V
Safety guard
This clear plastic shield should be used whenever conducting
a drilling or tapping operation.
Clean the safety guard periodically to provide a clear view of
the work piece.
Adjustments can be done as follows:
Lock the vertical height by adjusting knob (X, Fig 11).
Use lever (Y) to lock the horizontal rotation and position of the
safety chuck guard.
Belt replacement
This machine is designed with a timing pulley and belt to
provide greater braking response and torsion strength. Timing
belt should be replaced when the belt is worn or broken.
Open the machine head cover.
Loosen screws to free the motor.
Slide the motor toward the pulley.
Lift out or remove the timing belt.
Replace the belt.
Slide the motor away from the pulley to tighten the belt.
Check that the belt teeth sit well in the grooves of the timing
pulley. Tension should be loose enough to allow 5-10mm
movement when pushing the belt from the side.
Tighten screws to secure the motor in place.
Replace the cover.
Adjusting the table slack
The machine is equipped with gib strip (Z1) adjustment to
compensate for wear and excess slack on cross-table.
Adjust the gib strip by turning the gib strip screw (Z) with a
large screwdriver for excess slack. If the gib strip P is to tight,
loosen the gib strip screw by turning it counter-clockwise.
-The table should feel a slight drag when moving the table.

FX-383V
8. Troubleshooting the inverter
Prior to operating all electronic parts, the following aspects should be taken into consideration first
Note: Onlyeligible and qualified personnel can make electronic adjustments.
1. Disconnect machine from power supply.
2. Electronic parts are extremelysensitive, do not use hands or metal tools to remove or install such parts.
3. As remaining voltage still exists in the capacitor even after the electric current has been cut off, wait until the light disappears
from the lighted displaycompletelybefore proceeding with any work to prevent any accidents or hazards from occurring.
4. Pay close attention to the electronic circuit board so that they are free from any defects.
5. Never connect the alternating current directly to the output connector (U/V/W) of the speed adjuster. The electronic self-
diagnosis program can notifyyou of situations like motor overloading and too low or too high voltage, etc. When the program
detects an error, the machine will stop immediately and such error will be displayed on the inverter’s digital display. Follow
the solutions to correct any errors. Close the electrical cabinet and connect machine to power supply.
Code
Error description
Solution
O.C
* The voltage inverter detects the
output current exceeds the normal
value.
* Check if voltage of the motor matches with that
of the voltage inverter.
* Check connection between the voltage
inverter & the motor.
* Check if the motor is overloaded.
O.U
* The voltage inverter of the motor is
detected with a D.C. high voltage
lateral pressure value that
exceeds the acceptable range.
* Check if the circuit input voltage matches with
that of the voltage inverter.
* Frequent on/off and switches between
clockwise and reverse directions result in self-
protection from high D.C. high voltage
lateral pressures.
O.H
* The touch pole of the voltage
inverter of the motor indicates
overheat.
* Check if the circuit input voltage matches with
that of the voltage inverter.
* Ensure the cooling device be free of any
foreign objects or dirt.
O.L
* The frequency converter detects the
output exceeds 150% of normal
standards for 1 minute.
* Check if the motor is overloaded. Ex:
1. Cutters and tools are blunt?
2. Spindle diameter, gear, speed and
volume of feeds proper?
o.c.A
o.c.d
d.c.n
* Electric current is too large during
acceleration.
* Electric current is too large during
deceleration.
* Electric current is too large during
operation.
* Check if the output connection of the motor
adjuster is insulated improperly.
C.F.F
* Grounding or safety wire mistakes
* Check if grounding is proper.
* Replace safety fuses.
* When the diode shows the same mistake
numbers continuouslyon the monitor, ask for
more information from the after-sales service
center.

FX-383V
C.F 1-3
Abnormal detection inside the
frequency converter
* Place the machine outside the circuit.
* Restart the machine.
* When the diode shows the same mistake
numbers continuouslyon the monitor, ask for
more information from the after-sales
service center.
9. Environmental protection
Protect the environment.
Your appliance contains valuable materials which can be recovered or recycled. Please leave it at a specialized institution.
10. Available accessories
Refer to the pricelist.
