The JETIBOX profi is a mobile wireless device, offering maximum comfort to the user when
viewing, processing and storing telemetric data. An integral part of the JETIBOX profi is the
system JETI DUPLEX 2.4GHz, which can be alternatively operated in one of the two offered
wireless modes.
EN
JETI BOX PROFI
Introduction
2
15. MAIN MENU - Set-up .................................................................. 19
15.1 Set-up - Duplex .................................................................. 19
15.2 Set-up - Sound .................................................................. 20
15.4 Set-up - Profile .................................................................. 21
15.5 Set-up - Display ................................................................ 22
15.6 Set-up - Time ..................................................................... 22
15.7 Set-up - Update .............................................................. 22
15.8 Set-up - Main .................................................................... 22
16. Connection of the JETIBOX PROFI to a PC ................................. 23
17. Technical data ........................................................................... 23
18. Ti connector wiring ............................................................... 24
19. Safety information .................................................................. 25
19.1 Battery replacement ........................................................ 25
19.2 Safety policy ...................................................................... 25
20. Warranty, Service and Technical Support ................................ 26
20.1 Warranty and Service ....................................................... 26
20.2 Technical Support ............................................................. 26
JETI BOX PROFI

12
34
5
678910
11
Before first time switch-on please shift the
switch slider to a position closer to the
tramsmitter connector. Thereafter press for an
extended time the button ESC and the JETIBOX
profi will switch-on.
1. - 4 Navigation Buttons
2. - Enter for confirmation
3. - ESC for leaving the menu
4. - Graphic display
5. - Stereo Jack 3,5mm for earphones connection
6. - Three pin connector (Ji) for JETIBOX compatible equipment connection
7. - USB connector for JETIBOX profi to PC connection
8. - Battery switch
9. - Connector for transmitter connection (Ti)
10. - Loudspeaker
11. - Integrated antenna *
1. Description of equipment
2. First Time Switch-On
on
off
* when handling the JETIBOX profi avoid complete screening off the antennas, otherways range/sensitivity
may deteriorate.
EN
JETI BOX PROFI
3

The JETIBOX profi contains an internal rechargeable Li Po type battery as well as the matching
charging circuitry. The JETIBOX profi can be charged from three different inputs:
USB
Three pin connector (Ji)
Transmitter connector (Ti)
Battery charging is indicated by consecutive filling up of the battery symbol in the lower right
corner of the display. After the symbol becomes completely filled up, the input will be shown
from which the battery gets charged (Ti —transmitter connecting input, USB, Ji —three pin
connector). Charging of the battery is completed when the battery symbol is filled up.
•
•
•
3. Charging the Battery
4. Switch-On, Switch-Off
The JETIBOX profi is switched-on by pressing and holding the button ESC down for a few
seconds, or by connecting a voltage to one of the inputs. If you intend to switch-off the JETIBOX
profi, push again the push button ESC for a slightly extended time and the JETIBOX will start its
switch-off procedure. Switch-off is indicated in the main menu by rolling the upper bar to the
right and after it will be rolled to the end of the right corner, the JETIBOX will be switched-off.
For a long term switch-off of the JETIBOX profi apply the switch, see paragraph 2 „First Time
Switching on”. The factory default switch position is battery-off. It is advisable to disconnect
the battery if a long term disconnection is planned (several weeks or months). During full
disconnection there is no actualisation of time and date provided, therefore it is always
necessary to set-up time and date after switching-on again. Always adhere to the correct
switch-off procedure. Switch-off the JETIBOX profi by using button ESC first and thereafter
switch-off the battery. Never try to disconnect the battery for long term
disconnection by means of the switch while the JETIBOX profi is running!
5. Long Term Switch-Off
In the upper menu bar you can see the menu
name. The presence of a shifting bar in the right
corner of the menu signifies that the menu
consists of multiple items. By pressing the
“up/down” button you may move vertically
through the menu items until the shifting bar
sign reaches its lowest screen edge. With the
push buttons “left/right” you may move
through the menu horizontally.
Some menus contain items which the user may
set-up himself. These items consist of a
description and a value. You may recognize an
adjustable value by an arrow symbol to the left
or right adjacent to the value, see picture. If the
value is accompanied by an arrow left, a value
change can be achieved by pushing the “left”
button. If there appear both arrows in the
menu, you may alter the values by pushing the
button “left” or “right”.
6. Menu Navigation, change language
EN
JETI BOX PROFI
MENU Name Menu Bar
Description
Value
4

If there is a right direction arrow placed on the
left side of a menu item, then this item may be
changed/activated by the push button ENTER.
Items which cannot be set up are either marked
by a simple arrow or by an icon.
On account of better orientation are some
menus on the desktop marked by special
navigation icons. The first icon in the upper
right corner shows the position of the edited
item. A further icon illustrates the choice of
further embedding.
EN
JETI BOX PROFI
6.2 Language switching
When leaving the production line the JB embodies its initial set-up comprising English as
initial language. If you want to switch to a different language you should proceed as follows:
1. Switch-On the JETI BOX PROFI.
(see. Chapter 4)
2. Push the ESC key. In the main menu select
item SETUP and confirm with
the ENTER key.
3. Select item MAIN and confirm with
the ENTER key.
4. Select item Language and carry out
the requested language change with the aid
of the left/right key.
5

The JETIBOX profi contains a built-in wireless data transfer system Duplex 2.4GHz. The JETIBOX
profi can be operated in two wireless communication modes – “Monitor” or “Tx module”.
Mode switching sequence:
7. Wireles Modes
1. Switch-On the JETIBOX profi
2. Push ESC: Main menu, select item SET-UP,
confirm by ENTER
3. Select item DUPLEX, confirm by ENTER
4. Select item „ JETIbox mode“ and carry
out changes by arrows left or right
5. Prompt confirmation of mode change.
Select YES, confirm by ENTER
At present you have carried out a mode change. Description of particular modes see below.
EN
JETI BOX PROFI
7.1 Monitor
When using this mode the JETIBOX profi can only receive data via the existing connection
between the transmitter and receiver (listen). The JETIBOX profi cannot communicate with the
receiver without a switched on transmitter. If you want to operate the JETIBOX profi in this
mode it is therefore mandatory to carry out the binding procedure between the JETIBOX profi
and the transmitter as shown below.
6

Binding
During the binding process the JETIBOX profi adds the transmitter identification number to its
directory of equipment, which it is able to communicate with. Binding must be carried out
only, if the transmitter and the JETIBOX profi have never been bound before. If the JETIBOX
profi and the transmitter have already been bound at any time before, after switching on they
will automatically start communication with each other. In case of this mode the JETIBOX
profi is bound with the transmitter.
The sequence is as follows :
4. Select item DUPLEX. Check, if the
„Monitor“ mode is set.
Push ENTER in item Binding.
5. The item „Start“ will change into „Running…“
6. Switch-on the transmitter and thereafter the receiver.
7. After binding the item „Running …“ will change into „Start“ again and herewith
the procedure will be finished.
1. Switch-on the JETIBOX profi
2. Push ESC: Main menu, select item SET-UP
confirm by ENTER
3. Select item DUPLEX, confirm by ENTER
EN
JETI BOX PROFI
8 channel receiver
Monitor Mode
7

7.2 Tx MODULE mode
In this mode the JETIBOX profi is communicating bidirectionally directly with the receiver. The
JETIBOX profi receives telemetric and service data from the receiver. Via the standard PPM
signal, which is generated by most transmitters, the JETIBOX profi can simultaneously send
stick and controller settings to the receiver. The JETIBOX profi can simply serve as a transmitter
module replacement. Thanks to the universal mounting set it is simply done by installation of
the JETIBOX profi on the transmitter and by connecting the PPM signal including supply to the
JETIBOXu profi.
E x t .
P P M
1
2
D
D
a
n
t
sat2
satellite RECEIVER
PPM
8 channel receiver
Binding
During the binding process the JETIBOX profi adds the transmitter identification number to its
directory of equipment, which it is able to communicate with. Binding must be carried out
only, if the transmitter and the JETIBOX profi have never been bound before. If the JETIBOX
profi and the transmitter have at any time been bound before, after switching on they will
automatically start communication with each other. In case of this mode the JETIBOX profi is
bound with the receiver. Binding can be accomplished in two ways.
Tx MODULE mode
Automatic Binding:
Activate Binding in the receiver: plug-in the “bind plug” into the receiver input marked EXT
and connect the receiver supply.
Switch-on the JETIBOX profi. JETIBOX profi establishes communication with the receiver.
If connection of the JETIBOX profi with the receiver fails, check whether the mode set-up of
wireless communication correctly stands on “Transmitter”, see chapter “Wireless Modes”, and
repeat the procedure.
1.
2.
Manual procedure:
1. Switch-on the JETIBOX profi
2. Push ESC: Main menu, select item SET-UP,
confirm by ENTER
EN
JETI BOX PROFI
8

4. Select item DUPLEX. Check, if the
„Txmodule“ mode is set.
5. Activate Binding in the receiver: plug-in the “bind plug” into the receiver input marked
EXT and connect the receiver supply.
6. Go to item Binding and select -> Start,
confirm by button ENTER.
After execution of this step connection between
the JETIBOX profi and receiver will be
accomplished.
3. Select item DUPLEX, confirm by ENTER
8. Desktop
After switch-on of the JETIBOX PROFI you will be situated in the telemetric menu on the
desktop working area. In the lower part a status line shows operation modes of the JETIBOX
profi. Above the status line there are items showing telemetric data. The JETIBOX profi offers
up to 5 different desktops with 4 items on each, which can be set by the user. With push-button
“left/right” you can browse through the desktops, their sequence is shown below left in the
status line.
1- Four positions of telemetric data as defined by the user
2- Desktop sequence
3- Storing indicator of telemetric data and PPM
4- Menu of the external input „Ji“
5- Menu of the wireless module
6- Indicator of the active loudspeaker/earphones
7- Indicator of battery status or charging status while charging
8- Signal strength of receiver antennas
2 3 4 5 6 7 81
7.3 Telemetry Reception
If you do not connect a PPM signal when using the transmitter mode, the JETIBOX profi will
receive telemetry from sensors only which are connected to the receiver. The JETIBOX profi
will not transmit stick and controller positions. Deactivate the PPM alarm if you are going to
exploit the JB in this mode.
EN
JETI BOX PROFI
9

9. PPM monitor
In the PPM Monitor menu there are graphically shown deflections of particular channels. You
simply enter the PPM Monitor from the desktop. If you are on desktop 1, just push the “left”
button. The PPM Monitor menu consists of 8 indicators which graphically represent the
particular channel deflections. In the status line you will find the number of detected
channels. By pushing the “left” button again, 8 PPM channels may be featured .
In the wireless mode “TX module” the PPM signal will be decoded at the input „Ti“ and will
depict the deflections of particular channels in the PPM Monitor. If the JETIBOX profi is
switched to the wireless mode “Monitor”, the PPM Monitor will depict channel deflections of
the transmitter, which is communicating with the JETIBOX profi.
10. Telemetry with the EX System
The EX System telemetry is offering a wide potential for processing, depicting and storing
telemetric data. In order to view telemetry it is necessary, that the JETIBOX profi has either
picked up communication, using one of the wireless modes (see chapter Wireless Modes), or
the equipment must be connected to the external input „Ji“.
1. Select one of the four desktop items and
confirm by button ENTER.
2. Select item „Equipment“ and confirm
by ENTER.
3. Select an arbitrary equipment from the
directory - if there is no equipment shown on
the display, check if there exists a connection
and whether the sensor EX is connected to the
system. When starting first time or when a new
sensor is connected up the display of the
equipment may take a certain time.
4. Select an arbitrary equipment parameter-
complete displaying all parameters may afford
a certain time. When starting first time or when
a new sensor is connected up, the complete
display of all parameters may afford a certain
time
10.1 Display - Method of displaying telemetric values by the JETIBOX profi:
EN
JETI BOX PROFI
10

Bargraph
Depiction of parameters in a form of a per-line graphic with a set-up possibility:
Origin - on which side of the graph is the origin placement: left, center, right
Minimum - a value, which the left border of the graph will achieve. Valid for the origin choice
left, right, center. After setup of the origin on the right side, the right graph
border will represent the minimum.
Maximum - a value, which the right border of the graph will achieve. Valid for the origin
choice left, center. After setup of the origin on the right side the left graph border
will represent the maximum.
Store the executed changes by push-button ENTER and move to the desktop.
5. With the aid of this menu you may select the
way of displaying telemetric data. The depicting
manner of „Value“ is a parameter, which is
shown by a plain number. Select the item
„Value“. Further choices wil be described below.
Set-up Examples:
This setup can be used for a graphic display in the form of a bar graph of the Vario from the
sensor MVARIO, where the graph origin is placed in the center and the minimum and
maximum are adjusted symmetrically. If you adjust the bargraph with its origin in the center,
the bargraph will be complemented at the weighting scale ends by arrows left and right,
which show if the represented value is larger or smaller than the value at the bargraph center.
For the graphical image of capacity in the form of a bargraph of the sensor MUI you can use a
setup, where the graph origin is on the left side and the minimum and maximum are adjusted
in such a way, that the bargraph represents the remaining capacity of the battery by filling the
graphic. If the capacity is completely consumed, the bargraph will not be filled at all.
EN
JETI BOX PROFI
11

Conversion
If you want to show telemetric data in other
than standard units, you may select several
kinds of conversions. The upper menu bar shows
the selected parameter and its actual value. If
you wish to carry out the conversion with the
“up/down” button, choose one of the preset
possibilities and confirm with the ENTER button. In the upper bar you may see between
square brackets the unit change. Leave the menu with the ESC button.
XY Graph
Displaying of telemetric data in dependence on time with history. This kind of depicting can be
used on one desktop only once.
Mode - AUTO -matic determination of graph borders. A dynamic calculation of graph borders
in dependence on telemetric data range. When switching-off, the borders are stored and
when switching-on again they become renewed. Resetting of the borders is carried out when
the XY graph setup is stored, i. e. by pressing the ENT button in the XY graph menu.
MANUAL - determination of graph borders. While switching to this mode the view menu is
extended by items like minimum and maximum, where you may enter the graph borders.
Minimum - a value, which the lower graph border will prevail.
Maximum - a value, which the upper graph border will prevail.
Speed - an item, which may prevail three speed levels of shifting the graph time axis.
Slow - the graph is actualized 1x per 1.5s
Medium - the graph is actualized 2x per 1s
Fast - the graph is actualized 5x per 1s
10.2 Storing of Data
Telemetric and working data can be stored into the internal memory for purposes of later
processing and analysis. Data recording can be started manually or automatically after switch-
on. After recording is switched-on, a new data record is created in the memory, where time,
date and profile name are stored. Into the created data record now begins storage of following
data, if available:
- telemetric data EX - from the input „Ji“ and from sensors connected to the receiver
- receiver working data (signal strength of receiver antennas, receiver voltage)
- deflections of particular channels (decoded from the input in the wireless mode
“TX module” or, in the wireless mode “Monitor”, as received from the receiver).
Manual Switch-On Method of Telemetry
Recording:
Start/stop data recording manually by a long
lasting push of the “up” button in the desktop
menu. Recording is indicated in the status line
by change of the icon and by its flashing. At the
same time a window is opened with the
warning, that recording is running and a
sequence number is shown.
EN
JETI BOX PROFI
12

Automatical switch-on method of telemetry recording:
1. On the desktop working level push ESC->
Main menu, select item SET-UP and confirm
by ENTER button.
2. Select item MAIN and confirm by ENTER
button.
3. In the item „Auto. Storage“ set YES,
herewith the JETIBOX profi will always start
recording after switch-on.
Stop of Recording:
- manually you will stop data recording by a long lasting push of the “up” button in the desktop
menu.
- switch-off the JETIBOX profi by a long lasting push of the ESC button.
10.3 On-line Telemetry on a PC
Telemetry can be watched on the PC in real time
with the aid of the Flight Monitor program.
Connect by an USB cable the JETIBOX profi to a
PC and start the program Flight Monitor (see
chapter Connecting up the JETIBOX profi to a
PC). Telemetric data will be sent in real time from the JETIBOX profi via USB to the program
Flight Monitor, where you can watch, analyse and store them etc..
The following data are transferred in real time:
EX telemetry -from input „Ji“ and from sensors, which are connected to the receiver,
Receiver working data (signal strength of receiver antennas, receiver voltage),
Deflections of particular channels (decoded from the input in the wireless mode “TX module”
and received from the transmitter in the wireless mode “Monitor”). .
EN
JETI BOX PROFI
13

11. 1st Generation Telemetry
The JETIBOX profi makes it possible to process, store and depict telemetric data of the 1st
generation.
11.1 Displaying
For telemetry displaying there exist two menus
on the desktop, marked in the status line by „Ji“
and „Tx“.
In the menu „Ji“ there are displayed telemetric
data of equipment, which is connected via the
external input „Ji“ (much like at the JETIBOX,
JETIBOX mini). If there is no equipment connected to the input, the display will show the text:
„Equipment not connected!“.
Menu „TX“ represents the menu of the transmitter module. In the wireless mode “Monitor” you
can, after connection has been built up, watch/adjust the receiver and the telemetric sensors,
connected to the receiver. With the push-button “left/right” you may browse through the
upper menu level and with the aid of the “down” button you will enter the menu. By a long
lasting push of the “up” button you will get back to the highest menu level. In the TX menu you
will find informations of the transmitter module. Via the RX menu you will reach on wireless
basis the receiver menu (more informations see instructions of Duplex receivers). Also on
wireless basis you will enter the menu MX of telemetric sensors, which are connected to the
receiver. The last item is an extended telemetric menu, where in the first line are shown
receiver working informations and in the second line telemetry from the sensors.
In the wireless mode “Monitor” the menu is accessible only, if to the listened in transmitter
which is communicating with the receiver, there exists connection to the JETIBOX and via it
access to the menu RX or MX. In this mode the JETIBOX profi only acts as an observer. You can
watch data, but you cannot browse through the menu or adjust any values.
11.2 Storing Data
In the menu „Ji“ or „Ti“ you can start data storing with the button ENTER. If there is no storing
started yet, a new record will be created and it starts storing the actual two text lines as
displayed. After leaving the menu data are unceasingly stored.
How to stop storing:
- by switch-off the JETIBOX profi
- by manual switch-off in the menu - repeated pushing of button ENTER
EN
JETI BOX PROFI
antena activity
state reduced
Tx power indicator no. of Tx channels
Transmitter Type
Duplex Tx
Diag A2 PS
RangeTest B
ImpDiag
K7
14

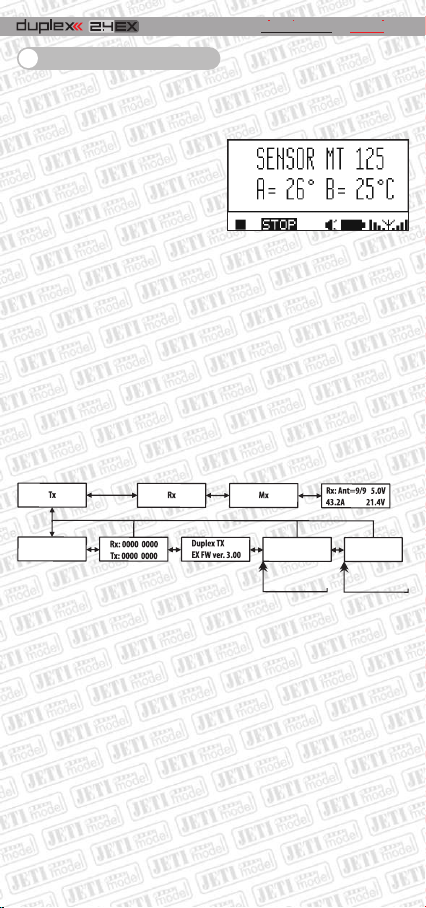

Structure of Transmitter menu - JETIBOX diagram

12. 1st Generation System and System EX
Both systems are mutually compatible. The following lines describe the way of telemetry
reception by the JETIBOX profi, if there will be used different configurations of connection
between 1st generation systems and systems EX. All receivers and transmitter modules are
able to transfer the telemetry system EX. Let us describe several wiring examples of an
Expander and sensors.
In the described cases the transmitter module is communicating with the receiver and the
JETIBOX profi runs in the “Monitor” mode, i. e. listens to the communication. In the described
cases the wireless mode of the JETIBOX profi does not matter. The behaviour will be the same.
The JETIBOX profi always receives working information (receiver voltage, signal strengths of
antennas) from the receiver independently of the receiver version.
8 channel receiver
Transmitter Duplex
or Duplex EX
8 channel receiver
1st Generation
Sensors
1st Generation
Telemetry
1. The 1st generation telemetric sensor is directly connected to the receiver. The JETIBOX profi
receives 1st generation telemetry only.
2. The telemetric sensor EX is directly connected to the receiver. The JETIBOX profi receives
telemetry EX.
- 1st generation system DUPLEX
- system DUPLEX EX
8 channel receiver
Transmitter Duplex
or Duplex EX
8 channel receiver
Sensors EX
Telemetry EX
- 1st generation system DUPLEX
- system DUPLEX EX
EN
JETI BOX PROFI
15

3. Telemetric sensors EX are connected via an Expander E4 to the receiver. The JETIBOX profi
receives 1st generation telemetry only.
8 channel receiver
1st Generation
Expander
Sensor EX
Sensor EX
Sensor EX
Sensor EX
1
2
3
4
8 channel receiver
Expander
EX
1. Telemetry EX
2. 1st Generation Telemetry
3. 1st Generation Telemetry
4. 1st Generation Telemetry
Sensor EX
Sensor I.
Sensor I.
Sensor I.
1
2
3
4
4. Telemetric sensors EX and 1st generation sensors are connected via an Expander E4 EX to
the receiver. The JETIBOX profi receives telemetry EX of the first sensor and from the remaining
sensors it receives 1st generation telemetry.
1st Generation
Telemetry
Transmitter Duplex
or Duplex EX - 1st generation system DUPLEX
- system DUPLEX EX
Transmitter Duplex
or Duplex EX - 1st generation system DUPLEX
- system DUPLEX EX
EN
JETI BOX PROFI
16

13. MAIN MENU - ALARMS
In the menu “Alarms” sounds are assigned to events and are replayed in case of event
occurrence. You may, for instance, record your own sounds into the JETIBOX profi which may
be replayed at the event of binding or current overrun. The menu is divided into JETIBOX profi
alarms and sensor alarms. In the lower part of the menu you see the Alarm status bar. The
status of the JETIBOX profi is represented in the bar by pictograms, see picture..
12 3 4 5 6 7
1 - Bind symbol: As soon as the JETIBOX profi
was connected this symbol will be shown.
2 - Error symbol PPM
3 - JETIBOX profi low voltage symbol
4 - Decrease of receiver voltage
5 - Signal loss
6 - Low signal
7- Range test
As soon as an alarm occurs, a warning appears in the window and a replay of the assigned
sound starts.
13.1 JETIBOX PROFI Alarms
There are the following items contained in the Alarm menu of the JETIBOX PROFI:
Events:
– Priority - This item implies the rate of alarm repeating at a continuing alarm occurrence.
• High - alarm will be generated every 8s
• Medium - alarm will be generated every 15s
• Low - alarm will be generated every 22s
binding, PPM error, JETIBOX PROFI low voltage, receiver voltage decrease,
signal loss, low signal, range test. With the push-button “left/right” in the item
Event you can move between the events.
– Sound - The name of the sound file, which will be replayed in case of an event. By
pushing the button ENTER on this item, you will depict the sound list and the approximate
lengths of sounds as stored in the memory. The sound can be replayed by pushing the “right”
button.
13.2 Alarms - Sensors
In this menu you may assign to the sensor alarms any sound which has been stored in the
JETIBOX PROFI memory. The sensors generate alarms in the format of a Morse code. In this
menu you may assign to the Morse code any sound stored in the memory of the JETIBOX PROFI.
For instance, if measuring current with the aid of a MUI and adjust the capacity alarm to a value
of 300mAh, the sensor will start alarm generation when this value is overstepped.
EN
JETI BOX PROFI
17

The sensor starts to generate the Morse code „C“. If the JETIBOX PROFI receives this alarm, it will
replay the sound which was assigned to the letter „C“. It is possible to set-up at most of the
sensors a letter, which will be signalized in case of an alarm. An overview of default (factory)
Morse code assignments to particular sensors is shown in the table.
In the first column you see the alphabet. The second column shows alarms of sensors EX. In the
third column are 1st generation sensor alarms. For instance, the first line of the table says that
the default assignment of the letter A is an altitude alarm at sensors MVARIO and MGPS in the
EX version.
EN
JETI BOX PROFI
Morse Code
Alarms - Sensors EX
Alarms - I. Generation
A
MVARIO,MGPS - altitude
MGPS - altitude; MU-3 - low voltage A
B
Not used
MU-3 -low voltage B
C
MUI - capacity
MUI - capacity; MU-3 - low voltage C
D
MGPS-distance
MGPS-distance; MULi6s - low cell voltage
E
MU-3, MULi6,MAXBEC2D-input
Not used
F
Not used
Not used
G
Not used
Not used
H
MRPM - high rpm
MRPM - high rpm;MULi6s - low cell
I
MUI - high current
MUI - high current
J
Not used
Not used
K
Not used
MSPEED- speed
L
MRPM - low rpm
MRPM - low rpm
M
Not used
Not used
N
Not used
Not used
O
MAXBEC - voltage
Not used
P
MAXBEC - temperature
Not used
Q
MVARIO - vario
Not used
R
MT- temperature B
Not used
S
R18,R14-low signal
R18,R14-low signal
T
MT- temperature A
MT- temperature A; MAXBEC - temperature
U
MUI-voltage
MUI-voltage
V
MGPS,MSPEED- speed
MGPS- speed; MVARIO - vario; MAXBEC -
W
MU-3 - low voltage A
Not used
X
MU-3 -low voltage B
Not used
Y
MU-3 - low voltage C
Not used
Z
MULi6s - low cell voltage
Not used
18

In the menu Memory you will find an overview of memory capacity as well as a function for
telemetry recording. In the center of the menu there is always a capacity indicator of the given
section. On the left side underneath the upper bar there is the name of the memory section
and on the right side the capacity expressed in percent. Below a horizontal line you will find
the following menu items:
– New record - when storing telemetry a new record is created
– Delete - will delete the complete telemetry from the internal memory
– Number of records in the internal memory - Sound section of the memory.
– Number of sound files.
14. MAIN MENU - Memory
15. MAIN MENU - SET-UP
Within this menu the complete set-up of the
JETIBOX PROFI is carried out. Set-up is
thematically dissected into 8 sections. You may
enter particular sections with the aid of the
ENTER key. Value changes will appear
immediately after change. With the ESC key you
may leave the menu and store changes. With
some menues you will be asked after set-up of
changes for a confirmation of the changes
made. Be careful with set-up changes of the
JETIBOX PROFI while the device is runnng.
15.1 SET-UP - Duplex
This item allows set-up of the wireless module Duplex 2.4GHz.
–JETIbox Mode - Selection of the wireless mode see chapter 7, Wireless Modes.
The change of a wireless mode will interrupt the connection of the preceding mode!
– Binding - Start of the binding process see chapter 7, Wireless Modes
– Range Test - Start of the test mode. Herewith the PROFI is switched to the range
test mode and the transmitter power is decresed to less than 10%. This status is
simultaneously indicated acoustically. By another push of the ENTER key the JETIBOX PROFI
returns to the normal status, the power output increases to the original value..
EN
JETI BOX PROFI
19

– Input Signal - Set-up of the input PPM signal of the transmitter. Most transmitters use
standard PPM signals.
• PPM set-up for the majority of transmitters
• Use PPM v2 or v3 only, if your transmitter allows to switch to another PPM
mode.This mostly applies to transmitters which are able to transmit more than
8 channels in the PPM mode, for instance 12 channels..
–
adjust the transmitted power of the wireless
module (the allowed maximum transmitted
power may vary due to the law situation in
particular countries).
• - within the whole band
2.4GHz the maximum transmitted
power is 10mW
• 100mW - within the whole band
the maximum transmitted power is
100mW (recommended set-up)
• 10mW/100mW - in parts of the
2.4GHz band the transmitted power
is 10mW and 100mW (France)
– ID Transmitter - the transmitter
identification number, with which the
JETIBOX PROFI has taken up the latest
communication.
– ID Receiver - the receiver identification
number, with which the JETIBOX PROFI
as taken up the latest communication.
Transmitted Power - Here you can
10mW
15.2 SET-UP - Sound
In this menu the voice output parameters
become set-up.
– Speaker Loudness - Speaker loudness
can be set-up in 9 steps and additionally mute.
– Earphones Loudness - Set-up of
earphone loudness. With connected earphones
the speaker becomes automatically shut down
and the loudness is adjusted to earphone
loudness.
– Key Tones - Off/On of key tones for
speaker and earphones.
15.3 SET-UP - Battery
Set-up of charging management and displaying of input voltages.
– Charging via Ti - Decision set-up, whether the battery shall be charged if a voltage is
connected to input Ti. If your JETIBOX PROFI is connected to the transmitter you may inhibit
charging of the JETIBOX PROFI battery. The JETIBOX PROFI will be supplied from this input, but
the internal battery will not be charged. Herewith you will prevent energy flow from the
transmitter battery to the JETIBOX PROFI.
– Auto. switch off - Set-up of automatical shut-down if the supply is disconnected from
the input. If you disconnect the voltage from any arbitrary input, the JETIBOX PROFI starts to
shut down. If you do not want this function, set-up item NO..
EN
JETI BOX PROFI
20
