JIANGSU SI Series User manual

Digital DisplayAC Ammeter
Operation Guide
Applied to:
SI series
S3I series
JIANGSU SFERE ELECTRIC CO., LTD.

Thank you for choosing the digital display meters researched and produced by
Jiangsu Sfere Electric Co., Ltd. Please read this manual carefully and follow the
instructions strictly to ensure your safe, correct and efficient purchase and use of the
product.
◆Make sure only the qualified technicians perform the installation and maintenance;
◆Before performing wiring operation to the meter, make sure the input signal and
the power supply are switched off;
◆The proper voltage detecting device should be used to guarantee no voltage in any
part of the meter;
◆The electrical parameters supplied to the meter should be within the rated range;
The following situations may result in damages to the meter or cause mistakes in the
operation of the meter.
◆The voltage of the auxiliary power supply goes beyond the rated range.
◆The frequency of the power distribution system goes beyond the rated range.
◆The input polarity of the voltage or the current is incorrect.
◆Remove or connect the communication plugs without powering off.
◆Connect the terminal wires against the related instructions.
Please don’t touch the terminals when the meter is in operation!

1. Function Description
Digital display ammeters measure three phase or single phase current parameters of grid by
adopting AC sampling technology. This series of meters support RS-485 communication interface
(Modbus-RTU protocol), analog output, digital input and relay output function. The transmission
ratio can be changed through the operation buttons on the panel of meter.
2. Naming Rule
S □ I □□- □
Optional function: C - RS485 communication
M - Analog output
J - Relay output
K - Digital input
Display mode: Null - LED
Y - LCD
Cutout size: 96 - 91mm×91mm
80 - 76mm×76mm
72 - 67mm×67mm
Function code ：current
Phase ：Null - single phase
3 - three phase
Abbreviation for SFERE
3. Panel
1. Model；
2. Display measured data and
programming information；
3. Unit；
4. Left-forward button that is
used to select functions or select
numbers at different bits；
5. Right-forward button that is
used to select functions or change
the number at selected bit；
6. Menu button that is used to
enter parameter setting status,
return to upper level menu in
programming status and cancel an
operation；
7. Enter button that is used to
confirm an operation.
SI series panel
A
①
②
③
④⑤⑥⑦
A
①
②
③
④⑤⑥⑦
Menu
Menu
A
B
C
A
A
A
①
②
③
④⑤⑥⑦
A
B
C
A
A
A
①
②
③
④⑤⑥⑦
S3I series panel

4. Mounting dimension Unit:mm
Code of
Outline Panel size Match Size of
Screen Install
Overall
Length
96 96×96 91×91 75
72 74×74 67×67 75/90
80 83×83 76×76 75

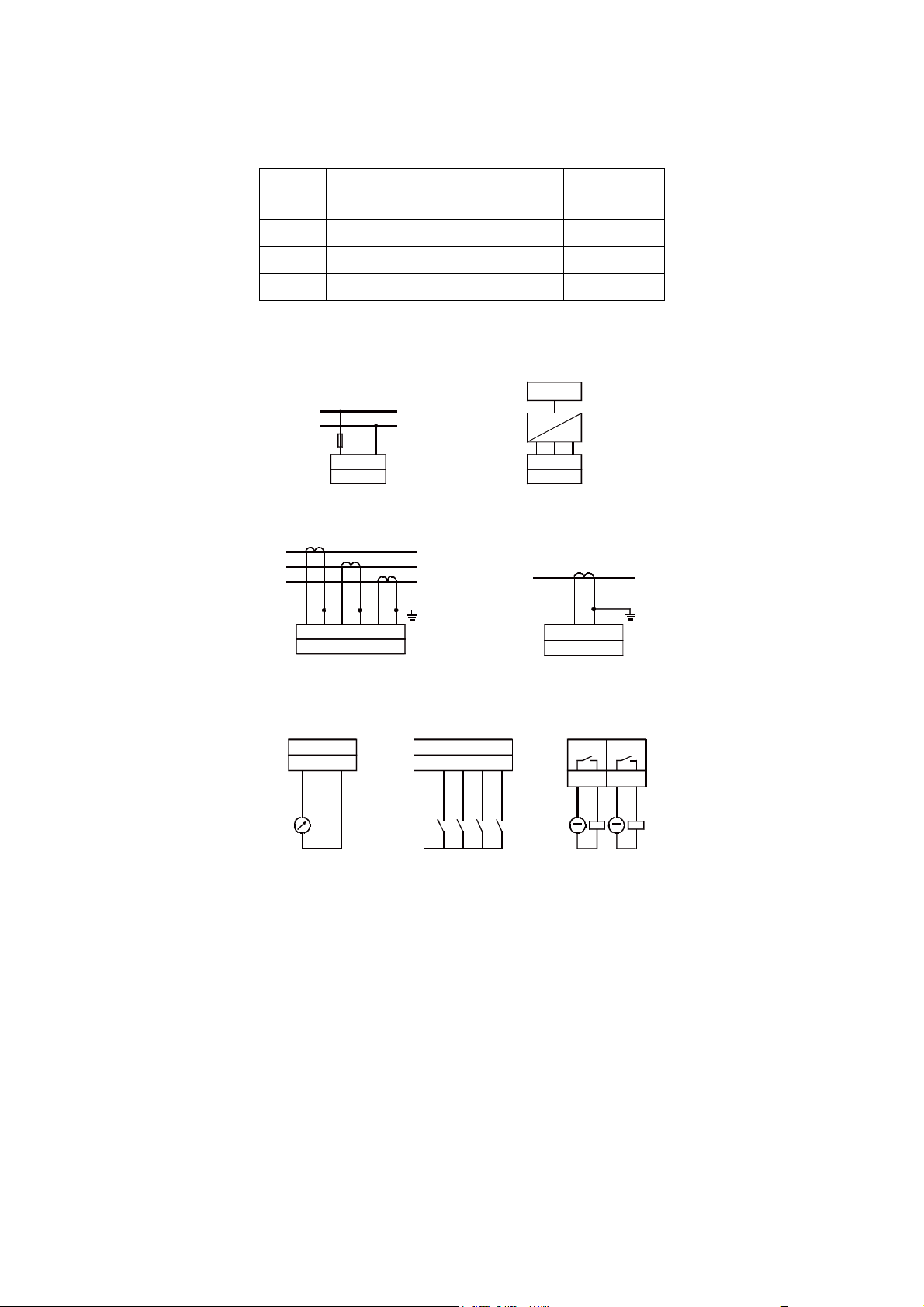

5. Wiring diagram
Power supply
1
N
L
2
LN
Communication
58
ABS
59 60
PC
RS232
RS485
*
4
C
B
956
A
78
Three phase
current input
I
A
II
AB
I
BC
I
C
*
I
**
*
*
4
I
5
Single phase
current input
I
*
Relay output
28 29 31 32
1DO 2DO
～ ～
DIC 1DI 2DI 3DI
70 71 72 73
4DI
Digital input
74
Analog output
+
-
15
16
AO
Note: 1. “*” indicates the input terminals of current.
2. For the detailed wiring methods, please refer to the practical wiring diagrams of products.

6. Flow chart for checking menu
Menu >3秒
First
level
Second
level
Third
level
Alarm mode
Wiring mode
Data format
Pulse time
Off
Communication address
Primary voltage v alue
Baud rate
Remote control mode
Flashing alarm
Brightness degree
Programming password
Cycle display time
Secondary voltage v alue
Delay time
Hysteresis value
Alarm value
Alarm item
Software version
Lower limit value of
analog output range
Analog output mode
Analog output item
Upper limit value of
analog output range

First
level
Second
level
Third
level
Alarm mode
Data format
Pulse time
Off
Communication address
Primary voltage v alue
Baud rate
Remote control mode
Flashing alarm
Brightness degree
Programming password
Secondary voltage v alue
Delay time
Hysteresis value
Alarm value
Alarm item
Software version
Lower limit value of analog output range
Analog output mode
Upper limit value of analog output range
Unit of primary voltage v alue
Unit of secondary voltage v alue
Note: 1. Checking method of do-2 is similar to that of do-1;
2. The function of button is the same as button.

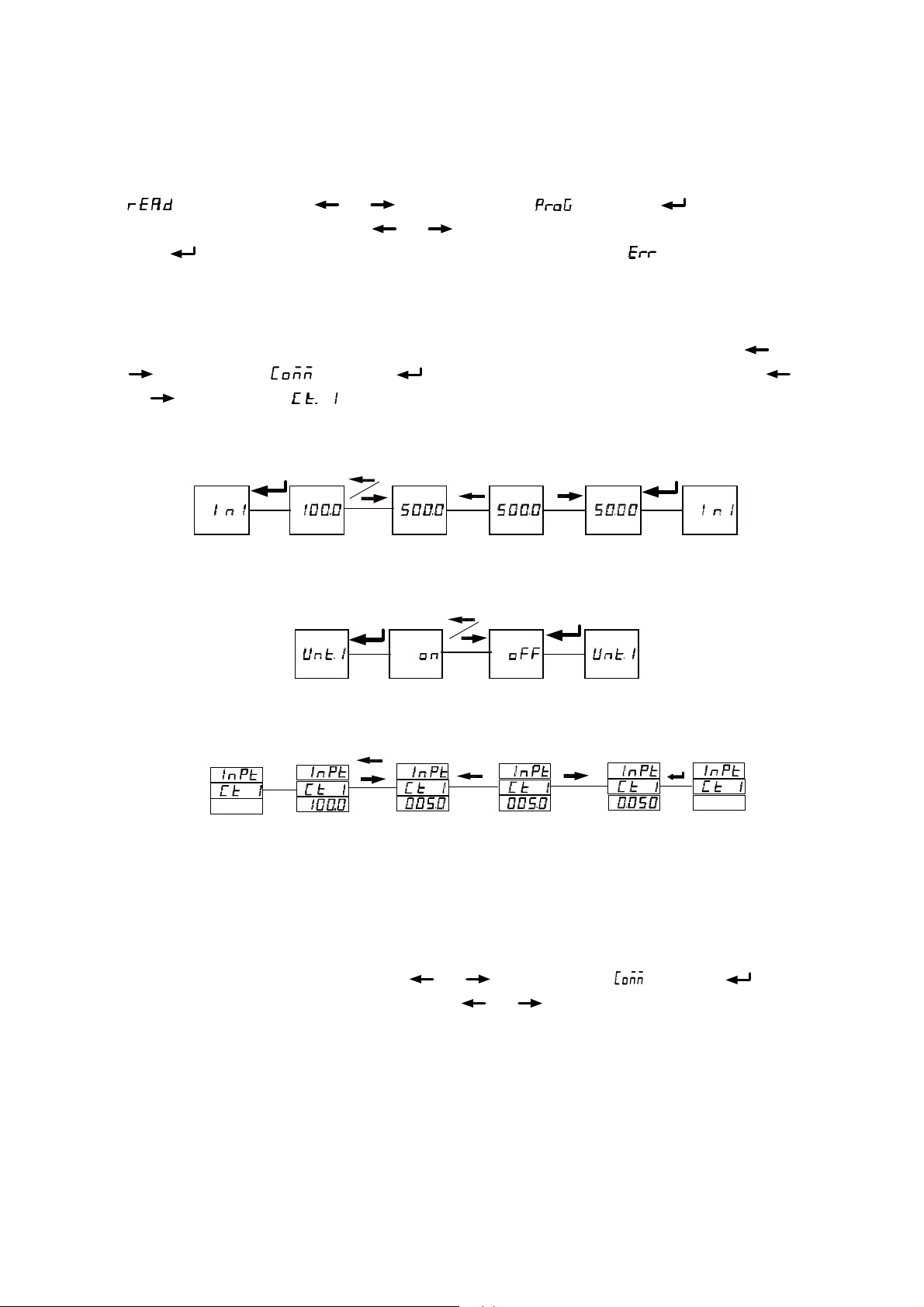

7. Operation instruction of programming menu
In measurement display interface, keep pressing Menu button for more than three seconds until
appears, then press or button to switch to . Now press button to enter
program password interface. Press or button to input password (defaulted 0001), then
press button to enter setting menu. (Note: if the password is not right, will appear. Then it
returns to program password interface after seven seconds.)
7.1 Input primary value setting
User can change input primary value at field. After entering setting interface, press or
button to select , then press button to enter signal setting interface, now press
or button to select .
Single phase voltage meter
change number decimal
point
flashes
change the
position of
decimal point
k indication
light off
Three phase ammeter
change number decimal
point
flashes
change the
position of
decimal point
7.2 Communication setting
E.g. Change communication address to be 3, set baud rate as 9600bps, change data format to be
no check mode.
After entering setting interface, press or button to select , then press to
enter communication setting interface, now press or button to select relative items.

Single phase ammeter
※Set communication address
※Set data format
※Set baud rate
Three phase ammeter
※Set communication address
※Set data format
※Set baud rate
If the parameters of third level data are modified, please press button to save the modified
data and return to secondary level. If user presses Menu button, the modified data will not be saved.
If user wants to exit program setting interface, please return to first level of program setting
interface, then press Menu button to see -- , now there are two choices available:
1. Press button to exit program setting interface without saving modified data;
2. Press or button to switch to -- , then press button to exit
program setting interface and save modified data.
●For more detailed parameters, please log on our website.
http：//www.jcsepi.com
