Jiawen Electronic Technology ASTRO User manual

ASTRO Instructions

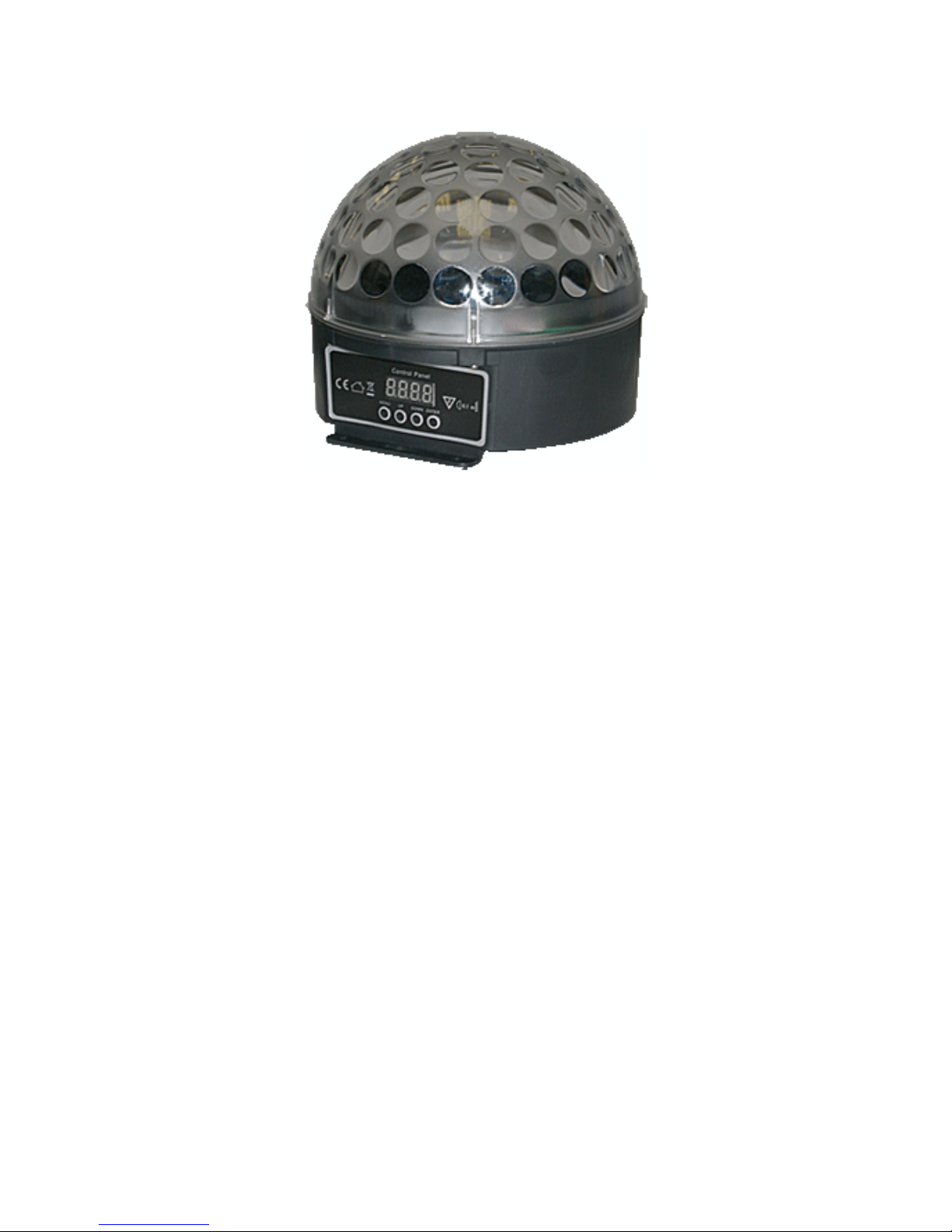

LED DMX Crystal Ball with all white beams...
6 x 1 watt LED’s
Modes include: 4 channel DMX, master/slave, multiple auto and sound modes with 9 speed
options for each mode.
Automatic mode: A1- all on, A2- strobing, A3- fade out, A4- fade in, A5- multi strobe
Sound active mode: S1- sound flash, S2- fade out to sound, S3- fade in to sound, S4-
multi strobe to sound, S5- multi strobe 2 to sound
9 LED rotation speeds can be controlled and set for each auto mode function. Low heat,
low power consumption (10W) and can run all night.
Unit size 7" x 7" x 6.5" weight 2 Lbs.
Instructions for Operation:
Auto/Sound Modes:
A1- all on
A2- strobing
A3- fade out
A4- fade in
A5- multi strobe

S1- sound flash
S2- fade out to sound
S3- fade in to sound
S4- multi strobe to sound
S5- multi strobe 2 to sound
DMX Mode:
Channel #1 0-255 Strobe (slow-fast)
Channel #2 0-255 Master dim
Channel #3 0-255 Motor rotation
Channel #4 0-37 auto A1 function
38-65 auto A2 function
66-93 auto A3 function
94-121 auto A4 function
122-149 auto A5 function
150-177 sound S1 function
178-205 sound S2 function
206-233 sound S3 function
234-255 Sound S4 function
Master/Slave Mode:
Set the first fixture to any auto or sound active mode. Connect the second fixture to the
first using a DMX cable. Use the mode button to set the second fixture to DMX mode
A001. The units will then start doing the same thing.
