Jiaxing Feiya New Energyco BRIGHTA30 User manual
SOLAR STREET LIGHT
INSTALLATION MANUAL
FOR MODEL BRIGHTA30
E-mail:
Website:
JIAXING FEIYA NEW ENERGYCO.,LTD
WANGDIAN ECONOMIC DEVELOPMENT PARK,JIAHAI ROAD(WEST),
XIUZHOU ,JIAXING,ZHEJIANG CHINA
TEL;86-573-82572161
FAX;86-573-82180453
www.jxfyzm.com
FEIYA, customized solarand wind lights just for you.
Enjoy cost effective natural energy from FEIYA.
- 2 -
CONTENTS
GENERAL INFORMATION...................................................................................................... - 3 -
1. Components List ..........................................................................................................................- 3 -
2. Storage Tips and Operating Environment..................................................................................- 3 -
IMPORTANT SAFETY INSTRUCTIONS.................................................................................. - 4 -
TOOLS NEEDED...................................................................................................................... - 4 -
ESTIMATED INSTALLATION TIME ........................................................................................ - 5 -
INSTALLATION INSTRUCTIONS............................................................................................ - 5 -
1. Installation Site Selection............................................................................................................- 5 -
2. Foundation Building.....................................................................................................................- 5 -
A. Foundation Kit Assembling.......................................................................................................................... - 5 -
B. Foundation Kit Setting ................................................................................................................................. - 6 -
3. Solar Street Light Installation......................................................................................................- 7 -
A. Preparation.................................................................................................................................................. - 7 -
B. Storage Battery Installation ......................................................................................................................... - 8 -
C. Test the Lighting System before Mounting.................................................................................................. - 8 -
D. Light Fixture and Solar Panel Installation.................................................................................................... - 9 -
E. Controller Installation................................................................................................................................. - 10 -
F. Hoisting...................................................................................................................................................... - 11 -
TROUBLESHOOTING ........................................................................................................... - 11 -
MAINTENANCE ..................................................................................................................... - 12 -
DISCLAIMER ......................................................................................................................... - 12 -
www.jxfyzm.com
FEIYA, customized solar and wind lights just for you.
Enjoy cost effective natural energy from FEIYA.
- 3 -
GENERAL INFORMATION
Thank you for selecting FEIYA solar light and thank you for your contribution to environmental protection!
FEIYA solar light is environmentally friendly -100% powered by the sun and user friendly - it will work automat-
ically with little maintenance.
Although FEIYA solar light is very simple to install, please take the time to read this manual and become
familiar with the light. This will help you with many problems you may encounter.
Check each component before installation: the appearance
, specification, quantity, etc..If you encounter any
problems with the solar light before or during installation. STOP installation and contact FEIYA. We will provide
you with timely assistance.
Enjoy your solar light!
1. COMPONENTS LIST
Components Description Quantity
Pole Material: Hot galvanized & spraying painted steel
Height: 20 feet 1
Solar Panel Mono/poly-crystalline, conversion efficiency: 13-15%
12V 80W 2
Storage Battery Gel cell deep cycle battery
12V 50Ah 2
Controller Waterproof solar charge controller
12/24V 10A 1
Light Fixture CREE LEDs, material: Die-casting aluminum
24V 30W, IP65 1
Storage Battery Box PVC Water-proof battery boxes 1
Foundation Kit Screwed anchor bolts, templates and nuts 1
Other Accessories Cables, fasteners such as bolts and nuts
2. STORAGE TIPS AND OPERATING ENVIRONMENT
yStorage Tips
Keep the all the components well packaged during storage.
Store in a well-ventilated area and keep components away from dust and dirt.
Environmental Temperature Range: -4°F to 140°F
Relative Humidity: less than 90%, without condensation.
Keep goods away from corrosive gases and liquids.
DO NOT invert the battery.
IMPORTANT: For long-term storage, the battery should be connected to a battery tender or discharged
and charged once a month. Or the battery may work improperly.
yOperating Environment
Ambient Operating Temperature Range: 5°F to 122°F
Humidity Range: 0 - 90%
www.jxfyzm.com
FEIYA, customized solar and wind lights just for you.
Enjoy cost effective natural energy from FEIYA
- 4 -
IMPORTANT SAFETY INSTRUCTIONS
ySAVE THESE INSTRUCTIONS — This manual contains important instructions that should be followed
during installation and maintenance.
yThe installation and maintenance must be carried out by qualified technicians.
yWARNING—Smoking and fires are strictly prohibited at the installation site. Lead acid batteries can gener-
ate small amount of hydrogen which may cause explosion when exposed to fire. NEVER short circuit the bat-
tery (Never connect its “+” wire directly with the “-” wire.) because short circuits may damage the battery.
yDO NOT short circuit the solar panel or load while connected to the controller. This will DAMAGE the
controller.
yThe controller and battery should be protected from direct sunlight. Ensure adequate space for air flow
around it.
yBe very careful of the fragile components like solar panel and light fixture during transferring and installation.
yBe very careful of the finished surfaces of the pole, lamp arm, brackets and light fixture during transferring
and installation. The paint is easily damaged if not well protected.
yBe careful when working with copper wire and other components as they are sharp.
yEveryone except working staff should be kept at least 30 feet away from the job site.
yInstallation during rainy days is not recommended.
TOOLS NEEDED
Name Application
Tape measure Measuring the pole distance, cable and so on
Adjustable wrench Screwing fasteners on solar panel & bracket, battery box, etc.
Excavator Digging foundation pit
Concrete mixing machine Mixing concrete
Wheelbarrow Transferring concrete material
Level Measuring the surface of foundation concrete
Multi-meter Measuring the voltage, current of the lighting system
Wire stripper Stripping wires
Waterproof tape Insulating the wire connections
Steel wire (Dia. 1-2mm) Guiding the cable through lamp arms and poles, etc.
Flat blade screwdrivers Screwing fasteners for battery box
Phillips head screwdrivers Screwing fasteners for battery box
Allen wrench Screwing fasteners for light fixtures
Hammer Cleaning the concrete on the foundation template
Chisel Cleaning the concrete on the foundation template
Compass Measuring the right direction to point the solar panel
Socket wrench Screwing fasteners for lamp arm, mounting brackets and foundation kit
Nylon cable tie Tying the cables
Truck crane Hoisting the pole
Shovel Backfilling the battery box
Light meter Measuring illuminance
www.jxfyzm.com
FEIYA, customized solar and wind lights just for you.
Enjoy cost effective natural energy from FEIYA.
- 5 -
ESTIMATED INSTALLATION TIME
Foundation building 7 days. The concrete takes about 6 days to become completely solidified.
Storage battery installation 2 hours per light
Light fixture installation 1 hour per light
Solar panel installation 2 hours per light
Controller installation 1 hour per light
Hoisting 2 hours per light
INSTALLATION INSTRUCTIONS
1. INSTALLATION SITE SELECTION
yChoose a site with sufficient sunshine during the day.
yMake sure the site is away from big trees or buildings that block the sunlight.
yThere should be no direct light source above the solar panel, or its light detectors may work improperly.
yThe solar street light should be kept away from any heat source, or its life will be shortened.
yThe pole must be installed on sufficiently solid ground. Please let us know beforehand if it has to be installed
in sandy soil or some other atypical soil.
yIf the pole has to be installed close to bodies of water, please make sure the battery will remain above the
water line.
2. FOUNDATION BUILDING
A. FOUNDATION KIT ASSEMBLING
• Assemble the foundation kits following the order marked in the following drawing:
Drawing
Note
• Ensure the threaded portion of the anchor bolt is as long as possible.
• Measure the template with spirit level and make sure it is level.
• Wrap the screws on the top side with tape to protect it from being damaged by concrete.
www.jxfyzm.com
FEIYA, customized solar and wind lights just for you.
Enjoy cost effective natural energy from FEIYA.
- 6 -
B. FOUNDATION KIT SETTING
①. Dig the foundation pit as per the foundation drawing and mix the cement at the same time.
②. Fix the PVC conduit to the anchor bolt and dig a small hole for the PVC conduit.
③. Set the foundation kit and keep its template level (Measure it with a level).
④. Plug both ends of the PVC conduit to prevent debris or water sinking into it.
⑤. Pour concrete and keep the template of foundation kit level.
⑥. Clean the top of the foundation and smooth the surface.
⑦. Dig the battery pit on the PVC conduit side after the concrete is completely solidified in 5~7 days.
www.jxfyzm.com
FEIYA, customized solar and wind lights just for you.
Enjoy cost effective natural energy from FEIYA.
- 7 -
3. SOLAR STREET LIGHT INSTALLATION
A. PREPARATION

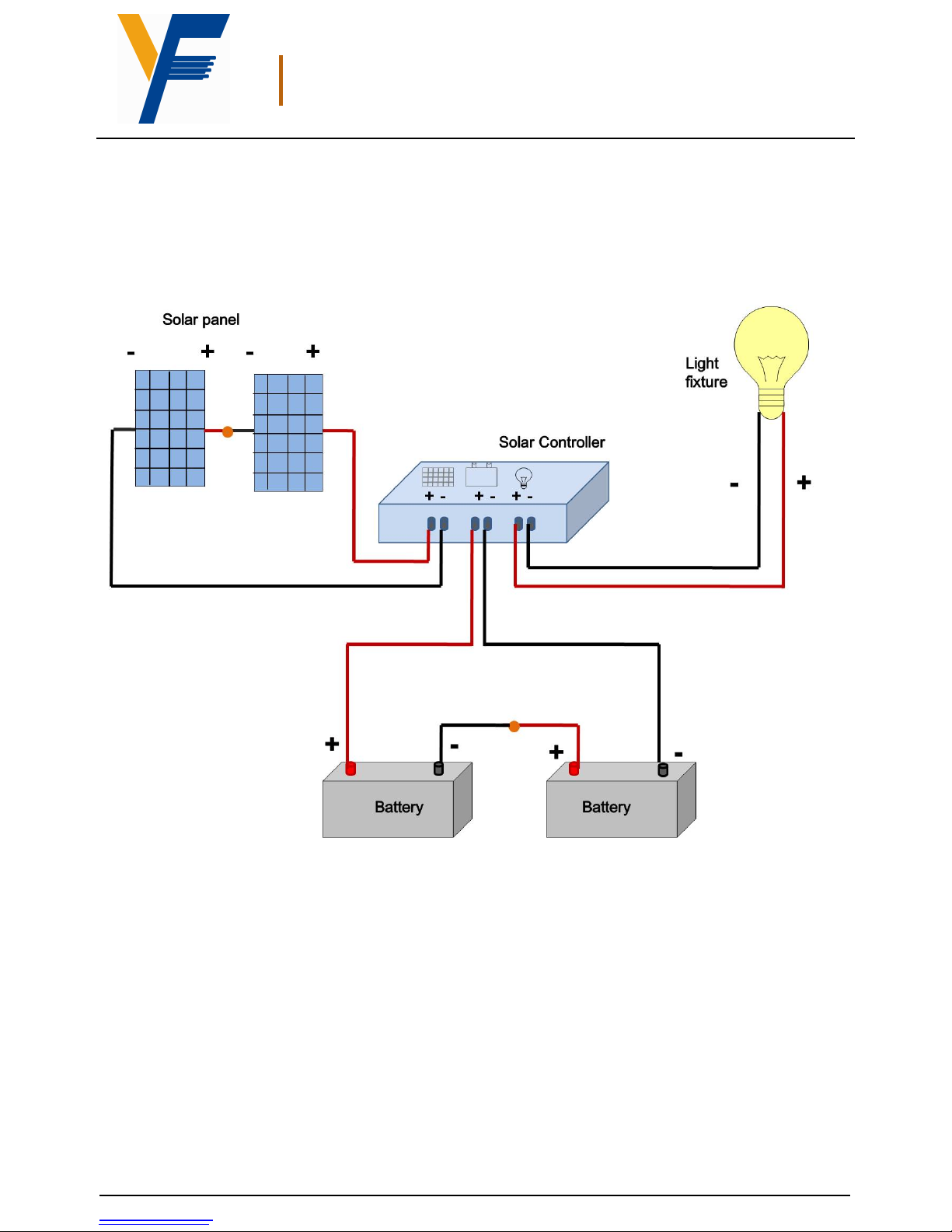

a) Study the Connection Diagram before Installation
Connection diagram
b) Cable Cutting and Labeling
yMeasure and cut the cable
The length of cable for solar panel = pole length + length of pole sleeve on the solar panel bracket
The length of cable for light fixture = pole length + lamp arm length
yLabel the cut cables as “panel cable” and “lamp cable”
c) Cable Stripping
yStrip wires for battery, light fixture, and solar panel. Wrap both the “+” and “-” wires of battery and solar panel
with insulation tape to avoid short circuit.
yStrip wires for the panel cable and lamp cable
www.jxfyzm.com
FEIYA, customized solar and wind lights just for you.
Enjoy cost effective natural energy from FEIYA.
- 8 -
B. STORAGE BATTERY INSTALLATION
①. Assemble the connector of the battery box as per the following picture. Do not screw the connector too hard
or it may break.
②. Place the battery into the battery box.
③. Connect two batteries in series.
④. Wrap both the “+” and “-” wires of battery with insulation tape to avoid short circuit.
⑤. Pass the cable of the battery through the wire reinforced hose.
⑥. Cover the battery box, add the sealing ring and seal it tightly with fasteners.
⑦. Bury the battery box in the battery pit and pass the wire reinforced conduct through the PVC pipe (Refer to
the Foundation Drawing).
⑧. Fill some sands around the battery box ensure there is a proper operating temperature for battery in winter.
Pass wires through the connector Add sealing ring Seal the box
C. TEST THE LIGHTING SYSTEM BEFORE MOUNTING
①. Connect the controller with the output cable of the battery.
②. Connect light fixture with the controller. If the lamp lights up (Sometime it takes 1~2 minutes for the lamp to
light up), go on to the next step. If the lamp still doesn’t light up, check the connection and contact us.
③. Connect the solar panel with the controller. If the lamp turns off when the solar panel put under the sunlight
charging, you can start mount. If lamp is still on, check the connection and contact us.
④. The disassembly order should be: solar panel →light fixture →storage battery
Note
Follow the connection diagram in the previous page during connecting.
Connect “–”first, then “+”.
Avoid short circuit.
www.jxfyzm.com
FEIYA, customized solar and wind lights just for you.
Enjoy cost effective natural energy from FEIYA.
- 9 -
D. LIGHT FIXTURE AND SOLAR PANEL INSTALLATION
Light fixture Installation
Solar Panel Installation
①. Pass the lamp cable through the arm and pole.
②. Fix the arm to the pole
③. Connect the lamp cable with the light fixture.
④. Mount the lamp onto the arm.
①. Fix solar panel to the bracket
②. Connect two panels in series.
③. Pass the panel cable though the pole.
④. Connect panel cable with the junction box (or the
cable from the junction) on the back side of the solar
panel.
⑤. Use a compass to point the solar panel to the
equator (It should face the south in the Northern
Hemisphere and north in the Southern Hemisphere).
⑥. Fix the bracket to the pole.
Place the panel on a thick cardboard (bigger
than two panels) to protect it.
Make sure the junction box is above the center
when mounting the panel.
www.jxfyzm.com
FEIYA, customized solar and wind lights just for you.
Enjoy cost effective natural energy from FEIYA.
- 10 -
E. CONTROLLER INSTALLATION
Connection diagram
Note
Connect “–”first, then “+”.
The connections of the cables must be connected firmly and wrapped with waterproof tape
Open the pole window and set the
controller in the pole. Secure it by
the
hex
screw
s.
Connect the battery, light fixture, solar panel with controller according to the connection diagram
www.jxfyzm.com
FEIYA, customized solar and wind lights just for you.
Enjoy cost effective natural energy from FEIYA.
- 11 -
F. HOISTING
Lift the pole with a crane and put it on the foundation. Place the washer and screw down the nuts on each bolt.
Note
• Do not change the working mode or load without contacting FEIYA. The solar lighting system is custom
designed; it may work improperly after any changes.
• All bolts and cable terminals must be tightened to ensure reliable connection. Please make sure that the polarity
is not reversed, including each component, storage battery, controller, etc..
• As each solar street light is powered by an independent power supply (battery), they may not turn on or turn off
simultaneously.
TROUBLESHOOTING
Problem Problem Cause Solution
Lamp does light up at all
Ambient light is much
stronger
The light source will start automatically when the
ambient light dims to a certain degree
Light source is damaged Replace it with the same light source
The output circuit is open,
short, or grounded Check the output circuit connection
The connection between the
storage battery's terminals is
an open circuit
Check the connection between the storage battery's
terminals and make sure it is okay.
The controller is damaged Repair the controller or replace it with the same
model controller.
Lamp works irregularly
or shuts off too soon
The solar panel is covered by
other things Clean the solar panel.
The voltage of the storage
battery is below 11.1V (22V
for 24V system)
1. If the low voltage is caused by too many rainy
days, it will recover automatically when the sun
returns.
2. Check the connection of the solar panel
3. Check the battery connection
www.jxfyzm.com
FEIYA, customized solar and wind lights just for you.
Enjoy cost effective natural energy from FEIYA.
- 12 -
MAINTENANCE
FEIYA’s solar street lights are designed to be essentially maintenance free . In certain regions with extreme
conditions, however, some level of maintenance is required to ensure the proper function of the lights. These regions
are typically where there is a risk of dust, snow, or ice covering the solar panels and thus reducing the power of the
lights. In regions with frequent rain, the tilt angle of the solar panels allow for self cleaning of dust. However, in
places where rain is infrequent, periodic manual cleaning of the panels may be required.
Typical maintenance schedule:
• Every Week: Inspection of street lights to ensure all the lights are working. If there are lights which are
not lit, perform analysis to understand cause and conduct repairs.
• Every 2 Month: Inspect street light panels and clean ones which are covered with dust or sand. The best
way to clean the panels is with a brush at the end of a long pole. Care should be taken to avoid damaging
the solar panels.
• Every 5-7 Years: Replace the solar street light batteries if the voltages drop below normal levels. The
battery has an expect life of 5-7 years.
Note
• Please do not use components from other suppliers for replacement without our allowance, as this may cause
damage to the lighting system.
• Do not use water to flush it from top to bottom when cleaning the solar panel
DISCLAIMER
By installing or using any FEIYA product in any way for any purpose, you (the custom er) do so at entirely at
your own risk. FEIYA and its owners are not responsible for any damages caused by using or installing our
products be it personal injury, damage of property, prosecution (from a result of using our products), legal fees or
loss of earnings whether the FEIYA product was fitt ed correctly as per this ‘installation guide’ or not.
www.jxfyzm.com
Table of contents
