ELECTRIC TROLLING MOTOR
30 LBS MANUAL
Please read and retain this manual before use of this trolling motor
ETM1-14-GBwww.jilong.com2 3
ETM1-14-GBwww.jilong.com
2014
Thank you for purchasing our product and wish you will enjoy it.
The trolling motors are designed and developed by professional engineering teams. With years of
efforts. The power of trolling motor has widely covered from 30LBS to 86LBS in order to t various
costumers’requirements and provide different experiences.
Please read and retain this manual before using this electrical motor. The manual contains information
that describes the procedure for safe operation and daily maintenance of your trolling motor. Safe
operation will prevent from personal injury and product damage.

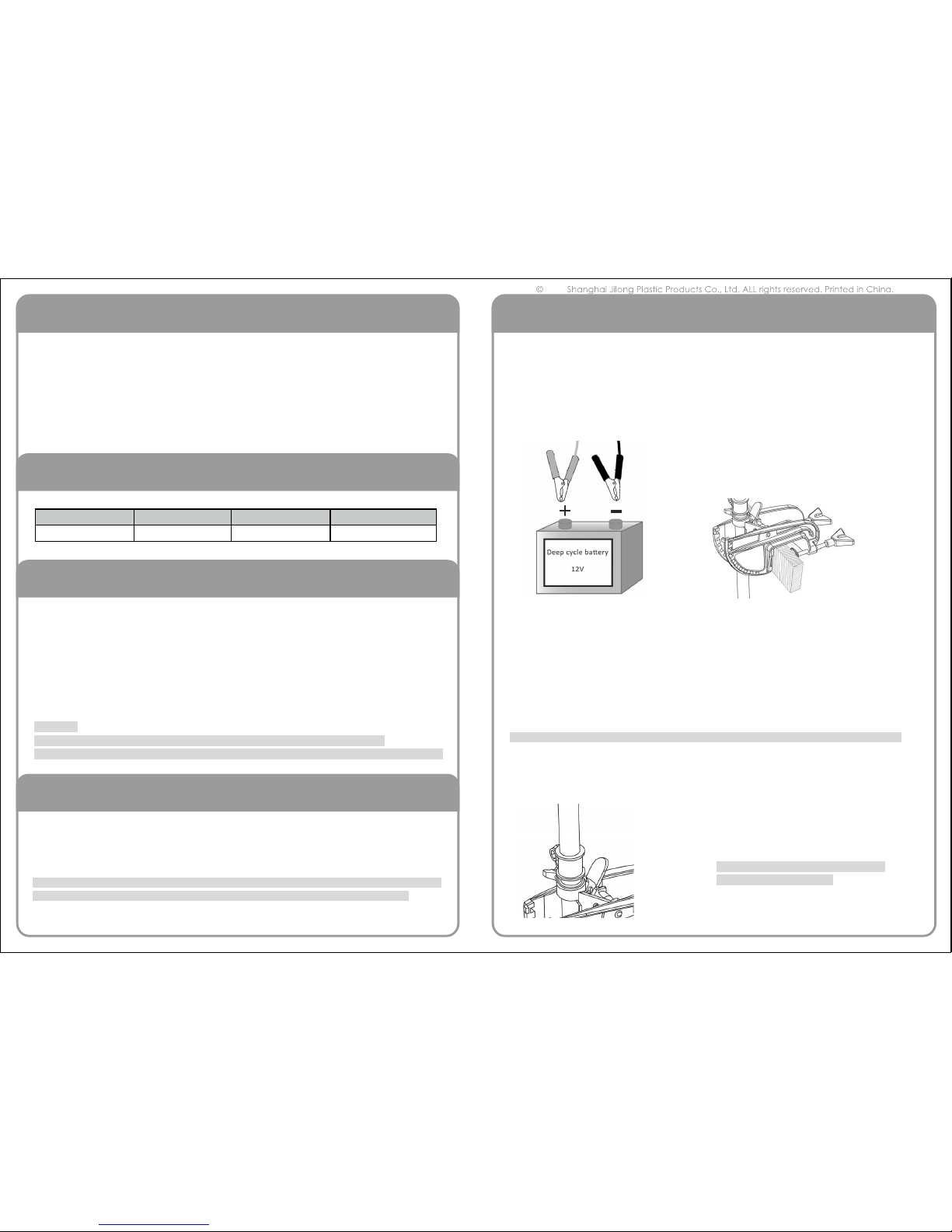

BATTERY CONNECTION METHOD
Before connecting the motor’s cables to the battery terminals, ensure all switches are in the OFF
position and stand clear of the propeller. Connect the red cable to the positive (+) terminal and the
black cable to the negative (-) terminal, making sure the terminals are clean before doing so. A clean
connection will minimize power wastage and give you maximum power from the battery. (A)
The battery should be kept in a well-ventilated location. We recommend using a special deep cycle
marine battery for optimum performance.
ATTACHING THE MOTOR TO YOUR BOAT
Attach the motor to the stern of the boat and tighten both mounting bolts securely while taking care
not to over-tighten.
To adjust the angle of the motor after attachment, hold the motor head with one hand and depress the
positioning pin at the top of the mounting bracket with your other hand.
Press and hold the positioning pin until the desired angle has been reached next release the pin and
ensure the mechanism locks securely. (B)
DEPTH ADJUSTMENT
Hold the motor shaft with one hand, loosen the depth adjustment screw and set the motor to the
desired depth, then retighten the adjusting screw securely. (C)
(A)
(C)
(B)
Battery Type
Recommended battery(s): 12-volt Deep Cycle battery or Marine battery (24-volts for 86lbs), battery
should has at least 50-ampere hour rating or higher. To extend running time an additional battery can
be used. See section on battery connection method.
Cable Size
If extending the standard battery cable supplied with the product, we recommends the use of 13mm2
wire (6-gauge wire, AWG).
Do not allow children to operate the trolling motor.
Do not modify the unit in any way or add accessories not intended for this product.
Never fully submerse the unit, if unit is accidentally submersed disconnect battery and leave to dry.
Warning:
Be sure switch are in the OFF position before connecting to battery or batteries.
Electrical arcing near the battery could ignite hydrogen gas and cause the battery to explode.
Warning: Before the installation, Make sure the area between column and bracket is clear.
Warning: The motor can only be used
in water deeper than 0.8m.
Warning: Always disconnect power from the motor when replacing propeller, removing debris
around the prop, charging batteries, transporting boat or when the motor is not in use.
Thrust (lbs.) Voltage (V) Power (W) Speed
30
12
312 For5/Re23
GENERAL INFORMATION FIRST TIME RUNNING
Basic parameters
WIRING AND BATTERY RECOMMENDATION
SAFETY INFORMATION
ETM1-14-GBwww.jilong.com4 5
ETM1-14-GBwww.jilong.com
2014
STEERING
To adjust steering counter-force, simply loosen or tighten the counterforce bolt. The ideal setting is
one where the counterforce bolt is just tight enough so that the boat will steer in the direction you are
aiming without need for continual correction.
ANGLE ADJUSTMENT
F series motor is able to adjust the angle of handle to make comfortable for user’s control.
Please follow these steps to make adjustment.
1. Loose the button (E) so that the handle can move upwards and downwards freely.
2. Keep the handle to the adequate angle that is suitable to control.
3. Tight the button to nish the adjustment.
SPEED CONTROL
The speed control, featuring ve forward and three reverse speeds, is integrated into the handle. Turn
the handle clockwise to move forward and anti-clockwise to go backwards. When you don’t want to
move, set the handle into neutral. No power will be used in this setting. (D)
Tight adjust button
(D) (E)
Warning:
Remember always disconnect from batteries once the motor leaves water as a rotating
propeller cancause personal injury.
Remember to wash the motor by using fresh water after used it in salt water as it can greatly
reducethe possibility of corrosions.
Warning:
The angle adjustment range is ± 60°, DO NOT exceed this limit; force to rotate the handle will
cause the motor damage.
ETM1-14-GBwww.jilong.com6 7
ETM1-14-GBwww.jilong.com
2014
Any 12 volts battery could be used as the main power. The larger the battery capacity is, the longer it
will constantly supply electricity. However, due to limited carrying capacity of boats, we suggest you
use 40AH battery.
1. When the propeller gets wound by seaweed or shing line, or when it gets stuck by something,
please switch off the motor immediately. Otherwise it will get overheated and burn out.
2. Always make sure the propeller is unobstructed. The best performance is achieved when the
propeller is fully submerged, but less than 10 cm below the water line.
3. Wash the motor with fresh water after using it in salty water.
4. The following parts are easily consumed accessories: switch, propeller and carbon brush. Timely
replacements are necessary.
5. In the situation of rapid ow and big storm, the motor will not work as efciently as it used to be.
Please avoid these situations.
1. We provide two-year’s warranty for this product.
2. During the warranty period, we will take responsibility for all normal faults caused by the product
itself.. However, upon any other failure caused by Incorrect Operation or Force Majeure, we will have
the right to charge or even refuse.
3. During the warranty period, we will repair or replace the defect assembles free of charge, and
provide the maintain work.
1. Pull the handle xing collar, pull out handle.
2. Toggle the switch, H: Forward, L: Reverse, I: Slow, II: quick
Running
BATTERY
WARNINGS
WARRANTY
WARRANTY CARD
Purchaser’s Name:____________________
A d d r e s s : _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
D a t e o f P u r c h a s e : _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Item No.:______________________________
Purchaser’s signature
ETM1-14-GBwww.jilong.com8
