Jinan QingQi QM50QT-6 User manual

1

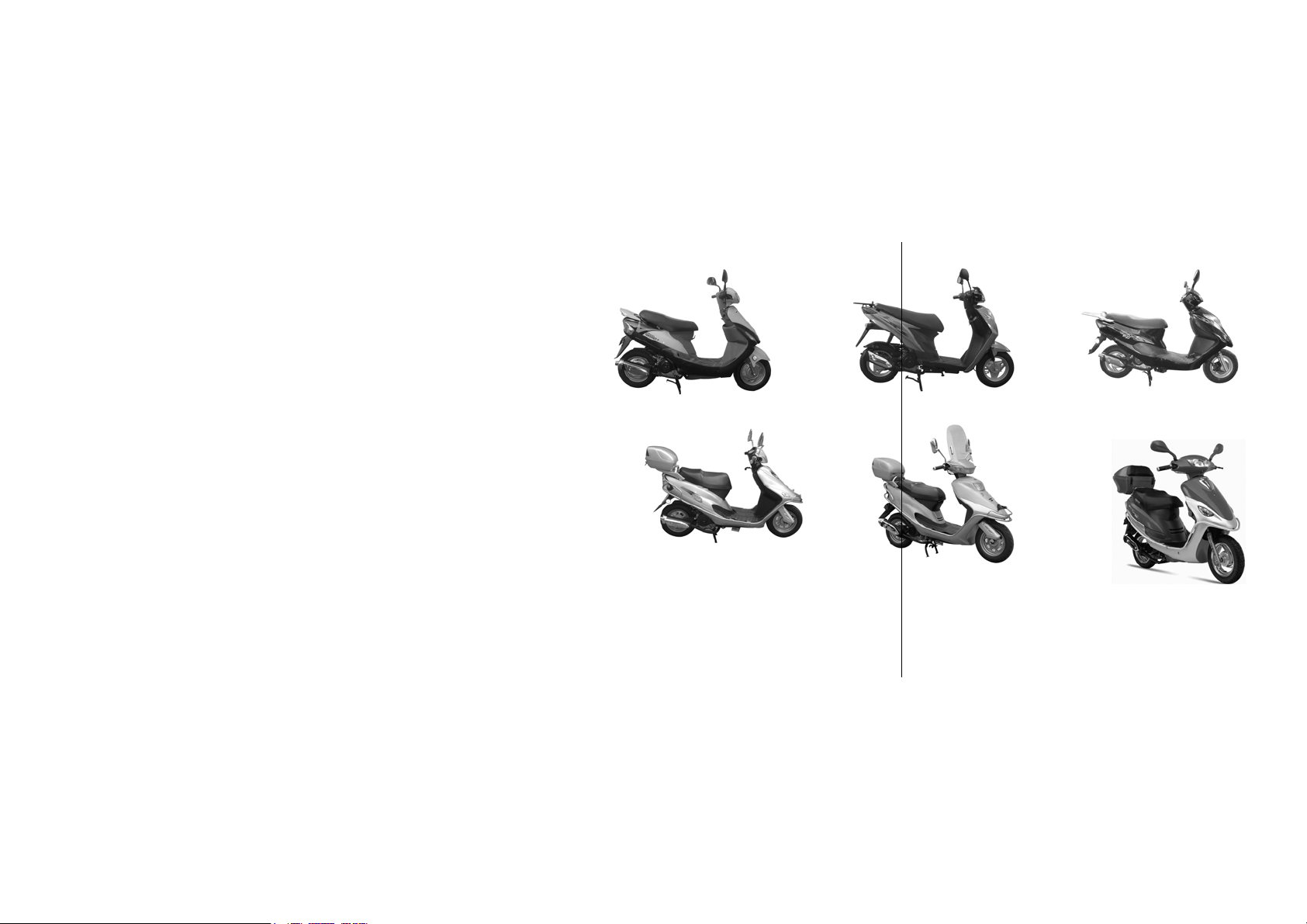

The catena comprise type：
QM50QT-6 QM50QT-6D
QM50QT-6N QM50QT-6R
QM50QT-6G
QM50QT-6S

2
QM50QT-6V

3
FOREWORD
Thank you for purchasing QM50QT-6 catena
moped. With absorbing advanced motorcycle technology,
we have designed and produced this moped with beautiful
app-earance, reliable performance and comfortable
driving. This moped can supply you an inspiring,
happiness and safe riding.
For your more comfortable and safer driving, we
suggest that you should read this manual carefully and
become thoroughly familiar with the stipulation presented
in the manual before riding.
The moped structure, units usage, check, adjustment,
proper care and maintenance that your scooter requires is
outlined in the manual. By following these instructions
explicitly, you will ensure a long trouble-free operating
life for your scooter. The skilled and well-trained
maintenance personnel in QingQi sales agencies and
service centers are ready to provide you the best possible
service.
The standard of this motorcycle is accordance with
Q/QM021016—2007
JINAN QINGQI MOTORCYCLE CO., LTD.
CONTENTS
PRECAUTIONS FOR SAFE RIDING……………2
THE SERIAL NUMBER……………………………3
LOCATION OF PARTS……………………………4
CONTROLS…………………………………………6
FUEL AND OIL RECOMMENDATIONS…………11
BREAK-IN OF NEW SCOOTER…………………11
INSPECTION BEFORE RIDING…………………13
RIDING TIPS………………………………………17
INSPECTION AND MAINTENANCE……………22
TROUBLESHOOTING……………………………38
STORAGE PROCEDURES………………………44
SPECIFICATIONS…………………………………45
WIRING DIAGRAM…………………………………47

4
PRECAUTIONS FOR SAFE RIDING
Please obey local traffic regulations and mind the
safety prior to anything. It is advised to control the speed
within safe limits.
The scooter is designed for a single person.
Practice before Riding
Before riding the scooter as a traffic tool, make
adequate practice at a spacious and traffic-free place so
that you are skilled enough to ride and are familiar with
the scooter's controls. Practice is essential to safety.
Knowing Your Safety Speed Limit
Safety speed limit varies in accordance with the
road conditions, riding skill and the weather. To know the
speed limit is helpful to avoid traffic accidents.
Be Careful in Rainy Days
It is dangerous to ride on the moist or wet road.
Therefore, high speed should be avoided and special care
should be taken when turning. Bear this in mind, the
braking distance in rainy days is twice as much as sunny
days.
Proper Wearing of Safety Helmet
Wear the safety helmet and fasten the belt whenever
you ride.
Garment Recommendation
 Bright-colored and well-fitting clothes are
recom-mended. Mind that the clothes should allow
the limbs to move freely.
 Clothes of thick materials and shoes with short
heels are also recommended.
Indispensable Maintenance and
inspection
The following items are indispensable:
 Check up before each riding.
 Half-year thorough inspection.
 One-year thorough serving.
 Those listed in Maintenance Schedule.
Care of High Temperature
 The high temperature at muffler may cause burn.
Please park your scooter where there's little chance
of touching.

5
 Flammable materials, such as cotton waste, should
not be put near the engine or the muffler as they
might cause fire.
No modification is allowable
Modification to the unit is not allowed and may not
guarantee a safe driving.

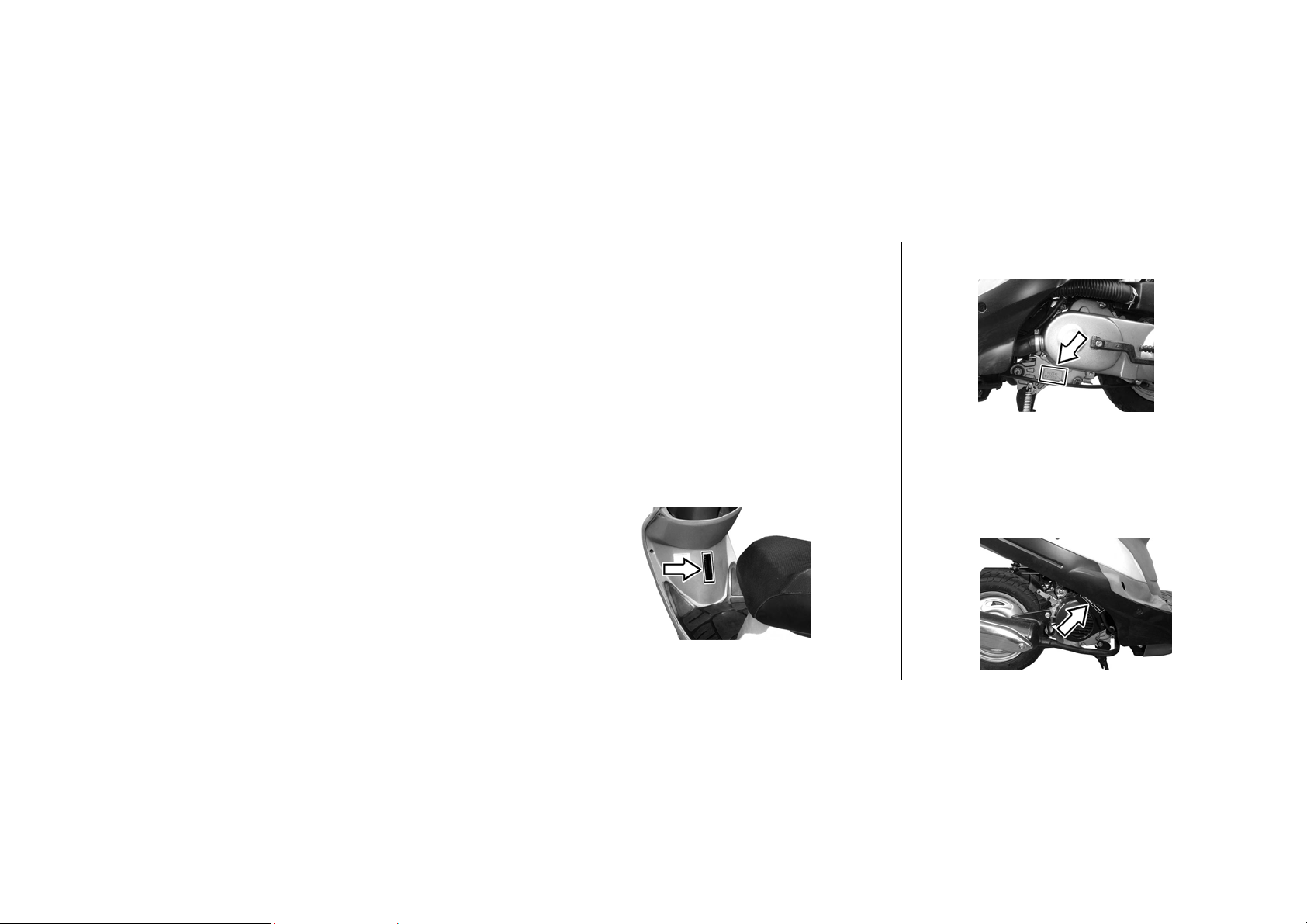

THE SERIAL NUMBER
The serial numbers are required to register the
scooter. They are also to assist your dealer serve you
better when you’re purchasing component or needing
special service.

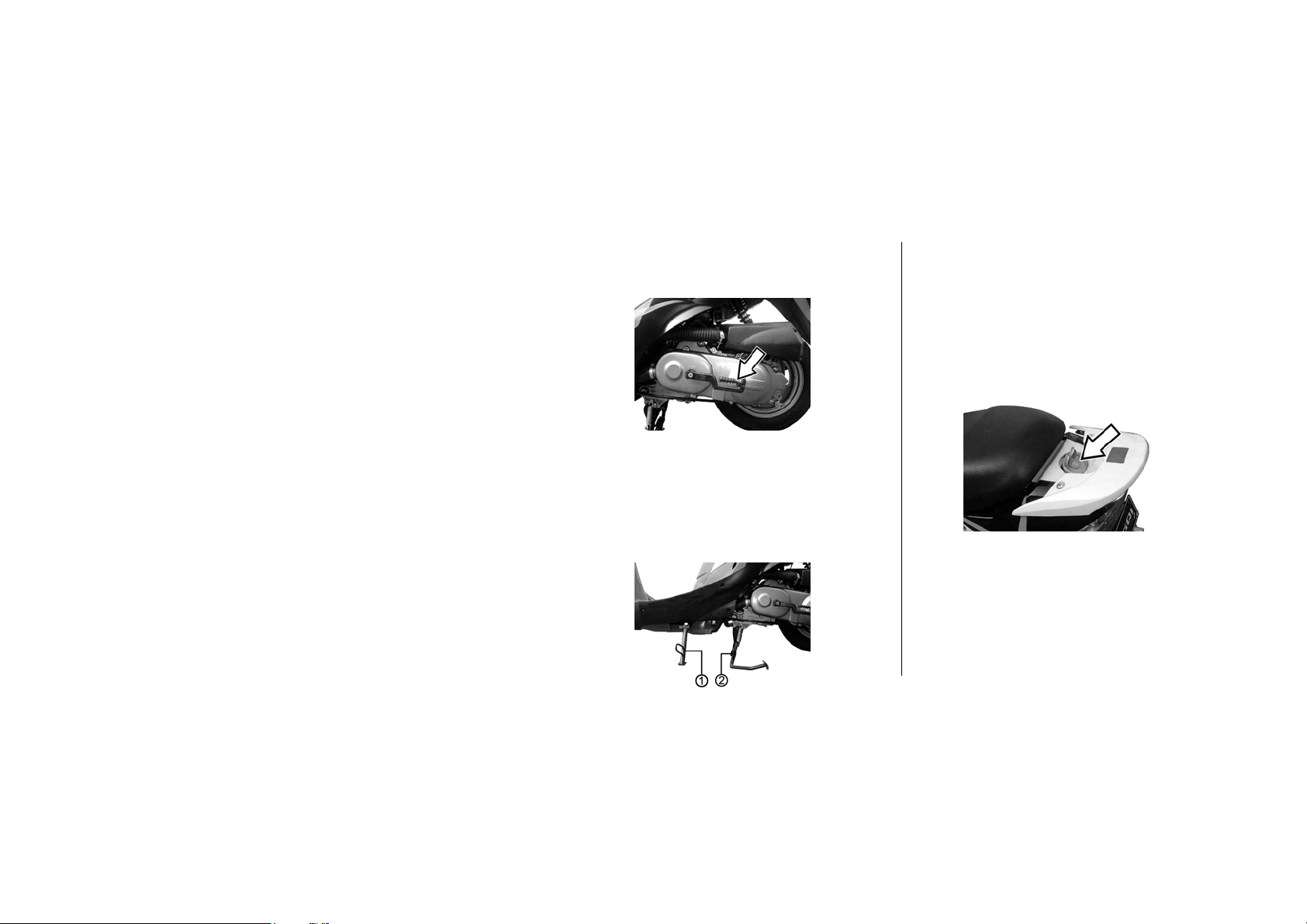

The frame serial number is stamped on the front
syphon of the chassis.
The engine serial number is stamped on the left of
the crankcase assembly.
The nameplate is enchased on the right
down of the chassis

6
Please write down the numbers here for future
reference.
Frame Serial No.:
Engine Serial No.:

7

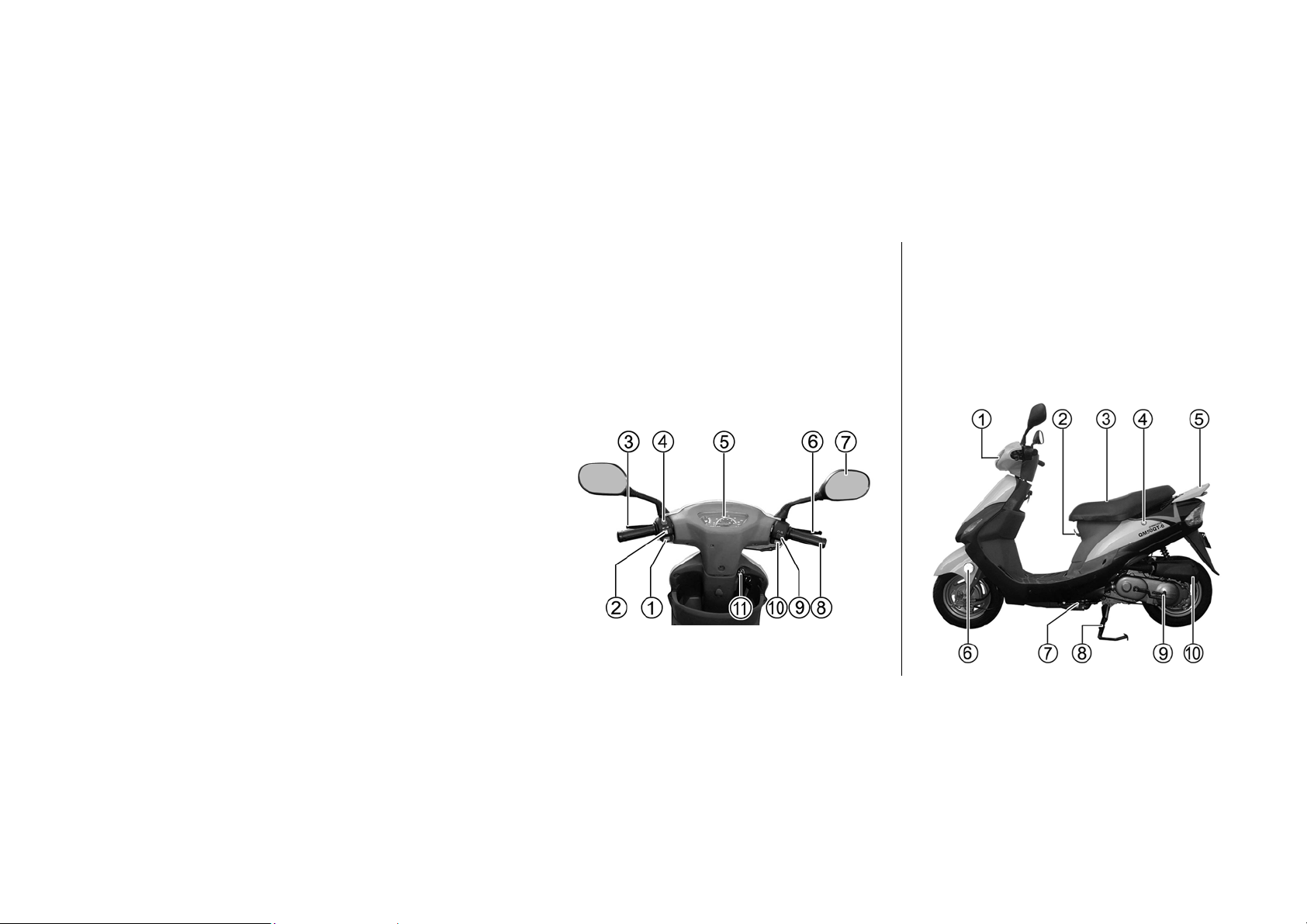

LOCATION OF PARTS
Steering bar and instrument
1.Horn keyswitch 2.Turning switch
3.Rear brake handle 4.Dimmer switch
5.Instrument 6.Frontbrakelever
7. Rear view mirror 8. Throttle grip
9.Lightswitch 10.Starterswitch
11. Ignition switch
Left side of the motorcycle:
1. Head lamp 2. Pothook helmet
3.Seat 4.Seatlock
5.Rearshelf 6.Sidereflector
7. Side stand 8. Main stand
9. Kick starter lever 10. Air filter

8

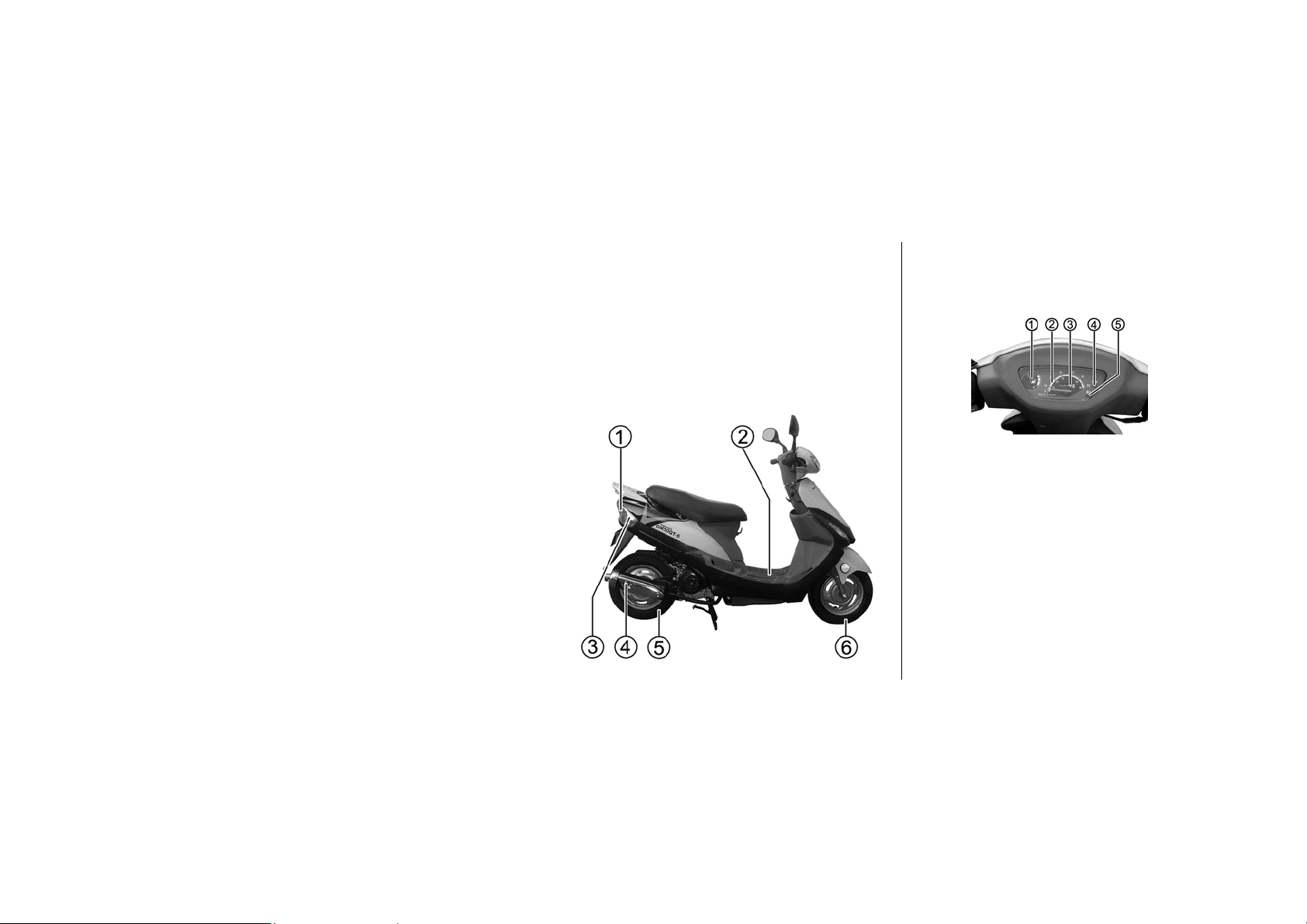

Right side of the motorcycle:
1. Rear tail/brake lamp
2. Battery
3. Rear turn lamp
4. Muffler
5. Rear wheel
6. Front wheel
CONTROLS
INSTRUMENT PANEL INDICATIONS
① Fuel Gauge
The fuel gauge shows the proportion of fuel left in the
fuel tank. When the hand reaches to the red range,
gasoline should be refilled as soon as possible.
② Speedometer
The speedometer shows the speed at which you are
riding in km/h or mile/h.
③ Odometer
The odometer registers the total distance that the
scooter has been ridden.

9
④ Turning Indicator
The indicator flashes to show the turning lamps are
working.
⑤ High light Indicator
The indicator flashes to show the headlamp is
working.
IGNITION SWITCH
The switch has three positions, LOCK, OFF and
ON. It is operated with the ignition key, controlling the
RUN and STOP of the engine as well as LOCKING and
UNLOCKING of the steering bars.
When the switch is at:
ON
 The engine can be started.
 It is impossible to pull out the key.
OFF
 The engine cannot be started.
 The key can be inserted or pulled out.
LOCK
 The steering bars can be locked to one direction.
 The key can be inserted or pulled out.
When you leave the scooter, you may lock the
steering handlebars to prevent your motorcycle from
being stolen.
1.Turn the handlebars to the left.
2.Insert the key (if it is not in) from OFF position.
Press the key in and turn it anti-clockwise to LOCK
position.
3.Pull out the key.
To unlock the handlebars, insert the key from

10
LOCK position, and turn it (without pressing) clockwise
to OFF position.
RECOMMENDATIONS
● Swing the handlebars to check if they are locked.
● If it is hard to lock, you may turn the handlebars
slightly rightward and try again.
SWITCHES ON THE LEFT HANDLEBARS
① Dimmer Switch
This switch is used to change the headlamp beam.
When you turn the switch to:
the high beam is turned on.
the low beam is turned on.
② Rear Brake Lever
The rear brake lever is on the left grip. Press the
lever to the grip and the rear brake operates.
③ Turning Signal Lamp Switch
This switch is used to turn on the left/right signal
lamps to show the other vehicles that you want to
turn leftward/rightward. When you turn the lever to:
the left signal lamps flash.
the right signal lamps flash.
●press in the switch at the center position to
cancel the turn-signal operation.
Please turn off the lamps when they are no
longer necessary, otherwise you may cause trouble
to people in front of or behind you.
④ Horn Button
Press this button to sound the horn.
