Jinlang Audio Aurum Cantus User manual

LOUDSPEAKER
OWNER′S MANUAL
JINLANG AUDIO CO., LTD.

HONOURABLE PURCHASER
Congratulations on purchasing your AURUM CANTUS loudspeaker system.
You will enjoy years of trouble free Hi-End sound reproduction from it.
In order to achieve optimal performance, please read this manual carefully before use.
Please keep this manual in a safe and an appropriate place for future reference.
630 LOUDSPEAKER
630 incorporates a aluminum ribbon loudspeaker that has great value and world-class performance. It
offers a combination of real natural sound, graceful timbre making the 630 suitable for all music taste.
zA sandwich aluminum ribbon tweeter.
zComposite cone(PP, carbon and mica) designed midrange with special magnet system.
zComposite cone(PP, carbon and mica) designed woofer with special magnet system.
zCone-shaped cabinet with parabolic structure, expensive hardwood in non-gloss paint finish.
zPerfect crossover design optimized for smooth transition between driver to driver.
zPrecision-machined gold-plated copper connectors, bi-wiring design.
FEATURES
630 LOUDSPEAKERS INCORPORATE THE FOLLOWING MAIN COMPONENTS:
CABINET
By utilizing thick high quality MDF. The surface of cabinet is finished in expensive hardwood
non-gloss paint.
TWEETER
Sandwich aluminum ribbon tweeter with magnet shielding. The size of aluminum ribbon is
60mm L×8.5mm W×0.015mm T (2.36"L×0.33"W×0.0005"T), easily field-replaceable for the
aluminum ribbon.
MIDRANGE
1×13cm/5.2". Aluminum frame, the composite cone (PP, carbon and mica), 25mm (1″) copper clad aluminum voice
coil with flat wire, the special magnet system with Faraday ring and demodulation coil.
WOOFER
2×16.5cm/6.5". Aluminum frame, the composite cone (PP, carbon and mica), 35mm (1.38″) copper clad
aluminum voice coil with flat wire, the special magnet system with Faraday ring and demodulation coil.
CROSSOVER
Woofer utilizes the second filter design, the midrange utilizes the second order filter design and the
tweeter utilizes the third order filter design, the frequency of the crossover is 600Hz and 3.3kHz. High
quality crossover components：High quality MKP capacitors, the metal oxide film resistors with military
industrial standard metal oxide film resistor of military industrial standard and high purified OFC
inductors.
CONNECTORS
4PCS gold-plated copper connectors, bi-wiring design.
CONNECTIVE CABLE
Tweeter, midrange and woofer utilize OFC cable.
SPECIFICATION
Design：3－way vented－box.
Frequency range：35Hz－30kHz.
Sensitivity：89dB/W/m1

Impedance：4ohms(minimum3.2ohms)
Power requirement：50－200W recommended.
Dimensions(HWD)：107cm×25.4cm×31.7cm(42.1"×10"×12.48"), the depth is exclusive of
grille.
Net weight：27kgs/pc (59.5lb/pc)
PRODUCT PURPOSE
To be used in high quality HiFi music system and can also be combined with home theater system.
THE PLACEMENT AND INSTALLATION OF LOUDSPEAKER
The size of the room, the treatment of the wall and floor surfaces, the
placement location of the loudspeakers in the room are all factors to
achieve optimal sound reproduction. Please carefully read the following
references：
position of furniture and the

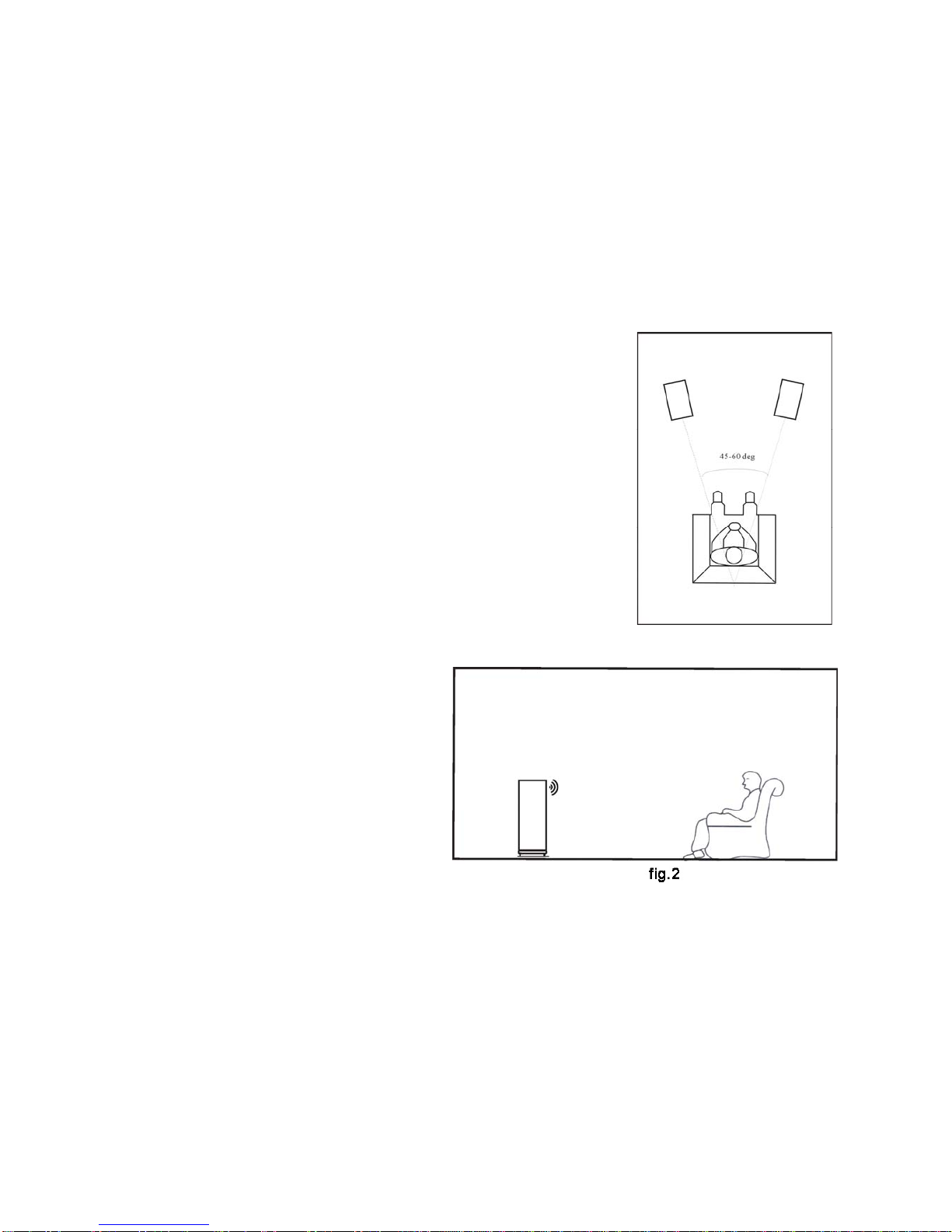

zIt is recommended the loudspeakers and the listener to be in the
direction of long axis. Please see the fig.1. If the loudspeakers and
listener are located in the direction of short axis, the sound quality
will not be as refined due to wall reflections. If you have no choice
to set up this way, you may need to do some sound absorbing
treatment on the front and back walls. The shape and size of the
room have a great influence in the outcome. You should experiment
with positioning a number of times to find the SWEET SPOT.
zThe optimum height for the loudspeakers placed on the floor, the
center of the aluminum ribbon tweeter should be on the same level
with your ear when you sit on your accustomed seat.
Please see the fig.2.
zDo not place the loudspeakers near walls or corners. fig. 1
Usually, the distance between the back of
the loudspeaker and the wall is a minimum
of 1m/40"; the distance from the side of
the loudspeaker to the nearest wall is a
minimum of 0.8m/32". Of course, the
optimum position will depend on room
size and layout. Please assure that the
optimum position can be found as long
as you move the loudspeaker several times.
zIf you position the loudspeakers too close to
the wall or corners, it will increase the bass response
and at the same time becomes cloudy and will loose imaging.
zIf the wall and floor surface is too smooth, it will increase sound reflections and lengthen the
reverberation time and hence makes the sound muddy. If you meet these circumstances, you must
do some partial treatment to the wall and floor. Sound quality will improve if you install a wall
hanging and place a rug in front of the loudspeakers on the floor.
zThe loudspeaker should be located on a flat stable floor; spikes must be installed and adjusted to
suit.
CONNECTING LOUDSPEAKERS TO YOUR POWER AMPLIFIER
It is very simple to connect the loudspeakers to the amplifier, but the cable that connects the
loudspeakers with the amplifier can have a significant effect on the overall sound quality of your
audio system. So please choose high quality loudspeaker cables that can match your audio equipment
perfectly, ask your AURUM CANTUS dealer or distributor for their recommendation.
2

630 loudspeakers have four connectors (for bi-wiring use) on the rear panel. And each connector can
accept spade plugs, banana plugs or bares wire.
Make sure the output terminals “+”or“red”on the amplifier are connected to the connectors “+”
or“red”on the loudspeakers, likewise, make sure the output terminals“－”or“black”on the amplifier
are connected to the connectors“－”or“black”on the loudspeakers, and then please double check the
connections are correct and stable.
When using the bi-wring system, firstly remove the gold short-circuit plates from the connectors, and
then connect the cables following the above instructions.
NOTE：
BEFORE POWER UP, YOU MUST REMOVE THE PROTECTIVE MEMBRANE FROM
THE ALUMINUM RIBBON TWEETER.
THE OPERATION APPROACHES POWER UP
zFirstly, switch on the power of the sound source equipment (CD, SACD, DVD－Audio, LP, DVD
ect) , then switch on the power source of the amplifier (you must assure that the volume control of
the amplifier is set in the lowest (0) position)，lastly raise the output power of the amplifier slowly
after you inserted the software into the sound source equipment until you are satisfied with the
volume.
When you want to shut down the audio system, please firstly dial the volume to the lowest (0)
position, and then switch off the power source of the amplifier, lastly switch off the power of the
sound source equipment.
zPlease adjust the volume with care when you are playing dynamic music. If the sound pressure
level is too strong, the instant peak value of the dynamic music may cause the amplifier to distort
and can cause damage to the loudspeakers.
zIf you purchased a low-priced amplifier, please use it with care.
LOUDSPEAKERS BREAK IN PERIOD
After testing, the aluminum ribbon loudspeaker requires at least 80 hours of break in to obtain the
normal working condition. In order to achieve the optimum performance sooner, we recommend the
loudspeakers break in as continuously as possible.
CLEANING YOUR LOUDSPEAKERS
zPlease do remember not to use a vacuum cleaner on or near the loudspeakers, otherwise it could
cause damage to the diaphragm of the aluminum ribbon tweeter.
zPlease remove the grille before cleaning the grille cloth.
zUse a damp soft cloth to clean the cabinets. We recommend maintaining an occasional furniture
grade wax and polish the wood surface of the cabinet.
ATTENTION
zThe magnetic field of the aluminum ribbon tweeter is very powerful, so please keep any
magnetizer away from the front plate of the loudspeaker at least 20cm/8"to avoid loudspeaker
damage due to the strong magnetic attraction.
zPlacing the loudspeaker near a television may cause a magnetic interference. Place the speaker
about 90cm/35"away from your television when you combine your loudspeakers with a home
theater system.
zLoudspeakers should be placed away from heat sources and prevent direct sunlight on the
loudspeakers, otherwise, this can cause life reduction of the drivers and aging of the cabinet finish.
zMake sure that you have read and understand the information in this manual. If there is anything
you don’t understand or are unsure of, please contact your AURUM CANTUS dealer or distributor.
3

zNow you have responsibility to set up your loudspeakers following the recommendations set out
in this manual.
WARRANTY AND SERVICE
These loudspeakers are warranted to be free of manufacturing defects for three [3] years after the
original date of purchase.
If the loudspeakers should require service during the warranty period, we will repair or replace at our
discretion.
The warranty does not apply to damage caused by abuse or wrong use to the loudspeaker, and does
not apply to accidental damage and neglect or damaged during the course of transportation,
unauthorized modifications or repairs by people who are not permitted by an AURUM CANTUS
dealer or distributor.
Please contact your AURUM CANTUS dealer or distributor if you have a service requirement.
Please use the original packaging when you ship the loudspeakers to an AURUM CANTUS dealer or
distributor for servicing. If you did not save the original packaging, please inform your dealer or
distributor, and they will send you replacement packaging. The packaging will be charged to you at
cost price.
All freight and insurance will be paid by the user.
4
