JLCooper Electronics ES-SloMoJ User manual

ES-SloMoJ USB
USB Tactile Control Surface
Operations Manual

2
ES-SloMoJ and ES-SloMoJ USB are trademarks of JLCooper Electronics.
All other brand names are the property of their respective owners.
ES-SloMoJ User’s Manual, First Edition
Part Number 932128
2010 JLCooper Electronics, 142 Arena Street, El Segundo, CA 90245 USA
[phone] ¬[phone] www.jlcooper.com

3
Table of Contents
Introduction ------------------------------------------------------------- 4
Connecting --------------------------------------------------------------- 5
Declaration of Conformity-------------------------------------------- 6
RoHS Statement of Compliance ------------------------------------- 7
JLCooper Electronics Factory Warranty ------------------------- 8

4
Introduction

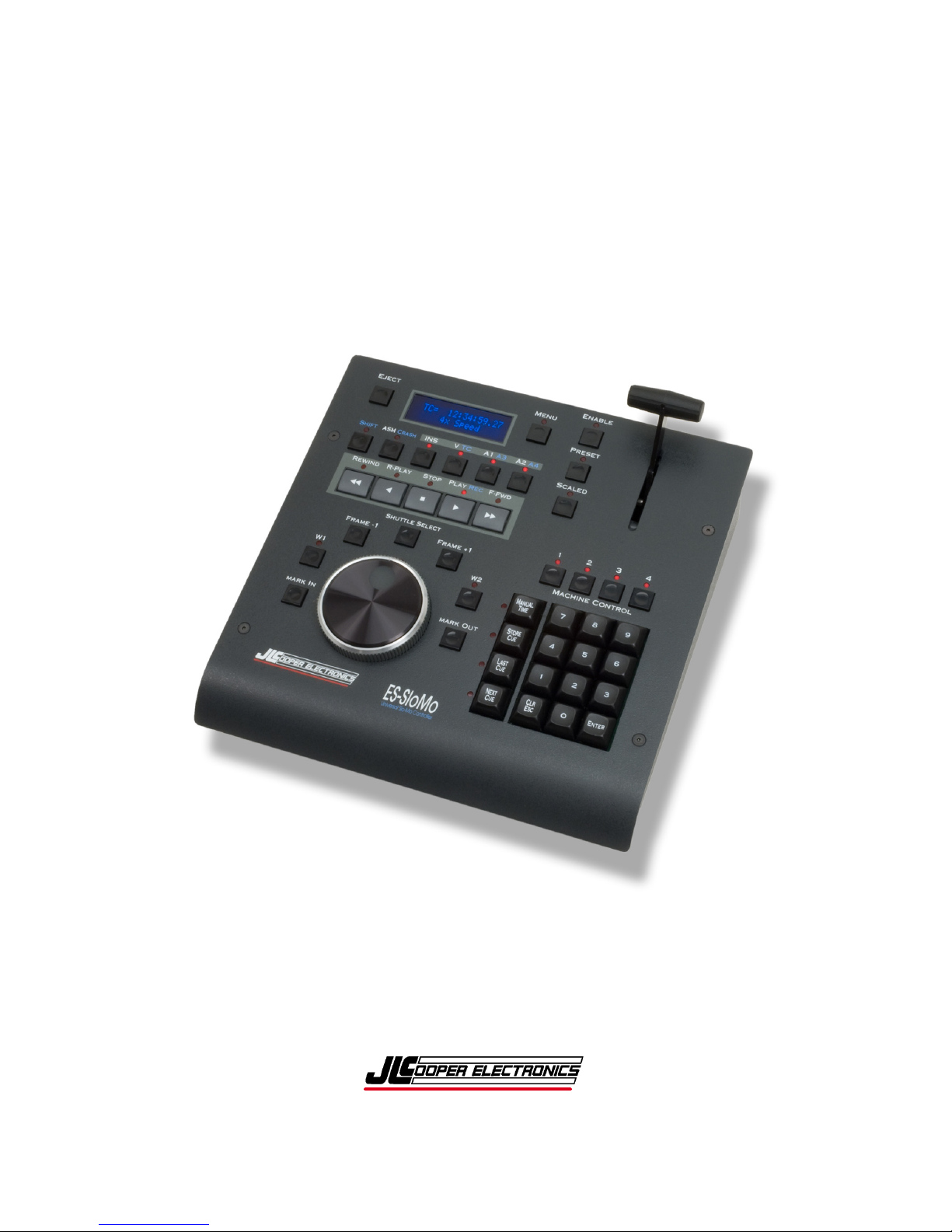

The ES-SloMoJ USB is a compact controller for video editing
applications. The ES-SloMoJ USB is a companion product to
software based applications.
ES-SloMoJ features include professional transport buttons,
professional Jog/Shuttle Wheel for convenient picture search
operations, a high quality TBar for Slow Motion and shuttle tape
operation, an easy to read 2 x 16 VF display for accurate editing, a
full size numeric keypad, fast access function keys and an
integrated data and power cable to minimize desktop clutter.

5
Connecting
Connecting the ES-SloMoJ is straightforward. Simply connect the
ES-SloMoJ USB to a free USB port on your computer. The ES-
SloMoJ USB is powered from the USB port. The ES-SloMoJ
USB d should be plugged into a self powered hub.
Windows XP SP2 and later, Vista and Windows 7 include drivers
that allow the ES-SloMoJ USB to appear as a virtual serial port.
Drivers for other operating systems can be obtained from:
http://www.ftdichip.com/Drivers/VCP.htm
To configure the ES-SloMoJ USB to operate with a specific
software application, refer to the setup documentation for that
software application.
