JMD Handy-Baby 8.8.9 User manual
JMD Handy
-
Car Key Programmer
Copy and all key lost compatible( Repeat more )
F-JMD8( 48 chip)
JMD OBD Assistant
(copy VW , Audi and Skoda)
-
Baby 8.8.9
User Manual
Car Key Programmer
Copy and all key lost compatible( Repeat more )
Handy Baby Key Programming
46+4C+4D+T5+G(
T
User Manual
Copy and all key lost compatible( Repeat more )
K-chip ( Blue chip)
46+4C+4D+T5+G(
4D-80bit)
S-chip ( Red chip)
King + 47 + 48
2018 – Q2
T
esting only now!!!
Language:
English/Spanish/Portuguese/Russian/Chinese
Arabic/French/Turkish/Italy/Vietnamese/Indonisia
Products list:
1. Handy Baby
2. Assistant OBD2 adapter (Audi / VW / Skoda) copy
3. King Chip ( Instead of C-JMD6 (46) , F-JMDD (4D) , C-JMDG(G) , and including 4C /
T5 chips)
4. C-JMD6 is 46 chip
5. F-JMDD is 4D chip
6. F-JMDG is G chip ( 40 and 80 bit DST)
7. C-JMD48 is 48 chip
8. Audi Remote board
A- JMDA01 is Audi half-smart remote board
A- JMDA02 is Audi Smart remote board
A- JMDB1 is Audi Fold key 8E chip

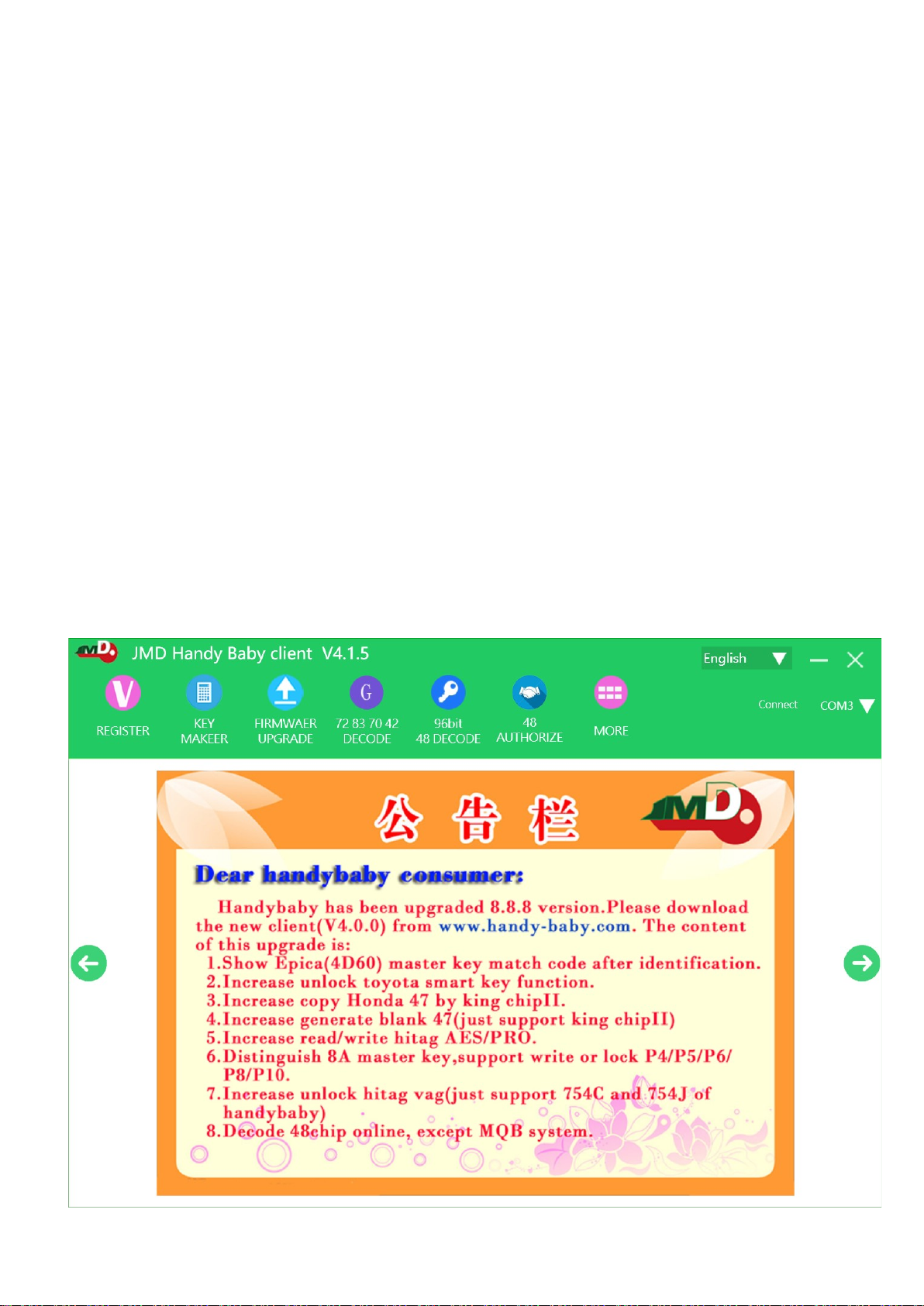

9. JMD Client Software 4.1.5 could make more function (dump eeprom all key lost)
New Update handy baby 8.8.9 version and assistant 8.0.0
Notice:
1) Handy Baby for G chip function need extra fees to open. If you need G chip Function, Please send SN and PASSWOARD to us after
you get it, and we will activate it for you.
2) This Device can't work together with CN1 or CN2 Chip, need to work with specially designed Handy Baby 4C/4D Chip and Handy
Baby ID46 Chip. Special chips (C-JMD6(46), F-JMDD(4D), F-JMD8(48), F-JMDG(G chip)
3) Update Free Online on Official Website
4) We are sure Ford (80bit) which made in China can be copied, but we are not sure Fo-rd in all the countries can be copied, so it may
decode fail. Locksmiths from Europe success in copying For-d( 80bit)
5) We Only have red colour in stock now.
Software V8.2 functions:
(1)Handy Baby upgrade 8.2.1:
.Hyundai and kia motors decoding for password 46 smart card
.PCF7938 UID write command(just for JMD chip)
.Add identify Changan CS75 8A chip read
.Add F-JMDD(4D)Transfer to another chip function
.Add Zhonghua Car 48 chip generator
.Add DST80 bit password page edit function
.Add F-JMDG generator empty(Blank) chip
Add EEPROM immobilizer data write:
.Kia/Isuzu/Geely/Alpha Romeo/Kawasaki motorcycle/SEAT/Mitsubishi/Jaguar/Dodge/Skoda/
Dacia/Peugeot/Fiat/Lancia/Chrysle/Geep/VM/Toyota/Lexus/Opel/Hyundai/Buick more and more EEPROM.
JMD Assistant upgrade:
.VM for Brazil 4 the generate(add VM FOX/GOL/UP ....4th Copy)
.VM Sagitar 3.5th unlock
(2)The new ID46 transponder is on sale, and you need to upgrade your HandyBaby to at least version 8.2.0,
or it can't write with HandyBaby, and it read as C-JMD6A, when you buy chips, be careful about the fake
chips(package with plastic), it can't write by HandyBaby.
Software V8.0 functions:
(Users can download update in Official website)
1) Able to simulate 46 chip
2) Able to identify 47 (Hitag 3) empty chip, read/write on single password mode.
3) Able to identify 47 (Hitag 3) chip A/G key
4) Add more key chip subdivision (Hi-tag AES, Hitag Pro,etc.)
5) Able to generate 46 chips for Su-zuki, CHANG-HE (Support generating original 46 chips)
6) Able to generate Ho-nda 47 (Hi-tag 3) chip
7) Able to copy V-W 4 48 chips (need JMD Baby Assistant Adapter)
Software V7.0 functions:
1) Able to simulate the 4D chip including 4D60/61/62/63/64/65/67/68 /6A/6B/71/60 Plus/ 63 Plus/ 72G
2) Read more types of transponder
3) Able to generate for G-M ID46;
4) Fix the known bug;
5) Able to process the immo data:
Great Wall transportation 46 immo, Gee-ly transportation 46 immo, Che-ry transportation 46 immo, Hai-ma
transportation 46 immo,Chong-qing Ji-cheng 4D immo, D-ell-p-hi 48 immo, Sie-mens 46 immo, Lian-chuang
46 immo, Al-to 46, Roe-we, M-G, and other security data processing
Features:
1. Transponders copy : 46/4D/4C/64/13/12/11/33/42(online)
2. ID48 copy: vi-ce ID48(changeable uid), dell-phi immo box, part of V-W, Fia-t, Au-di, Vol-vo, Hon-da etc.
3. DST80 copy: To-yota 72G(online), For-d 4D83(online), Huny-dai/K-ia 4D70
4. Chip transfer: 4D60/60 Plus transfer to 4D63/83 cars
5. Transponder simulation
6. Read/write: 46/48/4D/4D Plus/8A
7.Transponders reading: 11/12/13/33/40/41/42/44/46/47/48/60/60 Plus/61/62/63/63
Plus/64/65/66/67/68/69/6A/6B/70/71/72G/73/8A/49 and smart keys etc.
8. Chip generate: 60/61/62/63/64/65/67/68/6A/6B/71/60 Plus/63 Plus/72G etc.
9. Chip generate: different format data of ID46
10. Frequency and modulation mode test(remote)
11. ECU signal/data stream of ID46/key type (all lost) detect
12. Update online
Key Copy Programmer Recognize and Copy:
Recognize: Recognize chip 13, 40/41/42/44/45, 4C/46/48, 4D61/62/63/67/68/68 Plus F/71. Able to tell if 48
chip is from original or deputy factory.
Copy: Copy 46, 4D and a partial of original 48 I.E Bui-ck Excell-e, you have to use special GMT46/4D Chips,
ID48 chips which can change ID.

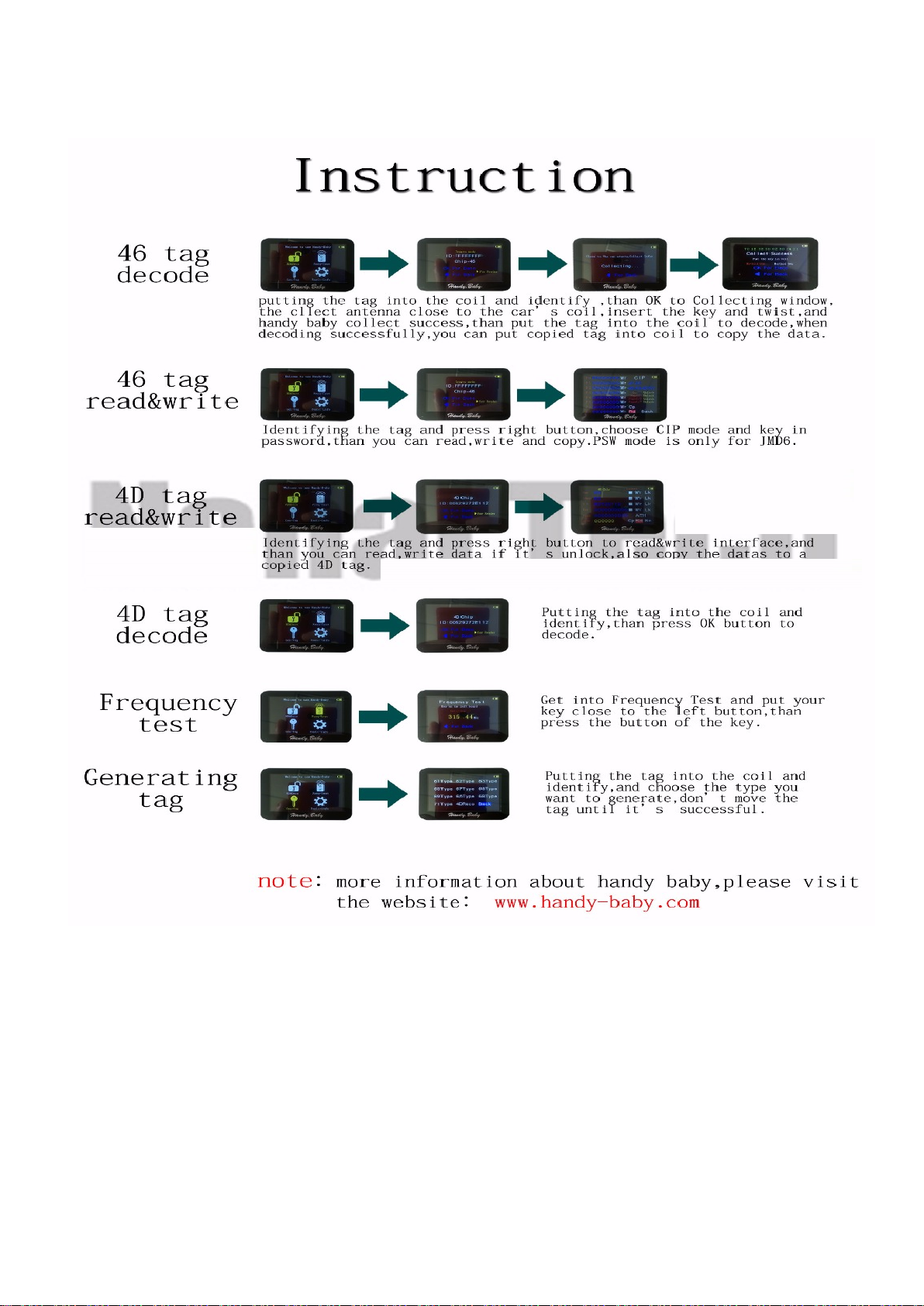

Operation steps:
Turn on: long press the "On" button.
Turn off: long press the "On / off" button or "On / off" and "OK" button
Steps to operate: follow the tips on the screen, put the original key into the coil, press "OK" to recognize.
For Example:
1).Steps to copy 46:
1. Press "OK" to decode
2. Make antenna close to coil
3. Insert and turn the key (collection)
4. Put original key into coil to decode
5. Put new key into coil to copy
2) Steps to copy 4D:
Press "OK" to decode, then put new key into coil to copy.
3).Steps to copy 48:
Press "OK" to decode, then put new key into coil to copy.
Handy Baby Key Copy Programmer Initialize:
Please use with caution: only available for JMD46 / 4D and revisable UID48 chip. The data won’t be restored
after the chip erased.
Handy Baby Key Copy Programmer Test Frequency:
Steps to test the key remote frequency: Enter program, make key close to the surface of left button, meanwhile
press remote button, then the frequency will display.
Handy Baby Key Copy Programmer Data read and write:
1) Read and write 46 chip
1. Please select correct chip mode and password in order to read & write chip correctly. The device default chip
mode and password is 46 chip blank.
2. Select chip mode: move mouse cursor to "Mode", I.E "Plaintext mode", press "OK", the fonts turn black from
white to indicate the selection mode, press "Up" and "Down" to select the Plaintext mode or password mode.
3. Enter password: move cursor to the password box under the mode, press "OK" to proceed, press "Up" and
"Down" to select the data (0`F), press "Left" and "Right" to transfer password.
4. After finish press "OK" to exit, then move cursor to "Read all" to read out data.
5. Read all: read out all data for 46 chip and display the status of locked or unlocked.
6. Write: write the corresponding data; make sure 46 unlocked before writing data.
7. Enter data: the way to enter data is as the same as to enter password.

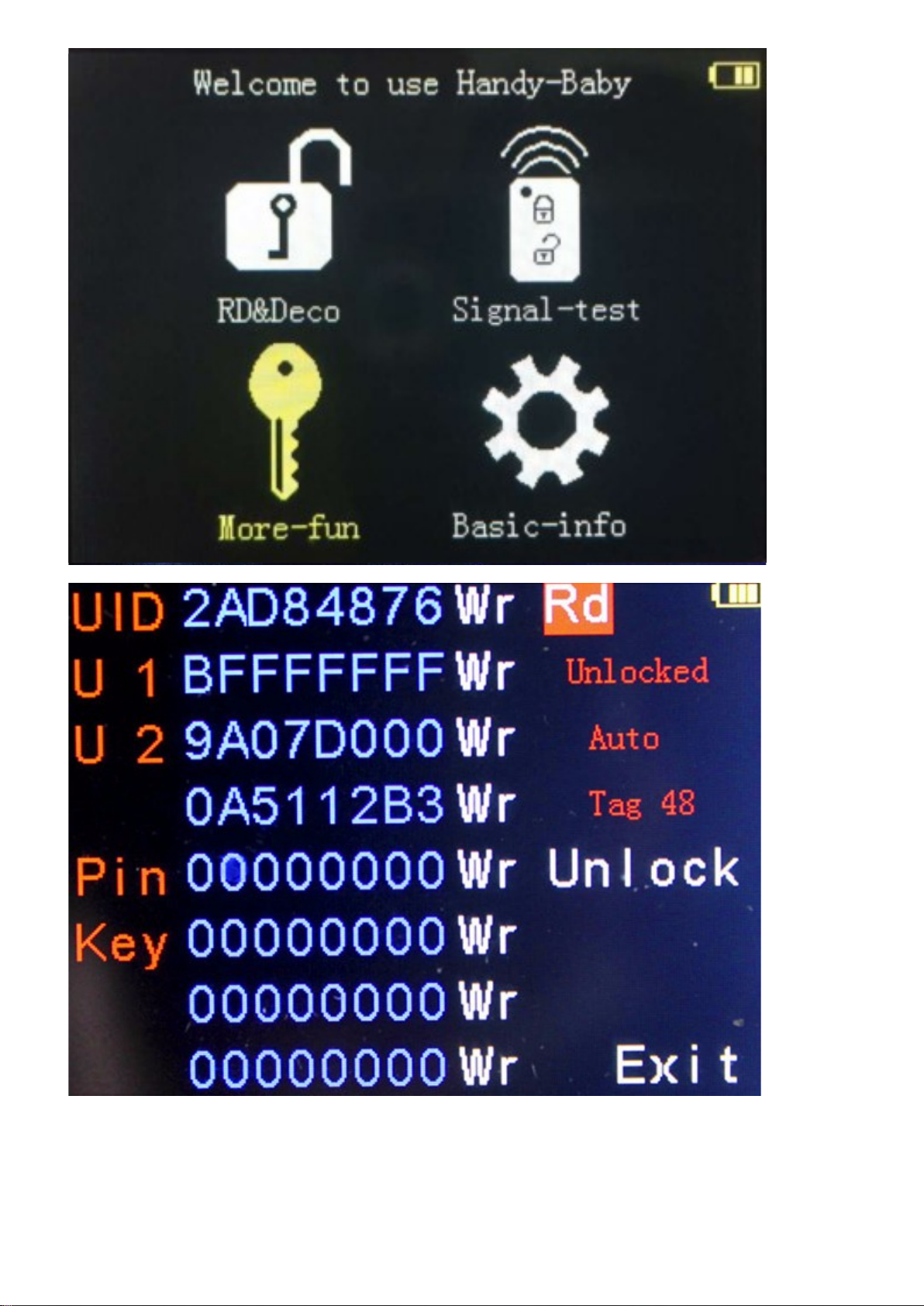

2) Read and write 48 chip
1. Read: read out 48 chip UID, user 1 and user 2 data, and display 48 chip type as well as the status of locked
or unlocked.
2. Write: write the corresponding area data; make sure 48 unlocked before writing data.
3. Enter data: move cursor to the data input box, press "OK" to proceed, press "Up" and "Down" to select the
data (0`F), press "Left" and "Right" to transfer password. After finish press "OK" button to exit, move cursor to
"Write" to write data.
4. Unlock: if the chip is locked, then it needs to be unlocked before writing into data.
5. Steps: when the chip is read out locked, please enter PIN code which is the code of 48 chip, move cursor to
"Unlock", press "OK" to unlock.
3) Read and write 4D chip
1. Read: read out 4D chip password, recognition and ID data, also display their status of unlocked or locked.
2. Enter data: move cursor to the data input box, press "OK" button to proceed, press "Up" and "Down" to select
the data (0`F), press "Left" and "Right" to transfer password. After finish press "OK" to exit, move cursor to
"Write" to write data.
3. Write: write the corresponding area data; make sure 4D unlocked before writing data.
4. Lock: lock the corresponding area, note: it is unable to unlock after locked.
5. Car ignition check: enter the verification code, then it will return corresponding signature.
4) Other chips
Able to recognize chip 13, 40/41/42/44/45, 4C/46/48, 4D61/62/63/67/68/68 Plus/71
Able to use T5575,em4305 and the compatible cards to copy 13 chip.
5) Generate chip
Chip 67 and 68: need the unlocked 4D chip to generate.
Specialized 48 chip: able to generate chip for only Sea-ttle TA, V-W TA, Sko-da TA, Au-di TA, SE-AT TP, V-W TP,
Sko-da TP, Au-di TP and Je-tta
Screenshot

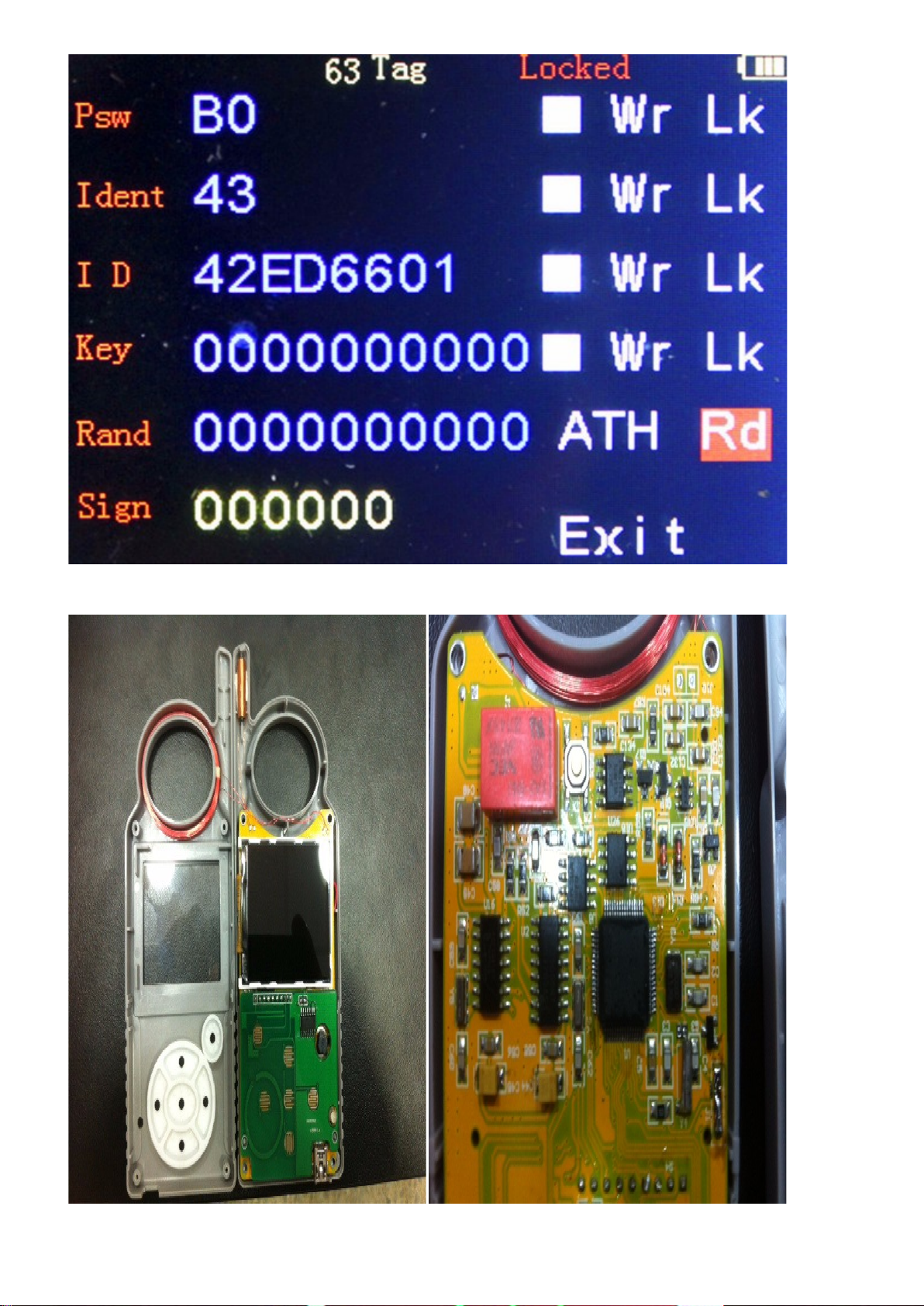

PCB Display
Update Steps
Q&A about Upgrating
1) How to upgrade to the latest version?
A: To download update software from official website.
2) Can't open update software.
A: Your computer hasn't install upgrade software driver, please download it from official website and install it.
3) Can't see serial port (isn't com0) when opening update software, and can't upgrade.
A: Handy baby upgrading needs to install Serial port driver software, please download from official website.
Installation steps: right click on "my computer" -> "Device manager" ->"Port(COM and LPT)", next and find
out "CP201X" and right click -> open update driver software-> find out driver software in your computer-> next
and finish.
4) Fail to upgrade.
A:Follow the tips show on update software, open update software -> connecting handy baby to computer(note:
keep handy baby off) -> turn on serial port and choose upgrading file -> turn on handy baby and wait until it's
finish.
5) Chinese version can not upgrade to English version or another language.(language not replace and
exchange)
A: It's not support to upgrade a language version to another.
6) Fail to upgrade to lower software version.
A:It's not support to upgrade to lower software version.
Functions Describe:
RD & Deco (Chips type identify and Page read , write, copy, etc……)
Type ID46

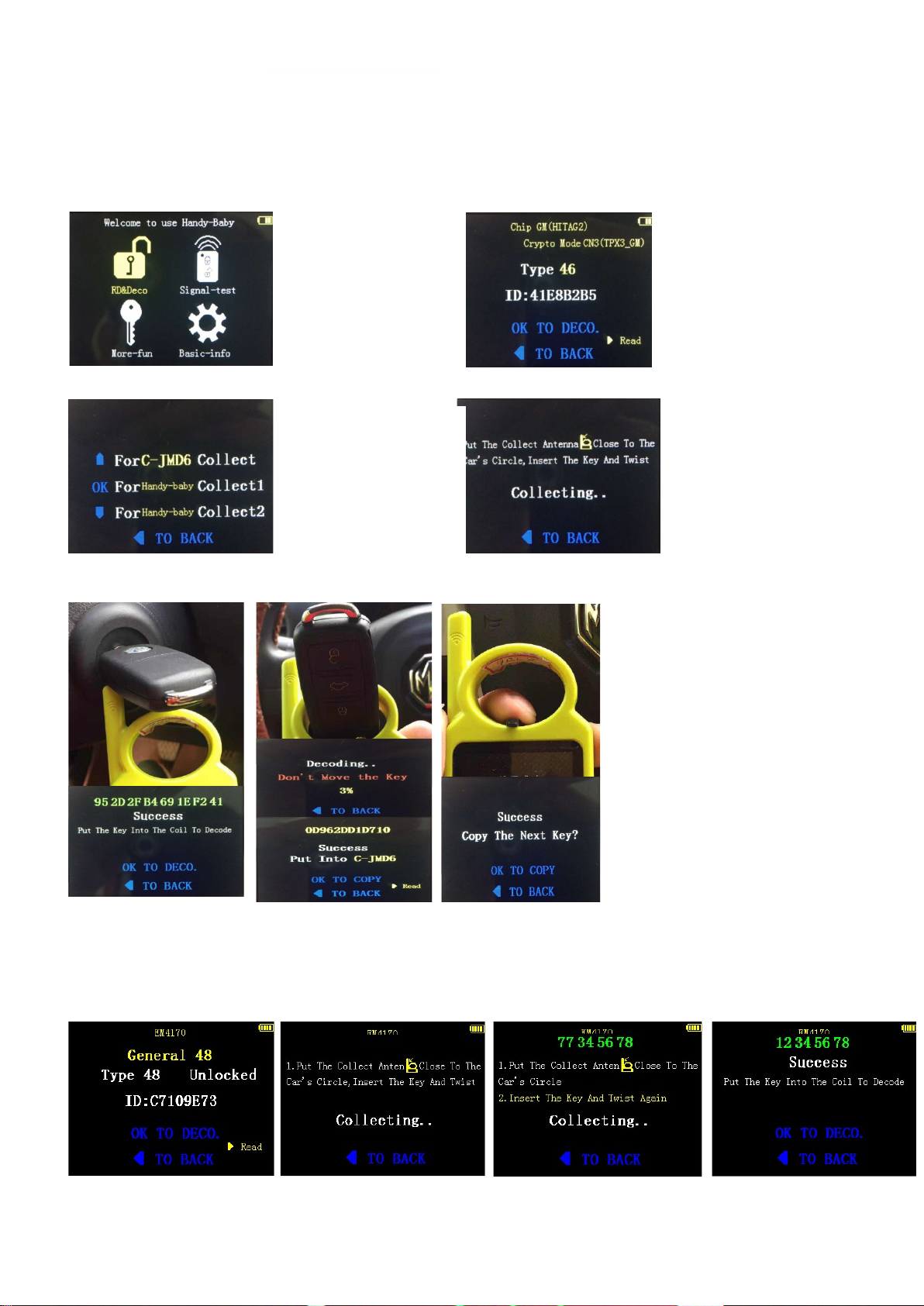

The difference chips type decoding icon:
Type 48
Identify the original car key:
Original car key put into Identification
antenna, Press “OK” to decode
Function:
RD&Deco
Chips identify
Collecting:
Mode selection
*Transponder
*Handy Baby
Antenna
Collecting:
1st: collecting antenna near
ignition switch
2nd: Original key starter
(power on) (ID48 need to
Decoding:
1st: Collecting success
2nd: Original key put into Antenna circle
and “OK” don’t move original key
3rd: Decoding success and clone new
key
4th: JMD special chips (C-JMD6,
F-JMDD,F-JMDG,C-JMD48) to copy
5th: Could copy so much if you need just
put new JMD chip
Type 4D
Type 4C / 42 / 83 / G / 70 (Ignore here)
Please JMD Handy Baby Device or Contact Sales Service.
Signal-test
Remote and ECU detector:
*Remote control frequency
detect (remote need near by left
button
*Ignition ECU detect
More-fun
Chip generate and simulation type 4D:
Page edit:
Chip generate and simulation
Type 46:
More Functions:
*Chip Generate (4D, 46, 48, T5, 47)
*Chip Transfer
*Volkswagen
4D Chip:
*4D66/67/68 used F-JMDD
or Blank 4D to generate
*4D60+/63+/72 used
F-JMDG to generate
*Other chip type used
Generate and Simulation:
*JMD-4D or blank 4D put into antenna and push “OK”
*If you no chips could use handy-baby to simulation
4D63 chip and next step
*using button and “OK” choice and
46 Chip:
* JMD-46 put into Identification antenna and push “OK”
* If you haven’t G-Wall chip , you can used handy-baby to simulation
Etc... Any question keep a touch sales service
Type 48
48 Chip: (Only supports vice 48)
Type T5
T5 Chip:
11/12 support T5 / 13 support T5/ATA5577/EM4305 / 33 support T5/PCF 7930/31
Type 47
T Type 47 currently only support blank 47
CHIP TRANSFER
This function is transfer Mazda
(Chang ’ an)/ Ford , Ford (USA) and Mazda
(Imported)

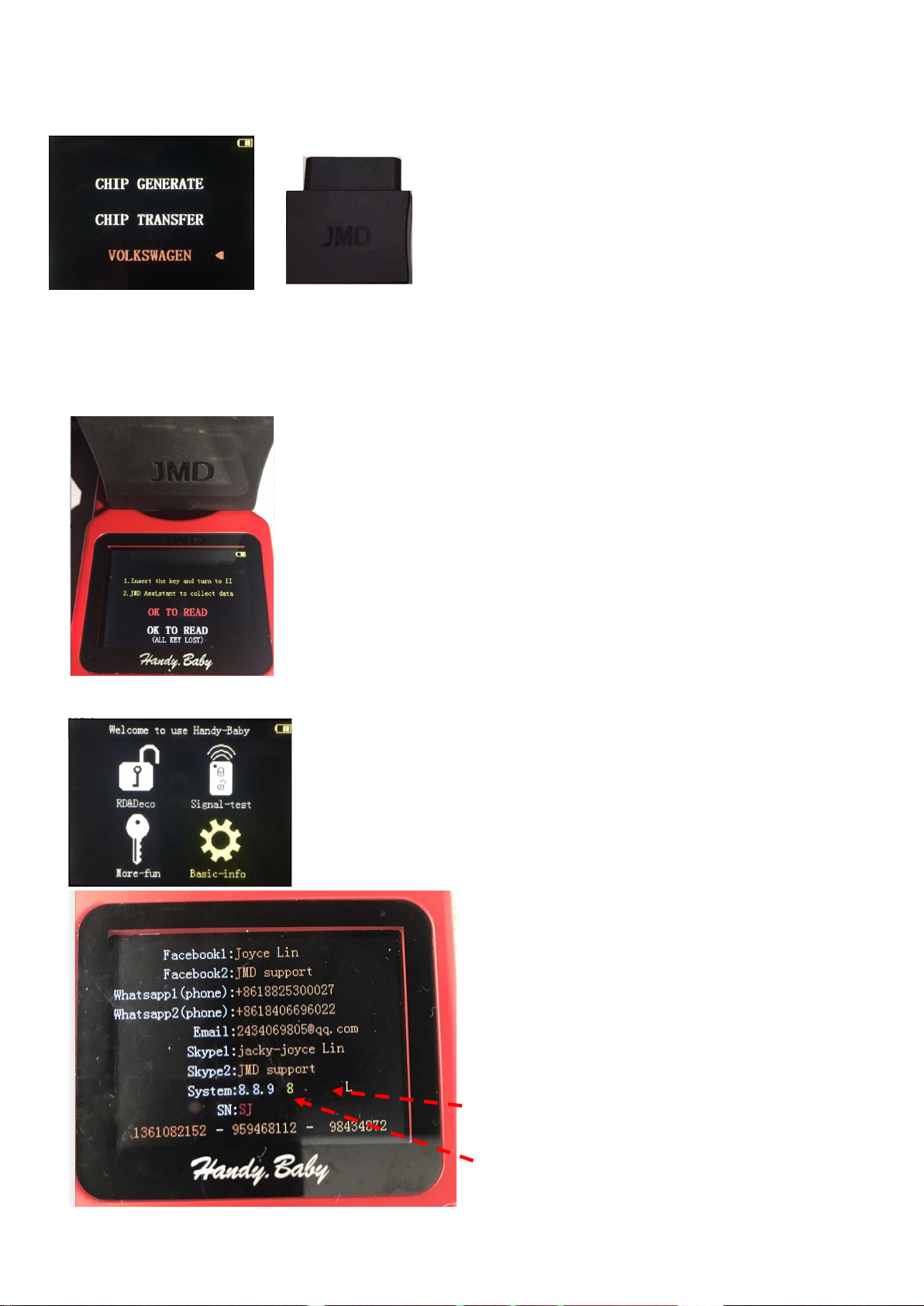

VOLKSWAGEN ( VW 4th Generate need use OBD Assistant)
1st: , the key insert ignition switch and turn to
“ON”.
2nd: handy-baby assistant insert OBD .At this
time
dashboard lamp go out
3th: , observation dashboard lamp light up
again
and pull out assistant Assistant on the antenna,
press “OK” to read
Handy-Baby OBD Assistant (Please see assistant user manual)
Don’t worry car broken down, just offline download data by OBD assistant.
Basic-info
Basic information:
*Hardware ID
*System Version (The Latest version 8.3.0)
*SN: # and G function label
Hint : always keep system version is newly
4D72G TOTOTA register
96 online register
G
Part No. : C-JMD6(46) , F-JMDD(4D) , F-JMDG(G chip)
Product: Wedge
Mechanical dimension
Electrical characteristics
Operating frequency 125KHz +- 4 K, 134.2KHz
Memory Type Read / Write, 256 Bits EEPROM
General characteristics of transponder
Operating temperature range
-40 ºC ~ 85 ºC
Storage temperature range -55 ºC ~ 125 ºC
Protection class IP67
Magnetic flux density 0.2T
Temperature humidity
resistance
60 deg C, 95%RH ,168hr
ESD voltage immunity +/- 2Kv peak
Memory storage >10yrs, according to chip
specifications
Fake chip so much in the market please hint again.
Type Wedge
Dimension 6.0mm x 12.0mm ( W x L )
Thickness 3.0mm
Weight 0.41±0.1g
Casting material Polymer (Ceramic)
Here will show which one type chips
G = G chip(wedge)
6 = 46 chip(wedge)
D = 4D chipwedge)
8 = 48 chip(glass tube have coating)
King Chip = C-JMD6 + F-JMDD+F-JMDG+T5
Contact us:
Wechat ID: 18825300027 QQ ID: 2124116615
Table of contents
Other JMD Motherboard manuals
