John Lewis JLWM1407 User manual

JLWM1407
User Manual
Washing Machine

Contents
Safety information 4
Children and vulnerable people safety 4
General Safety 4
Safety instructions 6
Installation 6
Electrical connection 6
Water connection 6
Use 6
Service 7
Disposal 7
Installation 8
Unpacking 8
Information for installation 9
Product description 12
Appliance overview 12

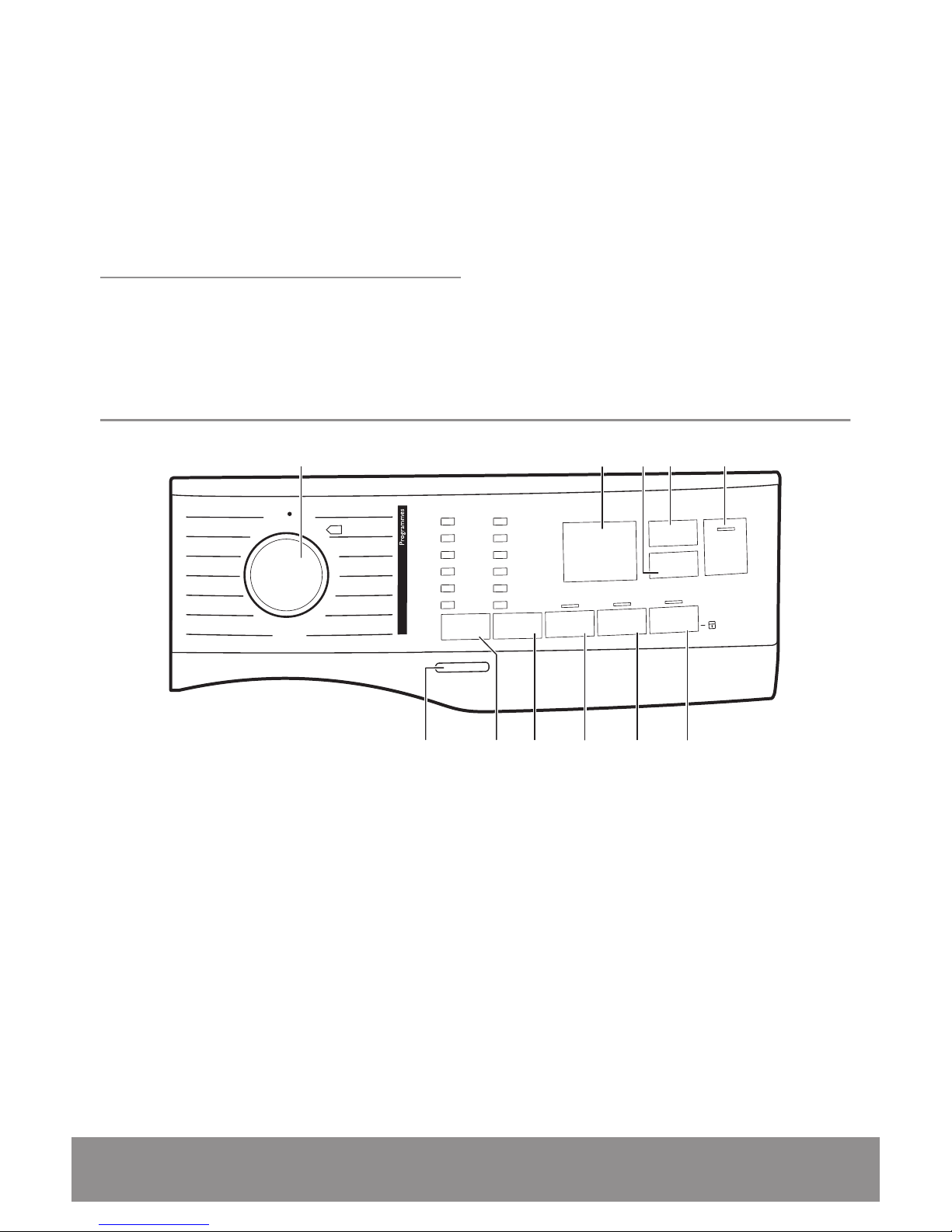

Control panel 13
Special features 13
Control panel description 13
Display 14
Dial and buttons 15
Introduction 15
On/Off 15
Temp 15
Spin 15
Prewash 15
Permanent Extra rinse 16
Permanent Extra soft 16
Delay start 16
Reduce time 16
Start/Pause 17
Programmes 18
Programme Chart 18
Settings 22
Acoustic signals 22
Child Lock 22
Before first use 23
Daily use 24
Activating the appliance 24
Loading the laundry 24
Filling the detergent and additives 24
Check the position of the detergent flap 25
Setting a programme 25
Starting a programme 25
Starting a programme with the delay start 26
The SensiCare System load detection 26
Interrupting a programme and changing the
options 26
Cancelling a running programme 26
Opening the door - Adding garments 27
End of the programme 27
Draining water out after end of cycle 27
Stand-by option 27
Hints and tips 29
The laundry load 29
Stubborn stains 29
Detergents and other treatments 29
Ecological hints 29
Water hardness 30
Care and cleaning 31
External cleaning 31
Descaling 31
Maintenance wash 31
Door seal 31
Cleaning the drum 31
Cleaning the detergent dispenser 32
Cleaning the drain pump 32
Cleaning the inlet hose and the valve filter 34
Emergency drain 35
Frost precautions 35
Troubleshooting 36
Introduction 36
Possible failures 37
Consumption values 39
Washing Machine User Manual
2

Technical Data 40 Repairs - after sales service 41

Safety information
Before the installation and use of the appliance, carefully read the
supplied instructions. The manufacturer is not responsible for any
injuries or damages that are the result of incorrect installation or
usage. Always keep the instructions in a safe and accessible location
for future reference.
Children and vulnerable people safety
•This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they have been given
supervision or instruction concerning the use of the appliance in a
safe way and understand the hazards involved.
•Do not let children play with the appliance.
•Children aged 3 years and under must be kept away from this
appliance when it is in operation at all times.
•Keep all packaging away from children and dispose of it
appropriately.
•Keep detergents away from children.
•Keep children and pets away from the appliance when the door is
open.
•If the appliance has a child safety device, this should be activated.
•Children shall not carry out cleaning and user maintenance of the
appliance without supervision.
General Safety
•Do not change the specification of this appliance.
•Do not exceed the maximum load of 7 kg (refer to the
"Programme chart" chapter).
Washing Machine User Manual
4

•The operating water pressure at the water entry point from the
outlet connection must be between 0.5 bar (0.05 MPa) and 8 bar
(0.8 MPa).
•The ventilation opening in the base (if applicable) must not be
covered by a carpet, mat, or any floor covering.
•The appliance must be connected to the water mains using the new
supplied hose sets, or other new hose sets supplied by the
Authorised Service Centre.
•Old hose sets must not be reused.
•If the mains power supply cable is damaged, it must be replaced by
the manufacturer, its Authorised Service Centre or similarly
qualified persons to avoid an electrical hazard.
•Before any maintenance operation, deactivate the appliance and
disconnect the mains plug from the socket.
•Do not use high pressure water sprays and/or steam to clean the
appliance.
•Clean the appliance with a moist cloth. Use only neutral detergents.
Do not use abrasive products, abrasive cleaning pads, solvents or
metal objects.
Washing Machine User Manual 5

Safety instructions
Installation
• Remove all the packaging and the transit bolts.
• Keep the transit bolts in a safe place. If the
appliance is to be moved in future they must be
reattached to lock the drum to prevent internal
damage.
• Always take care when moving the appliance as
it is heavy. Always use safety gloves and
enclosed footwear.
• Do not install or use a damaged appliance.
• Follow the installation instruction supplied with
the appliance.
• Do not install or use the appliance where the
temperature can be less than 0°C or where it is
exposed to the weather.
• The floor area where the appliance is to be
installed must be flat, stable, heat resistant and
clean.
• Make sure that there is air circulation between
the appliance and the floor.
• Do not install the appliance directly over the
floor drain.
• Adjust the feet to have the necessary space
between the appliance and the flooring.
• Do not install the appliance where the appliance
door cannot be fully opened.
• Do not put a container to collect possible
water leakage under the appliance. Contact the
Authorised Service Centre to ensure which
accessories can be used.
Electrical connection
• The appliance must be earthed.
• Always use a correctly installed shockproof
socket.
• Make sure that the parameters on the rating
plate are compatible with the electrical ratings
of the mains power supply.
• Do not use multi-plug adapters and extension
cables.
• Make sure not to cause damage to the mains
plug and to the mains cable. Should the mains
cable need to be replaced, this must be carried
out by our Authorised Service Centre.
• Connect the mains plug to the mains socket
only at the end of the installation. Make sure
that there is access to the mains plug after the
installation.
• Do not touch the mains cable or the mains plug
with wet hands.
• Do not pull the mains cable to disconnect the
appliance. Always pull the mains plug.
• This appliance complies with the E.E.C.
Directives.
Water connection
• Do not cause damage to the water hoses.
• Before connection to new pipes, pipes not used
for a long time, where repair work has been
carried out or new devices fitted (water
meters, etc.), let the water flow until it is clean
and clear.
• Ensure that there are no visible water leaks
during and after the first use of the appliance.
• Do not use an extension hose if the inlet hose is
too short. Contact the service centre for the
replacement of the inlet hose.
• You can extend the drain hose to maximum
400 cm. Contact the service centre for the
other drain hose and the extension.
Use
Warning! Risk of injury,
electrical shock, fire, burns or
damage to the appliance.
• This appliance is for household use only.
• Follow the safety instructions on the detergent
packaging.
Washing Machine User Manual
6

• Do not put flammable products or items that
are wet with flammable products in, near or on
the appliance.
• Make sure that all metal objects are removed
from the laundry.
• Do not wash fabrics which are heavily soiled
with oil, grease or other greasy substances. It
can damage rubber parts of the washing
machine. Prewash such fabrics by hand before
loading them into the washing machine.
• Do not touch the glass door while a
programme is in operation. The glass can get
hot.
Service
• To repair the appliance contact an Authorised
Service Centre.
• Use original spare parts only.
Disposal
Warning! Risk of injury or
suffocation.
• Disconnect the appliance from the mains
electrical and water supplies.
• Cut off the mains electrical cable close to the
appliance and dispose of it.
• Remove the door catch to prevent children or
pets from becoming trapped in the drum.
• Dispose of the appliance in accordance with
local requirements for the disposal of Waste
Electrical and Electronic Equipment (WEEE).
Washing Machine User Manual 7

Installation
Warning! Refer to Safety
chapters.

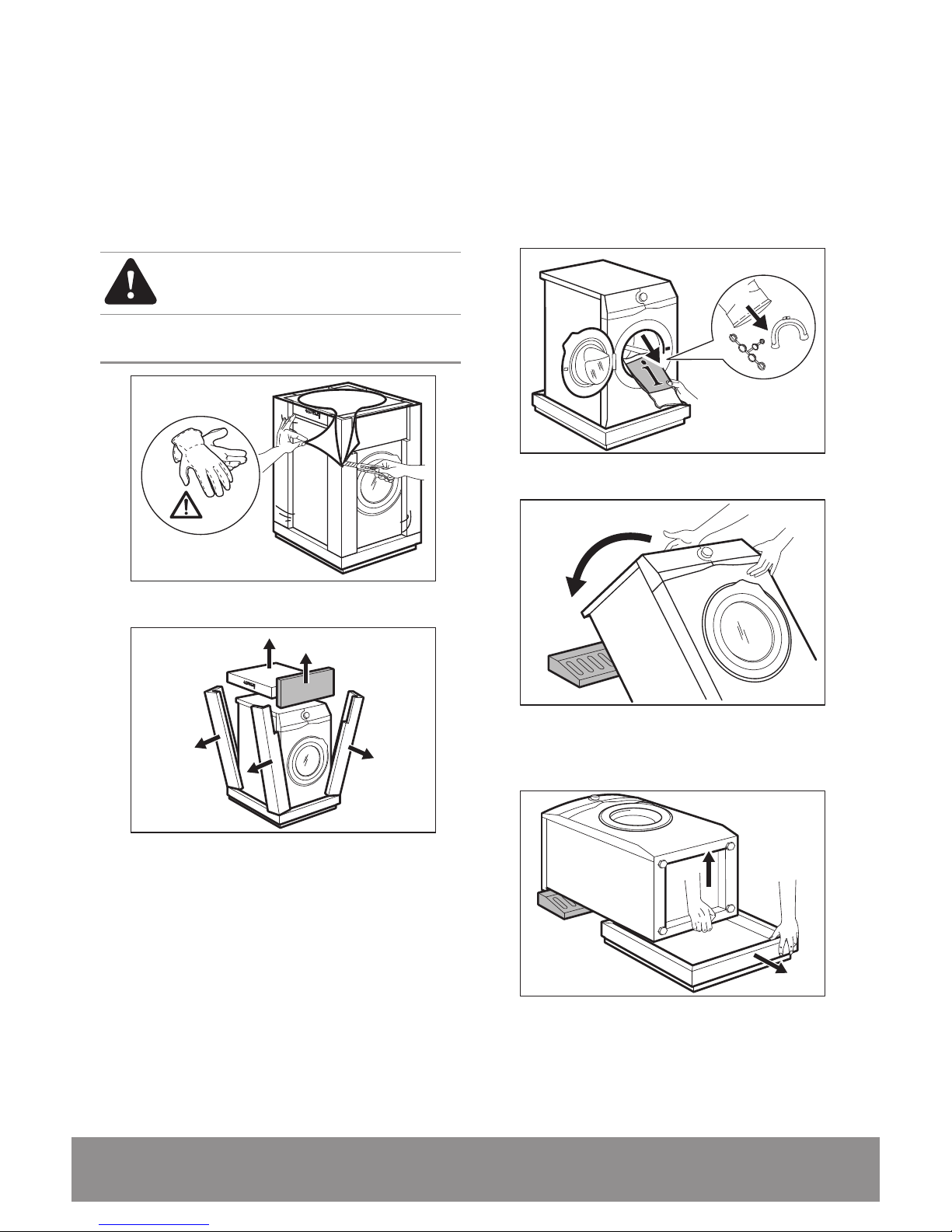

Unpacking
1.
Remove the external film. If necessary, use a
cutter.
2.
Remove the cardboard top and the
polystyrene packaging materials.
3.
Open the door. Remove all the items from the
drum.
4.
Put the front polystyrene packaging element on
the floor under the appliance.
5. Carefully put down the appliance onto its rear
side.
6.
1
2
Remove the polystyrene protection from the
bottom.
7. Put the appliance back into an upright position.
Washing Machine User Manual
8

8.
Remove the power supply cable and the drain
hose from the hose holders.
It is possible to see water flowing from the drain
hose. This is because the washing machine has
been tested at the factory.
9.
Remove the three transit bolts and pull out the
plastic spacers.
10.
Put the plastic caps, that you find in the user
manual bag, in the holes.
We recommend that you
keep the packaging and the
transit bolts for any transport
of the appliance.
Information for installation
1. Positioning and levelling
Correctly adjusting the appliance so that it is
level prevents vibration, noise and movement of
the appliance when in operation.
1. Install the appliance on a flat hard floor. The
appliance must be levelled and stable. Make sure
that the appliance does not touch the wall or
other units and there is air circulation below the
appliance.
2. Loosen or tighten the feet to adjust the level.
All feet must rest firmly on the floor.
x4
Warning! Do not put
cardboard, wood or
equivalent materials below
the appliance feet to adjust
the level.
2. The inlet hose
Caution! Make sure there is
no damage to hoses and there
are no leaks from the
couplings. Do not use an
extension hose if the inlet
hose is too short. Contact the
service centre for a
replacement inlet hose.
Washing Machine User Manual 9

1. Connect the water inlet hose to the back of
the appliance.
20O 20O
45O 45O
2. Position it toward left or right depending on
the positon of the water tap. Make sure that the
inlet hose is not in vertical position.
3. If necessary, loosen the ring nut to set it in the
correct position.
4. Connect the water inlet hose to the cold
water tap with 3/4'' thread.

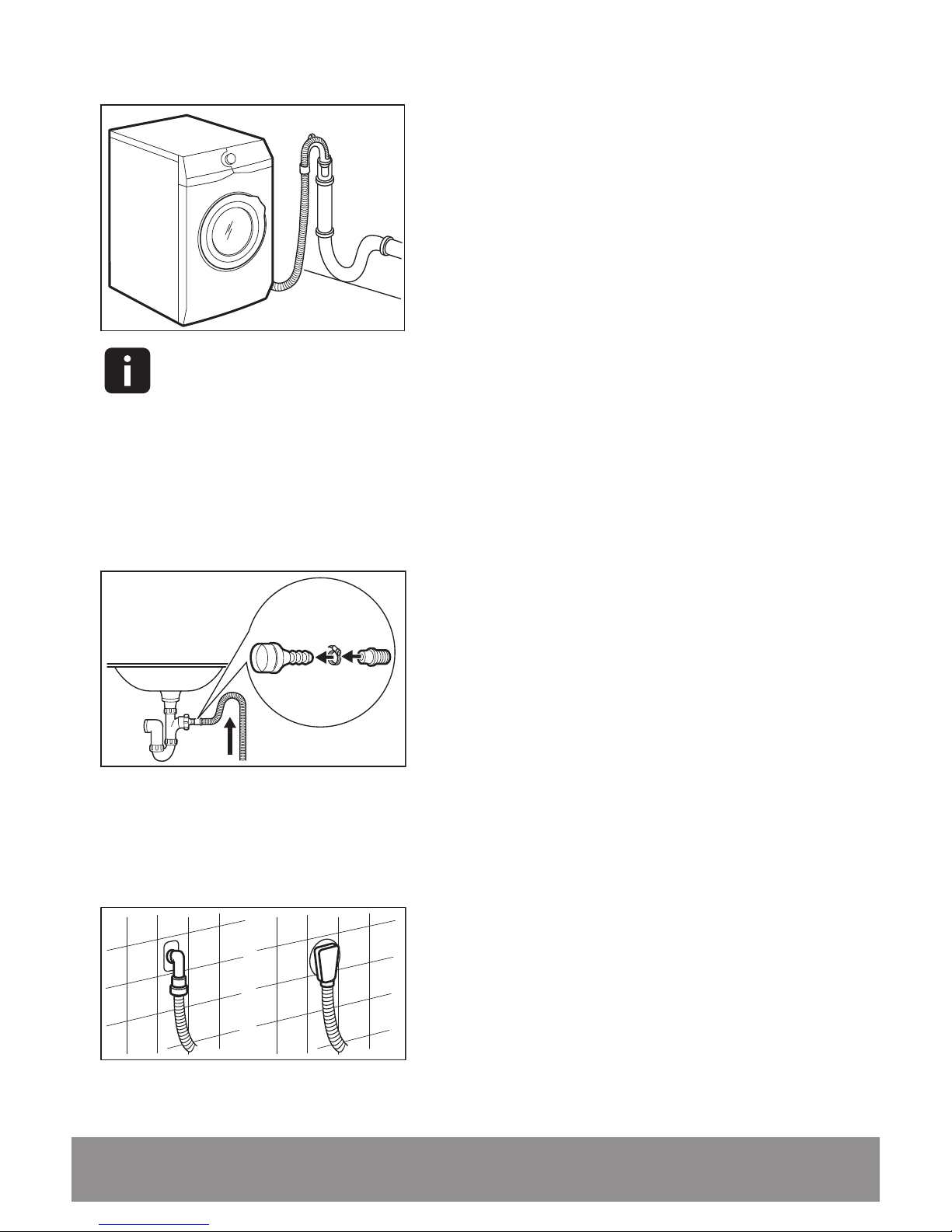

3. Water drainage
The drain hose should stay at a height of not less
than 60 cm and not more than 100 cm.
You can extend the drain hose to
maximum 400 cm. Contact the
authorized service centre for the
other drain hose and the extension.
It is possible to connect the drain hose in
different ways:
1. Make a U shape with the drain hose and put it
around the plastic hose guide.
2. On the edge of a sink - Fasten the guide to
the water tap or to the wall.
Make sure that the plastic guide
cannot move when the appliance
drains and the drain hose end is not
immersed in the water. There may
be a return of dirty water into the
appliance.
3. If the end of the drain hose looks like this (see
the picture), you can push it directly into the
stand pipe.
4. To a stand pipe with vent-hole - Insert
the drain hose directly into a drain pipe. Refer to
Washing Machine User Manual
10

the illustration.
The end of the drain hose must
always be ventilated , i.e. the inner
diameter of the drain pipe (min. 38
mm - min. 1.5") must be larger than
the external diameter of the drain
hose.
5.Without the plastic hose guide, to a
sink spigot- Put the drain hose in the spigot
and tighten it with a clamp. Refer to the
illustration.
Make
sure that the drain hose makes a loop to
prevent particles going into the appliance from
the sink.
6. Position the hose directly to a built-in
drain pipe in the room wall and tighten it
with a clamp.
Washing Machine User Manual 11

Product description
Appliance overview
1 2 3 9
5
6
7
4
10
8
11 12
1. Worktop
2. Detergent dispenser
3. Control panel
4. Door handle
5. Rating plate
6. Drain pump filter
7. Feet for levelling the appliance
8. Drain hose
9. Inlet hose connection
10. Mains cable
11. Transit bolts
12. Hose support
Washing Machine User Manual12

Control panel
Special features
Your new washing machine meets all modern
requirements for an effective treatment of
laundry with low water, energy and detergent
consumption and respectful of fabric care.
• The SensiCare System adjusts automatically
the programme duration to the laundry in the
drum to achieve perfect washing results in the
minimum possible time.
Control panel description
3s
Reduce
time
Delay start
Start/
Pause
P
r
ewa
s
h
E
xtra rinse
E
x
t
r
a
s
o
f
t
Temp
Spin
Cold
Rinse
hold
No spin
Night
90°
60°
800
1200
1400
40°
30°
20°
CottonDenim
Outdoor
Sports heavy
Wool
Silk
Duvet
White cottons
Cotton eco
Synthetics
Delicates
14 min wash
Rinse
Spin/Drain
On/Off
2 3 4 5
11 10 7
1
6
89
1. Programme dial
2. Display
3. Delay start touch button
4. Reduce time touch button
5. Start/Pause touch button
6. Extra soft touch button
7. Extra rinse touch button
8. Prewash touch button
9. Spin reduction options touch button
• No spin option
• Rinse hold option
• Night option
10. Temp touch button
11. On/Off push button
Washing Machine User Manual 13

Display
A B C D
E
FG
ADoor locked indicator.
BDelay start indicator.
CThe digital indicator can show:
• Programme duration (e. g. ).
• Delay time (e. g. ).
• Cycle end ( ).
• Warning code (e.g. ).
DTime Manager bars level indicator.
EDrum clean indicator.
FChild safety lock indicator.
GAdd garments indicator. Illuminates at the beginning of the Wash phase,
while the user can still pause the appliance and add more laundry.
Washing Machine User Manual14

Dial and buttons
Introduction
The options/functions are not
available with all washing
programmes. Check the
compatibility between options/
functions and washing programmes
in the "Programme Chart". An
option/function can exclude
another one, in this case the
appliance doesn't allow you to set
incompatible options/functions.
On/Off
Press this button for a few seconds to activate
or deactivate the appliance. Two different tunes
sound while switching the appliance on or off.
As the Stand-by function automatically
deactivates the appliance after several minutes
to reduce the energy consumption, you may
need to activate the appliance again.
For more details, refer to Stand-by paragraph in
Daily Use chapter.
Temp
When you select a washing programme, the
appliance automatically proposes a default
temperature.
The indicator Cold = cold water.
The indicator of the set temperature comes on.
Spin
When you set a programme, the appliance
automatically sets the maximum spin speed
allowed except programme Denim.
Additional spin options:
•No spin. The related indicator comes on.
Set this option to deactivate all spin phases. The
appliance performs only the draining phase of
the selected washing programme. Set this
option for very delicate fabrics. The rinse phase
uses more water for some washing
programmes
•Rinse hold. The related indicator comes on.
The final spin is not performed. The water of
the last rinse is not drained out to prevent the
fabrics from creasing. The washing programme
ends with water in the drum.
The door stays locked and the drum turns
regularly to reduce creasing. You must drain the
water to unlock the door.
If you touch the Start/Pause button, the
appliance performs the spinning phase and
drains the water.
•Night. The related indicator comes on.
The intermediate and the final spinning phases
are suppressed and the programme ends with
water in the drum. This helps to reduce
creasing. The door stays locked. The drum
turns regularly to reduce creasing. You must
drain the water to unlock the door.
As the programme is very quiet, it is suitable for
use at night time when cheaper electricity tariffs
are available. In some programmes the rinses
are performed with more water.
If you touch the Start/Pause button, the
appliance performs only the draining phase.
The appliance empties the water
out automatically after
approximately 18 hours.
Prewash
With this option you can add a prewash phase
to a washing programme.
The relevant indicator illuminates.
Washing Machine User Manual 15

• Use this option to add a pre-wash phase at 30
°C before the washing phase.
This option is recommended for heavily soiled
laundry, especially if containing sand, dust, mud
and other solid particles.
These options can increase the
programme duration.
Permanent Extra rinse
With this option you can add a few rinses
according to the selected washing programme.
Use this option for people with allergies to
detergent residues.
This option increases the
programme duration.
The corresponding indicator above the touch
button illuminates.
Permanent Extra soft
Set this option to optimise the fabric softener
distribution and improve fabric softness.
Recommended when you use the fabric
softener.
This option increases the
programme duration.
Delay start
With this option you can delay the start of a
programme to a more convenient time.
Touch the button repeatedly to set the required
delay. The time increases in steps of 1 hour up
to 20 hours.
After touching the Start/Pause button, the
display shows the indicator and the selected
delay time and the appliance begins the
countdown and the door is locked.
Reduce time
With this option you can reduce the programme
duration depending on the load size and the
degree of soiling.
When you set a washing programme, the display
shows the default duration and dashes.
Touch Reduce time button to reduce the
programme duration according to your needs.
The display shows the new programme duration
and a number of dashes will decrease
accordingly:
suitable for a full load of normally soiled
garments.
a quick cycle for a full load of lightly soiled
garments.
very quick cycle for a smaller lightly soiled
load (max. half load recommended).
the shortest cycle to freshen up a small
amount of laundry.
The Time Manager is available only with the
programmes in the table.
indicator
Cotton
Cotton eco
Synthetics
1) ■■■
■■■
■■■
■■■
■■■
1) Defaullt duration for all programmes.
Washing Machine User Manual16

Start/Pause
Touch the Start/Pause button to start, pause
the appliance or interrupt a running programme.
Washing Machine User Manual 17

Programmes
Programme Chart
Programme
Default temper-
ature
Temperature
range
Maximum
spin speed
Spin speed
range
[rpm ]
Maxi-
mum
load
Programme description
(Type of load and soil level)
Cotton
40 °C
90 °C - Cold
1400 rpm
(1400- 800)
7 kg White cotton and coloured cotton. Normal soil and
light soil.
Cotton eco1)
40 °C
60 °C - 40 °C
1400 rpm
(1400- 800)
7 kg White cotton and fast-coloured cotton. Normal soil.
The energy consumption decreases and the time of the
washing programme is extended.
Synthetics
40 °C
60 °C - Cold
1200 rpm
(1200 - 800)
3 kg Synthetic items or mixed fabric items. Normal soil.
Delicates
40 °C
40 °C - Cold
1200 rpm
(1200- 800)
3 kg Delicate fabrics such as acrylics, viscose and mixed
fabrics requiring gentler washing. Normal soil.
14 min wash
30 °C
800 rpm
(800- 800)
2 kg Synthetic and mixed fabric items. Light soil and items to
freshen up.
Rinse 1400 rpm
(1400- 800)
1 kg All fabrics, except woollens and very delicate fab-
rics. Programme for rinsing and spinning the laundry. The
default spin speed is the one used for cotton programmes.
Reduce the spin speed accordingly to the type of laundry. If
necessary, set the Extra rinse option to add rinses. With a
low spin speed, the appliance performs delicate rinses and a
short spin.
Spin/Drain 1400 rpm
(1400 -800)
7 kg To spin the laundry and to drain the water in the drum. All
fabrics, except woollens and delicate fabrics.
Washing Machine User Manual18

Programme
Default temper-
ature
Temperature
range
Maximum
spin speed
Spin speed
range
[rpm ]
Maxi-
mum
load
Programme description
(Type of load and soil level)
White cottons
60 °C
1400 rpm
(1400 - 800)
7 kg White cotton items. This programme removes micro-or-
ganisms thanks to a washing phase with the temperature
maintained above 60°C for several minutes. This helps to re-
duce germs, bacteria, micro-organism and particles. An addi-
tional rinsing phase ensures thorough removal of detergent
residues and pollens/allergens. In this way the wash is more
effective.
Duvet
40 °C
60 °C - Cold
800 rpm
(800 - 800)
3 kg Single synthetic blanket, padded clothes, duvets,
down jackets and similar items.
Silk
30 °C
800 rpm
(800 - 800)
1 kg Special programme for silk and mixed synthetic items.
Wool
40 °C
40 °C - Cold
1200 rpm
(1200- 800)
2 kg Machine washable wool, hand washable wool and
other fabrics with «hand washing» care symbol2).
Sports heavy
30 °C
40 °C - Cold
1200 rpm
(1200 - 800)
3 kg Mixed fabric sportswear. Light soil items or items to re-
fresh.
Washing Machine User Manual 19

Programme
Default temper-
ature
Temperature
range
Maximum
spin speed
Spin speed
range
[rpm ]
Maxi-
mum
load
Programme description
(Type of load and soil level)
Outdoor
30 °C
40 °C - Cold
1200 rpm
(1200- 800) 2,5 kg3)
1 kg4)
Do not use fabric softener and make
sure that there is no softener residue in
the detergent dispenser.
Synthetic sport items. This programme is designed to
gently wash modern outdoor sportswear and is also suitable
for gym, cycling or jogging clothes or similar. The recommen-
ded laundry load is 2,5 kg.
Waterproof, waterproof-breathable and water re-
pellent fabrics. This programme can also be used as a wa-
ter repellency restoring cycle, specifically tailored for treating
clothes with a hydrophobic coating. To perform the water
repellency restoring cycle, proceed as follows:
• Pour the washing detergent in the compartment .
• Pour a special water repellency restorer for fabric into
the softener compartment of the drawer .
• Reduce the laundry load to 1 kg.
To further improve the water repellency
restoring action, dry the laundry in a
tumble dryer by setting the Outdoor
drying programme (if available and if the
garment care label permits tumble dry-
ing).
Denim
30 °C
40 °C - Cold
1200 rpm
(1200 - 800)
3 kg Special programme for Denim clothing with deli-
cate washing phase to minimize colour fading and
marks. For better care a reduced load size is recommen-
ded.
1) Standard programmes for the Energy Label consumption values. According to regulation 1061/2010, these pro-
grammes are respectively the «Standard 60°C cotton programme» and the «Standard 40°C cotton programme». They are the
most efficient programmes in terms of combined energy and water consumption for washing normally soiled cotton laundry.
The water temperature of the washing phase may differ from the temperature declared for the selected pro-
gramme.
2) During this cycle the drum rotates slowly to ensure a gentle wash. It can seem that the drum doesn't rotate or doesn't rotate
properly, but this is normal for this programme.
3) Washing programme.
4) Washing programme and waterproofing phase.
Washing Machine User Manual20
