Page 2
Table of Contents
Preface……………………………………………………….……3
General safety Warnings……………………………..………..4-7
Parts Locations………………………………………...…………8
Left Side of Spyder……………………………………………….9
Right Side of Spyder………………………….…………………10
Parts Functions…………………………………………………..11
Ignition Switch………………………………………………...…12
Left Handlebar Controls…………………………………..…….13
Right Handlebar Controls………………………………………14
Rear Shock Absorber………………………………………..…..15
Fuel Tank and Cap…………………………………..………..…16
Petcock Instructions…………………………….………….……17
Tires………………………………………………………...…….18
Pre-ride Inspection……………………………..…………….….18
Maintenance……………………………………….…………19-25
Service Schedule…………………………………………………26

Page 3
Preface
This manual introduces you to the basic operations and methods of maintenance for
your motorcycle. Please read this manual carefully before driving your motorcycle. Proper
operation and maintenance of your motorcycle will ensure less troubles and optimum
performance and service life. Johnny Pag Motorcycles authorized service dealers in
various locations will provide you with more technical consultation and after-sales
services.
The data, instructions, specifications, and pictures demonstrated in the manual are
based on the latest design information available at the time of approval for printing.
Johnny Pag Motorcyles reserves the right to make changes at any time without notice of
changed parameters and other information.
Thank you for purchasing your Johnny Pag Motorcycle. We wish you a
comfortable, pleasant, and safe ride in the future.
Special Attention
If you operate your Johnny Pag Motorcycle without following traffic laws and
instructions in the manual, under abnormal conditions such as driving on off road terrain
or overloaded weight capacity, safety or equipment damage may occur.
This service manual should be considered a permanent part of the motorcycle and
should remain with the motorcycle when resold.
Johnny Pag Motorcycles reserves all the rights of this manual. No part of this
publication may be reproduced without written permission of Johnny Pag Motorcycles,
and any violators will be prosecuted to full extent of the law.

Page 4
IMPORTANT NOTICE
The engine for your Johnny Pag Motorcycle rotates at a high rate of speed. In order
to make sure that the engine can run normally, and to prolong its service life, please
operate your motorcycle according to the following regulations:
1. During the first 600 miles, avoid full throttle and never labor the engine. The
rotating speed of the engine should be restricted to no more than 4000 rpm’s.
2. Your Johnny Pag Motorcycle must have its first service after 100 miles (please
refer to maintenance schedule page??) to ensure validity of your warranty.
General Safety
WARNING
When riding your Johnny Pag Motorcycle, you must always pay close attention to
your local traffic safety laws. You should always inspect your motorcycle before riding.
Warning Warning
If the engine must be running to The battery electrolyte contains
do some work, make sure the area sulfuric acid. Protect your eyes,
is well-ventilated. Never run the engine skin and clothing. In case of
in a closed are. The exhaust contains contact, flush eyes thoroughly
poisonous carbon monoxide gas that with water and call a doctor if
may cause loss of consciousness and electrolytes get in your eyes.
lead to death.
Warning Warning
Gasoline is extremely flammable and The battery generates hydrogen
is explosive under certain conditions. gas which can be highly
Do not smoke or allow flames or sparks explosive. Do not smoke or
In your working area allow flames or sparks near
The battery while charging it.

Page 5
Service rules
1. Use genuine Johnny Pag Motorcycles or JPM recommended parts and lubricants or
their equivalents. Parts that don’t meet Johnny Pag Motorcycles design
specifications may damage the motorcycle.
2. Use the special tools designed for this product.
3. Install new gaskets, O-rings, cotter pins, lock plates, etc. When reassembling.
4. When torquing a series of bolts or nuts, begin with larger-diameter or inner bolt
first, and tighten to the specified torque diagonally in 2-3 steps, unless a particular
sequence is specified.
5. Clean parts in non-flammable or high flash point solvent upon disassembly.
Lubricate any sliding surfaces before reassembly.
6. After reassembly, check all parts for proper installation and operation.
7. Use only metric tools when servicing this motorcycle. Metric bolts, nuts, and screws
are not interchangeable with English fasteners. The use of incorrect tools and
fasteners may damage the motorcycle.
WARNING
When riding your Johnny Pag Motorcycle, you must always pay attention to traffic
safety laws.
SAFE RIDING RULES
Before you start your engine, you must always check your motorcycle to prevent
accidents or equipment damage.
PROTECTIVE APPAREL
A motorcycle rider usually has his/her head injured in an accident. In order to ensure
personal safety, the rider should always wear a helmet, goggles, boots, gloves etc. The
passenger should always wear the same safety gear as the driver.

Page 6
CAUTION
The temperature of your motorcycles exhaust is very hot! When ridden. The
passenger should always wear boots or shoes high enough to cover his/her ankles to
prevent burn related injuries. The rider should wear close-fitting clothes to prevent
loose clothing from being caught on the handlebars, kick starter, foot pegs, and tires.
MODIFICATIONS
WARNING
Modification to your motorcycle or any changes to its original equipment may render
your motorcycle unsafe or illegal. Modifications to your motorcycle may also void your
warranty. Please refer to JPM warranty policy for more information.
LOADING
WARNING
Motorcycles are sensitive to changes in weight distribution. Improper loading of cargo
can impair your motorcycles performance and stability.
Keep cargo low and close to the center of the motor cycle. Load weight equally on
both sides of your motorcycle to minimize imbalance. The further weight is located from
your motorcycles center of gravity, handling can be greatly affected.
You should always properly adjust the tire pressure and the spring rate of the rear
shock absorber according to the load weight and road conditions.
Firmly mount all cargo on your motorcycle in order to ensure stable handling. Also
avoid fastening large or heavy loads to the handlebars, front forks or dashboard; otherwise
it can adversely affect your stability and handling. NEVER exceed the maximum weight
limit of 350lbs.

Page 7
Accessories produced by our company have undergone special design and testing.
Users will take responsibility for their selection, installation and use of accessories not
produced by our company. Please obey safe riding rules and follow the next points:
•Carefully check your accessories, make them out of sight line, reduce distance
between them and the ground and side dip angle, and keep suspension or
steering devices from moving or affecting handling.
•Avoid attaching any electrical equipment. Otherwise it can bring trouble to
the electrical system.
•Accessories not installed by an authorized JPM dealer will void the warranty.
7
**ALL SERVICE WORK
MUST BE PERFORMED BY
AN AUTHORIZED JPM
DEALER**

Page 8
Parts Locations
1. Mirrors (mounting location )
2. Clutch lever
3. Left handlebar control (horn
button, Headlight high beam
switch, turn signal switch)
4. Left fuel cap (non functional)
5. Front brake leve
r
6. Throttle grip
7. Right handlebar control (starter
button, headlight switch, engine
cut-off switch)
8. Dash
9. Right fuel cap (functional)
10. Ignition switch
3
4
6
7
8
9
10
6
1
2
5

Page 9

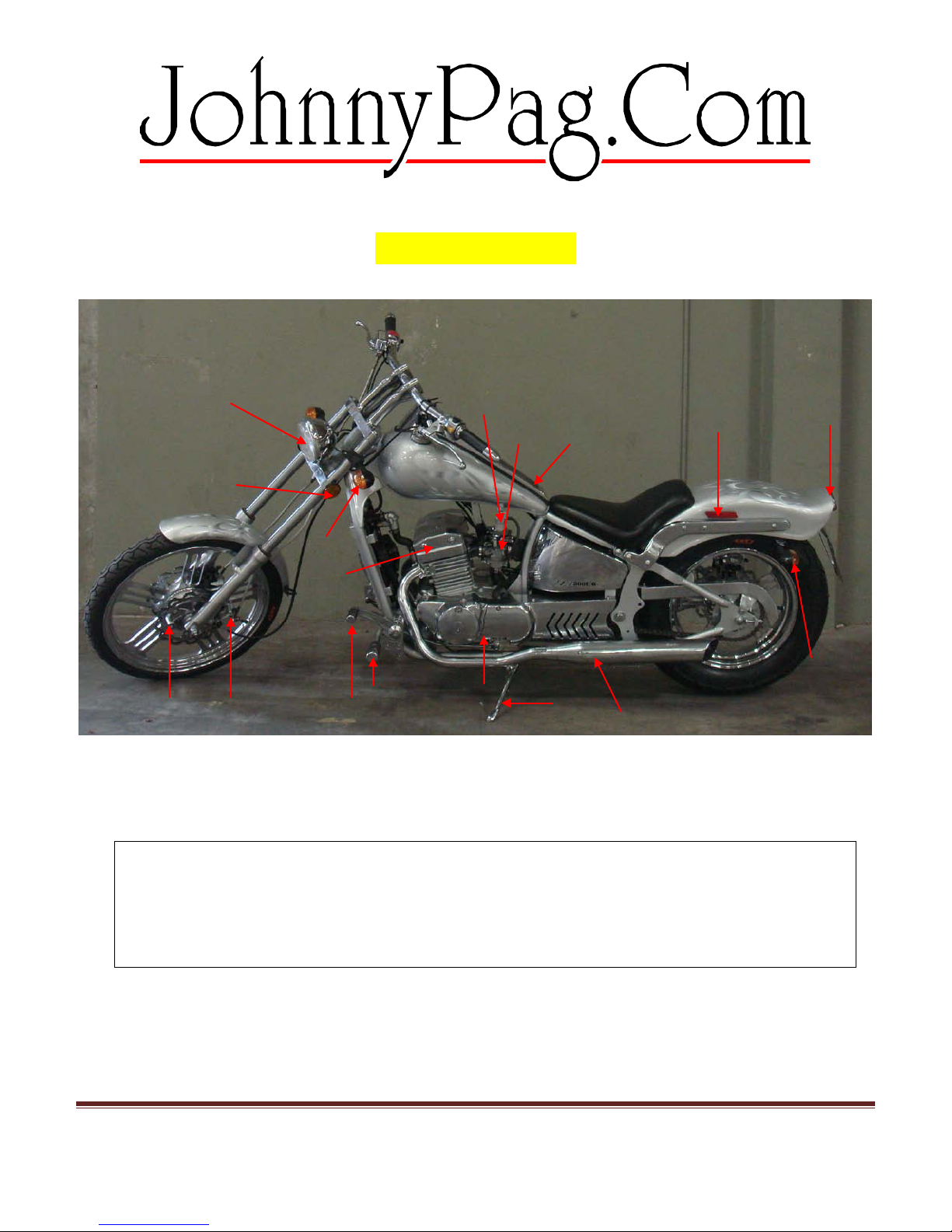

Left Side Spyder
1. Front rotor (left) 2. Front brake caliper (left) 3. Front Headlight 4. Front left
turn signal 5. Gearshift lever 6. Foot peg 7. Engine 8. Choke valve 9. Petcock
10. Kickstand 11. Engine serial number 12. Left side exhaust 13. Dash
14. Rear left turn signal 15. Taillight 16. Front Reflector 17. Rear Reflector
6
5
8
11
12
14
13
16
17
15
7
9
10
4
1
2
3

Page 10
Right Side Spyder
1. Rear right turn signal 2. Rear brake caliper 3. Rear rotor 4. Right side
exhaust 5. Rear shock 6. Seat 7. Carburator 8. Fuel tank 9. Rear brake pedal
10. Vin number 11. Front brake caliper (right) 12. Front rotor (right) 13. front
wheel 14. Front fork 15. Front right turn signal 16. Front Reflector 17. Rear
Reflector
7
1
2
3
9
11
15
10
5 (under bike)
4
8
6
7
17
13
14
12
16

Page 11
Parts Function
1. Left turn signal indicator
2. Odometer
3. High indicator
4. Neutral gear indicator
5. Speedometer
6. Right turn signal indicator
7. Ignition switch
2
4
3
6
5
7
1

Page 12

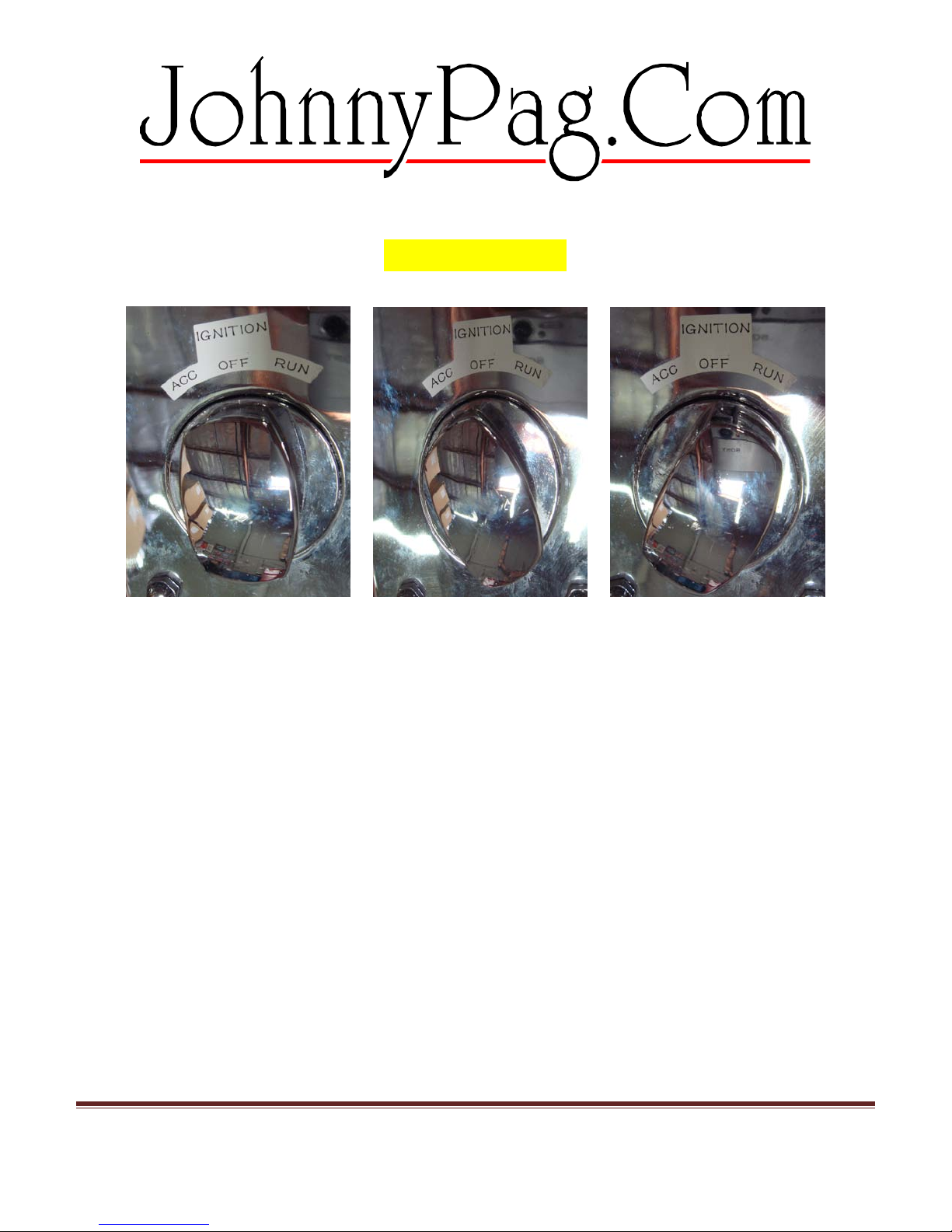

Ignition Switch
The ignition switch (7) is in the middle of the fuel tank.
A. When the ignition switch is in the vertical position, the circuit is closed off; the
engine can’t be operated; Key can be removed.
B. Turn the ignition lock counterclockwise or clockwise. If the neutral gear indicator
is on, and the odometer is on, the engine will start.
D. Move the ignition switch to the vertical position, the circuit is off and the engine
is cut off; insert the key to lock it.

Page 13
Left Handlebar Controls
1. Horn button 2. Turn signal switch
3. High beam switch
1.Horn Button
Press the horn button once to sound the horn if necessary.
2.Turn signal switch
The turn signal switch has three positions. If turning right or left, move the turn
signal switch (2) to the corresponding direction. The front and rear turn signal will flash
until the turn signal switch is pushed it. Pushing in the switch will disengage the turn
signal, and the lights will stop flashing.
3.Hign Beam Switch
The high beam switch is located on the left handle bar. When the high beam switch
is in the on position both high and low beam lights should be on. When the high beam
switch is in on the off position only the dimmer low beam light should remain on.
2
1
3

Page 14

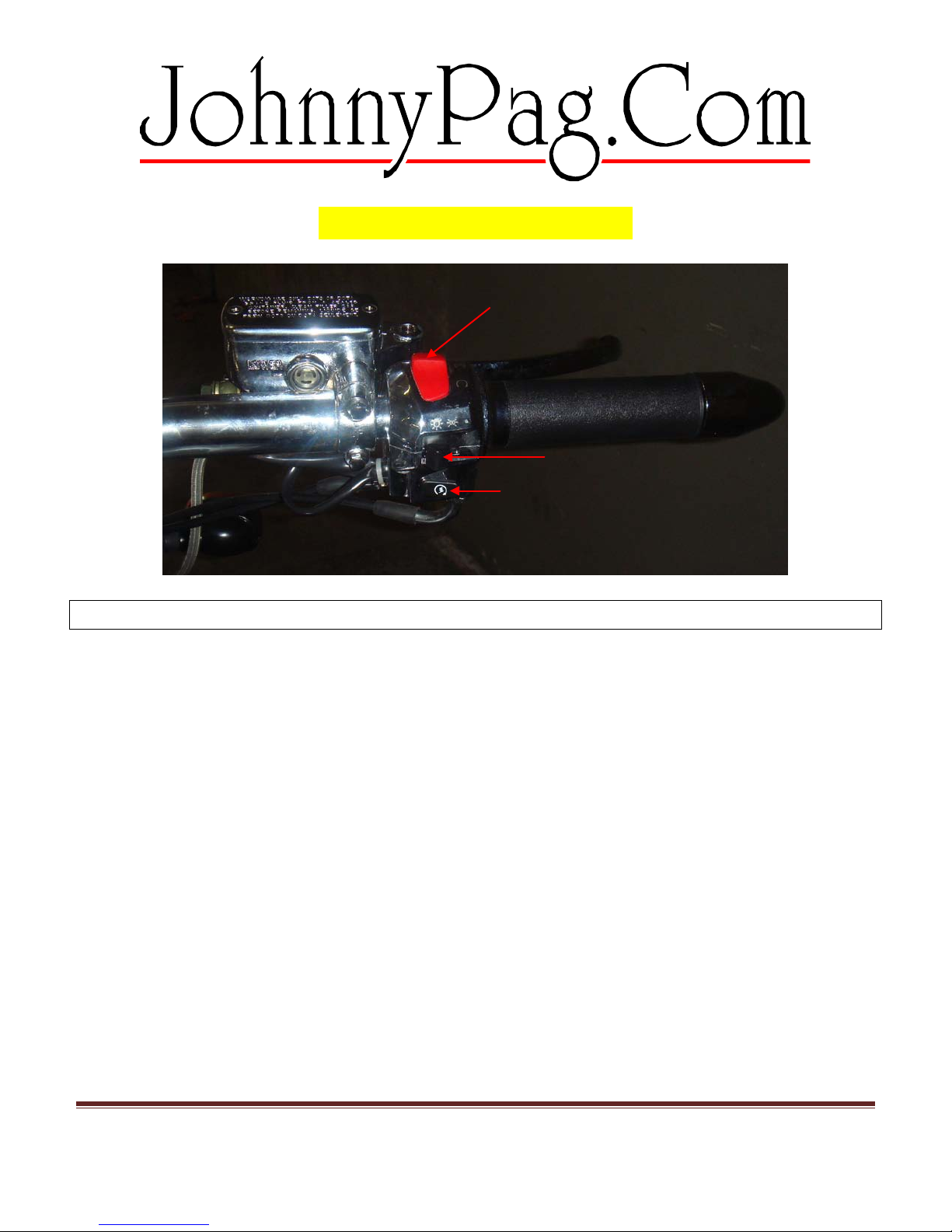

Right Handlebar Controls
1.Electric start button 2. Headlight switch 3.Engine cut-off switch
1.Electric Start Button
The start button is located on the right handlebar controls.
1. make sure the gear is shifted to neutral and the fuel switch is on position.
2. Open the cover of the ignition switch lock, insert the key into the switch and turn
90 degrees counter clockwise or clockwise, remove the key and close lock cover.
3. Turn the engine cut off switch to the on position and press the electric start
button, at this time, slightly apply some throttle.
2.Head Light Switch
The head light switch has three positions; Low, high and high running.
3.Engine Cut-off Switch
Engine cut-off switch is located on the right handlebar controls.
When the engine cut-off switch is in the off position the circuit is cut off, the engine
can not be started. To start the engine, always make sure your engine cut-off switch is in
the on position.
3
1
2

Page 15
Rear Shock Absorber
Rear shock absorbers (there are two rear shock absorbers) are located under the
middle of the frame. The rear shock absorbers can be adjusted for different ride heights by
a Johnny Pag Motorcycle dealer.
Adjuster

Page 16
Fuel Tank and Cap
Fuel tank capacity is 3.5 gallons with .75 gallons of reserve. We recommend you to
use unleaded gasoline only.
CAUTION
Don’t over fill the tank. After refueling, make sure that the fuel cap is closed
securely.
How to Open a Fuel Cap
The right fuel cap is used for filling your fuel tank, turn it 90 degrees counter
clockwise to open it. To close the cap, push the cap down and turn it 90 degrees clockwise.
(The left cap is a fake and used for show only.)

Page 17
Petcock
The petcock is located below the left side of the fuel tank. Turn the petcock handle
to face the rear of the motorcycle to place the petcock in the (OFF) position “see petcock
image #1”. Fuel supply is now stopped. Turn the petcock handle straight up facing the gas
tank to place the petcock in the (ON) position “see petcock image #2”. Fuel is supplied
normally (fuel flows into the carburetor). Turn the petcock until it faces straight down to
place the petcock in the (Reserve) position “see petcock image #3”. The reserve fuel
supply is only used when the normal fuel runs out.
Petcock image #1 Petcock image #2 Petcock image #3

Page 18
Tires
Please refer to the tire manufactures specifications (located on the tire) for inflation
specifications.
WARNING
Operating a motorcycle with excessively worn tire will adversely affect traction, stability
and handling. Always check tire pressure and tread before riding. Inspection should be
made while the tires are cold. Check for embedded nails and sharp objects before every
ride.
OPERATION
Preride Inspection
Inspecting your motorcycle before you ride it will help insure a safe ride. It will only take
a few minutes, and can help detect problems before they progress to failure.
•Oil level – check level and add oil if necessary.
•Front and Rear brakes – check operation and adjust if necessary.
•Tires – check condition and pressure.
•Throttle – check for smooth operation all the way through open to close in all
steering positions.
•Lights and signals – check that the headlight, taillight, turn signals and horn function
properly.
•Chain – be sure that it is lubricated and check for 1/8” play up and down. Adjust if
necessary. Be sure that the chain and sprockets are not worn.
•Steering – be sure that the front end moves smoothly from left to right.

Page 19
Break In
During the first 250 miles, avoid full throttle use. Keep the engine under 6000 rpm, the
maximum speed should not exceed 50 MPH. Breaking in the engine correctly will ensure
long engine life.
NOTE: Motorcycle must be serviced between 100-105 miles by an authorized Johnny Pag
Motorcycles dealer to keep warranty valid.
MAINTENANCE
ENGINE OIL
Engine oil quality is the chief factor affecting engine performance and service life.
The motorcycle uses engine oil SAE 10w/40 API SG when being sold. Use 10w-30 after
the first 150 mile break in period. There is no external oil filter. Recommended cleaning of
the oil screen is every 1000 miles.
OIL LEVEL
Check the oil level before each ride. To do this, remove the dipstick (1) and wipe it clean.
Reinsert the dipstick into the crankcase but do not screw it in. Remove the dipstick and
check that the fluid is between the upper (2) and lower (3) level marks. DO NOT
OVERFILL.
CAUTION:

Page 20
Running the engine with insufficient oil can cause serious damage to your engine.
CHANGING ENGINE OIL
To drain the engine oil, remove the engine drain bolt (1). Let the oil drain
completely before refilling the case with oil. If cleaning the oil screen, be sure to wait until
all the oil has drained before removing the right side crankcase cover (2). Once the oil is
drained, remove the right side crankcase cover (2) and remove the oil pump (3). With the
oil pump removed, you can easily remove the oil screen (4) and wash thoroughly with
carburetor cleaner. Reinstall oil screen onto the oil pump and reinstall the oil pump onto
the engine. Replace the crankcase gasket and install the right side crankcase cover. Refill
the oil to the correct level.
Please call your local JPM dealer to get replacement gaskets and oil screens, if
necessary. Part numbers can be found on in your parts book or by visiting JohnnPag.com.
SPARK PLUG REPLACEMENT
CAUTION:
Be sure the ignition is off and the engine run switch is in the off position before you
replace the spark plugs.
First remove the side head covers (1). This will expose the coil wire (2). Pull the coil wire
off the spark plug. This will expose the spark plug (3). Use a spark plug socket to remove
the spark plug.
Cross reference plugs:
Winter (colder riding) NGK CR5HSA
Summer (warmer riding) NGK CR7HSA
