IPL, LT2216, 96041010101, 2010-01
LT2216

ILLUSTRATED PARTS LIST
MODEL NO. 96041010101
CUSTOMER CATALOG NO. LT2216
PRODUCT NO. 960 41 01-01
47
47
532 43 01-15 Rev.1

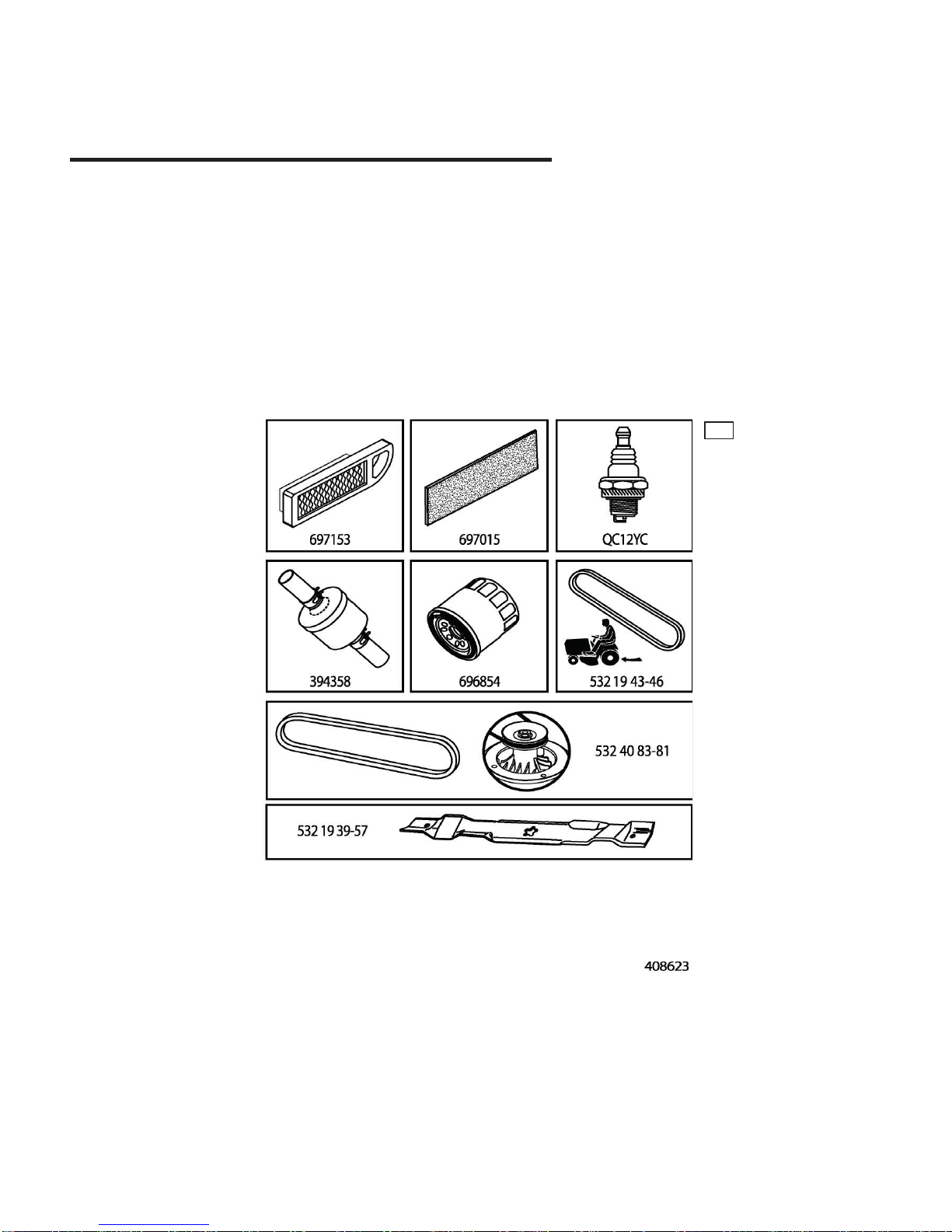

2
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION
6
2
1
3
11
410
598
7
wheel_art_1-tex

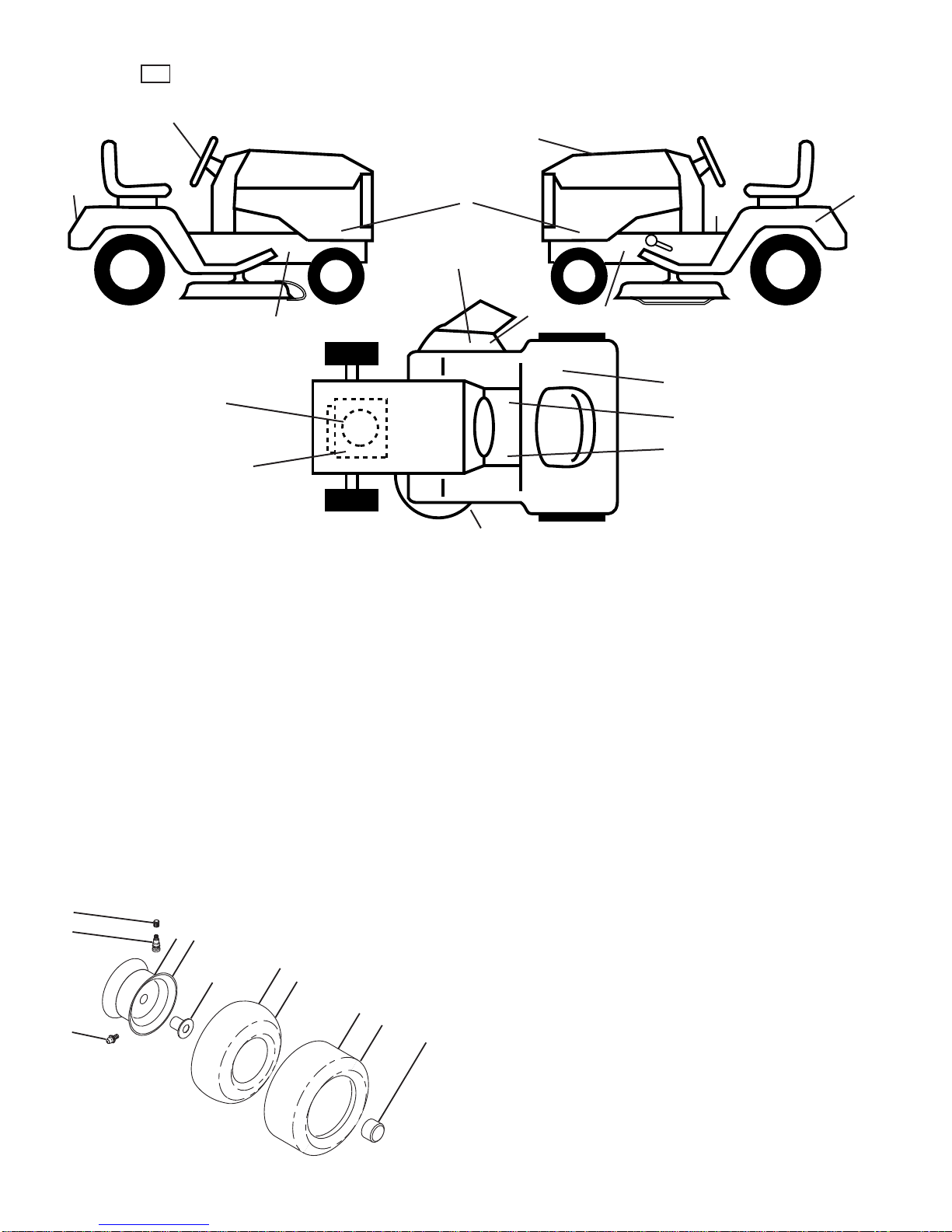

WHEELS AND TIRES
KEY PART
NO. NO. DESCRIPTION KEY PART
NO. NO. DESCRIPTION
1 532 05 91-92 Cap Valve Tire
2 532 06 51-39 Stem Valve
3 532 13 83-36 Rim Asm 6" Front
4 532 05 99-04 Tube Front (Service Item Only)
5 532 10 62-22 Tire F T 15 x 6 0 - 6
6 532 12 49-57 Fitting Grease (Front Wheel Only)
7 532 12 49-59 Bearing Flange (Front Wheel Only)
8 532 17 50-39 Cap Axle Blk 1 50 x 1 00
9 532 42 05-31 Tire R 18 x 9.5-8 Turf Saver LT
10 532 12 49-26 Tube Rear (Service Item Only)
11 532 13 83-37 Rim Asm 8" Rear
- - 532 14 43-34 Sealant, Tire (10 oz. Tube)
11
9
1 532 40 03-89 Decal, Operators
3 532 19 68-41 Decal, Warning Eng. Symbols
4 532 42 40-75 Decal, Side Panel
5 532 15 97-36 Decal, Chassis Hot Muffler
6 532 18 04-32 Decal, Fender 100 DB/CE
7 532 18 21-66 Decal, Cutfinger CE
8 532 41 30-02 Decal, Rpl
9 532 14 50-05 Decal, Battery Dnge/Poi
10 532 14 08-37 Decal, Saddle Brake Parking
11 532 19 63-57 Decal, Warning
12 532 19 43-02 Decal, Mower V-Belt Schematic
13 532 15 97-37 Decal, Brake/Clutch Symbol
14 532 40 91-50 Decal, Eng. HP
15 532 18 39-30 Decal, Cover/Belt GRD
16 532 42 26-85 Decal, Steering
- - 532 40 95-05 Pad, Footrest, LH
- - 532 41 12-73 Pad, Footrest, RH
- - 532 16 25-98 Decal, Drawbar Load Limit
- - 532 43 14-03 Manual Oper. Euro
- - 532 43 14-04 Manual Oper. Scan
- - 532 43 14-05 Manual Oper. E-Bloc
- - 532 43 14-06 Manual Oper. Baltic
12
41
8
5
6
10
13
3
5
7
16
14
15
TRACTOR - - MODEL NO. LT2216 (96041010101), PRODUCT NO. 960 41 01-01
DECALS
27
27

3
M
FUSE
STARTER
SOLENOID
BATTERY
CLUTCH/BRAKE
(PEDAL UP)
REVERSE SWITCH
(NOT IN REVERSE)
SEAT SWITCH
(NOT OCCUPIED)
SHORTING
CONNECTOR
CHASSIS
HARNESS
IGNITION
UNIT
HOUR
METER
CHASSIS HARNESS
CONNECTOR
(MATING SIDE)
DASH HARNESS
CONNECTOR
(MATING SIDE)
FUEL
LINE
FUEL SHUT-OFF
SOLENOID
(IF SO EQUIPPED)
JUNCTION
CONNECTOR
SM
B
GL
2
3
1
6
A2A1
M
63
52
41
6
5
4
3
2
1
SPARK
PLUGS GAP
(2 PLUGS ON
TWIN CYL. ENGINES)
(OPTIONAL)
NON-REMOVABLE
CONNECTIONS
REMOVABLE
CONNECTIONS
WIRING INSULATED CLIPS
NOTE: IF WIRING INSULATED
CLIPS WERE REMOVED FOR
SERVICING OF UNIT, THEY
SHOULD BE RE-INSTALLED TO
PROPERLY SECURE YOUR
WIRING.

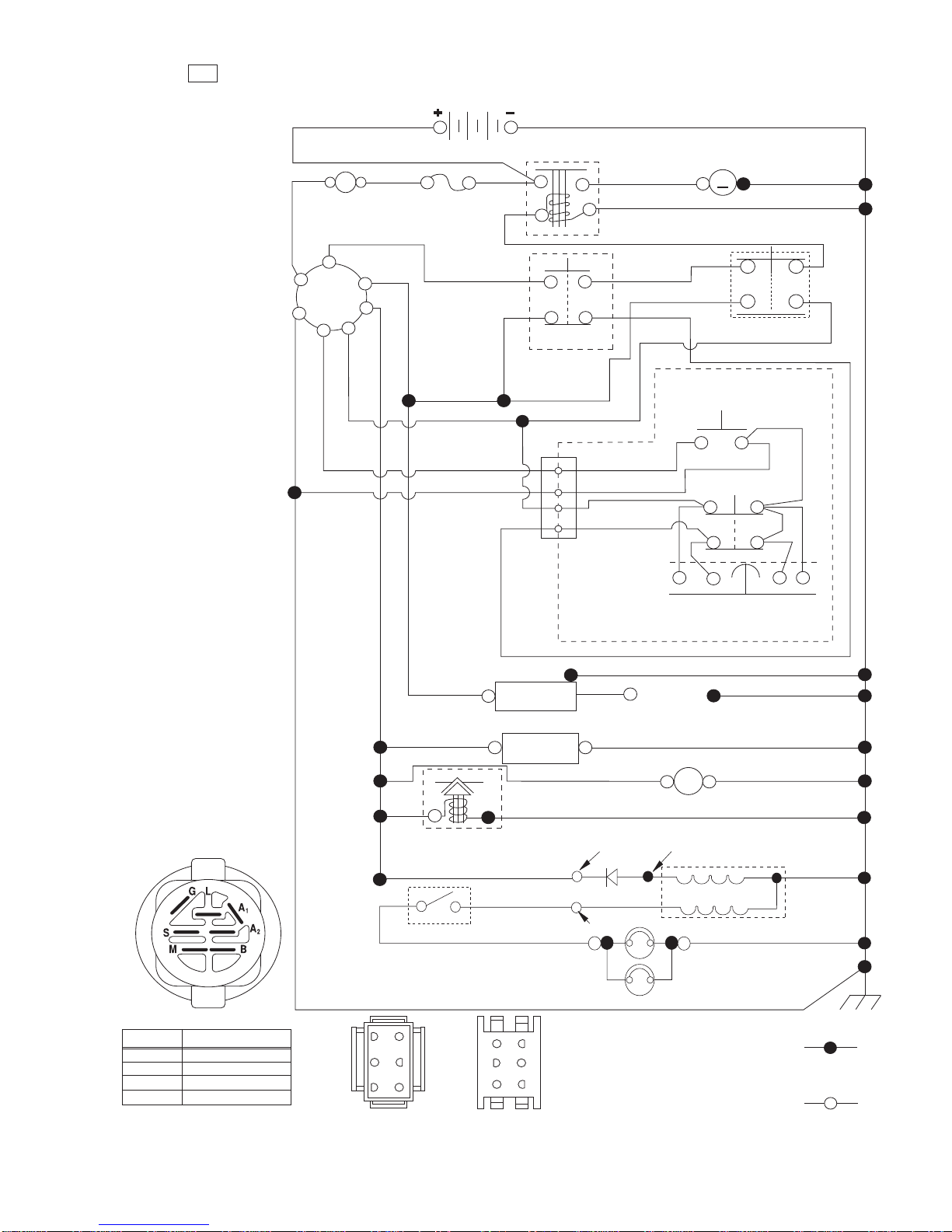

SCH11
IGNITION SWITCH
CIRCUITPOSITION
OFF B+A1
RUN/OVERRIDE
B+S+A1START
M+G+A1
B+A1RUN
“MAKE”
L+A2
ATTACHMENT CLUTCH
(CLUTCH OFF)
BLACK
BLACK /WHITE
BLUE
BLUE BLACK
BLACKBLACK
BLACK
BLACK
BLACK
BLACK
BLACK
DER
RED
WHITE
WHITE
GRAY
GRAY
BLACK
BLACK
POWER OUTLET
(OPTIONAL)
12V
BLACK
A
AMMETER
(OPTIONAL)
RED
BLACK
BROWN
HEADLIGHTS
LIGHT SWITCH
ORANGE
LIGHTING SYSTEM OUTPUT
5 AMP AC @ 3600 RPM
ALTERNATOR
14 VOLTS AC MIN. @ 3600 RPM (LIGHTS OFF)
DIODE
28 VOLTS AC MIN. @ 3600 RPM
(CHARGING SYSTEM DISCONNECTED)
CHARGING SYSTEM OUTPUT
3 AMP DC @ 3600 RPM
NOTE
YOUR TRACTOR IS
EQUIPPED WITH A SPECIAL
ALTERNATOR SYSTEM.
THE LIGHTS ARE NOT
CONNECTED TO THE
BATTERY, BUT HAVE THEIR
OWN ELECTRICAL SOURCE.
BECAUSE OF THIS, THE
BRIGHTNESS OF THE LIGHTS
WILL CHANGE WITH ENGINE
SPEED. AT IDLE THE LIGHTS
WILL DIM. AS THE ENGINE IS
SPEEDED UP, THE LIGHTS
WILL BECOME THEIR
BRIGHTEST.
TRACTOR - - MODEL NO. LT2216 (96041010101), PRODUCT NO. 960 41 01-01
SCHEMATIC
38
38

4
30 33
34
22
79 21
41
42
26
43 27
40
71
16
87
25
T02S
90
28
55
With 12V Outlet Option
59
103
With Service Minder Option
4646
94
92
29
93
2
TRACTOR - - MODEL NO. LT2216 (96041010101), PRODUCT NO. 960 41 01-01
ELECTRICAL
32
32

5
KEY PART
NO. NO. DESCRIPTION
1 532 16 34-65 Battery
2 874 76 04-12 Bolt Hex Head 1/4-20 x 3/4
8 532 19 32-28 Box Battery
16 532 17 61-38 Switch Interlock Push-In
21 532 40 02-52 Harness Socket Light
22 532 00 41-52 Bulb Light
25 532 41 28-94 Cable Starter
26 532 17 51-58 Fuse
27 873 51 04-00 Nut Keps Hex 1/4-20 unc
28 532 19 88-85 Cable, Ground
29 532 40 15-45 Switch, Seat
30 532 19 33-50 Switch, Ign
33 532 41 19-35 Key/Chain
34 532 11 07-12 Switch Light/Reset
40 532 40 10-98 Harness Ign. Dash
41 817 72 04-08 Screw Thd Cut 1/4-20 x 1/2
42 532 13 15-63 Cover, Terminal
43 532 19 25-07 Solenoid
55 817 06 05-12 Screw Thdrol 5/16-18 x 3/4 TYTT
71 532 40 04-49 Harness Ign. Chassis
79 532 17 52-42 Socket Asm Bulb
87 532 19 78-02 Switch Interlock Clutch Cable
90 532 40 07-25 Cover Terminal
92 532 19 66-15 Harness Pigtail Reverse Switch
93 532 19 25-40 Screw Plastite 10-14 x 2.0
94 532 19 18-34 Module Reverse ROS
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
TRACTOR - - MODEL NO. LT2216 (96041010101), PRODUCT NO. 960 41 01-01
ELECTRICAL
32
32

6
37
181
196
287
153
130
176
151
225
5
176
176
130
18
130 130
150
191
297
181
194
36
36
14
203
202
176
182
176
176
176
175
177
68 68
68
68
183 183
236
236 34
235
235
68
68
213
218
chassis-tex_TEX LT PRED_45
52
217
189
189
152
228
228
194
159
159
180
58
189
189
189
237
237
TRACTOR - - MODEL NO. LT2216 (96041010101), PRODUCT NO. 960 41 01-01
CHASSIS AND ENCLOSURES
39
39

7
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION
5 532 40 95-97 Dash
14 532 42 43-32 Hood
18 532 42 65-11 Grille
34 532 19 61-25 Plate Engine
36 817 06 05-12 Screw 5/16-18 x 3/4
37 532 42 43-35 Fender
52 873 68 05-00 Nut Lock 5/16-18
58 532 41 22-80 Drawbar Upper
68 817 49 05-08 Screw Thdrol 5/16-18 x 1/2
130 532 41 63-58 Screw #10 x 0.750 BOS THREAD
150 532 40 02-67 Duct Heat Hood
151 532 18 75-68 Bracket Pivot
152 532 19 95-35 Shield Browning
153 532 40 97-40 Lens Bar
159 817 00 06-12 Screw Hexwsh Thdrol 3/8-16 x 3/4
175 532 19 94-72 Crossmember
176 532 40 07-76 Screw 10-24 x 5/8 Wshd Qdrx
177 532 19 52-28 Bushing Steering
180 532 41 50-63 Chassis
181 532 40 47-96 Bushing Mtg. Fender Crgo.
182 532 40 71-76 Dash Lower
183 874 78 05-20 Bolt Fin Hex 5/16-18 x 1-1/4
189 817 00 05-12 Screw 5/16-18 x 3/4
191 532 41 65-02 Reflector RH
194 873 90 05-00 Nut Lock Hex Flange 5/16-18
196 532 41 45-79 Console Asm. Deck Lift
202 532 42 33-17 Vent Side Hood RH
203 532 42 33-16 Vent Side Hood LH
213 874 76 05-12 Bolt 5/16-18 unc x 3/4
217 532 40 91-67 Rod Pivot Hood
218 532 19 63-95 X-Piece Hood Stop
225 532 42 32-28 Bumper
228 532 19 51-61 Stud Fastener
235 532 40 61-29 Spacer Fender
236 873 93 05-00 Nut Center Lock 5/16-18
237 532 40 37-04 Plug Mount Cargo
287 817 60 04-06 Screw Hex Wash 1/4-20 x 3/8
297 532 40 18-27 Reflector Insert LH
TRACTOR - - MODEL NO. LT2216 (96041010101), PRODUCT NO. 960 41 01-01
CHASSIS AND ENCLOSURES
39
39

8
56
185
165 166
64 188
172
172
125
125
161
35
203
184 221
167
160
160
42
134
192
157
141
140
139 202
70
74
232
175
192 176
178
174
22 166
23
29
15 159
195125
2
17
26
158
2
1183 37
205
33
155
61
193
73
73
186
189
49 187
50
51
52
51
190
116
116
drive-tex_peerless_fender_20_r1
233
275 263
268
TRACTOR - - MODEL NO. LT2216 (96041010101), PRODUCT NO. 960 41 01-01
DRIVE
40
40

9
KEY PART
NO. NO. DESCRIPTION KEY PART NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
1 - - - - - - Transaxle, Peerless 206-565
2 532 12 35-83 Key Square
15 819 13 13-16 Washer 13/32 x 13/16 x 16 Ga.
17 532 19 72-97 Spring, Brake
22 532 19 76-60 Rod Shift
23 532 12 12-74 Knob
26 532 19 74-55 Spring Brake Return
29 532 19 72-67 Rod, Brake
33 812 00 00-01 Ring E
35 532 40 10-31 Rod, Brake, Park
37 532 12 17-49 Washer 25/32 x 1-1/4 x 16 Ga.
42 532 12 48-72 Cover, Foot Pedal
49 872 11 06-14 Bolt
50 532 19 43-27 Pulley Idler Flat
51 873 90 06-00 Lock Nut 3/8-16
52 532 19 43-26 Idler V-Groove 910" OFFSET
56 532 19 43-46 V-Belt, Drive
61 532 12 36-66 Pulley Transaxle
64 532 19 62-00 Shaft Asm. Pedal Brake Control
70 532 41 12-90 Console
73 874 49 05-44 Bolt Hex FLGHD 5/16-18 Gr. 5
74 532 14 24-32 Screw 1/4 x 1/2
116 873 90 05-00 Nut Lock Hex Flange 5/16-18
125 817 00 05-12 Screw 5/16-18 x 3/4
134 532 19 78-57 Asm Shift
139 874 55 04-12 Bolt 1/4-28 unf Gr. 8 w/Patch
140 810 04 04-00 Washer Lock Hvy Helical 1/4
141 819 09 12-10 Washer 9/32 x 3/4 x 10 Ga.
155 812 00 00-28 Ring Retainer
157 532 10 57-01 Washer Plate Shift
158 532 19 43-52 Belt Keeper
159 876 02 04-12 Pin Cotter 1/8 x 3/4
160 532 16 94-84 Retainer Clip
161 532 10 57-09 Spring, Return, Clutch
165 532 19 62-12 Bushing Shaft Brake Hand Control
166 532 42 83-05 Nut Push .625
167 532 40 52-57 Latch Brake Parking
172 532 19 76-57 Strap Torque LH
174 532 19 72-89 Nut Push
175 532 19 78-58 Shaft Asm. Shift
176 532 19 62-14 Arm Clevis Rod Shift
178 532 19 74-56 Spring Shift
183 532 13 70-57 Spacer Axle
184 532 40 97-47 Handle Parking
185 872 11 06-22 Bolt
186 532 19 43-21 Spacer Retainer
187 819 13 32-10 Washer
188 532 19 43-23 Link Clutch Ground Drive
189 532 19 43-17 Bellcrank Ground Drive
190 532 19 43-18 Keeper Bellcrank Ground Drive
192 532 15 03-60 Nut Lock Center 1/4-28 Fnthd
193 817 06 05-12 Screw 5/16-18 x 3/4
195 532 19 73-32 Bracket Brake Rod
202 532 19 78-59 Link Transaxle
203 819 11 11-16 Washer 11/32 x 11/16 x 16 Ga.
205 532 12 17-48 Washer 25/32 x 1-5/8 16 Ga.
221 532 40 31-87 Retainer Spring Clip Handle
232 874 78 07-16 Bolt Fin Hex 7/16-14 x 1 Gr. 5
233 532 40 52-96 Washer Serrated
263 817 00 06-12 Screw 3/8-16 x 3/4
268 819 13 16-14 Washer 13/32 x 1 x 14 Ga.
275 532 18 24-02 Guard Muffler
TRACTOR - - MODEL NO. LT2216 (96041010101), PRODUCT NO. 960 41 01-01
DRIVE
40
40

10
21
20
OPTIONAL EQUIPMENT
SPARK ARRESTER
29
engine-tex-BS_39
12
42
85
9
90
84
45
122
1
94
69
2
87
37
28
37
18
15
97
96
79
22
TRACTOR - - MODEL NO. LT2216 (96041010101), PRODUCT NO. 960 41 01-01

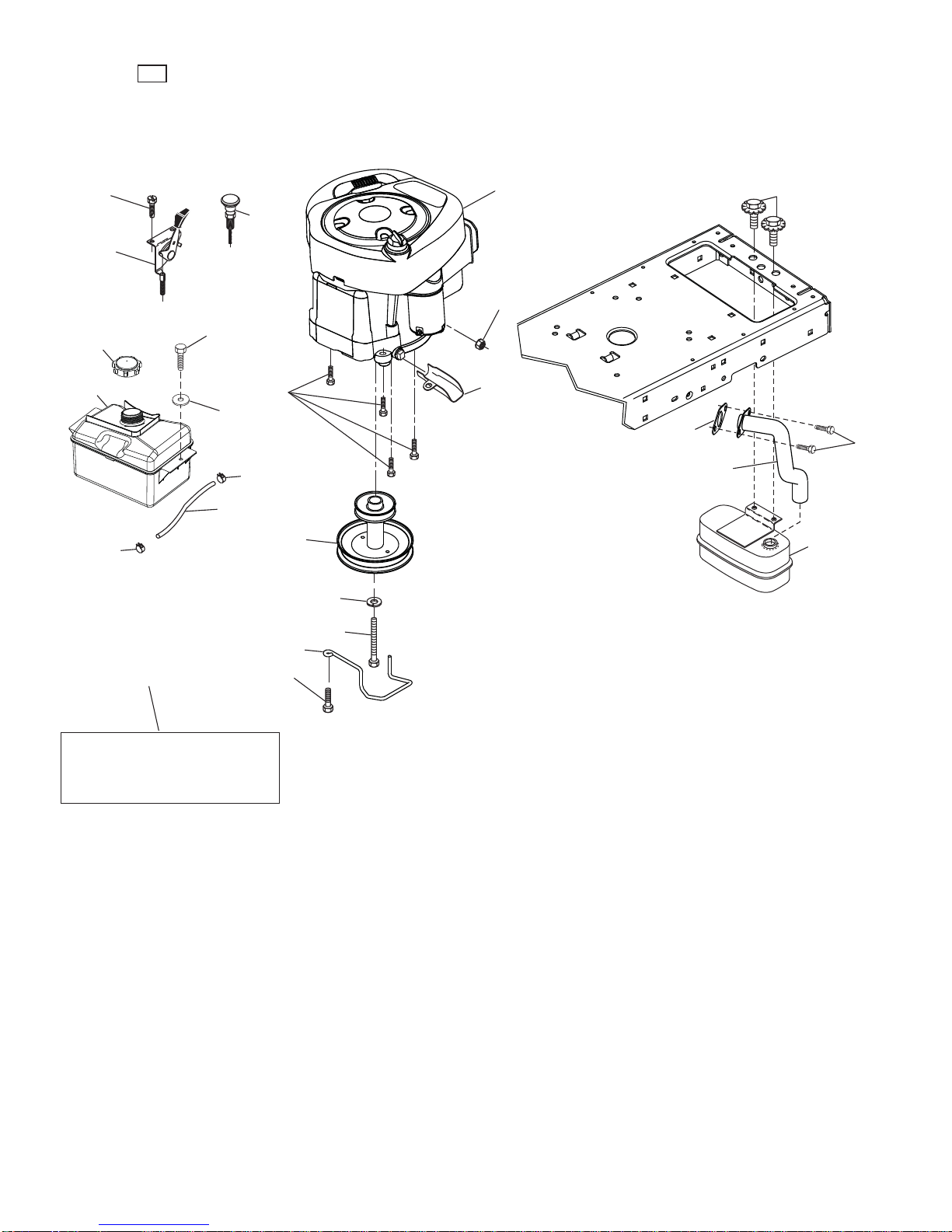

ENGINE
24
24

11
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
1 - - - - - - Engine Briggs Model No. 31E677-
0718-B1
2 532 18 86-55 Muffler
9 532 19 43-19 Keeper Belt Engine
12 532 40 19-85 Pulley Engine
15 532 40 75-45 Tank Fuel
18 532 42 51-62 Cap Fuel
20 532 18 38-97 Control Throttle
21 532 41 63-58 Screw #10 x 0.75 BOS Thread
22 532 19 49-81 Control Choke
28 532 13 70-40 Fuel Line
29 532 13 71-80 Spark Arrester Kit
37 532 12 34-87 Clamp Hose
42 810 04 07-00 Bolt 5/16-18 unc x 3/4 w/Sems
45 873 51 04-00 Nut Keps Hex 1/4-20 unc
69 532 16 52-91 Gasket
79 532 19 23-34 Screw 5/16-18 x .75
84 817 06 06-20 Screw 3/8-16 x 1-1/4
85 532 17 39-37 Bolt Hex 7/16-20 x 4 Gr. 5
87 532 17 18-77 Bolt 5/16-18 unc x 3/4
90 817 00 06-16 Screw 3/8-16 x 1
94 532 40 54-50 Exhaust Tube
96 819 09 14-16 Washer 9/32 x 7/8 x 16 Ga.
97 817 67 04-12 Screw 1/4 - 20 x 3/4
122 532 42 19-22 Extension Drain Oil
TRACTOR - - MODEL NO. LT2216 (96041010101), PRODUCT NO. 960 41 01-01
ENGINE
24
24
Engine Power Rating Information
The gross power rating for individual gas engine models is labeled in accordance with SAE (Society of Automotive
Engineers) code J1940 (Small Engine Power & Torque Rating Procedure), and rating performance has been obtained
and corrected in accordance with SAE J1995 (Revision 2002-05). Torque values are derived at 3060 RPM; horsepower
values are derived at 3600 RPM. Actual gross engine power will be lower and is affected by, among other things, ambi-
ent operating conditions and engine-to-engine variability. Given both the wide array of products on which engines are
placed and the variety of environmental issues applicable to operating the equipment, the gas engine will not develop
the rated gross power when used in a given piece of power equipment (actual “on-site” or net power). This difference is
due to a variety of factors including, but not limited to, accessories (air cleaner, exhaust, charging, cooling, carburetor,
fuel pump, etc.), application limitations, ambient operating conditions (temperature, humidity, altitude), and engine-to-
engine variability. Due to manufacturing and capacity limitations, Briggs & Stratton may substitute an engine of higher
rated power for this Series engine.

12
62
35
19
60
59
70
68
69
15
14
61
steering-tex_HUSQSR_10_r1
16
28
28
13
22
64
71
21
45
33
72
415
14
1
26
58
5
13
13
53
8
67
67
66
6
74
6
2
9
87
74
74
74
9
87
20
63
57
57
63
TRACTOR - - MODEL NO. LT2216 (96041010101), PRODUCT NO. 960 41 01-01
STEERING ASSEMBLY
41
41

13
KEY PART
NO. NO. DESCRIPTION
1 532 42 41-46 Wheel, Steering
2 532 41 81-68 Axle Asm., Front
4 532 40 30-87 Spindle Asm., LH
5 532 40 30-88 Spindle Asm., RH
6 532 12 49-31 Bearing, Race Thrust Harden
7 532 12 17-48 Washer 25/32 x 1-5/8 x 16 Ga.
8 812 00 00-29 Ring, Klip #T5304-75
9 532 12 12-32 Cap, Spindle
13 532 12 17-49 Washer 25/32 x 1-1/4 x 16 Ga.
14 810 04 06-00 Washer, Lock Hvy Hlcl Spr 3/8
15 873 54 06-00 Nut, Crown Lock 3/8-24 unf
16 532 42 93-73 Shaft Steering
19 532 19 47-29 Plate Steering
20 532 40 97-63 Boot, Steering
21 532 18 67-37 Adapter, Wheel Steering
22 532 42 05-37 Steering Support Lower
26 532 42 41-47 Wheel Steering Cap
28 817 00 06-12 Screw 3/8-16 x 3/4
33 810 04 05-00 Washer Lock 5/16
35 532 19 47-32 Gear, Sector Plate
45 819 11 38-12 Washer 11/32 x 3/8 x 12 Ga.
53 532 18 89-67 Washer Hardened .793 x 1.637 x .060
57 532 40 74-65 Bracket Upstop
58 532 19 47-47 Bolt Shoulder Sector Pivot CFM
59 532 19 47-48 Washer Thrust Sector Steering
60 873 97 10-00 Nut Flange Lock 5/8-11
61 532 19 47-40 Draglink, LH
62 532 19 47-41 Draglink, RH
63 817 00 05-12 Screw 5/16-18 x 3/4
64 532 19 98-49 Retainer Clip Spring Steering
65 532 19 47-34 Brace Axle Front
66 871 02 07-48 Bolt Hex Fghd 7/16-14 x 3 Serr
67 532 19 47-37 Bushing PM Front Axle
68 873 90 07-00 Nut Lock Flange 7/16-14 Gr. 5
69 532 19 91-62 Washer 1.5 x .505 x .118
70 532 19 61-97 Bracket Deck Susp. Front
71 532 19 07-52 Shaft Extension Steering
72 532 42 89-82 Bolt Fin Hex 5/16-18 x 4 w/Patch
74 532 12 49-37 Bearing Steering
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
TRACTOR - - MODEL NO. LT2216 (96041010101), PRODUCT NO. 960 41 01-01
STEERING ASSEMBLY
41
41

14
30


60
38
63
46
147
55
64
32
31
33
34
56 57
59
1
40
145
15
14
25
26
27
24
144



57
19
19
6
6
195
122
123
195
189

189
188
21
21
69
21


30

38
30
56
13
8
68
21

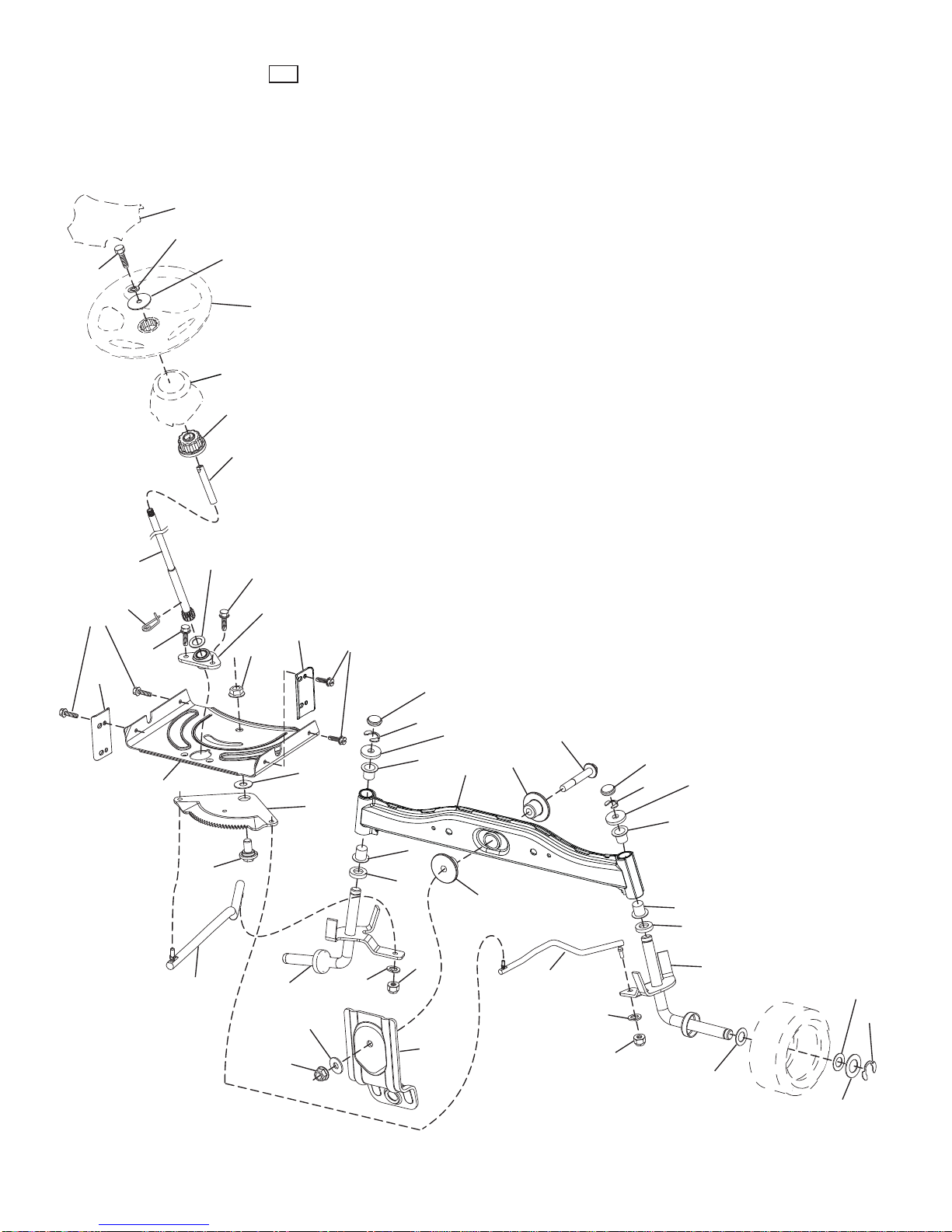

38-7_Tex-LT_14


115
115


188 205
206
70
7
7
37
67
152
TRACTOR - - MODEL NO. LT2216 (96041010101), PRODUCT NO. 960 41 01-01
MOWER DECK
44
44

15
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
1 532 19 42-51 Mower Housing
6 532 19 51-86 Arm Suspension
7 532 41 63-58 Screw #10 x 0.750 BOS Thread
8 532 19 30-03 Bolt/Washer Asm 7/16-20 unf
11 532 19 39-57 Blade
13 532 19 28-72 Shaft Assembly, Mandrel
14 532 18 72-81 Housing, Mandrel
15 532 11 04-85 Bearing, Ball, Mandrel
19 532 19 65-39 Bolt, Shoulder
21 873 68 05-00 Nut, Crownlock 5/16-18 unc
23 532 19 25-57 Bracket, Deflector
24 532 10 53-04 Cap, Sleeve
25 532 19 70-26 Spring, Torsion, Deflector
26 532 11 04-52 Nut, Push
27 532 40 14-72 Shield, Deflector
29 532 13 14-91 Rod, Hinge
30 532 17 39-84 Screw Thdrol Rolling Wsh Hd
31 532 18 76-90 Washer, Spacer
32 532 19 97-89 Pulley, Mandrel
33 532 40 02-34 Nut, Toplock, Flanged
34 872 11 06-12 Bolt Carr Sh. 3/8-16 x 1-1/2 Gr. 5
37 819 13 13-16 Washer
38 532 19 95-41 Keeper Belt LH Mandrel
40 873 90 06-00 Nut, Lock Flg. 3/8-16 unc
42 532 19 84-10 Spring Torsion Brake
43 532 19 72-56 Spring Torsion Retainer
46 532 13 77-29 Screw 1/4-20 x 5/8
55 532 19 72-49 Arm, Idler
56 532 19 90-92 Spacer, Retainer
57 817 00 06-16 Screw 3/8-16 x 1
59 532 14 10-43 Guard, Tuv Idler
60 532 19 94-71 Arm Brake Mower
63 532 19 94-70 Arm Brake Mower
64 532 19 97-90 Link Brake
67 532 40 30-12 Handle Clutch Cable
68 532 40 83-81 V-Belt
69 872 14 05-05 Bolt
70 532 40 12-46 Clutch Asm Manual
122 532 19 72-58 Keeper Belt Engine LH
123 532 19 72-59 Keeper Belt Engine RH
144 532 19 34-14 Keeper Belt
145 532 19 31-97 Pulley, Idler, Flat
147 532 40 18-72 Spring Return
152 532 40 87-14 Manual Clutch Cable
188 532 19 51-61 Stud Fastener
189 873 90 05-00 Nut Lock Hex Flange
195 817 00 06-12 Screw 3/8-16 x 3/4
199 532 40 00-95 Baffle Vortex
209 819 13 32-10 Washer 13/32 x 2 x 10
241 532 15 29-27 Screw
242 532 41 55-98 Port Washout
- - 532 19 28-70 Mandrel Assembly (Includes hous-
ing, shaft assembly, and bearing
only - pulley/nut/washer and blade
bolt/washers not included)
- - 532 40 04-22 Replacement Mower, Complete
TRACTOR - - MODEL NO. LT2216 (96041010101), PRODUCT NO. 960 41 01-01
MOWER DECK
44
44

16
1 532 41 14-05 Seat
2 532 18 01-66 Bracket Pivot Fender
3 532 14 06-75 Strap, Asm Fender
6 873 80 06-00 Nut, Lock w/Ins. 3/8-16 unc
7 532 12 41-81 Spring, Seat Cprsn
8 532 17 18-77 Bolt 5/16-18 unc x 3/4 w/Sems
10 532 19 69-77 Pan, Seat
21 532 17 18-52 Bolt, Shoulder 5/16-18
37 873 80 05-00 Nut, Lock 5/16-18 unc
40 532 19 76-61 Handle Slide Seat
41 532 19 82-00 Spring Latch Seat
43 874 76 06-12 Bolt Hex 3/8-16 x 3/4
44 819 13 38-12 Washer 13/32 x 2-3/8 x 12 Ga.
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
2
6
1
40
10
37
37
21
21
3
41
7
8
7
8
8
8

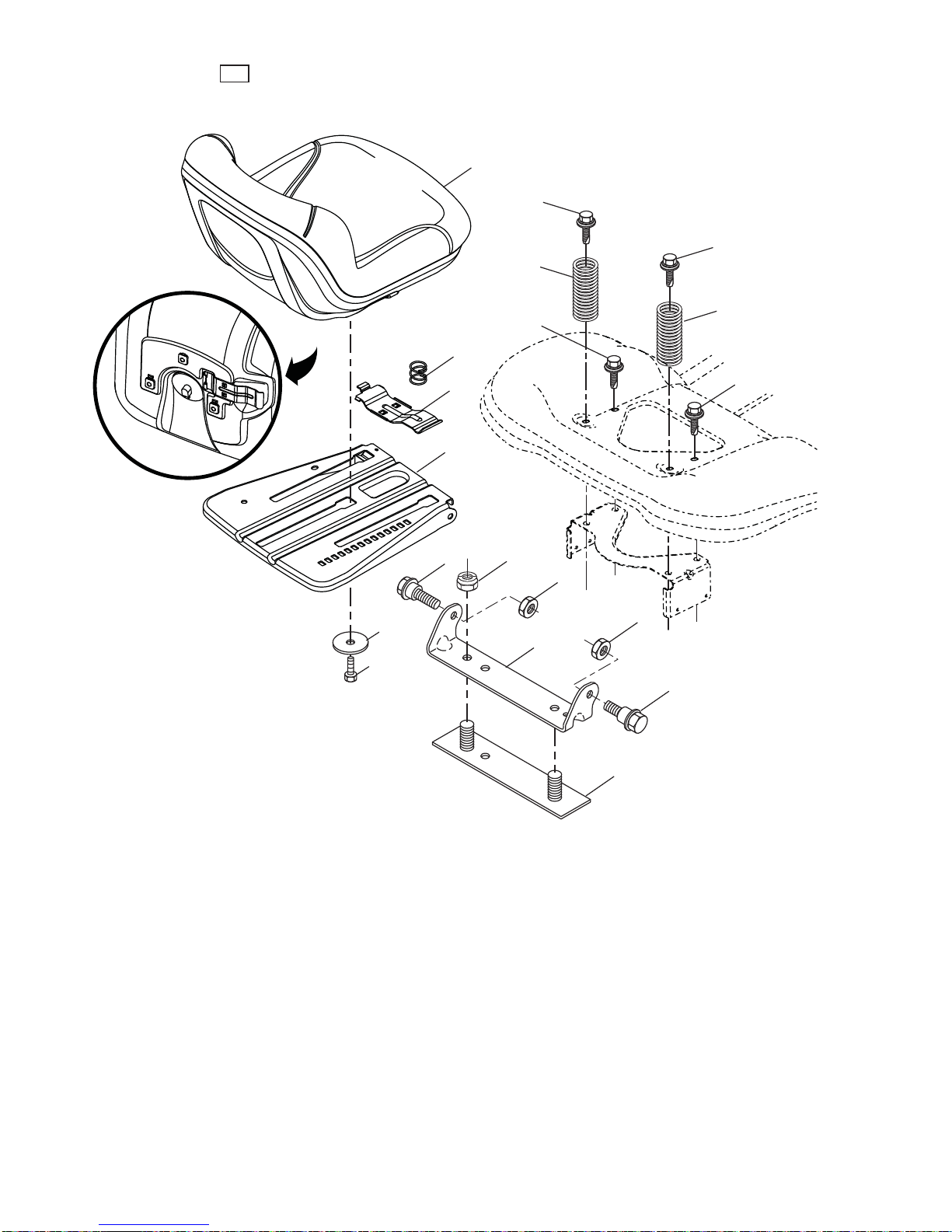

seat-tex_6.5SL_2
44
43
TRACTOR - - MODEL NO. LT2216 (96041010101), PRODUCT NO. 960 41 01-01
SEAT ASSEMBLY
42
42

17
2 532 42 20-27 Shaft Asm., Cross Lift
3 532 19 52-31 Lever Asm., Lift RH
7 532 41 15-55 Grip, Lever
10 532 19 63-14 Spring Torsion
87 532 19 42-09 Pin Cotter 7/16 Bow Tie Lock
88 532 41-07-10 Spring Lift Assist
89 819 19 19-12 Washer Clear Zinc
90 532 19 42-08 Pin Cotter 5/16 Bow Tie Lock
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
91 532 19 51-81 Link Lift Susp Mower Rear
97 817 00 06-12 Screw 3/8-16 x .75 Smgml Tap/R.Z
98 532 19 52-70 Link Lift Susp. Front Mower
100 873 93 06-00 Nut Centerlock 3/8-16
101 532 40-70-03 Link Asm. Lift FXD
KEY PART
NO. NO. DESCRIPTION
7
3
87
10
88
2
89
90
87
98
97
97
lift-tex_16_r3
91
87
100
89
87 101*
*Key 91 may be substituted for Key 101
TRACTOR - - MODEL NO. LT2216 (96041010101), PRODUCT NO. 960 41 01-01
MOWER LIFT
45
45
