joule Case Li5k Base-S User manual

Li5k Base-S
Product Manual

Li5k Base-S Product Manual
Thank you for purchasing a Joule Case Li5k Base-S Battery System.
It has been engineered to exacting specications and we trust it will
provide many years of trouble-free operation. Please read this guide
thoroughly and observe the safety precautions below.
Safety Precautions
⚠ Installation should be done by qualied personnel in
accordance with applicable electrical codes.
⚠ Do not reverse battery polarity.
⚠ Do not connect batteries in series.
⚠ Ensure charger / inverter is programmed with the
correct charge voltage. (No higher than 54.5VDC).
⚠ Ensure proper cable sizes are used.
⚠ Apply appropriately sized over-current protection (fuse
or circuit breaker) between the output and the load.
⚠ Do not connect solar panels directly to the battery.
⚠ Battery should be turned off when making connections.
⚠ Keep the battery away from ammable materials and
sources of ignition.
⚠ Do not connect battery in parallel with other battery
brands or types.
⚠ Do not expose the battery to precipitation or extreme
temperatures.
⚠ Team lift the battery. It is heavy.
⚠ Use insulated tools.

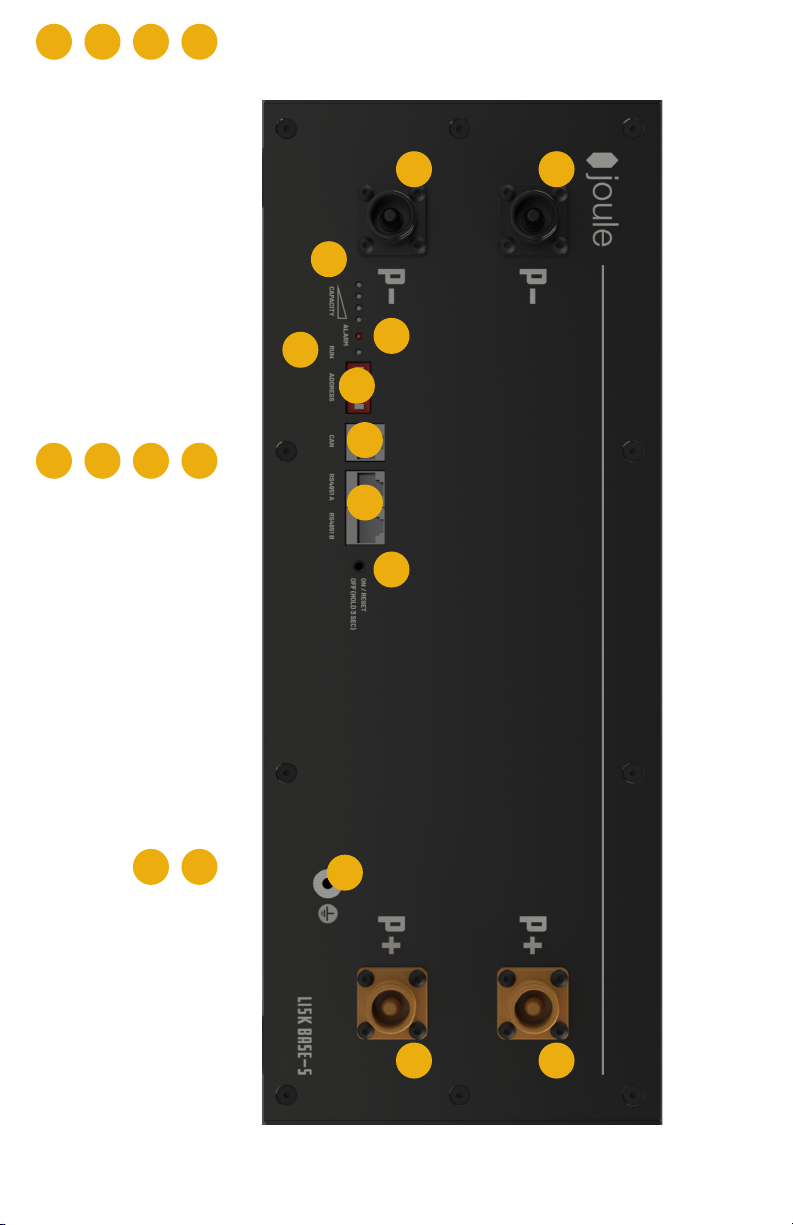

Front Panel Controls and Indicators
1 1
5
9
2 2
6
10
3
7
4
8
1 5 9
2 6 10
3 7
4 8
Chassis Ground Terminal Address Setting DIP Switches On/Off Reset Switch Run Indicator RS485 PortsAlarm Indicator CAN Interface PortLED Capacity Indicator
Pack Negative Terminals Pack Positive Terminals

Li5k Base-S Product Manual
BASIC Operation
Your battery should arrive in the “OFF” state. If the battery
is not in the ”OFF” state as indicated by the ashing Run
Indicator ( ), you should turn the battery off before
making any connections.
The battery may be turned off by pressing the ON/OFF
Reset Switch ( ) on the front panel and holding for 3
seconds. The LEDs will ash in sequence and then go out
as the battery enters the “OFF” state.
With the battery in the “OFF” state, connect battery
terminals to the load and/or charger, making sure to
observe correct polarity, i.e. connect positive (+) to positive
and negative (-) to negative, and using the appropriate
wire size for the application. It is recommended that an
appropriately sized circuit breaker or fuse be placed
between the battery and the load/charger.
Turn on battery by momentarily pressing the ON/OFF Reset
Switch ( ) . The front panel LEDs will light in sequence
indicating that the battery is on. Your battery is equipped
with a 2 second soft-start feature that prevents a large
current surge when connected to capacitive loads such as
power inverters.
10
6
6

“Capacity” LED Front Panel Indicators
“Run” and “Alarm” LED Front Panel Indicators
Battery Status Operating Mode Run LED • Alarm LED •
Power Off Off Off
Standby Solid Green Off
Charging
Normal Solid Green Off
Over-current warning Solid Green Blink Type 2
Over-voltage protection Blink Type 1 Off
Over-temperature, over-current protection Blink Type 2 Off
Discharging
Normal Blink Type 3 Off
Warning Blink Type 3 Blink Type 3
Over-current, over-temperature,
short-circuit protection Off Solid Red
Under-voltage protection Off Off
Capacity Charging Discharging
Indicator L4 • L3 • L2 • L1 • L4 • L3 • L2 • L1 •
0 - 25% Off Off Off Blink Off Off Off On
25% - 50% Off Off Blink On Off Off On On
50% - 75% Off Blink On On Off On On On
> 75% Blink On On On On On On On

Li5k Base-S Product Manual
About Warnings and Protections
Your Joule Case battery is equipped with a Battery
Management System (BMS) that continuously monitors
voltage, current, temperature, state-of-charge and state-
of-health of the battery.
Should a condition occur where voltage, current or
temperature begins to approach the design limits of
the battery, the BMS will set a warning ag, the red LED
“warning” indicator on the front panel will ash. The
warning condition will automatically clear when the BMS
detects that the conditions that caused the alarm have
cleared.
If conditions of voltage, current, or temperature exceed
the design limits of the battery, a protection ag will be
set, and the battery will stop discharging or charging,
depending on the nature of the fault. For example, an over-
voltage protection condition will prevent the battery from
charging. Upon discharging to an appropriate level, the
protection condition will clear.
Your Joule Case battery is programmed to generate a
capacity warning when the BMS detects that capacity
has fallen below 10% state-of-charge (SOC). Charging the
battery above 10% SOC will clear this warning condition.

CAN and RS485 Communication
Your Joule Case Battery Management System (BMS)
is equipped with RS485 and CAN bus interfaces for
connection to certain inverters, and to a PC for monitoring
battery functions. In most cases, use of these functions
requires special software and installation expertise that
is beyond the scope of this manual. You may contact your
installer or Joule Case directly for more information about
use of these interfaces.
Support
Have questions or need additional support? Reach out
to our team of power experts or scan the code below for
additional resources.
📨 [e-mail]
📱 [phone]
🖥 www.joulecase.com
Scan me!

Li5k Base-S Product Manual
General Specications
Voltage, Nominal 51.8V
Operating Voltage 41.6 – 54.5V
Capacity 100Ah
Energy (Nominal) 5000Wh
Chemistry LFP
Cycle Life to 70% initial capacity 5000
Maximum Discharge Rate 100A continuous; 120A for 10 seconds
Maximum Charge Rate 100A
BMS Full suite of voltage, current and
temperature protections
Smart system Pack voltage, cell voltages, current,
% remaining
SOC reporting accuracy ±5%
Data bus Two port RS485, daisy chain-able up to 16
Parallel capability Yes
LED indicators 4 x LED SOC indicator; run, fault LEDs
Dimensions 17.3” W x 22.5” D x 7.8” H
Weight 121 lbs.
Operating Temperature -10°C to +60°C
Charging Temperature -0°C to +50°C
Certications CE, ROHS, UN38.3, MSDS
