JSP HARTConf User manual

MANUAL
HARTConf, LHPConf
Field Configurators for Transmitters with HART or LHP
Communication and HART-USB Modem
• Adjustment of the range of HART and LHP
instruments by setting the numerical value
or calibration on the input value
• Display of momentary input and output values
of connected instrument, and up to three other
variables
• Testing a current loop, and zero setting
of a sensor
• Changing notes, units, damping, etc.
• Power supply for transmitter without any
external power supply unit
• Configurator powering from an accumulator,
USB or a prismatic battery
• Up to 15 hours of continuous operation
• Using the instrument as a HART-USB modem
• Language versions CZ, EN, DE, RU
or as required
Accessories - NL0899EN - 2019/08
JSP, s. r. o.
Industrial Controls www.jsp.cz
CZ Raisova 547, 506 01 Jičín
[email protected] • [phone]
SK Krivá 23, 040 01 Košice
[email protected]

- 2 -
Field Congurators HARTConf, LHPConf for Transmiers with HART or LHP Communicaon and HART-USB Modem
Contents
1. General instructions and information ..........................................................................................................3
1.1 Symbols used ..............................................................................................................................................3
1.2 Safety warnings and cautions ......................................................................................................................3
1.3 Scope of delivery .........................................................................................................................................3
1.4 Description of the delivery and packing .......................................................................................................3
1.5 Storage ........................................................................................................................................................3
1.6 Installation and commissioning ....................................................................................................................3
1.7 Spare parts ..................................................................................................................................................3
1.8 Repairs ........................................................................................................................................................3
1.9 Warranty ......................................................................................................................................................3
2. End of service and disposal .........................................................................................................................3
2.1 End of service ..............................................................................................................................................3
2.2 Disposal .......................................................................................................................................................3
3. Product description .......................................................................................................................................4
3.1 Application ...................................................................................................................................................4
3.2 Functions of the HARTConf configurator .....................................................................................................4
3.3 Functions of the LHPConf configurator .......................................................................................................4
3.4 Dimensional drawings..................................................................................................................................4
3.5 Block diagram ..............................................................................................................................................5
4. Installation, operation and maintenance .....................................................................................................6
4.1 Installation and commissioning ....................................................................................................................6

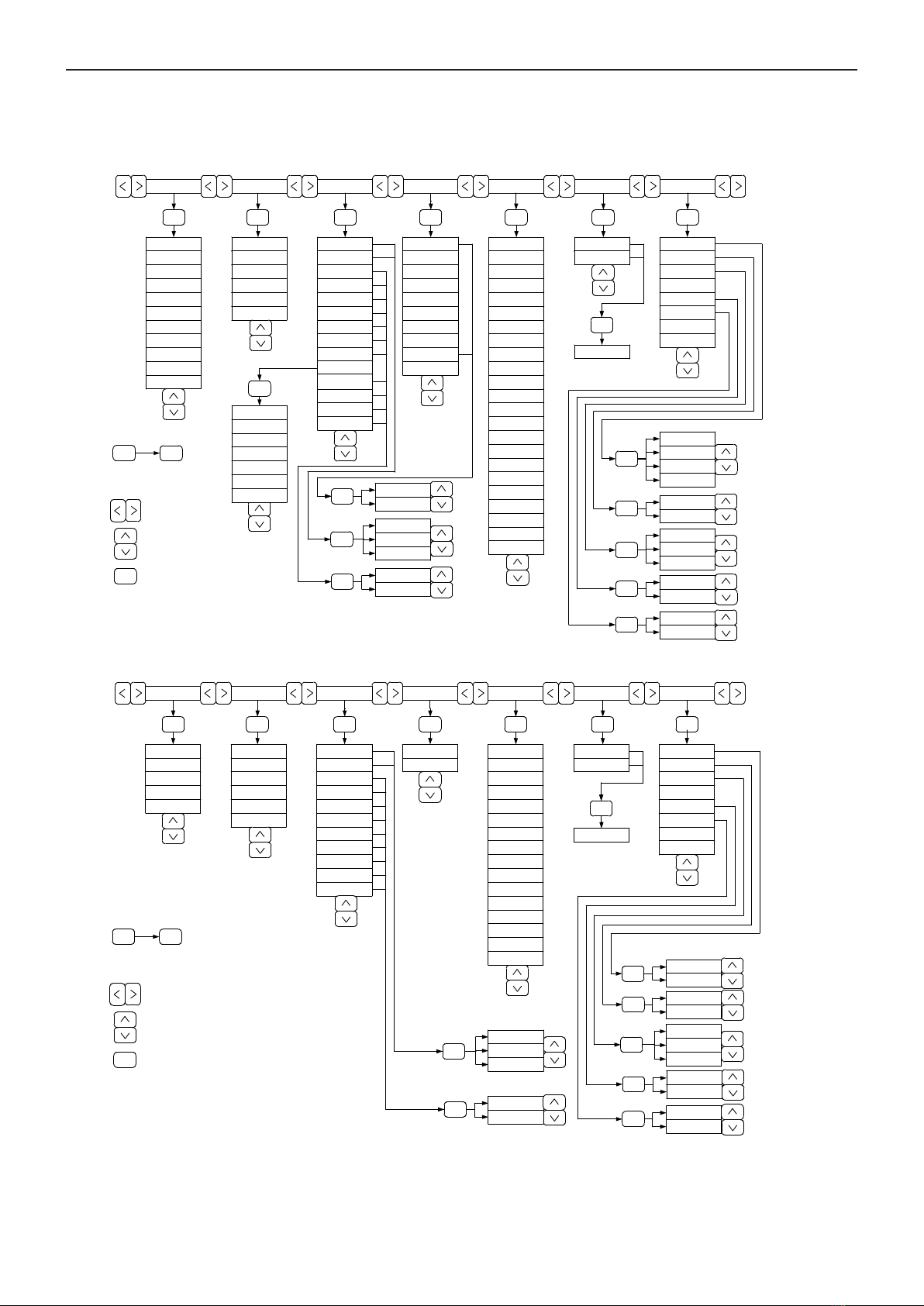

4.2 Menu ............................................................................................................................................................7
4.3 Error messages .........................................................................................................................................10
4.4. Operation and maintenance .....................................................................................................................11
5. Product specifications.................................................................................................................................11
5.1 Technical specifications .............................................................................................................................11
5.2 Supplementary parameters .......................................................................................................................12
6. Standards and marking ...............................................................................................................................12
6.1 Standards ..................................................................................................................................................12
6.2 Marking and type tag information ..............................................................................................................12
7. Ordering information ...................................................................................................................................12
7.1 Ordering table ............................................................................................................................................12

- 3 -
Field Congurators HARTConf, LHPConf for Transmiers with HART or LHP Communicaon and HART-USB Modem
1. General instructions and information
1.1 Symbols used
Symbol of warning; for safe use it is necessary
to proceed according to the instructions
Symbol CE certifies compliance of the product with
the respective government directives
This product does not belong to public waste and it is
subjected to separate collection
HART® Communication protocol for reading and changes
of configuration, registered trademark HART
Communication Foundation
LHP Remote communication for reading and changing
of the configuration
1.2 Safety warnings and cautions
The instrument may be connected only to the
transmitters supplied from a safe source of voltage that
meets requirements of the standard EN 61010-1 and
that are installed in compliance with the national requirements
and safety standards. The instrument may be operated only
by a qualified person who has been familiar with this manual.
The instrument may not be used for other purposes than as
specified in this manual.
The maximum operational parameters of the instrument may
not be exceeded to prevent any risk of injury from electric shock.
Use the instrument in a suitable environment, without direct
sunlight, dust, high temperature, mechanical vibrations and
surges; protect it against rain and excessive moisture.
1.3 Scope of delivery
With HARTConf is delivered:
- Cabel HART and cabel USB,
- CD with driver,
- Accumulator NiMH 8,4 V / 200 mA h,
- Instruction manual.
With LHPConf is delivered:
- Cabel HART,
- Battery 9 V 6LR61 (6F22),
- Instruction manual.
1.4 Description of the delivery and packing
The product is packaged in a protective cover and provided
with an identification label with a mark of the output control.
The product must not be exposed to direct rain, vibrations and
shocks during transport.
1.5 Storage
The products shall be stored at temperatures from -20 °C to
+40 °C and maximum relative humidity 80 % in the rooms with
elimination of condensation of water vapours on the products.
The stored products shall not be exposed to any shocks,
vibrations and effects of harmful vapours and gases.
1.6 Installation and commissioning
During installation, commissioning, operation and maintenance
follow the instructions in chapter 4.
1.7 Spare parts
Any of the compact parts of the product can be also ordered
as a spare part if there are not required special procedures or
technological operations for the exchange.
1.8 Repairs
Products are repaired by the manufacturer. The products for
repair should be sent in a packing that guarantees damping
of shocks and vibrations and protects against damage during
transport.
1.9 Warranty
Products are covered by a warranty for a period of 3 years
from the delivery date on the delivery note. The manufacturer
guarantees technical and operational parameters of the
products within scope of the applicable documentation.
Warranty period is specified with individual items and begins
from the day of takeover of the goods by the purchaser or
delivery to the carrier. Any claims concerning to defects of the
goods together can be filed in writing with the manufacturer
within the warranty period and the claimed product shall be
presented. The claiming party shall give identification of the
product, number of the delivery note and description of the
fault or defect.
The manufacturer is not responsible for any defects caused
by improper storage, incorrect connection, damages caused
by external effects, in particular by effects of factors with
excessive values, unqualified installation, improper operation
or common wearing.
2. End of service and disposal
2.1 End of service
Dismounting and disposal of the device is possible after
disconnecting of a battery.
2.2 Disposal
When disposing the packing and destroyed or
irreparably damaged product proceed according to the
local regulations.

- 4 -
Field Congurators HARTConf, LHPConf for Transmiers with HART or LHP Communicaon and HART-USB Modem
HARTConf, LHPConf
Field Configurators and HART-USB Modem
for Transmitters with LHP or HART Communication
3.1 Application
HARTConf and LHPConf handheld configuration devices are
intended for reading, adjusting and changing the configuration
of instruments with HART and LHP communication. These
devices communicate with instruments connected in a current
loop or they can supply these instruments being adjusted
directly from their internal current supply unit. Therefore, they
can be used for the adjustment of instruments before their
installation, and before putting them into operation without
connecting them necessarily to a power supply unit. The
internal power supply unit for a transmitter can be switched
off, permanently switched on or switched into standby mode,
when the power supply is switched on only for the moment the
communication is in progress, and then it is switched off again.
This mode of operation can significantly extend the operating
period in case the device is supplied from an accumulator or
a battery. The configurator and its functions are controlled by
means of push buttons and a colour graphic display.
3.2 Functions of the HARTConf configurator
The HARTConf configurator is an instrument that combines
a handheld device with HART or LHP communication and an
intelligent HART-USB modem. It enables one to communicate
with instruments equipped with HART communication at
the level of universal and common practice commands.
Therefore, it is possible to change the output range of any
HART instrument, display actual value of input, output and
up to three other variables. It is possible to test a current
loop, do a zero setting of a pressure sensor, change text
items etc. All available configuration parameters can be
set in HART-USB Modem mode with suitable PC software
(software is not included with HARTConf). It also includes
all functions of a LHP configurator, and it can therefore be
used for the adjustment of all parameters of LHP transmitters.
It is supplied from a 9 V accumulator, which can be charged
from a USB port. After connection to the USB port, the
configurator is supplied through this port, which provides all
necessary energy. The device is able to supply the transmitter
from its own internal power supply unit both in the configurator
mode and the HART-USB Modem mode.
3.3 Functions of the LHPConf configurator
It only contains the LHPConf configurator function and does
not support connection to device with HART communication.
In instruments with LHP communication, the device allows to
adjust all available parameters except for user linearization.
It can visualize momentary input and output values and max.
three other variables, as well as test an output current loop, etc.
It contains the function of a transmitter supply, and operation
with a transmitter therefore does not require any external
power supply unit. LHPConf configurator is supplied from
a 9 V battery by default. If the accumulator is used instead of
battery, it is possible to charge the device by connecting to the
USB port or AC adapter. After connection to the USB port, the
configurator is supplied through this port, which provides all
necessary energy.
3.4 Dimensional drawings
3. Product description
• Adjustment of the range of HART and LHP
instruments by setting the numerical value
or calibration on the input value
• Display of momentary input and output values
of connected instrument, and up to three other variables
• Testing a current loop, and zero setting of a sensor
• Changing notes, units, damping, etc.
• Power supply for transmitter without any
external power supply unit
• Configurator powering from an accumulator,
USB or a prismatic battery
• Up to 15 hours of continuous operation
• Using the instrument as a HART-USB modem
• Language versions CZ, EN, DE, RU or as required

- 5 -
Field Congurators HARTConf, LHPConf for Transmiers with HART or LHP Communicaon and HART-USB Modem
3.5 Block diagram
Block diagram of a field configurator HARTConf
Block diagram of a field configurator LHPConf
MICROCOMPUTER
USB/SERIAL
KEYBOARD
HART
USB
DISPLAY
POWER
MANAGEMENT
DC/DC DC/AC
DC POWER
+ HART
HART
(LHP)
BATTERY
Blokové schéma ručního konfigurátoru HARTConf
MICROCOMPUTER
KEYBOARD
LHP
DISPLAY
POWER
MANAGEMENT
STEP-UP DC POWER
DC POWER
+ LHP LHP
BATTERY
Blokové schéma ručního konfigurátoru LHPConf
MICROCOMPUTER
USB/SERIAL
KEYBOARD
HART
USB
DISPLAY
POWER
MANAGEMENT
DC/DC DC/AC
DC POWER
+ HART
HART
(LHP)
BATTERY
Blokové schéma ručního konfigurátoru HARTConf
MICROCOMPUTER
KEYBOARD
LHP
DISPLAY
POWER
MANAGEMENT
STEP-UP DC POWER
DC POWER
+ LHP LHP
BATTERY
Blokové schéma ručního konfigurátoru LHPConf

- 6 -
Field Congurators HARTConf, LHPConf for Transmiers with HART or LHP Communicaon and HART-USB Modem
4. Installation, operation and maintenance
4.1 Installation and commissioning
4.1.1 General
The instrument can be put into operation by installing a battery
and switch on according to the instructions in this manual.
During the battery installation, the right battery type in menu
Options | Battery Type must be properly selected.
4.1.2 Electrical connection
Connection of a transmitter with power supply from
the configurator
(set in menu: „Options | Power supply | Int./Ext. | Internal“)
Connection of a transmitter with power supply from
an external source
(set in menu: „Options | Power supply | Int./Ext. | External“)
4.1.3 Installation of a battery or accumulator into
the configurator HARTConf, LHPConf
In case of installation of a dry battery, make sure that “Battery
Type” is set to “Prim. Battery”! If not, set the configurator
correctly.
ATTENTION! Using battery in the instrument when set to
“Accumulator” may cause damage to the battery by charging
it from USB!
In case you install a rechargeable accumulator, make sure
that “Battery Type” is set to “Accumulator”! If not, set the switch
correctly. This ensures correct charging when the instrument is
connected to USB.
4.1.4 Installation of USB driver
Correct work with a USB interface and charging through a USB
requires the necessary USB driver installed on the PC. Usually,
operating system search for a suitable driver after connecting
the configurator to the USB port. If this does not work, run „CDM
v2.10.00 WHQL Certified.exe“ file from the supplied CD. When
the driver is installed, the USB cable can be connected and the
required port number can be set in the Device Manager.
4.1.5 Charging of rechargeable accumulator
Charging is activated after connection of the USB cable to the
active port (port of running PC) or by connecting to the AC
adapter. A moving icon on the display indicates charging.
ATTENTION! Accumulator charging during activities of the
instrument is not possible when the internal supply source
for the transmitter is switched on. In case that it is necessary
to supply the transmitter and at the same time to charge the
accumulator, it is necessary to activate the battery saving
mode!
4.1.6 Instrument switch on/off
It is carried out by long pressing of the pushbutton OK,
choosing YES and then confirmation by short pressing of the
pushbutton OK.

- 7 -
Field Congurators HARTConf, LHPConf for Transmiers with HART or LHP Communicaon and HART-USB Modem
4.2 Menu
4.2.1 Menu structure - CZ
1) ... The language can be changed using the HCfwUpdate software, which is freely available for download at www.jsp.cz.
Struktura menu v režimu „Konfigurátor“, připojený HART přístroj (generic temperature family)
Zapnutí a vypnutí
OK
OK
podržet 2s potvrdit
O přístroji Veličiny Konfigurace Servis Přehled Hlášení přístr. Volby
Výrobce
Model
Identifikátor
Revize SW
Revize HW
První veličina
Druhá veličina
Třetí veličina
Čtvrtá veličina
Výst. proud
% rozsahu
Počátek
Konec
Tlumení
Datum
Označení/Tag
Popis
Fixní výstup Režim činnosti
Inicializace
Obnovení displ.
Firmware
Zdroj
OK OK OK OK OK OK OK
Číst
Změnit
Kalibrovat
Vypnout
Konfigurátor
HART modem
OK
Aktualizace fw
Adresou
Označením
OK
Int./Ext.
Spořič baterie
OK
Číst
Změnit
OK
Ovládání editoru hodnot:
změna pozice
změna hodnoty na pozici
OK výstup a dotaz na uložení hodnoty
Chybová
Dolní mez
Horní mez
Min. rozpětí
Zpráva
Číslo sestavy
Číslo čidla
Číslo sestavy
Jednotky
Trim DAC Zero
Trim DAC Gain
Reset přístroje
Nulování čidla
Změna adresy
Číst
Změnit
Kalibrovat
OK
Aktivovat
Ukončit
OK
Výrobce
Model
Burst mód
Revize SW
Revize HW
Dolní mez
Horní mez
Min. rozpětí
Číslo sestavy
Číslo čidla
Počátek
Konec
Tlumení
Datum
Označení/Tag
Popis
Zpráva
Přenos. funkce
Jednotky
Burst příkaz
Ochrana nast.
Signál poruchy
Stavová
Typ baterie
Formát čísel
Prim. baterie
Akumulátor
OK
Normáln
Rozšířený
OK
Revize přístroje
Revize přístroje
Čti rozš.stav
Burst
Jazyk
Smazat
OK
Číslo čidla
Přenos. funkce
Identifikátor
Long Tag
Čidlo [PV]
OK
Čidlo [PV]
Kompenz. TC
Kompenzace
Hodn. CVD Ro
Hodnota CVD A
Hodnota CVD B
Hodnota CVD C
Trimování PV
DV přiřazení
Prohledat
1)
Menu structure in Configurator mode with HART device connected (generic temperature family)
Turn ON and OFF procedure
OK
OK
Hold 2 s Confirm
Information Variables Configuration Service Review Device reports Options
Manufacturer
Model
Device ID
Software rev.
Hardware rev.
Primary var.
Secondary var.
Tertiary var.
Fourth var.
Output current
% of range
Lower RV
Upper RV
Damping
Date
Tag
Descriptor
Fixed output Oper. mode
Initialization
Disp. refresh
Firmware
Power supply
OK OK OK OK OK OK OK
Číst
Změnit
Kalibrovat
Turn OFF
Configurator
HART Modem
OK
FW Update
by Poll. addr.
by Tag
OK
Int./Ext.
Battery saver
OK
Read
Enter value
OK
Editor handling:
Position change
Symbol or number change
OK Confirm or reject to save value
Error
Lower limit
Upper limit
Min. span
Message
Assembly No
Sensor s/n
Assembly No
Units
Trim DAC zero
Trim DAC gain
Device reset
Sensor zeroing
Polling addr.
Read
Enter value
Apply value
OK
Activate
Terminate
OK
Manufacturer
Model
Burst mode
Software rev.
Hardware rev.
Lower limit
Upper limit
Min. span
Assembly No
Sensor s/n
Lower RV
Upper RV
Damping
Date
Tag
Descriptor
Message
Transfer funct.
Unit
Burst cmd
Write protect
Alarm signal
Status
Battery type
Number format
Prim. battery
Accumulator
OK
Normal
Extended
OK
Device rev.
Device rev.
Read ext.status
Burst
Language
Clear
OK
Sensor s/n
Transfer funct.
Device ID
Long Tag
Sensor (PV)
OK
Sensor [PV]
CJ compens.
Compensation
CVD value Ro
CVD value A
CVD value B
CVD value C
PV Trim
DV assignemnt
Scan
Struktura menu v režimu „Konfigurátor“, připojený LHP přístroj
O přístroji Veličiny Konfigurace Servis Přehled Hlášení přístr. Volby
Výrobce
Model
Identifikátor
Revize SW
Revize HW
První veličina
Druhá veličina
Třetí veličina
Čtvrtá veličina
Výst. proud
% rozsahu
Počátek
Konec
Tlumení
Druh čidla
Připojení čidla
Kompenzace
Datum
Označení
Popis
Signál poruchy
Ochrana konf.
Fixní výstup Režim činnosti
Obnovení displ.
Formát čísel
Firmware
Zdroj
OK OK OK OK OK OK OK
Číst
Změnit
Kalibrovat
OK
Vypnout
OK
Int./Ext.
Spořič baterie
OK
Číst
Změnit
OK
ChybováVýrobce
Model
Identifikátor
Revize SW
Revize HW
Počátek
Konec
Tlumení
Druh čidla
Připojení čidla
Kompenzace
Datum
Označení
Popis
Signál poruchy
Ochrana nast.
Stavová
Jazyk
Normální
Rozšířený
OK
Smazat
OK
Klonování
Typ baterie
Prim. baterie
Akumulátor
OK
Aktualizace fw
Inicializace
Adresou
Označením
Prohledat
OK
OK
OK
Zapnutí a vypnutí
podržet 2s potvrdit
Ovládání editoru hodnot:
změna pozice
změna hodnoty na pozici
OK výstup a dotaz na uložení hodnoty
1)
Menu structure in Configurator mode with LHP device connected
Information Variables Configuration Service Review Device reports Options
Manufacturer
Model
Device ID
Software rev.
Hardware rev.
Primary var.
Secondary var.
Tertiary var.
Fourth var.
Output current
% of range
Lower RV
Upper RV
Damping
Sensor input
Sensor connect
Compensation
Date
Tag
Descriptor
Alarm signal
Write protect
Fixed output Oper. mode
Disp. refresh
Number format
Firmware
Power supply
OK OK OK OK OK OK OK
Read
Enter value
Apply value
OK
Turn OFF
OK
Int./Ext.
Battery saver
OK
Read
Enter value
OK
ErrorManufacturer
Model
Device ID
Software rev.
Hardware rev.
Lower RV
Upper RV
Damping
Sensor input
Sensor connect
Correction
Date
Tag
Descriptor
Alarm type
Write protect
Status
Language
Normal
Extended
OK
Clear
OK
Clone device
Battery type
Prim. battery
Accumulator
OK
FW Update
Initialization
by Poll. addr.
by Tag
Scan
OK
Turn ON and OFF procedure
OK
OK
Hold 2 s Confirm
Editor handling:
Position change
Symbol or number change
OK Confirm or reject to save value

- 8 -
Field Congurators HARTConf, LHPConf for Transmiers with HART or LHP Communicaon and HART-USB Modem
1) ... The language can be changed using the HCfwUpdate software, which is freely available for download at www.jsp.cz.
Struktura menu v režimu „HART modem“
Zapnutí a vypnutí
OK
OK
podržet 2s potvrdit
Volby
Režim činnosti
Typ baterie
Firmware
Zdroj
OK
Vypnout
Konfigurátor
HART modem
OK
Aktualizace fwJazyk
Prim. baterie
Akumulátor
OK
Interní
Externí
OK
1)
4.2.2 Menu structure - EN
Menu structure in Configurator mode with HART device connected (generic temperature family)
Turn ON and OFF procedure
OK
OK
Hold 2 s Confirm
Information Variables Configuration Service Review Device reports Options
Manufacturer
Model
Device ID
Software rev.
Hardware rev.
Primary var.
Secondary var.
Tertiary var.
Fourth var.
Output current
% of range
Lower RV
Upper RV
Damping
Date
Tag
Descriptor
Fixed output Oper. mode
Initialization
Disp. refresh
Firmware
Power supply
OK OK OK OK OK OK OK
Číst
Změnit
Kalibrovat
Turn OFF
Configurator
HART Modem
OK
FW Update
by Poll. addr.
by Tag
OK
Int./Ext.
Battery saver
OK
Read
Enter value
OK
Editor handling:
Position change
Symbol or number change
OK Confirm or reject to save value
Error
Lower limit
Upper limit
Min. span
Message
Assembly No
Sensor s/n
Assembly No
Units
Trim DAC zero
Trim DAC gain
Device reset
Sensor zeroing
Polling addr.
Read
Enter value
Apply value
OK
Activate
Terminate
OK
Manufacturer
Model
Burst mode
Software rev.
Hardware rev.
Lower limit
Upper limit
Min. span
Assembly No
Sensor s/n
Lower RV
Upper RV
Damping
Date
Tag
Descriptor
Message
Transfer funct.
Unit
Burst cmd
Write protect
Alarm signal
Status
Battery type
Number format
Prim. battery
Accumulator
OK
Normal
Extended
OK
Device rev.
Device rev.
Read ext.status
Burst
Language
Clear
OK
Sensor s/n
Transfer funct.
Device ID
Long Tag
Sensor (PV)
OK
Sensor [PV]
CJ compens.
Compensation
CVD value Ro
CVD value A
CVD value B
CVD value C
PV Trim
DV assignemnt
Scan
1)
Menu structure in HART modem mode
Turn ON and OFF procedure
OK
OK
Hold 2 s Confirm
Options
Oper. mode
Battery type
Firmware
Power supply
OK
Turn OFF
Configurator
HART modem
OK
FW updateLanguage
Prim. battery
Accumulator
OK
Internal
External
OK

- 9 -
Field Congurators HARTConf, LHPConf for Transmiers with HART or LHP Communicaon and HART-USB Modem
1) ... The language can be changed using the HCfwUpdate software, which is freely available for download at www.jsp.cz.
Menu structure in HART modem mode
Turn ON and OFF procedure
OK
OK
Hold 2 s Confirm
Options
Oper. mode
Battery type
Firmware
Power supply
OK
Turn OFF
Configurator
HART modem
OK
FW updateLanguage
Prim. battery
Accumulator
OK
Internal
External
OK
1)
Menu structure in Configurator mode with LHP device connected
Information Variables Configuration Service Review Device reports Options
Manufacturer
Model
Device ID
Software rev.
Hardware rev.
Primary var.
Secondary var.
Tertiary var.
Fourth var.
Output current
% of range
Lower RV
Upper RV
Damping
Sensor input
Sensor connect
Compensation
Date
Tag
Descriptor
Alarm signal
Write protect
Fixed output Oper. mode
Disp. refresh
Number format
Firmware
Power supply
OK OK OK OK OK OK OK
Read
Enter value
Apply value
OK
Turn OFF
OK
Int./Ext.
Battery saver
OK
Read
Enter value
OK
ErrorManufacturer
Model
Device ID
Software rev.
Hardware rev.
Lower RV
Upper RV
Damping
Sensor input
Sensor connect
Correction
Date
Tag
Descriptor
Alarm type
Write protect
Status
Language
Normal
Extended
OK
Clear
OK
Clone device
Battery type
Prim. battery
Accumulator
OK
FW Update
Initialization
by Poll. addr.
by Tag
Scan
OK
Turn ON and OFF procedure
OK
OK
Hold 2 s Confirm
Editor handling:
Position change
Symbol or number change
OK Confirm or reject to save value
1)

- 10 -
Field Congurators HARTConf, LHPConf for Transmiers with HART or LHP Communicaon and HART-USB Modem
1) ... The language can be changed using the HCfwUpdate software, which is freely available for download at www.jsp.cz.
4.2.3 Menu structure - DE
Menu structure in Configurator mode with HART device connected (generic temperature family)
Turn ON and OFF procedure
OK
OK
Hold 2 s Confirm
Information Variablen Konfiguration Service Review Device reports Optionen
Hersteller
Modell
Gerätenummer
Softwarerev.
Hardwarerev.
Primäre Var.
Sekundäre Var.
Tertiäre Var.
Vierte Var.
Ausgangsstrom
% des Messber.
Messanfang
Messende
Dämpfung
Datum
TAG
Beschreibung
Ausgang fix Betriebsart
Initialisierung
Aktualisieren
Firmware
Hilfsenergie
OK OK OK OK OK OK OK
Číst
Změnit
Kalibrovat
Ausschalten
Konfigurator
HART Modem
OK
FW Aktualis.
Adresse suchen
nach TAG
OK
Int./Extern
Batteriesparm.
OK
Lesen
Wert eingeben
OK
Editor handling:
Position change
Symbol or number change
OK Confirm or reject to save value
Fehler
Untere Grenze
Obere Grenze
Min. Spanne
Nachricht
Fertigungsnr.
Sensornummer
Fertigungsnr.
Phys. Einheiten
Trim 4 mA
Trim 20 mA
Geräte-Reset
Sensor Nullen
Aufrufadresse
Lesen
Wert eingeben
Wert anlegen
OK
Aktivieren
Beenden
OK
Hersteller
Modell
Burst Betrieb
Softwarerev.
Hardwarerev.
Untere Grenze
Obere Grenze
Min. Spanne
Fertigungsnr.
Sensornummer
Messanfang
Messende
Dämpfung
Datum
TAG
Beschreibung
Nachricht
Übertr.funktion
Phys. Einheiten
Burst Befehl
Schreibgeschützt
Alarmart
Status
Batterietyp
Zahlenformat
Prim. Batterie
Akku
OK
Normal
Erweitert
OK
Geräterevision
Geräterevision
Erweit. Zustand
Burst
Sprache
Löschen
OK
Sensornummer
Übertr.funktion
Gerätenummer
Long Tag
Sensor (PV)
OK
Sensor (PV)
Kompens. TC
Kompensation
CVD Wert Ro
CVD Wert A
CVD Wert B
CVD Wert C
PV Trim
DV Zuordnung
Scan
1)
Menu structure in Configurator mode with LHP device connected
Information Variablen Konfiguration Service Überblick Gerätebericht Optionen
Hersteller
Modell
Gerätenummer
Softwarerev.
Hardwarerev.
Primäre Var.
Sekundäre Var.
Tertiäre Var.
Vierte Var.
Ausgangsstrom
% des Messber.
Messanfang
Messende
Dämpfung
Sensoreingang
Sensoranschluss
Korrektur
Datum
TAG
Beschreibung
Alarmart
Schreibgeschützt
Ausgang fix Betriebsart
Aktualisieren
Zahlenformat
Firmware
Hilfsenergie
OK OK OK OK OK OK OK
Lesen
Wert eingeben
Wert anlegen
OK
Ausschalten
OK
Int./Extern
Batteriesparm.
OK
Lesen
Wert eingeben
OK
FehlerHersteller
Model
Gerätenummer
Softwarerev.
Hardwarerev.
Messanfang
Messende
Dämpfung
Sensoreingang
Sensoranschluss
Korrektur
Datum
TAG
Beschreibung
Alarmart
Schreibgeschützt
Status
Sprache
Normal
Erweitert
OK
Löschen
OK
Gerät kopiert
Batterietyp
Prim. Batterie
Akku
OK
FW Aktualis.
Initialisierung
Adresse suchen
nach TAG
Scan
OK
Turn ON and OFF procedure
OK
OK
Hold 2 s Confirm
Editor handling:
Position change
Symbol or number change
OK Confirm or reject to save value
1)

- 11 -
Field Congurators HARTConf, LHPConf for Transmiers with HART or LHP Communicaon and HART-USB Modem
1) ... The language can be changed using the HCfwUpdate software, which is freely available for download at www.jsp.cz.
4.2.4 Menu structure - RU
Menu structure in Configurator mode with HART device connected (generic temperature family)
Turn ON and OFF procedure
OK
OK
Hold 2 s Confirm
Информация Переменные Конфигурация Обслуживание Обзор Отчеты устр.Опции
Производитель
Модель
Идентификатор
Версия ПО
Аппарат. верс.
Первичная
Вторичная
Третья
Четвертая
Выходной ток
% диапазона
Начало диапаз.
Конец диапаз.
Демпфирование
Дата
Тег
Дескриптор
Фикс. выход Режим работы
Инициализация
Обновл. дисп.
Версия ПО
Питание
OK OK OK OK OK OK OK
Číst
Změnit
Kalibrovat
Выключить
Конфигуратор
Модем HART
OK
Обновление ПО
По адресу
По тегу
OK
Внутр./Внеш.
Энергосбережение
OK
Читать
Изменить
OK
Editor handling:
Position change
Symbol or number change
OK Confirm or reject to save value
Ошибки
Нижний предел
Верхний предел
Мин. диапазон
Сообщение
№сборки
Серийный №
№сборки
Единицы
Регулир. 4 мА
Регулир. 20 мА
Сброс устройства
Обнуление датч.
Адрес опроса
Читать
Изменить
Примен. значен.
OK
Включить
Выключить
OK
Производитель
Модель
Пакет. режим
Версия ПО
Аппарат. верс.
Нижний предел
Верхний предел
Мин. диапазон
№сборки
Серийный №
Начало диапаз.
Конец диапаз.
Демпфирование
Дата
Тег
Дескриптор
Сообщение
Функц. перед.
Единицы
Команда ПР
Защита записи
Авар. сигнал
Статус
Тип батареи
Формат номера
Не заряжается
Аккумулятор
OK
Нормальный
Расширенный
OK
Версия устр.
Версия устр.
Тест устройства
Пакет. режим
Язык
Удалять
OK
Серийный №
Функц. перед.
Идентификатор
Длинный тег
Датчик (PV)
OK
Датчик (PV)
Компенс. ХС
Компенсация
Коэф. CVD R0
Коэф. CVD A
Коэф. CVD B
Коэф. CVD C
PV Trim
DV assignment
Сканировать
1)
Menu structure in HART modem mode
Turn ON and OFF procedure
OK
OK
Hold 2 s Confirm
Optionen
Betriebsart
Batterietyp
Firmware
Hilfsenergie
OK
Ausschalten
Konfigurator
HART modem
OK
FW Aktualis.Sprache
Prim. Batterie
Akku
OK
Intern
Extern
OK
1)

- 12 -
Field Congurators HARTConf, LHPConf for Transmiers with HART or LHP Communicaon and HART-USB Modem
1) ... The language can be changed using the HCfwUpdate software, which is freely available for download at www.jsp.cz.
Menu structure in HART modem mode
Turn ON and OFF procedure
OK
OK
Hold 2 s Confirm
Опции
Режим работы
Тип батареи
Версия ПО
Питание
OK
Выключить
Конфигуратор
Модем HART
OK
Обновление ПО
Язык
Не заряжается
Аккумулятор
OK
Внутренние
Внешние
OK
1)
Menu structure in Configurator mode with LHP device connected
Информация Переменные Конфигурация Обслуживание Обзор Отчеты устр.Опции
Производитель
Модель
Идентификатор
Версия ПО
Аппарат. верс.
Первичная
Вторичная.
Третья.
Четвертая
Выходной ток
% диапазона
Начало диапаз.
Конец диапаз.
Демпфирование
Вход датчика
Схема подкл.
Компенсация
Дата
Тег
Дескриптор
Авар. сигнал
Защита записи
Фикс. выход Режим работы
Обновл. дисп.
Формат номера
Версия ПО
Питание
OK OK OK OK OK OK OK
Читать
Изменить
Примен. значен.
OK
Выключить
OK
Внутр./Внеш.
Энергосбережение
OK
Читать
Изменить
OK
ОшибкиПроизводитель
Модель
Идентификатор
Версия ПО
Аппарат. верс.
Начало диапаз
Конец диапаз
Демпфирование
Вход датчика
Схема подкл.
Компенсация
Дата
Тег
Дескриптор
Авар. сигнал
Защита записи
Статус
Язык
Нормальный
Расширенный
OK
Удалять
OK
Создать клон?
Тип батареи
Не заряжается
Аккумулятор
OK
Обновление ПО
Инициализация
По адресу
По тегу
Сканировать
OK
Turn ON and OFF procedure
OK
OK
Hold 2 s Confirm
Editor handling:
Position change
Symbol or number change
OK Confirm or reject to save value
1)

- 13 -
Field Congurators HARTConf, LHPConf for Transmiers with HART or LHP Communicaon and HART-USB Modem
4.2.5 Menu control
In the menu you can scroll by using directional pushbuttons;
the pushbutton OK is used for confirmation or entry to the
following level; the left arrow button is used for exit. The right
arrow button is used for displaying long character chains.
The HARTConf configurator can work in two operating modes -
Configurator and HART Modem. The operating mode is chosen
in the menu „Selection“ in the item „Operating mode“.
In the Configurator mode, the USB interface is used for
recharging only. In the HART Modem operating mode, one can
communicate with the connected instruments only when the
USB interface is connected to the PC by means of suitable
communication software (not included in the HARTConf
delivery).
4.2.6 Menu items
Information
A set of parameters identifying the connected instrument.
Variables
Reading and showing momentary values of max. four input
quantities (measured or calculated), output current, and
percentage of the range. By pressing the OK button during the
display, the size of the figure displayed is doubled.
Configuration
Menu for changing parameters of connected instrument.
* Configuration | Lower RV | Enter Value
* Configuration | Upper RV | Enter Value
This selection enable to change a preset range by entering
a value. The value editor makes it possible to enter any positive
or negative number. The up and down arrows keys set a number
value or the decimal point position. The right or left arrows keys
change the momentary set position. One can leave the editor
mode just by pressing the OK push button. A set value is stored
only when confirmed by the user. A change in the range is not
carried out when it is outside the maximum range limits, when
the instrument is in the setting protection mode, or when the
connected instrument does not support this command.
* Configuration | Lower RV | Apply Value
* Configuration | Upper RV | Apply Value
This selection enables one to set the beginning or end of the
range to the momentary input value. When the input quantity is
connected to the input of the instrument and stabilised, carry
out the „Apply Value“ command and acknowledge the assuring
question. A change in the range is not carried out when it is
outside the maximum range limits, when the instrument is in
the setting protection mode, or when the connected instrument
does not support this command.
Service
Menu of service functions.
Warning! These functions are intended for advanced
users only because they can cause a permanent
change in parameters or adversely affect the calibration
of the connected instrument.
* Service | Fixed Output
It carries out output current loop test by the selected current.
After the current value is set and confirmed, the output of
connected instrument is adjusted to the required value.
Caution! A control loop, as the case may be, must be
switched to manual operation in advance!
* Service | Sensor Zeroing
It carries out a sensor zero trimming to the momentary input
value. This adjustment is used particularly in differential pressure
sensors after their installation. This zero setting eliminates an
error caused by the sensor position, static pressure, etc. The
zero setting is not performed in case the input value is outside
maximum limits for zero setting, the instrument is in the setting
protection mode or when the connected instrument does not
support this command.
Caution! The zero setting of an absolute pressure
sensor can result in permanent damage to the
instrument adjustment!
* Service | Trim DAC Zero
* Service | Trim DAC Gain
The configurator trims the start and gain of the D/A converter
for the conversion of the digital value of the output current to
real output current. Accurate performance of this operation
requires measuring the output current with at least 0.01%
accuracy.
* Service | Polling Addr.
To each HART instrument is assigned an address within the
0 - 15 range. The standard factory setting is 0. Addresses 1
– 15 are used in the Multi-Drop mode, which results in the
output current setting at 4 mA. After a change in address, one
must adjust the mode of connection initialisation in the menu
Options | Initialization.
* Service | Device reset
It shall RESET the processor of the connected instrument.
Execution of this command does not change any configuration
parameter, and temporary functions are cancelled. In principle,
it is equivalent to the disconnection of supply voltage of the
connected instrument with its subsequent reconnection.
* Service | Device test
It shall carry out a software test of the instrument. The test
result is available in the form of error reports. In case no
error reports show up, the test has identified no defects. The
configurator does not provide more detailed results of the test.
* Service | Burst
This command switches on a burst mode. In this mode, the
instrument continuously sends out a command set in “Service
| Burst Cmd” without being asked to. In the burst mode, one

- 14 -
Field Congurators HARTConf, LHPConf for Transmiers with HART or LHP Communicaon and HART-USB Modem
can obtain digitally measured data max. three times a second
(in case function 1 Read The First Variable is being sent out).
Nevertheless, access to other parameters is slower.
* Service | Burst Cmd
This command sets a function whose response will be
regularly automatically sent out after entering the burst mode.
In case the instrument supports this mode, only a limited set of
commands can be used. In most cases, only commands 1 and
3 are supported.
Options
Menu of the control of configurator function setting.
* Options | Oper. Mode | Configurator
* Options | Oper. Mode | HART Modem
Switching between basic operating modes of the configurator.
* Options | Power Supply | Int./Ext. | Internal
* Options | Power Supply | Int./Ext. | External
Selection of the power supply mode of the connected
instrument. Selection “Internal” will result in the introduction of
supply voltage to the configurator terminals.
Caution! Never switch internal supply voltage when the
instrument is supplied externally from the loop!
* Options | Power Supply | Battery Saver
This selection switches on the battery saving mode during
internal supply of the instrument. The supply is switched on
for the time of communication only. Then the saving mode
significantly extends the battery operating period.
* Options | Initialization | by Poll. Addr
* Options | Initialization | by Tag
Communication is initialised either by the address or by the
Tag item value.
* Options | Initialization | by Poll. Addr. | Scan
Scanning all addresses from 0 to 15.
* Options | Disp. Refresh
Interval for refreshing variable quantities. Minimum value is 1 s.
* Options | Battery Type
Selection of battery type. A primary cell means a battery that
must not be recharged.
* Options | Number Format | Normal
* Options | Number Format | Extended
Selection of numerical format. An extended format enable to
introduce numbers in exponential form.
Note: Menu structure can be different after connecting other
HART or LHP devices. These devices have defined specific
items in menu. More detailed description can be found in the
documentation of specific device.
4.3 Error messages
The configurator saves up to 10 error messages or warnings
that were sent to it from the connected instrument. Some
errors have more possible meanings, according to the type of
the instrument and desired activity. The list of error messages
together with the possible explanations:
Invalid selection - incorrect combination of parameters
Too large - the value is too big
Too small - the value is too small
Too few data - too few data received
Specific error - the meaning of the error depends on the type
of the transmitter
In write protect - the transmitter is protected against entry
Access restricted - Insufficient authorisation for access
Incorrect code of range units
Not implemented - the command is not supported!
Device is busy - the instrument is busy!
Warning #8 Update failure
Set nearest value
Update in process
Error #9 Lower range value too high
Input quantity too high
Not in proper current mode
Incorrect module code
Incorrect flange type
Selected totalizer cannot be reset
Incorrect units of level height
Frequency too high
Density too high
Error #10 Lower range value too low
Input quantity too low
Multidrop not supported
Incorrect range code
Incorrect material code
Frequency too low
Density too low
Incorrect address
Incorrect body code
Incorrect volume unit
Incorrect density unit
Incorrect code of automatic temperature
compensation
Error #11 Upper range value too high
In multidrop mode
Incorrect sensor code
Incorrect sensor material code
Incorrect code
Flow too high
Access denied
Error #12 Upper range value too low
Incorrect characterisation
Incorrect number of wires
Incorrect format
Density too low
Flow too low
Incorrect unit code
Incorrect command
Error #13 Both range values out of limits
Sensor type and range not entered
Incorrect number of bytes
Incorrect code
Error #14 Span too small
Out of sensor limits - range changed
Error #15 Incorrect analogue output number code
Incorrect level value
Communication errors
Parity error - error of parity bite
Overrun error - receiving error
Frameing error - error of stop bite
Checksum error - error of control sum
Rx buffer overflow - overflow of receiving buffer
Status messages
The configurator saves up to 10 status messages send to it by
the connected instrument.
Field device malfunction
- incorrectly connected or faulty sensor

- 15 -
Field Congurators HARTConf, LHPConf for Transmiers with HART or LHP Communicaon and HART-USB Modem
Configuration changed
- some parameter was changed since last deletion of attribute
Cold start
- first command since instrument switch on
More status available
Analogue output current fixed
- forced output current does not match with measured value
Analogue output saturated
- analogous output is at the beginning or end of the range
Variable (not primary) out of limits
- the variable is out of maximum range limits
Primary variable out of limits
- the primary variable is out of maximum range limits
4.4. Operation and maintenance
In case the instrument is installed correctly, the operator
can read setting and measured values using
a communicator. He may change setting of the
instrument only if a sudden change of the output current cannot
cause any failure of the technological equipment or regulation
(switch the possible regulator to manual control)!
Attention! The internal power supply may be switched
on only if the connected instrument is not supplied from
other power source!
The instrument does not need any maintenance.
5. Product specifications
5.1 Technical specifications
Supply voltage:
battery 9 V (6LR61, 6F22) or accumulator 8.4 V
USB
Ambient temperature:
-20 to +50 °C
Housing:
IP40, connectors IP00
Humidity:
0 to 80 % r.v.
Connection of the HART cable:
BNC connector, negative pole of voltage for
a transmitter is on the connector jacket
Dimensions:
112.5 x 65 x 32 mm
Material of case:
Black ABS
Weight:
85 g without battery
Working position:
Arbitrary
HART / LHP interface
Communication protocol:
HARTConf HART, rev.5, LHP
LHPConf LHP
Transmitter supply voltage:
min. 12 VSS / 22 mA, switch-on / switch-off /
energy saving mode
USB interface
USB standard:
USB 1.1
Max. power demand from USB interface:
With transmitter supply:
140 mA
Without transmitter supply:
30 mA
Battery charging:
100 mA
5.2 Supplementary parameters
Electric strength of insulation between the HART / LHP
interface and USB interface:
1000 VAC / 1 min. (test)
Typical times of operation in different working modes:
Operated from the accumulator with permanent transmitter
supply:
2 hours
Operated from a primary battery with permanent transmitter
supply:
4 hours
Operated from the rechargeable battery without transmitter
supply:
8 hours
Operated from a primary battery without transmitter supply:
15 hours
Operated from an USB port:
unlimited
Charging time of rechargeable battery through an USB
port:
10 hours
Indication of battery charge:
Continuous, with a battery charge symbol on the
display
Indication of transmitter supplying switch on:
Symbol of a battery on the display
Electromagnetic compatibility:
Emissions and resistance acc. to EN 61326-1
(industrial environment)
6. Standards and marking
6.1 Standards
Electromagnetic compatibility:
Emission and resistance according to EN 61326-1
(industrial environment)
The transmitter is designed and made in compliance with
following standard:
EN 61010-1
6.2 Marking and type tag information
Standard verion:
HARTConf, LHPConf type number
S/No: serial number
Czech Republic country of origin
logo JSP, s.r.o.
www.jsp.cz website address

- 16 -
Field Congurators HARTConf, LHPConf for Transmiers with HART or LHP Communicaon and HART-USB Modem
7. Ordering information
7.1 Ordering table
Type Description
LHPConf Field handheld configurator for transmitters with LHP communication, function of transmitter supply
HARTConf HART-USB modem and field handheld configurator for transmitters with HART and LHP communication,
function of transmitter supply, supplied from USB or accumulator, charged from USB
Code Language
1)
CZ Czech
EN English
DE German
RU Russian
Code Optional accessories (only for HARTConf)
HARTWinConf PC configuration software HARTWinConf (CZ+EN) (WIN XP/Vista/7/8/10)
Example of order: LHPConf ED
• ... Ex stock version
1)
… The language can be changed using the HCfwUpdate software, which is freely available for download at www.jsp.cz.
•
•
•
•
•
•
•

JSP, s.r.o. | Raisova 547, 506 01 Jičín, Czech Republic
[phone] | [email protected] | www.jsp.cz
Your Supplier:
