Juice RELAY User manual

Speaker
OWNER'S MANUAL
Multi-Room
Audio
Without
Wires

NEED HELP?
CONTACTING JUICE CUSTOMER SERVICE
If you have questions, our trained Customer Service Department is happy to assist you
24 hours a day, 7 days a week, every day of the year. Contact Relay Customer Service as
follows:
• In North America dial: 1-888-229-1459
• Email Juice at www.customer [email protected]
DO NOT RETURN THIS PRODUCT TO THE STORE OR WEBSITE FROM
WHICH IT WAS PURCHASED
If you believe the product is defective, has a missing or broken part or are having
diculty with it, please contact Juice directly, 24 hours a day, 7 days a week, 365 days a
year as listed above, for a quick and ecient solution to the problem.
Legal Notices
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment o and on, the user is encouraged to try to correct the
interference by one or more of the following measures: Reorient or relocate the receiving antenna;
Increase the separation between the equipment and receiver; Connect the equipment into an
outlet on a circuit dierent from that to which the receiver is connected; Consult the dealer or an
experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
FCC ID: VII-MG8SYBKG

Important Safety Warnings
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Clean only with a dry cloth.
6. Do not use this apparatus near standing water. It complies with IP64 and can withstand
some splashing water.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including ampliers) that produce heat.
9. Do not defeat the safety purpose of the polarized or ground plug: A polarized plug has two
blades with one wider than the other. The wide blade is provided for your safety. When the
provided plug does not t into your outlet, consult an electrician for replacement of the
obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plug, convenience
receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specied by the manufacturer.
12. Unplug this apparatus during lighting storms or when unused for long periods of time.
13. Refer all servicing to qualied service personnel. Servicing is required when the apparatus
has been damaged in any way, such as power-supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or has been dropped.
14. To Reduce The Risk Of Fire Or Electric Shock, Do Not Expose This Apparatus To Extend
periods of Rain Or Moisture.
15. Apparatus shall not be submerged or dipped in water, ensure product is not used near any
source of standing water.
16. No naked ame sources, such as lighted candles, should be placed on the apparatus.
17. CAUTION: Danger of explosion if battery is incorrectly replaced. Do not replace battery, only
qualied service center.
18. Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as
sunshine, re or the like.
19. The mains plug of the power supply cord (or appliance coupler) shall remain readily operable.

CONGRATULATIONS
Congratulations on purchasing the custom congurable multi-speaker wireless system for
your home, oce or portable use. You don't need a wi router to connect multiple speakers
to your phone, tv, computer or any analog/bluetooth device. Its audiophile level sound will
add hours to your listening pleasure. When you travel you can take it with you and use it at
the beach, when you camp or in your living room. The speaker is splash-proof and meets or
exceeds IP64 testing requirments.
This document will familarize you with the product, how to set up and congure the
network and how you can add to the versatility of this system by adding Drone speakers and
Bluetooth Adapters (both are sold separately) to increase the usage of your system.
Here is what is included in the system:
What’s in the box
Control Speaker
(x1)
Drone Speaker
(x1)
(x1)
USB AUX
USB AUX
USB Power Adapter
(x2)
USB Micro Cable
(x2)
Auxilary Cable
(x2)
1

Control Speaker
Vol + increase sound level (ashes red when at max)
Vol - decrease sound level (ashes red when at min)
Single Press = unit on/o
Press and hold = link Control to Drone
Drone Speaker
Vol + increase sound level (ashes red when at max)
Vol - decrease sound level(ashes red when at min)
Single Press = unit on/o
Press and hold = link Control to Drone
LED Behavior
Vol +/- LED ON = Power on the unit
Vol +/- LED Flashes Red when Volume at Maximum or Minimum
LED OFF = unit is not linked with a Drone
LED Blinking = Drone and Control are attempting to Link
LED ON = unit is linked to at least one Drone Speaker
Connector
Cover
USB AUX
USB AUX
Control Speaker Drone Speaker
USB Mini for Charging/Power
Bluetooth Button - enables pairing
to new bluetooth
device
Auxilary Input - plug in stereo cable to
get sound directly with-
out bluetooth.
Charging LED - Color indicates Battery
Status
Note: Aux cable plugged in disables bluetooth/wireless input
USB Mini for Charging/Power
Auxilary Input - plug in stereo cable to
get sound directly with-
out wireless.
Charging LED - Color indicates Battery
Status
GETTING TO
KNOW YOUR
RELAY SPEAKER
2

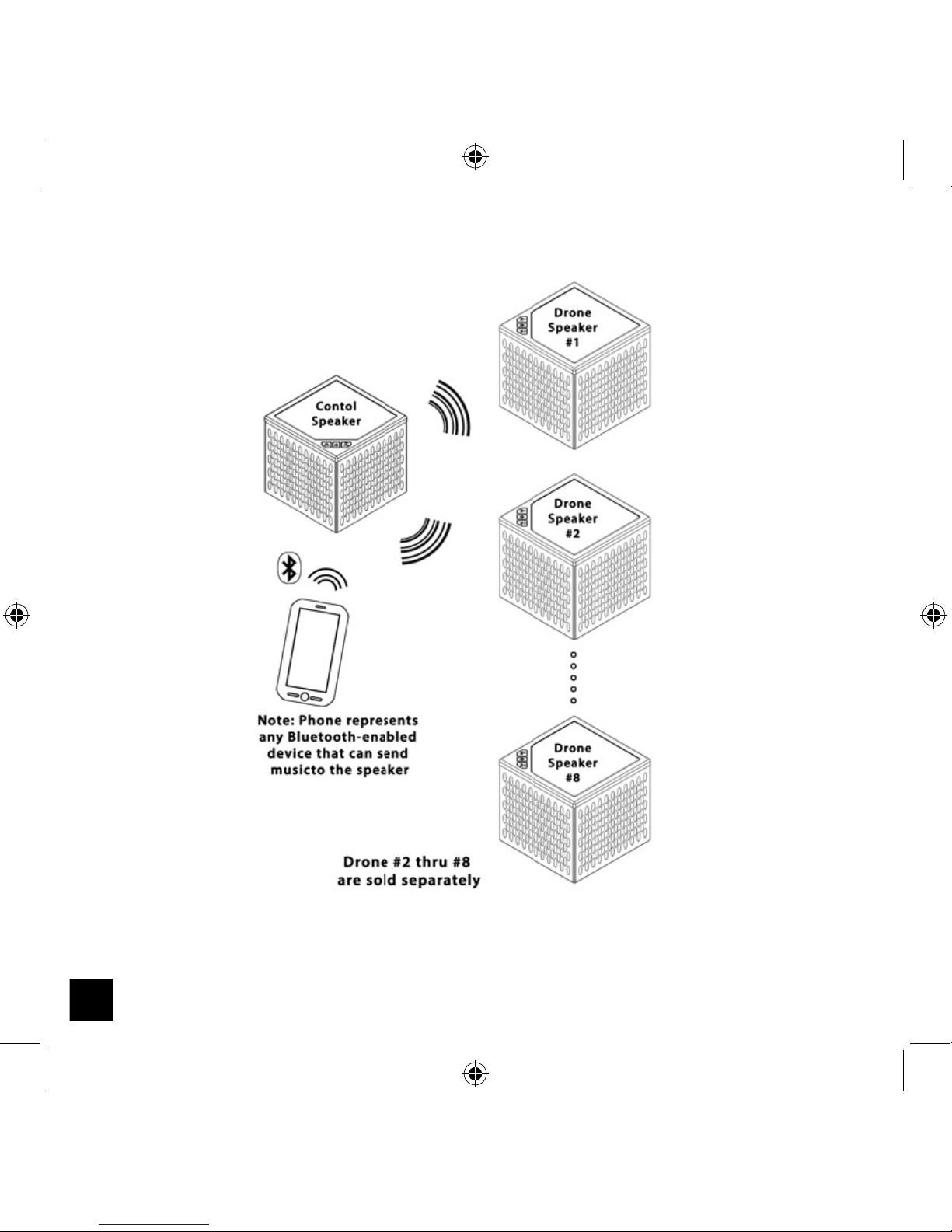

Control Speaker Connects Bluetooth to Multiple Drones
This is the typical setup for multiple speakers connected to the Control
Speaker. If there are no Drone Speakers connected the Control acts like a
single bluetooth speaker.
3

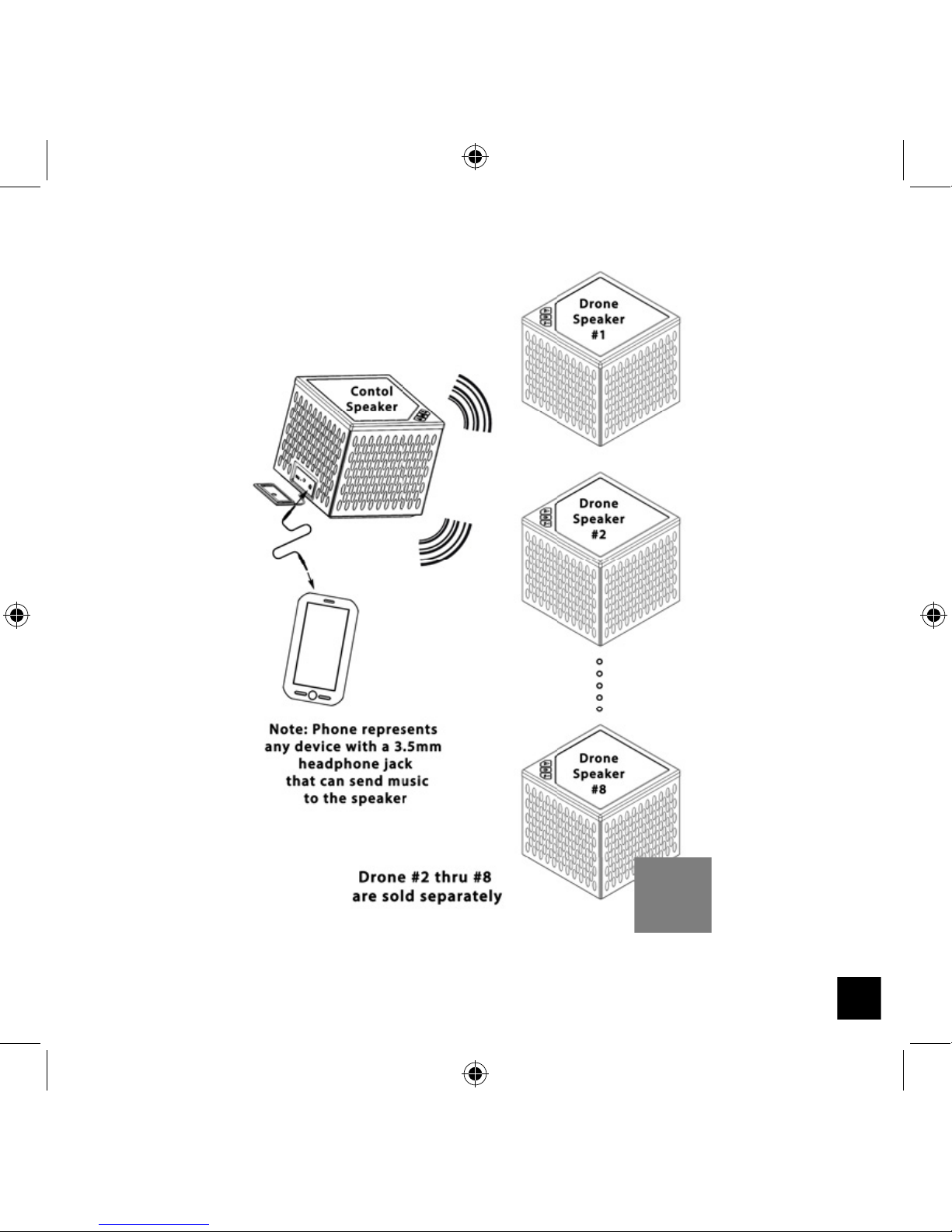

Control Speaker Connects Auxilary Input to Multiple Drones
The Control Speaker can be connected to any analog device with the 3.5mm stereo
plug cable supplied. Then the Control Speaker can link to the Drone Speaker(s).
4

Control Speaker and Drone Connected Separately
The Control speaker and Drone speaker can be connected directly to dierent
devices and work as individual portable speaker without using bluetooth or
wireless connectivity.
5

Connecting to a TV using a MG9 Bluetooth Adapter
The separately available MG9 Bluetooth Adapter can connect your TV, your older
iPod, or any analog device with 3.5 or RCA connection to your Relay Speaker. This
makes the RELAY Speaker an easy way to attach a TV and enjoy enhanced sound
6

Setup and Use of Relay Speaker System
1. Battery Charging
PLEASE CHARGE YOUR BATTERIES OR PLUG IN AND LEAVE THE DC ADAPTER
ATTACHED TO YOUR SPEAKERS UNTIL THE BATTERIES ARE FULLY CHARGED
Plug in the supplied USB to USB Micro cable to the USB Plug on each speaker in
the system. Plug the larger end of the USB plug into the DC Adapter supplied
with the unit or into your computer's USB port.
Next to the USB Micro plug on the speaker is a LED that indicates if the unit is
charging or battery is fully charged. When the LED is green the battery is fully
charged. When the LED is ashing Red the battery power has dropped to 10%
or lower and you should plug in the USB Power to continue using the speaker.
When the LED is Red the battery is being charged.
USB Power indicator:
1. Green = fully charged
2. Flashing red = battery below 10% of usage left
3. Solid red = USB is charging the battery
2. Connecting to Bluetooth Device
A. Put your phone, device or MG9 in pairing mode following that devices
owner's manual or instructions.
B. Turn the Control Speaker ON
C. Press and hold the Bluetooth pairing button on the Control Speaker
Connector Panel for 5 seconds
D. Wait for audible beep on the speaker or indication from phone that device is
paired, or until music starts playing.
NOTE: Plugging in the Auxilary cable will disable the Bluetooth input on the Control
Speaker or the wireless input on the Drone Speaker.
7
