JVC I'Art Pro AV-65WP94 User manual

For Models:
AV-65WP94
AV-56WP94
Illustration of A V-56WP94 and RM-C12G
In the spaces below, enter the model and serial number of your television (located
at the rear of the television cabinet). Staple your sales receipt or invoice to the
inside Cover of this guide. Keep this userls guide in a convenient place for future
reference. Keep the carton and original packaging for future use.
Model Number:
Serial Number: LCT1468-001B-A
1003-TNdI-IM

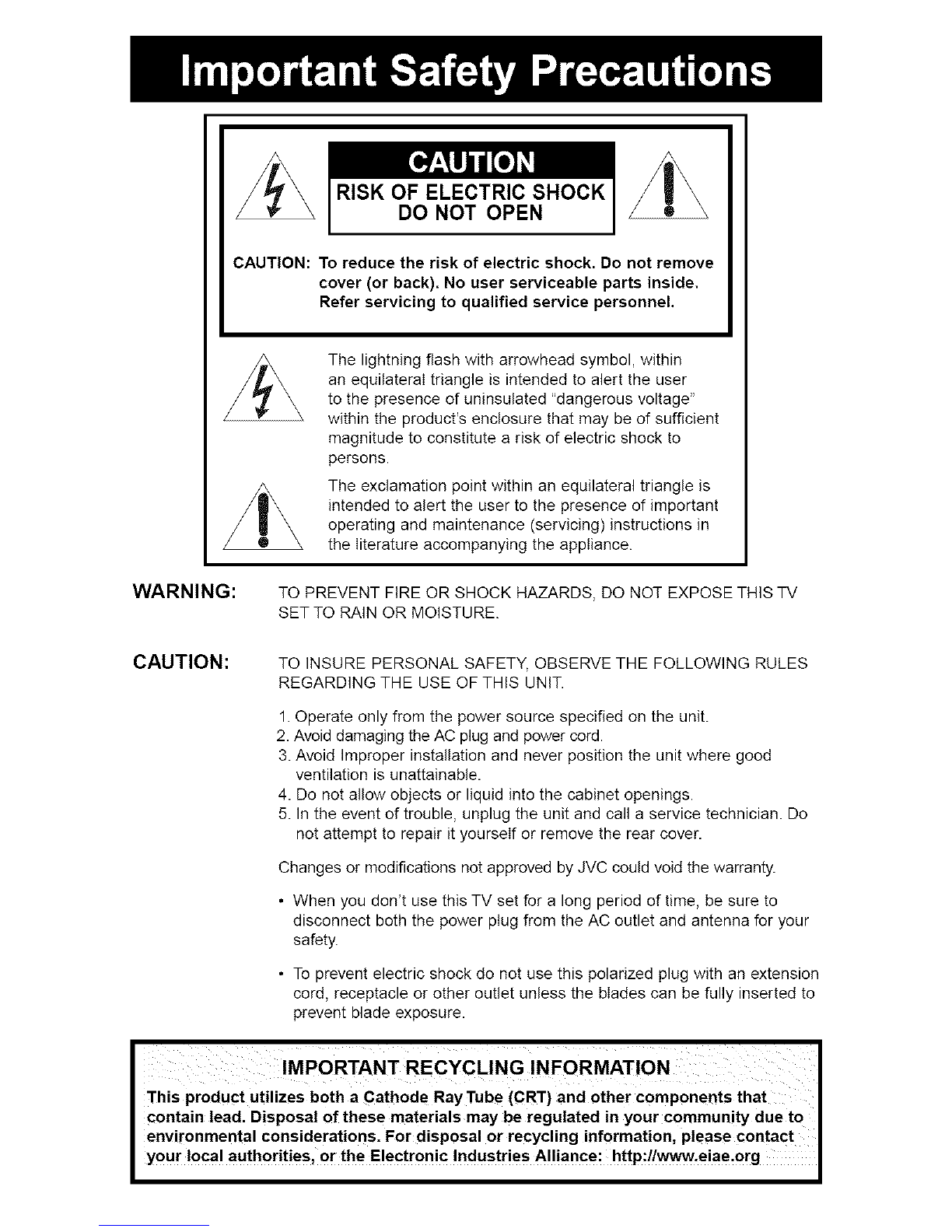

RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: To reduce the risk of electric shock. Do not remove
cover (or back). No user serviceable parts inside.
Refer servicing to qualified service personnel.
The lightning flash with arrowhead symbol, within
an equilateral triangle is intended to alert the user
to the presence of uninsulated "dangerous voltage"
within the product's enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to
persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
WARNING: TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS TV
SET TO RAIN OR MOISTURE.
CAUTION: TO INSURE PERSONAL SAFETY, OBSERVE THE FOLLOWING RULES
REGARDING THE USE OF THIS UNIT.
1.Operate only from the power source specified on the unit.
2. Avoid damaging the AC plug and power cord.
3. Avoid Improper installation and never position the unit where good
ventilation is unattainable.
4. Do not allow objects or liquid into the cabinet openings.
5. In the event of trouble, unplug the unit and call a service technician. Do
not attempt to repair it yourself or remove the rear cover.
Changes or modifications not approved by JVC could void the warranty.
• When you don_t use this TV set for a long period of time, be sure to
disconnect both the power plug from the AC outlet and antenna for your
safety.
• To prevent electric shock do not use this polarized plug with an extension
cord, receptacle or other outlet unless the blades can be fully inserted to
prevent blade exposure.
I ,.PORTANTREcYc..G,.FOR.AT,O.I
This product utilizes both a Cathode RayTube (CRT)and other components that I
contain lead. Disposal of these materials may be regulated in your community due to I
environmental considerations. For disposal or recycling information please contact I
Your !0ca I auth0rities,0r the Electronic Industries Alliance: http:!!_-eiae.0rg I
I

B
ENERGYSTAR
• As an "ENERGY STAR®'' partner,
JVC has determined that this
product or product model meets the
"ENERGY STAR®', guidelines for energy
efficiency.
CAUTION:
Please read and retain for your safety,
Electrical energy can perform many useful functions. This TV set has been engineered and
manufactured to assure your personal safety. But improper use can result in potential
electrical shock or fire hazards. In order not to defeat the safeguards incorporated in this
TV set, observe the following basic rules for its installation, use and servicing. Also follow all
warnings and instructions marked on your TV set.

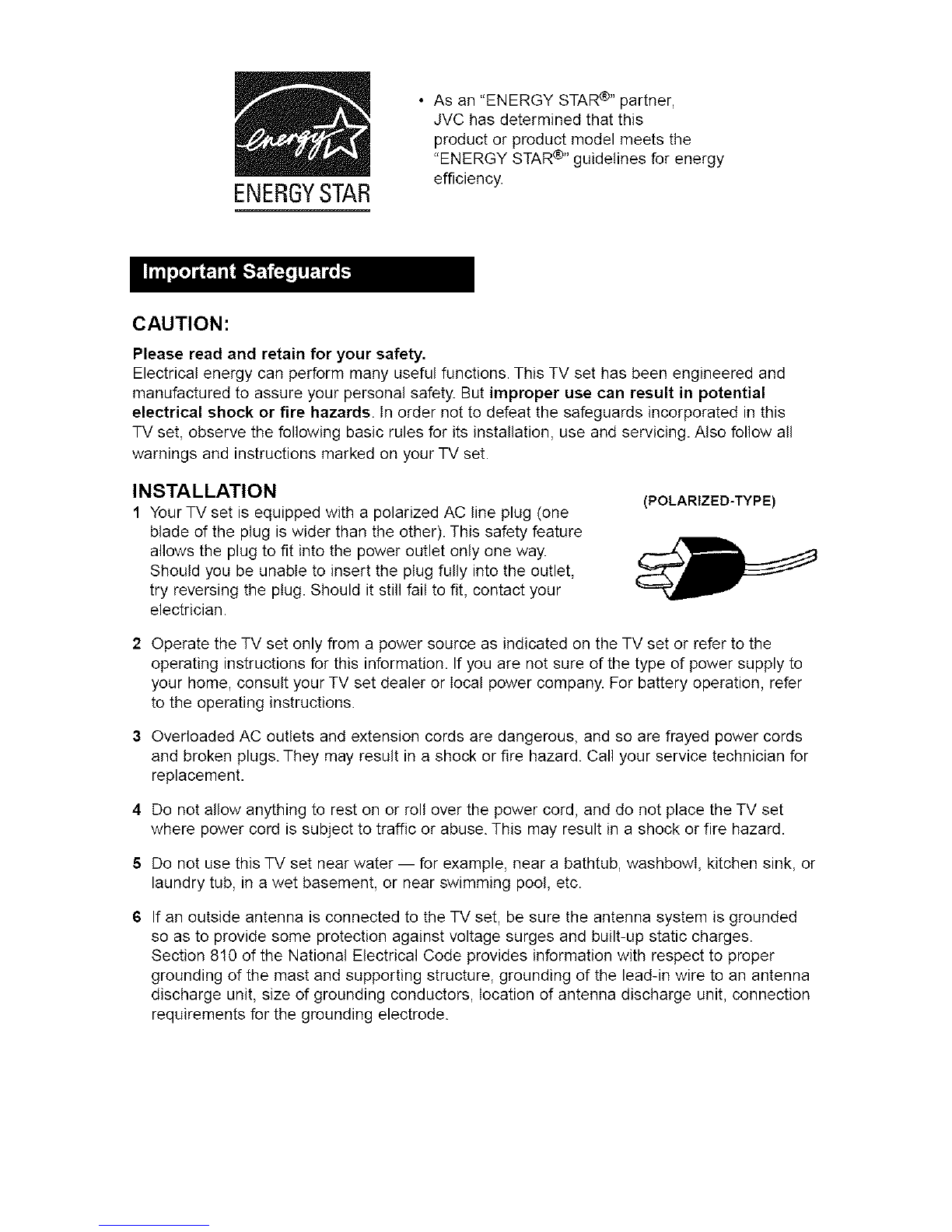

INSTALLATION
1 Your TV set is equipped with a polarized AC line plug (one
blade of the plug is wider than the other). This safety feature
allows the plug to fit into the power outlet only one way.
Should you be unable to insert the plug fully into the outlet,
try reversing the plug. Should it still fail to fit, contact your
electrician.
(POLARIZED-TYPE)
2 Operate the TV set only from a power source as indicated on the TV set or refer to the
operating instructions for this information. If you are not sure of the type of power supply to
your home, consult your TV set dealer or local power company. For battery operation, refer
to the operating instructions.
3 Overloaded AC outlets and extension cords are dangerous, and so are frayed power cords
and broken plugs. They may result in a shock or fire hazard. Call your service technician for
replacement.
4 Do not allow anything to rest on or roll over the power cord, and do not place the TV set
where power cord is subject to traffic or abuse. This may result in a shock or fire hazard.
5Do not use this TV set near water -- for example, near a bathtub, washbowl, kitchen sink, or
laundry tub, in a wet basement, or near swimming pool, etc.
6 If an outside antenna is connected to the TV set, be sure the antenna system is grounded
so as to provide some protection against voltage surges and built-up static charges.
Section 810 of the National Electrical Code provides information with respect to proper
grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna
discharge unit, size of grounding conductors, location of antenna discharge unit, connection
requirements for the grounding electrode.

7Anoutsideantennasystemshouldnotbelocatedinthevicinityofoverheadpowerlines
orotherelectriclightorpowercircuits,orwhereitcanfallintosuchpowerlinesorcircuits.
Wheninstallinganoutsideantennasystem,extremecareshouldbetakentokeepfrom
touchingsuchpowerlinesorcircuitsascontactwiththemmightbefatal.

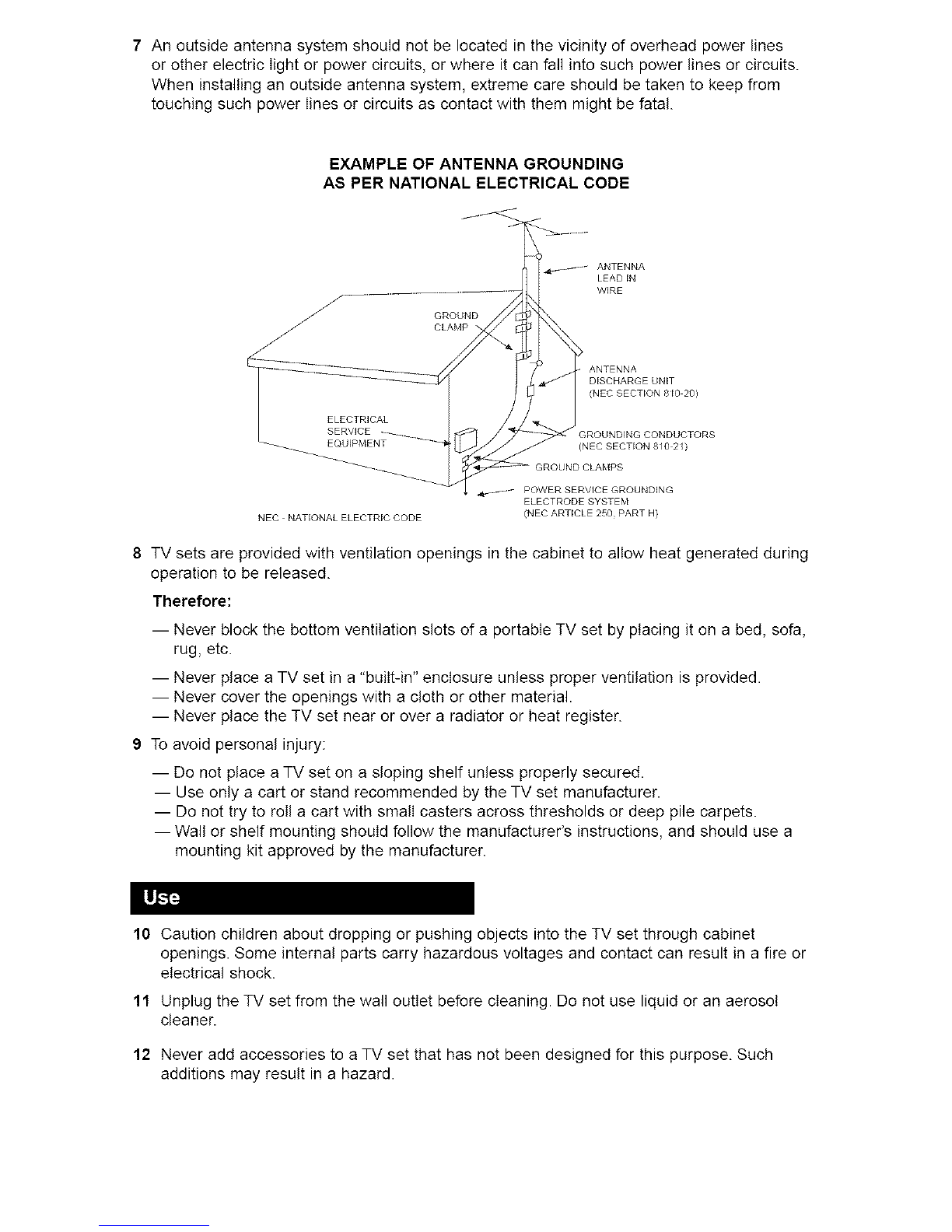

EXAMPLE OF ANTENNA GROUNDING
AS PER NATIONAL ELECTRICAL CODE
GROUND
ELECTRICAL
SERVICE
EQUIPMENT
ANTENNA
DISCHARGE UNIT
(NEC SECTEON 810 20)
(NEC SECTION 8/0 21)
NEC NATIONAL ELECTRIC CODE
_I_ _ POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ARTECLE 250 PART H)
8 TV sets are provided with ventilation openings in the cabinet to allow heat generated during
operation to be released.
Therefore:
-- Never block the bottom ventilation slots of a portable TV set by placing it on a bed, sofa,
rug, etc.
-- Never place a TV set in a "built-in" enclosure unless proper ventilation is provided.
-- Never cover the openings with a cloth or other material.
-- Never place the TV set near or over a radiator or heat register.
9 To avoid personal injury:
-- Do not place a TV set on a sloping shelf unless properly secured.
-- Use only a cart or stand recommended by the TV set manufacturer.
-- Do not try to roll a cart with small casters across thresholds or deep pile carpets.
-- Wall or shelf mounting should follow the manufactureffs instructions, and should use a
mounting kit approved by the manufacturer.
10 Caution children about dropping or pushing objects into the TV set through cabinet
openings. Some internal parts carry hazardous voltages and contact can result in a fire or
electrical shock.
11 Unplug the TV set from the wall outlet before cleaning. Do not use liquid or an aerosol
cleaner.
12 Never add accessories to a TV set that has not been designed for this purpose. Such
additions may result in a hazard.

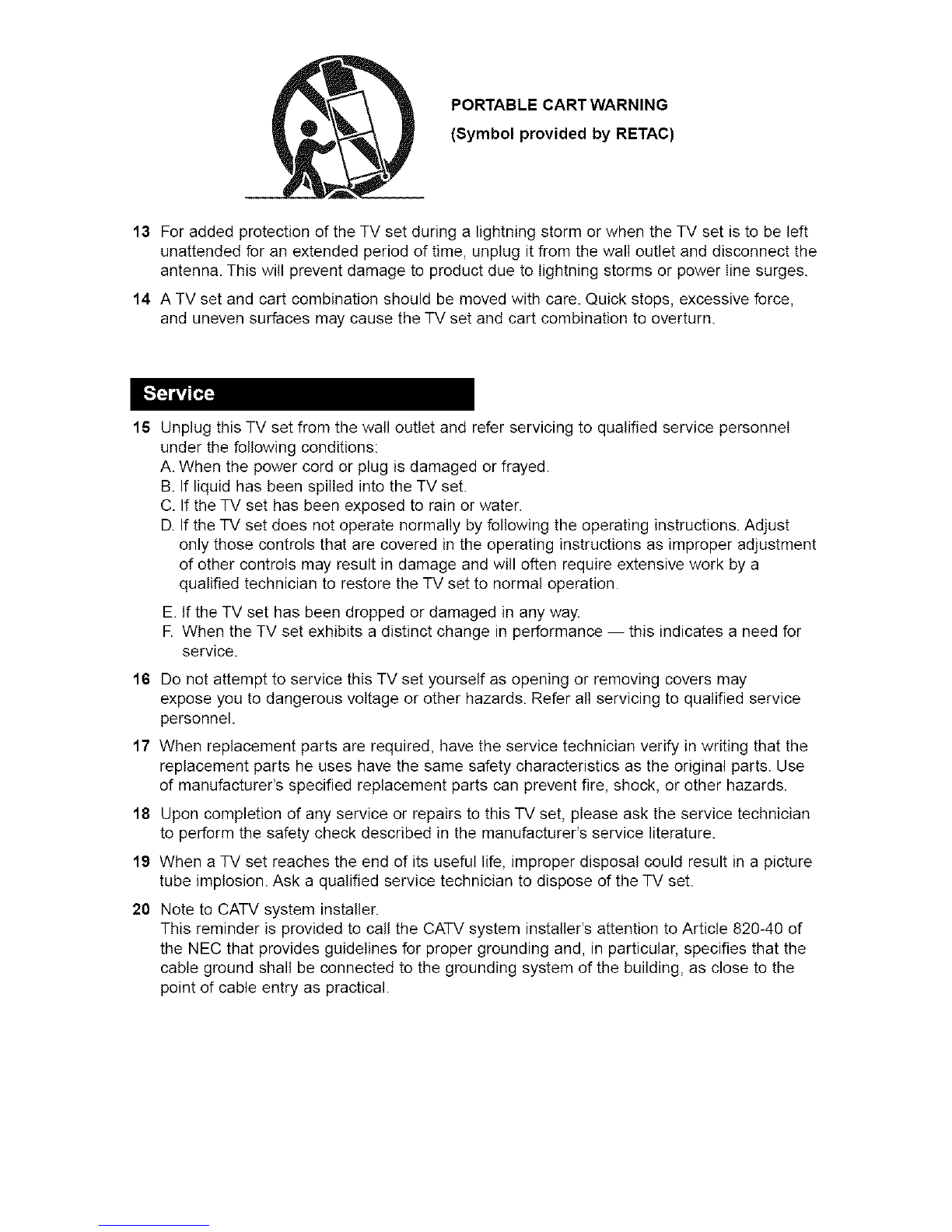

PORTABLE CART WARNING
(Symbol provided by RETAC)
13 For added protection of the TV set during a lightning storm or when the TV set is to be left
unattended for an extended period of time, unplug it from the wall outlet and disconnect the
antenna. This will prevent damage to product due to lightning storms or power line surges.
14 A TV set and cart combination should be moved with care. Quick stops, excessive force,
and uneven surfaces may cause the TV set and cart combination to overturn.
15 Unplug this TV set from the wall outlet and refer servicing to qualified service personnel
under the following conditions:
A. When the power cord or plug is damaged or frayed.
B. If liquid has been spilled into the TV set.
C. If the TV set has been exposed to rain or water.
D. If the TV set does not operate normally by following the operating instructions. Adjust
only those controls that are covered in the operating instructions as improper adjustment
of other controls may result in damage and will often require extensive work by a
qualified technician to restore the TV set to normal operation.
E. If the TV set has been dropped or damaged in any way.
R When the TV set exhibits a distinct change in performance -- this indicates a need for
service.
16 Do not attempt to service this TV set yourself as opening or removing covers may
expose you to dangerous voltage or other hazards. Refer all servicing to qualified service
personnel.
17 When replacement parts are required, have the service technician verify in writing that the
replacement parts he uses have the same safety characteristics as the original parts. Use
of manufactureCs specified replacement parts can prevent fire, shock, or other hazards.
18 Upon completion of any service or repairs to this TV set, please ask the service technician
to perform the safety check described in the manufactureCs service literature.
19 When a TV set reaches the end of its useful life, improper disposal could result in a picture
tube implosion. Ask a qualified service technician to dispose of the TV set.
20 Note to CATV system installer.
This reminder is provided to call the CATV system installer's attention to Article 820-40 of
the NEC that provides guidelines for proper grounding and, in particular, specifies that the
cable ground shall be connected to the grounding system of the building, as close to the
point of cable entry as practical.

Bydisplayingfixedimagesforextendedperiodsoftime,canleaveasubtlebutpermanentghost
imageinyourpicture.Thisisreferredtoas"burn-in".Toavoidthis,mixyourviewingpattern.
Examplesinclude,butarenotlimitedtothefollowing:
• Stock-marketreportbars
• Shoppingchannellogesandpricingdisplays
• Videogamepatternsorscoreboards
• BrightstationIogos
• Intemetwebsitesorothercomputer-style
images.
• DVDdiscs,videotapes,laserdiscs
• Broadcast,cable,satellitechannelsordigital
televisiontuners/converters.
TVon For example... TV off
Note: Warranty DOES NOT cover screen
burn-in or uneven picture tube aging.
Normally, light dusting with a soft, non-scratching duster will keep your TV clean.
If you wish to wipe down the television, first unplug it. Then wipe gently with a soft cloth, slightly
moistened with water.You can add a few drops of mild liquid detergent to the water to help
remove spots of oily dirt.
• DO NOT allow liquid to enter the TV through the ventilation slots.
• DO NOT use strong or abrasive cleaners on the TV.
• DO NOT spray liquids or cleaners directly on the TWs surface.
• DO NOT rub or scrub the TV harshly. Wipe the set gently with a soft cloth.
The screen is treated with an electrostatic-proof coating. When it gets dirty, wipe it gently with a
soft cloth. If the screen is very dirty, wipe it down with a cloth dipped in a diluted kitchen cleaner
and thoroughly wrung-out. Then wipe immediately after with a clean, dry cloth.
Do not apply alcohol, organic solvents (like acetone), acidic or alkaline cleansers to the screen.
These will remove the coating layer and cause discolorations.
Do not push or hit the screen. This could cause scratches on the screen surface and image
distortions.

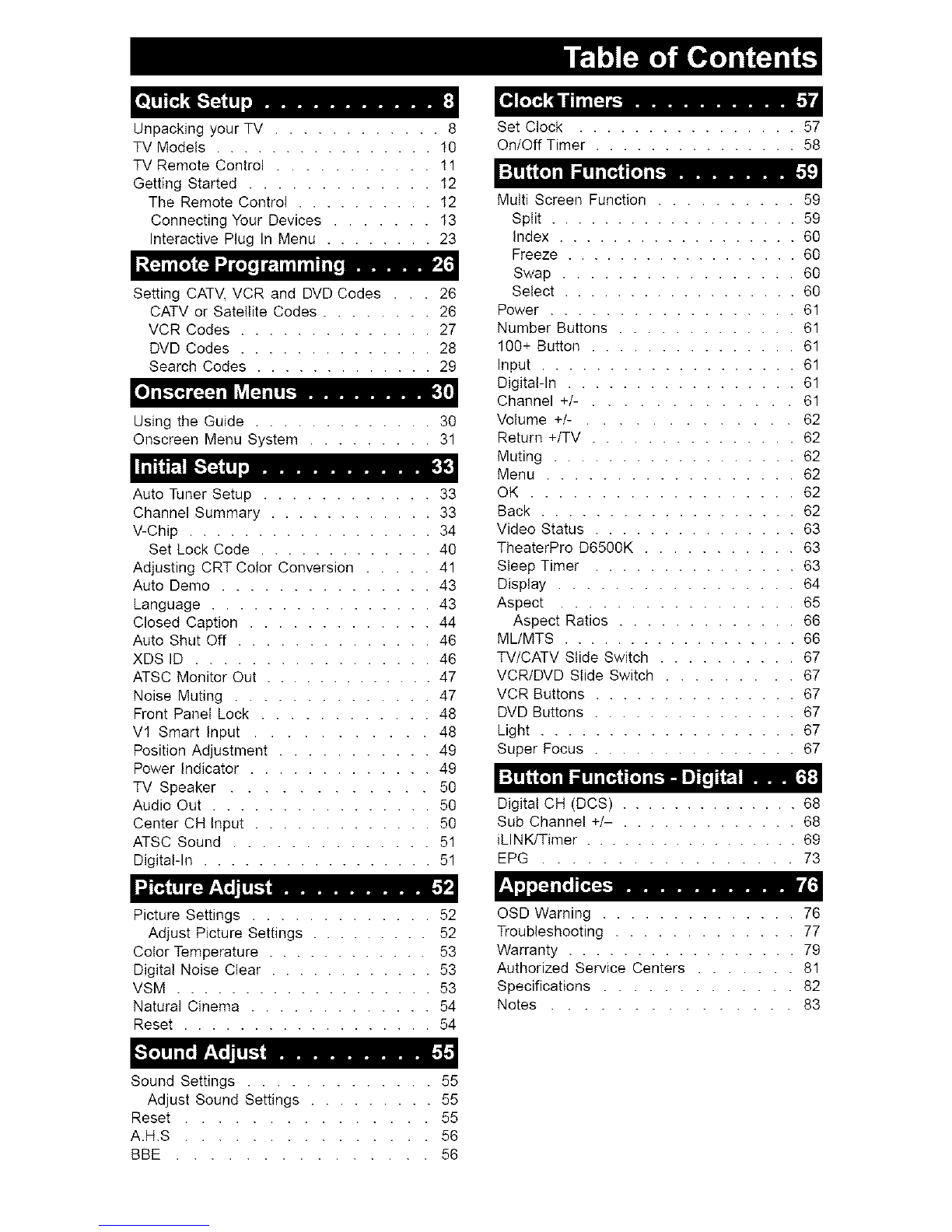

[!l_llr_ ,_!,,I,_1(! i j .............
Unpacking your TV ............ 8
TV Models ................ I0
TV Remote Control ........... I1
Getting Started ............. I2
The Remote Control .......... I2
Connecting Your Devices ....... I3
Interactive P)ug In Menu ........ 23
_,{:-] i I[o) JF_II_iI (oIi II_:-|iI]iIIIi [o,
Setting CATV, VCR and DVD Codes . .. 26
CATV or Satellite Codes ........ 26
VCR Codes .............. 27
DVD Codes .............. 28
Search Codes ............. 29
Using the Guide ............. 30
Onscreen Menu System ......... 31
r_i_il-_-,1i,,,1,_ ( ! i, ............ ]
Auto Tuner Setup ............ 33
Channel Summary ............ 33
V-Chip .................. 34
Set Lock Code ............. 40
Adjusting CRT Color Conversion ..... 41
Auto Demo ............... 43
Language ................ 43
Closed Caption ............. 44
Auto Shut Off .............. 46
XDS ID ................. 46
ATSC Monitor Out ............. 47
Noise Muting .............. 47
Front Panel Lock ............ 48
Vl Smart input ........... 48
Position Adjustment ........... 49
Power Indicator ............. 49
TV Speaker ............ 50
Audio Out ................ 50
Center CH input ............. 50
ATSC Sound .............. 51
Digital-In ................. 51
"[I]iL(o] i! ii! I i[_1 | [o] it-'ll I]_ I_-. ....
_ ej iI:.l i[i I [B{:._ ........... •
•iir_ m i[:.lI, I'; i m--t .......... 1
Picture Settings ............. 52
Adjust Picture Settings ......... 52
Color Temperature ............ 53
Digital Noise Clear ............ 53
VSM ................... 53
Natural Cinema ............. 54
Reset .................. 54
m[i,][_ | ii ii[;t i- ........... _lJ
Set Clock ................ 57
On/Off Timer ............... 58
I"(mlIiL(°]II W III1,_€[*]II_........ _'m
Multi Screen Function .......... 59
Split ................... 59
Index .................. 60
Freeze .................. 60
Swap ................. 60
Select .................. 60
Power .................. 61
Number Buttons ............. 61
100+ Button ............... 61
Input ................... 61
Digital-In ................. 61
Channel +1- ............. 61
Volume +/- . ............ 62
Return +/TV ............... 62
Muting .................. 62
Menu .................. 62
OK ................... 62
Back ................... 62
Video Status ............... 63
TheaterPro D6500K ........... 63
Sleep Timer ............... 63
Display ................. 64
Aspect ................. 65
Aspect Ratios ............. 66
ML/MTS .................. 66
TV/CATV Slide Switch .......... 67
VCR/DVD Slide Switch ......... 67
VCR Buttons ............... 67
DVD Buttons ............... 67
Light ................... 67
Super Focus ............... 67
Digital CH (DCS) .............. 68
Sub Channel +/- ............. 68
iLINK/Timer ................. 69
EPG ................. 73
OSD Warning .............. 76
Troubleshooting ............. 77
Warranty ................. 79
Authorized Service Centers ....... 81
Specifications ............. 82
Notes ............... 83
_o]! I i[i |-A_'; II! [_1 .......... I
Sound Settings ............. 55
Adjust Sound Settings ......... 55
Reset ............... 55
A.H.S ............... 56
BBE ............... 56

ThankyouforyourpurchaseofaJVCColorTelevision.Beforeyoubeginsettingupyournew
television,pleasechecktomakesureyouhaveallofthefollowingitems.Inadditiontothis
guide,yourtelevisionboxshouldinclude: TwoAA
1Television 1RemoteControl Batteries
Note: Your television
and/or remote
control may differ
from the examples
illustrated here.
once YOUhave unpacked your television, the next Step is to con0ect it to your antenna! I
cable or satellite system and to connec t the audiotvideo devices you want to use with Your I
television. To make these connections you will use plugs like the ones illustrated below. I
Used to connect an external
antenna or cable TV system to your
TV. Used to connect audio/video
devices like VCRs, DVD players,
stereo amplifiers, game consoles,
etc.
_._,viB['_'J[o,_"t__
Used to make video connections
with S-Video VCRs, Camcorders
and DVD players. (continued...)
D

_\vl_,]iai,],id!'l'71_e,_'t,-][-_
Used to connect JVC AV CompuLink
capable components for an
automated home theater. Used to connect high bandwidth
digital content protection DTV
decoders, DVD players and D-VHS
players
Used to connect an i.LINK
compatabIe device to your TV.
",-,,,,.
Used to connect an amplifer that
has an optical digital input terminal.
We recommend that before you start using your new television, you read your entire User's
Guide so you can learn about your new television's many great features. If you're anxious to
start using your television right away, a quick setup guide follows on the next few pages.
El

NOTE: Before you connect your television to another device, please refer to the proper
diagrams for your specific TV and remote. These will help assist you in understanding
how to connect your television to another device, as well as use the remote to set up
your television.
MODELS:
AV-65WP94
AV-56WP94
7_ At_IN
_VHr_UH_
® ®
iLINKIN_
S4OO_TS
k_ j
NOTE: The terminal labeled "SERVICE PORT FOR SERVICE PERSON", is only to be used
by a service person. DO NOT use this terminal.
l;R_f_I"._1;_IIm]_l_lJ_l
MODELS: AV-65WP94, AV-56WP94
El
•OPERATE•

MODELS:
AV-GSWP94
AV-56WP94
• For information on remote control buttons, see pages 59 - 73.
• The DIGITAL CH (DCS), iLINK/TIMER, SUB CHANNEL +/- and EPG buttons are for digital
channels. If your TV is connected to an ATSC antenna, you can use these buttons.
m

These quick setup pages will provide you, in three easy steps, with the basic information you
need to begin using your new television right away.
If you have questions, or for more detailed information on any of these steps, please consult
other sections of this manual.
Before you can operate your remote
control, you first need to install the
batteries (included).
Slide the cover on the back of the
remote down towards the bottom d
the remote control. Insert two batteries
(included) carefully noting the "+" and "-"
markings, placing the "-" end in the unit
first. Slide the cover back into place.
When you change the batteries, try to complete the task within three minutes. If you take
longer than three minutes, the remote control codes for your VCR, DVD, and/or cable
box/satellite receiver may have to be reset. See pages 26 -29.
Key Feature Buttons
The four key feature buttons at the center of the remote
can be used for basic operation of the television. The top
and bottom buttons will scan forward and back through the
available channels. To move rapidly through the channels
using JVC_s Hyperscan feature, press and hold CH+ or
CH-. The channels will zip by at a rate of five channels per
second. The right and left buttons will turn the volume up or
down. These buttons are also marked with four arrows and
are used with JVC_s onscreen menu system. To use the
onscreen menus, press the MENUbutton.
Et

Basic Operation
Turn the television on and off by pressing the POWERbutton at the top right corner
of the remote. If this is the first time you are turning on the TV, the interactive plug-
in menu appears.
• Make sure the TV/CATV switch is set to TV. Move the switch to CATV only if you
need to operate a cable box.
• Slide the VCR/DVD selector switch to VCR to control a VCR. Slide to
DVD to control a DVD player. Please see pages 26 to 29 for instructions on
programming your remote control to operate a cable box, VCR or DVD player.
_;TI,_; • [,_';T;t'_Rll_j i'6'J!1"lDl'_i'_',t_
Please follow the flow chart below to determine which connection setup is right for you. Then,
refer to the appropriate diagrams to connect your television to other devices that you may have.
After you are finished connecting your devices, plug the power cord into the nearest power
outlet and turn on the TV.
A VCR is not necessary for opeiation Of the television, If you follow these diagrams and the
!elev!si0n d0es n°t w0[k properly' Contact your local cab!e °pe[at°[: I
To Connect a DVD player, see Diagram #3.A DVD player is Optional
, f you have a sate te te ev s on System, p ease refer to the sate te TV manua.
Do you use a Cable TV Box? i
Do you have a VCR? i Do you have a VCR? i
Diagram #2 Diagram #1 Diagram #3 Diagram #1
m

Diagram #I Cable or Antenna
Output
Coaxial Cable _
(VHF /UHF) _ _
TV Rear Panel [ I
Cable Box
ATSC Antenna Connection Cable or Antenna
Output
TV Rear Panel
Notes:
• If you do not have a cable box, connect the cable wire from the wall outlet into the back of
the TV.
• If you want to connect both an NTSC and ATSC antenna or cable, use a two way splitter.
m

Diagram #2
TV Rear Panel
75 _)
{VHF /UHF)
vcR
Cable Box
Recording a broadcast from ATSC connection
Cable or Antenna Output
Coaxial
Cable
Two-Way
Splitter
TV Rear Panel
Notes:
• If your VCR is a mono sound unit, it will have only one audio out jack. Connect it to the
LEFT AUDIO INPUT on the front of the TV.
• Use the S-Video connection if possible for superior picture quality.
• Your VCR must be turned on to view premium cable channels.
• When you play the limited recording program or the limited copied media, ATSC OUTPUT
does not output anything.
• If you are recording an analog signal through the ATSC Monitor output, do not press the EPG
button or do not operate ATSC MONITOR OUT in the Initial Setup Menu while recording. If
you press or operate it, the picture may be blurred. Itl

Notes:
• Green, blue and red are the most common colors for DVD cables. Some models may vary
colors. Please consult the user's manual for your DVD player for more information.
• Be careful not to confuse the red DVD cable with the red audio cable. It is best to complete
one set of connections (DVD or audio output) before starting the other to avoid accidentally
switching the cables.
• You may also connect the DVD player to Input 1.
Diagram #3
Cable or Antenna Output
Two-Way
Splitter
Coaxial Cable
VCR
TV Rear Panel
AUDIO OUT
R L OUT
DVD Player (Optional)
Green
Blue
Red
III

Connecting to JVC AV Compu Link
JVC's AV CompuLink feature makes playing video tapes or DVDs totally automatic. Simply
insert a pre-recorded tape _ntoyour JVC brand VCR or DVD into your JVC DVD player and
the device will automatically turn on and beg_n playback. At the same time. using the
AV CompuLink. the VCR or DVD player sends a signal to the television telling it to turn on
and switch to the proper video input.
• The AV CompuLink cable may be included with the JVC AV CompuLink unit you
wish to connect. If it is not. contact JVC Parts Depar[ment at (800)-882-2345. or
wwwjvcservice.com for part # EWP 805-012
• AV CompuLink can only be used with JVC brand products,
AV CompuLink Cable To Connect: Plug one end of the AV CompuLink cable
into the AV COMPULINK INPUT on your VCR, DVD,
or other CompuLink device. Plug the other end of the
AV CompuLink cable into the AV COMPULINK at the
rear of the television.
Note:
• The AV CompuLink cable has a mate 3.5 mm (mono)
plug on each end.
VCR
AV CompuLink
Notes:
• In order for the VCR playback to begin automatically, the recording tabs must be removed
from the VHS tape. If the tab is in place, automatic switching will occur when you push the
VCR's PLAY button.
• If your JVC brand VCR has "A code/B code remote control switching" (see your VCR's
instruction book), using VCR A code will switch the TV to input !.
• Refer to your DVD instruction book for detailed connection information.
• To connect a JVC HiFi receiver or amplifier for a completely automated home theater, see the
receiver connection instructions for detailed connection information.
• AV CompuLink is compatible with select AV CompuLink receivers.
ID

Connecting to a Camcorder
You may connect a camcorde r, game console or other equipment to your television by using I
thefront input jack s (Input 4) located unde r the front panel d0or: To access, pul! on the door
to open it. You can a!so connect these using the televisionls rear input jacks, using the same
nstruct ons.
1) Connect a yellow composite cable from the camcorder VIDEO OUT, into the VIDEO IN on
the front of the TV, OR connect an S-Video cable from the front of the TV to the camcorder.
2) Connect a white cable from the camcorder LEFT AUDIO OUT, into the LEFT AUDIO IN on
the front of the TV.
3) Connect a red cable from the camcorder RIGHT AUDIO OUT, into the RIGHT AUDIO IN on
the front of the TV.
Note:
• If your camcorder is a mono sound model it will have only one AUDIO OUT. Connect it to the
LEFT AUDIO IN on the front of the TV.
Connecting to the Surround Ampfifier
Note: Please read the benefit of this feature on page 50.
TV Rear Panel
0BLACK
{_ RED
SPEAKER INPUT
16f_ 60W MAX
Front Front Surround
Center Speaker Out
1) Connect the black speaker cable from the TV's SPEAKER INPUT (_ terminal to the
surround amplifier's CENTER SPEAKER OUTPUT G terminal.
2) Connect the red speaker cable from the TV's SPEAKER INPUT (_terminal to the
surround amplifier's CENTER SPEAKER OUTPUT (_ terminal.
m

Connecting to an External Ampfifier
Subwoofer Out - Use a powered subwoofer with the surround feature to simulate a home
theater system. Simply connect the subwoofer to the back of the TV.
TV Rear Panel
1) Connect a white cable from the LEFT AUDIO OUTPUT on the back of the TV to the
LEFT AUDIO INPUT on the amplifier.
2) Connect a red cable from the RIGHT AUDIO OUTPUT on the back of the TV to the
RIGHT AUDIO INPUT on the amplifier.
3) Connect a black cable from the SUBWOOFER OUT on the back of the TV to
the LINE INPUT of the subwoofer.
Notes:
•Refer to your amplifier's manual for more information.
• You can use AUDIO OUTPUT for your home theater system.
Connecting to an amplifier using your optical output
You can connect an amplifier that has an optical digital input terminal by using an optical digital
cable from the optical output. The signal that is output can be PCM or Dolby Digital.
Television Rear Panel Amplifier
1) Connect the optical cable from the back of the television to the back of the amplifier.
Notes:
• This terminal can only output ATSC audio.
• In order to use the optical output connection, select PCM or Dolby Digital on ATSC SOUND
in the INITIAL SETUP MENU. See page 51.
• Refer to your owners manual on using your amplifier. m

Connecting to a Digital TV Receiver w/HDCP
By inputting a high bandwidth digital content protection high definition picture source to the
digital-in terminal of this television, high-definition pictures can be displayed on the screen in
their digital form. (This terminal is for use in the future when high bandwidth digital content
protection DTV decoders and DVD players and D-VHS are put on the market.)
DTV Decoder
Afterthe connections have been made,
tighten the screw to secure thecables.
L_
1) Connect the DTV DIGITAL RGB OUTPUT TERMINAL to the DIGITAL INPUT TERMINAL d
the television, and then tighten the 2 screws.
2) Connect the DTV decoder LEFT AUDIO OUTPUT to the DIGITAL-IN LEFT AUDIO INPUT.
3) Connect the DTV decoder RIGHT AUDIO OUTPUT to the DIGITAL-IN RIGHT AUDIO
INPUT.
• The Digital-In terminal can only be used with 1080i, 720p and 480p picture signals. Set
the DTV decode digital-out terminal output setting to 1080i, 720p or 480p. For detailed
information, refer to the DTV decoder instruction manual. If you can not display the picture
because your DTV decoder does not have a digital-out terminal output setting, use the
component video input (or the S-Video input or video input). Refer to page 14. In this case
the picture will be displayed as an analog signal.
• The digital-in terminal is not compatible with the picture signal of a personal computer.
• Use a DVI-D single link 19-pin cable (commercially available) in order to digitally connect the
television with a DTV decoder.
If 480p signals (640x480 or 720x480) are displayed on the screen, the horizontal balance may
be slightly shifted. In cases such as this, the horizontal balance can be adjusted by accessing
"DIGITAL-IN" in the INITIAL SETUP menu. (Refer to page 51 .)
m
