JVC InteriArt HV-53PRO/-A User manual

INSTRUCTIONS
REAR PROJECTION TELEVISION
HV-53PRO
Contents
Safety precautions
Cautions on screen treatment
Setting up your TV
TV buttons and functions
Remote control buttons
and functions
Using the TV's menu
Basic operation
PICTURE SETTING menu
PICTURE FEATURES menu
SOUND SETTING menu
FEATURES menu
INSTALL menu
Additional preparation
Troubleshooting
Specifications
. . . . . . . . . . . . 2
. . . 3
. . . . . . . . . . . . 4
. . . . . . . 7
. . . 8
. . . . . . . . . . . 16
. . . . . . . . . . . . . 16
. . . . 17
. . . 18
. . . . . . 20
. . . . . . . . . . . 21
. . . . . . . . . . . . . 23
. . . . . . . . . 27
. . . . . . . . . . . . . . 30
. . . . . . . . . Back cover

2
Thank you for buying this JVC colour television.
To make sure you understand how to use your new TV, please read this manual thoroughly
before you begin.
Safety precautions
WARNING:
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR
MOISTURE.
CAUTION:
TO ENSURE PERSONAL SAFETY, OBSERVE THE FOLLOWING RULES REGARDING THE
USE OF THIS TV.
1 Operate only from the power source indicated on the
rear of the TV.
2 Avoid damaging the power cord and mains plug. When
unpluging the TV, grasp the mains plug. Do not pull on
the power cord.
3 Never block or cover the ventilation openings.
Never install the TV where good ventilation is
unattainnable.
When installing this TV, leave spaces for ventilation around the TV of more than the minimum dis-
tances as shown.
4 Do not allow objects or liquid into the cabinet openings.
5 In the event of a fault, unplug the unit and call a service technician.
Do not attempt to repair it yourself or remove the rear cover.
6 If you are not going to use this TV for a long preriod of time, be sure to disconnect the AC plug from
the AC soket.
7 This TV set is mounted on casters which make it easier to move. However, when positioning or
moving the TV, observe the following cautions:
--- Do not position the TV on a slanting or unstable place.
--- Do not use excessive force, which could damage the TV, or even overterm the TV, breaking it and
possibly injuring someone.
--- To avoid overturning the TV, which could injure someone, secure it in place using the method
described next page.
--- Before moving the TV, unplug the plug from the AC socket, and be sure to disconnect ALL of the
cables connecting the TV to external device.
--- There must be at least 8 mm between the bottom of the TV and the floor.
When moving the TV, make sure that the bottom of the TV does not scrape along the floor.
In addition, be careful when moving the TV across thick carpets, bumps in the floor, or other
changes in floor level (such as at the edges of carpets). Be especially careful that the TV or the
caster wheels do not eatch on anything. If the TV falls over, the TV will break and could injure
someone.
15mm
15mm10mm
10mm

3

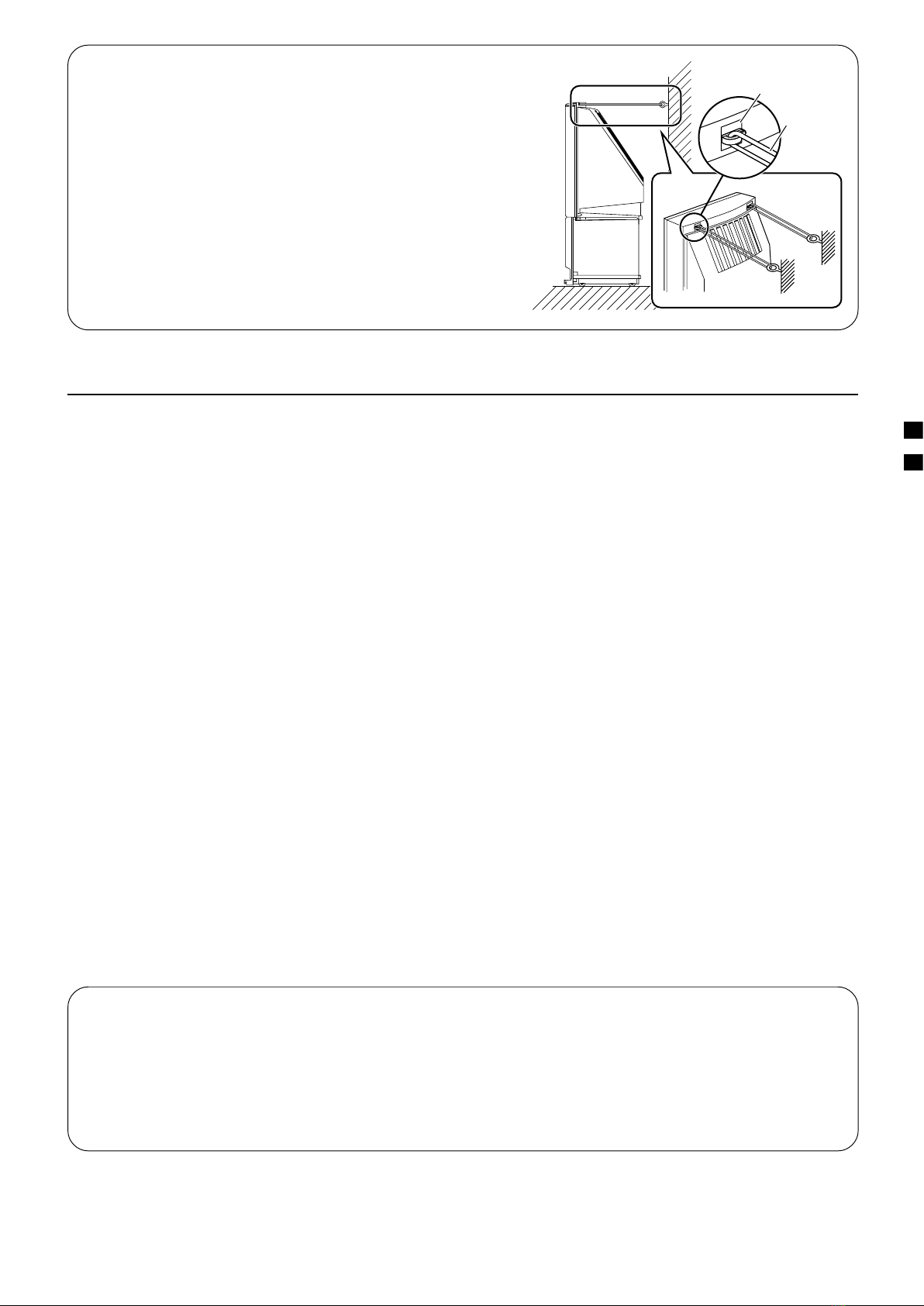

To prevent the TV from falling over:
Use the two small plastic loops on the back of the TV
set, and connect them to a wall or column using two
secure wires or strong cords.
• The wire or strong cord, and wall ring (or similar
attachment), are not supplied with this TV set. Use
commonly available items, but make sure that they are
strong.
• The thread or wire should be straight.
• Make sure that the wire or strong cords is taut and
securety attached to a wall ring (or similar attachment).
Cautions on screen treatment
Screen Burn:
Screen burn will only happen if you misuse the TV, and therefore damage from screen burn is not
covered by the warranty. Screen burn happens when images remain on the screen without moving for
an extended period of time. Screen burn can occur in any projection television made by any
manufacturer.
You may have seen screen burn on ATM bank machines. People who use “screen savers” on their
computer monitors are saving their monitors from screen burn. Especially for projection TV’s screen burn
is caused by programmes or images displayed when the TV has a high CONTRAST or BRIGHTNESS
setting.
• Do not play video games, computer programme, or similar programmes that have fixed or repetitive
images.
• Keep contrast and brightness low --- especially on teletext programmes, news programmes, business
reports, and home-shopping (or similar) programmes. To adjust contrast and brightness, see page 17.
• Do not leave fixed images on the screen for long time.
Screen Cleaning:
Your projection television screen is fragile and should be handled with exterme care, especially if you
are forced to touch the screen directly --- i.e. when cleaning it. Be careful not to scratch the screen with
jewellery or fingernails.
The following products will DAMAGE THE SCREEN. Do not use then under any circumstances.
•AMMONIA. NEVER use deterrgents that contain ammonia !
•AEROSOLS AND CHEMICALS. NEVER use aerosol or chemical cleaners !
•GLASS AND WINDOWS CLEANERS. NEVER use glass or windows cleaners !
To clean the screen:
Clean the screen
only with a solution consisting of water and mild dish detergent.
1. Add two to three drops of detergent to one quart of water.
2. Take a soft cloth (such as a cotton tee-shirt), dampen the cloth with the soapy solution, and gently
wipe the screen from top to bottom.
3. Gently wipe off any soap left on the screen.
Plastic loop
Wire or
strong
cord

4
CAUTION
•Turn off all the epuipment including the TV before
connecting anything.
1 Connecting the aerial and VCR
•Aerial cable is not supplied. Use a good quality
75-ohm coaxial cable.
•Read the manual that came with the VCR before
connecting.
If not connecting a VCR (see fig.A) :
Connect an aerial cable to the aerial socket
on this TV .
If connecting a VCR (see fig.B) :
1 Connect the aerial cable to the aerial input
socket on the VCR, and connect the VCR
and TV with another aerial cable.
2 Connect the VCR's VIDEO OUT (video
output) jack and the TV's VIDEO jack with
a video cable.
To connect a VCR to the TV with an S-VIDEO cable:
Connect the VCR's S-VIDEO OUT (S-VIDEO output)
connector and TV's S connector with an S-VIDEO
cable A, instead of connecting with a video cable.
3 Connect the VCR's VIDEO OUT (audio L/R
output) jacks and the TV's AUDIO jacks (L/
MONO and R) with an audio cable.
•If the VCR's audio output is in mono, connect the
VCR's AUDIO OUT (audio output) jack and the
TV's AUDIO L/MONO jack with an audio cable.
•You can use the AV COMPU LINK function if your
VCR has an AV COMPU LINK terminal. For details,
see “Connecting AV COMPU LINK Supported
Devices” on page 29.
2 Connecting the power cord
Connect the mains plug to the AC outlet.
3 Putting the batteries into the
Remote control
Use two AA/R6 batteries.
Insert the batteries from the end, making sure the
and polaritiles are correct.
•Follow the warnings printed on the batteries.
•If the remote control does not work properly,
replace the batteries.
•The batteries we supply are only for setting up and
testing your TV. Please replace them as soon as
necessary.
Setting up your TV
Fig.A
R
RL
L/MONO
AUDIO
AUDIO
L/MONO
RAUDIO
C
R
C Y/VIDEO
B
VIDEO
VIDEO-2
VIDEO
OVER
S
VIDEO-3/
COMPONENT
VIDEO-1
OUTPUT
AV COMPU LINK
Back of the TV
Fig.B
Back of the TV
R
RL
L/MONO
AUDIO
AUDIO
L/MONO
RAUDIO
C
R
C Y/VIDEO
B
VIDEO
VIDEO-2
VIDEO
OVER
S
VIDEO-3/
COMPONENT
VIDEO-1
OUTPUT
AV COMPU LINK
A

5
4 Making the initial settings
When the TV is first turned on, it enters the initial setting mode,
and the JVC logo is displayed.
1 Press the main power button on the TV
The TV is turned on, and the JVC logo appears.
•If the power lamp on the TV lights red and does not change
to green, your TV is in the standby mode. Press the POWER
button on the remote control to turn the TV on.
•If the JVC logo does not appear, your TV has already been
turned before. In this case,use the "LANGUAGE" and
"AUTO PROGRAM" functions to make the initial settings.
For details, see "INSTALL menu" on page 23.
2 Press the MENU/OK button
The LANGUAGE menu appears. You can choose a
language for the on-screen language.
3 Press the
/
buttons to choose ENGLISH.
Then press the MENU/OK button.
The AUTO PROGRAM function starts. The TV channels you
receive are automatically stored in the programme numbers
list.
•To cancel the AUTO PROGRAM function, press the
DISPLAY button.
4 After the TV channels have been stored in the
programme number (PR) list, the EDIT menu
appears.
•You can proceed to edit the programme numbers
list using the EDIT/MANUAL function. For details, see
"EDIT/MANUAL" on page 23.
•If a TV cannel you want to view is not stored in the
programme numbers list, you can register it using the
MANUAL function. For details, see "EDIT/MANUAL" on
page 23.
Setting up your TV
CH/CC
PR ID
AV
01
02
03
04
05
06
07
08
09
CH
CH
CH
CH
CH
CH
CC
CC
CC
21
22
23
24
25
26
01
02
03
ID
INSERT
DELETE
MANUAL
MOVE
EDIT
:EXIT
:OK
OK
TV
: ACK
DISP
: ACK
:OK
OK
DISP
CH 10
AUTO PROGRAM
20%
:EXIT
:OK
OK
TV
: ACK
DISP
C
H
A
N
N
E
L
V
O
L
U
M
E
12
ZOOM
MULTI
MUTING
NEXTPIP
POSITION
FREEZE
MENU/
OK
SWAP
SUB-P
PIP
TEXT
STROBE
DISPLAY
RETURN
TV/VIDEO
BASS
MODE
POWER
SPATIALIZER
3
456
789
0
COLOUR
SYSTEM
SOUND TV/TEXT
HOLD MODE REVEAL SIZE
SUBPAGE STORE CANCEL INDEX
Main power button
POWER lamp

6
Setting up your TV
•The AUTO PROGRAM function does not store a TV
channel to the programme number 0 (AV).
5 If you do not need to use the EDIT/
MANUAL function, press the MENU/OK
button to close the EDIT menu.

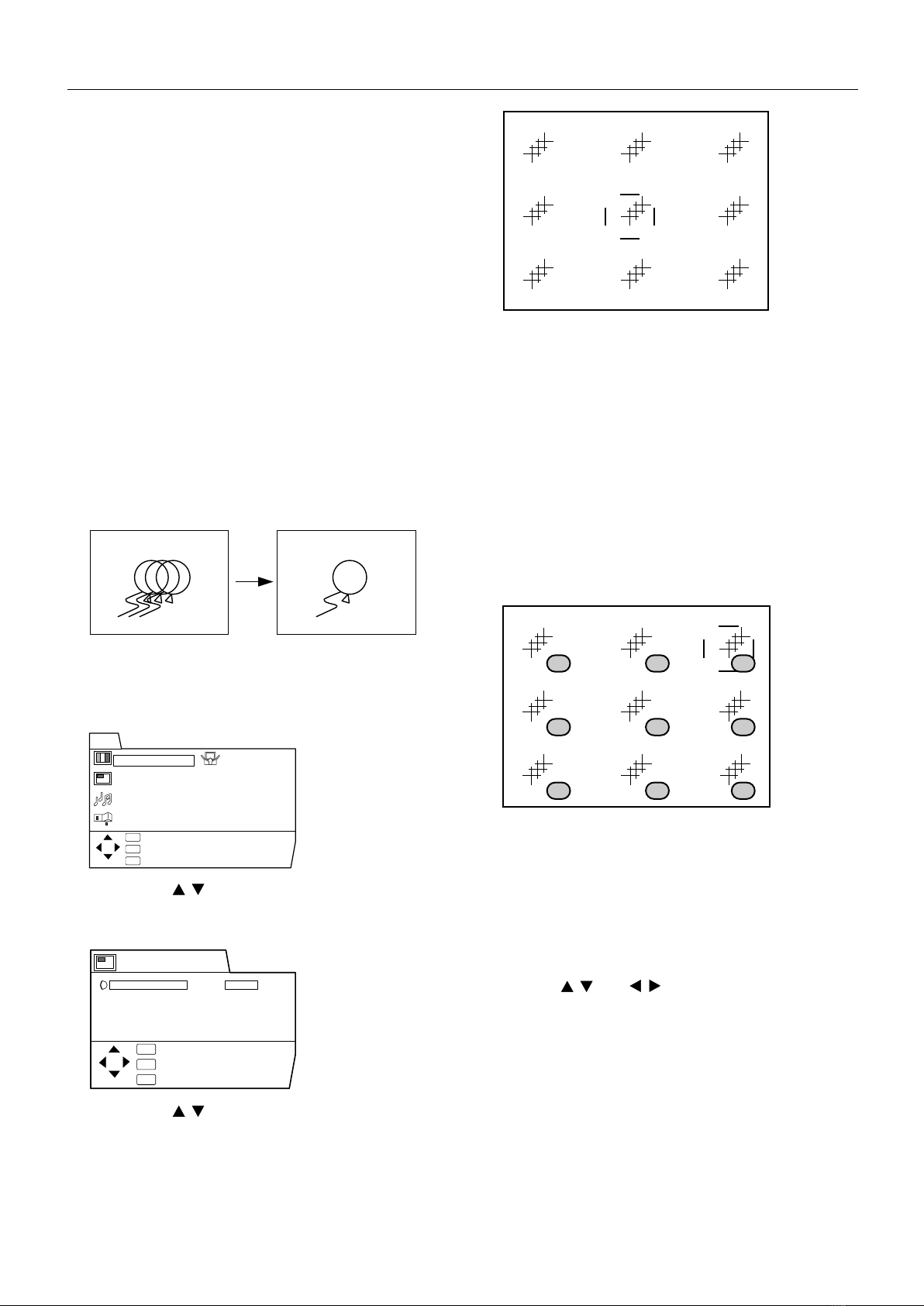

5 Adjusting CRT colour convergence
This TV has three color projection tubes : one for
red, one for green and one for blue. When mixed
together in the proper proportion, the output of
these three colour tubes can produce any colour.
To produce these colour, however, the beams must
be precisely aligned over each other so that the
colours can be mixed. The produce of aligning
these picture beams is called “convergence”.
•Colours may become saparated after the TV has
been moved, or over a long period of time if
regularly subjected to low level vibrations.If the
colours become saparated, please perform the
ajustment below again.
1 Press the MENU/OK button.
The main menu appears.
PICTURE SETTING
PICTURE FEATURES
SOUND SETTING
FEATURES
INSTALL
MENU
:EXIT
:OK
OK
TV
: ACK
DISP
2 Press the
/
buttons to choose PICTURE
FEATURES menu. Then press the MENU/
OK button.
DIGITAL VNR
DigiPure
PULL DOWN
COLOUR SYSTEM
ZOOM
DIGITAL CONVERGENCE
AUTO
AUTO
AUTO
PICTURE FEATURES
:EXIT
:OK
OK
TV
: ACK
DISP
3 Press the
/
buttons to choose DIGITAL
CONVERGENCE. Then press the MENU/
OK button.
The convergence adjustment screen
appears with crosses (+) displayed in 9 locations.
Before the convergence
is adjusted
After the convergence
is adjusted
Locations where the crosses appear in 3 colours:
Convergence adjustment is required. Perform
steps 4 and 5.
Locations where the crosses are white:
The convergence is adjusted correctly.
•If all the crosses are white, no convergence
adjustment is needed.
4 Use the number buttons on the remote
control to select the location to be
adjusted.
The locations of the crosses correspond to the
positions of the number buttons on the remote
control. A box appears around the selected cross.
1 2
4 5 6
7 8 9
3
5 Adjust the three coloured crosses until
they overlap and appears as a single
(white) cross.
1. Press the NEXT button to change the colour of the
box to the colour of the cross you want to adjust
(red or blue).
•You cannot adjust the green cross.
2. Use the
/
and
/
buttons to adjust the
position of the cross.
To cancel the adjustments before completing the
procedure:
Press the DISPLAY button.
6 Press the MENU/OK button to end the
convergence adjustment procedure.
•If you do not use the TV controls for roughly one
minute, the convergence adjustment screen
automatically disappears.
Now, the setting up is complete.
Please enjoy your new JVC TV!

7
Turn the main power on
Press the main power button 1.
The POWER lamp 2lights red and your TV is in the
standby mode.
To turn the main power off :
press the main power button again.
The POWER lamp 2goes off.
Turn the TV on from standby mode
Press the CHANNEL-/+ buttons 7.
The POWER lamp 2lights red to green and your TV
will be turned on.
•You can also turn on the TV by pressing the
TV/VIDEO button 5while it is in standby mode.
Choose a TV channel
Press the CHANNEL-/+ buttons 7.
Choose a VIDEO terminal
Press the TV/VIDEO button 5or CHANNEL
-/+ buttons 7.
Adjust the volume
Press the VOLUME-/+ buttons 4.
The volume level indicater appears.
MENU button 8
Press to open the menu.
For details, see "Operation with the buttons on the
TV" on page 16.
TV buttons and functions
SPATIALIZER lamp 3
If you set the SPATIALIZER function to MONO or
LIVE,the SPATIALIZER lamp lights.
Headphone jack 9
Connect the headphones with a stereo mini-jack
(3.5mm in diameter).
When using the headphones, follow the operation
procedure "HEADPHONE" on page 20.
VIDEO-1 terminal 0
•See page 4 and 27.
VIDEO-2 terminal -
•See page 27.
VIDEO-3/COMPONENT terminal =
•See page 22 and 27.
VIDEO-4 terminal 6
•See page 27.
OUTPUT terminal ~
•See page 27.
AV COMPU LINK terminal !
•See page 27 and 29.
Aerial socket @
Connect the aerial cable.
•See page 4.
MENU CHANNEL
S-VIDEO V L/MONO R
VOLUME YV/VIDEO
OK
EXIT
IN(VIDEO4)
(Behind the cover)
R
RL
L/MONO
AUDIO
AUDIO
L/MONO
RAUDIO
C
R
C Y/VIDEO
B
VIDEO
VIDEO-2
VIDEO
OVER
S
VIDEO-3/
COMPONENT
VIDEO-1
OUTPUT
AV COMPU LINK

8
Turn the TV on from standby mode
Press the POWER button.
The POWER lamp lights red to green and your TV will
be turned on.
•You can turn on the TV from the standby mode by
pressing the TV/VIDEO button, the CHANNEL -/+
buttons or the number buttons.
To turn the TV off:
Press the POWER button again.
The POWER lamp changes from green to red and the
TV enters standby mode.
Choose a TV channel
Choose a programme number in which a TV channel
has been set.
Press the CHANNEL-/+ buttons or enter the
programme number (PR) with the number
buttons.
•If you want to put a two-digit channel into the TV,
press the -/--button to change to the two-digit
entry system.
•You can select a channel from the PR LIST. For
details, see "DISPLAY button" on page 10.
•If you do not have a clear picture or no colour
appears, follow the operation procedure "COLOUR
SYSTEM button" on page 11.
•If you cannot hear sound normally even when the
picture appears normally, follow the operation
procedure “SOUND SYSTEM button”on page 11.
Adjust the volume
Press the VOLUME-/+ buttons.
•You cannot adjust the volume of your headphones.
Follow the operation procedure "HEADPHONE" on
page 20.
Watch images from external devices
Choose a VIDEO terminal to which the external
device has been connected.
Press the TV/VIDEO button.
•You can choose a VIDEO terminal with the
CHANNEL -/+ buttons or from the PR LIST.
To return to a TV channel:
Press the TV/VIDEO button, the CHANNEL-/+ buttons
or the number buttons.

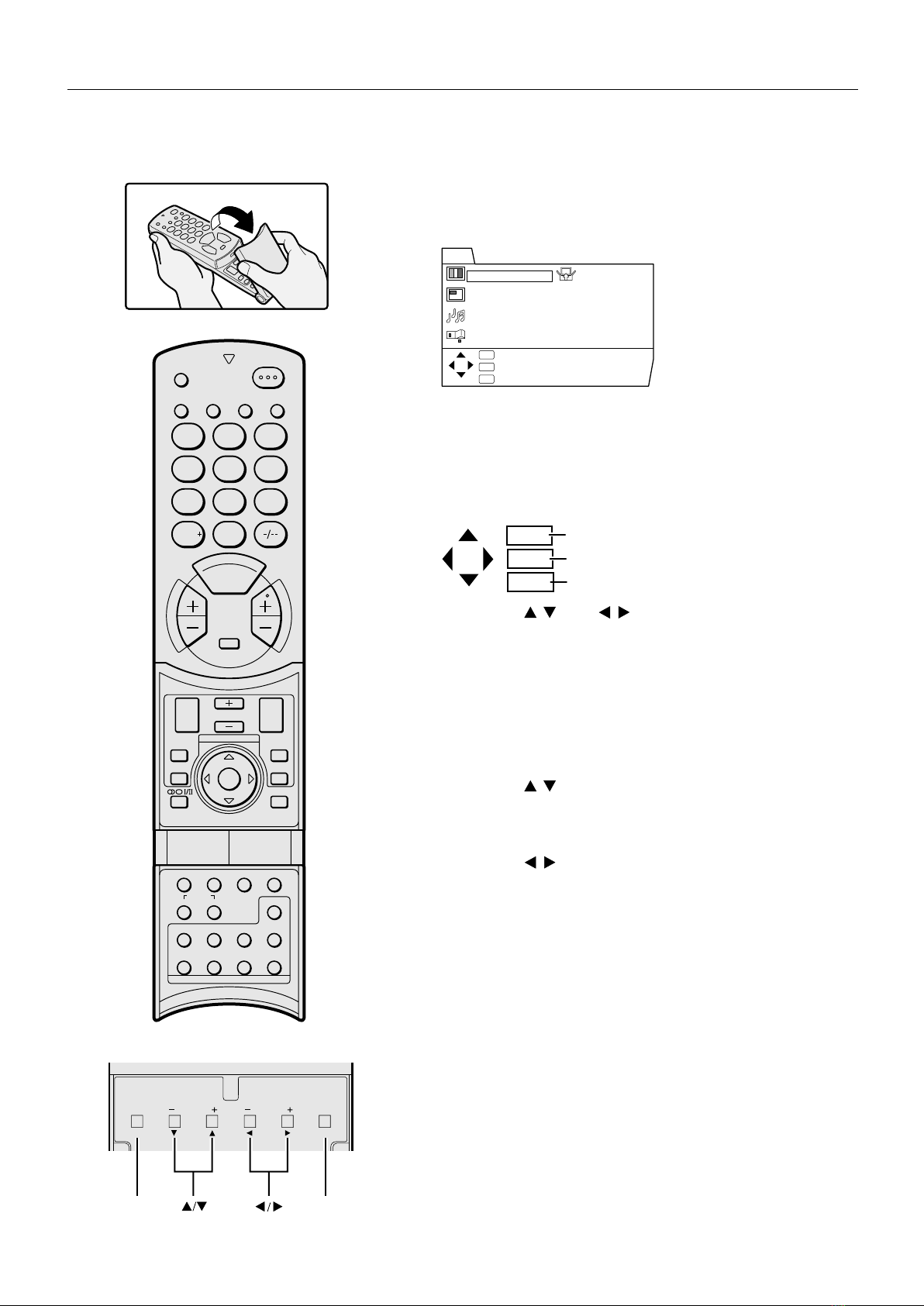

Remote control buttons and functions
C
H
A
N
N
E
L
V
O
L
U
M
E
12
ZOOM
MULTI
MUTING
NEXTPIP
POSITION
FREEZE
MENU/
OK
SWAP
SUB-P
PIP
TEXT
STROBE
DISPLAY
RETURN
TV/VIDEO
BASS
MODE
POWER
SPATIALIZER
3
456
789
0
COLOUR
SYSTEM
SOUND TV/TEXT
HOLD MODE REVEAL SIZE
SUBPAGE STORE CANCEL INDEX

9
MUTING button
Press the MUTING button to turn off the
volume. Pressing the MUTING button again
resumes the previous volume level.
•When the TV’s MUTING function is on, is
displayed on the screen. However, to prevent
screen burn-in, the mark automatically dims if no
TV operation has been performed for a period of
about one minute.

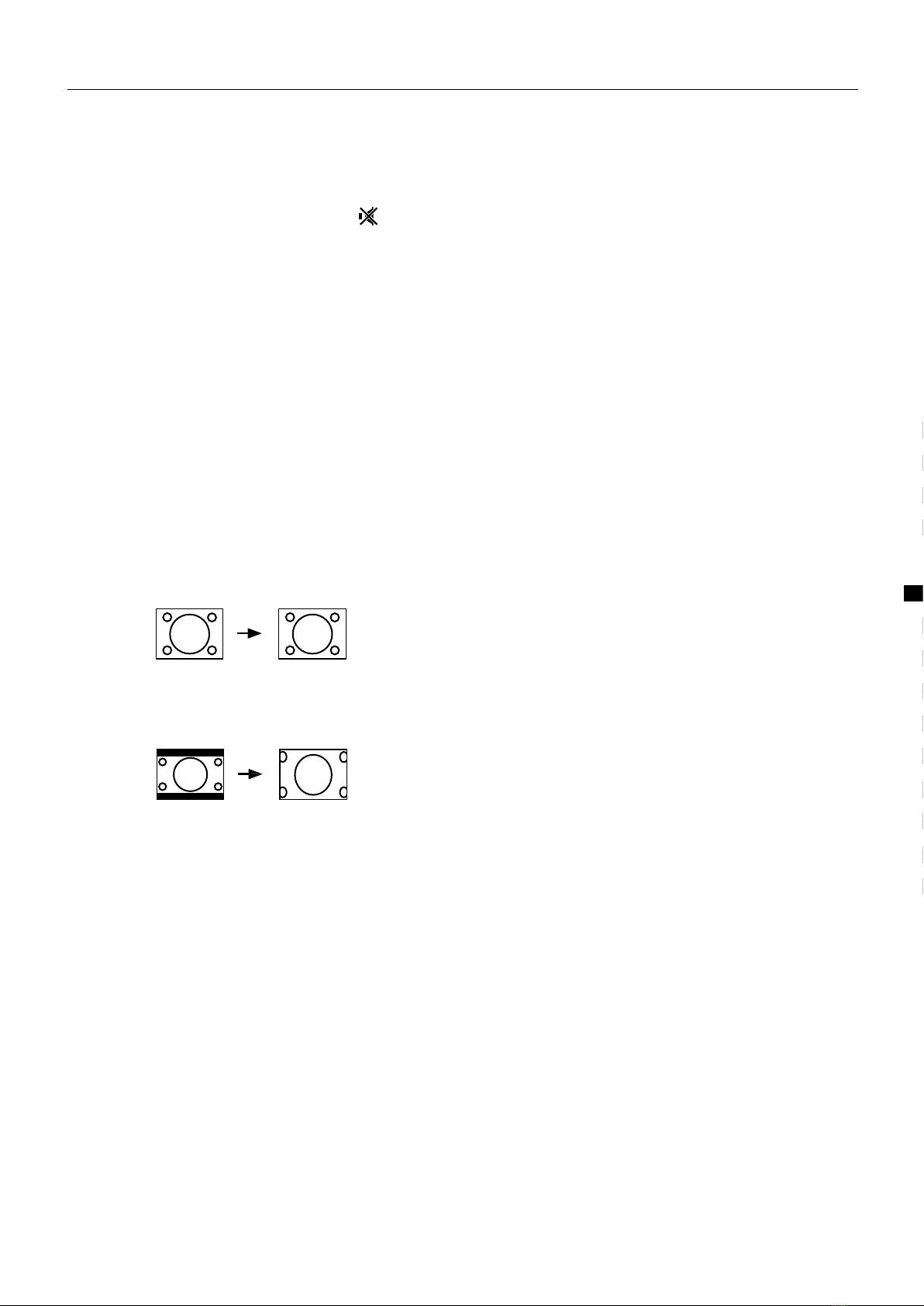

ZOOM button
You can change the screen size according to the
picture aspect ratio. Choose the optimum one from
the following ZOOM modes.
Press the ZOOM button to choose a mode.
•If you press the ZOOM button when receiving the
Progressive Video Signal (525P signal), “525P”
appears on the screen and the ZOOM function
does not operate.
REGULAR :
Use to view a normal picture (4:3 aspect ratio) as its
original size is.
ZOOM :
You can zoom up the Wide picture (16:9 aspect ratio)
to fill the TV screen.
•The left side and right side of the Wide picture
(16:9 aspect ratio) will be cut off.
SPATIALIZER button
You can enjoy Surround sound with a "live" effect by
using the SPATIALIZER function.
Press the SPATIALIZER button to choose a
mode.
LIVE :
Live allows you to enjoy normal stereo sound
converting it into surround sound with added depth
and ambience.
MONO :
Mono allows you to enjoy normal monaural sound by
converting it into a stereo-like sound.
OFF :
This function is turned off.
Remote control buttons and functions
•The LIVE mode works properly only with stereo
sound.
•The LIVE mode does not work correctly with
headphones.
•The MONO mode works properly only with
monaural sound.
The SPATIALIZER is manufactured under lisense from
Desper Products,Inc.
BASS button
You can enjoy a powerful bass sound by using the
SUPER BASS (Super Bass Reflex) function.
Press the BASS button to turn the SUPER
BASS function on or off.
ON :
This function is turned on.
OFF :
This function is turned off.
PICTURE MODE button
You can choose one of three PICTURE MODEs (three
kinds of picture setting) to adjust the picture settings
automatically.
Press the PICTURE MODE button choose a
mode.
BRIGHT :
Heightens contrast and sharpness.
STANDARD :
Standardizes picture adjustment.
SOFT :
Softens contrast and sharpness.
RETURN+ button
The RETURN+ button has two functions;
the RETURN+ function and the RETURN function. If a
channel has been registerd as the "Return Channel",
the RETURN+ function operates. If there is no setting
for the "Return Channel", the RETURN function
operates.
RETURN+ function :
By registering a channel you frequently view as the
"Return Channel", you can select that channel at any
time simply by pressing the RETURN+ button.
To register a TV channel as the "Return Channel" :
Choose the Programme number to which the channel
you want to register has been set, and press the
RETURN+ button and hold for more than 3 seconds
continuously. "RETURN PLUS PROGRAMMED!" is
displayed and the registration is completed.

10
To cancel register a TV channel as the
"Return Channel" :
while viewing any TV channel, press the RETURN+
button and hold for more than 3 seconds
continuously. "RETURN PLUS CANCELED!" is
displayed and the registration is cancelled.
•When you turn off the TV, the registration for the
"Return Channel" is cancelled.
•If you want to view the "Return Channel" and
another TV channel alternately, first choose a
channel other than the "Return Channel". and then
press the RETURN+ button to change the channel
to the "Return Channel" In this way, you can view
two channels alternately by pressing the
RETURN+ button.
RETURN function :
The TV temporarily memorises the TV channel that
was choosen right before the current TV channel as
the "Last Channel". By pressing the RETUTN+ button,
you can alternately view the current TV channel and
the "Last Channel".
•If you want to view two channels alternately by
using the RETURN function, first choose one TV
channel and then choose the other TV channel
with the Number buttons. If you choose the TV
channel without using the Number buttons, there
are cases where a channel other than the one you
first chose is registered as the "Last Channel".

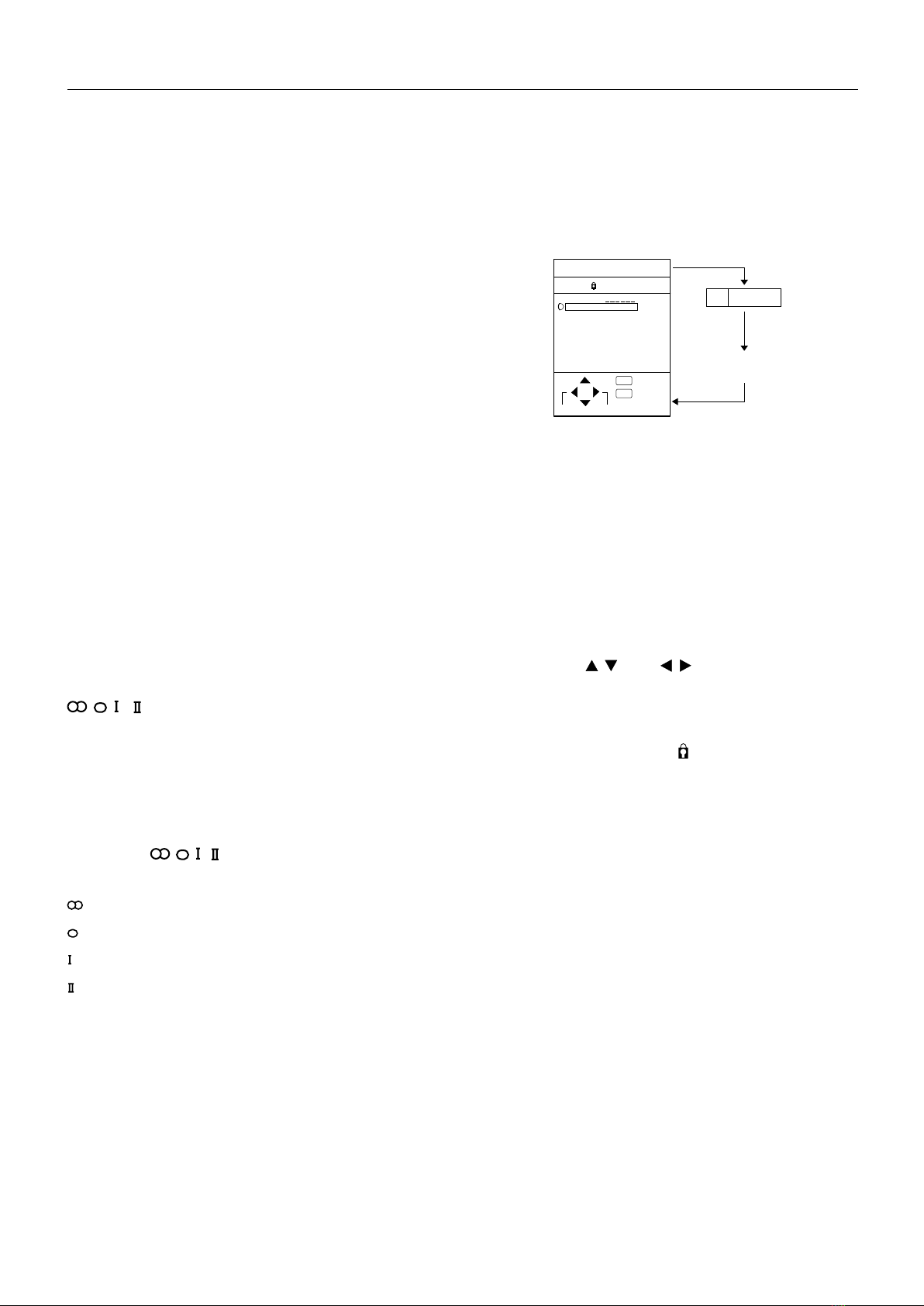

/ button
When you are viewing a bilingual broadcast
programme, you can choose the sound from Bilingual
I (Sub I) or Bilingual II (Sub II). When the stereo
broadcasting is received poorly, you can change from
stereo to mono sound so that you can hear the
broadcast more clearly and easily.
Press the / button to choose a sound
mode.
: Stereo sound
: mono sound
: Bilingual I (sub I)
: Bilingual II (sub II)
MONO : Cancels the Multi Sound function, and the
sound becomes monaural.
•The sound mode you can choose differs
depending on the TV programme.
•This function does not work in the VIDEO
modes.
Remote control buttons and functions
PR ID
AV
01
02
03
04
05
06
07
08
09
+10-10
1
PR LIST
No indication
:EXIT
:OK
OK
TV
DISPLAY button
You can display the PR LIST, programme number or
VIDEO terminal number on the screen.
Press the DISPLAY button.
Press the DISPLAY button changes the display as
follows:
•To prevent screen burn-in, the PR LIST menu
automatically disappears from the screen if no TV
operation has been performed for a period of
about one minute.
Also, the programme number and VIDEO terminal
number automatically dim.
Choose a TV channel or a VIDEO terminal
1 Press the DISPLAY button to display the
PR LIST.
2 Press the
/
and
/
buttons to choose
a programme number or VIDEO terminal.
Then press the MENU/OK button.
•For programme numbers with the CHANNEL
GUARD function set, the (CHANNEL GUARD)
mark is displayed next to the programme number
in the PR LIST.
•The VIDEO terminals are registered after the
programme number PR99.

11
Remote control buttons and functions
COLOUR SYSTEM button
The colour system is chosen automatically.
However, if the picture is not clear or no colour
appears, choose the colour system manually.
Press the COLOUR SYSTEM button to
choose the appropriate colour system.
AUTO :
This function detects a colour system from the input
signal.
•The AUTO mode may not function properly if you
have poor signal quality.
If the picture is abnormal in the AUTO mode,
choose another colour system manually.
•The AUTO mode detects a colour system from the
input signal and chooses the appropiate colour
system automatically.
•When changing the COLOUR SYSTEM of the SUB-
picture, see "Change the colour system of the
SUB-picture" on page 13 for details.
•For the colour systems in each country or region,
see the table "BROADCASTING SYSTEMS" on
page 11.
SOUND SYSTEM button
The sound system is chosen automatically.
However, if you cannot hear the sound normally even
when the picture appears normally, choose the sound
system maunually.
Press the SOUND SYSTEM button to choose
the appropriate sound system.
B/G : B/G system
I : I system
D/K : D/K system
M: M system
•This function does not work in the VIDEO mode.
•For the sound systems in each country or region,
see the table "BROADCASTING SYSTEMS" on
page 11.
Bahrain, Kuwait, Oman, Qatar,
United Arab Emirates, Yemen, etc.
Indonesia, Malaysia, Singapore,
Thailand, India, etc.
SECAM
SECAM
SECAM
NTSC
PAL
PAL
PAL
PAL
PAL
PAL
PAL
PAL
PAL
China, Vietnam, etc
Hong Kong, etc
Islamic Republic of Iran, Lebanon,
Saudi Arabia, etc.
Philippines, Taiwan, Myanmar, etc
Russia, etc
Czech Republic, Poland, etc
Republic of South Africa, etc
Nigeria, etc
Egypt, Morocco, etc
Asia,
Middle
East
Bahrain, Kuwait, Oman, Qatar,
United Arab Emirates, Yemen, etc.
Indonesia, Malaysia, Singapore,
Thailand, India, etc.
China, Vietnam, etc
Hong Kong, etc
Islamic Republic of Iran, Lebanon,
Saudi Arabia, etc.
Philippines, Taiwan, Myanmar, etc
Europe
Russia, etc
Czech Republic, Poland, etc
Oceania Australia, New Zealand, etc
Africa
Republic of South Africa, etc
Egypt, Morocco, etc
UK, etc
Germany, Holland, Belgium, etc
Nigeria, etc
SOUND SYSTEM
Area Country or Region System
COLOUR SYSTEM
Germany, Holland, Belgium, etc
UK, etc
B/G
D/K
B/G
M
B/G
I
B/G
I
B/G
D/K
I
D/K
B/G
Asia,
Middle
East
Europe
Oceania Australia, New Zealand, etc
Africa
Area Country or Region System
BROADCASTING SYSTEMS
For sound sysytem colour system in your country or
rigion, refer to the table below.

12
Remote control buttons and functions
FREEZE button
You can view the Main picture's frozen image as the
SUB-picture.
Press the FREEZE button.
To cancel the FREEZE function :
Press the FREEZE button again.
•You cannot use the FREEZE button when the SUB-
picture or the MAIN-picture are displayed on the
screen.
•If you press the FREEZE button when receiving the
Progressive Video Signal (525P signal), “525P”
appears on the screen and the FREEZE function
does not operate.
•Compared to the normal picture the two pictures
are vertically elongated.
•To prevent screen burn-in, the FREEZE function is
automatically cancelled if no TV operation has
been performed for a period of about 15 minutes.
STROBE button
You can view the MAIN-picture as 15 consecutive still
images.
Press the STROBE button.
To cancel the STROBE function:
Press the STROBE button to return to the MAIN-
picture.
•If signal level of the MAIN-picture is weak, the still
images become abnormal.
•You cannot use the STROBE button when the
SUB-picture or the MAIN-picture are displayed on
the screen.
•If you press the STROBE button when receiving
the Progressive Video Signal (525P signal), “525P”
appears on the screen and the STROBE function
does not operate.
•You cannot change the TINT setting for the still
images on the screen even if you are viewing a
programme with NTSC colour system.
•To prevent screen burn-in, the screen
automatically dims if no TV operation has been
performed for a period of about 15 minutes.
Moving
MAIN Still pictures
Using the MULTI
function
You can display multi-pictures that enable you to
easily find a program you want to view.
1 Press the MULTI button.
Press the MULTI button changes the display as
follow:
To display next Multi pictures :
Press the NEXT button.
2 Choose the desired picture with the
/
and
/
buttons, and then press the
MENU/OK button.
The screen switches to the TV channel or VIDEO
mode of your choice.
•Any programme numbers to which no TV channel
has been registered, or programme numbers to
which CHANNEL GUARD has been set is not
displayed.
•You cannot perform menu operations such as
headphone volume adjustment. Cancel the MULTI
function once to perform menu operations.
•If you press the MULTI button when receiving the
Progressive Video Signal (525P signal), “525P”
appears on the screen and the MULTI function
does not operate.
•During the short period that is required for the
Multi-pictures display to close no sound comes
from the television.
1
MAIN
Moving
Still
pictures
1
Moving
Still
pictures
5
1234
5678
910 11 12
13 14 15 16
2
3
4
5
5-pictures multi mode
16-pictures multi mode
Cancel the MULTI function

13
Remote control buttons and functions

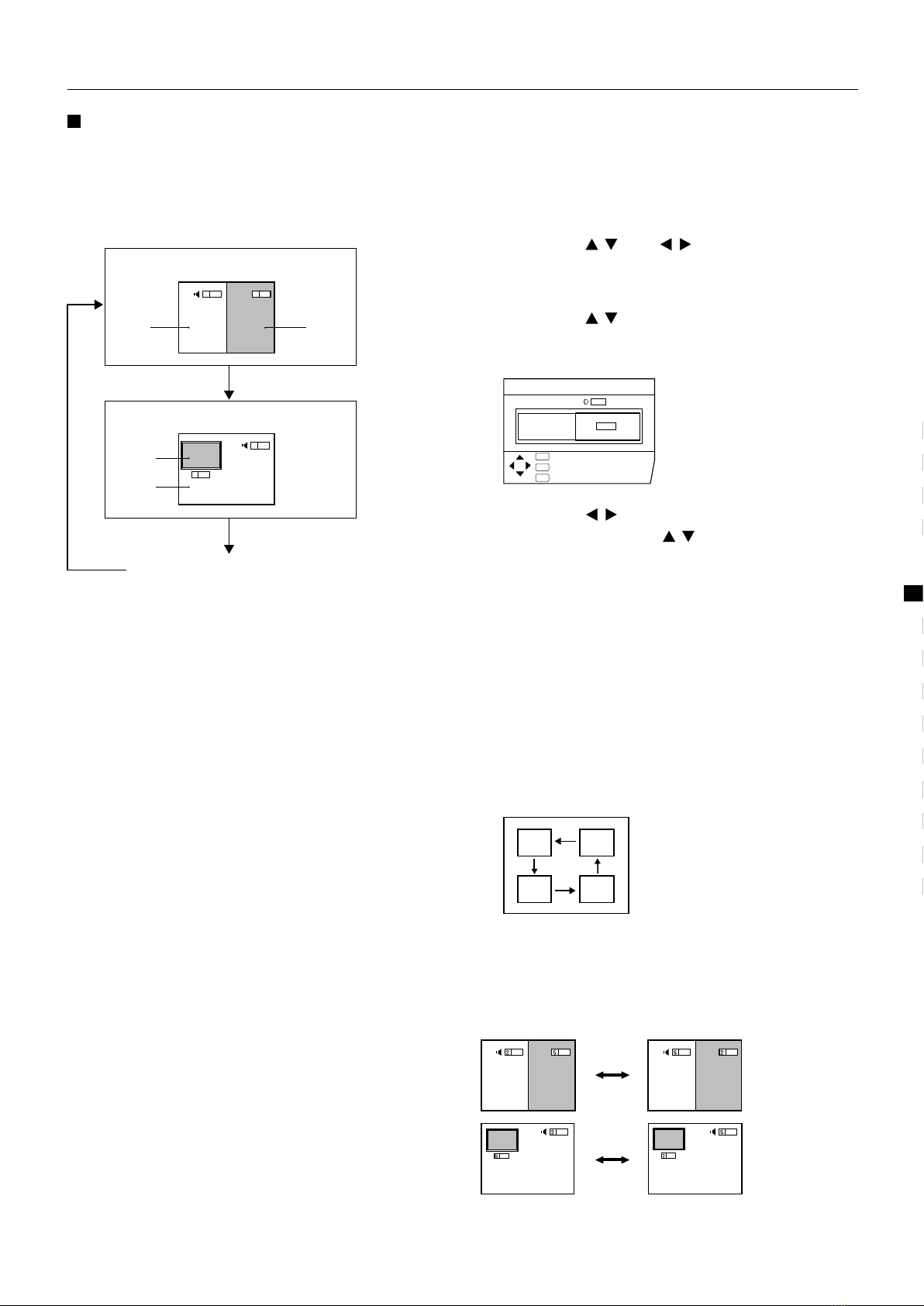

Using the PIP function
You can view two pictures (MAIN and SUB) at the
same time.
Press the PIP button.
Press the PIP button changes the display as follows:
•You cannot view a picture from the same
programme number (or the same VIDEO terminal)
as both the MAIN-picture and the SUB-picture at
the same time.
•If the MAIN-picture signal is poor, then the quality
of the SUB-picture may also be poor.
•If the picture standards of both pictures are
different, the top and bottom or one of them may
be missing.
•The ZOOM function does not operate when
viewing pictures using the PIP function.
•The SUB-picture cannot be output from TV.
•If you press the PIP button when receiving the
Progressive Video Signal (525P signal), “525P”
appears on the screen and the PIP function does
not operate.
•In Twin pictures mode, compared to the normal
picture the two pictures are vertically elongated.
Choose a TV channel for the
SUB-picture
Press the SUB-P -/+ button.
Listen to the sound of SUB-picture
You can listen to the sound of SUB-picture on your
headphones while listening to the sound of MAIN-
picture on the TV speakers. For details, see "HEAD-
PHONE" on page 20.
2 5
5
2
MAIN SUB
MAIN
SUB
Cancel the PIP function
Picture in picture mode
Twin pictures mode
Change the colour system of the
SUB-picture
1 While the SUB-picture is displayed, press
the MENU/OK button to display the MENU
(main manu).
2 Press the
/
and
/
buttons to choose
PICTURE FEATURES, and then press the
MENU/OK button.
3 Press the
/
buttons to choose COLOUR
SYSTEM, and then press the MENU/OK
button.
4 Press the
/
buttons to choose SUB,
and then press the
/
buttons to choose
the appropriate colour system. Then press
the MENU/OK button.
•You cannot change the COLOUR SYSTEM of the
SUB-picture using the COLOUR SYSTEM button
on the remote control.
POSITION button
You can adjust the position of the SUB- Picture when
using the Picture in picture mode.
Press the POSITION button repeatedly.
Each time you press the button, the SUB- Picture
moves counterclockwise.
SWAP button
You can replace the MAIN-picture and the SUB-
picture with each other.
Press the SWAP button.
•Do not press the SWAP button while you are
recording the TV output on the VCR. If you do, the
output signal will change.
COLOUR SYSTEM
NTSC 3.58
:EXIT
:OK
OK
TV
:BACK
DISP
SUB
AUTO
MAIN

14
Remote control buttons and functions

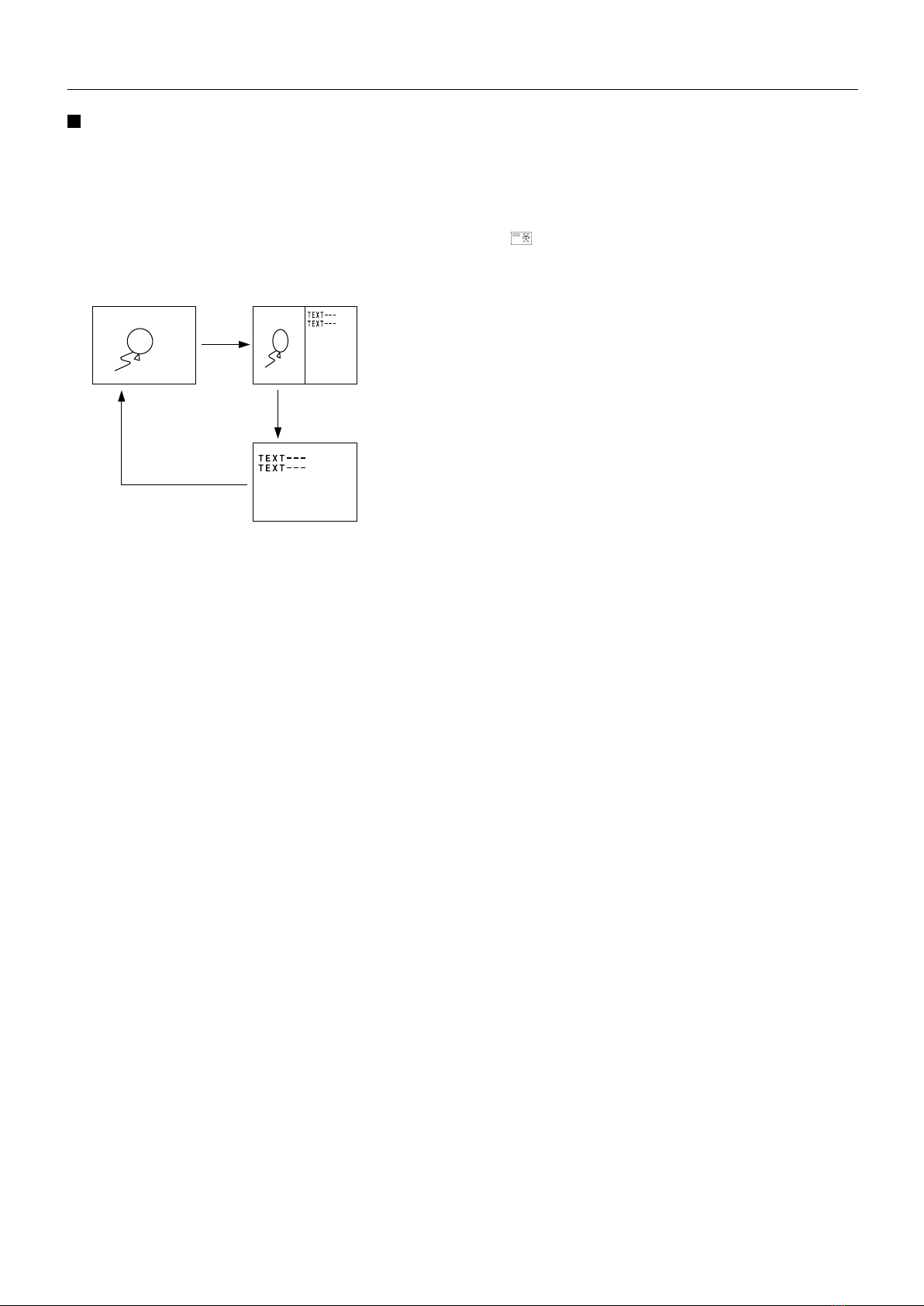

Viewing a teletext
programme
1 Choose a TV channel with a teletext
broadcast.
2 Press the TV/TEXT button.
Press the TV/TEXT button changes the mode as
follows:
3 Choose a teletext page by pressing the
CHANNEL-/+ buttons, number buttons or
coloured buttons.
To return to the TV mode:
Press the TV/TEXT button or TV/VIDEO button.
•If you have trouble receiving tetetext broadcasts,
consult your local dealer or the broadcast station.
•In the Text mode, the ZOOM mode is fixed to the
REGULAR mode.
•No menu operations are possible when viewing a
teletext programme.
•If characters on a teletext programme do not
appear properly, change the TELETEXT
LANGUAGE setting. For details, see “TELETEXT
LANGUAGE”on page 26.
•In TV and Text mode, compared to the normal
picture the two pictures are vertically elongated.
HOLD button
You can hold a teletext page on the screen for as
long as you want, even while several other teletext
pages are being received.
Press the HOLD button.
The (hold) are displayed at the top left of the
screen.
To cancel the Hold function:
Press the HOLD button again.
REVEAL button
Some teletext pages include hidden text (such as
answers to a quiz).
You can display the hidden text.
Each time you press the REVEAL button, text
is hidden or revealed.
SIZE button
You can double the height of teletext display.
Press the SIZE button.
INDEX button
You can return to the index page instantly.
Press the INDEX button.
•In the List mode, you can return to the page
number displayed in the lower left area of the
screen.
CANCEL button
You can serch for a teletext page while watching TV.
1 Press the number button to enter a page
number, or press the coloured button.
The TV searches for a teletext page.
2 Press the CANCEL button.
The TV programme appears. When the TV finds
the teletext page, its page number appears in the
upper left of the screen.
3 Press the CANCEL button to return to a
teletext page when the page number is on
the screen.
•You cannot return to the TV mode with the
CANCEL button.
TV mode TV and
Text mode
Text mode

15
Remote control buttons and functions
SUBPAGE button
Some teletext pages include sub-pages that are
automatically displayed. You can hold any sub-page,
or veiw it at any time.
1 Press the SUBPAGE button to operate the
Sub-page function.
Sub-page numbers are displayed at the left of the
screen.
Colour* Meaning of sub-page number
Yellow Currently being displayed.
White Can be displayed.
Blue or Red Cannot be displayed and it is not sent.
* : Background color of the sub-page number.
2 Press the CHANNEL-/+ buttons to choose
a sub-page number.
To cancel the Sub-page function:
Press the SUBPAGE button again.
Using the List mode
You can store the numbers of your favourite teletext
pages in memory and call them up quickly using the
coloured buttons.
To store the page numbers :
1 Press the MODE button to engage the List
mode.
The stored page numbers are displayed at the
bottom of the screen.
2 Press a coloured button to choose a
position. Then press the number buttons
to enter the page number.
3 Press and hold down the STORE button.
The four page numbers blink white to indicate that
they are stored in memory.
To call up a stored page :
1 Press the MODE button to engage the List
mode.
2 Press a coloured button to which a page
has been assigned.
To exit the List mode :
Press the MODE button again.

16
Using the TV's menu
This TV has a number of functions you can operate using menus.
To fully utilize all your TV's functions, you need to understand the basic menu operating techniques fully.
Basic operation
1 Press the MENU/OK button to display the MENU
(main menu).
•To prevent screen burn-in, the menu automatically
disappears from the screen if no TV operation has been
performed for a period of about one minute.
•The display appearing at the bottom of a menu indicates
buttons on the remote control you can use when you
operate a chosen function.
2 Press the
/
and
/
buttons to choose a menu
title, and press the MENU/OK button.
The menu appears.
To return to the previous menu:
Press the DISPLAY button.
To exit a menu instantly:
Press the TV/VIDEO button.
3 Press the
/
buttons to choose a function.
•For details of the functions in the menus, see the following
pages.
4 Press the
/
buttons to choose the setting of
that function.
•If you want to operate a function which appears only with
its name, follow the descriptions of that function on the
following pages.
5 Press the MENU/OK button to comple the setting.
The menu disappears.
•When watching the television with the NTSC system, the
menus are displayed at about half of their normal verical
size.
Operation with the buttons on the TV
You can also operate the menus using the buttons on the front
panel of the TV.
•There is no button on the front panel of the TV that has the
function of the DISPLAY or coloured buttons.
DISPLAY button
OK
TV
DISP.
TV/VIDEO button
MENU/OK button
C
H
A
N
N
E
L
V
O
L
U
M
E
12
ZOOM
MULTI
MUTING
NEXTPIP
POSITION
FREEZE
MENU/
OK
SWAP
SUB-P
PIP
TEXT
STROBE
DISPLAY
RETURN
TV/VIDEO
BASS
MODE
POWER
SPATIALIZER
3
456
789
0
COLOUR
SYSTEM
SOUND TV/TEXT
HOLD MODE REVEAL SIZE
SUBPAGE STORE CANCEL INDEX
PICTURE SETTING
PICTURE FEATURES
SOUND SETTING
FEATURES
INSTALL
MENU
:EXIT
:OK
OK
TV
:BACK
DISP
MENU CHANNEL VOLUME YV/VIDEO
OK EXIT
(Behind the cover)
OK
button
TV/VIDEO
buttonbutton button

17
Using the TV's menu
PICTURE MODE
You can choose one of three
PICTURE MODEs to adjust the
picture settings automatically.
BRIGHT:
Heightens contrast and sharp-
ness.
STANDARD:
Standardizes picture adjustment.
SOFT:
Softens contrast and sharpness.
•You can also operate the
PICTURE MODE function with
the PICTURE MODE button on
the remote control. For details,
see "PICTURE MODE button"
on page 9.
Adjusting the
You can change the picture
settings of each picture mode as
you like. The picture settings
changed are stored in the picture
mode.
CONTRAST
You can adjust the picture con-
trast.
: lower
: higer
BRIGHT
You can adjust the picture
brighetness.
: darker
: brighter
PICTURE MODE
CONTRAST
BRIGHT
SHARP
COLOUR
TINT
WHITE BALANCE
STANDARD
MID
PICTURE SETTING
RESET
:EXIT
:OK
OK
TV
:BACK
DISP
SHARP
You can adjust the picture sharp-
ness.
: softer
: sharper
•You cannot select the SHARP
function when receiving the
Progressive Video Signal
(525P signal).
COLOUR
You can adjust the picture colour.
: lighter
: deeper
TINT
You can adjust the picture tint.
: reddish
: greenish
•You can change the TINT
setting (picture tint) only when
the colour system is NTSC
3.58 or NTSC 4.43.
•You cannot select the TINT
function when receiving the
Progressive Video Signal
(525P signal).
To return to the default settings
in each PICTURE MODE :
Press the blue button. Returns the
picture settings in the currently
chosen PICTURE MODE mode to
the default settings, and stores
them in the PICTURE MODE
again.
WHITE BALANCE
You can select one of three
WHITE BALANCE modes (three
tones of white) to adjust the white
balance of the picture. Since
white is the colour which is used
as a refernce for all the other
colours, changing the WHITE
BALANCE mode affects the
appearance of all the other
colours on the screen.
COOL:
A bluish white. Using this mode
when watching bright pictures
allows you to enjoy a more vivid
and bright picture.
MID:
The normal white colour.
WARM:
A reddish white. Using this mode
when watching films allows you to
enjoy colours that are characteris-
tic of films.
•You cannot select the WHITE
BALANCE function in the Twin
pictures mode.
PICTURE SETTING menu

18
Using the TV's menu
DIGITAL VNR
The DIGITAL VNR function cuts
down the amount of noise in the
original picture.
•You cannot select the DIGITAL
VNR function when receiving
the Progressive Video Signal
(525P signal).
AUTO:
The TV will be automatically
adjust the level of the DIGITAL
VNR effect to match the amount of
noise in the picture, giving you the
best possible picture.
•If you set the DIGITAL VNR
effect too high it can make the
picture less sharp.
It is recommended to use the
AUTO setting if you can.
MAX:
The level of the DIGITAL VNR
effect is set to the maximum. If
you set the DIGITAL VNR function
to AUTO but still notice some
noise, change the setting from
AUTO to MAX.
•The MAX setting is not suitable
for high-quality pictures which
contain a lot of noise.
MIN:
The level of the DIGITAL VNR
effect is set to the minimum. If you
set the DIGITAL VNR function to
AUTO but feel that the sharpness
of the original picture has not
been reproduced fully, change
the setting from AUTO to MIN.
•The MIN setting is not suitable
for low-quality pictures which
contain a lot of noise.
DIGITAL VNR
DigiPure
PULL DOWN
COLOUR SYSTEM
ZOOM
DIGITAL CONVERGENCE
AUTO
AUTO
AUTO
PICTURE FEATURES
:EXIT
:OK
OK
TV
:BACK
DISP
DigiPure
The Digipure function uses the
latest in digital technology to give
you a natural looking picture. The
Digipure function includes the
following two functions.
Digipure function:
This function helps to create a
natural looking picture by elimi-
nating unnecessary edges from
high-contrast and crisp images.
Conversely, for images with low-
contrast, edges are added to
produce a sharper, more detailed
picture.
You can choose from the DigiPure
function settings of AUTO,MIN
and MAX.
Picture motion
compensation function:
This function displays fast-moving
pictures (for example, the players
or ball in a football game) more
smoothly and naturally on the
screen.
•You cannot select the Digipure
function when receiving the
Progressive Video Signal
(525P signal).
AUTO:
The TV will automatically adjust
the level of the DigiPure effect to
match the amount of noise in the
picture, giving the best possible
picture.
•If you set the DigiPure effect
too high on a low-quality
picture that contains a lot of
noise, this may actually make
the noise worse. It is
recommended to use the
AUTO setting if you can.
MAX:
The level of the DigiPure effect is
set to the maximum. If you set the
DigiPure function to AUTO but
feel that the original picture
quality has not been reproduced
fully, change the setting from
AUTO to MAX.
•The MAX setting is not suitable
for low-quality pictures which
contain a lot of noise.
MIN:
The level of the DigiPure effect is
set to the minimun. When you set
the DigiPure function to AUTO
and notice some noise, change
the setting from AUTO to MIN.
•The MIN setting is not suitable
for high-quality pictures which
contain very little noise.
OFF:
The DigiPure function is turned
off.
PULL DOWN
The PULL DOWN function dis-
plays a cinema film picture more
smoothly and naturally on the
screen.
AUTO:
This function is turned on. Nor-
mally keep this function set to
AUTO.
OFF:
This function is turned off.
•The motion may appear
unnatural when viewing
images with the NTSC colour
system. To make the motion
smoother, switch the PULL
DOWN function from AUTO to
OFF.
•You cannot select this function
in the Twin pictures mode or
the Picture in picture mode.
PICTURE FEATURES menu

19
Using the TV's menu
COLOUR SYSTEM
The colour system is chosen
automatically. However, if the
picture is not clear or no colour
appears, choose the colour
system manually.
1 Choose COLOUR SYS-
TEM, then press the
MENU/OK button.
2 Press the
/
buttons to
choose the appropriate
colour system. Then press
the MENU/OK button.
•When changing to the
COLOUR SYSTEM of the SUB-
picture, see "Change the
colour system of the SUB-
picture" on page 13 for details.
•You can also operate the
COLOUR SYSTEM function
with the COLOUR SYSTEM
button on the remote control.
For details, see "COLOUR
SYSTEM button" on page 11.
ZOOM
You can change the screen size
according to the picture aspect
ratio. Choose the optimum one of
two ZOOM modes.
1 Choose ZOOM, then
press the MENU/OK
button.
COLOUR SYSTEM
PAL
:EXIT
:OK
OK
TV
:BACK
DISP
ZOOM
REGULAR
ZOOM
:EXIT
:OK
OK
TV
:BACK
DISP
2 Press the
/
buttons to
choose a ZOOM mode.
Then press the MENU/OK
button.
The picture expands and the
chosen ZOOM mode is dis-
played in about 5 seconds.
•You can choose a ZOOM
mode from REGULAR or
ZOOM modes. For details, see
"ZOOM button" on page 9.
•You cannot select the ZOOM
function when receiving the
Progressive Video Signal
(525P signal).
DIGITAL
CONVERGENCE
If red, green, and blue shadows
appear around the contours of the
image on the screen it is neces-
sary to adjust CRT colour conver-
gence. For details, refer to “Adjust-
ing CRT colour convergence”on
Page 6.

20

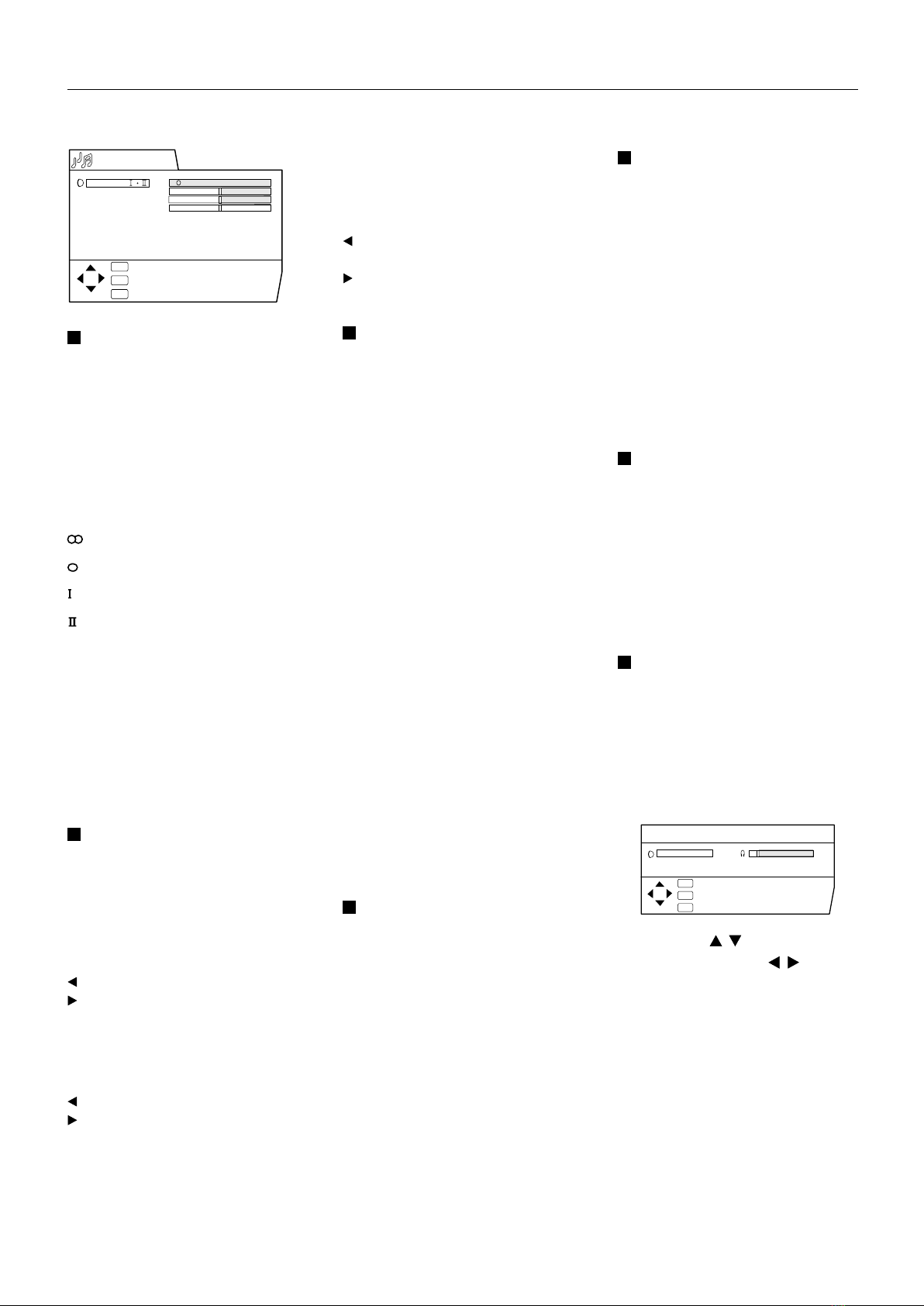

Using the TV's menu
STEREO / I•II
When you are viewing a bilingual
broadcast programme, you can
choose the sound from Bilingual I
(sub I) or Bilingual II (sub II).
When the stereo broadcasting is
received poorly, you can change
from stereo to mono sound so that
you can hear the broadcast more
clearly and easily.
: Stereo sound
: mono sound
: Bilingual I (sub I)
: Bilingual II (sub II)
MONO: Cancels the Multi Sound
function, and the sound
becomes monaural.
•The sound mode you can
choose differs depending on
the TV programme.
•This function does not work in
the VIDEO modes.
Adjusting the sound
You can adjust the sound to your
liking.
BASS
You can adjust the low tone of the
sound.
: weaker
: stronger
TREBLE
You can adjust the high tone of
the sound.
: weaker
: stronger
BALANCE
You can adjust the volume bal-
ance between the left and right
speakers.
: turn the left speaker's volume
level up.
: turn the right speaker's volume
level up.
AI VOLUME
You can prevent the sudden
increase or decrease of sound
that occurs when changing the
channel to another channel or
switching the VIDEO mode to
another VIDEO mode.
ON :
This function is turned on.
OFF :
This function is turned off.
•The AI VOLUME fnction for TV
mode and VIDEO mode can
be set separetely.
For example, you can set it to
be OFF in TV mode and ON in
VIDEO mode.
If you set the AI VOLUME
function while viewing images
from a VIDEO terminal, the
setting is registered as the
setting for VIDEO mode.
•The AI VOLUME fnction may
not operate as expected if the
sound input level from a
broadcast station (or video
software) is extremely low.
BBE
You can use the BBE function to
enjoy easy-to-listen sound that is
faithful to the original sound
recorded.
ON :
This function is turned on.
OFF :
This function is turned off.
Licenced by BBE Sound, inc. BBE
is a registered trademark of BBE
Sound, inc.
STEREO
BASS
TREBLE
BALANCE
AI VOLUME
BBE
SPATIALIZER
SUPER BASS
HEADPHONE
MONO
ON
ON
LIVE
ON
SOUND SETTING
:EXIT
:OK
OK
TV
:BACK
DISP
SPATIALIZER
You can enjoy Surround sound
with a "live" effect by using the
SPATIALIZER function. You can
choose one of two SPATIALIZER
modes.
•You can choose a
SPATIALIZER mode from LIVE,
MONO or OFF modes.
For details, see "SPATIALIZER
button" on page 9.
The SPATIALIZER is manufac-
tured under lisense from Desper
Products,Inc.
SUPER BASS
You can enjoy a powerful bass
sound by using the Super Bass
(Super Bass Reflex) function.
ON :
This function is turned on.
OFF :
This function is turned off.
HEADPHONE
This function enables you to
output the TV’s sound from your
headphones.
1 Choose HEADPHONE,
then press MENU/OK
button.
2 Use the
/
button to
select, and the
/
but-
ton to set the HEAD-
PHONE function. Then
press the MENU/OK
button.
VOLUME :
You can adjust the volume of the
sound output from your
headphones.
HEADPHONE
:EXIT
:OK
OK
TV
:BACK
DISP
VOLUME
TV SPEAKER
OUTPUT
ON
MAIN
05
SOUND SETTING menu
