SERVICE MANUAL
COPYRIGHT © 2003 VICTOR COMPANY OF JAPAN, LTD. No.51941C
2003/7
COLOUR TELEVISION
51941C20037AV28R25EKS/C
The following items for the AV28R25EKS/C model were changed from those of the AV28R25EKS model.
Therefore, this service manual describes mainly the items which differ from those of the AV28R25EKS
service manual.
But the difference of all the PWB ASS’Y are too much, so Electrical Parts List, Circuit Diagrams and
Pattern Diagrams of all the PWB ASS’Y are described every information. For details other than those
described in this manual, please refer the AV28R25EKS service manual (No. 51941, Mar. 2002) (No.51941B
Aug. 2002).
HOW TO IDENTIFY MODELS
“C” is added to the serial No. after at the Rating label.
AV28R25EKS
MODEL
Indicated
SERIAL No. “C”
BASIC CHASSIS
JL2
Supplementary

1-2 (No.51941C)
DIFFERENCE LIST
USING P.W. BOARD (Page 30)
EXPLODED VIEW PARTS LIST (2) (Page 32)
P.W.B ASS’Y name AV28R25EKS AV28R25EKS/C DESCRIPTION
MAIN PWB SJL-1005A-U2 ←SJL-1201A-U2 Non compatible

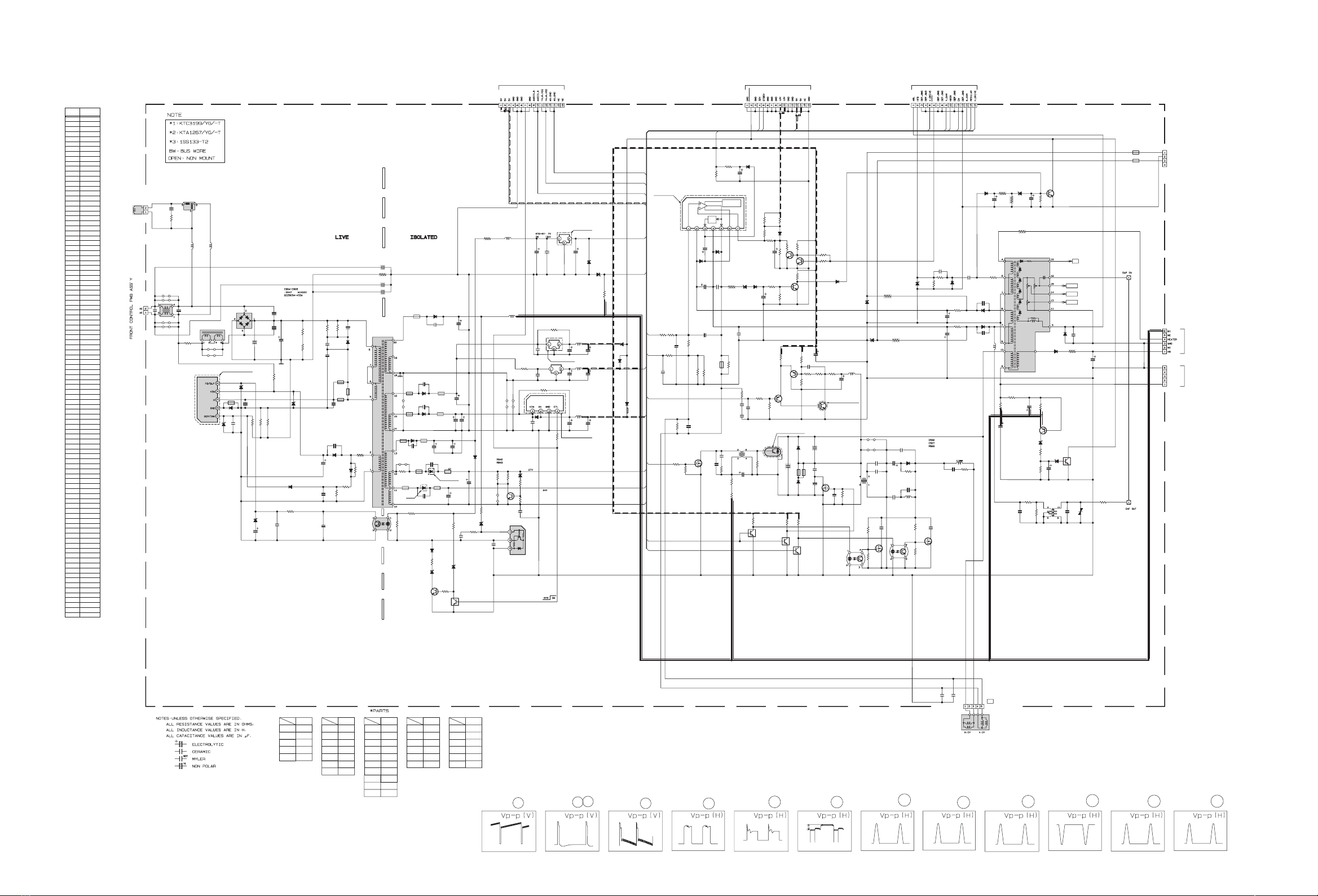

POWER & DEF. PWB SJL-2003A-U2 SJL-2003A-H3 SJL-2201A-U2 Non compatible
CRT SOCKET PWB SJL-3001A-U2 SJL-3001A-H3 SJL-3201A-U2 Non compatible
FRONT CONTROL PWB SJL-8003A-U2 SJL-8003A-H3 SJL-8201A-U2 Non compatible
AV SW PWB
SJL0S003A-U2 SJL0S003A-H3 SJL0S201A-U2 Non compatible
DOLBY PWB
SJL0D001A-U2 ←SJL0D201A-U2 Non compatible
Ref. No. PARTS No. PARTS NAME DESCRIPTION
AV28R25EKS AV28R25EKS/C
T551 QQH0122-001 QQH0159-001 FB TRANSF
17 LC11364-001A-U LC11364-031B-U RATING LABEL

(No.51941C)1-3
PRINTED WIRING BOARD PARTS LIST

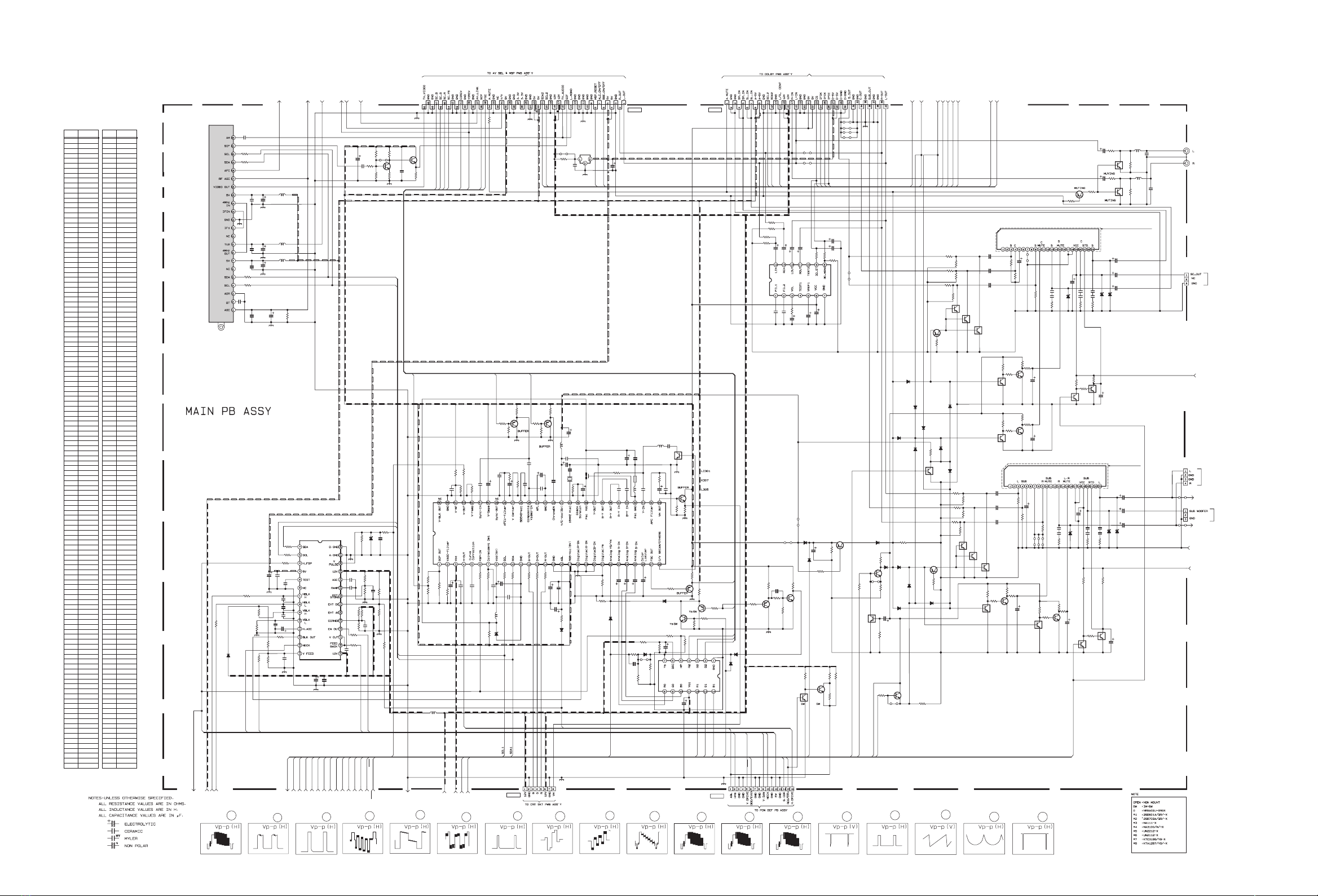

MAIN PW BOARD ASS’Y (SJL-1201A-U2)
 Ref. No. Parts No. Parts Name Description Local
IC301 TB1227CN IC
IC302 AN5860 IC
IC501 AN5441SA-W IC
IC601 AN7585 IC
IC602 AN7585 IC
IC671 BA17805T IC
IC701 SDA5555-A052 IC(MCU)
IC702 AT24C1628R370KE IC (SERVICE)
IC703 JLC1562BF-X IC
IC705 MM1478DF-X IC
IC706 R1170H251B-X IC
Q002 2SD601A/QR/-X TRANSISTOR
Q301 2SB709A/QR/-X TRANSISTOR
Q302 2SB709A/QR/-X TRANSISTOR
Q308 UN2212-X DIGI TRANSISTOR
Q309 2SD601A/QR/-X TRANSISTOR
Q311 2SD601A/QR/-X TRANSISTOR
Q312 2SB709A/QR/-X TRANSISTOR
Q313 2SB709A/QR/-X TRANSISTOR
Q314 2SD601A/QR/-X TRANSISTOR
Q401 UN2212-X DIGI TRANSISTOR
Q402 2SD601A/QR/-X TRANSISTOR
Q605 UN2213-X DIGI TRANSISTOR
Q606 2SD601A/QR/-X TRANSISTOR
Q607 UN2213-X DIGI TRANSISTOR
Q608 UN2213-X DIGI TRANSISTOR
Q609 2SD601A/QR/-X TRANSISTOR
Q610 UN2212-X DIGI TRANSISTOR
Q615 UN2213-X DIGI TRANSISTOR
Q616 2SD601A/QR/-X TRANSISTOR
Q617 UN2213-X DIGI TRANSISTOR
Q618 2SD601A/QR/-X TRANSISTOR
Q619 UN2213-X DIGI TRANSISTOR
Q620 2SB709A/QR/-X TRANSISTOR
Q621 UN2213-X DIGI TRANSISTOR
Q622 UN2213-X DIGI TRANSISTOR
Q623 2SD601A/QR/-X TRANSISTOR
Q624 2SD601A/QR/-X TRANSISTOR
Q625 UN2213-X DIGI TRANSISTOR
Q701 UN2212-X DIGI TRANSISTOR
Q702 2SD601A/QR/-X TRANSISTOR
Q703 2SD601A/QR/-X TRANSISTOR
Q704 2SD601A/QR/-X TRANSISTOR
Q707 2SB709A/QR/-X TRANSISTOR
Q708 2SD601A/QR/-X TRANSISTOR
Q709 2SD601A/QR/-X TRANSISTOR
Q710 2SD601A/QR/-X TRANSISTOR
Q711 2SD601A/QR/-X TRANSISTOR
Q712 2SD601A/QR/-X TRANSISTOR
Q713 2SB709A/QR/-X TRANSISTOR
Q714 UN2212-X DIGI TRANSISTOR
Q715 UN2212-X DIGI TRANSISTOR
Q716 2SK1374-X MOS FET
Q717 2SK1374-X MOS FET
Q718 2SD601A/QR/-X TRANSISTOR
Q719 2SB709A/QR/-X TRANSISTOR
D301 MA3051/M/-X Z DIODE
D302 MA111-X SI DIODE
D303 MA111-X SI DIODE
D304 MA111-X SI DIODE
D305 MA111-X SI DIODE
D306 MA111-X SI DIODE
D307 MA111-X SI DIODE
D503 AK04-T2 SB DIODE
D601 MA3330/L/-X Z DIODE
D602 MA3330/L/-X Z DIODE
D603 MA3330/L/-X Z DIODE
D604 MA111-X SI DIODE
D606 MA111-X SI DIODE
D607 MA111-X SI DIODE
D608 MA111-X SI DIODE
D610 MA111-X SI DIODE
D611 MA3330/L/-X Z DIODE
D612 MA3330/L/-X Z DIODE
D613 MA3330/L/-X Z DIODE
D614 MA111-X SI DIODE
D615 MA111-X SI DIODE
D616 MA111-X SI DIODE
D617 MA111-X SI DIODE
D618 MA111-X SI DIODE
D619 MA111-X SI DIODE
D620 MA111-X SI DIODE
D621 MA111-X SI DIODE
D622 MA111-X SI DIODE
D701 MA111-X SI DIODE
D702 MA111-X SI DIODE
D703 MA111-X SI DIODE
D704 MA3068/M/-X Z DIODE
D705 MA111-X SI DIODE
D706 MA3039/H/-X Z DIODE
D707 MA3030/H/-X Z DIODE
C001 NCB31HK-222X C CAPACITOR 2200pF 50V K
C002 QETN1HM-106Z E CAPACITOR 10uF 50V M
C004 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C005 QETN1AM-108Z E CAPACITOR 1000uF 10V M
C006 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C007 QETN1HM-106Z E CAPACITOR 10uF 50V M
C008 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C009 QETN1HM-106Z E CAPACITOR 10uF 50V M
C011 QETN1HM-106Z E CAPACITOR 10uF 50V M
C012 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C013 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C301 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C302 NCB31CK-683X C CAPACITOR 0.068uF 16V K
C303 QETN1EM-476Z E CAPACITOR 47uF 25V M
C304 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C305 QETN1CM-107Z E CAPACITOR 100uF 16V M
C306 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C307 QETN1CM-477Z E CAPACITOR 470uF 16V M
C308 NDC31HJ-120X C CAPACITOR 12pF 50V J
C309 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C310 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C311 QETN1HM-106Z E CAPACITOR 10uF 50V M
C312 NDC31HJ-680X C CAPACITOR 68pF 50V J
C313 QETN1CM-107Z E CAPACITOR 100uF 16V M
C314 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C315 QETN1HM-106Z E CAPACITOR 10uF 50V M
C319 QETN1CM-107Z E CAPACITOR 100uF 16V M
C320 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C321 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C322 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C323 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C324 QETN1HM-105Z E CAPACITOR 1uF 50V M
C325 QETN1HM-105Z E CAPACITOR 1uF 50V M
C326 QETN1HM-105Z E CAPACITOR 1uF 50V M
C327 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C328 QETN1EM-476Z E CAPACITOR 47uF 25V M
C330 NDC31HJ-390X C CAPACITOR 39pF 50V J
C331 QETN1HM-105Z E CAPACITOR 1uF 50V M
C332 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C333 NCB21EK-104X C CAPACITOR 0.1uF 25V K
C334 QETN1HM-106Z E CAPACITOR 10uF 50V M
C335 NDC31HJ-221X C CAPACITOR 220pF 50V J
C401 QETN1HM-105Z E CAPACITOR 1uF 50V M
C403 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C404 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C405 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C406 QFVF1HJ-184Z MF CAPACITOR 0.18uF 50V J
C407 QFVF1HJ-824Z MF CAPACITOR 0.82uF 50V J
C408 NCB31HK-153X C CAPACITOR 0.015uF 50V K
C501 QETN1CM-107Z E CAPACITOR 100uF 16V M
C502 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C503 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C504 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C505 NCB31HK-332X C CAPACITOR 3300pF 50V K
C506 QETN1HM-335Z E CAPACITOR 3.3uF 50V M
C507 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C508 QETN1CM-108Z E CAPACITOR 1000uF 16V M
C509 QFLC1HJ-823Z M CAPACITOR 0.082uF 50V J
C510 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C511 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C512 QTMN1HM-105Z E CAPACITOR 1uF 50V M
C513 QETN1CM-228Z E CAPACITOR 2200uF 16V M
C514 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C515 QFVF1HJ-394Z MF CAPACITOR 0.39uF 50V J
C516 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C571 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C601 QENC1CM-106Z BP E CAPACITOR 10uF 16V M
C602 QENC1CM-106Z BP E CAPACITOR 10uF 16V M
C603 QENC1CM-106Z BP E CAPACITOR 10uF 16V M
C604 QETN1HM-107Z E CAPACITOR 100uF 50V M
C611 QETN1EM-108Z E CAPACITOR 1000uF 25V M
C612 QETN1EM-108Z E CAPACITOR 1000uF 25V M
C613 QETN1EM-108Z E CAPACITOR 1000uF 25V M
C614 QETN1HM-106Z E CAPACITOR 10uF 50V M
C615 QETN1HM-106Z E CAPACITOR 10uF 50V M
C616 QETN1HM-106Z E CAPACITOR 10uF 50V M
C617 QENC1CM-106Z BP E CAPACITOR 10uF 16V M
C618 QENC1CM-106Z BP E CAPACITOR 10uF 16V M
C619 QENC1CM-106Z BP E CAPACITOR 10uF 16V M
C620 QETN1HM-107Z E CAPACITOR 100uF 50V M
C621 QETM1VM-228 E CAPACITOR 2200uF 35V M
C628 QETN1EM-108Z E CAPACITOR 1000uF 25V M
C629 QETM1EM-338 E CAPACITOR 3300uF 25V M
C630 QETN1EM-108Z E CAPACITOR 1000uF 25V M
 Ref. No. Parts No. Parts Name Description Local

1-4 (No.51941C)
C631 QETN1HM-106Z E CAPACITOR 10uF 50V M
C632 QETN1HM-106Z E CAPACITOR 10uF 50V M
C633 QETN1HM-106Z E CAPACITOR 10uF 50V M
C634 QETN1CM-108Z E CAPACITOR 1000uF 16V M
C636 QETM1VM-228 E CAPACITOR 2200uF 35V M
C649 QETN1HM-106Z E CAPACITOR 10uF 50V M
C675 QETN1CM-107Z E CAPACITOR 100uF 16V M
C676 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C677 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C701 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C704 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C705 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C707 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C708 QETN1AM-107Z E CAPACITOR 100uF 10V M
C709 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C710 QETN1AM-107Z E CAPACITOR 100uF 10V M
C711 QETN1AM-227Z E CAPACITOR 220uF 10V M
C712 QETN1AM-227Z E CAPACITOR 220uF 10V M
C713 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C714 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C716 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C718 QENC1EM-106Z BP E CAPACITOR 10uF 25V M
C722 QETN1HM-106Z E CAPACITOR 10uF 50V M
C723 QETN1HM-106Z E CAPACITOR 10uF 50V M
C724 QETN1HM-106Z E CAPACITOR 10uF 50V M
C726 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C728 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C729 NCB31EK-333X C CAPACITOR 0.033uF 25V K
C730 NDC31HJ-151X C CAPACITOR 150pF 50V J
C732 NDC31HJ-330X C CAPACITOR 33pF 50V J
C733 NDC31HJ-390X C CAPACITOR 39pF 50V J
C734 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C735 NCB31EK-333X C CAPACITOR 0.033uF 25V K
C736 NCB31HK-102X C CAPACITOR 1000pF 50V K
C737 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C738 NDC31HJ-151X C CAPACITOR 150pF 50V J
C739 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C740 NDC31HJ-561X C CAPACITOR 560pF 50V J
C741 QETN1HM-105Z E CAPACITOR 1uF 50V M
C742 QETN1HM-105Z E CAPACITOR 1uF 50V M
C743 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C744 NDC31HJ-220X C CAPACITOR 22pF 50V J
C745 NDC31HJ-220X C CAPACITOR 22pF 50V J
C746 NDC31HJ-220X C CAPACITOR 22pF 50V J
C747 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C748 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C749 NCB31CK-104X C CAPACITOR 0.1uF 16V K
R002 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R003 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R006 NRSA63J-472X MG RESISTOR 4.7k Ω 1/16W J
R007 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R008 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R011 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R304 QRG01GJ-121 OMF RESISTOR 120 Ω 1W J
R305 NRSA63J-562X MG RESISTOR 5.6k Ω 1/16W J
R306 NRSA63J-222X MG RESISTOR 2.2k
Ω 1/16W J
R307 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R308 NRSA63J-471X MG RESISTOR 470 Ω 1/16W J
R309 NRSA63J-222X MG RESISTOR 2.2k Ω 1/16W J
R310 NRSA63J-391X MG RESISTOR 390 Ω 1/16W J
R311 NRSA63J-391X MG RESISTOR 390
Ω 1/16W J
R312 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R313 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R314 NRSA63J-562X MG RESISTOR 5.6k Ω 1/16W J
R316 NRSA63J-224X MG RESISTOR 220k Ω 1/16W J
R317 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R321 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R327 NRSA63J-471X MG RESISTOR 470 Ω 1/16W J
R330 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R331 NRSA63J-331X MG RESISTOR 330 Ω 1/16W J
R333 NRSA63J-472X MG RESISTOR 4.7k Ω 1/16W J
R335 NRSA63J-273X MG RESISTOR 27k Ω 1/16W J
R336 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R337 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R340 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R341 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R342 NRSA63J-152X MG RESISTOR 1.5k Ω 1/16W J
R344 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R345 NRSA63J-562X MG RESISTOR 5.6k Ω 1/16W J
R346 NRSA63J-333X MG RESISTOR 33k Ω 1/16W J
R347 NRSA63J-333X MG RESISTOR 33k Ω 1/16W J
R348 NRSA63J-682X MG RESISTOR 6.8k Ω 1/16W J
R349 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R350 NRSA63J-472X MG RESISTOR 4.7k Ω 1/16W J
R351 NRSA63J-682X MG RESISTOR 6.8k Ω 1/16W J
R352 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R353 NRSA63J-332X MG RESISTOR 3.3k Ω 1/16W J
R354 NRSA63J-471X MG RESISTOR 470 Ω 1/16W J
R401 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R402 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R403 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
 Ref. No. Parts No. Parts Name Description Local
R404 NRSA63J-183X MG RESISTOR 18k Ω 1/16W J
R405 NRSA63J-223X MG RESISTOR 22k Ω 1/16W J
R409 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R411 NRSA63D-473X MG RESISTOR 47k Ω 1/16W D
R413 NRSA63D-223X MG RESISTOR 22k Ω 1/16W D
R414 NRSA63D-101X MG RESISTOR 100 Ω 1/16W D
R415 NRSA63J-562X MG RESISTOR 5.6k Ω 1/16W J
R416 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R417 NRSA63J-223X MG RESISTOR 22k Ω 1/16W J
R418 NRSA63J-682X MG RESISTOR 6.8k Ω 1/16W J
R419 NRSA63J-562X MG RESISTOR 5.6k Ω 1/16W J
R420 NRSA63J-183X MG RESISTOR 18k Ω 1/16W J
R502 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R503 NRSA63J-104X MG RESISTOR 100k Ω 1/16W J
R504 NRSA63J-822X MG RESISTOR 8.2k Ω 1/16W J
R505 NRSA63J-221X MG RESISTOR 220 Ω 1/16W J
R506 NRSA63J-221X MG RESISTOR 220 Ω 1/16W J
R507 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R508 NRSA63J-223X MG RESISTOR 22k Ω 1/16W J
R509 NRSA63J-223X MG RESISTOR 22k Ω 1/16W J
R511 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R514 NRSA63J-472X MG RESISTOR 4.7k Ω 1/16W J
R516 NRSA63J-222X MG RESISTOR 2.2k Ω 1/16W J
R517 NRSA63J-472X MG RESISTOR 4.7k Ω 1/16W J
R518 NRSA63J-682X MG RESISTOR 6.8k Ω 1/16W J
R519 NRSA63J-562X MG RESISTOR 5.6k Ω 1/16W J
R520 NRSA63J-152X MG RESISTOR 1.5k Ω 1/16W J
R571 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R572 NRSA63J-223X MG RESISTOR 22k Ω 1/16W J
R573 NRSA63J-821X MG RESISTOR 820 Ω 1/16W J
R574 NRSA63J-333X MG RESISTOR 33k Ω 1/16W J
R601 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R603 NRSA63J-681X MG RESISTOR 680 Ω 1/16W J
R605 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R607 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R608 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R609 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R614 NRSA63J-183X MG RESISTOR 18k Ω 1/16W J
R615 NRSA63J-183X MG RESISTOR 18k Ω 1/16W J
R617 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R618 NRSA63J-822X MG RESISTOR 8.2k Ω 1/16W J
R619 NRSA63J-473X MG RESISTOR 47k Ω 1/16W J
R620 NRSA63J-153X MG RESISTOR 15k Ω 1/16W J
R621 NRSA63J-183X MG RESISTOR 18k Ω 1/16W J
R622 NRSA63J-822X MG RESISTOR 8.2k Ω 1/16W J
R623 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R624 NRSA63J-473X MG RESISTOR 47k Ω 1/16W J
R625 NRSA63J-222X MG RESISTOR 2.2k Ω 1/16W J
R627 NRSA63J-222X MG RESISTOR 2.2k Ω 1/16W J
R629 NRSA63J-222X MG RESISTOR 2.2k Ω 1/16W J
R631 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R632 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R633 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R638 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R639 NRSA63J-473X MG RESISTOR 47k Ω 1/16W J
R640 NRSA63J-822X MG RESISTOR 8.2k Ω 1/16W J
R641 NRSA63J-103X MG RESISTOR 10k
Ω 1/16W J
R642 NRSA63J-473X MG RESISTOR 47k Ω 1/16W J
R643 NRSA63J-822X MG RESISTOR 8.2k Ω 1/16W J
R644 NRSA63J-153X MG RESISTOR 15k Ω 1/16W J
R645 NRSA63J-183X MG RESISTOR 18k Ω 1/16W J
R646 NRSA63J-273X MG RESISTOR 27k
Ω 1/16W J
R647 NRSA63J-473X MG RESISTOR 47k Ω 1/16W J
R648 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R652 NRSA63J-823X MG RESISTOR 82k Ω 1/16W J
R653 NRSA63J-183X MG RESISTOR 18k Ω 1/16W J
R654 NRSA63J-822X MG RESISTOR 8.2k Ω 1/16W J
R655 NRSA63J-822X MG RESISTOR 8.2k Ω 1/16W J
R656 NRSA63J-822X MG RESISTOR 8.2k Ω 1/16W J
R657 NRSA63J-822X MG RESISTOR 8.2k Ω 1/16W J
R658 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R676 NRSA63J-273X MG RESISTOR 27k Ω 1/16W J
R677 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R680 NRSA63J-222X MG RESISTOR 2.2k Ω 1/16W J
R681 NRSA63J-104X MG RESISTOR 100k Ω 1/16W J
R682 NRSA63J-473X MG RESISTOR 47k Ω 1/16W J
R701 NRSA63J-221X MG RESISTOR 220 Ω 1/16W J
R702 NRSA63J-472X MG RESISTOR 4.7k Ω 1/16W J
R703 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R704 NRSA63J-472X MG RESISTOR 4.7k Ω 1/16W J
R706 NRSA63J-224X MG RESISTOR 220k Ω 1/16W J
R707 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R708 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R709 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R710 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R712 NRSA63J-152X MG RESISTOR 1.5k Ω 1/16W J
R713 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R714 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R715 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R716 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R717 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R718 NRSA63J-472X MG RESISTOR 4.7k Ω 1/16W J
 Ref. No. Parts No. Parts Name Description Local

(No.51941C)1-5
POWER & DEF. PW BOARD ASS’Y (SJL-2201A-U2)
R719 NRSA63J-472X MG RESISTOR 4.7k Ω 1/16W J
R720 NRSA63J-472X MG RESISTOR 4.7k Ω 1/16W J
R721 NRSA63J-221X MG RESISTOR 220 Ω 1/16W J
R722 NRSA63J-221X MG RESISTOR 220 Ω 1/16W J
R723 NRSA63J-221X MG RESISTOR 220 Ω 1/16W J
R724 NRSA63J-221X MG RESISTOR 220 Ω 1/16W J
R725 NRSA63J-221X MG RESISTOR 220 Ω 1/16W J
R728 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R729 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R730 NRSA63J-222X MG RESISTOR 2.2k Ω 1/16W J
R731 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R732 NRSA63J-472X MG RESISTOR 4.7k Ω 1/16W J
R733 NRSA63J-472X MG RESISTOR 4.7k Ω 1/16W J
R734 NRSA63J-472X MG RESISTOR 4.7k Ω 1/16W J
R735 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R736 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R737 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R738 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R739 NRSA63J-473X MG RESISTOR 47k Ω 1/16W J
R740 NRSA63J-332X MG RESISTOR 3.3k Ω 1/16W J
R741 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R742 NRSA63J-223X MG RESISTOR 22k Ω 1/16W J
R743 NRSA63J-391X MG RESISTOR 390 Ω 1/16W J
R744 NRSA63J-471X MG RESISTOR 470 Ω 1/16W J
R745 NRSA63J-182X MG RESISTOR 1.8k Ω 1/16W J
R746 NRSA63J-473X MG RESISTOR 47k Ω 1/16W J
R747 NRSA63J-682X MG RESISTOR 6.8k Ω 1/16W J
R748 NRSA63J-153X MG RESISTOR 15k Ω 1/16W J
R749 NRSA63J-223X MG RESISTOR 22k Ω 1/16W J
R750 NRSA63J-473X MG RESISTOR 47k Ω 1/16W J
R757 NRSA63J-221X MG RESISTOR 220 Ω 1/16W J
R761 NRSA63J-473X MG RESISTOR 47k Ω 1/16W J
R762 NRSA63J-473X MG RESISTOR 47k Ω 1/16W J
R763 NRSA63J-823X MG RESISTOR 82k Ω 1/16W J
R764 NRSA63J-104X MG RESISTOR 100k Ω 1/16W J
R765 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R766 NRSA63J-222X MG RESISTOR 2.2k Ω 1/16W J
R767 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R768 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R769 NRSA63J-183X MG RESISTOR 18k Ω 1/16W J
R771 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R772 NRSA63J-104X MG RESISTOR 100k Ω 1/16W J
R773 NRSA63J-221X MG RESISTOR 220 Ω 1/16W J
R774 NRSA63J-473X MG RESISTOR 47k Ω 1/16W J
R775 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R776 NRSA63J-473X MG RESISTOR 47k Ω 1/16W J
R777 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R778 NRSA63J-152X MG RESISTOR 1.5k Ω 1/16W J
R779 NRSA63J-273X MG RESISTOR 27k Ω 1/16W J
R780 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R781 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R782 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R783 NRSA63J-682X MG RESISTOR 6.8k Ω 1/16W J
R784 NRSA63J-333X MG RESISTOR 33k Ω 1/16W J
R785 NRSA63J-153X MG RESISTOR 15k Ω 1/16W J
R787 NRSA63J-333X MG RESISTOR 33k Ω 1/16W J
R788 NRSA63J-822X MG RESISTOR 8.2k
Ω 1/16W J
R789 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R790 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R791 NRSA63J-152X MG RESISTOR 1.5k Ω 1/16W J
R792 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R793 NRSA63J-102X MG RESISTOR 1k
Ω 1/16W J
R794 NRSA63J-472X MG RESISTOR 4.7k Ω 1/16W J
L001 QQL244K-270Z COIL 27uH K
L002 QQL244K-100Z COIL 10uH K
L003 QQL244K-100Z COIL 10uH K
L301 QQL244K-4R7Z COIL 4.7uH K
L302 QQL244K-4R7Z COIL 4.7uH K
L305 QQL244K-4R7Z COIL 4.7uH K
L306 QQL244K-330Z COIL 33uH K
L501 QQL244J-151Z COIL 150uH J
L701 QQL244K-4R7Z COIL 4.7uH K
L702 QQL244K-4R7Z COIL 4.7uH K
L703 QQL244K-4R7Z COIL 4.7uH K
L704 QQL244K-4R7Z COIL 4.7uH K
L705 QQL244K-4R7Z COIL 4.7uH K
L706 QQL244K-4R7Z COIL 4.7uH K
L707 QQL244K-8R2Z COIL 8.2uH K
L708 QQL244K-4R7Z COIL 4.7uH K
CN001 QGF1220C2-19 CONNECTOR FFC/FPC (1-19)
CN003 QGB1506L1-16 CONNECTOR B-B (1-16)
CN004 QGB1506L1-16 CONNECTOR B-B (1-16)
CN005 QGB1506L1-16 CONNECTOR B-B (1-16)
CN006 QGB1505J1-50 CONNECTOR B-B (1-50)
CN008 QGA2501C5-08Z CONNECTOR W-B (1-8)
CN00S QGA2501C5-04Z CONNECTOR W-B (1-4)
CN012 QGB1505J1-40 CONNECTOR B-B (1-40)
CN016 QGA2501C5-05Z CONNECTOR W-B (1-5)
CN0C1 QGA2501F1-06 CONNECTOR W-B (1-6)
CN0SC QGA2501C5-03Z CONNECTOR W-B (1-3)
 Ref. No. Parts No. Parts Name Description Local
CN0SW QGA2501C5-03Z CONNECTOR W-B (1-3)
HS601 GG30028-001A-H HEAT SINK
HS602 LC31910-002A HEAT SINK/AL-F/
K307 QQR0621-002Z FERRITE BEADS
K701 NQR0360-001X FERRITE BEADS
K702 NQR0360-001X FERRITE BEADS
K703 NQR0360-001X FERRITE BEADS
LC301 CE42142-222Z EMI FILTER
TU001 QAU0277-001 TUNER
X301 QAX0305-001Z CRYSTAL 16.200MHz
X701 QAX0669-001Z CRYSTAL 6000kHz
Y001 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
Y603 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
Y605 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
Y611 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
Y612 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
Y614 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
Y616 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
 Ref. No. Parts No. Parts Name Description Local
 IC401 LA78041 IC
IC901 STR-F6254/F7 IC
IC951 SE140N IC
IC952 BA12T IC
IC953 L7809CP IC
IC954 PQ05RD11 IC
IC955 BA05T IC
Q402 KTC3199/YG/-T TRANSISTOR
Q404 KTC3199/YG/-T TRANSISTOR
Q461 2SD1408/OY/-LB POW TRANSISTOR
Q462 KTA1267/YG/-T TRANSISTOR
Q463 KTA1267/YG/-T TRANSISTOR
Q501 BSN304-T MOS FET
 Q521 2SC5902-RL POW TRANSISTOR H.OUT
Q541 DTC124ESA-T DIGI TRANSISTOR
Q542 DTC124ESA-T DIGI TRANSISTOR
Q543 IRF620 POWER MOS FET
Q544 2SK2459N-F54 POWER MOS FET
Q591 2SA1208/ST/Z1-T TRANSISTOR
Q592 DTC124ESA-T DIGI TRANSISTOR
Q593 KTC3199/YG/-T TRANSISTOR
Q931 KTC3199/YG/-T TRANSISTOR
Q932 DTC124ESA-T DIGI TRANSISTOR
Q934 KTC3199/YG/-T TRANSISTOR
D402 1N4003-T2 SI DIODE
D451 RGP10J-5025-T3 SI DIODE
D491 1SS133-T2 SI DIODE
D492 MTZJ22B-T2 Z DIODE
D493 1SS133-T2 SI DIODE
D494 1SS133-T2 SI DIODE
D521 RH3G-F1 SI DIODE
D522 RU4AM-F1 SI DIODE
D523 RGP10J-5025-T3 SI DIODE
D525 MTZJ9.1B-T2 Z DIODE
D551 RGP10J-5025-T3 SI DIODE
D553 RGP10J-5025-T3 SI DIODE
D554 RGP10J-5025-T3 SI DIODE
D592 MTZJ7.5B-T2 Z DIODE
D593 RGP10J-5025-T3 SI DIODE
D594 MTZJ7.5S-T2 Z DIODE
 D901 D3SBA60 DIODE
D902 RG1C-LFA1 SI DIODE
D904 AU01Z-T2 FR DIODE
D905 AU01Z-T2 FR DIODE
D906 MTZJ4.7A-T2 Z DIODE
D907 MTZJ15B-T2 Z DIODE
D909 1SS133-T2 SI DIODE
D911 MTZJ15B-T2 Z DIODE
D913 MTZJ27B-T2 Z DIODE
D951 RU4AM-F1 SI DIODE
D953 RGP10J-5025-T3 SI DIODE
D954 RGP10J-5025-T3 SI DIODE
D955 FMX-G12S SI DIODE
D956 FMX-G12S SI DIODE
D957 RGP10J-5025-T3 SI DIODE
D958 1SR35-400A-T2 SI DIODE
D963 MTZJ3.9B-T2 Z DIODE
D964 MTZJ33B-T2 Z DIODE
D965 MTZJ2.7B-T2 Z DIODE
D967 MTZJ5.6B-T2 Z DIODE
D981 1SS133-T2 SI DIODE
D982 1SS133-T2 SI DIODE
D983 1SS133-T2 SI DIODE
 Ref. No. Parts No. Parts Name Description Local

1-6 (No.51941C)
 PC541 PC817CD PHOTO COUPLER
 PC901 PC123Y22 PHOTO COUPLER
C401 QEHR1VM-227Z E CAPACITOR 220uF 35V M
C402 QETM1VM-108 E CAPACITOR 1000uF 35V M
C404 QETN1HM-105Z E CAPACITOR 1uF 50V M
C405 QFLC1HJ-472Z M CAPACITOR 4700pF 50V J
C406 QCZ0337-180Z C CAPACITOR 18pF 2KV J
C407 QFLC1HJ-102Z M CAPACITOR 1000pF 50V J
C408 QFVF1HJ-334Z MF CAPACITOR 0.33uF 50V J
C410 QFVF1HJ-334Z MF CAPACITOR 0.33uF 50V J
C411 QFLC2AJ-104Z M CAPACITOR 0.1uF 100V J
C451 QFVF1HJ-104Z MF CAPACITOR 0.1uF 50V J
C461 QEZ0195-475Z BP E CAPACITOR 4.7uF 50V M
C462 QETN1HM-106Z E CAPACITOR 10uF 50V M
C463 QFLC1HJ-153Z M CAPACITOR 0.015uF 50V J
C464 QFLC1HJ-333Z M CAPACITOR 0.033uF 50V J
C491 QETN1HM-105Z E CAPACITOR 1uF 50V M
C492 QETN1HM-106Z E CAPACITOR 10uF 50V M
C502 QCB32HK-681Z C CAPACITOR 680pF 500V K
C503 QEHR2CM-105Z E CAPACITOR 1uF 160V M
C521 QFZ0200-682 MPP CAPACITOR 6800pF 1.5kV H
 C522 QFZ0200-123 MPP CAPACITOR 0.012uF 1.5kV H
 C523 QFP32GJ-183 PP CAPACITOR 0.018uF 400V J
C524 QFM72DK-563 M CAPACITOR 0.056uF 200V K
 C526 QFZ0199-304 MPP CAPACITOR 0.3uF 250V J
C527 QEHR2EM-475Z E CAPACITOR 4.7uF 250V M
C529 QFZ0197-473 MPP CAPACITOR 0.047uF 250V J
C530 QCB32HK-561Z C CAPACITOR 560pF 500V K
C531 QFLC1HJ-223Z M CAPACITOR 0.022uF 50V J
C533 QCS32HJ-560Z C CAPACITOR 56pF 500V J
C542 QFZ0197-204 MPP CAPACITOR 0.2uF 250V J
C551 QETN2EM-106Z E CAPACITOR 10uF 250V M
C552 QCB32HK-152Z C CAPACITOR 1500pF 500V K
C553 QEHR1EM-108Z E CAPACITOR 1000uF 25V M
C554 QCB32HK-152Z C CAPACITOR 1500pF 500V K
C555 QEHR1EM-108Z E CAPACITOR 1000uF 25V M
C560 QETM2CM-227 E CAPACITOR 220uF 160V M
C591 QETN1AM-107Z E CAPACITOR 100uF 10V M
C592 QETN1EM-476Z E CAPACITOR 47uF 25V M
C593 QETN2AM-106Z E CAPACITOR 10uF 100V M
C594 QETN1AM-227Z E CAPACITOR 220uF 10V M
 C901 QFZ9075-473 MPP CAPACITOR 0.047uF AC275V M
 C904 QCZ9054-472 C CAPACITOR 4700pF AC250V Z
 C905 QCZ9054-472 C CAPACITOR 4700pF AC250V Z
 C906 QCZ9054-472 C CAPACITOR 4700pF AC250V Z
C907 QEZ0199-227 E CAPACITOR 220uF 25V J
C908 QCB32HK-103 C CAPACITOR 0.01uF 500V K
C909 QCZ0122-561 C CAPACITOR 560pF 2kV K
C910 QCZ0122-681 C CAPACITOR 680pF 2kV K
C912 QCB31HK-102Z C CAPACITOR 1000pF 50V K
C916 QETN1HM-106Z E CAPACITOR 10uF 50V M
C917 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C918 QCB31HK-152Z C CAPACITOR 1500pF 50V K
C920 QFVF1HJ-334Z MF CAPACITOR 0.33uF 50V J
C933 QETM1VM-338 E CAPACITOR 3300uF 35V M
C951 QCZ0122-561 C CAPACITOR 560pF 2kV K
C952 QEZ0203-227 E CAPACITOR 220uF 160V M
C953 QCB32HK-391Z C CAPACITOR 390pF 500V K
C954 QTMM1EM-228 E CAPACITOR 2200uF 25V M
C955 QCB32HK-391Z C CAPACITOR 390pF 500V K
C956 QTMM1CM-228 E CAPACITOR 2200uF 16V M
C959 QETM1VM-338 E CAPACITOR 3300uF 35V M
C961 QETM1VM-228 E CAPACITOR 2200uF 35V M
C964 QFVF1HJ-684Z MF CAPACITOR 0.68uF 50V J
C965 QETN1VM-477Z E CAPACITOR 470uF 35V M
C966 QCB31HK-103Z C CAPACITOR 0.01uF 50V K
C967 QETN1AM-227Z E CAPACITOR 220uF 10V M
C968 QCZ0120-104Z C CAPACITOR 0.1uF 25V Z
C969 QEHR1CM-477Z E CAPACITOR 470uF 16V M
C970 QEHR1CM-107Z E CAPACITOR 100uF 16V M
C971 QCZ0120-104Z C CAPACITOR 0.1uF 25V Z
C972 QETN1CM-227Z E CAPACITOR 220uF 16V M
C973 QETN1EM-476Z E CAPACITOR 47uF 25V M
C974 QCZ0120-104Z C CAPACITOR 0.1uF 25V Z
C975 QETN1AM-227Z E CAPACITOR 220uF 10V M
C976 QETN1EM-476Z E CAPACITOR 47uF 25V M
 C991 QCZ9079-332 C CAPACITOR 3300pF AC250V M
 C992 QCZ9079-471 C CAPACITOR 470pF AC250V K
R401 QRE141J-682Y C RESISTOR 6.8k Ω 1/4W J
R402 QRA14CF-6801Y CMF RESISTOR 6.8k Ω 1/4W F
R403 QRA14CF-3091Y CMF RESISTOR 3.09k Ω 1/4W F
R404 QRA14CF-8200Y CMF RESISTOR 820 Ω 1/4W F
R405 QRA14CF-8200Y CMF RESISTOR 820 Ω 1/4W F
R406 QRE141J-103Y C RESISTOR 10k Ω 1/4W J
R409 QRE141J-103Y C RESISTOR 10k Ω 1/4W J
R410 QRE141J-102Y C RESISTOR 1k Ω 1/4W J
R414 QRE121J-5R6Y C RESISTOR 5.6 Ω 1/2W J
R415 QRX01GJ-1R8 MF RESISTOR 1.8 Ω 1W J
R416 QRG01GJ-820 OMF RESISTOR 82 Ω 1W J
R417 QRE121J-100Y C RESISTOR 10 Ω 1/2W J
 Ref. No. Parts No. Parts Name Description Local
R420 QRE141J-394Y C RESISTOR 390k Ω 1/4W J
R421 QRE141J-223Y C RESISTOR 22k Ω 1/4W J
R461 QRE141J-331Y C RESISTOR 330 Ω 1/4W J
R463 QRE121J-392Y C RESISTOR 3.9k Ω 1/2W J
R464 QRE121J-562Y C RESISTOR 5.6k Ω 1/2W J
R465 QRE121J-682Y C RESISTOR 6.8k Ω 1/2W J
R466 QRE121J-102Y C RESISTOR 1k Ω 1/2W J
R467 QRL039J-330 OMF RESISTOR 33 Ω 3W J
R492 QRE141J-683Y C RESISTOR 68k Ω 1/4W J
R493 QRE141J-224Y C RESISTOR 220k Ω 1/4W J
 R494 QRZ9017-4R7 FUSI RESISTOR 4.7 Ω 1/4W J
R495 QRE141J-103Y C RESISTOR 10k Ω 1/4W J
R496 QRE141J-183Y C RESISTOR 18k Ω 1/4W J
R497 QRE141J-153Y C RESISTOR 15k Ω 1/4W J
R501 QRE141J-561Y C RESISTOR 560 Ω 1/4W J
R502 QRE141J-222Y C RESISTOR 2.2k Ω 1/4W J
R503 QRE121J-152Y C RESISTOR 1.5k Ω 1/2W J
R504 QRL039J-272 OMF RESISTOR 2.7k Ω 3W J
R505 QRL039J-272 OMF RESISTOR 2.7k Ω 3W J
R521 QRE121J-150Y C RESISTOR 15 Ω 1/2W J
R522 QRL039J-103 OMF RESISTOR 10k Ω 3W J
R523 QRE121J-471Y C RESISTOR 470 Ω 1/2W J
 R524 QRZ9017-4R7 FUSI RESISTOR 4.7 Ω 1/4W J
R525 QRE141J-152Y C RESISTOR 1.5k Ω 1/4W J
R541 QRE121J-103Y C RESISTOR 10k Ω 1/2W J
R542 QRE121J-222Y C RESISTOR 2.2k Ω 1/2W J
R543 QRE121J-124Y C RESISTOR 120k Ω 1/2W J
R544 QRE121J-104Y C RESISTOR 100k Ω 1/2W J
R545 QRE141J-123Y C RESISTOR 12k Ω 1/4W J
R551 QRT039J-3R3 MF RESISTOR 3.3 Ω 3W J
R552 QRT039J-3R3 MF RESISTOR 3.3 Ω 3W J
R553 QRF104K-5R6 UNF WW RESISTOR 5.6 Ω 10W K
 R554 QRZ9022-R33 FUSI RESISTOR 0.33 Ω 1W K
 R555 QRZ9011-4R7 FUSI RESISTOR 4.7 Ω 1/2W J
R591 QRE121J-123Y C RESISTOR 12k Ω 1/2W J
R592 QRA14CF-1201Y CMF RESISTOR 1.2k Ω 1/4W F
R593 QRE141J-183Y C RESISTOR 18k Ω 1/4W J
R594 QRE141J-222Y C RESISTOR 2.2k Ω 1/4W J
 R595 QRA14CF-7501Y CMF RESISTOR 7.5k Ω 1/4W F
 R596 QRA14CF-1201Y CMF RESISTOR 1.2k Ω 1/4W F
R597 QRE141J-273Y C RESISTOR 27k Ω 1/4W J
R902 QRE121J-331Y C RESISTOR 330 Ω 1/2W J
R903 QRF104K-3R9 UNF WW RESISTOR 3.9 Ω 10W K
R904 QRE121J-474Y C RESISTOR 470k Ω 1/2W J
R905 QRE121J-474Y C RESISTOR 470k Ω 1/2W J
R907 QRL039J-823 OMF RESISTOR 82k Ω 3W J
R908 QRL039J-823 OMF RESISTOR 82k Ω 3W J
R909 QRL039J-473 OMF RESISTOR 47k Ω 3W J
R911 QRM059J-R10 MP RESISTOR 0.1 Ω 5W J
R912 QRT029J-2R2 MF RESISTOR 2.2 Ω 2W J
 R913 QRZ9017-100 FUSI RESISTOR 10 Ω 1/4W J
R914 QRE121J-272Y C RESISTOR 2.7k Ω 1/2W J
R916 QRE141J-103Y C RESISTOR 10k Ω 1/4W J
R917 QRE121J-221Y C RESISTOR 220 Ω 1/2W J
R918 QRE121J-102Y C RESISTOR 1k Ω 1/2W J
R934 QRE141J-102Y C RESISTOR 1k Ω 1/4W J
R935 QRE141J-223Y C RESISTOR 22k
Ω 1/4W J
R936 QRE141J-103Y C RESISTOR 10k Ω 1/4W J
R937 QRE141J-103Y C RESISTOR 10k Ω 1/4W J
R938 QRE141J-331Y C RESISTOR 330 Ω 1/4W J
 R939 QRZ9017-100 FUSI RESISTOR 10 Ω 1/4W J
R941 QRE141J-102Y C RESISTOR 1k
Ω 1/4W J
R942 QRL039J-561 OMF RESISTOR 560 Ω 3W J
R943 QRL039J-561 OMF RESISTOR 560 Ω 3W J
R952 QRE141J-222Y C RESISTOR 2.2k Ω 1/4W J
R964 QRE121J-222Y C RESISTOR 2.2k Ω 1/2W J
R967 QRL039J-223 OMF RESISTOR 22k Ω 3W J
R976 QRL029J-100 OMF RESISTOR 10 Ω 2W J
 R991 QRZ0057-825 C RESISTOR 8.2M Ω 1W J
L461 QQLZ027-821 COIL 820uH
L521 QQLZ028-501 COIL 500uH
L522 QQR1106-001 LINEARITY COIL
L901 QQL402K-100 COIL 10uH K
L902 QQL402K-100 COIL 10uH K
 L903 QQR1200-001 CHOKE COIL
L951 QQLZ026-460 COIL 46uH ± 7%
L952 QQL26AK-820Z COIL 82uH K
L953 QQL26AM-5R6Z COIL 5.6uH M
L954 QQL26AM-5R6Z COIL 5.6uH M
L955 QQL26AK-220Z COIL 22uH K
T501 CE42034-002 HOR DRIVE TRANS
CN003 QGB1506M1-16 CONNECTOR B-B (1-16)
CN004 QGB1506M1-16 CONNECTOR B-B (1-16)
CN005 QGB1506M1-16 CONNECTOR B-B (1-16)
CN009 QGA2501C5-06Z CONNECTOR W-B (1-6)
CN00W QGA7901C1-02 CONNECTOR W-B (1-2)
CN00X QGA2501C5-05Z CONNECTOR W-B (1-5)
CN0HV CHC802T-05N-J LV CONNECTOR
 CP952 ICP-N50-Y IC PROTECTOR 2.0A
 CP953 QMFZ049-4R0Z-E FUSE 4A 125V
 Ref. No. Parts No. Parts Name Description Local

(No.51941C)1-7
CRT SOCKET PW BOARD ASS’Y (SJL-3201A-U2)
FRONT CONTROL PW BOARD ASS’Y (SJL-8201A-U2)
 CP954 ICP-N75-Y IC PROTECTOR 2.7A
 CP955 ICP-N75-Y IC PROTECTOR 2.7A
HS001 CEHT12N-026PS HEAT SINK
HS002 CM48010-002-H HEAT SINK
HS003 LC30416-002A HEAT SINK/AL-F/
HS004 CEHT11B-005QS HEAT SINK
HS955 CEHT11B-002QS HEAT SINK
HS956 CEHT11B-002QS HEAT SINK
HS964 CEHT11B-002QS HEAT SINK
HS965 CM42862-00J-H HEAT SINK ASSY
K401 QQR0621-002Z FERRITE BEADS
K503 QQR0582-001Z FERRITE BEADS
K504 QQR0582-001Z FERRITE BEADS
K901 QQR0679-001 FERRITE BEADS
K904 QQR0679-001 FERRITE BEADS
K951 QQR0872-001Y FERRITE BEADS
K952 QQR0621-002Z FERRITE BEADS
K953 QQR0621-002Z FERRITE BEADS
K954 QQR0621-002Z FERRITE BEADS
K955 QQR0621-002Z FERRITE BEADS
K956 QQR0621-002Z FERRITE BEADS
 LF902 QQR1095-001 LINE FILTER
 TH901 QAD0133-9R0 P THERMISTOR 9 Ω 220V/240V
 Ref. No. Parts No. Parts Name Description Local
Q3101 KTC3199/YG/-T TRANSISTOR
Q3102 KTC3199/YG/-T TRANSISTOR
Q3103 KTC3199/YG/-T TRANSISTOR
Q3104 2SC4544-LB POW TRANSISTOR
Q3105 2SC4544-LB POW TRANSISTOR
Q3106 2SC4544-LB POW TRANSISTOR
Q3151 2SB709A/QR/-X TRANSISTOR
Q3152 2SC4682-T TRANSISTOR
Q3304 KTC3199/YG/-T TRANSISTOR
Q3305 KTC3199/YG/-T TRANSISTOR
Q3306 KTA1267/YG/-T TRANSISTOR
Q3307 2SA1837 POW TRANSISTOR
Q3308 2SC4793 POW TRANSISTOR
D3151 MA111-X SI DIODE
D3152 MA3051/M/-X Z DIODE
D3153 MA111-X SI DIODE
D3154 MA111-X SI DIODE
D3155 MA111-X SI DIODE
D3156 MA3047/H/-X Z DIODE
D3157 MA3150/M/-X Z DIODE
D3163 MA3150/M/-X Z DIODE
D3164 1SR35-400A-T2 SI DIODE
D3302 RH1S-T3 SI DIODE
D3303 RH1S-T3 SI DIODE
C3101 NDC31HJ-471X C CAPACITOR 470pF 50V J
C3102 NDC31HJ-471X C CAPACITOR 470pF 50V J
C3103 NDC31HJ-471X C CAPACITOR 470pF 50V J
C3104 QETN1CM-107Z E CAPACITOR 100uF 16V M
C3105 QETN1EM-476Z E CAPACITOR 47uF 25V M
C3107 QETN1HM-106Z E CAPACITOR 10uF 50V M
C3113 QCZ0131-222 C CAPACITOR 2200pF 2kV K
C3114 QETM2EM-336 E CAPACITOR 33uF 250V M
C3115 QETM2EM-106 E CAPACITOR 10uF 250V M
C3116 NRSA63J-0R0X MG RESISTOR 0
Ω 1/16W J
C3304 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C3305 QETN1HM-335Z E CAPACITOR 3.3uF 50V M
C3306 QETN1CM-107Z E CAPACITOR 100uF 16V M
C3307 NDC31HJ-5R0X C CAPACITOR 5pF 50V J
C3308 QETN2CM-106Z E CAPACITOR 10uF 160V M
C3309 QCB32HK-472Z C CAPACITOR 4700pF 500V K
C3310 QETN2CM-106Z E CAPACITOR 10uF 160V M
C3311 NDC31HJ-821X C CAPACITOR 820pF 50V J
C3312 QCB32HK-472Z C CAPACITOR 4700pF 500V K
C3313 NDC31HJ-561X C CAPACITOR 560pF 50V J
C3314 QETN1CM-107Z E CAPACITOR 100uF 16V M
C3315 QCS32HJ-680Z C CAPACITOR 68pF 500V J
C3316 QETN1CM-107Z E CAPACITOR 100uF 16V M
C3317 QETN1AM-337Z E CAPACITOR 330uF 10V M
R3101 NRSA63J-221X MG RESISTOR 220 Ω 1/16W J
R3102 NRSA63J-221X MG RESISTOR 220 Ω 1/16W J
R3103 NRSA63J-221X MG RESISTOR 220 Ω 1/16W J
R3107 NRSA63J-392X MG RESISTOR 3.9k Ω 1/16W J
R3108 NRSA63J-392X MG RESISTOR 3.9k Ω 1/16W J
R3109 NRSA63J-392X MG RESISTOR 3.9k Ω 1/16W J
R3110 NRSA63J-221X MG RESISTOR 220 Ω 1/16W J
R3111 NRSA63J-221X MG RESISTOR 220 Ω 1/16W J
R3112 NRSA63J-221X MG RESISTOR 220 Ω 1/16W J
R3113 NRSA63J-470X MG RESISTOR 47 Ω 1/16W J
 Ref. No. Parts No. Parts Name Description Local
R3114 NRSA63J-470X MG RESISTOR 47 Ω 1/16W J
R3115 NRSA63J-470X MG RESISTOR 47 Ω 1/16W J
R3116 QRL029J-153 OMF RESISTOR 15k Ω 2W J
R3117 QRL029J-153 OMF RESISTOR 15k Ω 2W J
R3118 QRL029J-153 OMF RESISTOR 15k Ω 2W J
R3119 QRL029J-183 OMF RESISTOR 18k Ω 2W J
R3120 QRL029J-183 OMF RESISTOR 18k Ω 2W J
R3121 QRL029J-183 OMF RESISTOR 18k Ω 2W J
R3125 QRZ0107-102Z C RESISTOR 1k Ω 1/2W K
R3126 QRZ0107-102Z C RESISTOR 1k Ω 1/2W K
R3127 QRZ0107-102Z C RESISTOR 1k Ω 1/2W K
R3130 QRG01GJ-101 OMF RESISTOR 100 Ω 1W J
R3135 QRZ0107-474Z C RESISTOR 470k Ω 1/2W K
R3136 QRE121J-474Y C RESISTOR 470k Ω 1/2W J
R3137 QRZ0107-102Z C RESISTOR 1k Ω 1/2W K
R3138 QRE121J-105Y C RESISTOR 1M Ω 1/2W J
R3151 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R3152 NRSA63J-472X MG RESISTOR 4.7k Ω 1/16W J
R3154 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R3303 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R3312 NRSA63J-153X MG RESISTOR 15k Ω 1/16W J
R3313 NRSA63J-152X MG RESISTOR 1.5k Ω 1/16W J
R3314 NRSA63J-271X MG RESISTOR 270 Ω 1/16W J
R3315 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R3316 NRSA63J-222X MG RESISTOR 2.2k Ω 1/16W J
R3317 NRSA63J-470X MG RESISTOR 47 Ω 1/16W J
 R3318 QRJ146J-100X UNF C RESISTOR 10 Ω 1/4W J
R3319 NRSA63J-470X MG RESISTOR 47 Ω 1/16W J
R3320 NRSA63J-122X MG RESISTOR 1.2k Ω 1/16W J
R3321 NRSA63J-390X MG RESISTOR 39 Ω 1/16W J
R3322 QRE121J-2R7Y C RESISTOR 2.7 Ω 1/2W J
R3323 QRE121J-563Y C RESISTOR 56k Ω 1/2W J
R3324 QRE121J-563Y C RESISTOR 56k Ω 1/2W J
R3325 NRSA63J-122X MG RESISTOR 1.2k Ω 1/16W J
R3326 QRE121J-2R7Y C RESISTOR 2.7 Ω 1/2W J
R3327 NRSA63J-390X MG RESISTOR 39 Ω 1/16W J
R3328 NRSA63J-121X MG RESISTOR 120 Ω 1/16W J
R3329 QRL029J-391 OMF RESISTOR 390 Ω 2W J
L3301 QQL244J-391Z COIL 390uH J
CN3008 QJK002-083633 SIN CR C-B WIRE
CN3009 QJK002-063631 SIN CR C-B WIRE
CN30E1 CE41507-001P LV CONNECTOR
CN30SC QGZ0017C1-01Z CONNECTOR (1-1)
CN30VM QGA2501C5-03Z CONNECTOR W-B (1-3)
 FR3330 QRZ9021-561 FUSI RESISTOR 560 Ω 1W J
H3104 CEHP00N-001QS HEAT SINK
H3105 CEHP00N-001QS HEAT SINK
H3106 CEHP00N-001QS HEAT SINK
H3307 CEHP00N-001QS HEAT SINK
H3308 CEHP00N-001QS HEAT SINK
K3101 QQR0621-002Z FERRITE BEADS
K3301 CE41492-001Z CHOKE COIL
K3302 CE41492-001Z CHOKE COIL
K3303 CE41492-001Z CHOKE COIL
K3304 CE41492-001Z CHOKE COIL
 SK3001 QNZ0536-001 CRT SOCKET
W3002 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
W3003 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
W3004 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
W3005 NRSA63J-0R0X MG RESISTOR 0
Ω 1/16W J
W3006 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
W3007 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
W3008 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
W3009 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
 Ref. No. Parts No. Parts Name Description Local
IC8851 GP1U281Q IR DETECT UNIT 38kHz
Q8801 UN2112-X TRANSISTOR
Q8802 UN2112-X TRANSISTOR
Q8803 UN2212-X DIGI TRANSISTOR
D8801 SPR-39MVWF LED RED-GREEN
D8851 MA3068/M/-X Z DIODE
C8851 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C8852 QETN1CM-107Z E CAPACITOR 100uF 16V M
 C8901 QFZ9075-474 MPP CAPACITOR 0.47uF AC275V M
R8801 NRSA63J-561X MG RESISTOR 560 Ω 1/16W J
R8802 NRSA63J-561X MG RESISTOR 560 Ω 1/16W J
R8804 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R8851 NRSA63J-152X MG RESISTOR 1.5k Ω 1/16W J
 Ref. No. Parts No. Parts Name Description Local

1-8 (No.51941C)
DOLBY PW BOARD ASS’Y (SJL0D201A-U2)
CN800W CHGH0001-0H CONNECTOR ASSY
CN80PW QGAB801C1-02 CONNECTOR W-B (1-2)
CN8101 QGF1220C2-19 CONNECTOR FFC/FPC (1-19)
 F8901 QMF51D2-3R15J1 FUSE 3.15A AC250V
FC8901 CEMG002-001Z FUSE CLIP
FC8902 CEMG002-001Z FUSE CLIP
 LF8901 QQR1095-001 LINE FILTER
 S8901 QSW0824-001 PUSH SWITCH MAIN POWER
W8001 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
 Ref. No. Parts No. Parts Name Description Local
IC101 TC9471F IC
IC102 S-80828CNNB-W IC
IC201 BA10324AF-XE IC
IC301 TC4052BF/N/-XE IC
IC302 BD3869AF-X IC
IC303 BD3869AF-X IC
IC501 BA4558F-X IC
IC551 BA10324AF-XE IC
Q301 UN2212-X DIGI TRANSISTOR
Q301 UN2212-X DIGI TRANSISTOR
Q501 2SB709A/QR/-X TRANSISTOR
Q502 UN2226-X DIGI TRANSISTOR
Q503 UN2226-X DIGI TRANSISTOR
D105 MA111-X SI DIODE
D501 MA3150/M/-X Z DIODE
D502 MA3150/M/-X Z DIODE
C101 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C103 NDC31HJ-221X C CAPACITOR 220pF 50V J
C104 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C105 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C106 QETN1EM-476Z E CAPACITOR 47uF 25V M
C107 QETN1EM-476Z E CAPACITOR 47uF 25V M
C108 QETN1EM-476Z E CAPACITOR 47uF 25V M
C109 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C110 NDC31HJ-221X C CAPACITOR 220pF 50V J
C111 NDC31HJ-100X C CAPACITOR 10pF 50V J
C112 NDC31HJ-100X C CAPACITOR 10pF 50V J
C114 QETN1EM-476Z E CAPACITOR 47uF 25V M
C115 QETN1EM-476Z E CAPACITOR 47uF 25V M
C116 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C117 QETN1EM-476Z E CAPACITOR 47uF 25V M
C118 QETN1EM-476Z E CAPACITOR 47uF 25V M
C119 QETN1EM-476Z E CAPACITOR 47uF 25V M
C120 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C121 QETN1EM-476Z E CAPACITOR 47uF 25V M
C122 QETN1EM-476Z E CAPACITOR 47uF 25V M
C123 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C124 NDC31HJ-221X C CAPACITOR 220pF 50V J
C125 NDC31HJ-221X C CAPACITOR 220pF 50V J
C126 NDC31HJ-221X C CAPACITOR 220pF 50V J
C127 NDC31HJ-221X C CAPACITOR 220pF 50V J
C128 QETN1EM-476Z E CAPACITOR 47uF 25V M
C129 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C130 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C131 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C132 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C133 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C134 QETN1CM-107Z E CAPACITOR 100uF 16V M
C135 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C137 QETN1CM-107Z E CAPACITOR 100uF 16V M
C138 QETN1EM-476Z E CAPACITOR 47uF 25V M
C142 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C145 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C148 NCB31HK-222X C CAPACITOR 2200pF 50V K
C149 NCB31HK-222X C CAPACITOR 2200pF 50V K
C150 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C151 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C152 QETN1CM-108Z E CAPACITOR 1000uF 16V M
C153 NCB31HK-102X C CAPACITOR 1000pF 50V K
C154 NCB31HK-102X C CAPACITOR 1000pF 50V K
C155 NCB31HK-102X C CAPACITOR 1000pF 50V K
C156 NCB31HK-102X C CAPACITOR 1000pF 50V K
C157 QETN1AM-108Z E CAPACITOR 1000uF 10V M
C201 NDC31HJ-470X C CAPACITOR 47pF 50V J
C202 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C203 QETN1EM-476Z E CAPACITOR 47uF 25V M
C204 NDC31HJ-470X C CAPACITOR 47pF 50V J
C205 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C206 QETN1EM-476Z E CAPACITOR 47uF 25V M
C207 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C208 NDC31HJ-470X C CAPACITOR 47pF 50V J
C209 NDC31HJ-470X C CAPACITOR 47pF 50V J
 Ref. No. Parts No. Parts Name Description Local
C210 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C302 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C303 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C304 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C305 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C306 NCB31HK-222X C CAPACITOR 2200pF 50V K
C307 NCB31HK-222X C CAPACITOR 2200pF 50V K
C308 QETN1HM-226Z E CAPACITOR 22uF 50V M
C309 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C310 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C311 QETN1EM-476Z E CAPACITOR 47uF 25V M
C312 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C313 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C314 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C315 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C316 NCB31HK-222X C CAPACITOR 2200pF 50V K
C317 QETN1EM-476Z E CAPACITOR 47uF 25V M
C318 QETN1HM-226Z E CAPACITOR 22uF 50V M
C319 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C320 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C321 NCB31HK-222X C CAPACITOR 2200pF 50V K
C401 QETN1HM-106Z E CAPACITOR 10uF 50V M
C404 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
C405 QETN1EM-476Z E CAPACITOR 47uF 25V M
C406 QETN1HM-106Z E CAPACITOR 10uF 50V M
C501 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C502 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C503 NDC31HJ-100X C CAPACITOR 10pF 50V J
C504 NDC31HJ-100X C CAPACITOR 10pF 50V J
C505 QETN1EM-476Z E CAPACITOR 47uF 25V M
C506 QETN1HM-106Z E CAPACITOR 10uF 50V M
C507 QETN1HM-106Z E CAPACITOR 10uF 50V M
C508 QETN1EM-476Z E CAPACITOR 47uF 25V M
C509 NCB31HK-222X C CAPACITOR 2200pF 50V K
C510 NCB31HK-222X C CAPACITOR 2200pF 50V K
C551 QETN1EM-476Z E CAPACITOR 47uF 25V M
C552 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C553 NCB31HK-153X C CAPACITOR 0.015uF 50V K
C554 QETN1EM-476Z E CAPACITOR 47uF 25V M
C555 NCB31EK-333X C CAPACITOR 0.033uF 25V K
C556 NCB31EK-273X C CAPACITOR 0.027uF 25V K
C557 QETN1HM-106Z E CAPACITOR 10uF 50V M
C558 NCB31EK-333X C CAPACITOR 0.033uF 25V K
C559 NCB31EK-273X C CAPACITOR 0.027uF 25V K
C560 QETN1HM-106Z E CAPACITOR 10uF 50V M
C561 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C562 NCF31AZ-105X C CAPACITOR 1uF 10V Z
R101 NRSA63J-223X MG RESISTOR 22k Ω 1/16W J
R102 NRSA63J-683X MG RESISTOR 68k Ω 1/16W J
R103 NRSA63J-223X MG RESISTOR 22k Ω 1/16W J
R104 NRSA63J-683X MG RESISTOR 68k Ω 1/16W J
R105 NRSA63J-105X MG RESISTOR 1M Ω 1/16W J
R106 NRSA63J-271X MG RESISTOR 270 Ω 1/16W J
R107 NRSA63J-271X MG RESISTOR 270 Ω 1/16W J
R108 NRSA63J-271X MG RESISTOR 270 Ω 1/16W J
R109 NRSA63J-271X MG RESISTOR 270
Ω 1/16W J
R110 NRSA63J-473X MG RESISTOR 47k Ω 1/16W J
R111 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R112 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R113 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R114 NRSA63J-0R0X MG RESISTOR 0
Ω 1/16W J
R115 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R116 NRSA63J-472X MG RESISTOR 4.7k Ω 1/16W J
R118 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R201 NRSA63J-223X MG RESISTOR 22k Ω 1/16W J
R202 NRSA63J-153X MG RESISTOR 15k Ω 1/16W J
R203 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R204 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R205 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R206 NRSA63J-104X MG RESISTOR 100k Ω 1/16W J
R207 NRSA63J-223X MG RESISTOR 22k Ω 1/16W J
R208 NRSA63J-153X MG RESISTOR 15k Ω 1/16W J
R209 NRSA63J-104X MG RESISTOR 100k Ω 1/16W J
R210 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R211 NRSA63J-123X MG RESISTOR 12k Ω 1/16W J
R212 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R213 NRSA63J-104X MG RESISTOR 100k Ω 1/16W J
R214 NRSA63J-123X MG RESISTOR 12k Ω 1/16W J
R215 NRSA63J-123X MG RESISTOR 12k Ω 1/16W J
R216 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R217 NRSA63J-104X MG RESISTOR 100k Ω 1/16W J
R218 NRSA63J-123X MG RESISTOR 12k Ω 1/16W J
R219 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R220 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R221 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R222 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R301 NRSA63J-821X MG RESISTOR 820 Ω 1/16W J
R302 NRSA63J-821X MG RESISTOR 820 Ω 1/16W J
R303 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R304 NRSA63J-394X MG RESISTOR 390k Ω 1/16W J
R305 NRSA63J-394X MG RESISTOR 390k Ω 1/16W J
 Ref. No. Parts No. Parts Name Description Local

(No.51941C)1-9
AV SW PW BOARD ASS’Y (SJL0S201A-U2)
R306 NRSA63J-562X MG RESISTOR 5.6k Ω 1/16W J
R307 NRSA63J-562X MG RESISTOR 5.6k Ω 1/16W J
R308 NRSA63J-471X MG RESISTOR 470 Ω 1/16W J
R309 NRSA63J-471X MG RESISTOR 470 Ω 1/16W J
R310 NRSA63J-562X MG RESISTOR 5.6k Ω 1/16W J
R311 NRSA63J-562X MG RESISTOR 5.6k Ω 1/16W J
R312 NRSA63J-394X MG RESISTOR 390k Ω 1/16W J
R313 NRSA63J-394X MG RESISTOR 390k Ω 1/16W J
R314 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R315 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R401 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R403 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R407 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R408 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R410 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R501 NRSA63J-273X MG RESISTOR 27k Ω 1/16W J
R502 NRSA63J-153X MG RESISTOR 15k Ω 1/16W J
R503 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R504 NRSA63J-104X MG RESISTOR 100k Ω 1/16W J
R505 NRSA63J-153X MG RESISTOR 15k Ω 1/16W J
R506 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R507 NRSA63J-273X MG RESISTOR 27k Ω 1/16W J
R508 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R509 NRSA63J-104X MG RESISTOR 100k Ω 1/16W J
R510 NRSA63J-681X MG RESISTOR 680 Ω 1/16W J
R511 NRSA63J-681X MG RESISTOR 680 Ω 1/16W J
R512 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R514 NRSA63J-104X MG RESISTOR 100k Ω 1/16W J
R516 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R517 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R518 NRSA63J-472X MG RESISTOR 4.7k Ω 1/16W J
R551 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R552 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R553 NRSA63J-473X MG RESISTOR 47k Ω 1/16W J
R554 NRSA63J-683X MG RESISTOR 68k Ω 1/16W J
R555 NRSA63J-333X MG RESISTOR 33k Ω 1/16W J
R556 NRSA63J-333X MG RESISTOR 33k Ω 1/16W J
R557 NRSA63J-333X MG RESISTOR 33k Ω 1/16W J
R558 NRSA63J-473X MG RESISTOR 47k Ω 1/16W J
R559 NRSA63J-333X MG RESISTOR 33k Ω 1/16W J
R560 NRSA63J-683X MG RESISTOR 68k Ω 1/16W J
R561 NRSA63J-333X MG RESISTOR 33k Ω 1/16W J
R562 NRSA63J-683X MG RESISTOR 68k Ω 1/16W J
L101 NQL085J-4R7X COIL 4.7uH J
L102 NQL085J-4R7X COIL 4.7uH J
L103 NQL085J-4R7X COIL 4.7uH J
L104 NQL085J-4R7X COIL 4.7uH J
L501 NQL085J-100X COIL 10uH J
L502 NQL085J-100X COIL 10uH J
CN012 QGB1505K1-40 CONNECTOR B-B (1-40)
J001 QNN0294-001 PIN JACK L/R OUT
J002 QNB0006-002 PUSH TERMINAL REAR SP OUT
LC101 NQR0313-009X EMI FILTER 0.01uF 50V M
LC102 NQR0313-009X EMI FILTER 0.01uF 50V M
X101 NAX0288-001X CRYSTAL
 Ref. No. Parts No. Parts Name Description Local
IC0101 CXA2089Q-X IC
IC0603 MSP3415DQGB3GHXIC
Q0101 UN2213-X DIGI TRANSISTOR
Q0102 2SB709A/QR/-X TRANSISTOR
Q0103 UN2213-X DIGI TRANSISTOR
Q0104 2SD601A/QR/-X TRANSISTOR
Q0105 2SD601A/QR/-X TRANSISTOR
Q0106 2SD601A/QR/-X TRANSISTOR
Q0107 2SD601A/QR/-X TRANSISTOR
Q0108 2SB709A/QR/-X TRANSISTOR
Q0109 UN2213-X DIGI TRANSISTOR
Q0110 UN2213-X DIGI TRANSISTOR
Q0111 2SD601A/QR/-X TRANSISTOR
Q0112 2SD601A/QR/-X TRANSISTOR
Q0116 KTA1267/YG/-T TRANSISTOR
Q0118 KTC3199/YG/-T TRANSISTOR
Q0119 2SD601A/QR/-X TRANSISTOR
Q0120 2SD601A/QR/-X TRANSISTOR
Q0601 UN2213-X DIGI TRANSISTOR
D0101 MA3120/M/-X Z DIODE
D0102 MA3120/M/-X Z DIODE
D0103 MA3120/M/-X Z DIODE
D0104 MA3120/M/-X Z DIODE
D0105 MA3120/M/-X Z DIODE
D0106 MA3120/M/-X Z DIODE
 Ref. No. Parts No. Parts Name Description Local
D0107 MA3120/M/-X Z DIODE
D0108 MA3120/M/-X Z DIODE
D0109 MA3120/M/-X Z DIODE
D0110 MA3120/M/-X Z DIODE
D0111 MA3120/M/-X Z DIODE
D0112 MA3120/M/-X Z DIODE
D0113 MA3120/M/-X Z DIODE
D0114 MA3091/M/-X Z DIODE
D0601 RD8.2E/B2/-T2 Z DIODE
C0101 NCB31HK-152X C CAPACITOR 1500pF 50V K
C0102 QETN1CM-477Z E CAPACITOR 470uF 16V M
C0103 QETN1HM-106Z E CAPACITOR 10uF 50V M
C0104 QETN1HM-106Z E CAPACITOR 10uF 50V M
C0105 QETN1HM-106Z E CAPACITOR 10uF 50V M
C0106 NCB31HK-472X C CAPACITOR 4700pF 50V K
C0107 NCB31HK-152X C CAPACITOR 1500pF 50V K
C0108 NCB31HK-472X C CAPACITOR 4700pF 50V K
C0109 NCB31HK-152X C CAPACITOR 1500pF 50V K
C0110 QETN1CM-477Z E CAPACITOR 470uF 16V M
C0111 NCB31HK-472X C CAPACITOR 4700pF 50V K
C0112 NCB31HK-472X C CAPACITOR 4700pF 50V K
C0113 NCB31HK-152X C CAPACITOR 1500pF 50V K
C0114 NCB31HK-472X C CAPACITOR 4700pF 50V K
C0115 NCB31HK-472X C CAPACITOR 4700pF 50V K
C0116 QETN1HM-106Z E CAPACITOR 10uF 50V M
C0117 QETN1HM-106Z E CAPACITOR 10uF 50V M
C0118 NCB31HK-102X C CAPACITOR 1000pF 50V K
C0119 QETN1HM-105Z E CAPACITOR 1uF 50V M
C0120 QETN1HM-106Z E CAPACITOR 10uF 50V M
C0121 QETN1HM-105Z E CAPACITOR 1uF 50V M
C0122 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C0123 NCB31HK-102X C CAPACITOR 1000pF 50V K
C0124 QETN1HM-106Z E CAPACITOR 10uF 50V M
C0125 QETN1HM-106Z E CAPACITOR 10uF 50V M
C0126 QETN1HM-105Z E CAPACITOR 1uF 50V M
C0127 QETN1HM-106Z E CAPACITOR 10uF 50V M
C0128 QETN1HM-105Z E CAPACITOR 1uF 50V M
C0129 QETN1HM-106Z E CAPACITOR 10uF 50V M
C0130 QETN1HM-105Z E CAPACITOR 1uF 50V M
C0131 NCB31HK-102X C CAPACITOR 1000pF 50V K
C0132 QETN1HM-105Z E CAPACITOR 1uF 50V M
C0133 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C0136 QETN1HM-106Z E CAPACITOR 10uF 50V M
C0137 QENC1EM-106Z BP E CAPACITOR 10uF 25V M
C0139 QENC1EM-106Z BP E CAPACITOR 10uF 25V M
C0140 QETN1CM-107Z E CAPACITOR 100uF 16V M
C0141 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C0142 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C0143 QENC1EM-106Z BP E CAPACITOR 10uF 25V M
C0144 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C0145 QETN1CM-107Z E CAPACITOR 100uF 16V M
C0146 QETN1CM-107Z E CAPACITOR 100uF 16V M
C0147 QETN1CM-477Z E CAPACITOR 470uF 16V M
C0149 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C0150 QETN1HM-106Z E CAPACITOR 10uF 50V M
C0151 QETN1HM-106Z E CAPACITOR 10uF 50V M
C0152 QETN1HM-105Z E CAPACITOR 1uF 50V M
C0153 QETN1HM-105Z E CAPACITOR 1uF 50V M
C0154 NDC31HJ-680X C CAPACITOR 68pF 50V J
C0155 NDC31HJ-680X C CAPACITOR 68pF 50V J
C0157 NDC31HJ-680X C CAPACITOR 68pF 50V J
C0158 NDC31HJ-680X C CAPACITOR 68pF 50V J
C0616 QETN1CM-107Z E CAPACITOR 100uF 16V M
C0617 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C0618 QETN1HM-106Z E CAPACITOR 10uF 50V M
C0619 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C0620 QETN1HM-106Z E CAPACITOR 10uF 50V M
C0623 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C0624 QETN1HM-106Z E CAPACITOR 10uF 50V M
C0629 QETN1HM-106Z E CAPACITOR 10uF 50V M
C0630 NCB31HK-102X C CAPACITOR 1000pF 50V K
C0631 NCB31HK-102X C CAPACITOR 1000pF 50V K
C0632 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C0633 QETN1HM-106Z E CAPACITOR 10uF 50V M
C0634 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C0635 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C0636 NDC31HJ-2R0X C CAPACITOR 2pF 50V J
C0642 NDC31HJ-2R0X C CAPACITOR 2pF 50V J
C0645 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C0646 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C0647 QETN1CM-107Z E CAPACITOR 100uF 16V M
C0648 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R0101 NRSA63J-750X MG RESISTOR 75 Ω 1/16W J
R0102 NRSA63J-750X MG RESISTOR 75 Ω 1/16W J
R0103 NRSA63J-750X MG RESISTOR 75 Ω 1/16W J
R0104 NRSA63J-750X MG RESISTOR 75 Ω 1/16W J
R0105 NRSA63J-750X MG RESISTOR 75 Ω 1/16W J
R0106 NRSA63J-750X MG RESISTOR 75 Ω 1/16W J
R0107 NRSA63J-750X MG RESISTOR 75 Ω 1/16W J
R0108 NRSA63J-750X MG RESISTOR 75 Ω 1/16W J
 Ref. No. Parts No. Parts Name Description Local

1-10 (No.51941C)
R0110 NRSA63J-823X MG RESISTOR 82k Ω 1/16W J
R0112 NRSA63J-823X MG RESISTOR 82k Ω 1/16W J
R0113 NRSA63J-750X MG RESISTOR 75 Ω 1/16W J
R0114 NRSA63J-473X MG RESISTOR 47k Ω 1/16W J
R0115 NRSA63J-223X MG RESISTOR 22k Ω 1/16W J
R0116 NRSA63J-223X MG RESISTOR 22k Ω 1/16W J
R0117 NRSA63J-823X MG RESISTOR 82k Ω 1/16W J
R0118 NRSA63J-823X MG RESISTOR 82k Ω 1/16W J
R0119 NRSA63J-391X MG RESISTOR 390 Ω 1/16W J
R0120 NRSA63J-391X MG RESISTOR 390 Ω 1/16W J
R0123 NRSA63J-104X MG RESISTOR 100k Ω 1/16W J
R0124 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R0125 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R0126 NRSA63J-333X MG RESISTOR 33k Ω 1/16W J
R0127 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R0128 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R0129 NRSA63J-823X MG RESISTOR 82k Ω 1/16W J
R0130 NRSA63J-473X MG RESISTOR 47k Ω 1/16W J
R0131 NRSA63J-273X MG RESISTOR 27k Ω 1/16W J
R0132 NRSA63J-153X MG RESISTOR 15k Ω 1/16W J
R0133 NRSA63J-222X MG RESISTOR 2.2k Ω 1/16W J
R0134 NRSA63J-333X MG RESISTOR 33k Ω 1/16W J
R0135 NRSA63J-222X MG RESISTOR 2.2k Ω 1/16W J
R0136 NRSA63J-333X MG RESISTOR 33k Ω 1/16W J
R0137 NRSA63J-333X MG RESISTOR 33k Ω 1/16W J
R0138 NRSA63J-473X MG RESISTOR 47k Ω 1/16W J
R0139 NRSA63J-823X MG RESISTOR 82k Ω 1/16W J
R0140 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R0141 NRSA63J-153X MG RESISTOR 15k Ω 1/16W J
R0142 NRSA63J-223X MG RESISTOR 22k Ω 1/16W J
R0143 NRSA63J-473X MG RESISTOR 47k Ω 1/16W J
R0144 NRSA63J-273X MG RESISTOR 27k Ω 1/16W J
R0146 NRSA63J-391X MG RESISTOR 390 Ω 1/16W J
R0148 NRSA63J-391X MG RESISTOR 390 Ω 1/16W J
R0151 NRSA63J-104X MG RESISTOR 100k Ω 1/16W J
R0152 NRSA63J-222X MG RESISTOR 2.2k Ω 1/16W J
R0153 NRSA63J-333X MG RESISTOR 33k Ω 1/16W J
R0154 NRSA63J-222X MG RESISTOR 2.2k Ω 1/16W J
R0155 NRSA63J-333X MG RESISTOR 33k Ω 1/16W J
R0156 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R0157 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R0158 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R0159 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R0160 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R0161 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R0162 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R0163 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R0164 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R0165 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R0166 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R0167 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R0168 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R0169 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R0170 NRSA63J-333X MG RESISTOR 33k Ω 1/16W J
R0171 NRSA63J-222X MG RESISTOR 2.2k Ω 1/16W J
R0172 NRSA63J-473X MG RESISTOR 47k Ω 1/16W J
R0173 NRSA63J-823X MG RESISTOR 82k
Ω 1/16W J
R0174 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R0175 NRSA63J-153X MG RESISTOR 15k Ω 1/16W J
R0176 NRSA63J-473X MG RESISTOR 47k Ω 1/16W J
R0177 NRSA63J-273X MG RESISTOR 27k Ω 1/16W J
R0180 NRSA63J-101X MG RESISTOR 100
Ω 1/16W J
R0181 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R0182 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R0183 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R0184 NRSA63J-333X MG RESISTOR 33k Ω 1/16W J
R0185 NRSA63J-222X MG RESISTOR 2.2k Ω 1/16W J
R0186 NRSA63J-333X MG RESISTOR 33k Ω 1/16W J
R0188 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R0189 NRSA63J-221X MG RESISTOR 220 Ω 1/16W J
R0190 NRSA63J-221X MG RESISTOR 220 Ω 1/16W J
R0191 NRSA63J-562X MG RESISTOR 5.6k Ω 1/16W J
R0192 NRSA63J-562X MG RESISTOR 5.6k Ω 1/16W J
R0193 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R0194 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R0195 QRG01GJ-101 OMF RESISTOR 100 Ω 1W J
R0197 QRK126J-181X UNF C RESISTOR 180 Ω 1/2W J
R0198 NRSA63J-750X MG RESISTOR 75 Ω 1/16W J
R0199 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R0202 QRK126J-151X UNF C RESISTOR 150 Ω 1/2W J
R0203 NRSA63J-750X MG RESISTOR 75 Ω 1/16W J
R0204 NRSA63J-750X MG RESISTOR 75 Ω 1/16W J
R0205 NRSA63J-750X MG RESISTOR 75 Ω 1/16W J
R0207 NRSA63J-222X MG RESISTOR 2.2k Ω 1/16W J
R0208 NRSA63J-333X MG RESISTOR 33k Ω 1/16W J
R0209 NRSA63J-222X MG RESISTOR 2.2k Ω 1/16W J
R0210 NRSA63J-333X MG RESISTOR 33k Ω 1/16W J
R0211 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R0212 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R0606 QRG01GJ-181 OMF RESISTOR 180 Ω 1W J
R0628 NRSA63J-183X MG RESISTOR 18k Ω 1/16W J
R0629 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
 Ref. No. Parts No. Parts Name Description Local
R0630 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R0651 NRSA63J-331X MG RESISTOR 330 Ω 1/16W J
L0114 QQR0716-001Z FERRITE BEADS
L0603 QRN143J-0R0X C RESISTOR 0 Ω 1/4W J
L0605 QQL244K-4R7Z COIL 4.7uH K
CN0006 QGB1505K1-50 CONNECTOR B-B (1-50)
CN000F QGA2501C1-09 CONNECTOR W-B (1-9)
J0001 QNZ0465-001 21P CONNECTOR EXT-2
J0002 QNZ0463-001 21P CONNECTOR EXT-1
K0101 CE42681-001Y CHIP BEADS CORE
K0102 CE42681-001Y CHIP BEADS CORE
K0103 CE42681-001Y CHIP BEADS CORE
K0104 CE42681-001Y CHIP BEADS CORE
K0601 NQR0389-003X FERRITE BEADS
K0602 NQR0389-003X FERRITE BEADS
LC0601 NQR0431-001X EMI FILTER 0.22uF 50V Z
W1 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
W2 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
W3 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
W4 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
W5 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
W6 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
W8 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
W9 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
W10 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
W11 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
W12 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
W13 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
W14 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
W15 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
W16 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
W17 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
W18 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
W20 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
W21 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
W23 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
W24 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
W25 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
W26 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
W27 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
W28 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
W29 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
W30 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
W31 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
W32 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
W33 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
W34 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
W35 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
W36 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
W37 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
W38 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
W39 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
W40 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
W41 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
W42 NRSA63J-0R0X MG RESISTOR 0
Ω 1/16W J
W43 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
W44 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
W45 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
X0601 CE42546-001Z CRYSTAL
Y0101 NRSA63J-0R0X MG RESISTOR 0
Ω 1/16W J
Y0102 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
Y0603 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
Y0604 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
Y0621 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
 Ref. No. Parts No. Parts Name Description Local

(No.51941C)
AV & MULTIMEDIA COMPANY DISPLAY CATEGORY 12, 3-chome, Moriya-cho, kanagawa-ku, Yokohama, kanagawa-prefecture, 221-8528, Japan
VICTOR COMPANY OF JAPAN, LIMITED
WPC
Printed in Japan

COPYRIGHT © 2003 VICTOR COMPANY OF JAPAN, LTD. No.51941C
2003/7
COLOUR TELEVISION
AV28R25EKS/C
BASIC CHASSIS
JL2
1 2 3
4 5 6
7 8 9
0
P
AV
TV OK
MENU
P
TV
CD-ROM No.SML200308
SCHEMATIC DIAGRAMS

No.51941C No.51941C
STANDARD CIRCUIT DIAGRAM
NOTE ON USING CIRCUIT DIAGRAMS
1.SAFETY
The components identified by the symbol and shading are
critical for safety. For continued safety replace safety critical
components only with manufactures recommended parts.
2.SPECIFIED VOLTAGE AND WAVEFORM VALUES
The voltage and waveform values have been measured under the
following conditions.
(1)Input signal :Colour bar signal
(2)Setting positions of
each knob/button and
variable resistor
(3)Internal resistance of tester :DC 20k /V
(4)Oscilloscope sweeping time :H 20µs/div
:V 5ms/div
:Others Sweeping time is
specified
(5)Voltage values :All DC voltage values
Since the voltage values of signal circuit vary to some extent
according to adjustments, use them as reference values.
3.INDICATION OF PARTS SYMBOL [EXAMPLE]
In the PW board :R1209 R209
4.INDICATIONS ON THE CIRCUIT DIAGRAM
(1)Resistors
Resistance value
No unit :[ ]
K:[k ]
M
Rated allowable power
No indication :1/ 16 [W]
Others :As specified
Type
No indication :Carbon resistor
OMR :Oxide metal film resistor
MFR :Metal film resistor
MPR :Metal plate resistor
UNFR :Uninflammable resistor
FR :Fusible resistor
Composition resistor 1/2 [W] is specified as 1/2S or Comp.
(2)Capacitors
: Original setting position
when shipped
5.NOTE FOR REPAIRING SERVICE
This model's power circuit is partly different in the GND. The
difference of the GND is shown by the LIVE : ( ) side GND and the
ISOLATED(NEUTRAL) : ( ) side GND.Therefore, care must be
taken for the following points.
(1)Do not touch the LIVE side GND or the LIVE side GND and the
ISOLATED(NEUTRAL) side GND simultaneously. If the above
caution is not respected, an electric shock may be caused.
Therefore, make sure that the power cord is surely removed from
the receptacle when, for example, the chassis is pulled out.
(2)Do not short between the LIVE side GND and ISOLATED(NEUTRAL)
side GND or never measure with a measuring apparatus measure
with a measuring apparatus ( oscilloscope, etc.) the LIVE side GND
and ISOLATED(NEUTRAL) side GND at the same time.
If the above precaution is not respected , a fuse or any parts will be broken.
Since the circuit diagram is a standard one, the circuit and
circuit constants may be subject to change for improvement
without any notice.
NOTE
Due improvement in performance, some part numbers show
in the circuit diagram may not agree with those indicate d in
the part list.
When ordering parts, please use the numbers that appear
in the Parts List.
Type
MM :Metalized mylar capacitor
PP :Polypropylene capacitor
MPP :Metalized polypropylene capacitor
MF :Metalized film capacitor
TF :Thin film capacitor
BP :Bipolar electrolytic capacitor
TAN :Tantalum capacitor
(3)Coils
No unit :[ µH]
Others :As specified
(4)Power Supply
:B1
:9V :5V
Respective voltage values are indicated
(5)Test point
:Test point :Only test point display
(6)Connecting method
:Connector :Wrapping or soldering
:Receptacle
(7)Ground symbol
:LIVE side ground
:ISOLATED(NEUTRAL) side ground
:EARTH ground
:DIGITAL ground
:[M ]
Capacitance value
1 or higher :[pF]
less than 1 :[µF]
Withstand voltage
No indication :DC50[V]
Others :DC withstand voltage[V]
AC indicated :AC withstand voltage [V]
Electrolytic Capacitors
47/50[Example]:Capacitance value [µF]/withstand voltage[V]
No indication :Ceramic capacitor
:B2 (12V)
AV28R25EKS/C
2-22-1
SEMICONDUCTOR SHAPES
TRANSISTOR
BOTTOMVIEW FRONT VIEW TOP VIEW
CHIP TR
IC
BOTTOM VIEW FRONT VIEW TOP VIEW
CHIP IC
TOP VIEW
1 N
N
1
OUT
E
IN
IN OUTE
1 N
N
1
N
N
N
1
N
E
C
B
ECB
C
BE
BCE
(G)(D)(S)
ECB
ECB
CONTENTS
SEMICONDUCTOR SHAPES ......................................................................2-2
BLOCK DIAGRAM........................................................................................2-3
CIRCUIT DIAGRAMS....................................................................................2-5
MAIN PWB CIRCUIT DIAGRAM ................................................................................................................ 2-5
AV SW PWB CIRCUIT DIAGRAM ............................................................................................................. 2-9
POWER & DEF PWB CIRCUIT DIAGRAM................................................................................................2-11
CRT SOCKET PWB CIRCUIT DIAGRAM................................................................................................. 2-13
FRONT CONTROL PWB CIRCUIT DIAGRAM ......................................................................................... 2-15
SIDE CONTROL PWB CIRCUIT DIAGRAM ............................................................................................. 2-17
DOLBY PWB CIRCUIT DIAGRAM ........................................................................................................... 2-19
PATTERN DIAGRAMS .............................................................................. 2-21
MAIN PWB PATTERN .............................................................................................................................. 2-21
POWER & DEF PWB PATTERN .............................................................................................................. 2-25
CRT SOCKET PWB PATTERN................................................................................................................. 2-27
FRONT CONTROL PWB PATTERN ......................................................................................................... 2-27
SIDE CONTROL PWB PATTERN............................................................................................................. 2-28
DOLBY PWB PATTERN ........................................................................................................................... 2-29
AV SW PWB PATTERN ........................................................................................................................... 2-31

No.51941C No.51941C
BLOCK DIAGRAM
2-3 2-4
MAIN PWB
SIF
IC701
MI-COM &
TELETEXT DECODER
IC201
AV SW
EXT-1
EXT-2
EXT-3
EXT-4
AC IN
IC603
MULTI SOUND
PROCESSOR
FUSE LF901
IC851
POWER SW
IC601
AUDIO OUT
R
L/R
L
L/R
REAR
OUT
YORCB/CORCV
TV OUT
L TV /RTV
V1, L1, R1
YS, SLOW1,R,G,B
V2/Y2, C2, L2, R2
V2,R2,L2
V3 / Y3, C3,L3 , R3
AV SW PWB
REMOCON
S
KEY
REMOCON
RECEIVER
FRONT
CONTROL
PWB
SIDE CONTROL
PWB
DOLBY PWB
D901 T901
Q521
H.OUT
IC401
V.OUT
B1
FOCUS1
FOCUS2
EHV
SCREEN
IC501
DEF CONT.
H OUT
V.DY
H.DY
POWER & DEF PWB
B
CRT
VM COIL
CRT SOCKET
PWB
IC3106
B OUT
IC3105
R OUT
IC3104
G OUT
HEAD
PHONE
T551
HVT
R
G
IC301
VIDEO / DEF PROCESS
TU001
TUNER
IC302
IC303
SP
WOOFER
SP C
VTV
IC101
Y4/C4
V4
L4
R4
Y4/C4
V4
L4/R4
VM
IC702
MEMORY
V OUT
IC602
AUDIO OUT
IC501
IC301
SP R
SP L
R
L
AUDIO
OUT
IC201(1/2)
IC201(2/2) IC551
KEY
REMOCON
DSP
AMP
L.R/CENT
SW
AMP
AMP AMP
TONE/VOL
TONE/VOL

No.51941C No.51941C 2-5 2-6
VOLTAGE (V)VOLTAGE (V)
PIN NO. PIN NO.
IC551
1 7.3
2 7.3
3 6.4
4 6.3
5 0
6 5.8
7 5.8
8 5.4
9 5.4
10 11.8
IC701
1 2.2
2 2.3
3 2.9
4 2.9
5 3.1
6 3.1
7 0
8 3.1
9 2.4
10 0
11 0
12 1.9
13 2.4
14 0
15 1
16 0.1
17 2.7
18 0
19 0
20 3
21 0
22 3.1
23 3.1
24 0
25 2.3
26 2.8
27 0
28 0
29 0
30 3.1
31 0
32 0.6
33 3.1
34 0.3
35 0.8
36 0
37 0
38 0.2
39 0
40 0.8
41 2.5
42 2.4
43 0
44 3.1
45 0
46 0
47 1.7
48 0
49 0
50 0
51 2.2
52 2
IC702
1 0
2 0
3 0
4 0
5 3.1
6 3.1
7 0
8 3.1
IC703
1 0
2 0
3 0
4 0
5 0
6 0
7 0
8 0
9 3.4
10 1.8
11 0
12 0
13 0
14 2.2
15 2.3
16 4.8
IC705
1 0
2 3.2
3 4.9
4 4.9
5 3.1
6 0
7 0
8 4.8
IC706
1 4.9
2 0
3 0
4 0
5 2.4
Q701
E 0
C 0
B 2
Q702
E 2
C 8.9
B 2.6
Q703
E 0
C 2.5
B 0
Q704
E 0
C 0.1
B 0.5
Q707
E 3.1
C 3
B 2.5
Q708
E 4.3
C 4.9
B 4.7
Q709
E 4.2
C 6.1
B 2.4
Q710
E 0
C 4.9
B 0
Q711
E 0
C 0
B -0.2
Q712
E 0
C 4.8
B 0
Q713
E 4.9
C 0
B 6.1
Q714
E 3.1
C 4.9
B 3
Q715
E 0
C 3.1
B 0
Q716
S 3.1
D 4.8
G 3.1
Q717
S 0
D 0
G 3.1
Q717
Q716
C732
R772
Q701
R778
D702 D703
R703
IC705
R713
IC701
C713
R710
R711
R712
CN001
R707
R726
C715
Q706
R752
Q714
R753
C721
C738
Q705
R751
C733
R727
C730
CN016
C740
Q707
R750
C720
R745
Q703
R746
R747
Q715
C719
R731
CN0RT
C731
R749
R748
CN005 CN004
Q704
R794
C743
D701
Q718
R766
R735
R736
R737
R738
C701
R701
R777
R776
R730
Q712
R783
Q719
R784
C741
R786
R791
D706
R787
D707
IC706
R702
C709
C707
R705
R706
C708
C710
C711
C712
R704
C704
C749
C747C748
IC702
C705
R788
C714
C742
C677
R551
R552
IC551
R560
R553
R555
Q710
R556
Q716
CN016
C552
C551
C555
C554
C553
R557
IC703
R709
R708
R785
Q717
R735
R736
R737
R738
R761
R762
R767
R768
R769
R782
Q708
D704
Q709
R773
R779
R780
R789
R792
R793
R790
Q713
R781
CN0C1
D705
R774
Q711
R775
C739
R743
R765
R741
R744
R739
R742
R740
Q702
L707
C718
R764
R561
C551
R560
R558
R557
R556
R555
R554
R553
R552
R551
C552
C553
C554
C555
R726
R751
R752
R753
C715
C721
Q705
Q706
IC551
OSD_HP
R714 R715
OSD_VP
R716 R717 R728 R729
R718 R719 R720 R732 R733 R734
ODD/EVEN
S_COR
R771 C736
AFC
AV_LINK
GND
L/R.VCC
L/R_CENT
SCL2 SDA2 SCL1 SDA1
C/S.VCC
R767
R795
HP_DET
9V
12V 32V
L R
5V
YORCV
PROTECT
STB_5V
R768
R769 R770
K701 K702
AGC
P_ON/OFF
Y/V
K703
C744 C745 C746
OSD_YS
OSD_B
BBE
OSD_G OSD_R A_GND
HBLK_R HBLK_L
A_MUTE
AMP_MUTE
R561
R554
R558
REG
EXT1/OTH
D_IFOK
D_CLOCK
D_DATA D_IFCS
R721 R722 R723 R724 R725
C722
C723
C724
X701
C728
L701
L702
L704 L703
L705
L706
L708
C717 C726
C727
C716 C725
C734
C737
R757
R761
R762 R763
C729
C735
MSP_RST
D
G
S
D
G
S
CH
MM1478DF-X
SDA5555-A064
MICOM&TEXT
QGF1220C2-19
CH
CH
CH
QGB1506L1-16 QGB1506L1-16
MA3039/H/-X
MA3030/H/-X
R1170H251B-X
CH CH CH
AT24C1628R370KE
MEMORY
R1/2
ROTATION
80%
80%
80%
80%
JLC1562BF-X
MA3068/M/-X
QGA2501F1-06
80
QQL244K-8R2Z
2SK1374-X
2SK1374-X
QGA2501C5
-05Z
LA6515
SJL-1201A
SJL-1201A
NC
VinVout
cd
GND
CONT
RST
NC
RST
ODD/EVEN
CH
CH
NQR0360-001X NQR0360-001X NQR0360-001X
Vin
Vout
NC GND CE
R1/2
QAX0669-001Z
QQL244K-4R7Z
QQL244K-4R7Z
QQL244K-4R7Z
QQL244K-4R7Z
QQL244K-4R7Z
QQL244K-4R7Z
QQL244K-4R7Z
N
*
*
33p
100k
*5
1.5k
*3 *3
1k 10k
.1/16
10k
OPEN
1.5k
10k
*
*
*
*
*5
*
*
150p
*
*
39p
OPEN
150p
*
560p
*2
47k
OPEN
1.8k
*147k
6.8k
*5
OPEN
0
OPEN
22k
15K
*1
4.7k
.1/16
*3
*1
2.2k
*
*
*
*
.1/16
220
1k
47k
2.2k
*1
6.8k
*2
33k
1/50
OPEN
1.5k
33k
4.7k
.1/16
.1/16
OPEN
220k
100/10
100/10
220/10
220/10
4.7k
.1/16
.1/16
.1/16.1/16
.1/16
8.2k
.1/16
1/50
.1/16
*
*
*
*
*
*
*1
*
*
*
*
*
*
*
10k
10k
15k
18k
0
10k
47k
10k
*1
*1
220
27k
10k
10k
10k
1k
1k
*2
10k
*3
47k
*1
1k
1/10
390
10k
100
470
47k
22k
3.3k
47k
10k
*1
8.2
10/25
100k
10k
10k
10k
.22/16
10
100k
5.6k
5.6k
150k
4.7k
33k
68k
120k
10
.22/16
47/25
.22/16
.22/16
68k
5.6k
10k
22k
560p
1/50
*2
*1
100 100 100 100 100 100
4.7k 4.7k 4.7k 4.7k 4.7k 4.7k
1k .001
*
OPEN
*
*
OPEN
22p 22p 22p
*
*
*
220 220 220 220 220
10/50
10/50
10/50
.1/16
4.7
4.7
4.7
4.7
4.7
4.7
4.7
OPEN
.1/16
OPEN
.1/16 OPEN .1/16
.1/16
220
*
*
82k
.033/25
.033/25
REMOCON
KEY1
HP_DET
PROTECT
KEY2
9V
LINK_IN
GND
STB2.5V
YORCV
D_CLOCKD_DATA
HP_DET
STB3.3V
OSD_VP
OSD_HP
REMOCON
5V
KEY1
A_GND
KEY2
12V
STB_5V
HBLK_L1
OSD_B
MSP_RST
AGC
OSD_G
D_IFOK D_IFCS
AFC
AFC
OSD_R
RST
LINK_IN
P_ON/OFF
S_COR
L/R_CENT
AV_LINK
P_ON/OFF
SDA2
AGC
LINK_OUT
LINK_OUT
SCL2
ODD/EVEN
BBE
HBLK_R1
Y/V
SDA1
Y/V
ODD/EVEN
RST
EXT1/OTH
EXT1/OTH
PROTECT
SCL3 SDA3
SDA2 SDA1 SCL2 SCL1
AV_LINK
SCL3 SDA3
SCL1
BBE
REG
L/R_CENT
MSP_RST
A_MUTE
AMP_MUTE
HBLK_L1 HBLK_R1
D_IFOK
OSD_B OSD_G
A_MUTE
AMP_MUTE
OSD_YS
D_CLOCK
D_DATA
YORCV
D_IFCS
REG
S_COR
OSD_HP OSD_VP OSD_YS
OSD_R
IC701 19 20
IC701 IC701 34 35
311.2
SIDE CONTROL
PWB
SJL-1201A-U2
OPEN
CIRCUIT DIAGRAMS
MAIN PWB CIRCUIT DIAGRAM (1/2) SHEET 1

No.51941C No.51941C2-7 2-8
2.2
2.5
IC301 42 45
35 36 37
12
3
0.4
0.8
0.5
3
IC301
IC301 IC301 IC301
IC301
TU001 16 13
IC301
3.5
0.8 1.2
IC301 14 53
IC301
51 12
IC301 4
5
IC301 IC501 17
IC501
1.3
IC501 18 26
IC501
32.2 1.2 2.6
IC301 6 IC301 21
82.8
VOLTAGE (V)VOLTAGE (V)
PIN NO. PIN NO.

IC301
1 4.9
2 0.8
3 8.7
4 1.9
5 4.3
6 1.4
7 2.5
8 5.1
9 2.2
10 2.2
11 0
12 3.2
13 2.8
14 2.9
15 0
16 5.9
17 8.7
18 0
19 0
20 0
21 0.5
22 0
23 4.4
24 4.4
25 4.3
26 2.3
27 2
28 0.1
29 4.1
30 3
31 2.3
32 0
33 2.3
34 2.3
35 1.6
36 1.6
37 2.4
38 5.2
39 1.5
40 4.1
41 4.8
42 3.3
43 0
44 2.5
45 2.3
46 2.9
47 2.4
48 5
49 0.5
50 5.6
51 2.4
52 2.3
53 3
54 3.9
55 0
56 4.6
IC302
1 0
2 5.2
3 5.2
4 5.1
5 0
6 5.3
7 1.5
8 5.1
9 5.1
10 5.1
11 11. 9
12 5.1
13 5.1
14 5.2
IC501
1 2.3
2 2.3
3 0.8
4 4.9
5 9
6 2.2
7 4.8
8 0
9 11.5
10 0
11 3.3
12 0.5
13 8.7
14 3.7
15 12
16 4.7
17 4.7
18 4
19 0.6
20 2.8
21 8
22 2.4
23 1.1
24 7.1
25 11.7
26 2.5
27 0
28 0
IC601
1 0
2 0
3 0
4 0
5 27.3
6 0
7 0
8 0
9 0
10 0.6
11 0
12 0
13 13.6
14 0
15 0.6
16 0
17 0
18 0
19 28.2
20 13.4
21 15.2
22 0
23 13.4
IC602
1 0
2 0
3 0
4 0
5 30.1
6 0
7 0
8 0
9 0
10 0.6
11 0
12 0
13 15.1
14 0
15 0.8
16 0
17 0
18 0
19 31.1
20 14.8
21 16.2
22 0
23 14.6
IC671
1 11.9
2 4.9
3 0
TU001
1 2.1
2 2.8
3 0
4 2.3
5 2.5
6 0
7 4.7
8 0
9 31.8
10 0
11 0
12 0
13 0
14 0
15 4.8
16 2.9
17 2.1
18 1.9
19 0
20 0
21 3
22 0
Q002
E 3.7
C 8.9
B 4.3
Q301
E 3.3
C 0
B 2.7
Q302
E 1.9
C 0
B 1.2
Q308
E 0
C 1.8
B 0.1
Q309
E 3.5
C 8.9
B 4.3
Q311
E 0
C 0
B 3.4
Q312
E 0
C 0
B 0
Q401
E 0
C 7.9
B 0
Q402
E 8.5
C 8.5
B 9.1
Q605
E 0
C 4.1
B 0.2
Q606
E 0
C 0
B 0.5
Q607
E 0
C 0
B 3.1
Q608
E 0
C 4.1
B 0.3
Q609
E 0
C 0
B 0.5
Q610
E 0
C 0
B 2.2
Q615
E 0
C 4.1
B 0.3
Q616
E 0
C 0
B 0.5
Q617
E 0
C 4.1
B 0.2
Q618
E 0
C 0
B 0.5
HS602
Q619
Y606
Q617
HS601
R347
R675
Y601
R678
CN008
Q618
R346
R642
Q614
Q613
Q612
Q611
R637
Y607
L/R.VCC
Y608
CN0SC
CN006
Q621
R614
Q622
R350
R625
R
R627
J601
R615
R629
R626
R628
R352
D608
R630
IC671
R574
R405
Q309
D609
R406
Y602
L
Q605 Q606 D604
Q623 D616
D606
C649
R353
R619
Q604
Q603
R677
Q608
Y609
IC602
Q609
R647
R646
R631
R354
D607
R348
C001
R349 R351
C320
R337
C335
D305
D306
D307
Q314
D605
Q310
C315 Q313
Q624
Y301
Q311
R652
C617
Y610
C009
R633
R001
C675
D622
IC302
R336
Q610
R330
R005
Q602
L003
R648
Q601
R613
R632
C402
Q615 Q616
R639
Y611
L002
CN003
Y612
R638
R518
C319
C618
R327
C002
C671
C672
R679
R640
Y614
C330
R654
C631
D615
R655
Q671
R656
R403
D610
R657
Q620
C008
Y613
R658
C601
R671
C602
C308
C603
R306
C312
R305
R680
R309
R402
D614
R676
D621
R681
L671
Q625
C313
CN012
R682
R653
R504
R307
C306
L306
R321
C619
L672
R401
R659
A_GND
R661
C329
R662
R660
Q672
Q673
R663
C634
R341
R601
C628
R603
D304
C629
R605
C013
C328
R339
R602
R332
R340
R331
R345
R333
R604
C334
R342
D303
R344
R606
IC601
Q312
R607
IC501
R505
R506
R335
R507
C630
C507
C511
C005
R609
R608
C403
IC301
C404
R003
C007
C004
C006
C301
R514
TU001
C405
R412
R002
R508
C676
R409
C611
C012
C011
C612
C613
C608
R511
C605
C606
R612
C512
R611
R610
R411
R413
C508
D503
D602
D603
R006
R004
R415 D401
C408
R416
C407
C406
R519
L302
R520 R516
C314
D302
R308
R316
R571
R572
R573 C571
R414
Q401
Q301
C514
C515
C509
R338
Q402
C513
R314
Q302
R417
R617
R418
R419
R509
C510
R007
Q308
R420
R618
C614
Y603
Q607 R621 C615
R620
R008 R010
C/S.VCC
R624
R623
R622
C616
R009
R011
Q001
Q002
C622
C623
Y001
IC603
C648
CN0SW
C647
CN00S
R651
C010
C646
C645 C644
Y605
Y604
C638 C639
C003
L501
D619
C640
D617
C641 C643
C642
R650
R636R635
R634
R649
R674
R672
R673
D613
D618
R645 C632
R641 R643
C633
L001
R644
R303
R301
C674
C673
D620
R404
GND
P_ON/OFF AMP_MUTE
ODD/EVEN
AFC
C327
C331
A_MUTE
C323
C322
C326 C325 C324
R304
PROTECT
EXT1/OTH
STB_5V
K307
HP_DET
X301
BBE
C401
S_COR
C307
C311
L305
R310
C309
C302
C506 C505
C503 R502
C504
R503
R312
AGC
C501
MSP_RST
R311
R317
R313
C321
Y615
C304
Y616
Y618
C303
C502
Y617
YORCV
C620
LC301
C621
OSD_YS
OSD_B OSD_G OSD_R
SDA1 SCL1
C332
L301
C333
C604
C636
C609
C635C607
12V
D601
5V
HBLK_R HBLK_L OSD_VP
9V
C516
R517
Y/V
C626
OSD_HP
REG
L/R_CENT AV_LINK
32V SCL2
D_IFCS
SDA2
C305
C627
D_IFOK D_CLOCK
C624C625
D_DATA
C310
D612
D611
R302
D301
LC31910-002A
UN2213-X
UN2213-X
GG30028-001A-H
QGA2501C5-08Z
QGA2501C5-003Z
QGB1505J1-50
UN2213-X
UN2213-X
IN OUT
GND
BA17805T
UN2213-X
UN2213-X
AN7585
AN5860
QQR0621-002Z
UN2213-X
QGB1506L1-16
CH
QQL244K-4R7Z
CH
UN2213-X
QGB1505J1-40
QQL244K-330Z
CE42142-222Z
QETM1EM-338
AN7585
AN5441SA-W
TB1227CN
QAU0277-001
HF
QTMN1HM-105Z
0.5%
0.5%
AK04-T2
MA3330/L/-X
MA3330/L/-X
QQL244K-4R7Z
0.5%
TF
MY
UN2213-X
QGA2501C5-003Z
SIDE
CONTROL
PWB
QGA2501C5-004Z
QQL244J-151Z
MA3330/L/-X
CH
OMF1
N
QQR0621-002Z
QAX0305-001Z
N
NNN
CH
N
CH
QETM1VM-228
QQL244K-4R7Z
QETM1VM-228
MA3330/L/-X
TFTF
CH
MA3330/L/-X
MA3330/L/-X
MA3051/M/-X
OPEN
33k
OPEN
OPEN
OPEN
*1
33k
47k
OPEN
OPEN
OPEN
OPEN
OPEN
OPEN
OPEN
18k
4.7k
2.2k
2.2k
OPEN
18k
2.2k
OPEN
OPEN
10k
*3
OPEN
33k
22k
*1
OPEN
OPEN
OPEN
*1*3
*1 *3
*3
10/50
3.3k
47k
OPEN
OPEN
0OPEN
*1
47k
27k
10k
470
*3
6.8k
.0022
1k 6.8k
.01
1k
220p
*3
*3
*3
*1
OPEN
OPEN
10/50 *2
*1
OPEN
*1
82k
10/16
OPEN
10/50
10k
OPEN
100/16
*3
10k
*5
1k
OPEN
12k
OPEN
10
10k
OPEN
OPEN
10k
OPEN
*1
47k
0
10
0
10k
6.8k
100/16
10/16
470
10/50
OPEN
OPEN
OPEN
8.2k
0
39p
8.2k
10/50
*3
8.2k
OPEN
8.2k
1k
*3
8.2k
*2
.1/16
OPEN
0
10/16
OPEN
10/16
12p
10/16
2.2k
68p
5.6k
2.2k
2.2k
10k
*3
27k
*3
100k
OPEN
100/16
47k
18k
8.2k
1k
.01
1k
10/16
OPEN
10k
OPEN
OPEN
OPEN
1000/16
10k
1k
1000/25
680
*3
3300/25
1k
.01
47/25
OPEN
OPEN
OPEN
10k
330
5.6k
4.7k
OPEN
10/50
1.5k
*3
1k
OPEN
*2
10k
220
220
27k
1k
1000/25
.01
.01
1000/10
10k
10k
.01
.01
100
10/50
.1/16
.01
.1/16
4.7k
.01
OPEN
100
22k
.1/16
0
1000/25
.01
10/50
1000/25
1000/25
OPEN
0
OPEN
OPEN
OPEN
1/50
OPEN
OPEN
47k
22k
1000/16
4.7k
OPEN
5.6k OPEN
.015
100
.82
.18
5.6k
4.7
1.5k 2.2k
.01
*3
470
220k
100
22k
820 .01
100
*5
*2
.01
.39
.082
OPEN
*1
2200/16
5.6k
*2
22k
10k
6.8k
5.6k
22k
.01
10k
*5
8.2k
10/50
0
18k 10/50
15k
10k OPEN
47k
10k
8.2k
10/50
OPEN
1k
OPEN
*1
OPEN
OPEN
0
OPEN
OPEN
OPEN
OPEN
OPEN
OPEN
OPEN OPEN
0
OPEN
OPEN OPEN
OPEN
*3
OPEN
*3
OPEN OPEN
OPEN
OPEN
OPENOPEN
OPEN
OPEN
OPEN
OPEN
OPEN
*3
18k 10/50
10k 8.2k
10/50
27
15k
OPEN
OPEN
OPEN
OPEN
*3
18k
4.7/50
1/50
.1/16
.1/16
1/50 1/50 1/50
120 1/50
470/16
10/50
4.7
390
4.7/50
.068/16
3.3/50
.0033
.01 10k
.01
100k
100
100/16
390
100 100
.1/16
OPEN
.01
0
0
47/25
.01
OPEN
100/50
2200/35
.01
4.7
.1/16
100/50
2200/35
OPEN
OPENOPEN
.01
4.7k
OPEN
100/16
OPEN
OPENOPEN
.01
OPEN
GND
SC_YS
SC_R
SC_G
SC_B
SCL1
SDA1
SCL1
SCL1
SDA1
5V_2
SDA1
FSC
OSD_VP
SCP
A_GND
YORCV
P_ON/OFF
CORCV
V_SAW
SC_YS SC_G
ABL
OSD_R
ODD/EVEN
ODD/EVEN
MSP_RST
SC_R
A_MUTE
SCL2 SDA2
SC_B
AMP_MUTE
PROTECT
FSC
OSD_YS
STB_5V
D_DATA
PROTECT
STB_5V
CORCV
SCP
L/R_CENT
HP_DET
OSD_G
BBE
EXT1/OTH
YORCV
EW
D_IFCS D_IFOK D_CLOCK D_DATA
OSD_B
V_SAW
12V
P_ON/OFF
OSD_HP
S_COR
NECK
H_DRIVE
AMP_MUTE
V_DRIVE
SCL2
HP_DET
SCL2 BBE MSP_RST SDA2 L/R_CENT D_IFCS D_IFOK D_CLOCK
REG
ABL
H_DRIVE
OSD_HP
NECK
A_MUTE
V_DRIVE
EW
EXT1/OTH
OSD_YS
OSD_B OSD_G OSD_R
SDA1 SCL1
OSD_VP
S_COR
SDA2
REG
SUB
WOOFER
CENTER
SPEAKER
SJL-1201A-U2
MAIN PWB CIRCUIT DIAGRAM (2/2) SHEET 2

No.51941C No.51941C 2-9 2-10
IC0101
1 3.8
2 4.4
3 3.8
4 4.4
5 4.3
6 6.6
7 0
8 3.9
9 4.4
10 3.8
11 4.4
12 4.4
13 6.6
14 0
15 3.8
16 3.8
17 3.9
18 4.4
19 4.3
20 6.6
21 0
22 4.4
23 4.4
24 4.4
25 0
26 3.2
27 3.2
28 0
29 4.3
30 0
31 3.5
32 4.4
33 3.5
34 8.9
35 0.3
36 5.1
37 4.4
38 4.3
39 4.4
40 4.6
41 4.4
42 3.5
43 4.4
44 0
45 4.1
46 4.4
47 3.9
48 4.4
IC0603
1 4.9
2 1.4
3 1.4
4 0
5 2.2
6 2
7 2.1
8 4.9
9 0
10 4.9
11 0
12 3.1
13 3.1
14 2.1
15 2.1
16 2.1
17 2.1
18 2.1
19 2.1
20 4.9
21 0
22 2.1
23 0
24 0
25 0
26 2
27 2
28 0
29 0
30 3.6
31 3.6
32 0
33 7.9
34 6.1
35 0
36 3.5
37 3.6
38 3.6
39 0
40 3.6
41 3.6
42 2.5
43 3.6
44 0
Q101
E 0
C 0
B 0
Q102
E 0
C 0
B 0.1
Q103
E 0
C 0
B 0.1
Q104
E 0
C 6.6
B 0
Q105
E 0
C 6.6
B 0
Q106
E 0
C 6.6
B 0
Q107
E 0
C 6.6
B 0
Q108
E 0
C 0
B 0
Q109
E 0
C 0
B 0
Q110
E 0
C 0
B 0
Q111
E 0
C 6.6
B 0
Q112
E 0
C 6.6
B 0
Q116
E 3.8
C 0
B 3.1
Q118
E 2.8
C 8.9
B 3.5
Q119
E 4.9
C 0
B 0
Q120
E 3.1
C 4.8
B 0
Q601
E 0
C 4.9
B 0
VOLTAGE (V)VOLTAGE (V)
PIN NO. PIN NO.
D0112
IC0603
X0601
C0140 C0141
C0648
C0642
C0147
Q0118
R0188
Q0601R0651
R0121 C0656
C0122
CN0006
C0655
R0202 R0203
C0142
C0636
R0189
R0190
D0114
C0622
R0193 R0194
C0635
C0634
C0632
Q0120
Q0119
C0633
Q0302
Q0116
R0198
R0199
R0197
R0195
R0212
R0211
Q0305
C0145
Q0307
C0146
D0113
R0167
Q0112
Q0111
R0170
R0177
R0176
R0173
C0131
R0172
R0128
Q0303
Q0107
R0137
R0141
R0144
R0143
R0139
C0123
R0138
R0116
R0301
C0144
Q0105
Q0104
R0126
C0126
R0132
R0131
C0621
R0159
R0130
R0160
R0129R0114
R0115 R0162
R0164
C0120
R0166
R0127
R0125
R0124
K0602
R0161
C0136
Y0601
Y0602
R0639
C0624
C0620
C0623
C0619
IC0604
R0631
C0659
R0635
R0633
R0632
R0634
C0660
C0653
C0651
C0654
C0649
C0650
C0652
R0638
R0636
C0139
C0127
C0618
K0101
C0629
C0617 C0630 C0631
R0107
R0628
C0645
C0646
LC0601 L0605
C0647
R0629
R0630
L0603
Q0102
Q0103
Q0304
Q0101
R0119
R0120
R0110
R0112 D0106
D0105
C0116
R0105
C0117
R0123
R0606
IC0302
C0313
CN000F
D0601
C0616
K0102
K0103
K0104
R0309 R0310
R0325
R0305
R0191
C0312
R0317
R0192
R0320
R0322
Q0308
R0321R0319
R0324
R0323
C0137
R0153
C0310
C0311
R0314
Q0306
R0316
R0313R0315
R0318
C0128
R0155
C0627
R0152
C0643
C0308
C0157
C0159
L0301
C0307
C0306
Q0301
R0303
R0304
R0154
R0302
R0163
C0119
R0133 R0134
R0165
C0121
R0135
R0136
C0130
R0647
R0648
R0650
R0186
R0649
Q0108
C0152
C0153
Q0109
Q0110
R0146
R0148
R0117
R0118 D0111
D0110
C0124
C0125
R0151
C0677
D0107
C0678
D0108
D0109
Y0104
C0301
C0154
C0155
C0156
Y0106
K0301
K0601
IC0604
Y0621
Y0101
Y0102
D0101
C0102
C0103
D0103
D0102
C0105
C0108
C0107
C0104
R0102 R0113
R0104
J0002
D0104
R0101
R0103
C0106
C0109
J0001
C0110
C0113
R0106
C0111
C0112C0101
J0001
R0108
C0114
C0115
L0114
IC0602
R0622
R0623
C0637
C0638
R0616 R0617
R0618
R0619
C0628
R0620
R0614
R0615
C0625
C0626
C0639
C0640
C0641
IC0101
C0149
C0133
C0143
R0174
R0183
R0182
R0180
R0168
R0175 R0142
C0129
Q0106
R0140
R0158
C0118
R0157
Y0603 Y0604
R0156 C0158
R0169R0171
R0184
R0181
C0132
R0185
R0206 R0205 R0204
C0151
C0150
R0210
R0208
R0207 R0209
*4
MSP3415DQGB3GHX
CE42546-001Z
CH
*1
DTC144EKA-X
*
QGB1505K1-50
*
R1/2
80%
CH
*4
*
N
*1
*1
*8
R1/2
OMF1
*4
*1
*1
*1
80%
*1
*1
*
*4
*4
*4
NQR0389-003X
*
*
*
*
( 2/2)
LPF
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
CE42681-001Y
NQR0431-001X QQL244K-4R7Z
QRN143J-0R0X
*2
DTC144EKA-X
DTC144EKA-X
*4
*4
OMF1
RD8.2E/B2/-T2
CE42681-001Y
CE42681-001Y
CE42681-001Y
N
**
CH
CH
*
*
**
*2
DTC144EKA-X
DTC144EKA-X
*4
*4
*
*
CH
CH
CH
NQR0389-003X
*
( 1/2)
*4
*4
*4
QNZ0463-001
*4
QNZ0465-001
QQR0716-001Z
*BBE
*
*
*
*
**
*
*
*
*
*
*
*
*
*
*
CXA2089Q-X
*1
N
*
*
CH
100/16
.01
2p
470/16
100
330
18k
.01
150 75
1/10
2p
220
220
1k 1k
.01
.01
.1/1610/50
OPEN
75
100
180
100
10k
10k
OPEN
100/16
OPEN
100/16
100
33k
27k
47k
82k
.001
47k
10k
OPEN
33k
15k
27k
47k
82k
.001
47k
22k
OPEN
1/10
33k
1/50
15k
27k
100
47k
100
82k47k
22k 100
100
10/50
100
100
100
100
100
10/50
10/50
10/50
.1/16
.1/16
10/25
10/50
10/50
10/50
.1/16 .001 .001
75
18k
.01
.1/16
4.7
100/16
100
100
0
OPEN
390
390
82k
82k
10/50
75
10/50
100k
180
OPEN
OPEN
100/16
OPEN OPEN
OPEN
OPEN
5.6k
OPEN
OPEN
5.6k
OPEN
OPEN
OPEN
OPENOPEN
OPEN
OPEN
10/25
33k
OPEN
OPEN
OPEN
OPEN
OPEN
OPENOPEN
OPEN
1/50
33k
2.2k
OPEN
68p
OPEN
OPEN
OPEN
OPEN
OPEN
OPEN
OPEN
2.2k
OPEN
100
1/50
2.2k 33k
100
1/50
2.2k
33k
1/50
33k
1/50
1/50
390
390
82k
82k
10/50
10/50
100k
X
OPEN
68p
68p
OPEN
0
OPEN
0
0
470/16
10/50
10/50
.0047
.0015
10/50
75 75
75
75
75
.0047
.0015
470/16
.0015
75
.0047
.0047.0015
75
.0047
.0047
.01
.01
10/25
10k
100 100
100
100
15k 22k
10/50
10k
100
.001
100 100
68p
100
2.2k
33k
1001/50
2.2k
OPEN 75 75
10/50 10/50
33k 33k
2.2k 2.2k
L1
L1
V2_OUT
VOUT
SC_B
SC_G
SC_R
TV_V
R1
A.MUTE
TV_OUT
SCL2
GND
SDA2
BUSA
5V
AV_LINK
L_OUT
R_OUT
SLOW3
SLOW1
V3/Y3
C3
V1
V1
SC_YS
V2/Y2
C2
SLOW2
V3/Y3
C3
SLOW3
SLOW1
R1
YOUT
COUT
L2OUT
Y
R2OUT
C
SCL2
R4
SDA2
L4
V4
Y4
C4
R2_OUT
L3
R3
R2_OUT
L2_OUT
L2_OUT
A.MUTE
BBE
R2
L2
R3
L3
TV_R
SIF
TV_V
L_OUT
5V
V2_OUT
SC_G SDA2
AV_LINK
YOUT
MSP_RES
L_MONO
BUSA
TV_OUT
COUT
SCL2
L2
SDA2
R2
SLOW2
SC_R SC_B
C2 V2/Y2
SIF
R4 V4 Y4
R_OUT
BBE
MSP_RES
L_MONO
SCL2
SC_YS
TV_L
TV_R
R2OUT
TV_L
L4 C4L2OUT
IC0101 23 40 43 45
1
SJL0S201A-U2
SIDE CONTROL
PWB
SJL-0201A-
U2 SJL-0201A- U2
MULTI-SOUND
PROCESS
AV SW PWB CIRCUIT DIAGRAM SHEET 3

No.51941C No.51941C2-11 2-12
VOLTAGE (V)
PIN NO.
IC401
1 2.3
2 12.2
3 10.7
4 12
5 0.1
6 12.3
7 2.3
IC901
1 0.6
2 0
3 288
4 18.9
5 2.9
IC951
1 142.3
2 27.3
3 0
IC952
1 13.8
2 11.9
3 0
IC953
1 11.8
2 8.9
3 0
IC954
1 6.3
2 4.9
3 0
4 3.2
IC955
1 29.8
2 4.9
3 0
Q402
E 0
C 0
B 0.6
Q404
E 0
C 0
B 0.5
Q461
E 0
C 21.9
B 0.4
Q462
E 4.5
C 0.5
B 3.9
Q463
E 4.5
C 0
B 3.9
Q501
S 0
D 62.4
G 1.5
Q521
E 0
C 130
B -0.1
Q541
E 0
C 10.9
B 0
Q542
E 0
C 0
B 3.4
Q543
S 0
D 0
G 10.9
Q544
S 25.2
D 25.2
G 37.7
Q591
E 146
C 0
B 145.6
Q592
E 0
C 3.1
B 0
Q593
E 0
C 3.2
B 0.2
PC541
1 0.1
2 0
3 26.8
4 39.1
PC901
1 28.3
2 27.3
3 0
4 2.7
C964
C979
IC901
R917
C411
K951
C920
Q593
C953
R964
K902
R406
C951
C955
IC955
C451
R409
Q543
C524
HS003
HS962
C541
R907
C405
C463
R525
R407
C917
C531
D907
R916
HS004
D904
K955
R404
C464
R405
C410
L954
C406
C561
PC901
R543
D956
C543
C960
Y953
T551
C958
D957
C408
C957
C961
D553
K956
R952
CP955
CN009
R402
C933
LF902
HS965
D966
L955
CNDEG
R932
L461
Y902
Y901
R597
R413
R410
R494
D492
D493
D905
C409
Y903
D491
C491
R492
Y904
R493
CN0HV
CP951
K952
R933
D951
T561
D963
C522
C952
K501
R467
R542
R526
R465
C521
C971
C935
C407
Q461
C529
R913
PC541
IC401
R934
L521
C528
R943
R421
R939
CN00X
R938
D965
R556
R937
Q934
C523
D967
R420
R418
R419
Q404
Q403
C464
R414
R465
R467
R468
C542
Q931
C915
D525
HS001
D964
HS964
D592
R557
D958
Q542
CP954
Q932
HS955
Y522
R935
C592
D555
R554
R461
HS956
R978
R936
C591
Q592
D984
HS002
Y905
C934
C974
C965 C967
C968
C966
D594
C593
Q591
Y906
R504
D556
R505
R592
C521
Q545
R546
R547
C523
C524
C492
C529
L522
C542
C522
R467
C916
PC542
R495
R496
R403
Q546
R548
Y950
D403
R416
C961
Q402
C594
R551
R552
R596
R554
D451
D593
C404
T551
R595
L951
R596
R595
CP954
D956
HS956
D913
K955
R497
L561
C561
R561
R562
R563
T561
R401
R903
D494
R462
Q521
C407
R544
R522
R541
R466
R521
R463 R464
T521
C461
R523
C501
Q501
K502
C914
D591
R401
D961
CN0Z2
CN010
D962
R594
Y523
R555
D906
IC952
Y951
C431
R951
R908
R914
C932
C905
C909
R915
C918
R905
D909
R918
C919
C911
R909
C904
C992
C907
D911
D910
K903
C912 R911
C970
R912
C973
C991
CN0Z1
IC951
L953
K953
C910
IC953
R941
IC954
C959
D953
D902
R524
C954
R991
D524
K904
C532
R979
C906
R942
R553
R976
D551
R591
C527
C462
C553
D901
C503
R552
C530
C533
R551
R593
C551
R545
C560
T501
Q541
C555
C552
D983
Q463
D955
Q462
R904
R468
R504
R505
R503
C525
C432
R502
R501
Q544
D554
D523
D521
D522
C502
R967
C526
C908
D954
CP952
C972
C976
D981
C956
C901
C902
C903
C993
R902
L901L902
CP953
C975
K901
L952
K954
TH901
R561
R562
L561
C562 VA561
R563
CN003CN004
CN005
D402
R417
CN00W
C969
L522
C554
L903
T901
C402
C403
R415
K401
C401
Y954
D401
Y952
K504 K503
R414
D982
TF
TF
STR-F6254/F7
1/2W
MY
QQR0872-001Y
TF
QCB32HK-391Z
1/2W
QCZ0122-561
QCB32HK-391Z
GND
IN OUT
BA05T
TF
D
G
S
IRF620
D.M.SW
LC30416-002A
QRL039J-823
MY
MY
MTZJ15B-T2
CEHT11B-005QS
AU01Z-T2
1%
TF
QQL26AM-5R6Z
QCZ0337-180Z
MY
PC123Y22
1/2W
200V
MPP
EHT
FOCUS2
FOCUS1
SCREEN
RGP10J-5025-T3
TF
RGP10J-5025-T3
QQR0621-002Z CP
ICP-N75-Y
CP
QGA2501C5-06Z
1%
QETM1VM-338
QQR1095-001
CM42862-A0E
QQL26AK-220Z
QGA7901C1-02
QQLZ027-821
1/2W
QRZ9017-4R7
MTZJ22B-T2
AU01Z-T2
1SS133-T2
HV
CHC802T-05N-J
CP
CP
QQR0621-002Z
RU4AM-F1
MTZJ3.9B-T2
1.5kV
MPP QFZ0200-123
QEZ0203-227
1/2W
1/2W
1.5kV
MPP
SC
MY
MY
2SD1408/OY/-LB
QRZ9017-100
PC817CD
V.out
Vcc -Vcc
PUMP
UP
THERMAL
PROTECTION
AN5523
QQLZ028-501
3W
QRL039J-561
QRZ9017-100
GND
NC
NC
NC
B1
QGA2501C5-05Z
MTZJ2.7B-T2
400V
PP
MTZJ5.6B-T2
SJL-2201A
200V
MPP
MTZJ9.1B-T2
CEHT12N-026PS
MTZJ33B-T2
CEHT11B-002Q
MTZJ7.5B-T2
1SR35-400A-T2
DTC124ESA-T
QRL039J
-120
CP
CP
DTC124ESA-T
CEHT11B-002Q
DTC124ESA-T
CM48010-002-H
SC
SC
MTZJ7.5S-T2
2SA1208/ST/Z1-T
1/4W,1%
D
GS
1/2W
QFZ0200
-123
1%
QRL039J
-330
1/2W
SJL-2201A
1W_OMF
QRG01GJ-820
1%
RGP10J-5025-T3
RGP10J-5025-T3
QQLZ026-460
1%
MTZJ27B-T2
QRF104K-3R9
QQR0621
-002Z
CEHT11B
-002Q
FMX-G12S
ICP-N75-Y
H.OUT
2SC5902-RL
SJL-2201A
QRL039J
-332
QRL039J
-332
QFZ0200
-472
QFP32GJ
-153
1/2W
QFM72DK
-104
QRL039J-103
QFM72DK
-393
QQR1106
-002
QFZ0197
-154
SJL-2201A
QRT039J
-1R2
QRT039J
-1R2
QRZ9022
-R82
1/2W
1/2W
1/2W
1/2W 1/2W
QEZ0195-475Z
QQH0130
-001
QRA14CF
-2202Y
1/2W
QRA14CF
-2671Y
SJL-2201A
D
GS
BSN304-T
QQLZ028
-472
QFLC1HJ
-473Z
QRL029J
-221
QRZ0056
-103Z
QQR0898
-001
QRA14CF
-6801Y
QRZ9011-4R7
MTZJ4.7A-T2
BA12T
QRL039J-823
1/2W
AC400V
QCZ9054-472
QCZ0122-561
1/2W
1/2W
3W
QRL039J-473
AC400V
QCZ9054-472
AC400V
QCZ9079-471
QEZ0199-227
MTZJ15B-T2
QRM059J-R10
QEHR1CM-107Z
QRT029J-R22
AC400V
QCZ9079-332
SE140N
QQL26AM-5R6Z
QQR0621-002Z
QCZ0122-681
L7809CP
PQ05RD11 5VREG
QETM1VM-338
RGP10J-5025-T3
RG1C-LFA1
QRZ9017-4R7
QTMM1EM-228
1W
QRZ0057-825
QQR0679-001
AC400V
QCZ9054-472
3W
QRL039J-561
10W
QRF104K-5R6
QRL029J-100
RGP10J-5025-T3
1/2W
QEHR2EM-475Z
QEHR1EM-108Z
D3SBA60
QEHR2CM-105Z
3W
QCB32HK-561Z
5%
3W
QETM2CM-227
CE42034-002
DTC124ESA-T
D.M.SW
QEHR1EM-108Z
FMX-G12S
1/2W
1/2W
1/2W
D
GS
2SK2459N-F54
RGP10J-5025-T3
RGP10J-5025-T3
RH3G-F1
RU4AM-LFT2
QCB32HK-681Z
QRL039J-223
QFZ0199-304
QCB32HK-103
RGP10J-5025-T3
CP
ICP-N50-Y
CP
QTMM1CM-228
QFZ9075-473
1/2W
QQL402K-100QQL402K-100
CP
QMFZ034-4R0Z-J1
QMFZO49-4R0Z-E
CP
QQR0679-001
QQL26AK-820Z
QQR0621-002Z
QAD0133-9R0
1/2W
QGB1506M1-16QGB1506M1-16QGB1506M1-16
1N4003-T2
1/2W
QGA7901C1-02
QEHR1CM-477Z
QQR1200-001
QQS0206-001
QETM1VM-108
MY
MY
QRX01GJ-1R8
MY
QQR0621-002Z
QEHR1VM-227Z
QQR0582-001Z
QQR0582-001Z
1/2W
ODD/EVEN
PROTECT
0.68
OPEN
220
.1/100
0.33
*1
2.2k
OPEN
10k
560p/2kV .1
10k
*
OPEN
OPEN
82k
.0047
.015
1.5k
BW
4.7/50
.022
10k
*
820
*
820
.33
5.6
*
120k
*
OPEN
OPEN
BW
*
OPEN
.33
OPEN
*
2.2k
6.80k
3300/35
OPEN
22
BW
OPEN
OPEN
27k
OPEN
1k
4.7 *3
OPEN
OPEN
1/50
68k
OPEN
220k
BW
OPEN
*
220/160
OPEN
*
2.2k
OPEN
*
*
.1
OPEN
*
*
10
1k
OPEN
560
22k
10
330
OPEN
10k
*1
*
390k
OPEN
OPEN
*1
OPEN
*
*1
OPEN
OPEN
4.7k
2.2k
4.7
*
BW
22k
0.0033
47/25
OPEN
*
330
*
OPEN
10k
100/10
BW
OPEN
OPEN
.1
470/35 220/10
.1
.01
10/100
OPEN
OPEN
1.2k
OPEN
OPEN
OPEN
10/50
10/50
OPEN
10k
18k
3.09k
OPEN
OPEN
OPEN
OPEN
82
*1
220/10
*
1/50
46
*
15k
*
*3
OPEN
0.001
2200/35
100k
10k
10k
1k
15
3.9k 5.6k
OPEN
470
OPEN
12k
OPEN
OPEN
BW
BW
OPEN
BW
2.2k
BW
4.7
BW
OPEN
OPEN
82k
2.7k
OPEN
.0047
560p/2kV
OPEN
.0015
470k
*3
1k
OPEN
OPEN
47k
.0047
470
220/385
BW
OPEN
0.001 .1
100/16
0.22
47/25
.0033
5.6
680p/2kV
1k
3300/35
4.7
2200/25
8.2M
OPEN
OPEN
OPEN
.0047
560
5.6
10
12k
4.7/250
10/50
1000/25
1/160
*
560p/500
56p/500
*
18k
10/250
12k
220/160
1000/25
1500p/500
*3
*2
*2
470k
*
*
*
1.5k
OPEN
OPEN
2.2k
560
680p/500
22k
.01/500V
220/16
47/25
*3
2200/16
OPEN
OPEN
OPEN
330
220/10
82
*
*
*
OPEN OPEN
*
10
470/16
*
1500p/500
1000/35
OPEN
220/35
BW
OPEN
OPEN
*
*3
STB_5V
GND
5V
V_DRIVE
H_DRIVE
P_M_VCC
32V
9V
AUDIO_B
GND3
AU_GND
AU_GND
P_M_VCC
AUDIO_B
S_COR
B1
EW
V_SAW
5V
REGULAR
12V
14V
PROTECT
NECK
STB_5V 32V
9V
ODD/EVEN
ABL
V_DRIVE
H_DRIVE REGULAR S_COR EW NECK V_SAW
HFB
IC401 5
IC401 3 6 Q501 D
Q501 G Q521 B
50
25
42
T551
24678
100 25 120 120 55
1200
T551 T551 T551 T551
Q521
IC401 1
0.8
140
DEF
YOKE
MAIN PWB MAIN PWB MAIN PWB
CRT SOCKET
PWB
FOR TEST
C



































SJL-2201A-U2
POWER & DEF PWB ASSY
POWER & DEF PWB CIRCUIT DIAGRAM SHEET 4

No.51941C No.51941C 2-13 2-14
Q3101
E 1.9
C 11.8
B 2.5
Q3102
E 2
C 11.6
B 2.6
Q3103
E 2.2
C 11.6
B 2.8
Q3104
E 11.5
C 153.3
B 11.8
Q3105
E 11.6
C 149
B 11.8
Q3106
E 11.6
C 142.7
B 11.8
Q3151
E 0
C -0.1
B 11.8
Q3152
E 0
C -0.1
B -0.1
Q3304
E 0.8
C 8.1
B 1.4
Q3305
E 8.1
C 11.8
B 8.2
Q3306
E 8.1
C 0
B 8.2
Q3307
E 133.3
C 68.2
B 132.7
Q3308
E 3.3
C 68.2
B 3.7



VOLTAGE (V)
PIN NO.
Q3307
R3316
TP-47R
C3306
TP-47B
Q3312
D3151
Q3311
R3335
R3334
C3332
C3331
R3332
R3333
C3320
TP-E
H3106
H3105
H3104
K3101
H3308
R3329
H3307
Q3305
R3318
R3323
FR3330
R3312
D3157
K3301
Q3306
R3317
C3308
C3305
R3319
R3314
C3307
K3302 R3325
R3320
R3324
R3328
C3315
R3326
R3327
D3303
C3316
Q3308
C3309 D3302
K3304
R3321
C3310
L3301
C3312
R3322
C3314
C3317
C3116
R3313
C3304
C3313
R3130
R3153
R3129
R3110
C3114
R3138
Q3151
Y3152
R3103
Q3102
Q3105
R3109
R3121
Q3103
R3151
R3152
D3153
R3115
D3156
R3112
Q3106
R3102
R3108
C3103
C3102
D3154
R3136
D3155
Q3101 C3101
SK3001
R3107
CN30SC
D3152
R3127
Q3152
R3113
C3107
L3102
R3120
R3126
L3101
R3128
R3125
R3119
R3114
Q3104
TP-47G
R3116 SK3001
CRT SOCKET
R3135
R3303
R3117
R3118
R3154
K3303
C3311
R3111
R3101
C3105
Q3304
CN3009
C3104
CN3008
L3103
CN30VM
R3315
R3157
CN30E1
D3163
R3137
D3164
C3115
C3113
2SA1837
QQR0621-002Z
OMF2
1/4WS
QRJ146J-100X
!
R1/2
1W
FR
QRZ9021-561!
MA3150/M/-X
CH
R1/2
500V
R1/2
RH1S-T3
2SC4793
QCB32HK-472Z
RH1S-T3
QQL244J-391Z
QCB32HK-472Z
R1/2
CH
OMF1OMF
QRG01GJ-101
QETM2EM-336
2SC4544-LB
OMF2
MA3047/H/-X
2SC4544-LB
CH
CH
R1/2
CH
QRZ0107-102Z
2SC4682-T
OMF2
QRZ0107-102Z
QRZ0107-102Z
OMF2
2SC4544-LB OMF2
QRZ0107-474Z
OMF2
OMF2
QJK002-063631
QJK002-083633
VM
MA3150/M/-X
QRZ0107-102Z
1SR35-400A-T2
QETM2EM-106
QRE121J-105Y
QCZ0131-222
2.2k
100/16
OPEN
*3
OPEN
OPEN
OPEN
OPEN
OPEN
OPEN
OPEN
*10
*10
*10
*10
390
*10
*7
10
56k
560
15k
*9
*8
47
10/160
3.3/50
47
5p
*9 1.2k
1.2k
56k
120
68p
2.7
39 100/16
.0047
*9
39
10/160
390
.0047
2.7
100/16
330/10
0
1.5k
.01
100
OPEN
OPEN
220
33/250
1M
*2
OPEN
220
*7
3.9k
18k
*7
1k
4.7k
*3
47
220
220
3.9k
*3
470k
*3
*7
*
3.9k
1k
47
10/50
BW
18k
1k
BW
OPEN
1k
18k
47
15k
470k
100
15k
15k
0
*9
220
220
47/25
*7
100/16
BW
390p
OPEN
1k
10/250
.0022
HB
GND
HEATER
12V
HEATER HB
140 120135
Q3106 C Q3105 C Q3104 C
SJL-3201A-U2
220
150
390p
390p
QNZ0574-001
MA3056/M/-X
.0022
OPEN
.0027
CRT SOCKET PWB CIRCUIT DIAGRAM SHEET 5

No.51941C No.51941C2-15 2-16
VOLTAGE (V)
PIN NO.




IC8851
1 3.3
2 4.9
3 0
Q8801
E 4.9
C -1.9
B 4.8
Q8802
E 4.9
C 4.8
B 0
Q8803
E 0
C 0
B 3.1
CN8001
CN8101
F8901S8901
CN800W
R8802
R8803
D8801
IC8851
C8851
Y8906
CN8116
CN80PW
D8851
Y8905
Y8908
C8852
R8851
Q8802
R8801
Y8907
Q8803
R8804
Q8801
VA8901 C8901
LF8901
QGF1220C2-19
QMF51D2-3R15J1
QSW0824-001
CHGH0001-0H-N
POWER & DEF
PWB
SPR-39MVWF
GP1U281Q
MA3068/M/-X
QMPN130-185-JC
QMPK160-185-JC
MF
AC275V
QFZ9075-474
QQR1095-001
OPEN
T3.15AH
560
OPEN
.1/16
OPEN
OPEN
OPEN
OPEN
100/16
1.5k
*5
560
OPEN
*4
10k
*5
OPEN .47
GND
SJL-8201A-U2
FRONT CONTROL PWB CIRCUIT DIAGRAM SHEET 6
