ENGLISH
Air humidifier

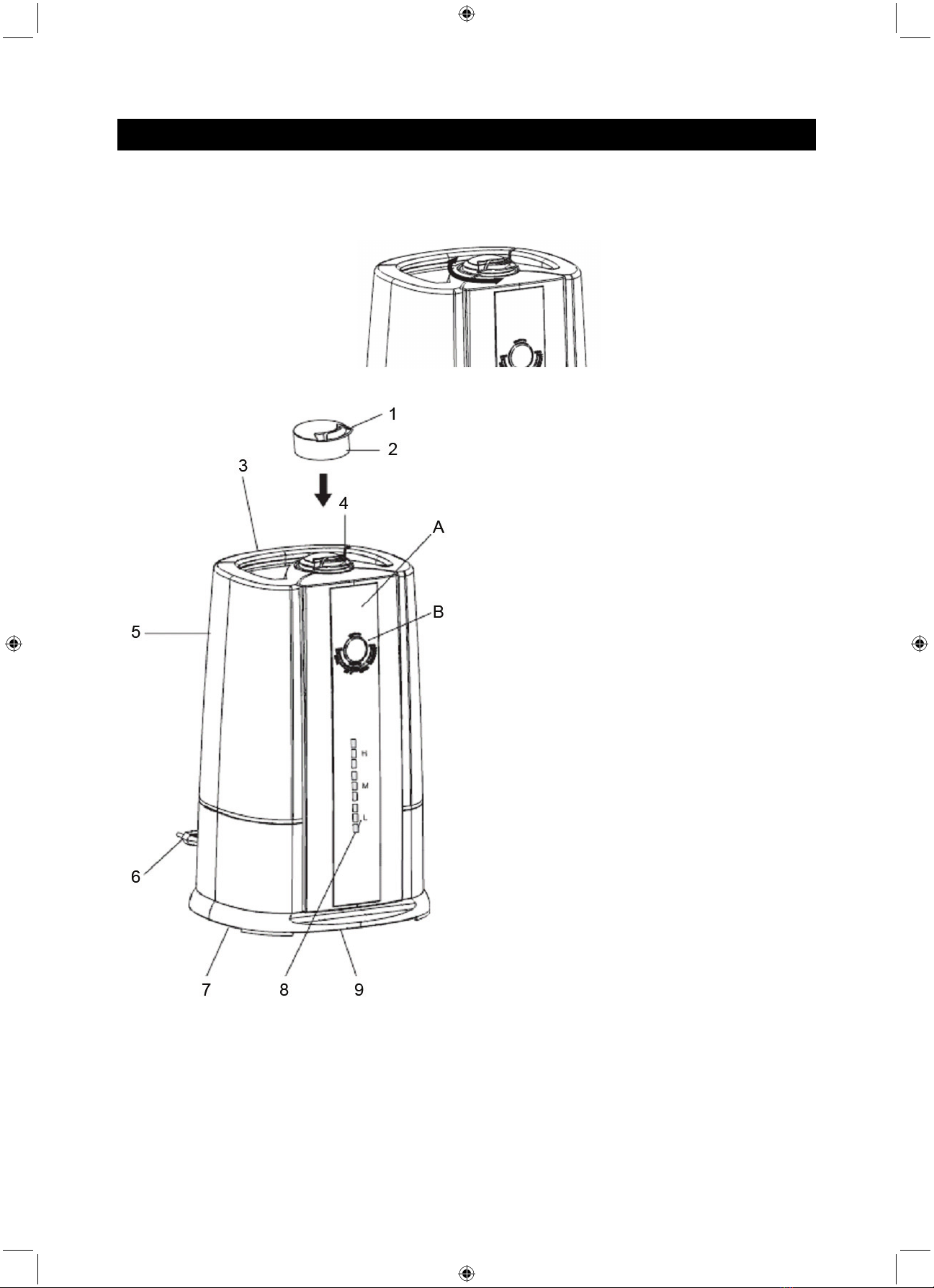

Parts Description and Function
• Double misting nozzle can be rotated 360 degrees. A spray direction can also be set.
1. Misting Nozzle
2. Nozzle
3. Water Tank Handle
4. Nozzle Insert Position
5. Water Tank
6. Power Plug
7. Air Inlet at the Bottom
8. Misting Amount Display (HI, MED, LOW)
9. Temperature and Humidity Sensor
A. Display Screen
B. Operating Buttons

3

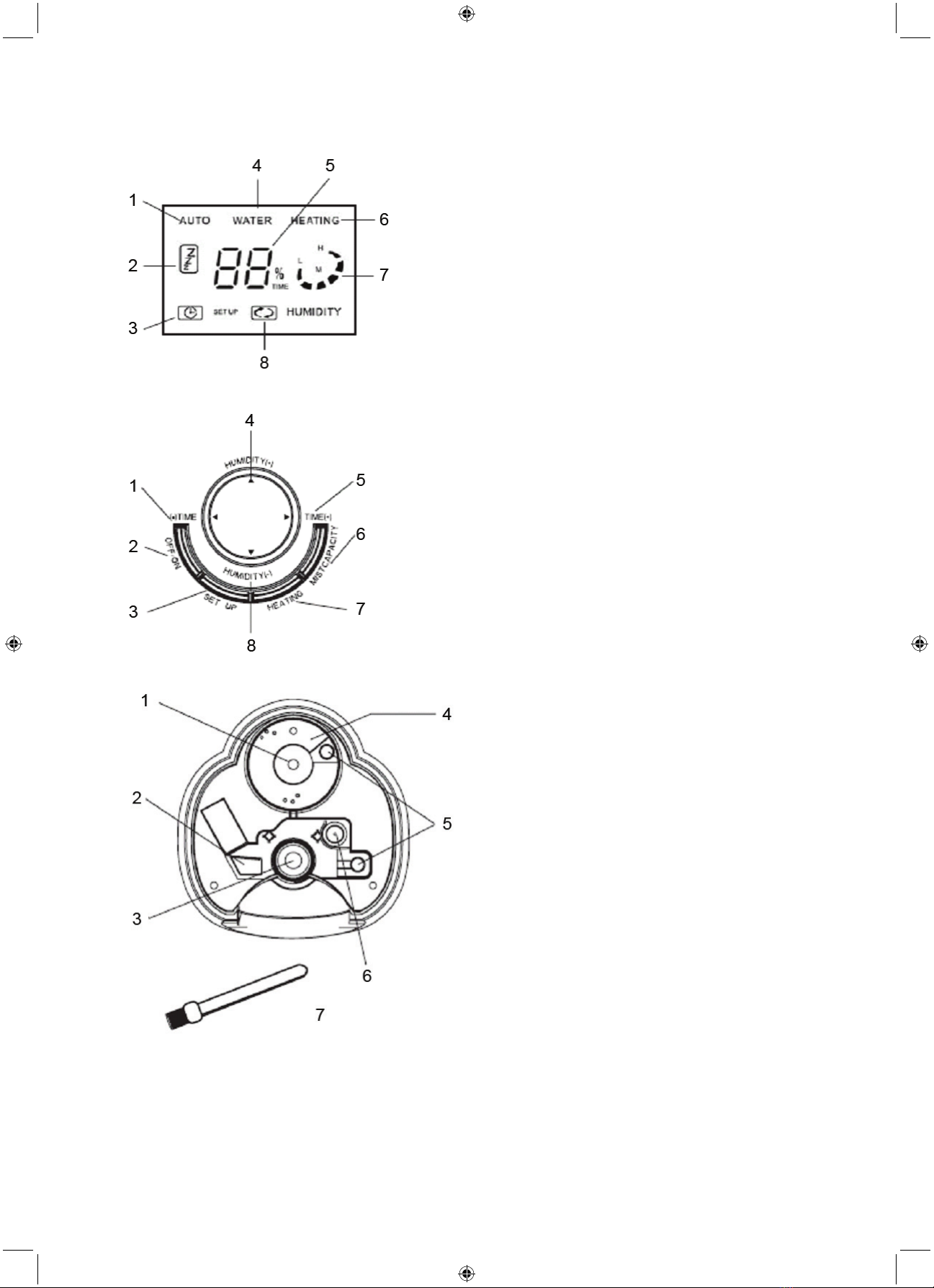

A. Display Screen
1. Auto Mode
2. Quiet Mode
3. Timer
4. Water Shortage Display
5. Figure Display
6. Heating Display
7. Misting Amount Display
8. Continuous Operation
B. Operating Buttons
1. Time Setup (-)
2. Power Switch
3. Mode Setup
4. Humidity Adjust (+)
5. Time Setup (+)
6. Misting Amount Setup
7. Heating Setup
8. Humidity Adjust (-)

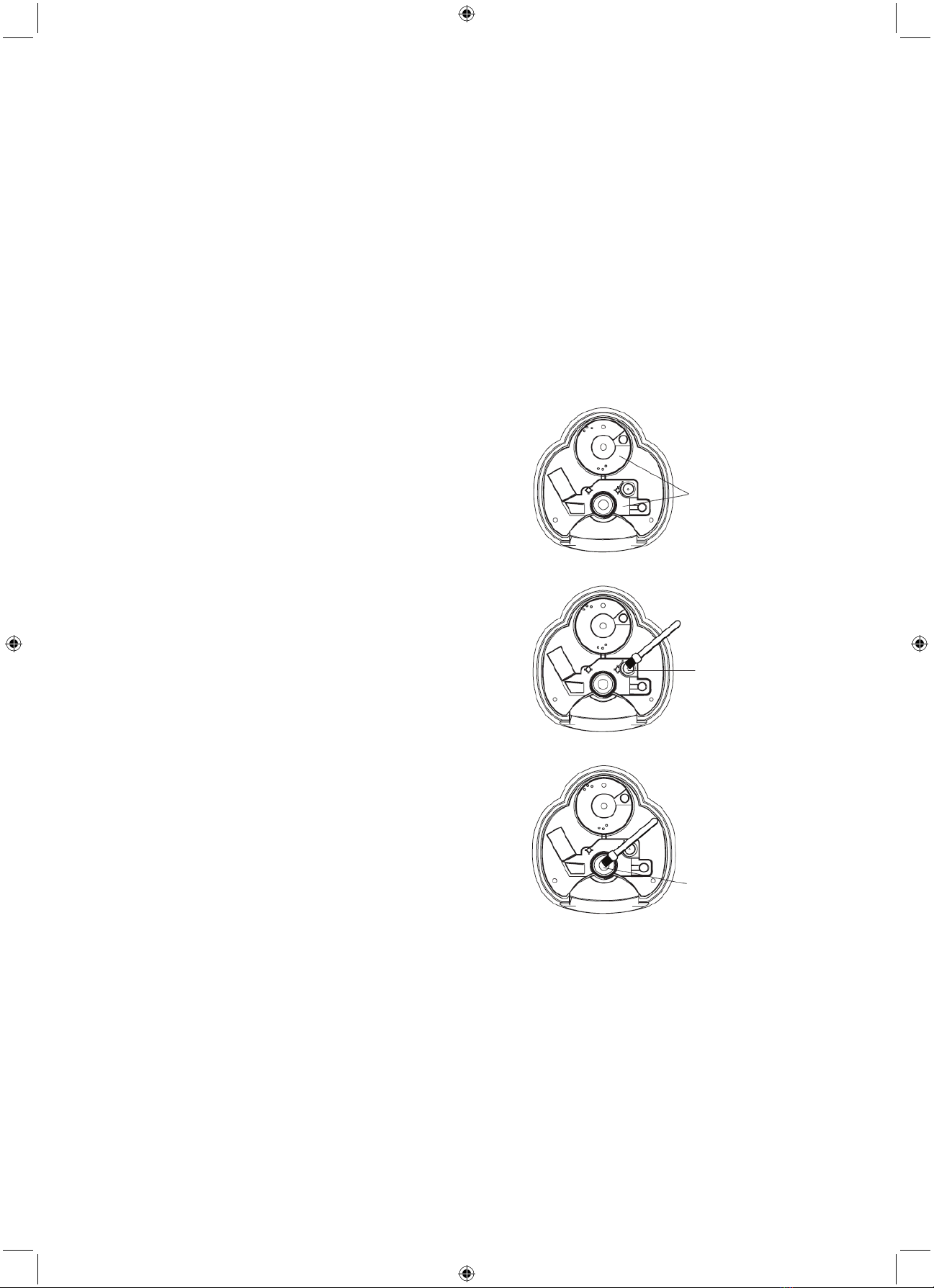

C. Interior
1. Water Valve Mandril
2. Air Outlet
3. Atomizer
4. Water Reservoir
5. Water Inlet
6. Buoy
7. Cleaning Brush

4
How to Use

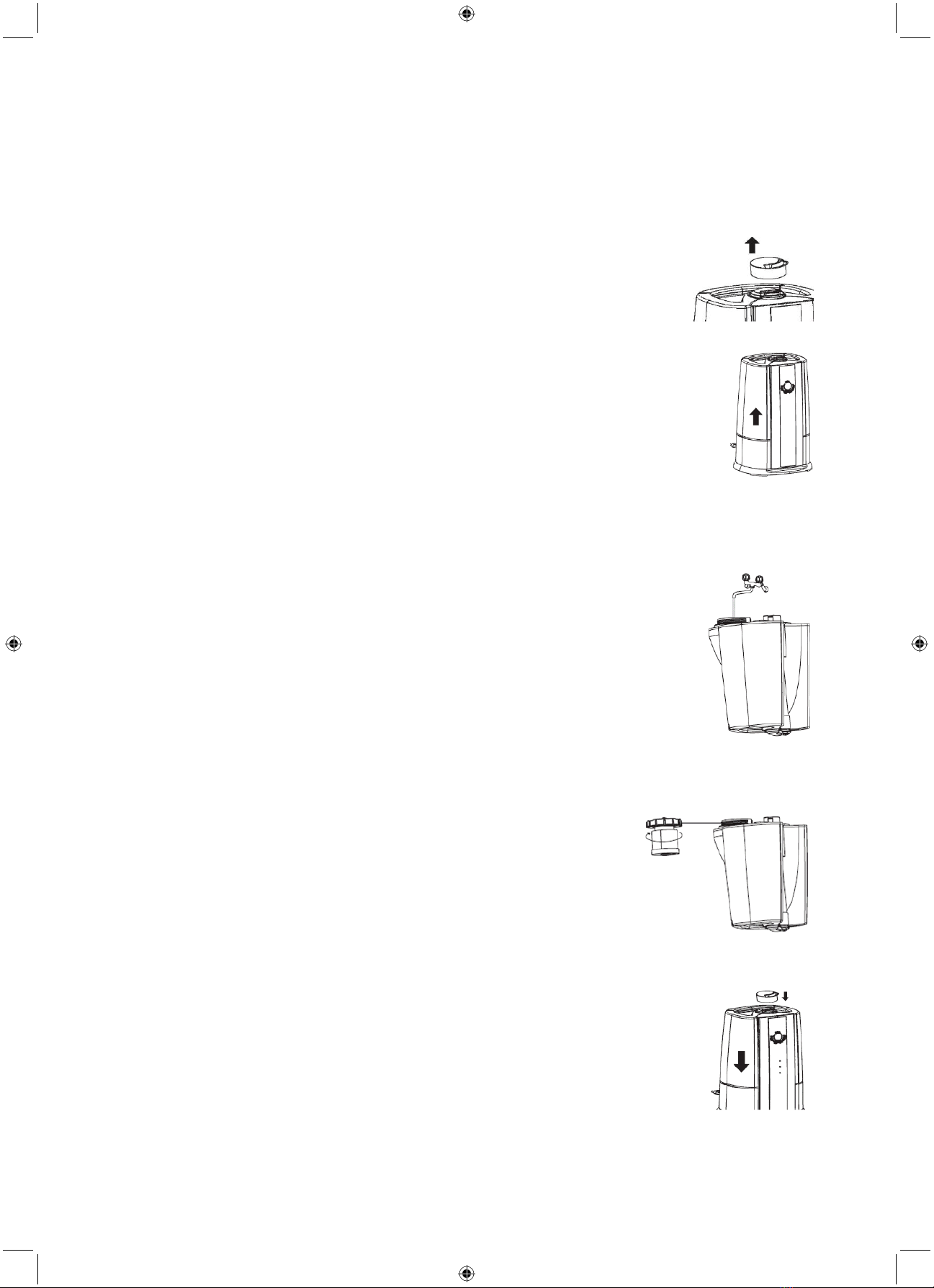

Filling the Water Tank
1. Take off the misting nozzle from the water tank
Ensure that the misting nozzle is taken off the water tank as it will fall off when the
water tank is inverted.
2. Taking the water tank off
1. Grasp the handle of the water tank with your hand; pull up the water tank to
take it off.
2. Unscrew the tank cover anticlockwise.
WARNING
To move the device, do not pull the handle of the water tank. Hold and
support the humidifier from the base.
3. Filling with tap water
Do not fill the humidifier or water tank with substances such as essential oil,
perfume, detergent, chemical, warm water (over 40 degrees) etc. The water tank
and internal parts of the humidifier may be damaged causing malfunction.
Do not fill with any other liquid except tap water.
Do not fill with water directly into the interior of the humidifier or the misting nozzle.
Water inside may cause the humidifier to malfunction.
Do not bump or throw the water tank. It may get broken and leak. Stop using the
humidifier in case of heavy bumping of the water tank. You may have to contact
your appointed maintenance or repair service centre.
Fill with clean water every day and keep it clean.
4. Make sure you screw the tank cover on firmly
Screw the tank cover clockwise.
Tankcover
5. Put the water tank on and assemble the misting nozzle
Do not move the device after assembling the water tank and do not dismantle
or assemble the water tank frequently, otherwise water may leak out and
cause malfunction.
The water mist will wet the device and its surroundings if it is operated without
installing the misting nozzle. Ensure the misting nozzle is installed correctly
before operating the humidifier.

5
Operating Methods
1. Plugging into the Power Supply
When you plug-in the humidifier, music will sound.
Warning
Please use the AC power supply as stated on the label. High voltage
may lead to malfunction, causing fire or electric shock.
Warning
Do not use the humidifier when the power line or plug is broken, or the
socket's gate is too loose. It may cause sparks, short-circuit or electric
shock.
Warning
Do not power on when water has leaked out or when the humidifier is
upside down. It may cause malfunction.

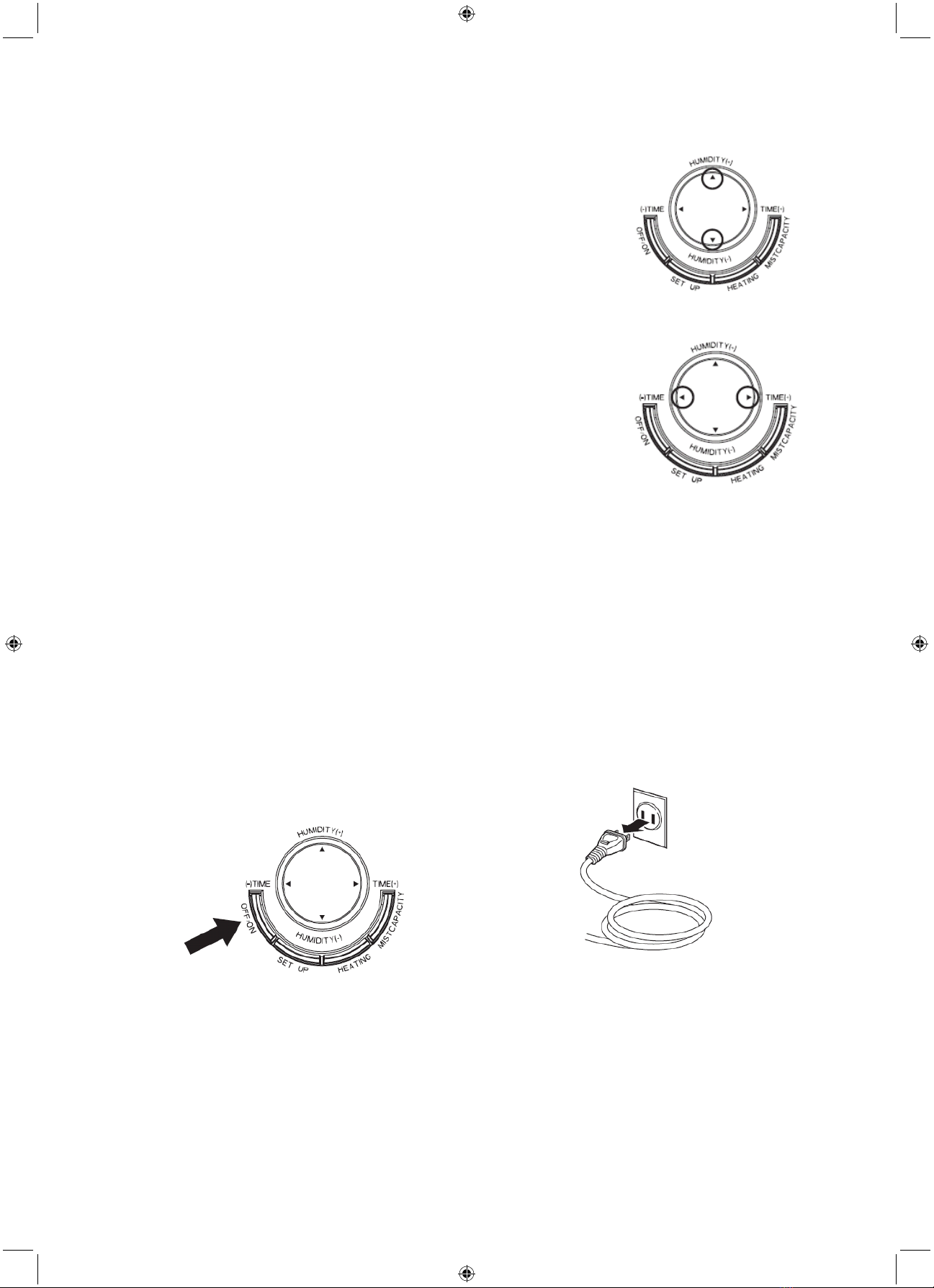

2. Push the “Power” Button
• Press the “Power” button. The humidifier will begin operating
automatically
• The display screen will show “Auto”, and mist will be emitted from
the misting nozzle
• The display screen will show the current humidity status, warm
misting mode will begin automatically
• Ten seconds after pushing the power button, the misting amount
indicator light will flash on and off continuously (preparation for
operation)
• At the beginning of its operation, the misting amount may be
unstable which is caused by the difference in temperature and
water quality. There will be a time delay for the atomizer to change
water into mist at a steady rate, around 10-15 minutes
• It takes about 10-20 minutes for the mist to become warm
Power
About Auto Operation
Surrounding humidity The most appropriate
humidity ratio
<19°C 65%
20 ~ 21°C 60%
22 ~ 24°C 55%
The temperature and humidity sensor is installed
inside the product. It will adjust to the most
appropriate humidity and begin operating
according to the room temperature (surrounding
temperature).
>25°C 50%
Misting amount during auto operation
Misting amount during auto
Difference between the
most appropriate humidity
and the current humidity
Misting amount
(operation display)
>11 strong operation
10 ~ 4 middle operation
<3 weak operation
The current humidity is
higher than the most
appropriate humidity
stop
Misting amount is adjusted automatically
according to the difference between a tested
humidity and the ideal humidity.
For initial use or repeated use after filling the
water, operation will begin automatically after
2-5 minutes. It takes this length of time for water
to flow from the tank to the slot.
Push the “Mode Setup” button once. It will change to
“Sleep”, “Personal Setup” and “Auto Operation” modes
respectively.

6
Quiet Operating Mode
Press the “Power” button, then press the “Sleep Setup” button
once during auto operation to change to sleep operating mode.
• “ZZZ” indicates sleep operating mode
• The most appropriate humidity for sleep operating mode is set at
50%
When at its sleep operation mode, warm misting operation (indicated by
the “heat” sign) will continue for 6 hours. It will stop operating after
6 hours.
Difference between the most appropriate humidity 50% and the
current humidity
Misting amount (operation display)
>16 strong operation
15 - 4 medium operation
<3 weak operation
Current humidity is higher than the most appropriate humidity stop
“Add water” sign will appear when water in the tank runs out during sleep operating mode and will stop. (Add
water warning will not sound).
The humidity figure shown in the display screen is the amount calculated by the humidity sensor inside the
humidifier. It is different from the actual humidity in the room.
Personal Setup Operating Method
Press the “Power” button to start the humidifier. Press the “Mode Setup” button to change the
personal setup operating mode.
During personal setup operating mode, you can freely adjust the misting amount, warm mist humidifying
on/off, the most suitable humidity setup and timer setup.
Adjusting the misting amount
Press the “Misting Amount Setup” button to adjust to weak, middle and
strong settings. The display screen will change accordingly.
When setting the misting amount, the misting nozzle will not spray when the
room humidity is higher than the set humidity.
‘On’ or ‘off’ for humidifying with warm mist operation
Press the “Heating” button once. It will switch between “on” and “off”
status for humidifying with warm mist operation.
During warm mist humidifying, warm mist will be produced by a built-in heater.

7
The most suitable humidity setup
The most suitable humidity can be adjusted by means of the upper or lower
switch for “Humidity Setup”.
The range is from 40% to 80%, with 5% increments.
The timer
By pressing the left or right “Time Setup” button, the time for stopping the
operation can be set.
The range is from 0 (continuous operation) to eight hours, with each
adjustment being 1 hour.
Combined function of the humidifier
With the help of an installed heater, water in the water tank is heated and transferred through the
atomizer to produce a warm mist. Efficiency for humidifying will be increased with the help of the
combined humidifier. The surrounding temperature will not be reduced due to the warm mist.
• It takes approximately ten to twenty minutes to start emitting the warm mist. (The time needed for the
heater to warm up the water)
• The average temperature for the warm mist is 40 degrees. It is sometimes difficult to detect the mist
temperature due to the difference in surrounding temperature and humidity
Stopping Operation
1. Press the “Power” button, the music is on, the
indicator light of the display screen will turn off
and the operation is stopped.
2. Unplug the plug from the socket.
Mist Capacity
When the tank is full of water
When the humidifier is under “Warm Misting” (high) operation, the maximum water usage can reach
about 370 ml/h. When the humidifier is under “Cold Misting” (high) operation, the maximum water
usage can reach about 330 ml/h.
• Continuous misting can last about 20 hours

8
When the water tank is empty
• The humidifier will stop working when water in the water tank has emptied, the alarm sound for
adding water will come on and the indicator light for “Add Water” will flash. After five seconds, the
indicator light will stop flashing and the red light will come on
• To continue using the device, add water according to the correct procedures
• When lifting up the water tank, water at the bottom of the water tank may drip. Please dry the bottom
with a towel when lifting it up to avoid wetting the floor or furniture.
• Please make sure not to drop or knock the water tank when adding water. The water tank will be
broken and leak if it is subjected to misuse.
Attention
• There will be some water scaling in the water slot or atomizer after a period of operation. Continuous
use of the device in this case may result in abnormal operation or malfunction. Please make sure to
clean the water slot and atomizer once or twice a week and try to always use this device under clean
conditions.
• Please change water in the tank every day, and make sure to maintain it regularly.
Consumable Parts
Ion Exchange Filter
White powder in the mist may be deposited on surrounding objects. These 'white powder' deposits are
calcium and magnesium compounds found in ordinary tap water. Although they are not harmful, they may
cause adverse effects and adhere to furniture. By means of an ion exchange filter, calcium and magnesium
from the tap water are removed and in turn reduced the production of white powder.

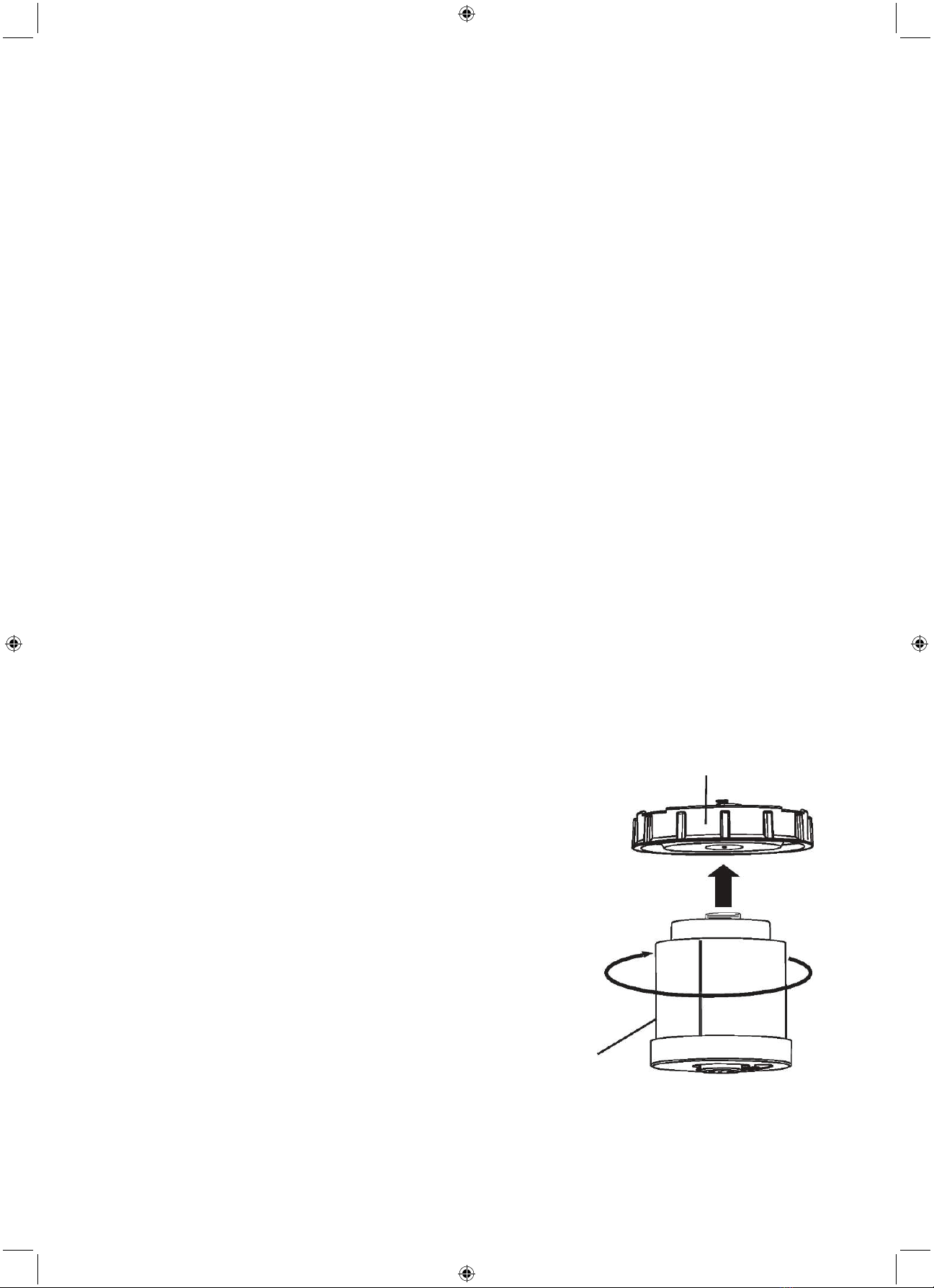

An ion exchange filter (removable type, installed at the bottom of the water tank) may stain the water in the
trough to the colour of tea at the beginning of operation. This has no effect on safety or performance. However,
you can pour out the water if you wish and continue operation.
Filter replacement
The useful life of the ion exchange filter is about 400 litres. Continual use after its lifetime will lower its
capability to remove the hardness components (calcium and magnesium) in tap water. As a result, there will
be an increased build-up of scale.
The standard period of filter change is about 180 days under
automatic mode of operation (heating - humidifying operation
time of about 6 hours every day).
• Based on different frequency of use and quality of
water, the time for changing the filter may be reduced.
Please pay attention to the appearance of white powder
deposits
• An ion exchange filter is installed on the water tank.
When you change the filter, you should remove the
cover by turning it anticlockwise, remove the filter by
also turning it anticlockwise from the water tank. Now
you can install the new filter by turning clockwise
according to the diagram on the right. Finally you can
screw the ion exchange filter at the bottom of the tank
by screwing it clockwise.
• Please contact your distributor or authorized service
centre if you need to purchase a new ion exchange
filter.
Ion exchange filter

9
Cleaning and Maintenance
How to Clean

Attention
• Ensure you have unplugged the plug from the socket before you clean the device.
Otherwise it may cause electric shock or accidents.
• Please wait until the water has cooled down before cleaning to avoid the risk of burns.
Maintaining the exterior of the device
Please use a soft damp cloth to wipe the outer surfaces.

Attention
• Do not clean the device completely, otherwise this will cause an electric shock.
• Do not use solvent, gasoline, xylene, talcum powder or brushes. They may cause
deterioration or colour loss.
Water Slot Maintenance
• Wipe off water scale inside the water slot with a soft wet
cloth
• You can use the brush supplied to brush away water scale
or minute particles and wipe with a soft cloth
• Clean the device once or twice per week
Water reservoir
Buoy Maintenance
• Ensure any dust that collects on the buoy is cleaned off
regularly
• You can use the brush attached to brush away water
scale on minute parts and wipe again with soft cloth
• Clean the buoy once or twice per week
buoy
Atomizer Maintenance
• Use the brush supplied to remove the scale on the
surface of the atomizer and then wipe again with a soft
cloth
• Clean the atomizer once or twice per week
atomizer

Attention
• Do not use a metal or abrasive brush, metal blade or talcum powder to wipe the surface of
the atomizer. It may cause deformation, resulting in lower misting performance or other
malfunctions.
Maintenance of Water Tank and Misting Nozzle
1. Take off the misting nozzle and turn clockwise to remove the cover of the water tank located at the
bottom of the tank and dispose of any remaining water. The misting nozzle will fall off if you
dispose water in the tank without first taking it off.
2. Clean the water tank and its cover with clean water. Clean the water tank cover carefully. Do not
clean with force, or it may cause water leakage.
3. Dry with a soft cloth after wiping off the scale on the surface of the misting nozzle. Clean the
exterior of the device with a soft damp cloth.

10
 Attention
• The water tank may leak if it is subject to misuse
• Stop using the humidifier immediately if water leakage occurs and contact an appointed maintenance
centre
Maintenance after cleaning
1. Wipe off water after cleaning, air dry the water tank and body of the device until completely dry.
2. Make sure there is no water left inside the water tank or the body of the device.
3. Assemble the water tank and body of the device and put into a plastic bag. Pack it in the original
colour box and store in a place of low humidity.
 Attention
• The humidifier will become mouldy and may develop malfunctions if it is stored when not completely
dry.
Troubleshooting
• In case something abnormal happens, please refer to the troubleshooting guide
• If you cannot solve the problem(s), please contact your nearest maintenance centre
Abnormal condition Possible cause Correction method
Has the plug been plugged into the
socket correctly? Plug in correctly
No misting Is the red light on the “Add Water”
indicator flashing on and off? (Is the
water tank empty?)
Add water to the water tank
Operating under weak mode?
(Is the display screen show “weak”?)
It is not a malfunction. If you want to change
to strong operating mode, press the “Misting
Amount” button under the personal setup
mode and change to strong operation mode
Poor misting
Is there water scale on the surface of
the atomizer? Clean the atomizer
Have you chosen “Using Warm mist”
under the personal setup mode?
Press the “Warm Mist” button under
personal setup mode and change to using
warm mist to humidifying operation
Without warm mist
Has the operation just begun?
This is not a malfunction. It takes about ten
to twenty minutes to emit warm mist. (The
time needed for the heater to warm up the
water after it has been turned on)
Is there any dust inside the air inlet? Clean the air inlet. Even in the same room,
the humidity can vary
The difference between
current humidity and
hygrograph is too big Is the device being operated in places
easily influenced by the environment
such as near a window?
Please put the device in places less likely to
be influenced by the environment
Is stale water being used?
Mist with strange smell Is there any water scale or rubbish
inside the water slot or atomizer?
Please clean the device according to the
instructions on cleaning and maintenance
and replace with fresh water
With ‘pupu’ sound The sound of filling water from water
tank to the body
with ‘popo’ sound The sound for fan operation
It is not a malfunction, keep on using
• Correct method: It is not a malfunction, please keep on using.
