Küppersbusch WS 6014 User manual

WS 6014
WS 6015
WS 6029
943033 - c
BEDIENUNGSANWEISUNG
mit Montageanweisungen
GB
F
NL
I
E
P
GR

Instrucciones de Uso e Instrucciones de Montaje
Istruzioni di uso e di montaggio
Gebruiksaanwijzing en montagehandleiding

Instructions for use and installation instructions
Instruções de uso com indicações para montagem

12
EN
Dear Customer:
Before going any further, we want to thank you for
preferring our product. We are sure that this
modern, functional and practical warming drawer,
manufactured with top quality materials, will fully
meet your expectations.
We ask you to read the instructions in this booklet
very carefully as this will allow you to get the best
results from using your warming drawer.
KEEP THE DOCUMENTATION OF THIS
PRODUCT FOR FUTURE REFERENCE.
ATTENTION!
To benefit from our guarantee you must send in
the "Guarantee Certificate" and, when requesting
Technical Assistance, you must present the
warming drawer purchase invoice, stamped and
dated by the shop where you bought the
appliance.
If this requisite is not fulfilled, the guarantee is not
valid.
Always keep the instruction manual handy. If
you lend the warming drawer to someone else
give them the manual as well!
Environmental protection
Disposal of the packaging
The packaging bears the Green Point mark.
Dispose of all the packaging materials such as
cardboard, expanded polystyrene and plastic
wrapping in the appropriate bins. In this way you
can be sure that the packaging materials will be
re-used.
Disposal of equipment no longer used
According to European Directive 2002/96/EC on
the management of waste electrical and electronic
equipment (WEEE), home electrical appliances
should not be put into the normal systems for
disposal of solid urban waste.
Outdated appliances should be collected
separately to optimise component material
recovery and re-cycling rates and to prevent
potential harm to human health and the
environment. The symbol of a rubbish container
superimposed by a diagonal cross should be put
on all such products to remind people of their
obligation to have such items collected separately.
Consumers should contact their local authorities
or point of sale and request information on the
appropriate places to leave their old home
electrical appliances.
Before disposing of your appliance, render it non-
usable by pulling out the power cable, cutting this
and disposing of it.

13
EN
Contents
Installation instructions ...................................................................................................................14
Before installation...........................................................................................................................14
Installation ......................................................................................................................................14
Electrical Connection......................................................................................................................14
Safety Instructions ...........................................................................................................................15
Precautions during use....................................................................................................................16
Appliance Description......................................................................................................................17
Main Components ..........................................................................................................................17
How the warming drawer works......................................................................................................17
Use.....................................................................................................................................................18
Before using for the first time..........................................................................................................18
Control Panel..................................................................................................................................18
Operating settings ..........................................................................................................................19
Heating times..................................................................................................................................19
Load capacity....................................................................................................................................20
Cleaning and Maintenance...............................................................................................................21
Appliance front and control panel...................................................................................................21
Interior of the warming drawer........................................................................................................21
Mat with non-slip surface................................................................................................................21
What should I do if t................................................................22
Installation.........................................................................................................................................89
Combination possibilities................................................................................................................89

14
EN
Installation instructions
Before installation
Check that the input voltage indicated on the
characteristics plate is the same as the voltage of
the power outlet you are going to use.
Open the drawer and take out all the
accessories and remove the packing material.
Attention! The front surface of the warming
drawer may be wrapped in a protective film.
Before using the warming drawer for the first time,
remove this film carefully.
Make sure that the warming drawer is not
damaged in any way. Check that the drawer
opens and closes correctly. If you find any
damage, contact the Technical Assistance
Service.
Attention: the power socket should be easily
accessible after the warming drawer has been
installed.
The warming drawer should only be built-in in
combination with those appliances indicated by
the manufacturer. If it is fitted in combination
with other appliances, the guarantee is no
longer valid since it is impossible to guarantee
that the warming drawer will work correctly.
Installation
To build-in the warming drawer in combination
with another appliance there must be a fixed,
interim shelf in the housing unit to support the
weight of both appliances.
The appliance to be combined with the warming
drawer will be placed directly on the latter without
any need to have a separating shelf.
To build-in the appliance which is combined with
the warming drawer, follow the instructions set out
in the respective instructions and fitting booklet.
The relevant installation dimensions are indicated
in mm in the diagrams shown at the end of this
booklet. Proceed as follows:
1. Place the warming drawer on the shelf and
slide it towards the interior of the niche in
such a way that it is centred and completely
lined up with the front of the unit.
2. Check that the warming drawer’s frame is
properly levelled and is sitting evenly on the
shelf.
3. Open the drawer and fix the warming drawer
to the sides of the unit using the two screws
provided.
Electrical Connection
The warming drawer is equipped with a power
cable and plug for single phase current. We
advise that the plug is connected to a socket
that is easily accessible after installation.
If the warming drawer is to be installed on a
permanent basis it should be installed by a
qualified technician. In such a case, the appliance
should be connected to a circuit with an all-pole
circuit breaker with a minimum separation of 3
mm between contacts.
The data necessary for the electrical connection
are described on   
characteristics plate and these must be
compatible with those of the power outlet you are
going to use.
WARNING: THE WARMING DRAWER MUST
BE CONNECTED TO EARTH.
The manufacturer and retailers do not accept
responsibility for any damage that may be
caused to people, animals or property if these
installation instructions are not observed.

15
EN
Safety Instructions
Warning! Before connecting the appliance
compare the power data (voltage and
frequency) indicated on the characteristics
plate with those of the power supply in
question. If these data do not match there may
be problems. In case of doubt, contact an
electrician.
Warning! If the electrical wire plug is removed,
the appliance must be installed and connected
by a technician. Contact a qualified electrician
who knows and respects current safety
standards. The manufacturer cannot be held
responsible for damage resulting from fitting or
connecting errors.
Warning! The electrical safety of the appliance
can only be guaranteed if it is earthed. The
manufacturer cannot be held responsible for
damage resulting from the absence of or
defects in the installation’s protection system
(e.g. electrical shock).
Warning! Only use the appliance once it has
been fitted into its built-in position. Only in this
manner can it be guaranteed that users cannot
access the electrical components.
Warning! Never open up the appliance’s
frame. Possible contacts with electrical
conducting parts or changes to electrical or
mechanical components may represent a
danger to users’ safety and prejudice the
correct working of the appliance.
Warning! Repairs and maintenance, especially
of parts carrying electrical current, must only be
done by technicians authorised by the
manufacturer. The manufacturer and
retailers do not accept responsibility for any
damaged caused to people, animals or
property as a result of repairs and maintenance
carried out by non-authorised personnel.
Warning! Repairs undertaken during the
guarantee period must only be done by
technicians authorised by the manufacturer. If
this is not the case then any damage resulting
from the repair in question is excluded from the
guarantee.
Warning! The appliance must be disconnected
from the electrical current when installation and
repair work is being done. To disconnect the
appliance from the current, one of the following
conditions must apply:
- The switchboard fuses / circuit breakers
must be disconnected.
- The plug should be removed from the
socket. To remove the plug from the socket
do not pull on the electric cable but rather
pull out the plug itself directly.

16
EN
Precautions during use
This appliance complies with current safety
standards. Improper use of the appliance may
put the user at risk.
Read the operating instructions carefully before
using the appliance for the first time. In this
way you will avoid the risk of injuring yourself
or damaging the appliance.
The warming drawer is solely for domestic use!
Use the warming drawer solely for warming
crockery. Any other type of use is unacceptable
and may be dangerous. The manufacturer
does not accept responsibility for breakdowns
or faults arising from improper or erroneous
use of the appliance.
Do not use the appliance to heat up or to cook
food or drinks.
Depending on the temperature selected and
the operating time, the temperature inside the
appliance may reach 80 ºC. To take crockery
out of the warming drawer protect your hands
by using oven gloves or an oven cloth.
Take special care with children and do not
allow them to play close to the appliance. If the
appliance is inadvertently switched on it will
heat up and may cause serious burns.
This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or lack
of experience and knowledge, unless they
have been given supervision or instruction
concerning use of the appliance by a person
responsible for their safety. Children should be
supervised to ensure that they do not play with
the appliance.
Do not sit or hang on the drawer. The
telescopic runners will be damaged. The

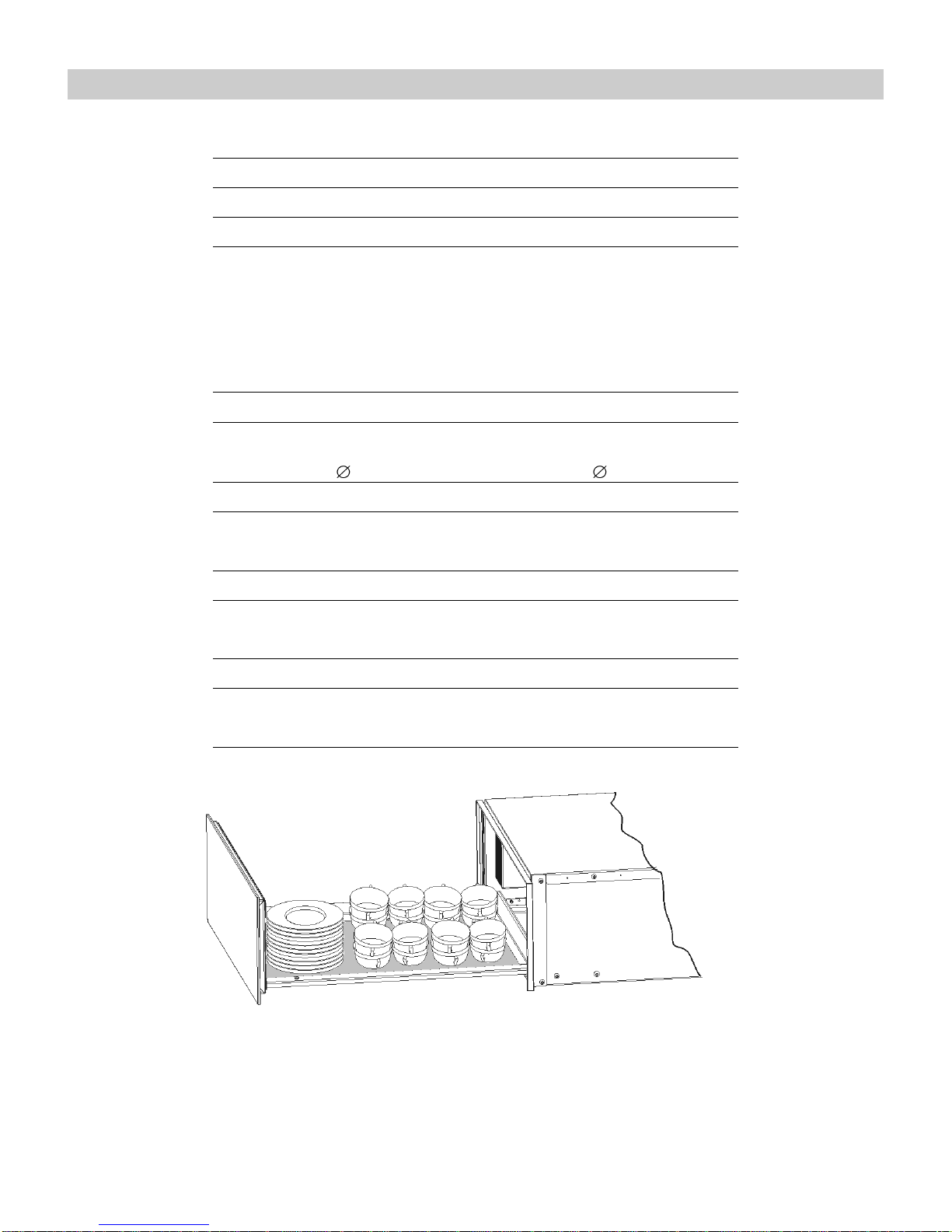

maximum load capacity of the drawer is 25 kg.
Do not store synthetic containers or easily
inflammable objects inside the warming
drawer. When you switch on the appliance
such containers and objects may melt or catch
fire. Fire danger.
Do not use the appliance to heat up the air
temperature in the kitchen. The high
temperatures reached may cause easily
inflammable objects close to the appliance to
catch fire.
Do not use high pressure or steam jet cleaning
devices. The steam may affect electrical
components and cause a short circuit. The
steam pressure may also cause damage to the
appliance’s surface and components in the
long term.
When you stop using the appliance at the end
of its working life, disconnect it from the power
supply and render the electrical cable unusable
so that the appliance is not a danger if, for
example, children use it for playing.

17
EN
Appliance Description
Main Components
1. –Control panel
3. –Anti-slip mat
2. –Handle
How the warming drawer works
This appliance is equipped with a warm air
circulation system. A fan distributes the heat
generated by an electrical heating element
throughout the interior of the appliance.
The thermostat allows the user to define and
control the temperature wanted for the crockery.
The circulating hot air that is generated heats up
the crockery quickly and evenly.
A metal grille protects both the heating element
and the fan.
The base of the drawer is fitted with a non-slip
mat to prevent plates and dishes sliding around
when the drawer is opened and closed.

18
EN
Use
Before using for the first time
Before using the appliance for the first time you
should clean the interior and the exterior, following
the cleaning instructions given in the section
“Cleaning and Maintenance”.
Then heat the warming drawer for at least 2
hours. For this, set the temperature to the
maximum position.
Make sure the kitchen is well-ventilated when you
are doing this.
The appliance’s parts are protected by a special
product. For this reason, during the first heating
an odour will be released. Both the odour and any
smoke that may form will disappear after a short
time and neither signifies that there is anything
wrong with the connection or the appliance.
Control Panel
1. Delayed Start indicator light
2. Timer indicator light
3. Temperature indicator light
4. Display
5. Function / ON key
6. “+” (increase) key
7. “-”(decrease) / OFF key
8. Operation indicator light

19
EN
Use
Operating settings
Stand-by mode
In this mode the whole system is disconnected
and no indicator light or display is lit.
Normal Operation
In this mode the system is generating heat. The
display shows the remaining operating time and
the set temperature alternating each 2 seconds.
The Timer and Temperature indicator lights light-
up alternating each 2 seconds and coordinated
with the display indication. The Operation
indicator light is illuminated continuously until the
Timer reaches zero.
To program the normal operation, proceed as
follows:
1. Press the “M” key once or several times until
the Timer indicator light is flashing.
2. Press the “+” or “-” keys to set the desired
operation time in the range 0h00 –4h00.
3. Press the “M” key to validate. The Temperature
indicator light starts to flash.
4. Press the “+” or “-” keys to set the desired
temperature in the range 30 –80ºC.
5. Press the “M” key for 3 seconds or wait 5
seconds.
6. The Warming Drawer starts to operate with the
set parameters.
Delayed Start
In this mode the Display shows the remaining
time for the operation to start and counting-down.
The Operation indicator light will blink and the
Delayed Start indicator is illuminated.
To set a delayed start, proceed as follows:
1. Program the normal operation parameters as in
points 1) to 4) of the previous section.
2. Press the “M” key to validate. The Delayed
Start indicator light starts to flash.
3. Press the “+” or “-” keys to set the desired start
delay in the range 0h00 –9h50.
4. Press the “M” key for 3 seconds or wait 5
seconds.
5. The Warming Drawer enters the Delayed Start
mode.
6. When the delay has elapsed the Warming
Drawer starts to operate with the set
parameters.
Cancel Operation
The programming can be cancelled at any time by
pressing the “-” key for 3 seconds.
The operation or the delayed start can be
cancelled (for example, because a guest arrived
earlier or the crockery seems warm enough) by
pressing the “-” key for 3 seconds.
Heating times
Various factors affect heating times:
Material and thickness of the crockery
Load quantity
How the crockery is arranged
Temperature setting
It is therefore not possible to give any precise
heating times.
However, as a guide, the following times are
given for the thermostat setting of 60ºC and for
uniform heating of the crockery:
Load
Time (min)
Crockery for 6 people
30 –35
Crockery for 12 people
40 –45
As you use the warming drawer more and more
you will learn the best settings for your crockery.

20
EN
Load capacity
Load capacity depends on the size of the crockery items.
WS 6015 / WS 6014
WS6029
6 persons servings
12 persons servings
6 x 24cm Dinner Plates
12 x 24cm Dinner Plates
6 x 10cm Soup Bowls
12 x 10cm Soup Bowls
1 x 19cm Serving Dish
1 x 19cm Serving Dish
1 x 17cm Serving Dish
1 x 17cm Serving Dish
1 x 32cm Meat Plates
2 x 32cm Meat Plates
or
or
20 dishes with 28 cm
40 dishes with 28 cm
or
or
80 espresso coffee cups
160 espresso coffee cups
or
or
40 tea cups
80 tea cups
or
or
…
…

21
EN
Cleaning and Maintenance
Cleaning is the only maintenance action that is
required normally.
Warning! Cleaning must be done with the
warming drawer disconnected from the
electrical power supply. Remove the plug from
the power socket or disconnect the warming
drawer power supply circuit.
Do not use aggressive or abrasive cleaning
products, abrasive sponges or pointed
objects since stains or abrasion marks may
appear.
Do not use high pressure or steam jet
cleaning appliances.
Appliance front and control panel
The warming drawer can be cleaned using just a
damp cloth. If it is very dirty, add a few drops of
washing-up liquid to the washing water.
Wipe the surfaces dry using a dry cloth.
For stainless steel fronted warming drawers,
special products for treatment of stainless steel
surfaces can be used. These products prevent
the surfaces becoming dirty again for some time.
Apply a thin layer of such a product on the
surface using a soft cloth.
On aluminium fronted warming drawers use a
gentle glass cleaning product and a soft cloth that
does not release fluff. Wipe horizontally without
pressing on the surface since aluminium is
sensitive to scratches and cuts.
Interior of the warming drawer
Clean the inside of the warming drawer regularly
using a damp cloth. If it is very dirty add a few
drops of washing-up liquid to the washing water.
Wipe the surfaces dry using a dry cloth.
Avoid water entering through the air circulation
opening.
Only use the warming drawer again when it is
completely dry.
Mat with non-slip surface
The non-slip surface mat can be removed to
facilitate cleaning of the drawer.
The mat can be cleaned by hand using hot water
with a few drops of washing-up liquid.
Dry thoroughly.
The non-slip mat should only be replaced when it
is completely dry.

22
EN
What should I do if the warming drawer 
WARNING! Any type of repair must only be
done by a specialised technician. Any repair
done by a person not authorised by the
manufacturer is dangerous.
Before contacting Technical Assistance, check on
the following:
     
Check whether:
- The appliance has been switched on.
- The appropriate temperature has been
selected.
- The air circulation orifices are covered by the
crockery.
- The crockery was left to heat up for sufficient
time.
Heating time depends on several factors, such as,
for example:
- Crockery material type and thickness.
- Quantity of crockery.
- How the crockery is arranged.
    up at all. Check
whether:
- You can hear the noise of a fan.
If the fan is operating then the heating
element is broken; if the fan is not operating
then the fan is broken.
- The switchboard fuses / circuit breakers
have fused / tripped out.
The crockery is heating up too much.
- The temperature selector is broken.
The on/off switch does not light up.
- The switch’s pilot light has blown.

89
Einbau / Installation / Installation / Installatie / Incasso / Montaje /
Instalação 
Kombinationsmöglichkeiten / Combination possibilities / Possibilités de
combinaison / Combinatiemogelijkheden / Possibilità di incasso / Posibilidades de
combinación / Possibilidades de combinação /  

WS 6014 / WS 6015
WS 6029

KÜPPERSBUSCH HAUSGERÄTE AG
Postfach 10 01 32, D-45801 Gelsenkirchen, Küppersbuschstraße 16, D-45883 Gelsenkirchen
Telefon [phone], Telefax (02 09) 4 01-03 03
Küppersbusch Ges.m.b.H.
Eitnergasse 13, 1231 Wien, Telefon: [phone], Telefax: 01/8668072
www.kueppersbusch.at –e-Mail: [e-mail]
