Karbon Audio K-9604 User manual

POWER
K-9604
6X6 AUDIO DISTRIBUTION
K-9604 6x6 audio matrix with 6 bridgeable zones to
accomodate 1 or 2 speakers per zone
Integrated the device via the network.
OWNERS MANUAL

2

3

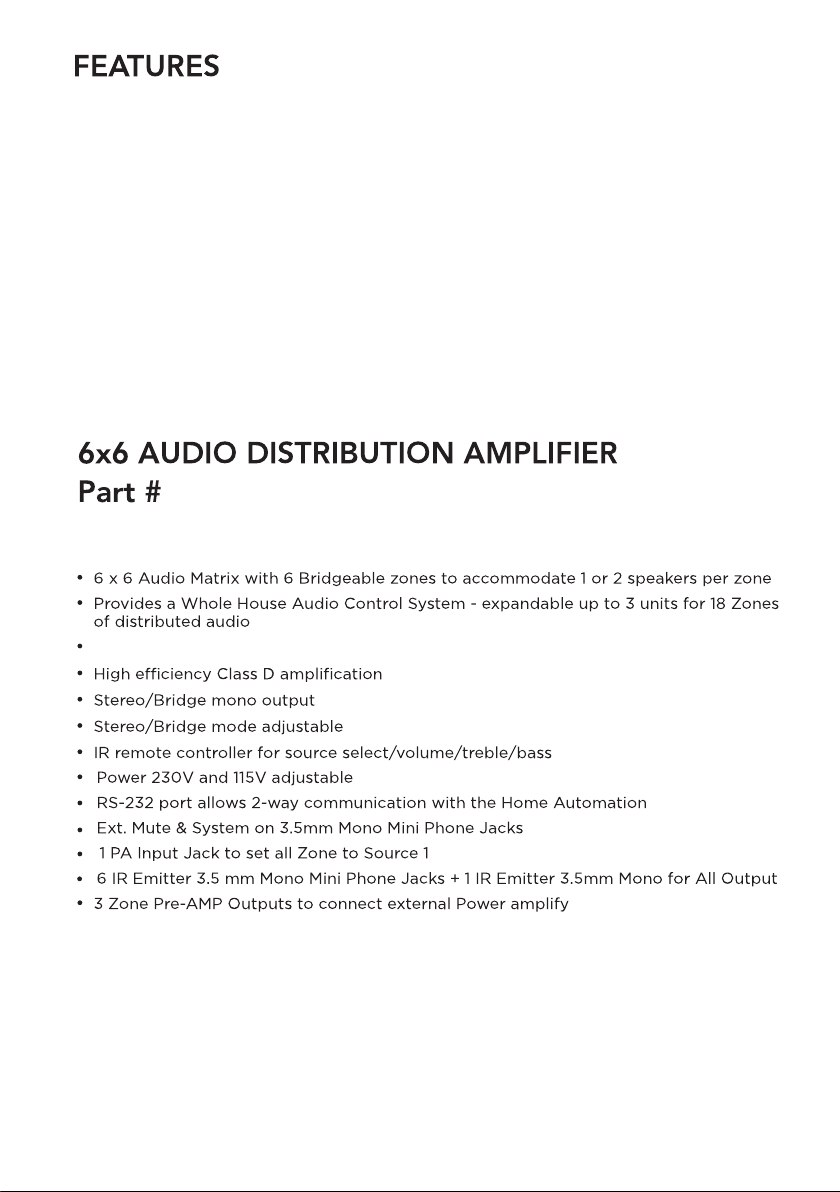

The K-9604 is a functional, easy-to-install, highly compatible, expandable, and
user-friendly audio distribution system. It provides up to 25W @ 8 Ohm Power
by Class D amplifier to up to 18 zones which at can be controlled by packaged
keypads (included with K-9604 unit), RS232,IR or network. Overall the
distribution systems easy-to- install, so every audiophile can enjoy the
powerful audio wherever they are.
K-9604(includes 6 keypads)

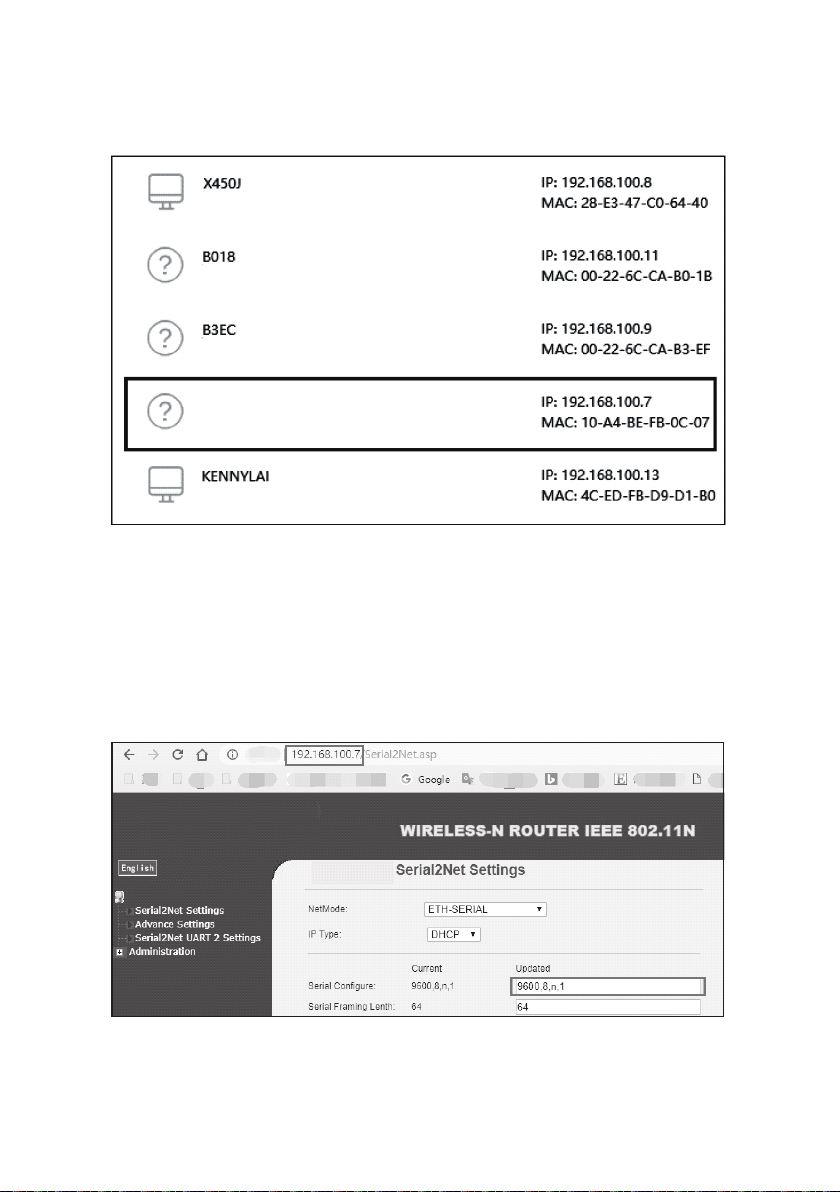

Integrated network allows for effortless control via PC or Macbook

4

K-9604
POWER
K-9604
5
Integrated network
1
1 2 3 4 6
5 7 8
9 10
13 12
11
14 15
2 3

6
1
3
5
6
7
2
7
4

7
1
7
2
5
6
3
4
3

8
K-9604
RCA 3.5mm Stereo
K-9604
K-9604

The K-9604 can work with speakers that are 4-8 Ohm. There are 9 two
modes that can be set for different setups: Stereo or Bridge. An 8 Ohm
speaker can only be used when in Bridge mode. To choose between
modes, use the mode switch to determine modes for each zone (Number 2
Panel Descriptions, page 5)
9
and network.
STEREO MODE STEREO MODE
K-9604

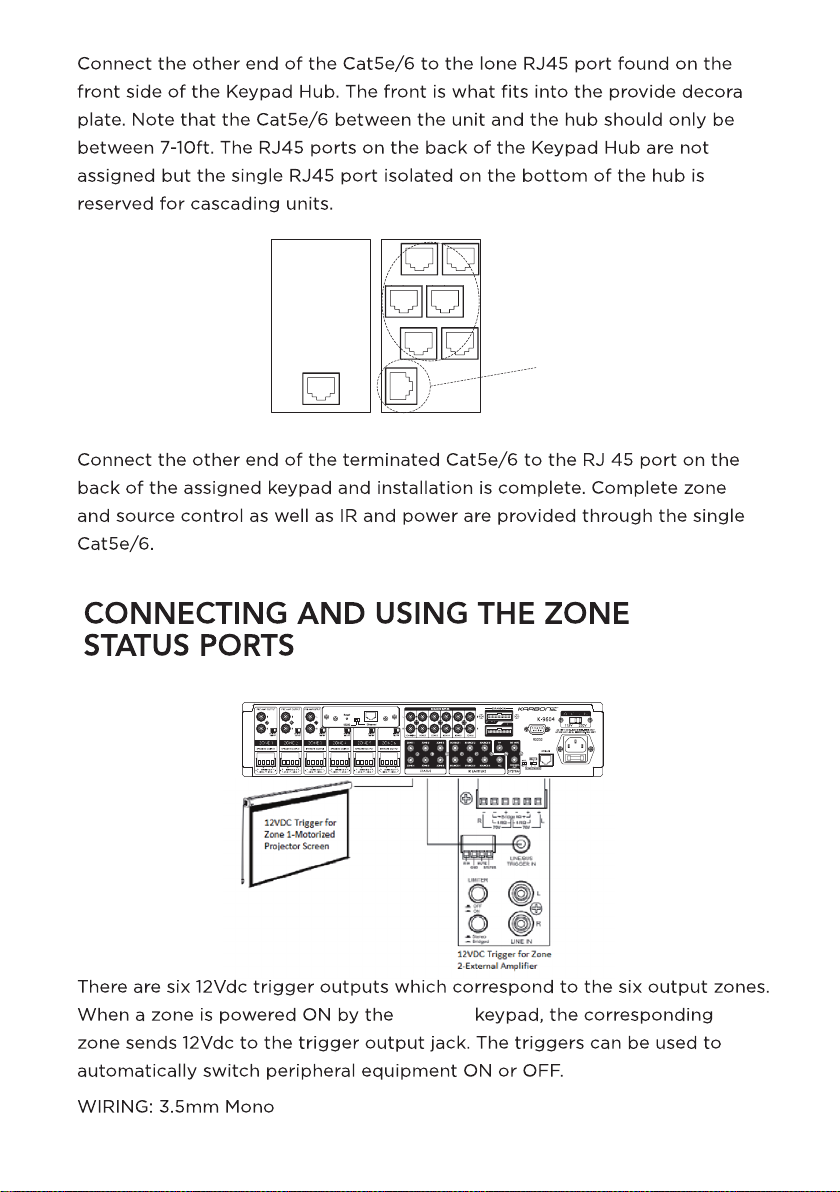

The K-9604 comes with 6 POE enabled keypads. This allows for source control
from each specific zone as well as IR routing to the appropriate source devices
once selected. The K-9604 also comes with a hub that allows for all 6-keypads
to be connected to the amp via Cat5e/6.
10
ZONE-1
ON ON OFF
1 2 3
ZONE-2
ON ONOFF
1 2 3
ZONE-3
ON OFFOFF
1 2 3
ZONE-4
ONONOFF
1 2 3
ZONE-5
ON OFFOFF
1 2 3
ZONE-6
ONOFFOFF
1 2 3
