Kare ChairSpeaker User manual
Thank you for using our product. Before providing power for the camera, please read this manual carefully before use.
USER MANUAL
IR 1.0
1
Kare Speaker User Manual
Congratulations on the purchase of your new ChairSpeaker which is designed
to help you and your loved ones watch TV together in a unique way. We
appreciate your selection of our product and we are using this medium to
welcome you to our family. We hope that you will take the time to view this
manual in order to familiarize yourself with the product because it will assist
you and answer any questions you might have setting up and using your new
ChairSpeaker.
This manual will provide the product description, operation and installation
instructions, it will demonstrate different setup configurations and will help
you identify the best option for your situation, it will conclude with
troubleshooting guides. This manual will help you learn to use and gain
maximum benefit of the ChairSpeaker.
Contact
If you should encounter some unresolved issues, or have any questions,
suggestions, problems or concerns, please contact KARE Customer service
department for further assistance.
Phone or text message: 205-594-1555
WEB: ChairSpeaker.com
30-day Money Back Guarantee
KARE, LLC will honor a 30-day money back guarantee for KARE Products
bought through ChairSpeaker.com. If for some reason you are not fully
satisfied within 30 days of the purchase date, contact KARE Customer service,
who will issue a Return Merchandise Authorization number (RMA) for the
return. All returns must have a RMA number so we can make sure you receive
a proper refund. - This is for product bought through CHAIRSPEAKER.COM
ONLY.
1. Safety instructions
2. Warnings
3. Included in the Box
4. Installation Instructions
5. Using the Speaker
6. Repairs
7. Frequently Asked Questions
8. Troubleshooting Guide
9. Manufacturer Declaration
2
3
3
6
11
14
14
16
16
Table of Contents
3
Safety Instructions
All safety and operation instructions should be read and
understood before operating this product and should
kept for future reference.
For indoor use only.
This product should not be operated or submerged near water or in areas
with moisture.
Clean with dry cloth only.
Do not subject this product to excessive heat conditions such as radiators,
heat vents, stoves, amplifiers or any item that pouches heat.
Do not adapt or modify any part of the speaker system.
Power cable should be routed clear of foot traffic and supported clear of
kinking and abrasion.
Only use ChairSpeaker accessories and attachments with your speaker
system.
Users should not attempt to service this product. Servicing for damages in
anyway should only be done by an authorized service agent.
Do not use damaged products.
Do not use the ChairSpeakerProducts if it has been exposed to water and
moisture.
To prevent possible hearing loss, do not listen at high volume levels for
long periods of time.
To reduce the risk of fire or electric shock, do not expose this product to
rain or moisture. The product should not be exposed to dripping or
splashing liquids. Do not place objects filled with liquid such as vases on
or near the product.
MAGNETIC WARNING
Do not place speakers near chest or in the vicinity of a pacemaker or
defibrillator. If you have a consern, please contact your physician. As with
all speakers, the ChairSpeakers have a magnetic field.
Warning
4
1(1) ChairSpeaker
2(2) 12v AC adapters
Included In The Box
3(1) IR TRANSMITTER
(1) RCA Audio Cord
4
5
Key Features
1
3
25
4
1) On/off Volume control
2) 12v DC power input
3) Sound Cones
4) Receiver Area
5) On Indicator light
ChairSpeaker
6) Infrared LED (DO NOT LIGHT UP)
7) On Indicator LED
8) 12v DC power input
9) RCA Inputs
10) TOS Input
Infrared Transmitter
6
7
10
9
11
8
6
Place, Connect Sound and Power the Transmitter
The IR Transmitter uses IR LED beams to carry the sound from the
TV to the ChairSpeaker. This light is similar to a flashlight beam. The
IR transmitter cannot transmit though objects. The ChairSpeaker
must be in direct line of sight to the IR Transmitter.
DO NOT modify the power supply if the provided plug does
not fit your outlet. Call us at 1-888-440-5273 to order the
correct power supply.
1) Place the transmitter on a stable flat surface so the transmitter
can be pointed at the ChairSpeaker.
2) Plug the power supply into a surge protector or standard electrical
outlet.
Installation Instructions
7
Choosing A Input
3) Plug the power supply into the opening DC 12V (8) on the back of the IR
Transmitter.
We have included all the parts to install in 3 different ways. TOS Digital Optical
(best way), RCA analog (next best) and 3.5mm audio.
If this port is on your device proceed to “OPTICAL INSTALL” in this manual, if none
of your devices have the DIGITAL AUDIO OUT (OPTICAL) port, look for the RCA
AUDIO OUT, this can be located on the TV, Satellite or cable box. If you find the
RCA “AUDIO OUT” install with the “RCA INSTALL”,
Ports on the front of the your system are normally AUDIO IN and will not send audio
to the KARE Speaker.
At the back of your TV, you will find the DIGITAL AUDIO OUT (OPTICAL) port. If
audio out ports are not available on your Television, use the audio ports on your
cable or satellite box.
the IR Transmitter must remain plugged in to transmit the signal.
DIGITAL
AUDIO
OUT
(OPTICAL)
8
if none of the ports above can be used, the last available option is the 3.5mm head
phone jack. The ports might look like this, if you have this port go to the “3.5mm Cord
Install” in this manual.
for this connection type: If you connect the 3.5mm audio cord to the Headphone port
on your tv, the sound from the speakers on the TV will be muted.
AUDIO
OUT
9

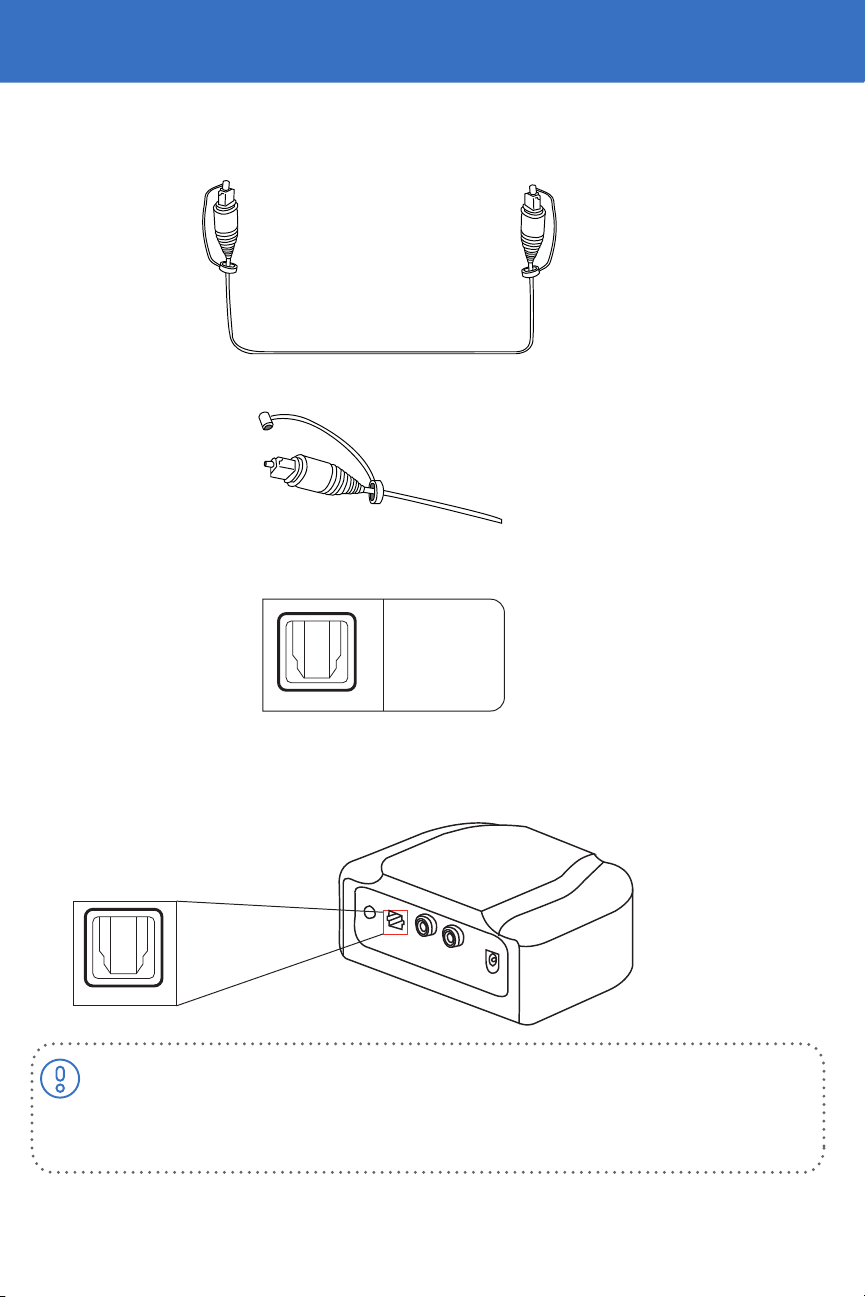

2) Plug one end of the optical cable into the DIGITAL AUDIO out you located
on the TV, satellite or cable box.
3) Plug the other end of the optical cable into the DIGITAL input on the back
of the IR Transmitter, you should hear and feel a click when it has been
pushed in all the way.
DIGITAL
AUDIO
OUT
(OPTICAL)
Digital
Optical
This install method will instruct you on how to install the chair speaker using the
Digital Optical cable.
1) Remove plastic cover from both ends of the optical cable.
Optical Install
Some TV’s and devices have an audio setting that set your output
type to “Dolby Digital” or “PCM” . PCM will be the only setting that
will work. Contact your TV manufacturer for assistance on how to
change.
10
Some TV’s and devices have an optional audio setting that may let
you set your output volume level to variable or fixed. If you want to
be able to control your tv volume level separate from you Chair-
Speaker you will need to select FIXED. Contact your TV manufac-
turer for assistance.

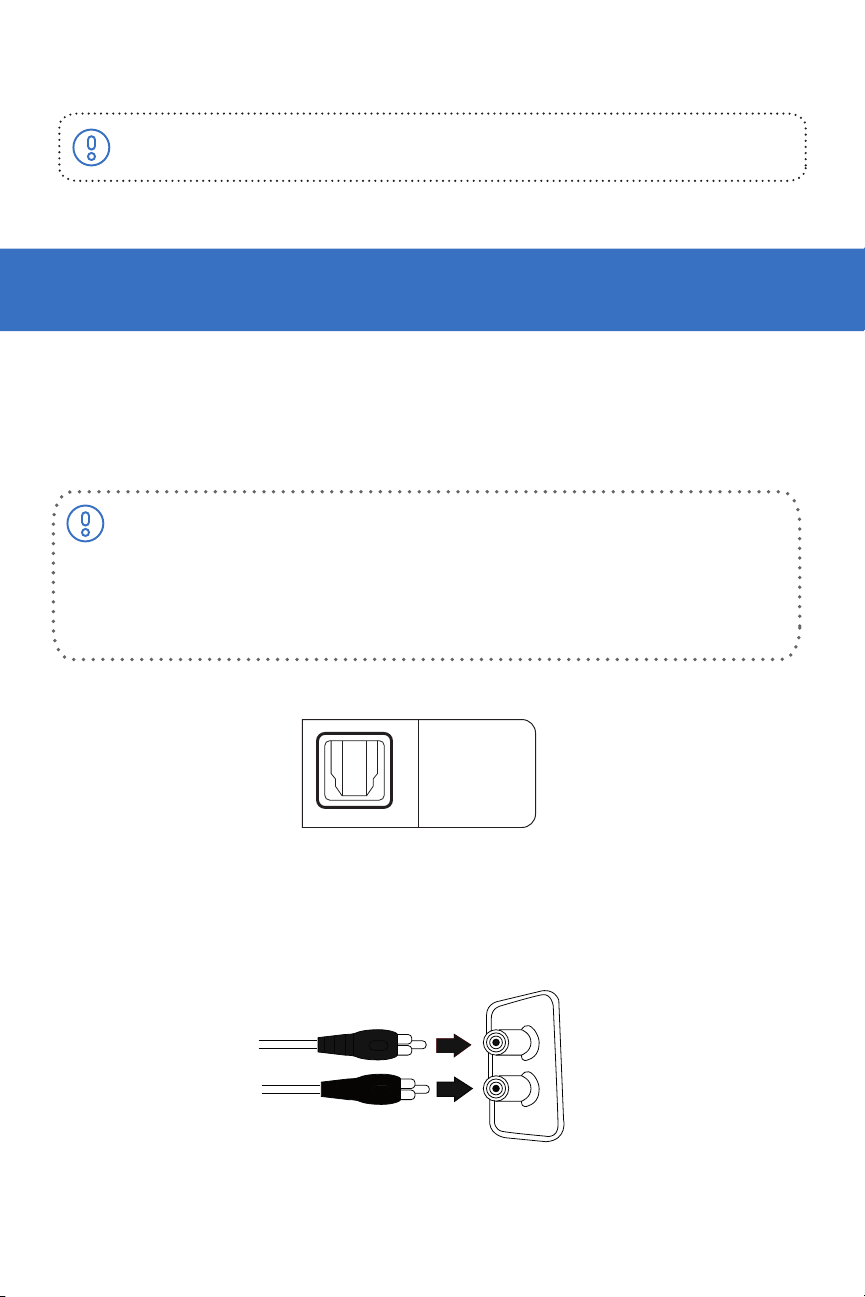

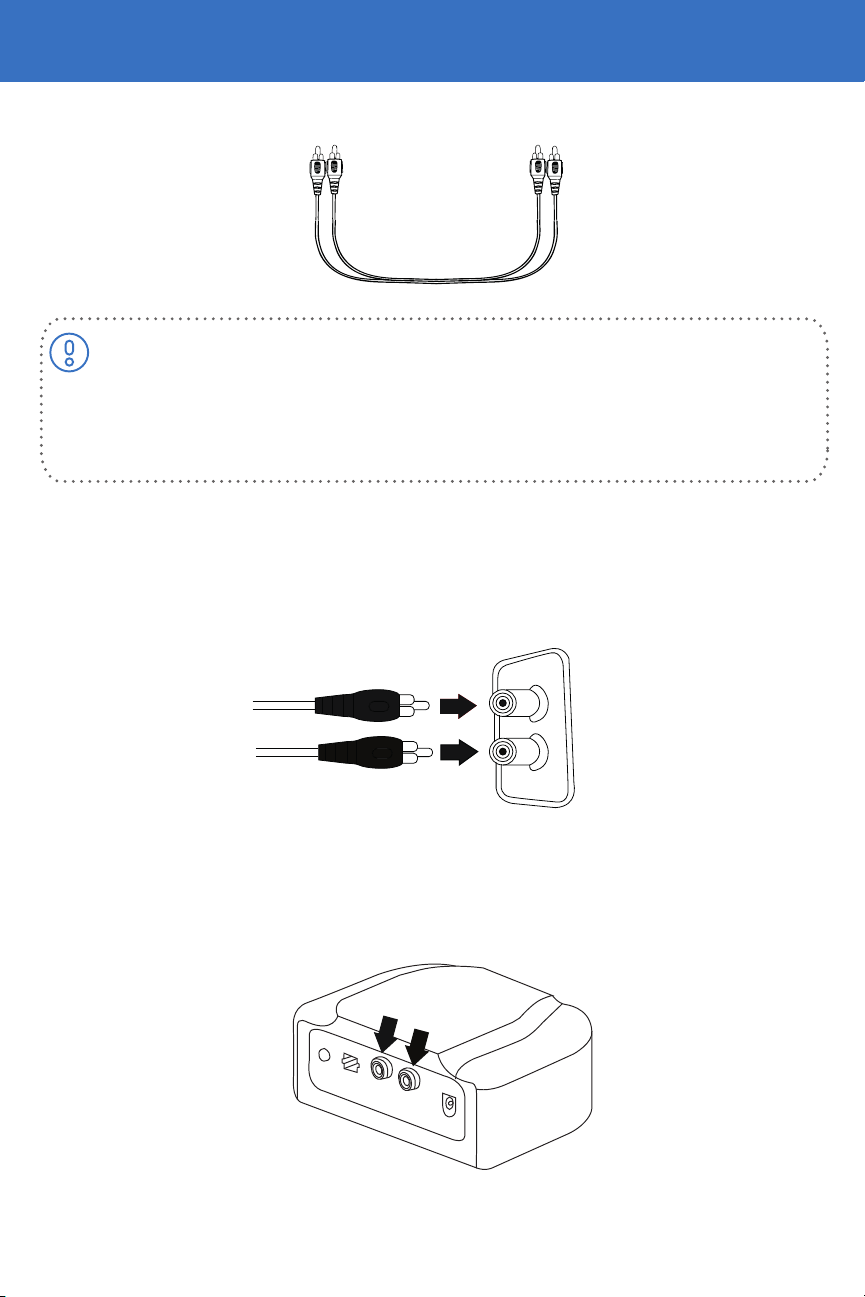

1) Using the RCA AUDIO output found in the earlier step. Plug in both
the red and white into the “AUDIO OUT” port on the back of your TV.
2) Plug the other 2 RCA ends cable ends into the Analog input on the
transmitter.
AUDIO OUT
RCA Install
This install method is for installing with the RCA cord.
11
3.5 MM Cord Install

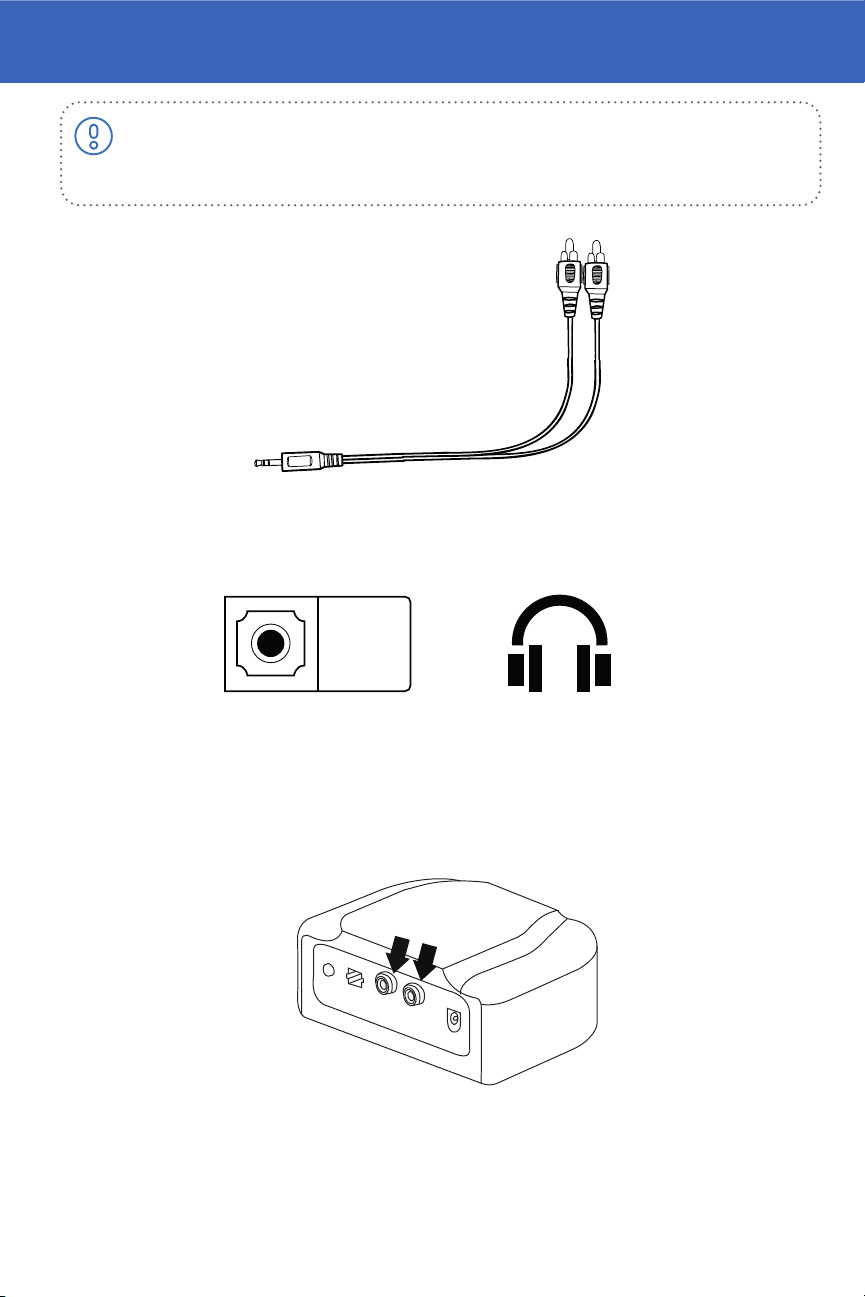

Plug the 3.5mm single end into your audio out port on the back of your
TV.
Plug the other 2 RCA ends cable ends into the L & R on the Analog input
on the back of the IR Transmitter.
for this connection type: If you connect the 3.5mm audio cord to
the Headphone port on your tv, the sound from the speakers on
the TV will be muted.
AUDIO
OUT
12
Using the Speaker
18”
Make sure the side with the power inlet is in your right hand. Standing up
facing your chair lay the ChairSpeaker over the back of your chair and
press the links hard against the chair to conform to the shape of your
chair. Make sure some links go over the back. The rubber will hold on the
service of your chair.

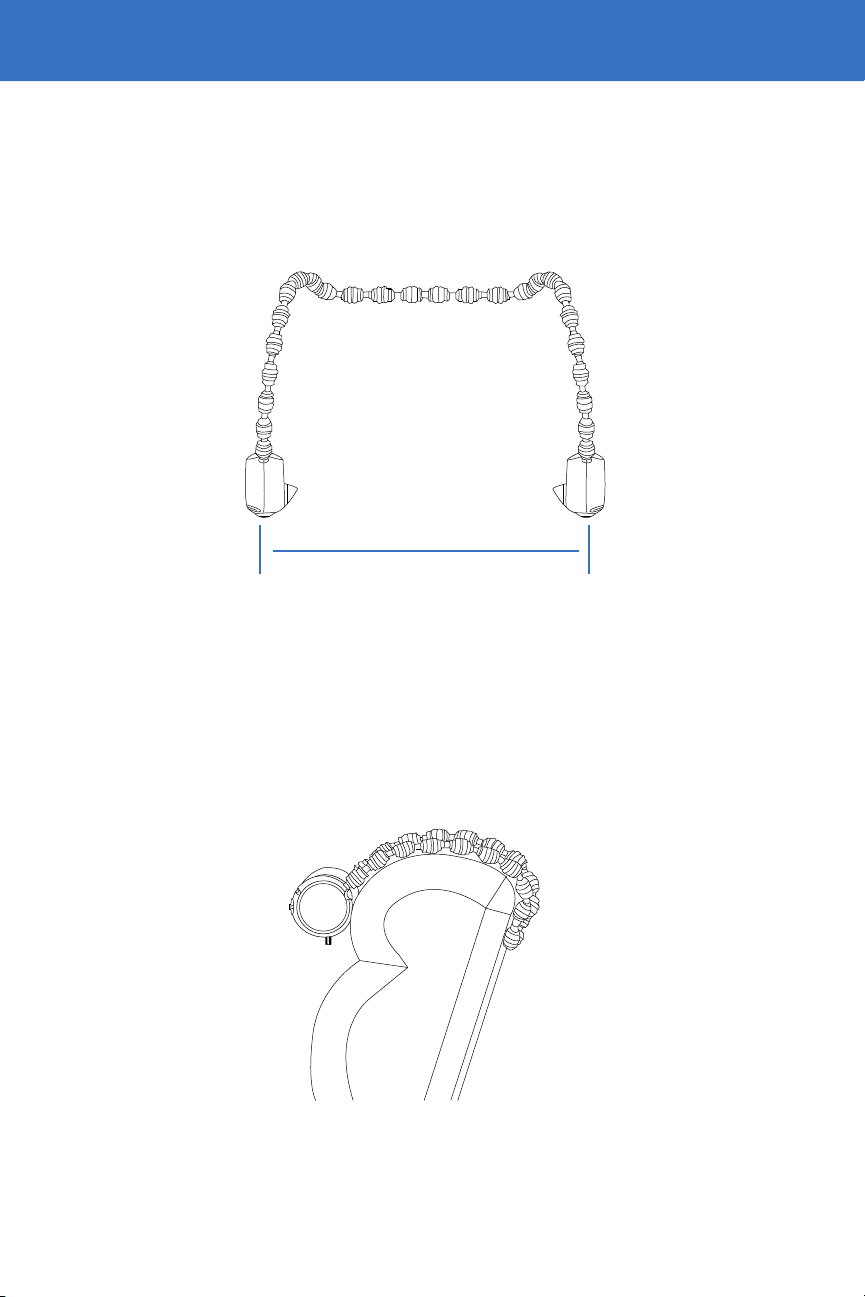

After taking the ChairSpeaker out of the box, form into a U-shape. With
both ends about 18” apart.
ATTACHING TO YOUR CHAIR
13
Adjusting The Sound Zone

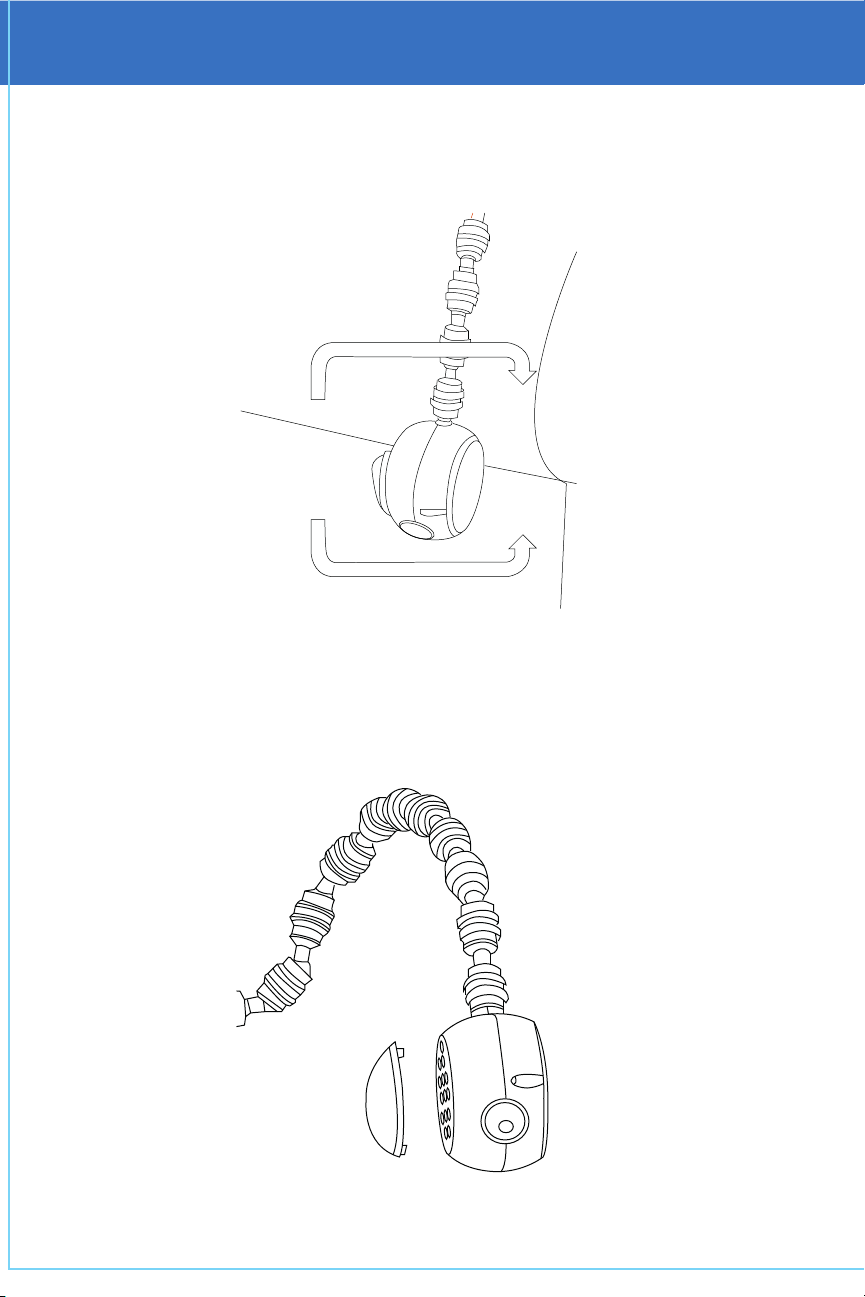

Speaker angle adjustment. The angle of the speakers can be adjusted to
close off the sound zone or open the sound zone. This is done by turning the
ball of the speaker.
Turn the speaker in towards the chair to close of the sound from the room
more. You can increase the volume to the room by turning the ball away
from the chair.
The sound zone can be increased to max by removing the sound cones.
15
Repairs
If you need to repair your speaker for any reason, please call our custom-
er service representatives for troubleshooting assistance. If we are unable
to resolve the problem or if the product needs to be replaced, a Return
Merchandise Authorization (RMA) number will be issued. RMA numbers
allows us to keep track of your product and return it to you quickly. All
returned items must have an RMA number.
Obtain an RMA number by calling Customer Service at 1-888-440-5273
indication light for when power is on.
16
1. How does the ChiarSpeaker work?
The ChairSpeaker has infrared lights on the front of the transmitter which
sends an infrared signal to the receiver in the front of the speaker.
2. Why is the sound so clear?
The ChairSpeaker takes the sound of the television and enhances the
speech frequencies above the background noise, so the dialog is more
clear.
3. Why does my speaker mute when I mute the TV?
When the TV is set to a variable audio out setting, the volume of the Chair-
Speaker will change as the volume of the TV changes. A Fixed audio out
will allow the television volume and ChairSpeaker volume to work inde-
pendently from one another. Some televisions have to be manually
switched from the Variable audio setting to the Fixed audio setting by
using your TV menu. Not all TVs have the ability to switch from a Variable
to a Fixed audio out (consult your television manual or manufacturer).
4. Why do I hear a television station when I’m watching a DVD/video?
When the audio cord is plugged into the analog (RCA) audio out port of a
cable or satellite box AND an analog (RCA) audio out port of a DVD player
or VCR, you must turn off whichever device is not in use.
5. What if no sound is heard through the speaker?
Verify the volume is turned on. Make sure the audio cord is plugged into the
audio port in the television and the AC adapter is plugged into a working
electrical outlet.
6. What does 2.3MHz and 2.8 MHz mean?
2.3MHz and 2.8MHz is the frequency of the infrared signal that is sent by
the transmitter to the speaker. Infrared signals are invisible light signals.
If you have further questions, please call our customer service number
or visit our website, ChairSpeaker.com
FAQ’s
17
Trouble Shooting Guide
LIMITED WARRANTY
For a period of 5 years from the date of purchase KARE, LLC warranties
this product for home use including Speaker, Transmitter and accessories
against defects in material and workmanship. All parts will be replace or
repaired at no charge to the owner. Proof of purchase is required. This
warranty is provided at the discretion of KARE, LLC. And does not cover
cosmetic damage or damage due to acts of nature, accident, misuse,
abuse, negligence or modification.
Our Help Page at CHAIRSPEAKER.COM has more trouble shooting
infomation.
1. You hear static or interference
Check the following.
Is the audio cables plug in correctly?
Is the transmitter plugged into the wall and the power light on?
Is the transmitter pointed towards the ChairSpeaker?
2. The LED’s on the front of my transmitter are not on.
This light is hard to see by the human eye, sometimes if you get in a dark
room you can see the red glow from the LED. If the power light on the back
is on is the transmitter is on.
3. You hear a television station when you watch a DVD or video.
The input source need to be changed by removing a cable and connection-
ing to your DVD player or steaming device.
Please contact customer care if you need help. 1-888-440-5273
Manufacturer Declaration
19
Specifications
Receiver (Speaker) Specifications
Signal Receiving Technology: 2.3MHz & 2.8MHz Infrared Stereo
Effective Distance: 33 feet (10 meters), sensitivity -80dBm
Power Requriuments: Regulated Linear 12v DC @ 1.5A
Output: 3 watt left channel + 3 watt right channel
Signal to Noise Ratio: 70dB
Volume Control: Knob
Power Switch: Volume Knob
Lenght: 60"
Transmitter Specifications
Input Types: Analog RCA, Digital (Toslink) S/PDIF
Signal Transmission Methods: Infrared 850nm, stereo @ 2.3MHz and
2.8MHz
Diode: 18 high speed diodes with 100,000 hour life @ 850nm
Power Requirments: DC 12v @ 1A
Included Accessories Specifications
Fiber Optic Cable: (1) (Toslink) S/PDIF 12ft, 5mm OD, w/strain relief and
gold plated ferrule, black
RCA Cable: (1) 12ft Duel RCA with Red and White Plug M/M, black
3.5mm Cable: (1) 6ft 3.5mm to duel RCA with Red and White Plug, stereo,
Black
Power Supplies: (2) Regulated Linear 12v DC @ 1.5A 10mm L X 3.5mm
OD / 1.3mm ID coaxial plug, Center +, 9 meter lenght, UL, RoHS compliant
Table of contents
