Karmann Colorado User manual

Operating Instructions
Colorado
10.2004

Congratulations on your new Karmann Mobile Home
You have made the right decision, for Karmann has been building mobile homes for more than
100 years. That means quality and reliability. And that is why Karmann is mentioned in the same breath as the best
automobile manufacturers.
We don't simply put any body on any chassis. On the contrary: safe handling can only be achieved if a first-class
chassis from an excellent manufacturer is given an body which is perfectly adapted to it, a body from Karmann-Mobil.
And what about service and replacement parts? Who wants to get stuck somewhere with a broken windscreen?
A network of selected partners will make sure that fast help is available everywhere.
Karmann-Mobil - that means quality, reliability and pleasure for many years ahead.
We wish you a safe and happy journey.
Yours sincerely Karmann-Mobil Vertriebs GmbH

ON-BOARD LITERATURE
These accessories have been especially
developed for your vehicle and tested for
reliability, safety and suitability - please also
note the instructions regarding the basic
chassis.
Detailed assembly and operation instructions
are of course included with these
accessories.
This additional literature contains important
notes for operation and care of your mobile
home as well as for use of its equipment.
The many practical tips included in it are
intended to make it easy for you to use your
Karmann mobile home in the best way
possible, safely and in an environmentally-
friendly way.
In the interests of safety, please read the
information regarding use of the gas
equipment and the 230 Volt vehicle electrical
supply system.
You will find all general information regarding
operation and handling of your vehicle in the
operating instructions for the basic chassis.
Sections with this symbol written in
italics offer important information on
environmental protection
If you wish to equip your mobile home with
special accessories such as bicycle, ski or
surfboard racks or awnings, you should take
advantage of the range on offer from
Karmann Mobil dealers.
Sections introduced by the word
"Caution" and with a coloured
background indicate possible sources of
accident and injury.
Caution

CONTENTS
Overview of equipment
Colorado 550 Exterior 1-1 Interior 1-2
Colorado 600 Exterior 1-3 Interior 1-4
Colorado 650 Exterior 1-5 Interior 1-6
Colorado 660 Exterior 1-7 Interior 1-8
Colorado 625 TI Exterior 1-9 Interior 1-10
Colorado 655 TI Exterior 1-11 Interior 1-12
Colorado 665 TI Exterior 1-13 Interior 1-14
Colorado 675 TI Exterior 1-15 Interior 1-16
Before travelling
Tips for commissioning 2-1
Checklist for the roadworthiness
of your mobile home 2-3
Doors & Windows, Storage space
Keys 3-1
Lock for body door 3-1
Locks for external storage boxes 3-2
Entry 3-2
Opening window 3-3
Sliding window 3-3
Shade and insect blinds 3-4
Toilet roof hatch (if present) 3-5
HEKI1 tilt and slide roof 3-6
Mini HEKI roof hatch 3-7
Furniture
Body table seating group 4-1
Rear table seating group
(Colorado 600, 660) 4-2
Body seating group seat belts 4-2
Safety belts in the rear 4-2
Sleeping in your mobile home 4-3
Alcoves 4-4
Child safety device in the alcove 4-4
Round seating group Colorado 650 4-5
Rotating drivers cab seats 4-6
Cupboards 4-6
Gas equipment
Gas supply 5-1
Heating and hot water supply 5-3
Gas cooker 5-6
Fridge 5-8
Electrical equipment
On-board control panel 6-1
Fuses/safety devices in the living space 6-2
Automatic circuit breaker 230 V 6-2
Charger and battery 6-2
Living space lights 6-4
Rear lights 6-5
Water and waste disposal
Fresh water supply 7-1
Sink with mixer tap 7-3
Washbasin and shower 7-4
Toilet 7-4
Sewage tank 7-6
Waste water tank 7-7
Accessories
Carrier rails 8-1
cycle racks 8-1
Chassis
Low-frame chassis 9-1
Care of the vehicle
Interior 10-1
Exterior 10-2
Notes on operation
Winter 11-1
Immobilisation of vehicle in winter 11-2
Faultfinding and elimination
Gas equipment 12-1
Heating/hot water 12-2
Power supply 12-4
Water supply 12-6
Technical data
Weights 13-1
Dimensions 13-2
Fuel consumption 13-3
List of terms 14-1

Exterior

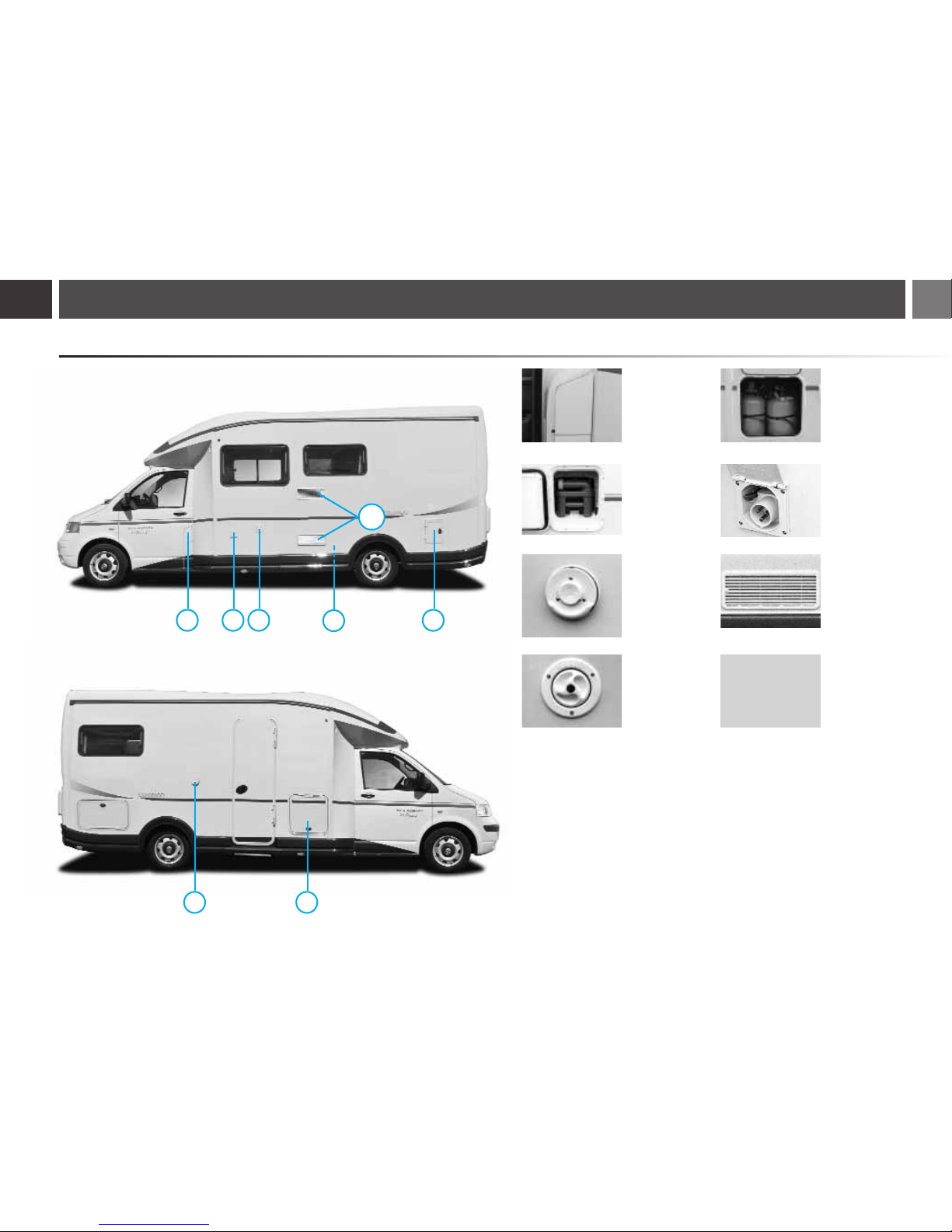

EQUIPMENT OVERVIEW Colorado 550
1-1
1
2
Fuel filler cap
Discharge
flap for
sewage tank
Page 7-6
4Air outlet for
heating
system
5Fresh water
filler nozzle
Page 7-1
7230 V
connector
Page 6-2
6Outside flap
for gas
cylinder box
Page 5-1
3Waste water
discharge tap/
Discharge
fitting
Page 7-7
8Refrigerator
air vent
Page 5-8, 10-2
1 6 7 5 2
8
4
3

Interior

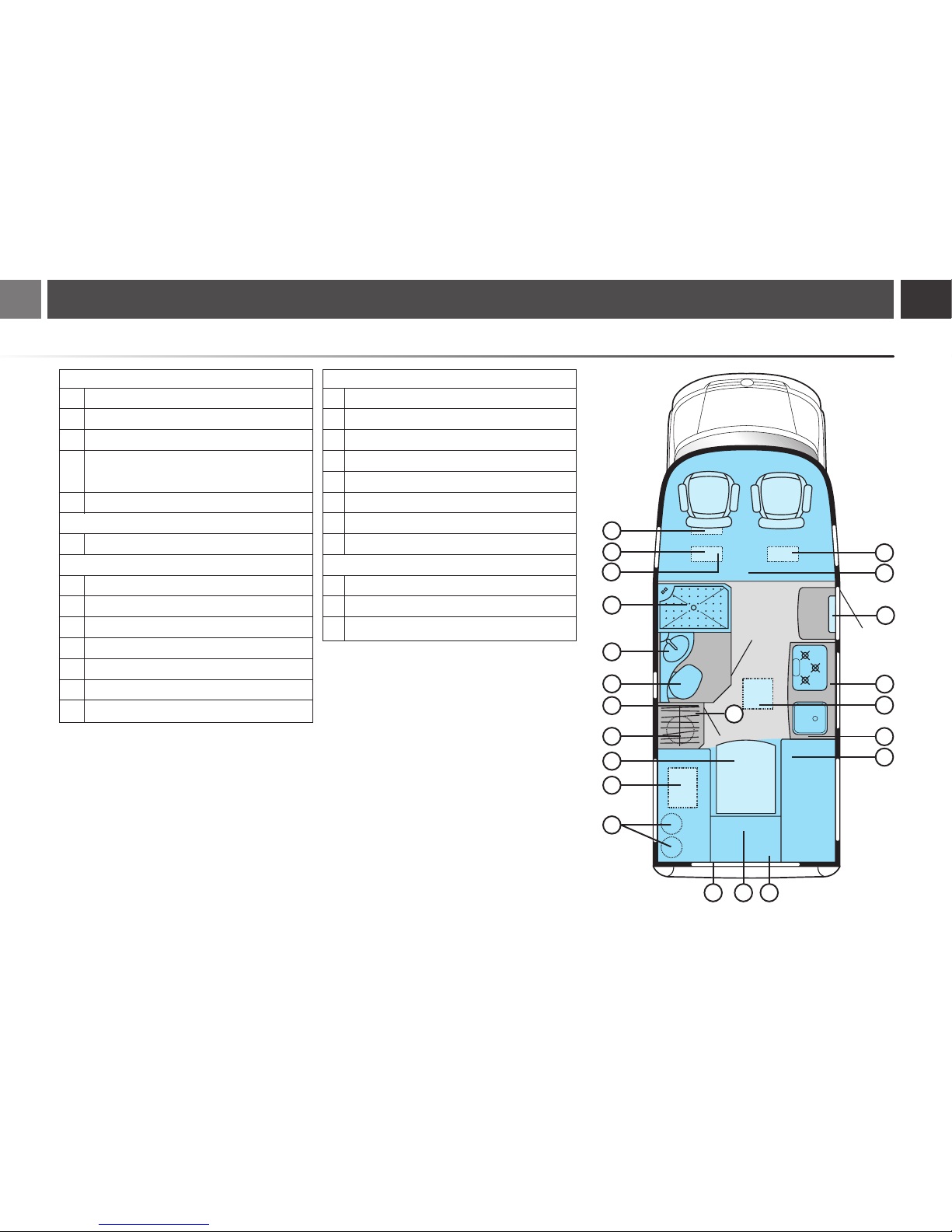

EQUIPMENT OVERVIEW Colorado 550 1-2
8
22
1a
4
3
1
7
2
9
10
14
13
13
6
20
19
11
15
17
5
16
18
12
This list gives you an initial overview of the important components in your mobile home.
More detailed information can be found in the relevant chapters.
Living area Page
13 Seating group
14 Table 4-1
15 Sleeping quarters 4-3
16 Wardrobe
17 Kitchen with
- Gas cooker 5-6
- Sink 7-3
- Refrigerator 5-8
Bathroom and WC
18 Toilet 7-4
19 Washbasin 7-4
20 Shower 7-4
Electrical equipment Page
1Automatic charger 6-2
1a Body battery 6-2
2Bord-Control Panel 6-1
3Netzmatik (automatic
circuit breaker 230 V) 6-2
4Fuses 6-1, 6-2
Gas equipment
5 Shutoff valve 5-1
Supply and disposal
6 Fresh water tank 7-1
7 Waste water tank 7-7
8 Gas cylinders 5-1
9Combi-device Heating/Hot water 5-3
10 Truma valve, electrical 5-4
11 Water pump 7-2
12 Discharge tap, waste water 7-7

Exterior

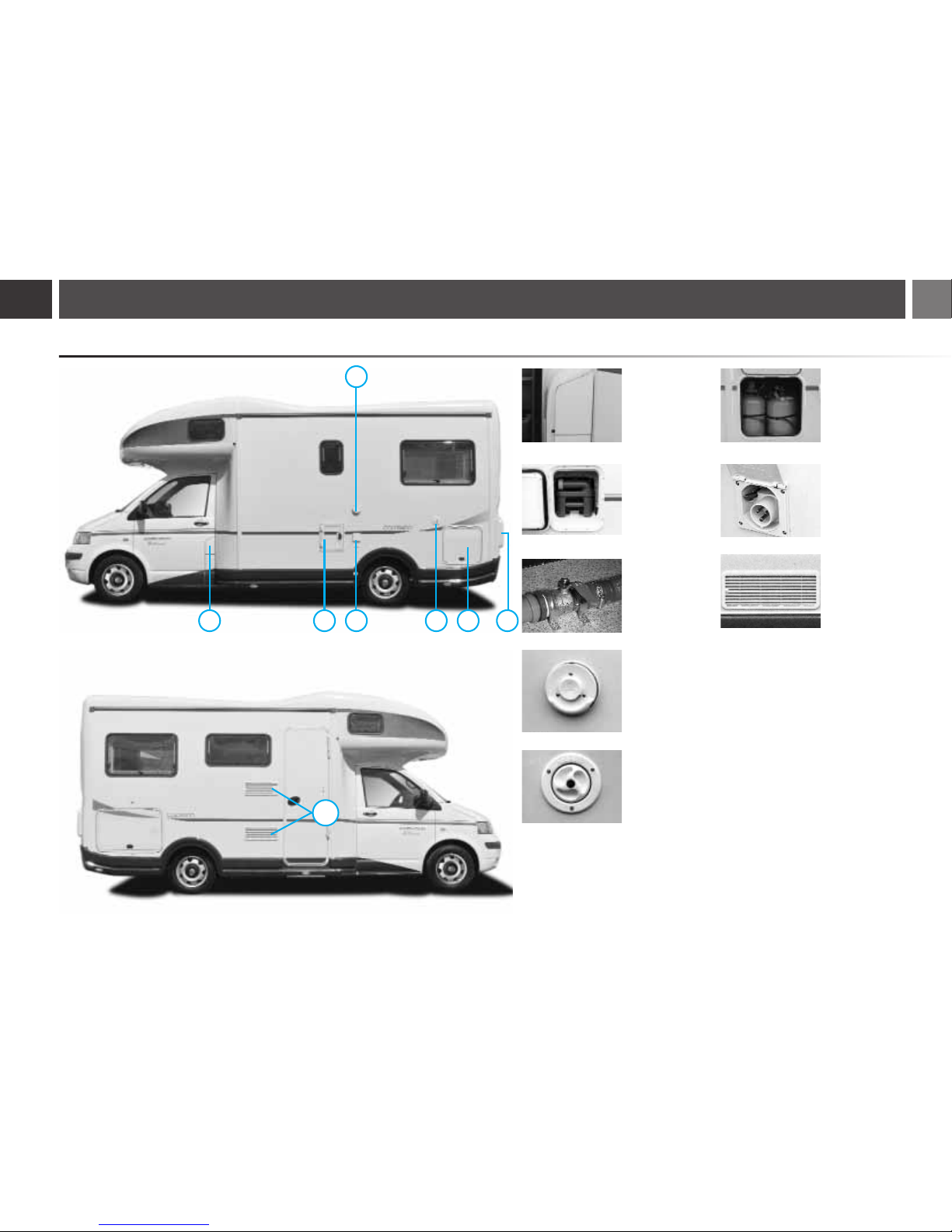

EQUIPMENT OVERVIEW Colorado 600
1-3
1 2 7
4
5 6
8
3
1
2
Fuel filler cap
Discharge
flap for
sewage tank
Page 7-6
4Air outlet for
heating
system
5Fresh water
filler nozzle
Page 7-1
7230 V
connector
Page 6-2
6Outside flap
for gas
cylinder box
Page 5-1
3Waste water
discharge tap/
Discharge
fitting
Page 7-7
8Refrigerator
air vent
Page 5-8, 10-2

Interior
EQUIPMENT OVERVIEW Colorado 600 1-4
15
1a
41
5
12
913
315
17
20
19
18
11
616
7
14
2
10
8
This list gives you an initial overview of the important components in your mobile home.
More detailed information can be found in the relevant chapters.
Living area Page
13 Seating group
14 Table 4-2
15 Sleeping quarters 4-3
16 Wardrobe
17 Kitchen with
- Gas cooker 5-6
- Sink 7-3
- Refrigerator 5-8
Bathroom and WC
18 Toilet 7-4
19 Washbasin 7-4
20 Shower 7-4
Electrical equipment Page
1Automatic charger 6-2
1a Body battery 6-2
2Bord-Control Panel 6-1
3Netzmatik (automatic
circuit breaker 230 V) 6-2
4Fuses 6-1, 6-2
Gas equipment
5 Shutoff valve 5-1
Supply and disposal
6Truma valve, electrical 5-4
7 Fresh water tank 7-1
8 Waste water tank 7-7
9 Discharge tap, waste water 7-7
10 Gas cylinders 5-1
11 Combi-device Heating/Hot water 5-3
12 Water pump 7-2

Exterior
EQUIPMENT OVERVIEW Colorado 650
1-5
1
2
Fuel filler cap
Discharge
flap for
sewage tank
Page 7-6
4Air outlet for
heating
system
5Fresh water
filler nozzle
Page 7-1
7230 V
connector
Page 6-2
6Outside flap
for gas
cylinder box
Page 5-1
3Waste water
discharge tap/
Discharge
fitting
Page 7-7
8Refrigerator
air vent
Page 5-8, 10-2
9Storage space
flap
1 6 7 5 9 3 2
8
4

Interior
EQUIPMENT OVERVIEW Colorado 650 1-6
1a
4
3
1
10
13
14
13
7
12
17
5
11
19 6
15
15
2
16
8
1820
9
This list gives you an initial overview of the important components in your mobile home.
More detailed information can be found in the relevant chapters.
Living area Page
13 Seating group
14 Table 4-1
15 Sleeping quarters 4-3
16 Wardrobe
17 Kitchen with
- Gas cooker 5-6
- Sink 7-3
- Refrigerator 5-8
Bathroom and WC
18 Toilet 7-4
19 Washbasin 7-4
20 Shower 7-4
Electrical equipment Page
1Automatic charger 6-2
1a Body battery 6-2
2Bord-Control Panel 6-1
3Netzmatik (automatic
circuit breaker 230 V) 6-2
4Fuses 6-1, 6-2
Gas equipment
5 Shutoff valve 5-1
Supply and disposal
6Truma valve, electrical 5-4
7 Fresh water tank 7-1
8 Waste water tank 7-7
9 Discharge tap, waste water 7-7
10 Gas cylinders 5-1
11 Combi-device Heating/Hot water 5-3
12 Water pump 7-2

Exterior
EQUIPMENT OVERVIEW Colorado 660
1-7
8
1
2
Fuel filler cap
Discharge
flap for
sewage tank
Page 7-6
4Air outlet for
heating
system
5Fresh water
filler nozzle
Page 7-1
7230 V
connector
Page 6-2
6Outside flap
for gas
cylinder box
Page 5-1
3Waste water
discharge tap/
Discharge
fitting
Page 7-7
8Refrigerator
air vent
Page 5-8, 10-2
1 7 5 2 6
4
3

Interior
EQUIPMENT OVERVIEW Colorado 660 1-8
9
1a
4
3
1
7
5
6
11
12
14
13
13 1314
16
17
15
2
18
19
20
15
8
10
21
This list gives you an initial overview of the important components in your mobile home.
More detailed information can be found in the relevant chapters.
Living area Page
13 Seating group
14 Table 4-1
15 Sleeping quarters 4-3
16 Wardrobe
17 Kitchen with
- Gas cooker 5-6
- Sink 7-3
- Refrigerator 5-8
Bathroom and WC
18 Toilet 7-4
19 Washbasin 7-4
20 Shower 7-4
21 Storage space flap, underfloor
technical equipment area
Electrical equipment Page
1Automatic charger 6-2
1a Body battery 6-2
2Bord-Control Panel 6-1
3Netzmatik (automatic
circuit breaker 230 V) 6-2
4Fuses 6-1, 6-2
Gas equipment
5 Shutoff valve 5-1
Supply and disposal
6Truma valve, electrical 5-4
7 Fresh water tank 7-1
8 Waste water tank 7-7
9 Discharge tap, waste water 7-7
10 Gas cylinders 5-1
11 Combi-device Heating/Hot water 5-3
12 Water pump 7-2

Exterior
EQUIPMENT OVERVIEW Colorado 625 TI
1-9
7
1
2
Fuel filler cap
Discharge
flap for
sewage tank
Page 7-6
3Air outlet for
heating
system
4Fresh water
filler nozzle
Page 7-1
6230 V
connector
Page 6-2
5Outside flap
for gas
cylinder box
Page 5-1
8Waste water
discharge
fitting
Page 7-7
7Refrigerator
air vent
Page 5-8, 10-2
1
3
6 4 5 8 2

Interior
EQUIPMENT OVERVIEW Colorado 625 TI 1-10
1a
41
10
16
5
17
6
3
11
8
19
18
20
9
15
2
14
13
7
12
This list gives you an initial overview of the important components in your mobile home.
More detailed information can be found in the relevant chapters.
Living area Page
13 Seating group
14 Table 4-1
15 Sleeping quarters 4-3
16 Wardrobe
17 Kitchen with
- Gas cooker 5-6
- Sink 7-3
- Refrigerator 5-8
Bathroom and WC
18 Toilet 7-4
19 Washbasin 7-4
20 Shower 7-4
Electrical equipment Page
1Automatic charger 6-2
1a Body battery 6-2
2Bord-Control Panel 6-1
3Netzmatik (automatic
circuit breaker 230 V) 6-2
4Fuses 6-1, 6-2
Gas equipment
5 Shutoff valve 5-1
Supply and disposal
6Truma valve, electrical 5-4
7 Fresh water tank 7-1
8 Waste water tank 7-7
9 Discharge tap, waste water 7-7
10 Gas cylinders 5-1
11 Combi-device Heating/Hot water 5-3
12 Water pump 7-2

Exterior
EQUIPMENT OVERVIEW Colorado 655 TI
1-11
1 6 4 2
7
53
1
2
Fuel filler cap
Discharge
flap for
sewage tank
Page 7-6
3Air outlet for
heating
system
4Fresh water
filler nozzle
Page 7-1
6230 V
connector
Page 6-2
5Outside flap
for gas
cylinder box
Page 5-1
8Waste water
discharge
fitting
Page 7-7
7Refrigerator
air vent
Page 5-8, 10-2
8

Interior
EQUIPMENT OVERVIEW Colorado 655 TI 1-12
1a
41
3
10
2
6
11
16
13
14
7
17
5
19
18
20
15
89
12
This list gives you an initial overview of the important components in your mobile home.
More detailed information can be found in the relevant chapters.
Living area Page
13 Seating group
14 Table 4-1
15 Sleeping quarters 4-3
16 Wardrobe
17 Kitchen with
- Gas cooker 5-5
- Sink 7-3
- Refrigerator 5-8
Bathroom and WC
18 Toilet 7-4
19 Washbasin 7-4
20 Shower 7-4
Electrical equipment Page
1Automatic charger 6-2
1a Body battery 6-2
2Bord-Control Panel 6-1
3Netzmatik (automatic
circuit breaker 230 V) 6-2
4Fuses 6-1, 6-2
Gas equipment
5 Shutoff valve 5-1
Supply and disposal
6Truma valve, electrical 5-4
7 Fresh water tank 7-1
8 Waste water tank 7-7
9 Discharge tap, waste water 7-7
10 Gas cylinders 5-1
11 Combi-device Heating/Hot water 5-3
12 Water pump 7-2

Exterior
EQUIPMENT OVERVIEW Colorado 665 TI
1-13
1 2 546
7
3
1
2
Fuel filler cap
Discharge
flap for
sewage tank
Page 7-6
3Air outlet for
heating
system
4Fresh water
filler nozzle
Page 7-1
6230 V
connector
Page 6-2
5Outside flap
for gas
cylinder box
Page 5-1
8Waste water
discharge
fitting
Page 7-7
7Refrigerator
air vent
Page 5-8, 10-2
8

Interior
EQUIPMENT OVERVIEW Colorado 665 TI 1-14
1a
4
3
1
14
13
7
10
17
6
11
16
15
12
18
20
19
5
2
8/9
This list gives you an initial overview of the important components in your mobile home.
More detailed information can be found in the relevant chapters.
Living area Page
13 Seating group
14 Table 4-1
15 Sleeping quarters 4-3
16 Wardrobe
17 Kitchen with
- Gas cooker 5-6
- Sink 7-3
- Refrigerator 5-8
Bathroom and WC
18 Toilet 7-4
19 Washbasin 7-4
20 Shower 7-4
Electrical equipment Page
1Automatic charger 6-2
1a Body battery 6-2
2Bord-Control Panel 6-1
3Netzmatik (automatic
circuit breaker 230 V) 6-2
4Fuses 6-1, 6-2
Gas equipment
5 Shutoff valve 5-1
Supply and disposal
6Truma valve, electrical 5-4
7 Fresh water tank 7-1
8 Waste water tank 7-7
9 Discharge tap, waste water 7-7
10 Gas cylinders 5-1
11 Combi-device Heating/Hot water 5-3
12 Water pump 7-2

Exterior
EQUIPMENT OVERVIEW Colorado 675 TI
1-15
7
1 5 6 4
2 3
1
2
Fuel filler cap
Discharge
flap for
sewage tank
Page 7-6
3Air outlet for
heating
system
4Fresh water
filler nozzle
Page 7-1
6230 V
connector
Page 6-2
5Outside flap
for gas
cylinder box
Page 5-1
8Waste water
discharge
fitting
Page 7-7
7Refrigerator
air vent
Page 5-8, 10-2
8

Interior
EQUIPMENT OVERVIEW Colorado 675 TI 1-16
1a
41
13
10
14
12
13
7
5
17
6
11
16
19
8/9
15 18
20
3
2
This list gives you an initial overview of the important components in your mobile home.
More detailed information can be found in the relevant chapters.
Living area Page
13 Seating group
14 Table 4-1
15 Sleeping quarters 4-3
16 Wardrobe
17 Kitchen with
- Gas cooker 5-6
- Sink 7-3
- Refrigerator 5-8
Bathroom and WC
18 Toilet 7-4
19 Washbasin 7-4
20 Shower 7-4
Electrical equipment Page
Automatic charger 6-2
1a Body battery 6-2
2Bord-Control Panel 6-1
3Netzmatik (automatic
circuit breaker 230 V) 6-2
4Fuses 6-1, 6-2
Gas equipment
5 Shutoff valve 5-1
Supply and disposal
6Truma valve, electrical 5-4
7 Fresh water tank 7-1
8 Waste water tank 7-7
9 Discharge tap, waste water 7-7
10 Gas cylinders 5-1
11 Combi-device Heating/Hot water 5-3
12 Water pump 7-2
