KB Elements ELK105PF User manual

K
B
www.kbelements.de
Please read this manual carefully and retain for future references.
5 Hobs Induction Cooker + Flex Zone Option
ELK105PF
USER MANUAL
GERMAN STANDARDS
Our self-sufficient induction hob offers numerous advantages. The independence of
each hob enables flexible and individual control of the cooking zones.
This self-sufficiency makes it possible to prepare different dishes at different
temperatures at the same time. In addition, the separate operation facilitates precise
control of each hob.
Our self-sufficient induction hobs therefore offer an efficient and user-friendly solution
for the kitchen, providing maximum flexibility and control over the cooking process.

Thank you for choosing KB ELEMENTS Products, please read carefully
the instructions and precautions indicated in this Manual, and keep it for
future reference.
BEFORE USE
IMPORTANT: The cooking zones will not switch on if pots are not the right size.
Only use pots bearing the symbol “INDUCTION SYSTEM” (Figure below) or enameled pots.
Place the pot on the required cooking zone before switching the hob on.
EXISTING POTS AND PANS
Use a magnet to check if the pot is suitable for the induction hob: pots and pans are
unsuitable if not magnetically detectable.
-Make sure pots have a smooth bottom, otherwise they could scratch the hob. Check dishes.
-Never place hot pots or pans on the surface of the hob’s control panel.
This could result a damage
-The bottom diameter of pots or pans should be at least 10cm.
SAFETY INSTRUCTIONS
This is the warning / caution-safety symbol, regarding safety,
warning of potential risks to users and other.
1.The induction must be unplugged from the outlet before any installation operation.
2.Unplug the Induction Cooker from the outlet if you’re not using it, and wait
until it cools down in order to clean, dry and store.
3.Installation and maintenance must be made by a specialized technician, Incorrect
assembly and improper use can present a risk of electric shock.
4.The usage of accessories or attachments that are NOT recommended by KB ELEMENTS
may cause fire, electric shock or injury.
5.DO NOT USE if the cord or any other part of the appliance has been damaged
or dropped, in order to avoid risk of electric shock. If you face any faults, please contact
nearest KB ELEMENTS point of sales.
6.The appliance must be earthed.
7.The power cable must be long enough to connect the induction cooker to the outlet.
8.Do not use multi-sockets or extension cords.
9.For installation to comply with the current safety regulations, an omnipolar switch with
minimum contact gap of 3mm is required.
1
CONTENTS
BEFORE USE
SAFETY INSTRUCTIONS
INSTALLATION
CONTROL PANEL LAYOUT
TEMPERATURE LEVEL TABLE
TECHNICAL INFORMATION
CLEANING
TROUBLESHOOTING GUIDE
AFTER-SALES SERVICE
1
1-2
3
4-5
6
6
7
7
8

INSTALLATION
After unpacking the product, check for any damage during transport. In case of problems,
contact the dealer of KB ELEMENTS.
For built-in dimensions and installation instruction, see images below:
32
10.NEVER pull on the cord; Hold the plug head and unplug it.
11.The electrical parts must not be accessible to the user after installation.
12.NEVER put the induction cooker and cable in water or any other liquid,
to avoid electric shock.
13.The Induction cooker is for domestic indoor use only, DO NOT USE outdoors.
14.The induction and its accessible parts become hot during use, avoid touching
heated elements.
15.Children less than 8 years old shall not use the induction without supervision.
16.Do not touch the induction heated elements during and after use.
17.DO NOT allow the induction cooker to touch wall coverings, clothing, or other flammable
materials during use.
18.Be careful when moving utensils that contain food, water, oil, or other hot liquids.
19.DO NOT place: on or near an oven, gas cylinder, or electric oven, use it on a flat
and heat-resistant surface.
20.This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and knowledge
if they have been given supervision or instruction concerning use of the appliance in a safe
way and understand hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
21.An air switch or circuit breaker (not supplied) should be installed in the compartment
under the appliance.
22.If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.
23.The induction is not intended to be operated by an external timer or separate
remote-control system.
24.Do not use steam cleaners.
25.Metallic objects such as knives, forks, spoons and lids should not be placed
on the hob surface.
CAUTION! Surface remains hot after use! Do not touch the top plate right after
removing the pot or the pan.
-The distance between the underside of the induction and the separator panel
must respect the dimensions given in the image (minimum. 50mm).
-In order to ensure the correct operation of the induction, do not obstruct the
minimum required clearance (minimum 20 mm) on the worktop for air flow out.
-If an under top oven is installed, make sure the oven is equipped with a cooling
system.
-Do not install the hob above a dishwasher or washing-machine.




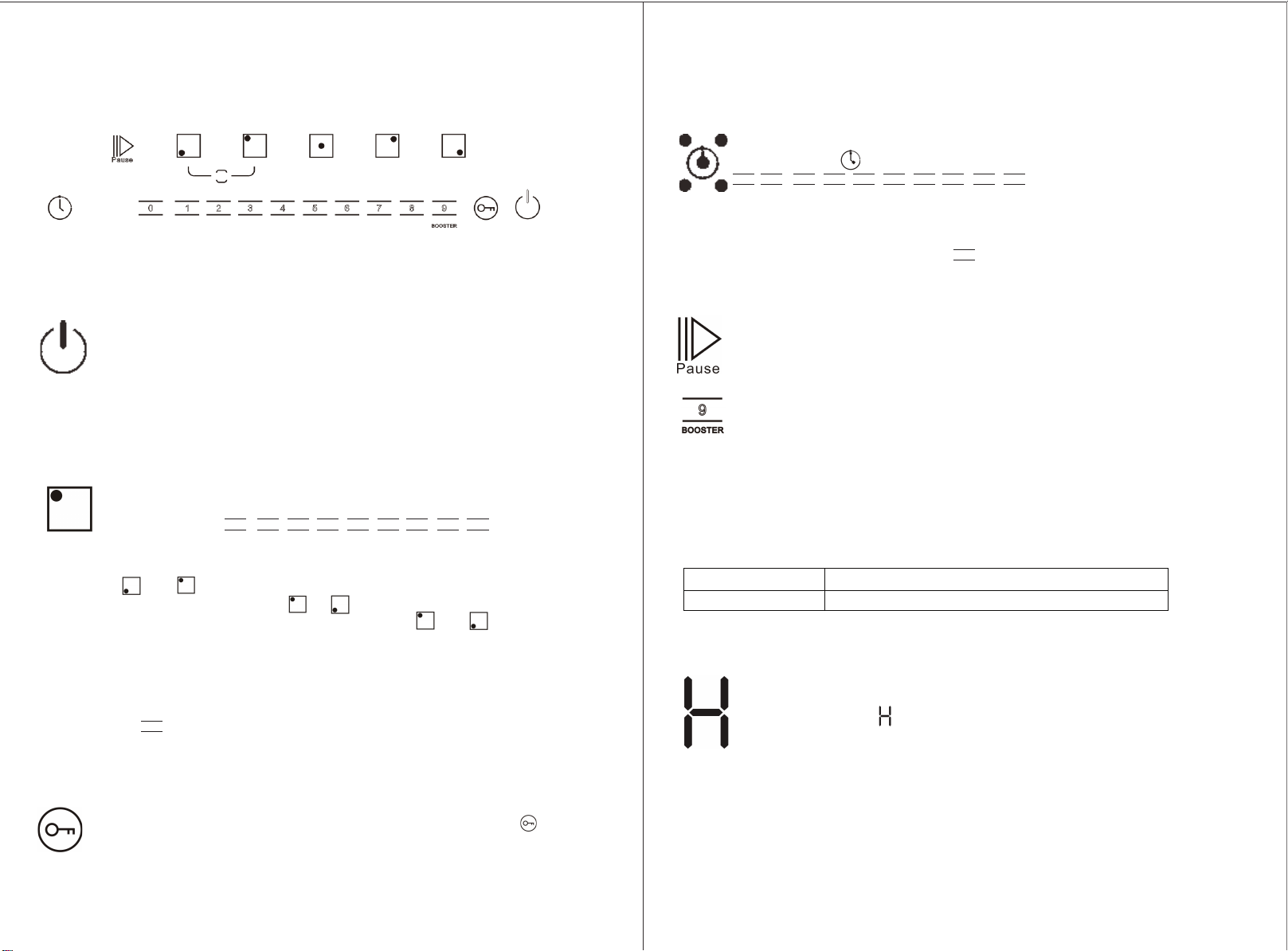

CONTROL PANEL LAYOUT
Switching the hob ON/OFF
Switching on and adjusting cooking zones
Deactivation of cooking zones
Child lock
54
To switch the hob ON, press the button and the cooking zone displays light up.
To switch off, press the same button until the displays switch off. All the cooking
zones are deactivated.
If the hob has been in use, the residual heat indicator “H” remains lit until the
cooking zones have cooled down.
If within 120 seconds of switching on, no heating zone is selected, the hob switches
off automatically.
This function locks the controls to prevent accidental switching on of the hob.
To activate the child lock function, switch on the hob and hold button for 3 seconds;
the timer shows Lo. Then the control panel is locked. To deactivate the control panel
lock, repeat the activation procedure. The Lock goes off and the hob is active again.
Once the hob is switched on and the pan is positioned on the chosen cooking zone,
select the zone using the corresponding button: the display shows level 0.
Each cooking zone has various power levels,
adjustable with the / / / / / / / / buttons,
going from “1”: min. level, to “9”: max. level.
Select the cooking zone you wish to switch off. Press the corresponding button.
Press the key “ ” to set the level to “0”. The cooking zone switches off and the residual
heat indicator “H” lights up.
1
0
2 3 4 5 6 7 8 9
0
10 2 3 4 5 6 7 8 9
Press and in the meantime, the lights will be on and the whole cooking zone
corresponding will be open, press or alone, the lights will be off and only one single
cooking zone corresponding selected, if you press again and in the meantime,
the lights will be off and the whole cooking zone corresponding will be deactivated.
Pause
Auto switch off
Pause-Button: When this button is pressed, the cooktop stops working. Press the
button again and the cooktop begins to work again.
The hob will automatically switch off when you do not set cooking time, forget to switch
off the hob, or do not operate the hob at all. The relationship between the power level
and default switch off time is shown in below figure.
Timer
The timer can be used to set cooking time for a maximum of 99 minutes
(1 hour and 39 minutes) for all cooking zones.
Select the cooking zone to be used with the timer, press the button with
the clock symbol then set the desired cooking time using the
/ / / / / / / / / buttons of the timer function
(see figure). After a few seconds, the timer begins the countdown.
Once the set time has elapsed, an acoustic signal sounds and the hob switches
off automatically.
To deactivate the timer, press the “ ” button to set the display showing “00”
or hold the button with the clock symbol for at least 4 seconds.
Power level
The hob automatically switches off after
1-9
2 hours
CONTROL PANEL WARNINGS
Incorrect or missing pot indicator – Error code “E0”
If you are using a pot that is not suitable,
not correctly positioned or not of the correct dimensions for your induction hob,
the symbol” E0” mean “no pot” will appear in the display (see figure at side). If no pot is
detected within 180 seconds, the hob switches off.
Residual heat indicator
The hob is fitted with a residual heat indicator for each cooking zone.
These indicators alert the user when cooking zones are still hot.
If the display shows , the cooking zone is still hot. If the residual heat
indicator of a given cooking zone is lit, that zone can be used, for example,
to keep a dish warm or to melt butter. When the cooking zone cools down,
the display goes off.
If you press the button, the cooking zone selected will be in level 9, press again
the button, the cooking zone selected will be in booster,
and if you press it again the booster will be deactivated.
Flex
zone

TEMPERATURE LEVEL TABLE
76
TECHNICAL INFORMATION
TROUBLE SHOOTING GUIDE
NOISES MADE BY THE HOB
CLEANING
Note: The data in the table is for guidance only. The relation between the heat setting and the
cooking zone consumption of power is not linear. When you increase the heat setting it is not
proportional to the increase of the cooking zone consumption of power. The power of the
cooking zones can be different in some small range. It changes with the material and
dimensions of the cookware.
Voltage: 220-240V 50/60 Hz
Max. power: 10200W
Left up booster :1800W Left down booster :2200W Flex booster:4000W
Right up booster :2200W Right down booster:1800W Middle booster :2200W
-Read and follow the instructions given in the section “Instructions for use”.
-Check that the electricity supply has not been shut off.
-Dry the hob thoroughly after cleaning it.
-If, when the hob is switched on, alphanumeric codes appear on the display, refer to the
following table for instructions.
-If the hob cannot be switched off after use it, disconnect it from the power supply.
Induction hobs can make whistling or crackling sounds during normal operation, these actually come from the pots and
pans as a result of the characteristics of the bottoms (for example, bottoms made of several layers of material, or uneven
bottoms). These noises vary depending on the pots and pans used and the amount of food they contain, and are not
indicative of a defect of any kind.
In addition, the induction hob is equipped with an internal cooling system to control the temperature of electronic parts;
as a result, during operation and for several minutes after the hob has been switched o, the noise of the cooling fan will
be audible. This is perfectly normal and indeed essential for proper functioning of the appliance.
C/C-C-C-C Error: automatic safety shut-o for liquid overow. This means that the touch panel was watered
with liquid.
-Do not use steam cleaners.
-Before cleaning, make sure the cooking zones are switched off and that the residual
heat indicator (“H”) is not displayed.
IMPORTANT: Do not clean with scrub brushes, Clean the induction with a damp cloth
or a specific hob cleaner.
-Clean the hob (when it is cool) to remove any deposits and stains due to food residuals
after each use.
-Salt, sugar and sand may scratch the glass surface.
Temperature level Type of cooking Level use (Indicating cooking experience and habits)
Max level 9Frying - boiling Ideal for browning, starting to cook, frying deep
frozen products, fast boiling.
High level
7-8 Browning -
sautéing - boiling -
grilling
Browning - cooking -
stewing - sautéing -
grilling
Ideal for sautéing, maintaining a lively boil,
cooking and grilling.
Ideal for sautéing, maintaining a light boil,
cooking and grilling, preheating purposes.
6-7
Medium
level
Low level
Power off
4-5 Cooking - stewing -
sautéing - grilling
Cooking - simmering -
thickening - creaming
Melting - defrosting -
keeping - food warm -
creaming
Support surface
Ideal for stewing, maintaining a gentle boil,
cooking (for a long period of time). Creaming pasta
Hob in stand-by or off mode (possible end-of-
cooking residual heat, indicated by an “H”)
Ideal for long-cooking recipes (rice, sauces, roasts, fish)
with liquids (e.g., water, wines, broth, milk), creaming pasta
3-4
Ideal for long-cooking recipes (less than a liter in volume:
rice, sauces, roasts, fish) with liquids (e.g. water, wines,
broth, milk)
Ideal for softening butter, gently melting chocolate, thawing
small products and keeping just-cooked food warm (e.g., sauces,
soups, minestrone)
Ideal for keeping just-cooked food warm, for creaming risottos
and for keeping serving dishes warm
(With induction-suitable accessory)
2-3
1-2
1
0/H
Error
code
Possible Cause
Remedy
E0
No Pan or did not detect the pan
Put on the pan
E1
Low voltage
Contact the after-sales service and specify the
error code
E2
High voltage
Contact the after-sales service and specify the
error code
E3
Sensor under glass High temperature
or short
Contact the after-sales service and specify the
error code
E4
Sensor under glass open
Contact the after-sales service and specify the
error code
E5
IGBT sensor high temperature or
Short
Contact the after-sales service and specify the
error code
E6
IGBT sensor open
Contact the after-sales service and specify the
error code
E8
Light board line poor connect
Contact the after-sales service and specify the
error code

98
AFTER-SALES SERVICE
Before contacting the After-sales Service:
1. See if you can solve the problem yourself with the help of the “Troubleshooting guide”.
2. Switch the appliance off and then on again to see if the problem has been eliminated.
If the problem persists after the above checks, contact the nearest After-Sales Service.
Always specify:
-a brief description of the fault
-the product type and exact model
-your full address
-your telephone number
If any repairs are required, contact an authorized After-Sales Service Centre
(to ensure the use of original spare parts and correct repairs). Spare parts are available.
